Planet ICA-HM351 Manuel utilisateur

2 Mega-Pixel IR Outdoor PoE IP Camera

ICA-HM351 / ICA-HM312

Quick Installation Guide

Table of Contents

Chapter 1. Introduction .................................................................................... 3

1.1 Before Installation ............................................................................... 3

1.2 System Requirements .......................................................................... 3

Chapter 2. Physical Description and Installation.................................................. 4

2.1 ICA-HM351 2 Mega-Pixel 35M IR Outdoor Box PoE IP Camera................. 4

2.1.1 ICA-HM351 Package Content ....................................................... 4

2.1.2 ICA-HM351 Physical Details......................................................... 4

2.1.3 ICA-HM351 Installation ............................................................... 6

2.2 ICA-HM312 2 Mega-Pixel 25M IR Outdoor Bullet PoE IP Camera.............. 6

2.2.1 ICA-HM312 Package Content ....................................................... 6

2.2.2 ICA-HM312 Physical Details......................................................... 6

2.2.3 ICA-HM312 Installation ............................................................... 8

Chapter 3. Camera Windows Utility ................................................................... 9

Further Information ........................................................................................12

Chapter 1. Introduction

Thank you for purchasing the PLANET 2 Mega-Pixel H.264 IR Outdoor PoE IP

Camera. It is versatile and high image solution of surveillance application for

day and night. The PLANET IP Camera support Multi-Prole function can stands

for simultaneously video streams. These Network Cameras can generate H.264,

MPEG-4 and M-JPEG streaming simultaneously to different clients. Moreover, the

resolution can be different from one client to another. This state-of-art design is

considerable to t in various network environments.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation. This guide shows how to

quick set up the three cameras, unless model name specied terms “IP Camera”

will be used for these three models.

1.2 System Requirements

CPU Intel Dual Core 2.0GHz or higher

RAM 2GB (above Recommended)

Video RAM 128MB (above Recommended)

Display Resolution 1024 x 768 24bits or above

Operating System Windows XP / Vista / Win7

DirectX 10 or above

Network Wired Ethernet 100Base-TX

Chapter 2. Physical Description and Installation

2.1 ICA-HM351 2 Mega-Pixel 35M IR Outdoor Box PoE IP Camera

2.1.1 ICA-HM351 Package Content

ICA-HM351 x 1

Power Adapter x 2

Wall Mounting Kit x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

2.1.2 ICA-HM351 Physical Details

ICA-HM351 Connector

DI/DO, RS-485

Microphone Input

Audio Output

DC Power

(IR and IP Camera)

RJ-45

(PoE, IR and IP Camera)

Reset

Video out (BNC)

DC Power

(Fan and Heater)

Interface Description

DC Power

(Power Jack, IR

and IP Camera)

The input power is DC 12V, 1A.

Note: ONLY use package power adapter supplied with the

internet. Otherwise, the product may be damaged.

RJ-45

(LAN socket,

PoE, IR and IP

Camera )

Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast

Ethernet cabling. This Ethernet port built auto-negotiation

protocol can detect or negotiate the transmission speed

of the network automatically. Please use CAT-5 cable to

connect the Network Camera to a 100Mbps Fast Ethernet

network switch or hub.

Note: ONLY use one power source, either from DC or from

802.3af Power over Ethernet.

Audio Output

(Green, Line Out)

Connect a loud speaker to the IP Camera. This is for voice

alerting and two-way audio.

Microphone Input

(Pink, Audio In) Connect a microphone to the IP Camera.

Video Output

(BNC)

The Network Camera also provides composite video output.

The video output function is only for easy installation to

check view angle and focus. Furthermore, only “720p

Mode” supports this function.

Reset

(Factory Default)

This button is used to restore the all factory default

settings.

DI/DO, RS-485 The 6 pin terminal block includes 1 input ports and 1

output ports, and RS-485 D+ and D-.

DC Power

(Power Jack, Fan

and Heater)

The input power is DC 12V, 1A for Fan and Heater.

Terminal block for I/O connectors:

Name Cable Color Function

12VDC Brown/White DC 12V (50mA maximum)

GND Blue/White GND

D+ Purple/White RS485 data +

D- Gray RS485 data -

DI Green/White Digital signal input

DO Orange/White Digital signal output

2.1.3 ICA-HM351 Installation

1. Fix IR camera to desired location with wall mount xture

2. Plug-in Ethernet Cable into RJ-45 connector

Connect an Ethernet cable to the LAN socket located on the Network Camera’s

back panel and attach it to the network.

3. Connect RS485 D+ and D- (if you need to control PT scanner)

4. Connect the attached power adapters to camera and heater (option/by model)

and plug-in these adapters into power outlet

5. Done

2.2 ICA-HM312 2 Mega-Pixel 25M IR Outdoor Bullet PoE IP Camera

2.2.1 ICA-HM312 Package Content

ICA-HM312 x 1

Power Adapter x 1

Camera Mount Kit x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

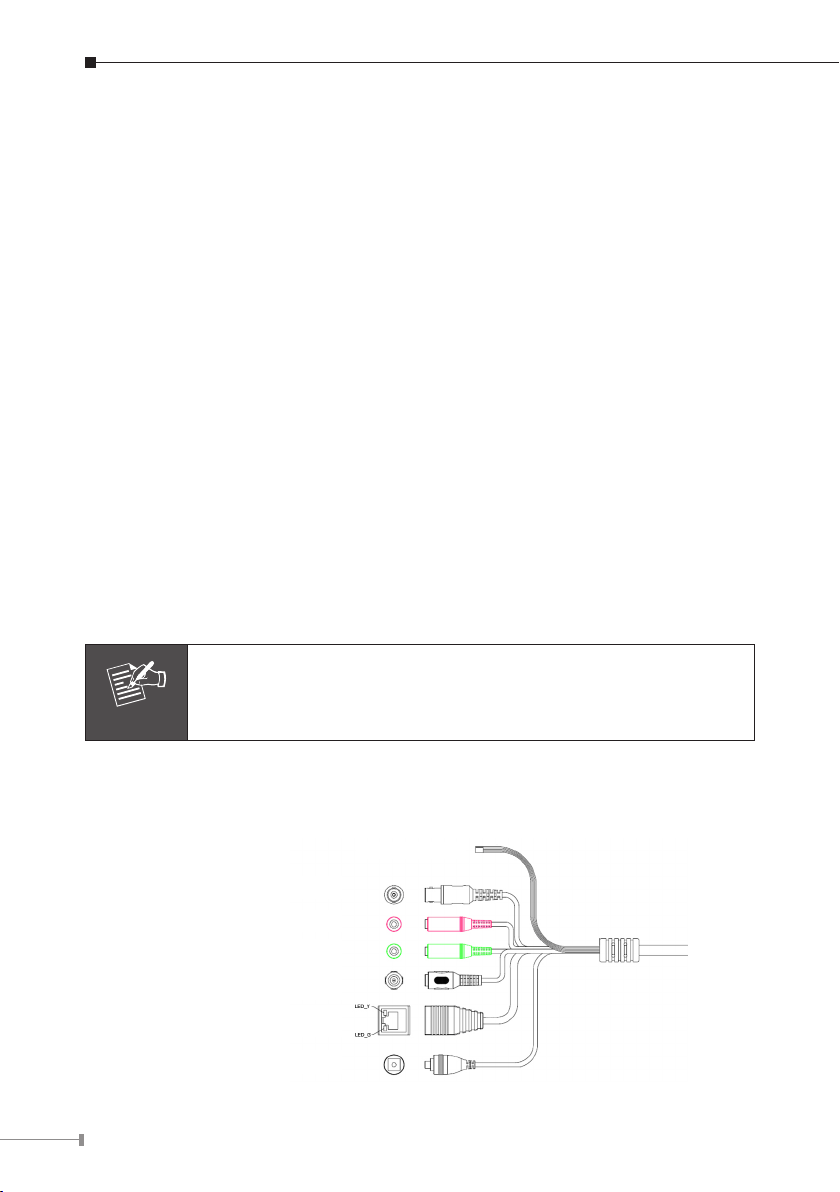

2.2.2 ICA-HM312 Physical Details

ICA-HM312 Connector

DI/DO, RS-485

Microphone Input

Audio Output

DC Power

RJ-45 (PoE)

Reset

Video Output (BNC)

Interface Description

DC Power

The input power is DC 12V, 1A.

Note: ONLY use package power adapter supplied with the

internet. Otherwise, the product may be damaged.

RJ-45

(LAN socket,

PoE )

Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast

Ethernet cabling. This Ethernet port built auto-negotiation

protocol can detect or negotiate the transmission speed

of the network automatically. Please use CAT-5 cable to

connect the Network Camera to a 100Mbps Fast Ethernet

network switch or hub.

Note: ONLY use one power source, either from DC or from

802.3af Power over Ethernet.

Audio Output

(Green, Line Out)

Connect a loud speaker to the IP Camera. This is for voice

alerting and two-way audio.

Microphone Input

(Pink, Audio In) Connect a microphone to the IP Camera.

Video Output

(BNC)

The Network Camera also provides composite video output.

The video output function is only for easy installation to

check view angle and focus. Furthermore, only “720p

Mode” supports this function.

Reset

(Factory Default)

This button is used to restore the all factory default

settings.

DI/DO, RS-485 The 6 pin terminal block includes 1 input ports and 1

output ports, and RS-485 D+ and D-.

Terminal block for I/O connectors:

Name Cable Color Function

12VDC Brown/White DC 12V (50mA maximum)

GND Blue/White GND

D+ Purple/White RS485 data +

D- Gray RS485 data -

DI Green/White Digital signal input

DO Orange/White Digital signal output

2.2.3 ICA-HM312 Installation

1. Fix IR camera to desired location with wall mount xture

2. Plug-in Ethernet Cable into RJ-45 connector

Connect an Ethernet cable to the LAN socket located on the Network Camera’s

back panel and attach it to the network.

3. Connect RS485 D+ and D- (if you need to control PT scanner)

4. Connect the attached power adapters to camera and heater (option/by model)

and plug-in these adapters into power outlet

5. Done

Chapter 3. Camera Windows Utility

This chapter shows how to quick set up your 2 Mega-Pixel H.264 IR Outdoor PoE

IP Camera. The 2 Mega-Pixel H.264 IR Outdoor PoE IP Camera is with the default

settings. However to help you nd the networked camera quickly the windows

utility (PLANET IPWizard II) can search the IP cameras in the network that shall

help you to congure some basic setting before you started advanced management

and monitoring.

Please insert the bundle CD disk into your CD/DVD-ROM drive. When the welcome

web page appears, please click your IP camera name on the IP camera list. Then

click the PLANET IPWizard II hyperlink to start the PLANET IPWizard II.

Search function:

Press “Search” button. PLANET IPWizard II will list all networked devices in the

LAN. If the IP camera doesn’t be found, you may check this IP camera is connect

to network properly and press the search button again.

View function:

If PLANET IPWizard II nds network devices, View button will be available. Please

select the device you want to view and click the View button. Furthermore you

could double click the left button of mouse to link to the network device by

browser.

LAN setting:

The utility featured with “LAN” setting function to help user to modify the IP

parameters of the installed network devices. User can step by step to setup IP

address, username and password.
