Planet ICA-HM317 Manuel utilisateur

3 Mega-Pixel 25M IR Outdoor Bullet PoE IP Camera

ICA-HM317

Quick Installation Guide

Table of Contents

Chapter 1. Introduction .................................................................................... 3

1.1 Before Installation ............................................................................... 3

1.2 System Requirements .......................................................................... 3

Chapter 2. Physical Description and Installation.................................................. 4

2.1 ICA-HM317 3 Mega-Pixel Outdoor IR PoE IP Camera .............................. 4

2.1.1 ICA-HM317 Package Content ....................................................... 4

2.1.2 ICA-HM317 Physical Details......................................................... 4

2.1.3 ICA-HM317 Installation ............................................................... 5

Chapter 3. Camera Windows Utility ................................................................... 6

3.1 ICA-HM317 IP Assignment ................................................................... 6

Further Information ........................................................................................10

Chapter 1. Introduction

Thank you for purchasing the PLANET 3 Mega-Pixel 25M IR Outdoor Bullet PoE

IP Camera. It is versatile and high image solution of surveillance application for

day and night. With user friendly interface, it is an easy-to-use IP camera which is

designed for security application.

The PLANET IP Camera support Multi-Prole function can stands for simultaneously

video streams. These Network Cameras can generate H.264, MPEG-4 and M-JPEG

streaming simultaneously to different clients. Moreover, the resolution can be

different from one client to another. This state-of-art design is considerable to t in

various network environments.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation. This guide shows how to

quick set up the cameras, unless model name specied terms “IP Camera” will be

used for these models.

1.2 System Requirements

CPU Intel Core i3 2.5GHz

RAM 1024MB

Graphic card 128MB

Display Resolution 1024 x 768 24bits

Operating System Windows 2000, XP, 2003, 2008, Vista, Win7

Network Ethernet 10/100Base-TX

Browser Mozilla Firefox, IE7 or above, Chrome, Safari

Chapter 2. Physical Description and Installation

2.1 ICA-HM317 3 Mega-Pixel Outdoor IR PoE IP Camera

2.1.1 ICA-HM317 Package Content

IP Camera Unit x 1

Power Adapter x 1

Stand x 1

Screw Packet x 1

User’s Manual CD-ROM x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

2.1.2 ICA-HM317 Physical Details

Descriptions for I/O cable set:

Item Description

1 - Ethernet Connects to your local area network by Ethernet

cable.

2 - Power DC power input, connect to AC power adapter

3 - RS-485 & digital I/O

RS485D+: red

RS485D-: yellow

Alarm out: green

Sensor in: blue

GND: black

4 – Audio input Connects to audio peripheral for audio input, like

microphone or other audio devices

5 – Audio output

Connects to external audio amplier or speakers

with built-in amplier. May require appropriate audio

jack converter (depends on the type of amplier /

speaker you’re using).

6 – TV output Connects to TV

7 – Reset Reset IP-cam device

Note

Only use package power adapter supplied with the internet. Other-

wise, the product may be damaged.

2.1.3 ICA-HM317 Installation

1. Connect Ethernet cable to IP camera’s Ethernet port.

2. Connect audio peripherals to audio in / audio out port. You can skip this step

if you don’t have audio peripherals.

3. Connect RS-485 peripherals to RS-485 port. You can skip this step if you

don’t have RS-485 peripherals.

4. Connect external video devices or video monitor to video monitor out port. You

can skip this step if you don’t have video peripherals.

**Video monitor output port is useful when you’re installing this IP camera.

5. Connect external I/O devices to DIDO port. You can skip this step if you don’t

have I/O peripherals.

6. Secure this IP camera on tripod or camera stand at the place you wish to install

this IP camera.

7. Connect AC power adapter to DC power input.

If everything’s ok, you should see the left LED light on LAN port light up. If not,

please recheck every step and try again, or ask your dealer of purchase for help.

Chapter 3. Camera Windows Utility

This chapter shows how to quick set up your IP Camera. The IP Camera is with

the default settings. However to help you nd the networked camera quickly

the windows utility (PLANET IP Finder) can search the cameras in the network

that shall help you to congure some basic setting before you started advanced

management and monitoring.

Please insert the bundle CD disk into your CD/DVD-ROM drive. When the welcome

web page appears, please click your IP camera name on the IP camera list. Then

click the PLANET IPFinder hyperlink to start the PLANET IP Finder.

3.1 ICA-HM317 IP Assignment

1. Use “IP Finder” to assign an IP address of IP CAMERA.

The IP Finder software is in the attached CD named “IPFinder.exe”.

2. The GUI of IP Finder is as follows (Default IP: 192.168.0.20).

Pressl‘Discover’ button to search for all IP Cameras on your local network

(make sure all IP Cameras are powered on and connect to local network rst).

When you nd any IP Camera, you can click on it and click ‘Link’ button to

connect to it by your web browser.

If you need to change a certain IP Camera’s IP address, you can also click onl

the IP Camera you wish to change IP address, then click ‘Change IP’ button to

change select IP Camera’s IP address setting.

Please make sure the subnet of PC IP address and IP CAM IP address are thel

same.

For Example:

IP CAM IP address: 192.168.0.20

PC IP address: 192.168.0.100

To Change PC IP addresses:

Control Panel Network Connections Local Area Connection Properties 

Internet Protocol (TCP/IP) Properties

Please make sure your IP Camera and PC have the same Subnet. If not, please

change IP Camera IP subnet or PC IP subnet accordingly.

A quick way to access remote monitoring is to left-click the mouse twice on al

selected IP Camera listed on “Device list” of IP Finder. An IE browser will be

opened.

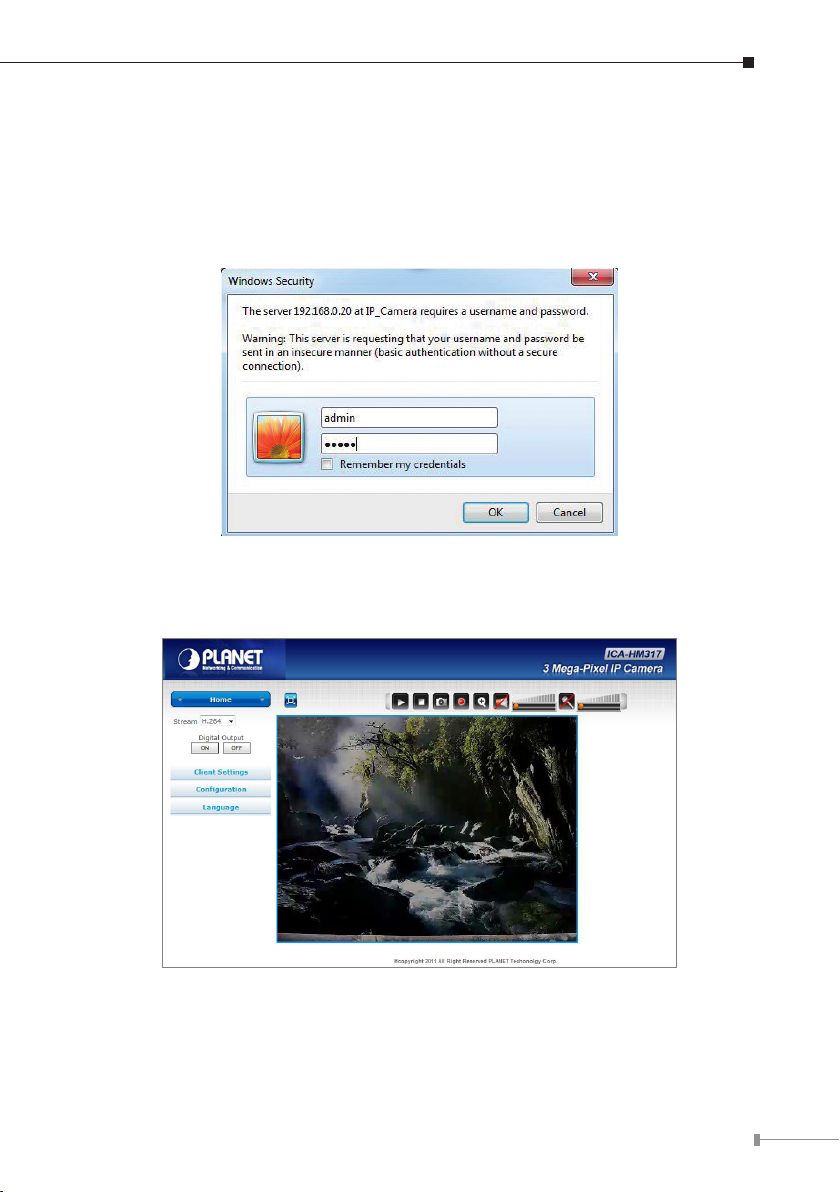

Then, please key in the defaultl“Username: admin” and “Password: admin”

in the following message box.

If the user name and password are input correctly, the following web page willl

be displayed.

Further Information

This guide is used to help you startup your IP Camera settings. It is also

recommended to check the user manual in CD disk for more details of the system

and user conguration.
