Planet ICA-2250VT Manuel utilisateur

Industrial PoE Plus Outdoor IR IP Camera

ICA-2250VT

Quick Installation Guide

Table of Contents

Chapter 1. Introduction.................................................................................... 3

1.1 Before Installation ............................................................................... 3

1.2 System Requirements.......................................................................... 3

Chapter 2. Physical Description and Installation.................................................. 4

2.1 ICA-2250VT Package Contents.............................................................. 4

2.2 ICA-2250VT Physical Details................................................................. 4

2.3 ICA-2250VT Installation ....................................................................... 6

Chapter 3. Camera Windows Utility ..................................................................10

Further Information ........................................................................................14

Chapter 1. Introduction

Thank you for purchasing the PLANET Industrial PoE Plus Outdoor IR IP Camera.

It is versatile and high image solution of surveillance application for day and

night. PLANET ICA-2250VT IP Camera supports multi-prole function that can play

simultaneous video streams. This network camera can generate H.264, MPEG-4

and M-JPEG streaming simultaneously for different clients. Moreover, the resolution

can be different from one client to another. This state-of-art design is considerable

to t in various network environments.

1.1 Before Installation

Before installation, please be sure to read this quick installation guide and user’s

manual (CD) carefully to complete machine installation. This guide shows how to

quickly set up this camera.

1.2 System Requirements

CPU Intel CPU: Intel Core i3-530

RAM 2GB (recommended above)

Video RAM 512MB (recommended above)

Display Resolution 1920 x 1200

Monitoring System Recommended for Internet Explorer 8.0 or later

Operating System Windows XP / Win7

DirectX 10 or above

Network Wired Ethernet 100Base-TX

Chapter 2. Physical Description and Installation

2.1 ICA-2250VT Package Contents

ICA-2250VT x 1l

Wall Mounter x 1

Wall Mounting Kit x 1

User’s Manual CD x 1

Quick Installation Guide x 1

Note

If any of the above items are missing, please contact your dealer

immediately.

2.2 ICA-2250VT Physical Details

Inside View of ICA-2250VT

Focus adjust Zoom adjust Connect to LAN of camera

Provide power to camera, heater,

IR LED and blower

802.3at PoE module

PoE power supply from

802.3at PoE switch

Note

Please don’t change cable to avoid camera malfunction if necessary

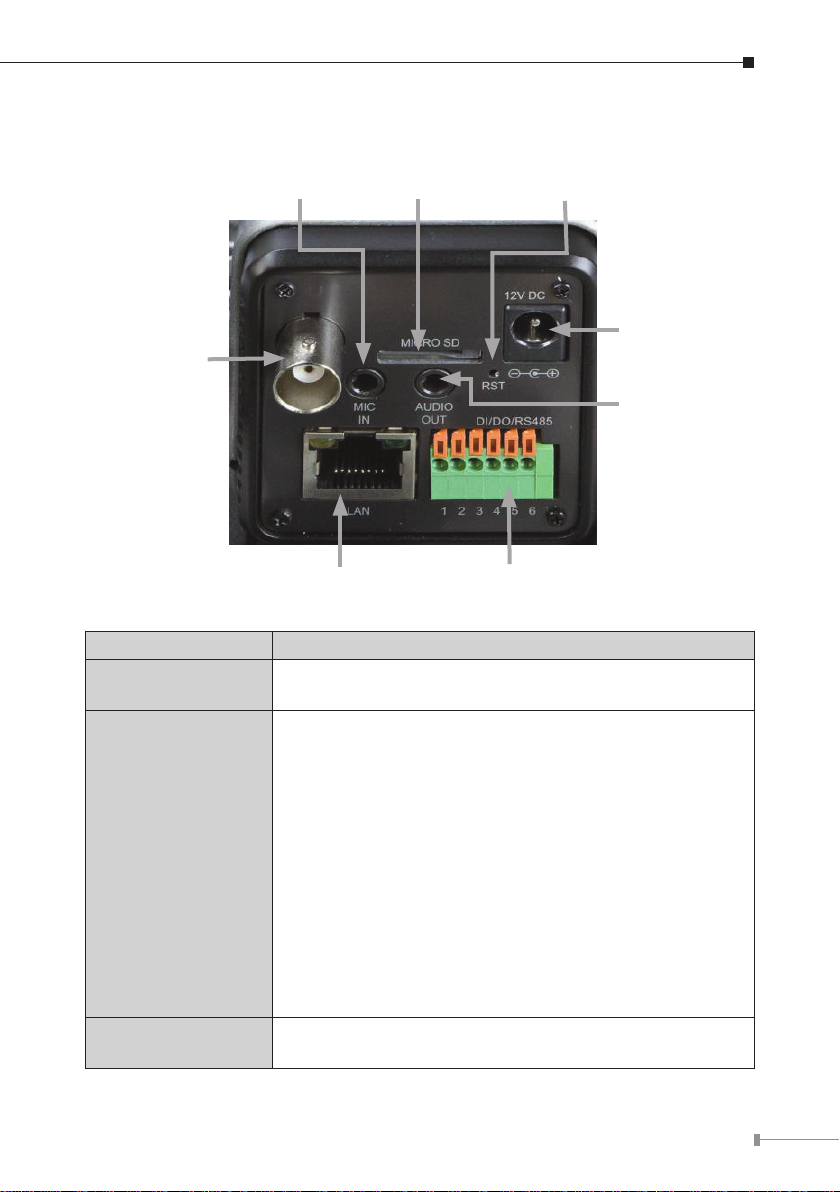

Rear View

Reset button

Power jack

Audio out

Video out

Microphone in Micro SD

card slot

DI/DO connector

LAN connector

Interface Description

DC Power

(Power Jack) The input power is DC 12V, 1A.

Note: The power supply from 802.3at PoE module.

LAN

(RJ-45 socket)

Connect to PC or Switch. (For connection to 10Base-T,

100Base-TX or 1000Base-T Ethernet cabling)

This Ethernet port built auto-negotiation protocol can

detect or negotiate the transmission speed of the network

automatically. Please use CAT-5 cable to connect the

Network Camera to a 100Mbps Fast Ethernet network

switch or hub.

Power LED (orange color)

This LED is used to indicate whether DC power is on or

not.

LAN LED (green color)

This LED will be ashing while network accessing via

Ethernet.

Audio Out

(Audio Output) Connect a loud speaker to the IP Camera. This is for

voice alerting and two-way audio.

Mic In

(Microphone Input) Connect a microphone to the IP Camera.

Micro SD

(Micro SD Card Slot) User can insert a micro SD card into this slot for

recording.

BNC Connector

(Video Output)

The Network Camera also provides composite video

output. The video output function is only for easy

installation to check view angle and focus. Furthermore,

only “720P Mode” supports this function.

RST

(Factory Default) This button is used to restore all the factory default

settings.

DI/DO, RS-485 The 6-pin terminal block includes 1 input port and 1

output port, and RS-485 D+ and D-.

The Camera provides a terminal block with 6 pins of connectors for DI, DO, and

RS485. Please refer below for more information.

Name Number Function

12V DC 1DC 12V (50mA maximum)

DI 2Digital signal input

GND 3GND

DO 4Digital signal output

485+ 5RS485 data +

485- 6RS485 data -

2.3 ICA-2250VT Installation

2.3.1 Take out the ICA-2250VT from the package.

2.3.2 Use the wrench from the wall mounting kit to counterclockwise release the

screw and protective cap.

LAN cable in

I/O, Audio cable

out (Optional)

Counterclockwise

release screw

Counterclockwise

release protective cap

2.3.3 Slide an RJ-45 cable without its plug through the stand and the protective

cap. Then x the RJ-45 plug and connect it to the connector of the PoE

module. Please note that the whole RJ-45 cable (with the plug) cannot go

through the protective cap. When the setup is completed, user can use PoE

tester to test PoE module to check whether the LED works or not.

PoE Module

Protective Cap

Stand

From 802.3at PoE Switch

2.3.4 Use the wrench from the wall mounting kit to clockwise tighten the screw

and protective cap.

Clockwise tighten

screw

Clockwise tighten

protective cap

Note

Two screws of shield will effects camera’s waterproof. Please notice

it.

2.3.5 Use the wrench to tighten the four screws.

2.3.6 After the above steps have been done, place the ICA-2250VT on the wall

with the four screws tightened.

Note

Please make sure the hardware had been located on the wall

properly. If the hardware drops down, it is possible make someone

injury or hurt. Please check the hardware again after the installa-

tion.

2.3.7 Now connect it to 802.3at PoE switch by means of the LAN socket located

on the ICA-2250VT’s back panel via an Ethernet cable to enable to power up

the operation.

2.3.8 Through the search utility, use PLANET IPWizard II to get the IP of the

ICA-2250VT and use browser to connect the ICA-2250VT to the Web.

2.3.9 Adjust zoom and focus of the camera to get a perfect video.

2.3.10 Done.

Chapter 3. Camera Windows Utility

This chapter shows how to quickly set up your Industrial PoE Plus Outdoor IR IP

Camera. The Industrial PoE Plus Outdoor IR IP Camera is with the default settings.

However, to help you nd the networked camera quickly, the windows utility

(PLANET IPWizard II) can search the IP cameras in the network that can help

you to congure some basic setting before you start advanced management and

monitoring.

Please insert the bundled CD disk into your CD/DVD-ROM drive. When the welcome

web page appears, please click your IP camera name on the IP camera list. Then

click the PLANET IPWizard II hyperlink to start the PLANET IPWizard II.

Search function:

Press “Search” button. PLANET IPWizard II will list all networked devices in the

LAN. If the IP camera cannot be found, you may check whether this IP camera is

connected to network properly and press the Search button again.
