Planet HDVR-430 Manuel utilisateur

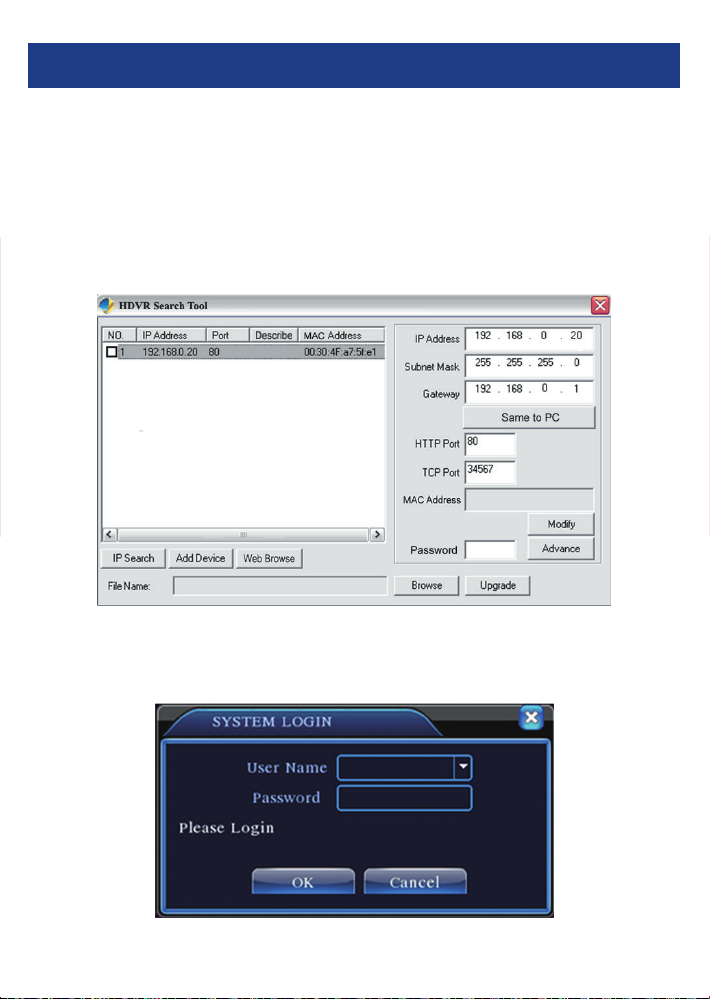

Searching and Login

Please install the utility from the CD and launch it to search the HDVR. After clicking the

IP Search, you can see the HDVR online. The HDVR should be located and its IP address

should be displayed.

If the HDVR is not displayed after the search, you could try to click the Add Device button

to enter the IP address to search it.

Finally, you could double-click the IP address or click the WebBrowse button to enter the

Web UI of the HDVR.

System Login Window

Web UI Login Window

To enter the main menu and set up the HDVR, the default IP address is 192.168.0.20. And

both the default User Name and Password are "admin".

Note

For more detailed information, please refer to the user’s manual on the CD.

Step 3: Please align the screw holes on the HDD with those on the HDVR case and secure

them with the given screws.

Step 4: After the HDD is secured, it should look like the one in the pictures (front and

back) below:

Contents

Quick Installation Guide x 1 Power Adapter x 1 USB Mouse x 1

CD Disk x 1 SATA Cable x 1 Foot Pad x 4

RS485 Connector x 1 SATA Power Cable x 1 Screw Kit x 1

*SATA cable and SATA power cable are included in the HDVR

Hard Disk Installation

Caution

Before installing the HDD, please make sure there is no pre-congured

partition in this HDD. If yes, please delete all the partitions before the

installation.

Step 1: Remove the upper case.

Step 2: Plug the HDD power cable and SATA cable into the slot of the PCBA board and the

HDD, respectively, making sure the connections are well done.

Hardware Connection

HDVR-830

HDVR-430

HDVR-1630

Name Description

V1-V16 Composite video broadcast signal (CVBS) input interface.

A1-A4 The input interface of the audio signal.

A-OUT The output interface of the audio signal.

LAN The network interface of RJ45.

HDMI The output interface of the HDMI video signal.

VGA The output interface of the VGA video signal.

Power 12V DC, 2A

485+/485- The interface of the alarm input, the alarm output and RS485.

Step 3: Please align the screw holes on the HDD with those on the HDVR case and secure

them with the given screws.

Step 4: After the HDD is secured, it should look like the one in the pictures (front and

back) below:

Contents

Quick Installation Guide x 1 Power Adapter x 1 USB Mouse x 1

CD Disk x 1 SATA Cable x 1 Foot Pad x 4

RS485 Connector x 1 SATA Power Cable x 1 Screw Kit x 1

*SATA cable and SATA power cable are included in the HDVR

Hard Disk Installation

Caution

Before installing the HDD, please make sure there is no pre-congured

partition in this HDD. If yes, please delete all the partitions before the

installation.

Step 1: Remove the upper case.

Step 2: Plug the HDD power cable and SATA cable into the slot of the PCBA board and the

HDD, respectively, making sure the connections are well done.

Hardware Connection

HDVR-830

HDVR-430

HDVR-1630

Name Description

V1-V16 Composite video broadcast signal (CVBS) input interface.

A1-A4 The input interface of the audio signal.

A-OUT The output interface of the audio signal.

LAN The network interface of RJ45.

HDMI The output interface of the HDMI video signal.

VGA The output interface of the VGA video signal.

Power 12V DC, 2A

485+/485- The interface of the alarm input, the alarm output and RS485.

Step 3: Please align the screw holes on the HDD with those on the HDVR case and secure

them with the given screws.

Step 4: After the HDD is secured, it should look like the one in the pictures (front and

back) below:

Contents

Quick Installation Guide x 1 Power Adapter x 1 USB Mouse x 1

CD Disk x 1 SATA Cable x 1 Foot Pad x 4

RS485 Connector x 1 SATA Power Cable x 1 Screw Kit x 1

*SATA cable and SATA power cable are included in the HDVR

Hard Disk Installation

Caution

Before installing the HDD, please make sure there is no pre-congured

partition in this HDD. If yes, please delete all the partitions before the

installation.

Step 1: Remove the upper case.

Step 2: Plug the HDD power cable and SATA cable into the slot of the PCBA board and the

HDD, respectively, making sure the connections are well done.

Hardware Connection

HDVR-830

HDVR-430

HDVR-1630

Name Description

V1-V16 Composite video broadcast signal (CVBS) input interface.

A1-A4 The input interface of the audio signal.

A-OUT The output interface of the audio signal.

LAN The network interface of RJ45.

HDMI The output interface of the HDMI video signal.

VGA The output interface of the VGA video signal.

Power 12V DC, 2A

485+/485- The interface of the alarm input, the alarm output and RS485.

Step 3: Please align the screw holes on the HDD with those on the HDVR case and secure

them with the given screws.

Step 4: After the HDD is secured, it should look like the one in the pictures (front and

back) below:

Contents

Quick Installation Guide x 1 Power Adapter x 1 USB Mouse x 1

CD Disk x 1 SATA Cable x 1 Foot Pad x 4

RS485 Connector x 1 SATA Power Cable x 1 Screw Kit x 1

*SATA cable and SATA power cable are included in the HDVR

Hard Disk Installation

Caution

Before installing the HDD, please make sure there is no pre-congured

partition in this HDD. If yes, please delete all the partitions before the

installation.

Step 1: Remove the upper case.

Step 2: Plug the HDD power cable and SATA cable into the slot of the PCBA board and the

HDD, respectively, making sure the connections are well done.

Hardware Connection

HDVR-830

HDVR-430

HDVR-1630

Name Description

V1-V16 Composite video broadcast signal (CVBS) input interface.

A1-A4 The input interface of the audio signal.

A-OUT The output interface of the audio signal.

LAN The network interface of RJ45.

HDMI The output interface of the HDMI video signal.

VGA The output interface of the VGA video signal.

Power 12V DC, 2A

485+/485- The interface of the alarm input, the alarm output and RS485.

Searching and Login

Please install the utility from the CD and launch it to search the HDVR. After clicking the

IP Search, you can see the HDVR online. The HDVR should be located and its IP address

should be displayed.

If the HDVR is not displayed after the search, you could try to click the Add Device button

to enter the IP address to search it.

Finally, you could double-click the IP address or click the WebBrowse button to enter the

Web UI of the HDVR.

System Login Window

Web UI Login Window

To enter the main menu and set up the HDVR, the default IP address is 192.168.0.20. And

both the default User Name and Password are "admin".

Note

For more detailed information, please refer to the user’s manual on the CD.

Searching and Login

Please install the utility from the CD and launch it to search the HDVR. After clicking the

IP Search, you can see the HDVR online. The HDVR should be located and its IP address

should be displayed.

If the HDVR is not displayed after the search, you could try to click the Add Device button

to enter the IP address to search it.

Finally, you could double-click the IP address or click the WebBrowse button to enter the

Web UI of the HDVR.

System Login Window

Web UI Login Window

To enter the main menu and set up the HDVR, the default IP address is 192.168.0.20. And

both the default User Name and Password are "admin".

Note

For more detailed information, please refer to the user’s manual on the CD.

Searching and Login

Please install the utility from the CD and launch it to search the HDVR. After clicking the

IP Search, you can see the HDVR online. The HDVR should be located and its IP address

should be displayed.

If the HDVR is not displayed after the search, you could try to click the Add Device button

to enter the IP address to search it.

Finally, you could double-click the IP address or click the WebBrowse button to enter the

Web UI of the HDVR.

System Login Window

Web UI Login Window

To enter the main menu and set up the HDVR, the default IP address is 192.168.0.20. And

both the default User Name and Password are "admin".

Note

For more detailed information, please refer to the user’s manual on the CD.
