USER’S MANUAL

BBD12

BBD12 12.14

all specifications subject to change without notice

2500 WATTS

12" (305MM) HIGH POWER DVC SUBWOOFER

Technical Support

If you need technical support with your Planet Audio product or have

questions about its use, please contact us:

805.751.4853

www.PlanetAudioUSA.com

Due to ongoing technical advancements, specifications are subject to change without notice

BBD12_1214

Congratulations on your purchase of the Planet Audio Big Bang Subwoofer.

Planet Audio takes great pride in producing products that sound and look great,

but stand up to the daily rigors applied by audio enthusiasts around the world.

BBD12 12” (30.5cm) Subwoofer

 Dual 4 Ω Voice Coils

 2500 W Peak Power Handling

 Dual High Power Voice Coils

 Stitched Foam Surround

Enclosure

The BBD12 is designed to operate in two types of enclosures, sealed and

ported. Since the woofer has pole-vent, it needs a minimum clearance

from the rear wall of the enclosure of 0.75” (19 mm).

Below you will find the dimensions to make the enclosure to suit the

subwoofer, it has been designed for maximum output while retaining

great sound quality.

The dimensions have already accounted for the volume displacement of

the subwoofer, and using 3/4” (19mm) MDF.

All dimensions are external.

External Sealed Dimensions:

Length (L) : 15” (318 mm)

Width (W) : 10.5” (267 mm)

Height (H) : 15” (318 mm)

Min. Internal Volume: 0.65 ft³

Enclosure Dimensions

External Ported Dimensions:

Length (L) : 20” (508 mm)

Width (W) : 17” (432 mm)

Height (H) : 14” (356 mm)

Port Diameter: 4” (102 mm)

Port Length: 15” (381 mm)

Tuning Freq: 35Hz

Min. Internal Volume: 1.6 cu ft.

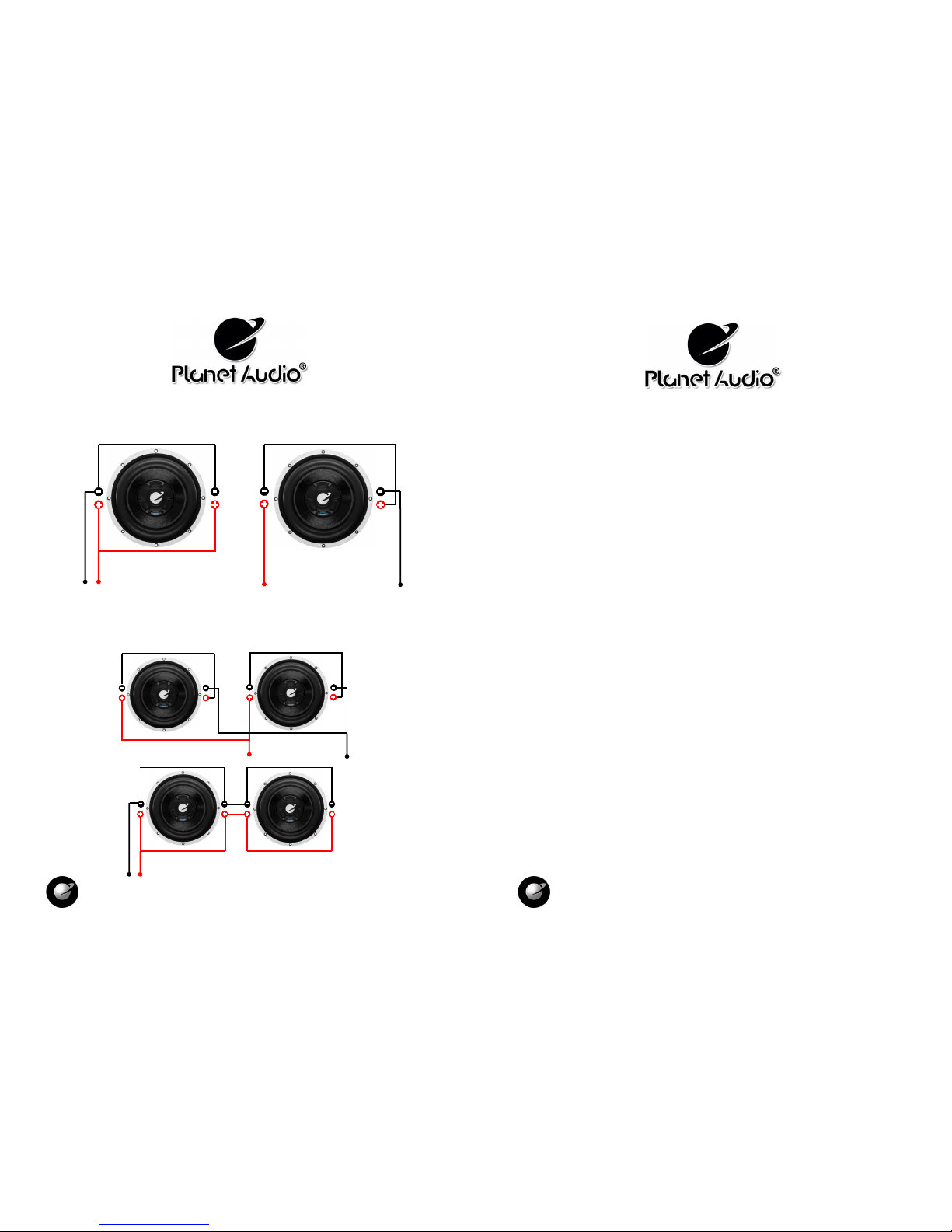

Multiple Subwoofers

8 Ω2 Ω

Wiring Options

Parallel Series

4 Ω

1 Ω

Product Specifications

Impedance

Dual 4 Ω

Resonant Frequency

28 Hz

Qts

0.599

Qms

4.68

Qes

0.687

Vas

1.35 ft³ (38.2 liters)

Xmax

14.3 mm

Sensitivity (1 W/ 1 m)

83 dB

Peak Power Handling

2500 W

Mounting Depth

7-7/8” (200 mm)

Cutout Diameter

11-1/4” (285mm)
