PLANEPRINT Paper plane Manuel utilisateur

PRINTING & ASSEMBLING MANUAL

NOTE:

Slicing works best

with CURA!

www.planeprint.com

the ONLY place where you can get

original Planeprint STL ﬁles legally!

PAPER PLANE 2

PRINTING & ASSEMBLING MANUAL

PLALW-PLA TPU

PLA

LW-PLA

TPU

PAPER PLANE 3

PRINTING & ASSEMBLING MANUAL

RC Components

MOTOR AXI 2203/40 VPP or comparable indoor-20 grams-motors.

31 mm

or comparable indoor-20 grams-motors.

PROP 8x3.8, 8x4.3 or comparable (not the soft indoor props)

BEC-CONTROLLER 15 A (one matching the motor)

RECEIVER 4 Channel

BATTERY 2S Lipo, 900 MaH (ideal weight 45 g, maximum thickness 18 mm, maximum height 30 mm)

SERVOS Hitec HS-55 or similar, 3 pieces

max. 23 mm max. 13 mm

max. 29 mm

Required accessoires – basic equipment

Links to recommended accessories can be found on

www.planeprint.com/paper (scroll down)

• LW-PLA (cannot be replaced by PLA!), ~220 grams

• PLA oder better Tough PLA, ~20 grams

• TPU A95, ~5 grams

• some tapping screws

• CA super glue (liquid and medium)

• CA activator

• Carbon rod Ø1.5*1000mm, 1 piece

• Rod connection 2mm, 6 pieces

• Self adhesive velcro tape

Tools

Cutter knife, small Philips screwdriver, Sandpaper,

Needle nose pliers

Rod connection hole 2mm

Tapping screws 2mm

PAPER PLANE

PRINTING & ASSEMBLING MANUAL

This manual is constantly being improved and supplemented, we recommend downloading

the latest version from our website before building.

To print all PLANEPRINT models you need to set some basic proﬁles in Cura (If you use another

slicer, please set the same parameters).

You can ﬁnd the description at www.planeprint.com/print

For this model you need the following proﬁles:

Printing the parts – Printing proﬁles

The development of a complex, airworthy RC ﬂight model to express on any stan-

dard 3D printer is a very extensive process. Therefore, we appeal to your fairness

not to forward the STL data you have acquired to third parties.

Thank you for your understanding and have fun with your PLANEPRINT MODEL!

PROFILE P5_Gyroid

It is essential for the necessary stability of the LW parts

printed with PROFILE_5 are as stable as possible. Please

use a test part to check the strength by fracture tests. It must

not break along the layer lines under any circumstances! Also

note that the printing temperature for LW-PLA is as low as

possible to obtain a wall thickness of 0.4 to 0.6 mm at a ﬂow

of 60 to 70 % (depending on brand).

Caution: at too high temperatures, LW-PLA becomes

brittle and breaks more easily.

TPU LW-PLAPLA

PAPER PLANE 5

PRINTING & ASSEMBLING MANUAL

P1_Motor mount_pp.stl

MATERIAL PLA, Weight: ~ 5 g

ADDITIONAL SETTINGS

None required

PROFILE P1_Fullbody PLA or Tough PLA

The following parts should be sliced with the PROFILE P1_Fullbody.

Please note the additional settings for the individual parts!

P1_Interconnects_pp.stl

MATERIAL PLA, Weight: ~ 3 g

ADDITIONAL SETTINGS

None required

PAPER PLANE 6

PRINTING & ASSEMBLING MANUAL

P1_Servo mount_pp.stl

MATERIAL PLA, Weight: ~ 3 g

ADDITIONAL SETTINGS

None required

PROFILE P1_Fullbody PLA or Tough PLA

The following parts should be sliced with the PROFILE P1_Fullbody.

Please note the additional settings for the individual parts!

P1_Parts_pp.stl

MATERIAL PLA, Weight: ~ 2 g

ADDITIONAL SETTINGS

None required

PAPER PLANE 7

PRINTING & ASSEMBLING MANUAL

PROFILE P1_Fullbody PLA or Tough PLA

The following parts should be sliced with the PROFILE P1_Fullbody.

Please note the additional settings for the individual parts!

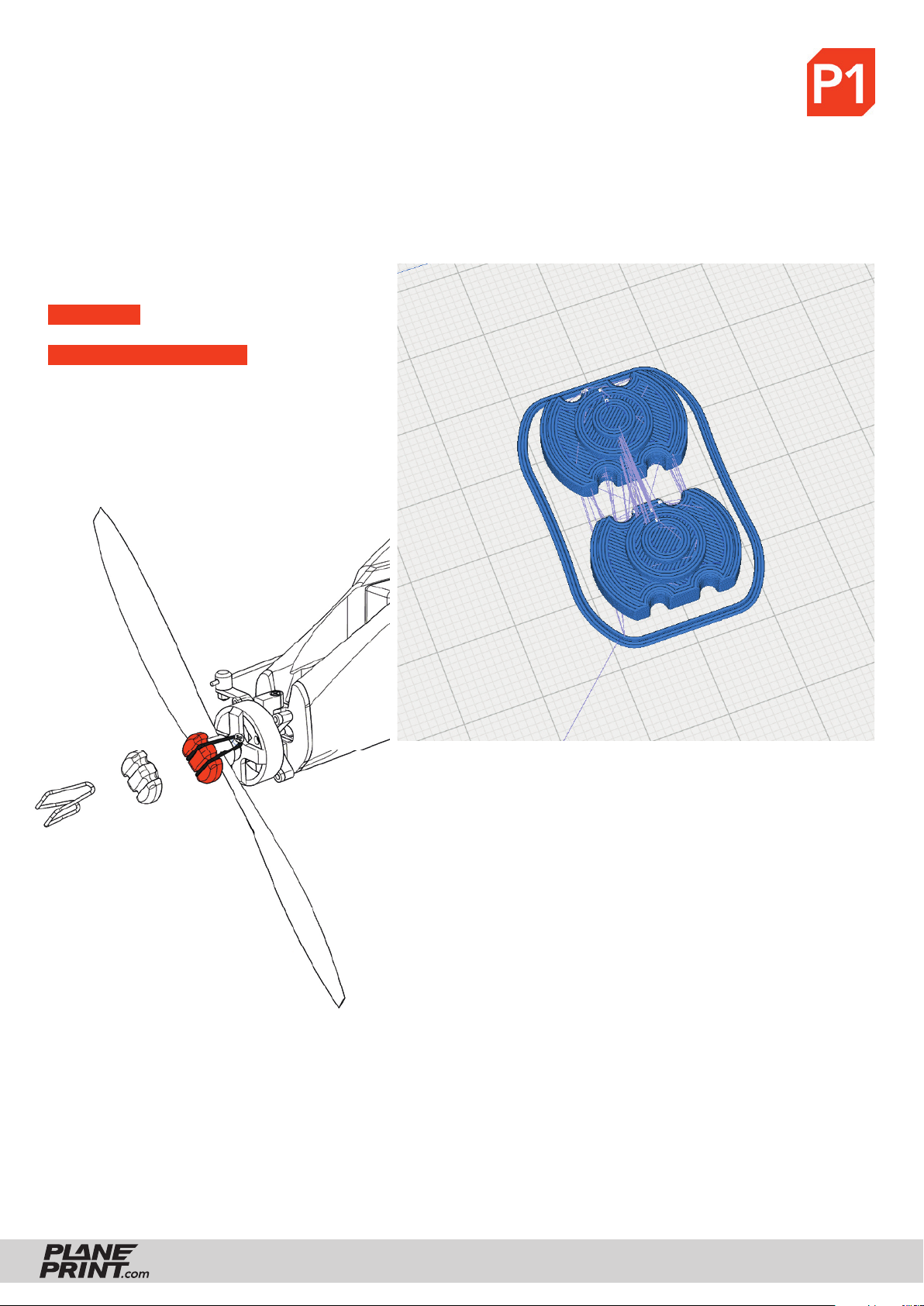

P1_Spinner_pp.stl

MATERIAL PLA, Weight: ~ 3 g

ADDITIONAL SETTINGS

None required

You can optionally use the spinner to increase

the tension of the rubber band for the prop.

Try which spinner ﬁts better on your prop.

PAPER PLANE 8

PRINTING & ASSEMBLING MANUAL

PROFILE P4_Flex

The following parts should be sliced with the PROFILE P4_Flex.

Please note the additional settings for the individual parts!

P4_TPU-Parts_pp.stl

MATERIAL TPU A95, Weight: ~ 2 g

ADDITIONAL SETTINGS

• Inﬁll Density: 100 %

PAPER PLANE 9

PRINTING & ASSEMBLING MANUAL

P5_Aileron L_pp.stl

MATERIAL LW-PLA, ~ 11 g*

*Weighed (approximate guideline)

ADDITIONAL SETTINGS

None required

P5_Aileron R_pp.stl

MATERIAL LW-PLA, ~ 11 g*

*Weighed (approximate guideline)

ADDITIONAL SETTINGS

None required

PROFILE P5_Gyroid Light-Weight LW-PLA!

The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional

settings for the individual parts! It is essential to print these parts with LW-PLA!

Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL

on our website for correct adjustment!

PAPER PLANE 10

PRINTING & ASSEMBLING MANUAL

P5_Delta 1_pp.stl

MATERIAL LW-PLA, ~ 25 g*

*Weighed (approximate guideline)

ADDITIONAL SETTINGS

• Wall Line Count: 2

P5_Delta 2 L_pp.stl

MATERIAL LW-PLA, ~ 17 g*

*Weighed (approximate guideline)

ADDITIONAL SETTINGS

None required

Remove support.

Please be careful with the knife!

PROFILE P5_Gyroid Light-Weight LW-PLA!

The following parts must be sliced with the PROFILE P5_Gyroid. Please note the additional

settings for the individual parts! It is essential to print these parts with LW-PLA!

Basic settings for LW-PLA: Please follow the instructions in our WINGTEST AND CALIBRATION TOOL

on our website for correct adjustment!
