Planar PX1910M Manuel utilisateur

PX1910M

LCD Monitor

USER’S GUIDE

www.planar.com

All manuals and user guides at all-guides.com

all-guides.com

English

Usage Notice

Precautions ................................................................................. 2

Introduction

About the Product ....................................................................... 3

Package Overview ...................................................................... 4

Installation

Product Overview ........................................................................ 5

Connecting the Display ............................................................... 7

User Controls

Front Panel Controls ................................................................... 10

How to Use the OSD Menus........................................................ 11

On-Screen Display Menus .......................................................... 12

Appendices

Troubleshooting .......................................................................... 16

Warning Signal ........................................................................... 17

Product Dimensions .................................................................... 18

Compatibility Modes ................................................................... 19

Pivot Software Installation..............................................................20

Table of Contents

All manuals and user guides at all-guides.com

English 2

Usage Notice

Warning- To prevent the risk of fire or shock hazards, do not

expose this product to rain or moisture.

Warning- Please do not open or disassemble the product as this

may cause electric shock.

Precautions

Follow all warnings, precautions and maintenance as recommended

in this users manual to maximize the life of your unit.

Do:

qTurn off the product before cleaning.

qUse only a dry soft cloth or clean room wiper when cleaning the

LCD panel surface.

qUse a soft cloth moistened with mild detergent to clean the

display housing.

qUse only high quality and safety approved AC/DC power

adapter.

qDisconnect the power plug from AC outlet if the product is not

used for a long period of time.

Dont:

qDo not touch the LCD panel surface with sharp or hard objects.

qDo not use abrasive cleaners, waxes or solvents for your

cleaning.

qDo not operate the product under the following conditions:

- Extremely hot, cold or humid environment.

- Areas susceptible to excessive dust and dirt.

- Near any appliance generating a strong magnetic field.

- Place in direct sunlight.

All manuals and user guides at all-guides.com

English

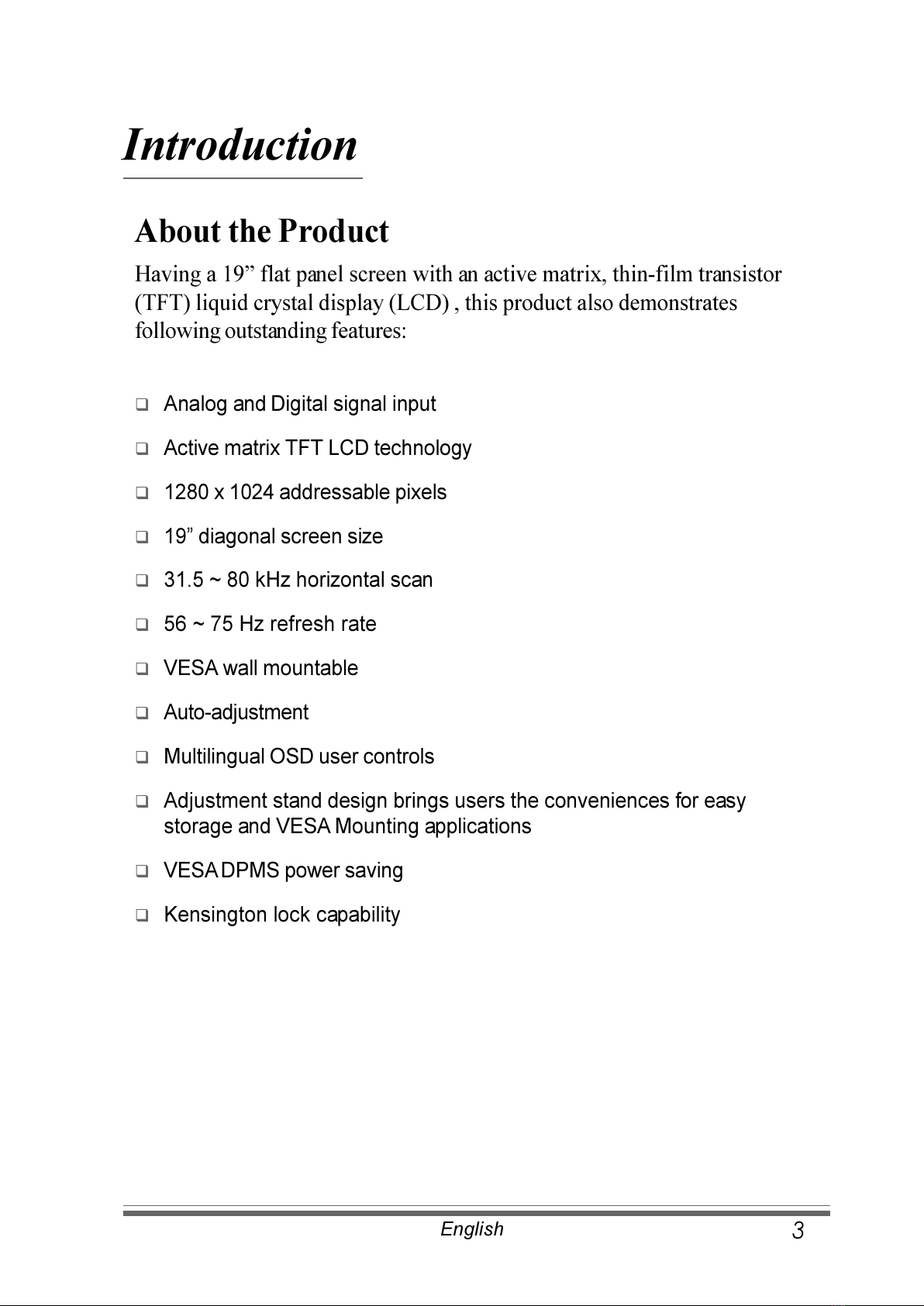

Introduction

About the Product

Having a 19 flat panel screen with an active matrix, thin-film transistor

(TFT) liquid crystal display (LCD) , this product also demonstrates

following outstanding features:

qAnalog and Digital signal input

qActive matrix TFT LCD technology

q1280 x 1024 addressable pixels

q19 diagonal screen size

q31.5 ~ 80 kHz horizontal scan

q56 ~ 75 Hz refresh rate

qVESA wall mountable

qAuto-adjustment

qMultilingual OSD user controls

qAdjustment stand design brings users the conveniences for easy

storage and VESA Mounting applications

qVESADPMS power saving

qKensington lock capability

All manuals and user guides at all-guides.com

English 4

Package Overview

LCD Display

VGA Signal Cable

Power Adapter

Power Cord

DVI-D Cable

Users Manual Quick Start Guide Planar Product

Family CD

CD-ROM for

Pivot software

All manuals and user guides at all-guides.com

English

Installation

Product Overview

uFront View

uRear View

Connector Ports

Kensington Lock

Panel

Controls

Stand

LCDDisplay

VGA Input

Power-In

Digital Port

All manuals and user guides at all-guides.com

all-guides.com

English 6

Warning!

Please must select the proper screws!

The depth from plastic back cover to the bottom of the screw hole is 8mm.

The spec is M4 screw.

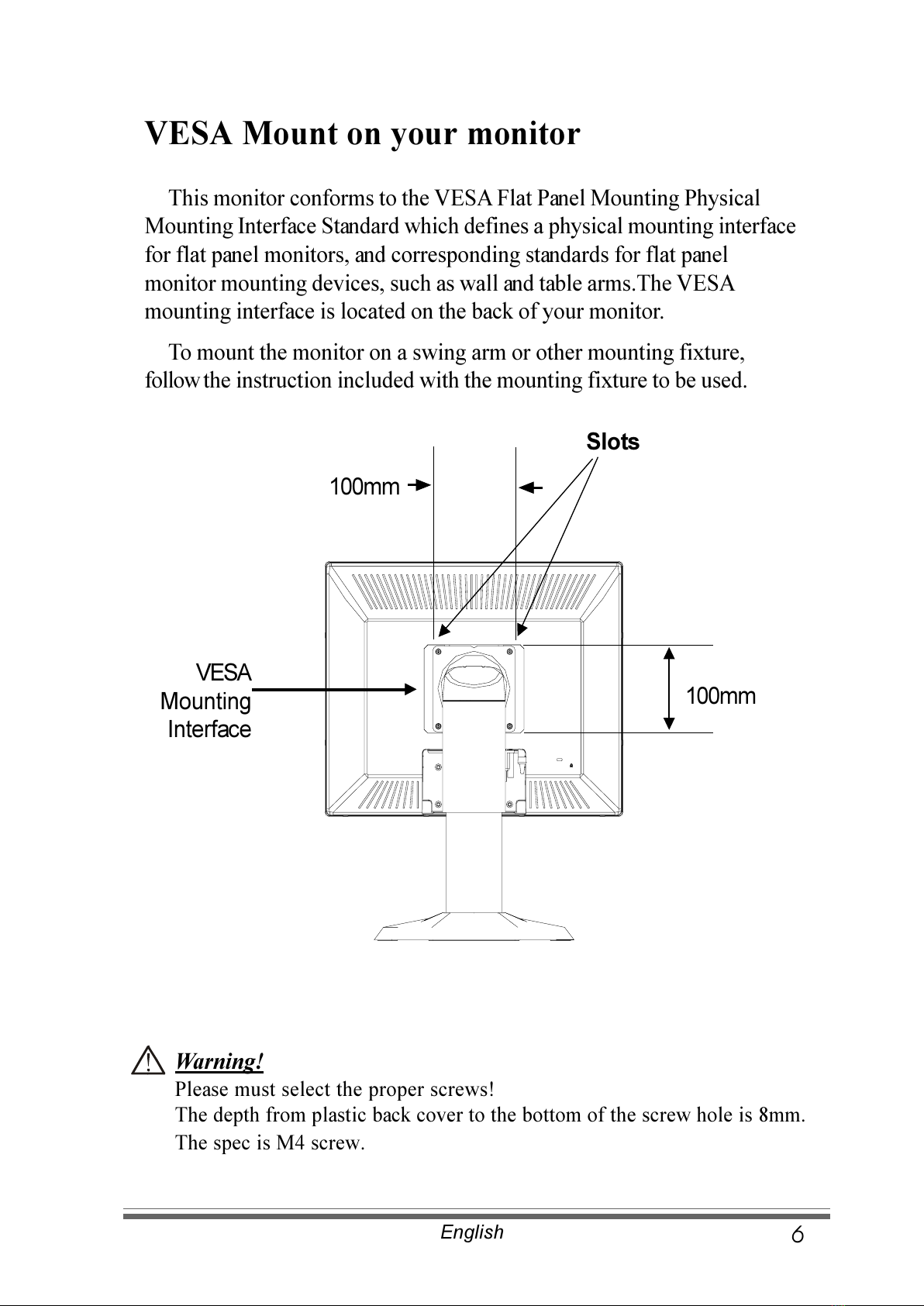

VESA Mount on your monitor

This monitor conforms to the VESA Flat Panel Mounting Physical

Mounting Interface Standard which defines a physical mounting interface

for flat panel monitors, and corresponding standards for flat panel

monitor mounting devices, such as wall and table arms.The VESA

mounting interface is located on the back of your monitor.

To mount the monitor on a swing arm or other mounting fixture,

follow the instruction included with the mounting fixture to be used.

VESA

Mounting

Interface

Slots

100mm

All manuals and user guides at all-guides.com

English

To setup this display, please refer to the following figure and procedures.

1. Be sure all equipments are off.

2. Connect the DC power cord to the power connector; plug one end of the

AC power cord into the power adapter, and then the other end into an

electrical outlet(u).

3. Connect the VGA signal cable from display VGA input connector to the

15-pin connector of your host computer and tighten the screws(v).

4. For the PC with DVI digital output: Connect the DVI signal cable to the

connector of the display card in your computer; connect the other side to

the DVI-D input port of your display. Tighten the screws(w).

5. Turn on your computer and display.

Note: To ensure the LCD display can work well with your computer, please

configure the display mode of your graphic card to make it less than or equal

to 1280 x 1024 resolution and make sure timing of the display mode is

compatible with the LCD display. We have listed the Compatibility Modes

of this LCD display in appendices for your reference.

ConnectingtheDisplay (Figure8.1)

All manuals and user guides at all-guides.com

English 8

Figure 8.1



VGA

Cable



Power Adapter

& Power Cord



DVI-D Cable

All manuals and user guides at all-guides.com
