Planar PLL1910W Manuel utilisateur

www.planar.com

USER'S GUIDE

LCD Monitor

PLL1910W

CMY

planar PLL1910W manual-Cover.pdf 1 2011/10/27 下午 01:19:16

Content

Operation Instructions ............................................................................................................2

Safety Precautions ....................................................................................................................3

First Setup ....................................................................................................................................4

Front View of the Product ......................................................................................................5

Rear View of the Product ........................................................................................................6

Quick Installation ......................................................................................................................7

Basic Operation .........................................................................................................................8

Advanced Operation—OSD Menu ..................................................................................10

Supporting Timing Modes ..................................................................................................12

Technical Information ...........................................................................................................13

Wall-mount instruction ........................................................................................................14

Care and Maintenance ..........................................................................................................15

Troubleshooting .....................................................................................................................15

Product Registration and Technical Support ................................................................16

planar PL2210W manual.indd 1 2011/6/21 下午3:17

Operation Instructions

Thank you for purchasing this TFT LED Monitor, a high-resolution multi-scan color TFT LED

Monitor.

Please read this guide thoroughly before installation.

FCC RADIO FREQUENCY INTERFERENCE STATEMENT

WARNING: (FOR FCC CERTIFIED MODELS)

This TFT LED Monitor has been tested and found compliant with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

proper protection against harmful interference to a residential installation. This TFT LED

Monitor generates, uses, and can radiate radio frequency energy. Harmful interference to

radio communication may be led as a result if it‘s not properly installed and used. However,

there is no guarantee that interference will not occur in a particular installation. If this TFT

LED Monitor does cause serious interference to radio or television reception, resetting the

TFT LED Monitor may determine it. Moreover, users are encouraged to correct interference

by doing one or more of the following:

● Reorient or relocate the receiving antenna.

● Move the TFT LED Monitor and the receiver further away from each other.

●

the receiver is connected.

●

FCC Warning:

To assure a continued FCC compliance, a user must use a grounded power supply cord

and the provided shielded video interface cable with bonded ferrite cores. Also, any

unauthorized changes or modi ations to this TFT LED Monitor would void the user‘s

authority to operate this device.

Note: If necessary, shielded interface cables and AC power cord must be used to meet the

emission level limits.

Important Recycle Instruction:

According to WEEE regulation, this TFT LED Monitor can't be handled as normal

trash in Europe when it is out of usage. Please refer to the recycle information

from our website to handle it.

planar PL2210W manual.indd 2 2011/6/21 下午3:17

LED

Safety Precautions

This TFT LED Monitor is manufactured and tested on a ground principle that a user’s

safety comes rst. However, improper use or installation may result danger to the TFT LED

Monitor as well as to the user. Carefully go over the following WARNINGS before installation

and keep this guide handy.

WARNINGS:

This TFT LED Monitor should be operated only at the correct power sources indicated

on the label on the rear end of the TFT LED Monitor. If you’re unsure of the power

supply in your residence, consult your local dealer or power company.

Do not try to repair the TFT LED Monitor yourself as it contains no user-serviceable

parts. The TFT LED Monitor should only be repaired by a qualied technician.

Do not remove the TFT LED Monitor cabinet. There is high-voltage parts inside that

may cause electric shock to human bodies, even when the power cord is disconnected.

Stop using the TFT LED Monitor if the cabinet is damaged. Have it checked by a service

technician.

Put your TFT LED Monitor only in a clean, dry environment. Unplug the TFT LED

Monitor immediately if gets wet and consult your service technician.

Always unplug the TFT LED Monitor before cleaning it. Clean the cabinet with a clean,

dry cloth. Apply non-ammonia based cleaner onto the cloth, not directly onto the

glass screen.

Keep the TFT LED Monitor away from magnetic objects, motors, TV sets, and

transformer.

Do not place heavy objects on the cable or power cord.

For pluggable equipment the socket-outlet shall be installed near the equipment and

shall be easily accessible.

planar PL2210W manual.indd 3 2011/6/21 下午3:17

First Setup

Congratulations on your purchase of this high performance TFT LED monitor.

This TFT LED Monitor comes with the following accessories :

●LED Monitor

●Power Cable

●VGA Cable (15 pin)

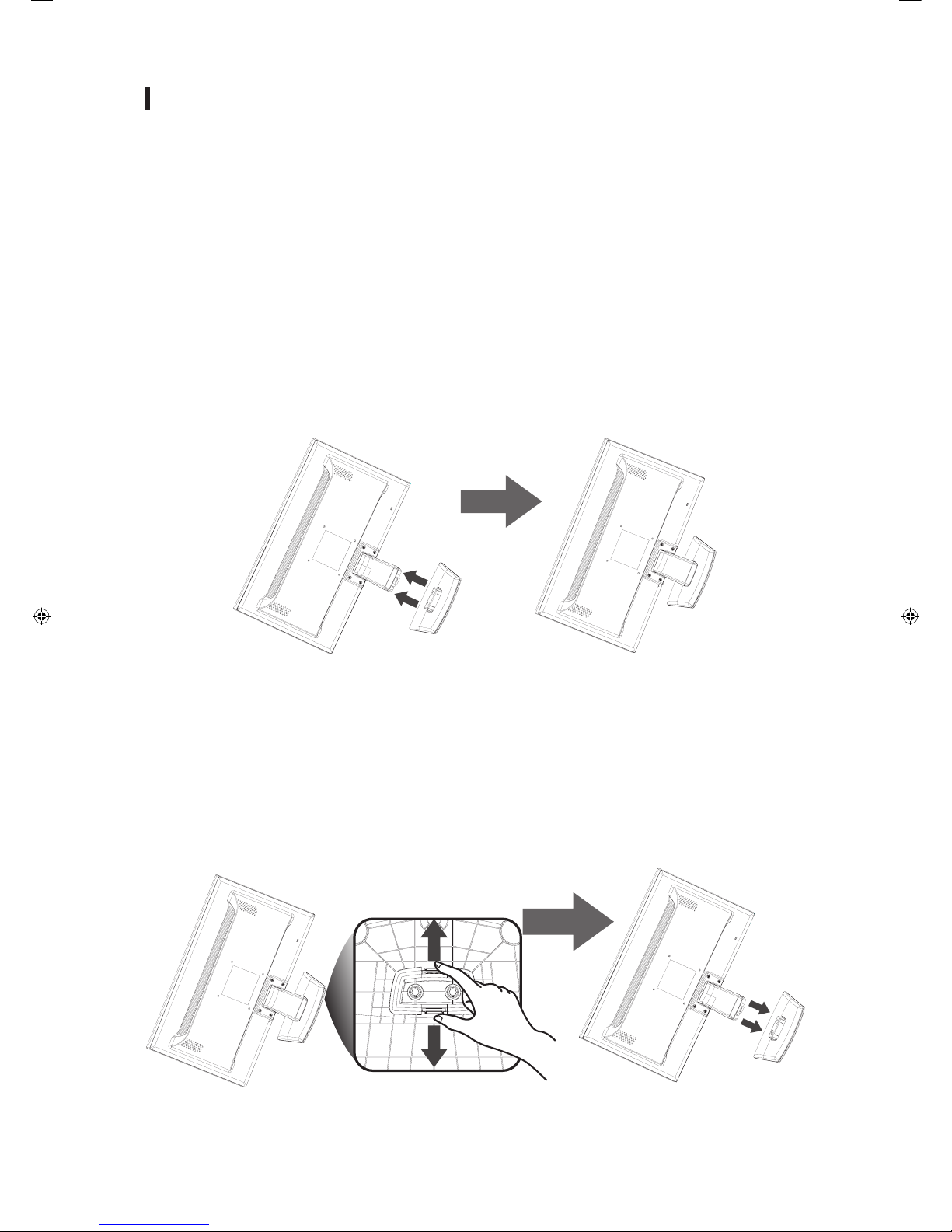

Install the stand base

1. Lay the TFT LED Monitor at on a table with the LED screen face down. To prevent the

monitor from being scratched, put a piece of soft cloth on the table on which the screen

will be set.

2. Unpack the base, one hand hold the monitor, the other hand attach the base to the

stand.

3. Stand the TFT LED Monitor up.

Uninstall the stand base

1. Lay the TFT LED Monitor at on a table with the LED screen face down. To prevent the

TFT LED Monitor from being scratched, put a piece of soft cloth on the table on which

the screen will be set.

2. Hold the monitor down with one hand. With the other hand, use two ngers to press

the hooks down as directed below.

3. Remove the base from the stand.

●User's Guide

●Base

planar PL2210W manual.indd 4 2011/6/21 下午3:17

Front View of the Product

1 Auto Image Adjust/ OSD Exits

3 Scroll Down/ Adjust Decrease

4 Scroll UP/ Adjust Increase/ Source select

6 LED Indicator

21 3 4 5 6

planar PL2210W manual.indd 5 2011/6/21 下午3:17

CMY

E030055099 planar PL2210W manual-inside-print.pdf 1 9/24/2011 12:34:28 PM

L1910W

Rear View of the Product

7 Power Input

8 VGA Input (D-Sub 15 pin)

9 DVI Input (DVI 24 pin)

7 8 9

planar PL2210W manual.indd 6 2011/6/21 下午3:17

Quick Installation

1. Connect either VGA or DVI Source from the monitor to the computer. Make sure both

monitor and computer are powered OFF.

2. Connect power cord to a properly grounded AC outlet, and then to the monitor.

3. Power-ON computer and then POWER-ON the monitor.

4. Set the timing mode on your computer. Recommended resolution and refresh rate

is1366 x 768 @ 60Hz.

Example:

Power cable

planar PL2210W manual.indd 7 2011/6/21 下午3:17

Basic Operation

Before using the TFT LED Monitor:

Connect external equipments properly.

Press POWER button on the front of TFT LED Monitor. The power LED indicator lights green

when the TFT LLED Monitor is on.

Using the OSD Menu

You are able to use OSD menus to adjust various settings by using menu button on the

front of the TFT LED Monitor.

The basic operation is as following:

Auto Enter Auto Adjusting mode , when not in OSD menu

Exits from OSD menu

Menu Displays main menu and enter items in OSD menu

Select the desired item when in OSD menu

+Select the desired item when in OSD menu

Selects between VGA or DVI mode, when not in OSD menu

OSD Lock Out Function

When TFT LED Monitor is in normal display, you can enable the “Locking OSD” function.

Option 1: OSD lock – all 4 buttons are locked except the “POWER” button.

Press and hold the Menu button for 5 seconds to lock the OSD buttons.

The TFT LED Monitor will show an “Locking OSD” message for 2~4 seconds and the

message will disappear automatically.

Locking OSD

Repeat this step to unlock.

planar PL2210W manual.indd 8 2011/6/21 下午3:17

LED

Option 2: OSD & Power button lock – all 5 buttons including the “POWER” button are

locked. Press and hold the button for 5 seconds to lock all 5 buttons.

The TFT LED Monitor will show an “Locking Power Button” message for 2~4 seconds and

the message will disappear automatically.

Locking Power Button

Repeat this step to unlock.
