Pixapro Daylite4 Manuel simple

(1)

Manual Instructions

Please read these instructions carefully before using your device for the

first time. It includes everything you need to know to avoid physical

injuries and damages.

Please pay attention to all safety notes in this instruction manual.

Please keep this manual safe. In case of selling or leaving the device to

other persons, please don’t forget to hand this manual over as well.

A) Features .............................................................................................. 3

B) Safety precautions ................................................................................ 3/4

C) Panel Diagram ................................................................................... 4/5

D) Instructions ...................................................................................... 5/6/7

Switching the device on and off

Cooling procedures

Change micro-fuse

Change of bulb

Fixing stand to the head unit

Adjust the angle and position of each light

Softbox assembling

Transportation and storage

Cleaning

E)E) Trouble shooting .................................................................................... 8

Glossary

Page

Important Information

PLEASE READ

(2)

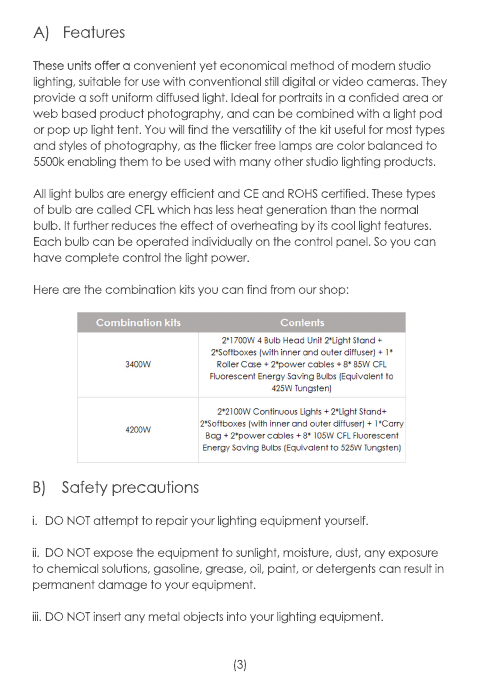

A) Features

These units offer a convenient yet economical method of modern studio These units offer a convenient yet economical method of modern studio

lighting, suitable for use with conventional still digital or video cameras. They

provide a soft uniform diffused light. Ideal for portraits in a confided area or

web based product photography, and can be combined with a light pod

or pop up light tent. You will find the versatility of the kit useful for most types

and styles of photography, as the flicker free lamps are color balanced to

5500k enabling them to be used with many other studio lighting products.

All light bulbs are energy efficient and CE and ROHS certified. These types

of bulb are called CFL which has less heat generation than the normal

bulb. It further reduces the effect of overheating by its cool light features.

Each bulb can be operated individually on the control panel. So you can

have complete control the light power.

Here are the combination kits you can find from our shop:

B) Safety precautions

i. DO NOT attempt to repair your lighting equipment yourself.

ii. DO NOT expose the equipment to sunlight, moisture, dust, any exposure

to chemical solutions, gasoline, grease, oil, paint, or detergents can result in

permanent damage to your equipment.

iii. DO NOT insert any metal objects into your lighting equipment.

(3)

iv. DO NOT place it in close distance to the eyes of persons or animals.

Please ensure that the distance between persons and animals is at least

1m.

v. DO NOT dismantle the head unit unless it is carried out by a qualified

electrician.

vi.vi. Ensure the device is cooled down approximately 30 minutes before

starting any mounting or maintenance arrangements.

vii. Ensure the device is cooled down approximately 15 minutes for every

hour of use.

viii. ENSURE that the device is always positioned tilt and skid resistant and

stored securely.

ix.ix. ENSURE the device is disconnected the power supply when the light is

not in use and before mounting and maintenances.

x. Please ENSURE the original cables are used.

xi. In case of falling-off, please ENSURE the device is checked by qualified

electrician before switching on again.

xii. ENSURE all the inflammable materials are kept away from the devices.

xiii. Please ENSURE bulbs are handled with care to avoid bursting.

xiv.xiv. Please ENSURE the power supply is either AC220-240V 50HZ or

AV110-120V 60HZ to ensure the light is working safely.

xv. AVOID touching bulbs when mounting or charging accessories.

xvi. AVOID holding lamp sockets while attaching the softbox

C) Panel Diagram

(4)

D) Instructions

Switch the device on and off

Turn on the device by pressing down the power button to each bulb. The

POWER ON light will turn red light. It will take 30 -60 seconds until the bulb

reach its maximum output.

Cooling procedures

Cooling procedures must be taken place when the device has undergone:

- 15 minutes cooling down period for every hour of use.

1. The device shall be cooled down for at least 15 minutes.

2. During cooling procedures, you MUST ENSURE the lamp has been

switched off.

Change of micro-fuse

Danger of electric shock and fire through short circuit. A 5A 220V micro-fuse

shall be used.

1. Switch off device (see Switch on and off of device)

2. Disconnect from power supply by unplugging power cord.

3.3. Unscrew the fuse hold and pull it out with your hands completely out of

the slot

4. Take out the old micro-fuse.

(5)

5. Take the new micro-fuse out of the spare slot and insert it in the centre of

the holder.

6. Screw the fuse holder carefully into the slot as far as it goes.

(6)

Change of bulbs

Please use CE bulbs.

Posterior danger of bursting of bulbs. Don’t touch the flash tube with bare

hands and you shall wear cotton gloves or use clean and dry cloth.

1. Switch off the main switch and follow by unplugging the power cord.

2. Cool down device for at least 15 minutes.

3.3. Remove old bulbs:

- Remove the outer and inner diffuser

- Screw out the old bulb

4. Attach the new bulb:

- Screw in the new bulb.

- Put the outer and inner diffuser back into position.

5. Then switch on the device.

Note: Change of bulb does not require dismantling the head unit. This action Note: Change of bulb does not require dismantling the head unit. This action

is DANGEROUS and it is prohibited.

Note: DO NOT USE BULBS more than 105W. We always recommend using

bulbs 105W or below.

Fixing Stand to Head Unit

Firstly, unscrew the star shape knob at bottom corner of the head unit

completely, then sit the light unit on the stand, and then screw it back on to

lock it

Adjust the angle and position of each head unit

Unscrew the knob (clock wise) to loosen the unit and adjust to required

angle/position and then screw the knob (anti-clock wise) to secure its angle/position and then screw the knob (anti-clock wise) to secure its

position.

(7)

Softbox Assembling

Care should be taken when a soft box is assembled for the first time, due to

the canvas not yet being stretched. You will find that assembly will become

easier after a few times. (It does take a little strength to initially erect- the rods

are powerfully sprung so care should be taken and we advise that protective

eyewear should be worn.)

1)1) Remove the Canvas and rods from the carry case; also remove any

packaging from the continuous Light Head.

2) Spread out the Canvas on a clean surface with the silver foil side visible

and place the speedring in to the center, you may need to align the holes of

the speedring to the corners of the softbox.

3) Insert the tip of the Rods in to the hole of the canvas material corner pock-

ets.

4) Insert the larger tip of the rods in to the speedring. You may need to push

down on the rods to the place them in the speedring holes, slightly bending

the rods.

5) Repeat the above method on the corner opposite the 1st rod you have

placed in.

6)6) On the Internal light diffuser there are small clips on each of the four cor-

ners , use these to secure the light diffuser inside the softbox, you will find a

loop they connect on to approximately half way down the rod

7) Finally take the External light diffuser and stretch over the four corners. Use

the velcro edges down the sides to secure the diffuser in place.

Do not hold onto lamp sockets whilst installing the softbox.

(8)

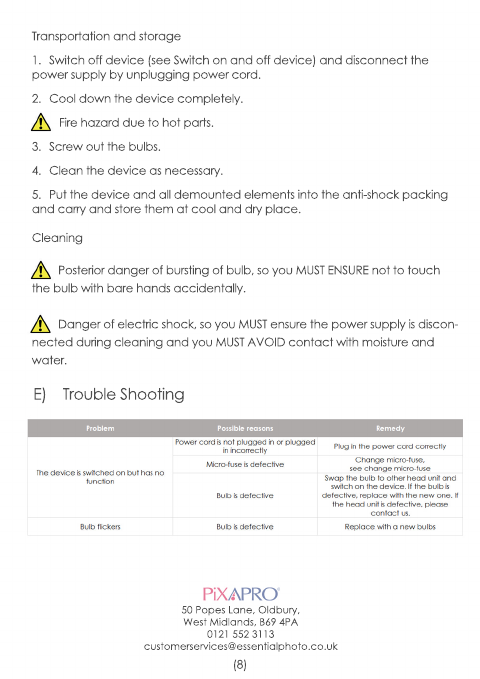

Transportation and storage

1. Switch off device (see Switch on and off device) and disconnect the

power supply by unplugging power cord.

2. Cool down the device completely.

Fire hazard due to hot parts.

3. Screw out the bulbs.

4.4. Clean the device as necessary.

5. Put the device and all demounted elements into the anti-shock packing

and carry and store them at cool and dry place.

Cleaning

Posterior danger of bursting of bulb, so you MUST ENSURE not to touch

the bulb with bare hands accidentally.

Danger of electric shock, so you MUST ensure the power supply is discon-

nected during cleaning and you MUST AVOID contact with moisture and

water.

E) Trouble Shooting

50 Popes Lane, Oldbury,

West Midlands, B69 4PA

0121 552 3113

customerservices@essentialphoto.co.uk
