AV RECEIVER

Instruction

Manual

VSX-534D

Table of contents ≫

Connections ≫

- Connecting Speakers ≫

Playback ≫

Setup ≫

Troubleshooting ≫

Appendix ≫

Supplementary Information ≫

Contents

Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

Table of contents

What’s in the box 4

Additional Function (Firmware Update) 5

Update Information of the rmware 5

Operation of added new functions 5

Firmware Update Procedure 6

Part Names 8

Front Panel 8

Display 10

Rear Panel 11

Remote Controller 13

Connections

Connecting speakers 15

Speaker Installation 16

Speaker Connections and "Speaker Setup" Settings 21

Speaker combinations 25

Connecting the TV 26

To ARC TV 27

To Non-ARC TV 28

Connecting Playback Devices 29

Connecting an AV Component with

HDMI Jack Mounted 29

Connecting an Audio Component 30

Connecting an AV Component in a Separate Room

(ZONE B Connection) 31

Connecting a Pre-main Amplier (ZONE B) 31

Connecting Antennas 32

Connecting the Power Cord 33

Playback

AV Component Playback 35

Basic Operations 35

BLUETOOTH®Playback 36

Basic Operations 36

Listening To the FM Radio 37

Tuning into a Radio Station 37

Presetting a Radio Station 39

Using RDS 41

Listening To the DAB Digital Radio 42

Basic Operations 42

ZONE B Playback 44

Playing Back 44

Convenience functions 46

Using PERSONAL PRESET 46

Adjusting the tone 48

Sleep Timer 50

3Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

Listening Mode 51

Selecting a Listening mode 51

Speaker Layouts and Selectable Listening Modes 54

Listening Mode E󰀨ects 56

Input Formats and Selectable Listening Modes 60

Setup

Setup Menu 66

Menu list 66

Menu operations 68

1. Input/Output Assign 69

2. Speaker 72

3. MCACC 75

4. Audio Adjust 76

5. Source 77

6. Hardware 79

7. Miscellaneous 82

AV Adjust 83

Menu operations 83

Initial Setup with Auto Start-up Wizard 85

Operations 85

Troubleshooting

When the unit is operating erratically 89

Troubleshooting 90

Appendix

About HDMI 96

General Specications 98

4Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

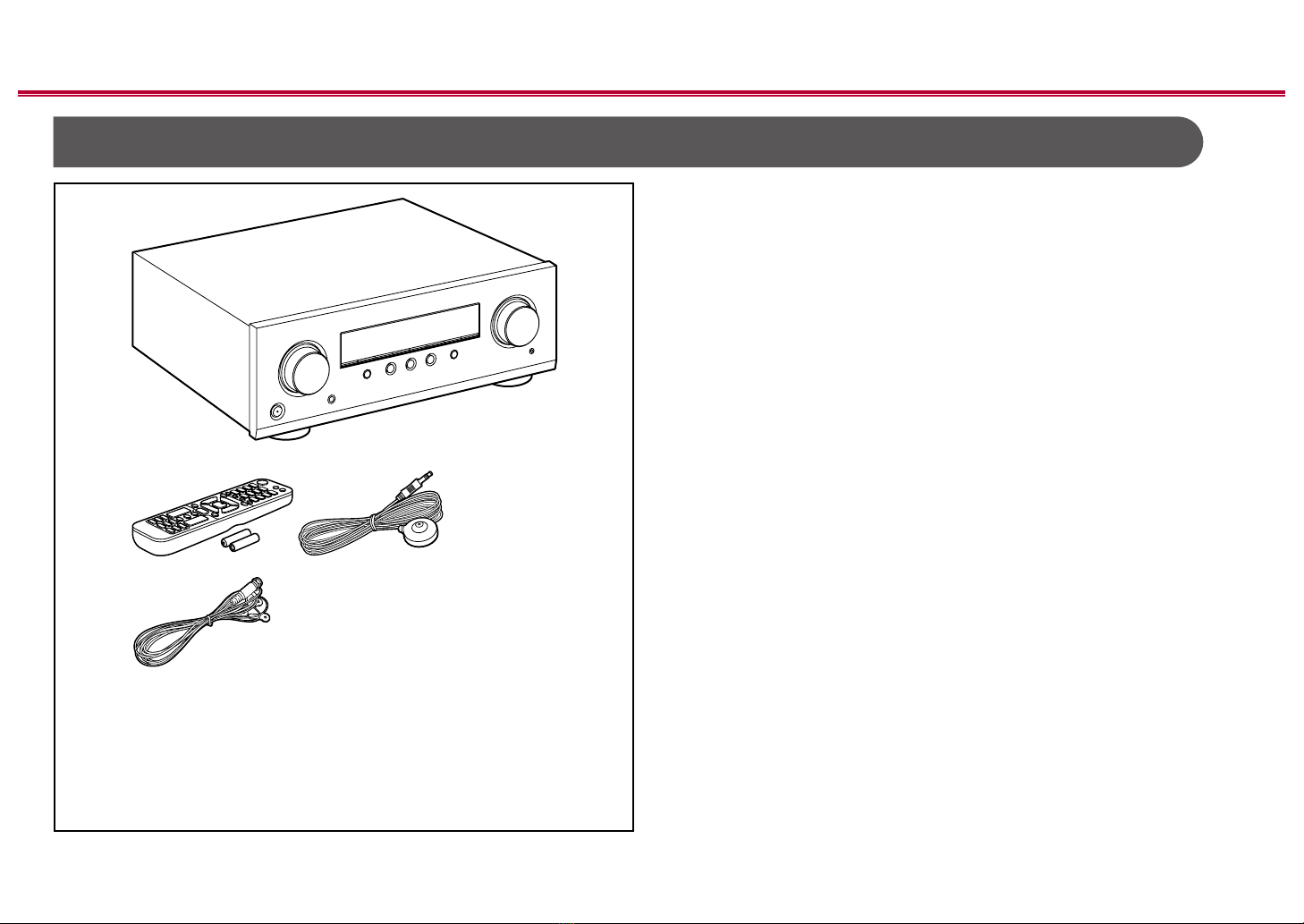

What’s in the box

1. Main unit (1)

2. Remote controller (RC-971R) (1), Batteries (AAA/R03) (2)

3. Speaker setup microphone (1)

• Used during Initial Setup.

4. DAB/FM antenna (1)

• Quick Start Guide (1)

*This document is an online instruction manual. It is not included as an

accessory.

• Connect speakers with an impedance of 4 Ω to 16 Ω.

• The power cord must be connected only after all other connections are

completed.

• We will not accept any responsibility for damage arising from the connection

with equipment manufactured by other companies.

• Specications and appearance are subject to change without prior notice.

5Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

Additional Function (Firmware Update)

This unit is equipped with a function to update the rmware via USB port when the rmware update is announced after purchase. This enables various functions to be

added and operations to be improved.

Depending on the manufacturing timing of the product, the rmware may be switched to the updated one. In such a case, new functions may be added from the start.

For how to conrm the latest rmware contents and the rmware version of your product, see the following section.

Update Information of the rmware

For the latest rmware contents and the rmware version, visit our company’s website. If the rmware version of your product di󰀨ers from the latest one, it is

recommended to update the rmware.

To conrm the rmware version of your product, press the button on the remote controller, and refer to "7. Miscellaneous" - "Firmware Update" - "Version" ( p82).

Operation of added new functions

If functions are added or changed from contents described in the Instruction Manual, see the following reference.

Supplementary Information ≫

❏Firmware Update Procedure ( p6)

6Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

Firmware Update Procedure

Approx. 30 minutes are required for updating. Existing settings are kept after

updating.

Disclaimer: The program and accompanying online documentation are furnished

to you for use at your own risk.

Our company will not be liable and you will have no remedy for damages for

any claim of any kind whatsoever concerning your use of the program or the

accompanying online documentation, regardless of legal theory, and whether

arising in tort or contract.

In no event will our company be liable to you or any third party for any special,

indirect, incidental, or consequential damages of any kind, including, but not

limited to, compensation, reimbursement or damages on account of the loss of

present or prospective prots, loss of data, or for any other reason whatsoever.

Updating the Firmware via USB

• While updating the rmware, do not do the following:

– Disconnecting and reconnecting cables, USB storage device, speaker

setup microphone or headphones, or performing operations on the unit

such as turning the power o󰀨.

• Prepare a 128 MB or larger USB storage device. The format of USB storage

devices supports FAT16 or FAT32 le system format.

– Media inserted into a USB card reader may not be used for this function.

– USB storage devices equipped with the security function are not supported.

– USB hubs and USB devices equipped with the hub function are not

supported. Do not connect these devices to the unit.

• Delete any data stored on the USB storage device.

• If "HDMI CEC" is set to "On", set it to "O󰀨".

– Press . Next, select "6. Hardware" - "HDMI", press ENTER, select "HDMI

CEC" and select "O󰀨".

* Depending on the USB storage device or its content, long time may be required

for loading, the content may not be loaded correctly, or power may not be supplied

correctly.

* Our company will not be liable whatsoever for any loss or damage of data, or storage

failure arising from the use of the USB storage device. Please note this in advance.

* The descriptions may di󰀨er from the actual on-screen displays, however, operations

and functions are the same.

Update

1. Connect the USB storage device to your PC.

2. Download the rmware le from our company's website to your PC and unzip.

Firmware les are named as below.

PIOAVR_.zip

Unzip the le on your PC. The number of unzipped les and folders varies

depending on the model.

3. Copy all unzipped les and folders to the root folder of the USB storage

device.

• Make sure to copy the unzipped les.

4. Connect the USB storage device to the POWER OUT port of this unit.

• If an AC adapter is supplied with the USB storage device, connect the AC

adapter, and use it with a household outlet.

• If the USB storage device has been partitioned, each section will be treated

as an independent device.

5. Press .

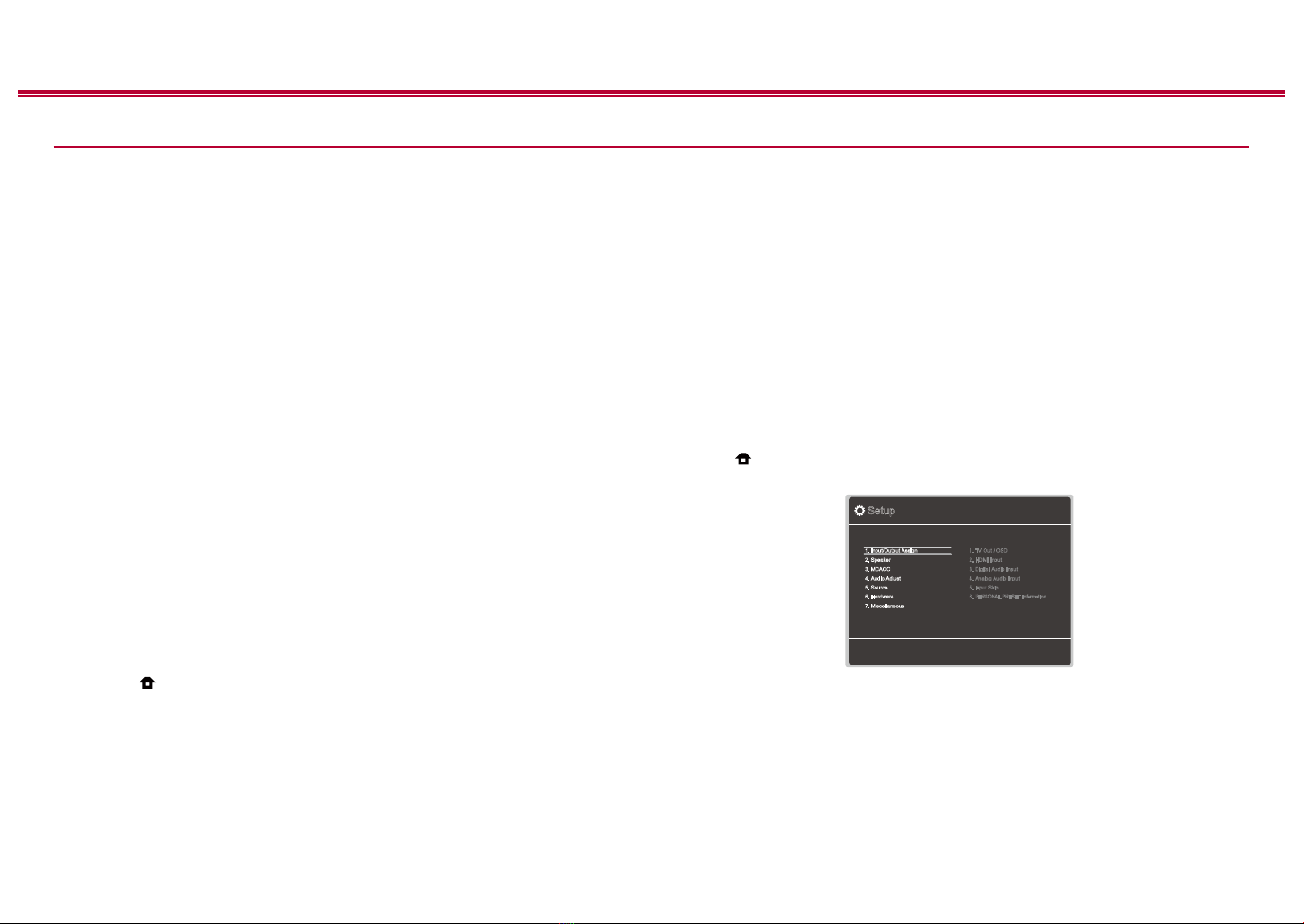

The Setup menu is displayed on the TV screen.

Setup

1. Input/Output Assign

5. Source

7. Miscellaneous

6. Hardware

2. Speaker

3. MCACC

4. Audio Adjust

1. TV Out / OSD

4. Analog Audio Input

5. Input Skip

PERSONAL PRESET Information

2. HDMI Input

3. Digital Audio Input

7Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

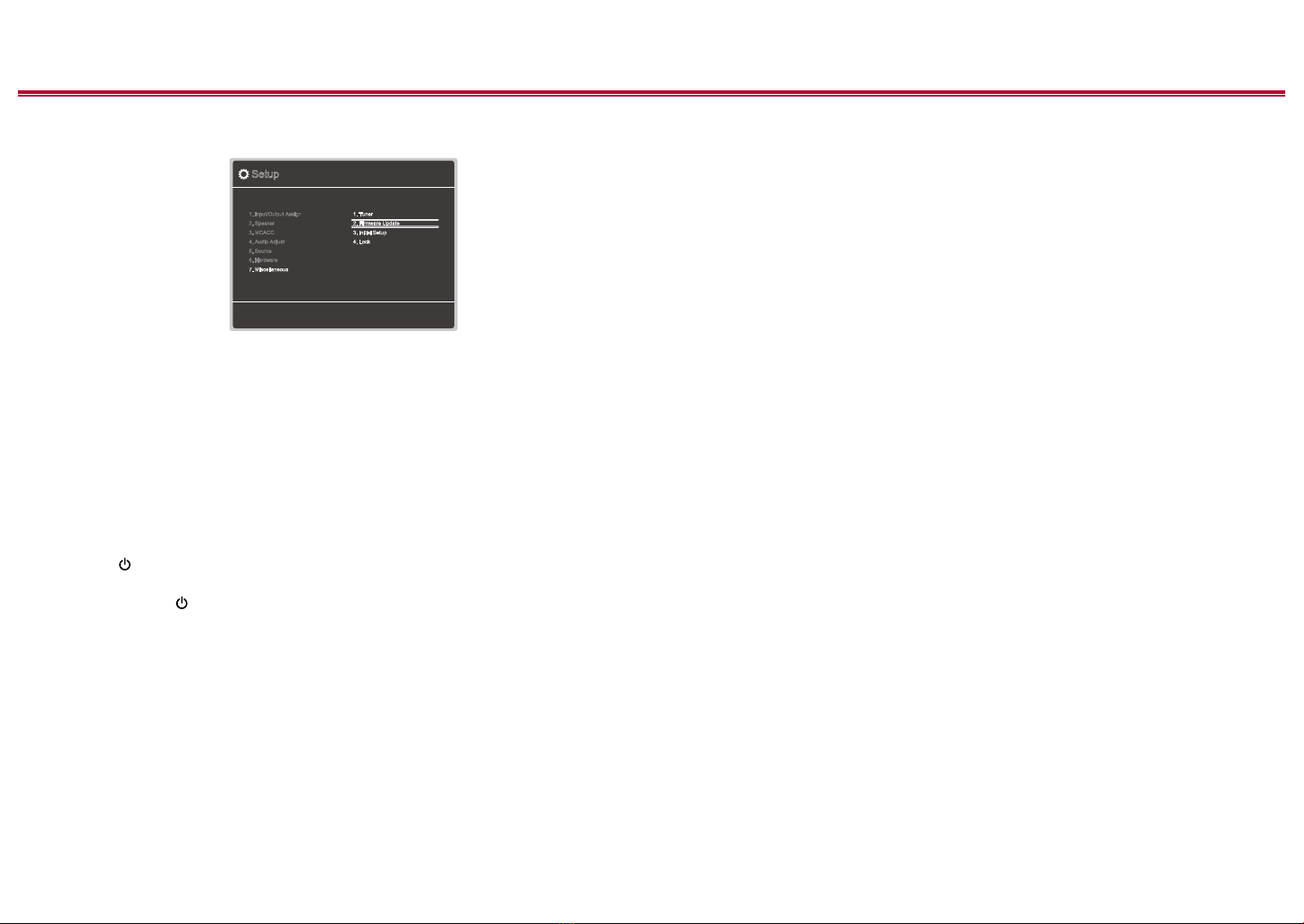

6. Select "7. Miscellaneous" - "Firmware Update" - "Update via USB" with the

cursors in order, then press ENTER.

Setup

1. Input/Output Assign

2. Speaker

1. Tuner

4. Lock

2. Firmware Update

3. Initial Setup

5. Source

7. Miscellaneous

6. Hardware

3. MCACC

4. Audio Adjust

• If "Firmware Update" is grayed out and cannot be selected, wait for a while

until it starts up.

7. Press ENTER with "Update" selected, and start update.

• During the update, the TV screen may go black depending on the program

to be updated. In such a case, check the progress on the display of the

unit. The TV screen will remain black until the update is completed and the

power is turned on again.

• During the update, do not turn the power o󰀨, or disconnect or reconnect the

USB storage device.

• When "Completed!" is displayed, the update is complete.

8. Disconnect the USB storage device from the unit.

9. Press STANDBY/ON on the main unit to turn the unit into standby mode.

The process is completed, and your rmware is updated to the latest version.

• Do not use on the remote controller.

If an Error Message is Displayed

If an error occurs, "Error! -" is displayed on the display of the unit. (""

represents an alphanumeric character.) Refer to the following descriptions and

check.

Error Code

• -70:

The USB storage device cannot be recognized, the rmware le is not present

in the root folder of the USB storage device, or the rmware le is for another

model. Check if the USB storage device or USB cable is securely inserted to

the POWER OUT port of the unit.

Connect the USB storage device to an external power source if it has its own

power supply.

• -51:

The rmware le is for another model, or the rmware le is corrupted. Retry

from the download of the rmware le.

• Others:

After removing the power plug once, insert it to the outlet, and then start the

operation from the beginning.

Contents

≫Connections

≫Playback

≫Setup

≫

Front Panel≫Rear Panel≫Remote≫

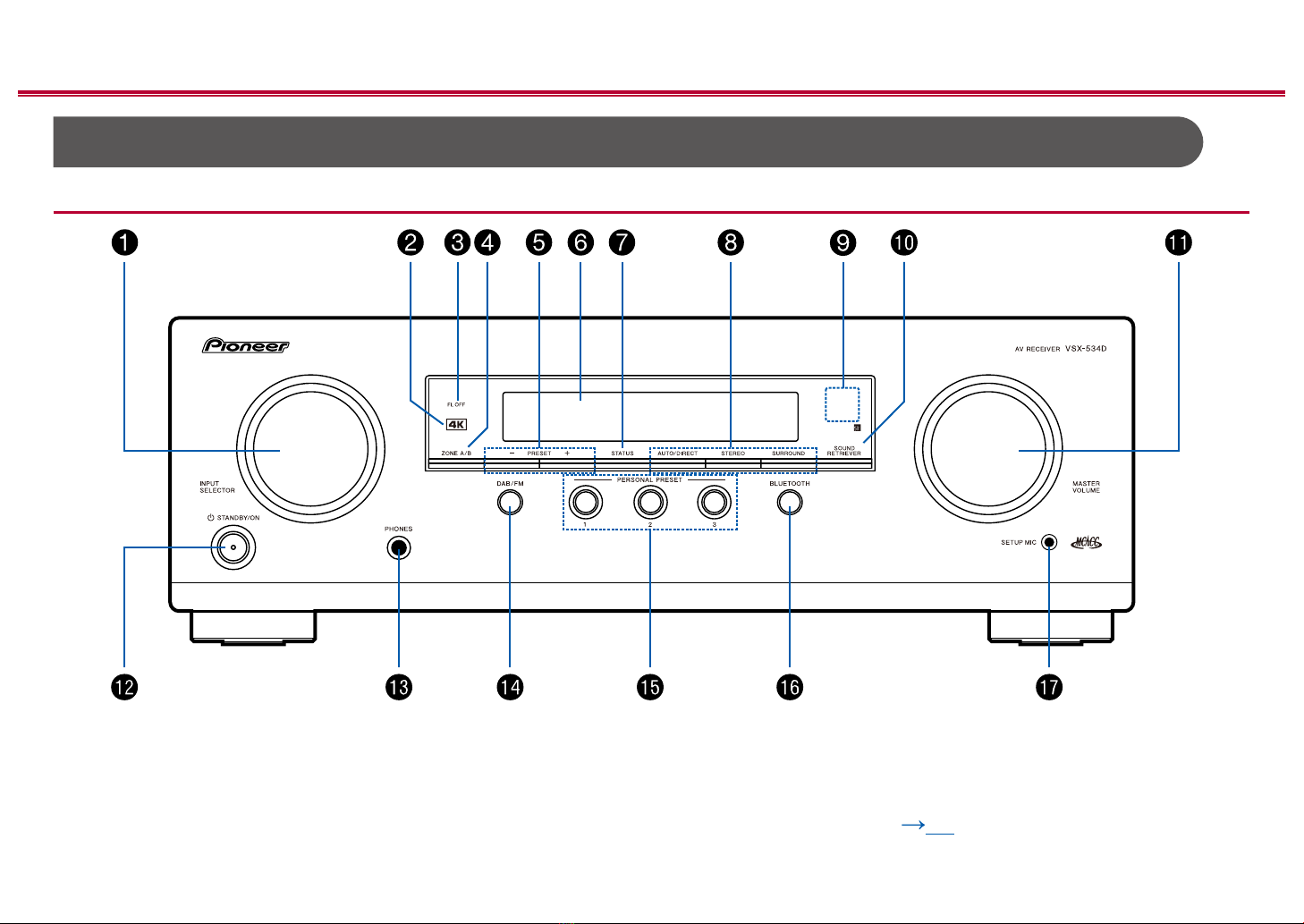

Part Names

Front Panel

❏For details, see ( p9)

Contents

≫Connections

≫Playback

≫Setup

≫

Front Panel≫Rear Panel≫Remote≫

1. INPUT SELECTOR dial: Switch the input to be played.

2. 4K indicator: Lights up when doing 4K upscaling or 4K pass through.

3. FL OFF indicator: Lights up when the display is turned o󰀨 by repeatedly

pressing the DIMMER button on the remote controller.

4. ZONE A/B button: Selects an audio output destination from among "ZONE A",

"ZONE B" and "ZONE A+B". ( p44)

5. PRESET +/- button: Selects preset radio stations registered when using

TUNER. ( p39)

6. Display ( p10)

7. STATUS button: Switches the information on the display and is used to

operate RDS ( p41).

8. Listening mode button: Press "AUTO/DIRECT", "SURROUND" or "STEREO"

to switch the listening mode. ( p51)

9. Remote control sensor: Receives signals from the remote controller.

• The signal range of the remote controller is within about 16´/5 m, at an

angle of 20° on the perpendicular axis and 30° to either side.

10.

SOUND RETRIEVER button: Turns on/o󰀨 the Sound Retriever function that

provides better sound quality for compressed audio.

11.

MASTER VOLUME

12.

STANDBY/ON button

13.

PHONES jack: Headphones with a standard plug (ø1/4"/6.3 mm) are

connected.

14.

DAB/FM button: Switches the input to be played to "TUNER". Also, pressing

this button repeatedly switches the input between "DAB" and "FM".

15.

PERSONAL PRESET 1/2/3 buttons: Registers the current setting conditions

such as input selector, listening mode, etc. or call the registered settings.

( p46)

16.

BLUETOOTH button: Switches the input to be played to "BLUETOOTH".

17.

SETUP MIC jack: The supplied speaker setup microphone is connected.

( p75, 86)

10 Front Panel≫Rear Panel≫Remote≫

Contents

≫Connections

≫Playback

≫Setup

≫

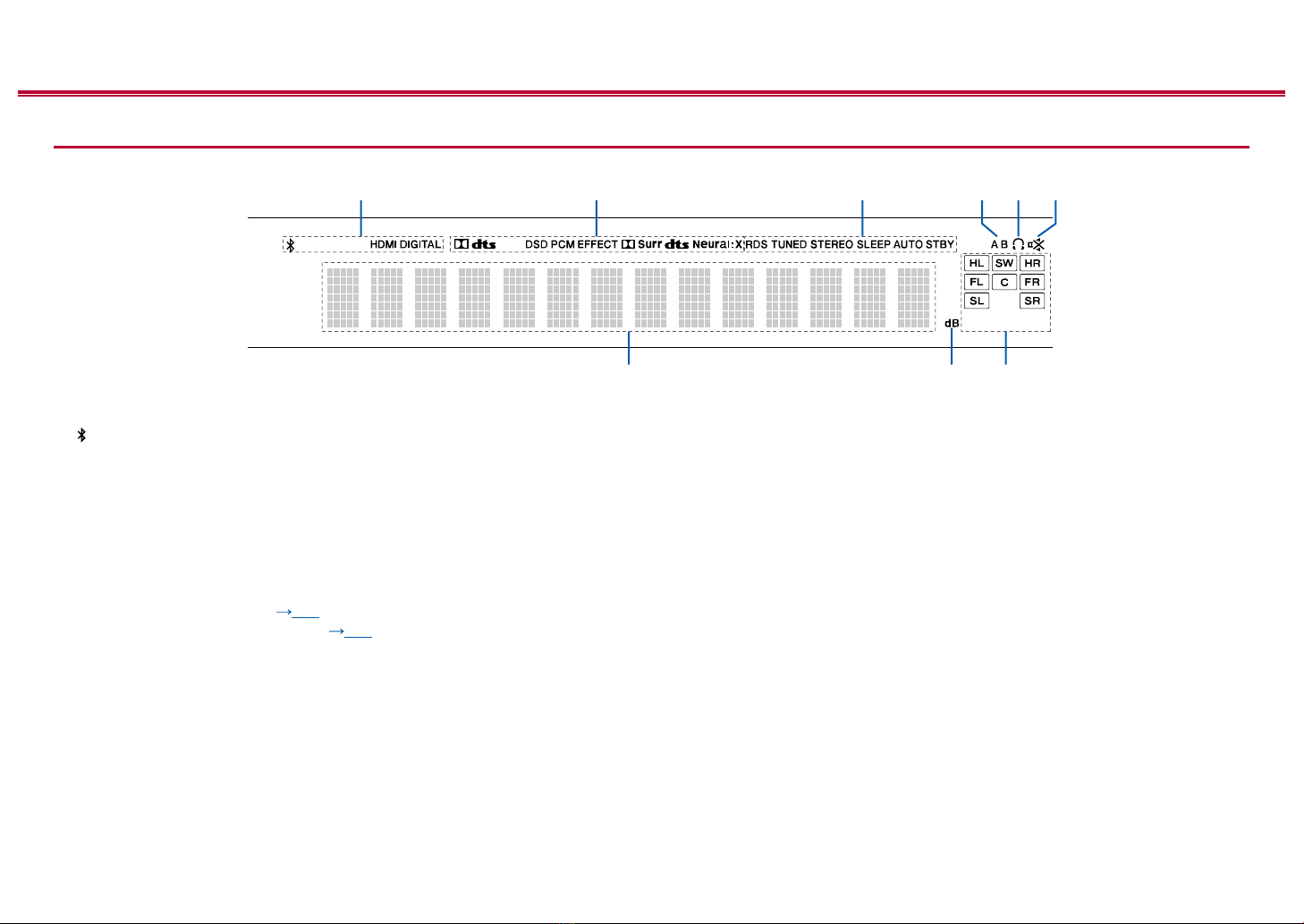

Display

1. Lights in the following conditions.

: Connected by BLUETOOTH.

HDMI: HDMI signals are input and the HDMI input is selected.

DIGITAL: Digital signals are input and the digital input is selected.

2. Lights according to the type of input digital audio signal and the listening

mode.

3. Lights in the following conditions.

RDS: Receiving RDS broadcasting.

TUNED: Receiving DAB/FM radio.

STEREO: Receiving FM stereo.

SLEEP: Sleep timer is set. ( p81)

AUTO STBY: Auto Standby is set. ( p81)

4. Displays the audio output destination.

A: Outputs audio only to the main room (ZONE A).

B: Outputs audio only to the separate room (ZONE B).

AB:

Outputs audio to both the main room (ZONE A) and separate room (ZONE B).

5. Lights when headphones are connected.

6. Blinks when muting is on.

7. Displays various information of the input signals.

8. Lights when adjusting the volume.

9. Speaker/Channel display: Displays the output channel that corresponds to the

selected listening mode.

1546

789

Table des matières

Autres manuels Pioneer Récepteur stéréo

Pioneer

Pioneer VSX-405 Manuel utilisateur

Pioneer

Pioneer ELITE VSX-LX505 Manuel

Pioneer

Pioneer Elite SC-68 Manuel utilisateur

Pioneer

Pioneer VSX-5700S Manuel utilisateur

Pioneer

Pioneer VSX-515-K Manuel utilisateur

Pioneer

Pioneer AVH-Z9200DAB Manuel utilisateur

Pioneer

Pioneer Elite SC-37 Manuel utilisateur

Pioneer

Pioneer AVH-P4150DVD Manuel utilisateur

Pioneer

Pioneer DIVX AVH-G219BT Manuel utilisateur

Pioneer

Pioneer XR-P560F Instructions de construction

Pioneer

Pioneer VSX-D906S Manuel utilisateur

Pioneer

Pioneer VSX-D309 Manuel utilisateur

Pioneer

Pioneer AVH-P6300BT/XNUC Manuel utilisateur

Pioneer

Pioneer VSX-D902S Manuel utilisateur

Pioneer

Pioneer AVH-P6600DVD/UC Manuel utilisateur

Pioneer

Pioneer SX-300 Manuel utilisateur

Pioneer

Pioneer DMH-ZS8290BT Manuel utilisateur

Pioneer

Pioneer XR-P560F Manuel utilisateur

Pioneer

Pioneer AVH-W4400NEX Manuel d'installation

Pioneer

Pioneer VSX-D903S Manuel utilisateur

Pioneer

Pioneer SX-838 Manuel utilisateur

Pioneer

Pioneer AVH-X4500BT/XNUC Manuel utilisateur

Pioneer

Pioneer Elite VSX-LX805 Manuel utilisateur

Pioneer

Pioneer AVH-280BT/XNUC Manuel utilisateur

Manuels Récepteur stéréo populaires d'autres marques

Marantz

Marantz CINEMA 70S Manuel utilisateur

Kenwood

Kenwood KMDX92 Manuel utilisateur

Yamaha

Yamaha RX-830 Manuel utilisateur

Yamaha

Yamaha RX-750 Manuel utilisateur

Denon

Denon AVR-1311 Manuel utilisateur

Denon

Denon AVR-S760H Manuel utilisateur

Denon

Denon AVR-X7200W Manuel utilisateur

Sony

Sony XAV-1500 Manuel utilisateur

Radio Shack

Radio Shack DX-399 Manuel utilisateur

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manuel utilisateur

Yamaha

Yamaha MusicCast TSR-5B3D Manuel utilisateur

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manuel utilisateur

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manuel utilisateur

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manuel utilisateur

Sherwood

Sherwood S-2660CP Manuel technique

Sony

Sony STR-K790 - Lifier Manuel utilisateur

Denon

Denon DRA-697CI Manuel utilisateur

SMART-AVI

SMART-AVI HDX-PRO Series Manuel utilisateur
