SPH-EVO82DAB

SPH-EVO62DAB

RDS AV RECEIVER

Operation Manual

- 2 -

English

Important

■Precaution ................................................................................... 4

■Parts and controls ....................................................................... 9

■Basic operation ......................................................................... 11

■Bluetooth................................................................................... 16

■AV source ................................................................................... 25

■Digital Radio.............................................................................. 28

■Radio.......................................................................................... 32

■Compressed files....................................................................... 36

■iPod ............................................................................................ 43

■WebLink™ .................................................................................. 47

■Apple CarPlay™ ......................................................................... 50

■Android Auto™ .......................................................................... 53

■Spotify®...................................................................................... 56

■AUX ............................................................................................ 61

■AV input ..................................................................................... 63

■Settings...................................................................................... 64

Displaying the setting screen ..................................................................................................................... 64

System settings ................................................................................................................................................ 64

Theme settings................................................................................................................................................. 72

Audio settings .................................................................................................................................................. 73

Video settings ................................................................................................................................................... 80

Contents

Thank you for buying this Pioneer product.

Please read through these instructions so you will know how to operate your model

properly. After you have finished reading the instructions, keep this document in a safe

place for future reference.

The screen shown in the examples may differ from actual screens, which may be

changed without notice for performance and function improvements.

English

- 3 -

■Favourite menu ......................................................................... 81

■Other functions ......................................................................... 82

■Appendix ................................................................................... 84

- 4 -

English

Private households in the member states of the EU, in Switzerland and Norway may return their used

electronic products free of charge to designated collection facilities or to a retailer (if you purchase a

similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of

disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery

and recycling and thus prevent potential negative effects on the environment and human health.

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the

product, and to protect it from overheating. To prevent fire hazard, the openings should never be

blocked or covered with items (such as papers, floor mat, cloths).

CAUTION

This product is evaluated in moderate and tropical climate condition under the Audio, video and

similar electronic apparatus - Safety requirements, IEC 60065.

WARNING

•Do not attempt to install or service this product by yourself. Installation or servicing of this product by

persons without training and experience in electronic equipment and automotive accessories may

be dangerous and could expose you to the risk of electric shock, injury or other hazards.

•Do not allow this product to come into contact with liquids. Electrical shock could result. Also,

damage to the product, smoke, and overheating could result from contact with liquids.

•If liquid or foreign matter should get inside this product, park your vehicle in a safe place, turn the

ignition switch off (ACC OFF) immediately and consult your dealer or the nearest authorised Pioneer

Precaution

Certain country and government laws may prohibit or restrict the placement and use of this product

in your vehicle. Please comply with all applicable laws and regulations regarding the use, installation

and operation of this product.

If you want to dispose this product, do not mix it with general household waste. There is a separate

collection system for used electronic products in accordance with legislation that requires proper

treatment, recovery and recycling.

Important safety information

English

- 5 -

Service Station. Do not use this product in this condition because doing so may result in a fire, electric

shock, or other failure.

•If you notice smoke, a strange noise or odour from this product, or any other abnormal signs on the

LCD screen, turn off the power immediately and consult your dealer or the nearest authorised Pioneer

Service Station. Using this product in this condition may result in permanent damage to the system.

•Do not disassemble or modify this product, as there are high-voltage components inside which may

cause an electric shock. Be sure to consult your dealer or the nearest authorised Pioneer Service

Station for internal inspection, adjustments or repairs.

Before using this product, be sure to read and fully understand the following safety

information:

•Do not operate this product, any applications, or the rear view camera option (if

purchased) if doing so will divert your attention in any way from the safe operation of

your vehicle. Always observe safe driving rules and follow all existing traffic

regulations. If you experience difficulty in operating this product, pull over, park your

vehicle in a safe location and apply the handbrake before making the necessary

adjustments.

•Never set the volume of this product so high that you cannot hear outside traffic and

emergency vehicles.

•To promote safety, certain functions are disabled unless the vehicle is stopped and the

handbrake is applied.

•Keep this manual handy as a reference for operating procedures and safety

information.

•Do not install this product where it may (i) obstruct the driver’s vision, (ii) impair the

performance of any of the vehicle’s operating systems or safety features, including air

bags or hazard lamp buttons or (iii) impair the driver’s ability to safely operate the

vehicle.

•Please remember to fasten your seat belt at all times while operating your vehicle. If

you are ever in an accident, your injuries can be considerably more severe if your seat

belt is not properly buckled.

•Never use headphones while driving.

WARNING

• LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND

MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE HANDBRAKE SWITCH. IMPROPER

CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN

SERIOUS INJURY OR DAMAGE.

• Do not take any steps to tamper with or disable the handbrake interlock system which is in

place for your protection. Tampering with or disabling the handbrake interlock system could

result in serious injury or death.

• To avoid the risk of damage and injury and the potential violation of applicable laws, this

product is not for use with a video image that is visible to the driver.

•In some countries the viewing of video image on a display inside a vehicle even by persons other

than the driver may be illegal. Where such regulations apply, they must be obeyed.

To ensure safe driving

- 6 -

English

If you attempt to watch video image while driving, the warning “Viewing of front seat

video source while driving is strictly prohibited.” will appear on the screen. To watch

video image on this display, stop the vehicle in a safe place and apply the handbrake.

Please keep the brake pedal pushed down before releasing the handbrake.

The video output terminal (V OUT) is for connection of a display to enable passengers in

the rear seats to watch video images.

WARNING

NEVER install the rear display in a location that enables the driver to watch video images while driving.

Be sure to run the vehicle engine while using this product. Using this product without

running the engine can drain the battery.

WARNING

Do not install this product in a vehicle that does not have an ACC wire or circuitry available.

With an optional rear view camera, you are able to use this product as an aid to keep an

eye on trailers, or backing into a tight parking spot.

WARNING

•SCREEN IMAGE MAY APPEAR REVERSED.

•USE INPUT ONLY FOR REVERSE OR MIRROR IMAGE REAR VIEW CAMERA. OTHER USE MAY RESULT IN

INJURY OR DAMAGE.

CAUTION

The rear view mode is to use this product as an aid to keep an eye on the trailers, or while backing up.

Do not use this function for entertainment purposes.

CAUTION

•To prevent data loss and damage to the storage device, never remove it from this product while data

is being transferred.

•Pioneer cannot guarantee compatibility with all USB mass storage devices and assumes no

responsibility for any loss of data on media players, iPhone, smartphone, or other devices while using

this product.

When using a display connected to V OUT

To avoid battery exhaustion

Rear view camera

Handling the USB connector

English

- 7 -

•It may not be recognised properly by this product if a USB device that had been incorrectly

disconnected from the computer is connected.

Should this product fail to operate properly, contact your dealer or nearest authorised

Pioneer Service Station. When taking this product to the dealer or authorised Pioneer

Service Station, make sure to bring both the unit and LCD display.

Visit us at the following site:

http://www.pioneer-car.eu

•Register your product. We will keep the details of your purchase on file to help you

refer to this information in the event of an insurance claim such as loss or theft.

•We offer the latest information about PIONEER CORPORATION on our website.

•Pioneer regularly provides software updates to further improve it’s products. Please

check the support section of the Pioneer website for all available software updates.

•This product does not work correctly in areas other than Europe. The RDS (Radio Data

System) function operates only in areas with FM stations broadcasting RDS signals.

The RDS-TMC service can also be used in the area where there is a station that

broadcasts the RDS-TMC signal.

•The Pioneer CarStereo-Pass is for use only in Germany.

•Do not expose the LCD screen to direct sunlight when this product is not used. This

may result in LCD screen malfunction due to the resulting high temperatures.

•When using a mobile phone, keep the aerial of the mobile phone away from the LCD

screen to prevent disruption of the video in the form of spots, coloured stripes, etc.

•To protect the LCD screen from damage, be sure to touch the touch panel keys only

with your finger and do so gently.

•The information will be erased by disconnecting the yellow lead from the battery (or

removing the battery itself).

•Some of the settings and recorded contents will not be reset.

In case of trouble

Visit our website

About this product

Protecting the LCD panel and screen

Notes on internal memory

- 8 -

English

This manual uses diagrams of actual screens to describe operations. However, the

screens on some units may not match those shown in this manual depending on the

model used.

About this manual

Meanings of symbols used in this manual

This indicates model names that are supported by the described operations.

This indicates to touch the appropriate soft key on the touch screen.

This indicates to touch and hold the appropriate soft key on the touch screen.

EVO00DAB

English

- 9 -

NOTE

For SPH-EVO82DAB, touch buttons on the main unit, and for SPH-EVO62DAB, press buttons on the

main unit.

Parts and controls

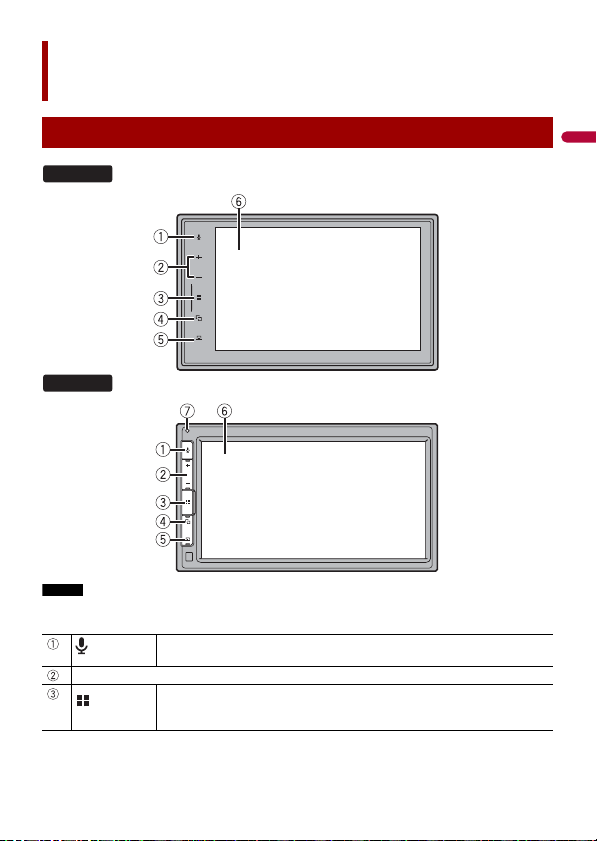

Main unit

Touch (press) to activate the voice recognition mode such as Siri when the

iPhone is connected to the unit via Bluetooth or USB.

VOL (+/-)

Touch (press) to display the top menu screen.

Touch (press) and hold to power off. To power back on, touch (press) any

button.

EVO82DAB

EVO62DAB

- 10 -

English

Touch (press) to switch between the Application screen and the AV operation

screen.

Touch (press) and hold to turn off the display.

Touch (press) to display the menu bar (page 13).

Touch (press) and hold to mute or unmute.

LCD screen

RESET Press to reset the microprocessor (page 11).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pioneer Récepteur stéréo

Pioneer

Pioneer AVH-P7950DVD/RC Manuel utilisateur

Pioneer

Pioneer Siriusxm DMH-2660NEX Manuel utilisateur

Pioneer

Pioneer VSX-605S Manuel utilisateur

Pioneer

Pioneer SX-1250 Manuel utilisateur

Pioneer

Pioneer VSX-D704S Manuel utilisateur

Pioneer

Pioneer DMH-WT38NEX Manuel utilisateur

Pioneer

Pioneer AVH-X595BT Manuel utilisateur

Pioneer

Pioneer SF-6000/FW Manuel utilisateur

Pioneer

Pioneer DMH-1770NEX Manuel utilisateur

Pioneer

Pioneer VSX-824-K Manuel utilisateur

Pioneer

Pioneer SX-20DAB-K Manuel utilisateur

Pioneer

Pioneer SX-10AE Manuel utilisateur

Pioneer

Pioneer VSX-416-K Manuel utilisateur

Pioneer

Pioneer SX-335 Manuel utilisateur

Pioneer

Pioneer AVH-X7700BT Manuel utilisateur

Pioneer

Pioneer vsx-9900s Manuel utilisateur

Pioneer

Pioneer SX-209RDS Manuel utilisateur

Pioneer

Pioneer SX-1010 Manuel utilisateur

Pioneer

Pioneer SPH-EVO82DAB Manuel utilisateur

Pioneer

Pioneer VSX-AX5i-S Manuel utilisateur

Pioneer

Pioneer SX-990 Guide de configuration

Pioneer

Pioneer SPH-DA360DAB Manuel utilisateur

Pioneer

Pioneer XR-P2000 Manuel utilisateur

Pioneer

Pioneer XR-VS400 Manuel utilisateur

Manuels Récepteur stéréo populaires d'autres marques

Marantz

Marantz CINEMA 70S Manuel utilisateur

Kenwood

Kenwood KMDX92 Manuel utilisateur

Yamaha

Yamaha RX-830 Manuel utilisateur

Yamaha

Yamaha RX-750 Manuel utilisateur

Denon

Denon AVR-1311 Manuel utilisateur

Denon

Denon AVR-S760H Manuel utilisateur

Denon

Denon AVR-X7200W Manuel utilisateur

Sony

Sony XAV-1500 Manuel utilisateur

Radio Shack

Radio Shack DX-399 Manuel utilisateur

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Manuel utilisateur

Yamaha

Yamaha MusicCast TSR-5B3D Manuel utilisateur

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Manuel utilisateur

Sony

Sony STR-DG500 - Multi Channel Av Receiver Manuel utilisateur

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manuel utilisateur

Sherwood

Sherwood S-2660CP Manuel technique

Sony

Sony STR-K790 - Lifier Manuel utilisateur

Denon

Denon DRA-697CI Manuel utilisateur

SMART-AVI

SMART-AVI HDX-PRO Series Manuel utilisateur
