Pioneer XV-DV8 Manuel utilisateur

ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2004

RRV2961

T – ZZR MAY 2004 Printed in Japan

DVD/CD RECEIVER

XV-DV8

¶This service manual should be used together with the following manual(s).

Model No. Order No. Remarks

XV-DV8/DLXJ/NC RRV2908

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Remarks

Power Requirement

Type

Model

XV-DV8 LFXJ AC110- 120V 3 -

Region No.

1234

XV-DV8

1. CONTRAST OF MISCELLANEOUS PARTS

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to mark on product are used for disassembly.

For the applying amount of lubricants or glue, follow the instructions in this manual.

(In the case of no amount instructions, apply as you think it appropriate.)

Reference Nos. indicate the pages and Nos. in the service manual for the base model.

NOTES:

7CONTRAST OF TABLE

XV-DV8/LFXJ and /DLXJ/NC are constructed the same except for the following:

NSP COMPLEX ASSY XWM3237 XWM3238

P9- 7 PRIMARY ASSY XWZ3845 XWZ3859

P7- 1 AC Power Cord ADG1154 ADG7098

P7-15 Packing Case XHD3424 XHD3420

(English/Trad-Chinese)

P9-14 Power Transformer(T1) ATS7355 ATS7354

P9-15 Fuse (FU 1) REK1029 REK1069

(5.0A/250V) (6.3A/125V)

P9-22 Rear Panel (MTL) XNC3275 XNC3278

P9-45 Caution Label VRW1872 VRW1961

Region Label Not used VRW1702 No. 1

P11- 7 Display Window XAK3447 XAK3447

Ref.

No. Remarks

XV-DV8 XV-DV8

/DLXJ/NC /LFXJ

Part No.

Mark Symbol and Description

Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.

÷For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “2. SCHEMATIC DIAGRAM”.

1234

XV-DV8

Bonnet HTM

Rear Panel

PRIMARY Assy

Fan Cover

Speaker Label

VIDEO Jack Assy

FM/AM TUNER Module

No.1

Caution Label

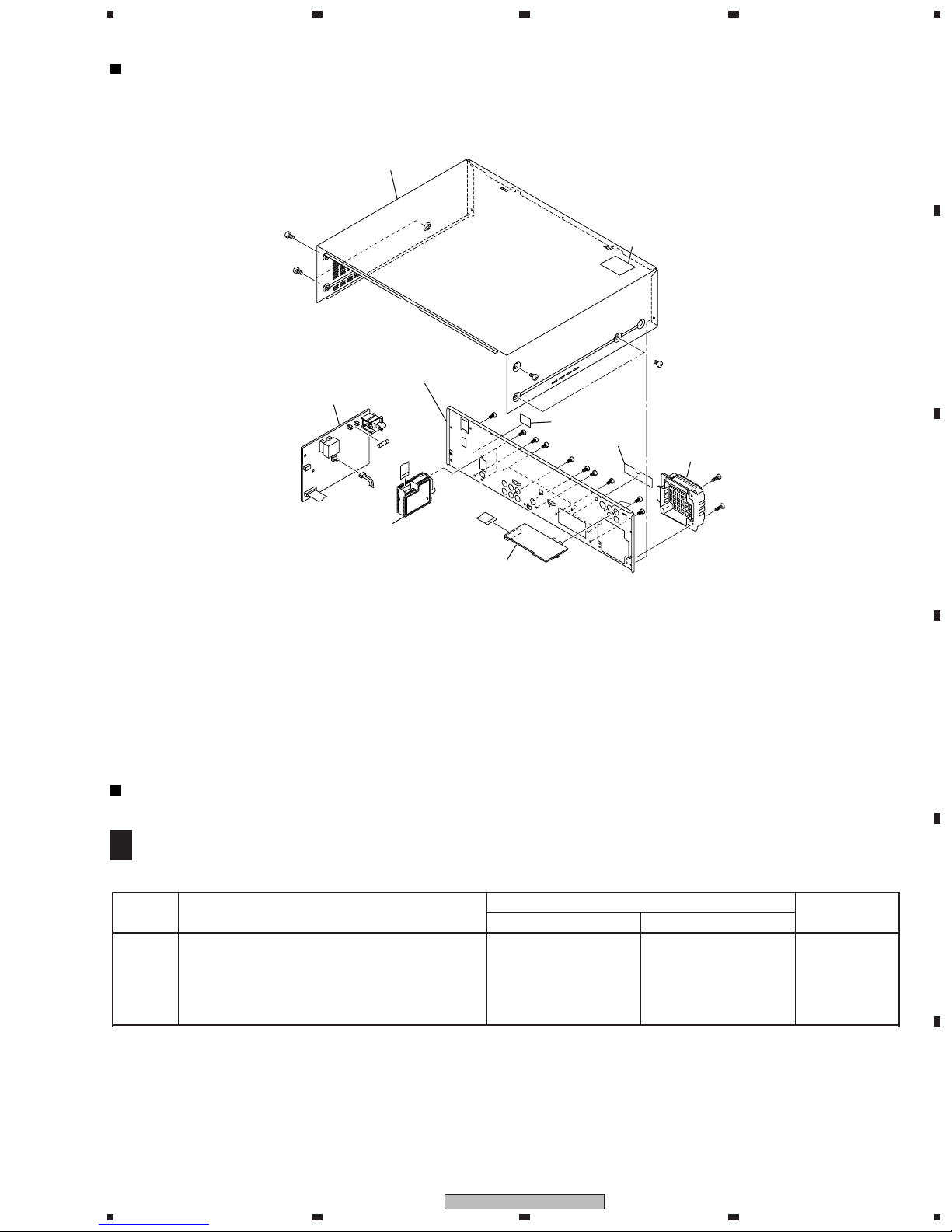

÷EXTERIOR SECTIONS

EXPLODED VIEWS

CONTRAST OF PCB ASSEMBLIES

XWZ3859 and XWZ3845 are constructed the same except for the following :

PRIMARY ASSY

Mark Symbol and Description Part No. Remarks

XWZ3845 XWZ3859

T002 Stand by Transformer (T 2) ATT7080 ATT7079

AN01 1P AC INLET XKP3041 XKP3042

CN 02 5P-VH Connector B5P9-VH Not used

S0101,S0102 Voltage Selector AKX7017 Not used

1234

XV-DV8

AN1

REK1069

(6.3A/125V)

ADG7098

M N

AMP TRADE ASSY

(XWZ3847)

PRIMARY ASSY

(XWZ3859 )

DSP TRADE ASSY

(XWZ3848)

CN5603

D1/4

CN5602

D1/4

CN8003

B1/2

CN8007

B1/2

CN3031

D4/4

CN3032

D4/4

CN8011

B1/2

: AUDIO DATA SIGNAL ROUTE

(AD)

: AUDIO SIGNAL ROUTE (Front L ch)

(FL)

: AUDIO SIGNAL ROUTE (Surround L ch)

(SL)

(AD)

(SL)

: AUDIO SIGNAL ROUTE (Center ch)

(C)

: AUDIO SIGNAL ROUTE (Sub Woofer ch)

(SW)

• NOTE FOR FUSE REPLACEMENT

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE AND RATINGS OF FUSE.

CAUTION -

CN3011 CN3021

CN5621

CN5622

CN5613

CN5612

CN5623

CN3012 CN3022

CN3001

CN3002

CAUTION : FOR CONTINUED PROTECTION

AGAINST RISK OF FIRE.

REPLACE ONLY WITH SAME TYPE

NO. 491007 FOR IC25 MFD, BY

LITTELFUSE INC.

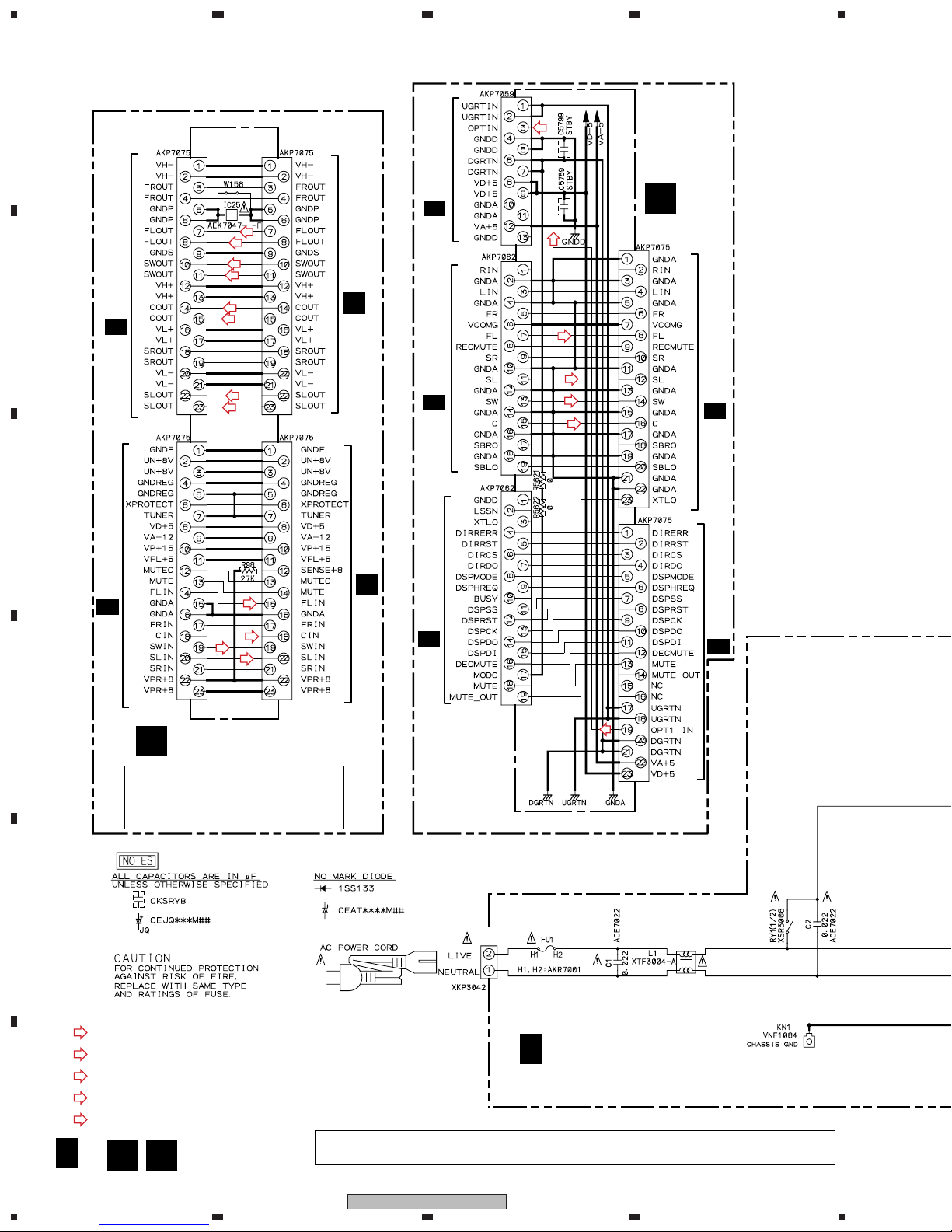

2.1 PRIMARY and VIDEO JACK ASSYS

2. SCHEMATIC DIAGRAM

1234

XV-DV8

CN8852

JA8803

CN8001

JA8851

CN1

J52

STBY

ATS7354

ATT7079

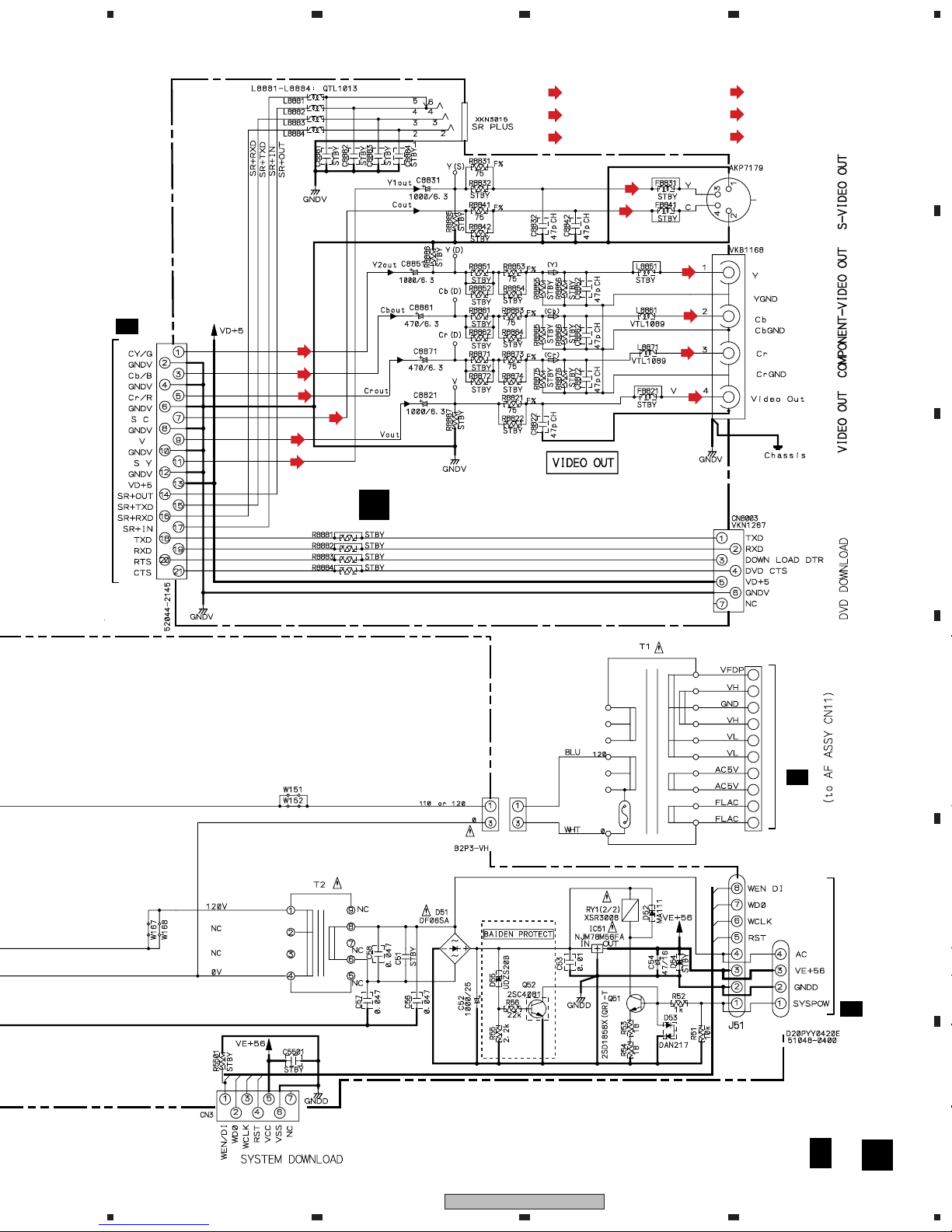

VIDEO JACK ASSY

(XWZ3849)

CN5103

D1/4

CN11

D4/4

CN52 or CN51

D4/4

: VIDEO SIGNAL ROUTE (Cb/B)

(Cb/B)

(CY/G)

: VIDEO SIGNAL ROUTE (CY/GR)

(CY/G)

: VIDEO SIGNAL ROUTE (Cr/R)

(Cr/R)

(Cb/B)

: S VIDEO SIGNAL ROUTE (Y)

(Y)

(C)

(C/V)

: S VIDEO SIGNAL ROUTE (Y)

(C)

: S VIDEO SIGNAL ROUTE (C/V)

(C/V)
