ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER ELECTRONIC NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2000

RRV2379

T – ZZR SEPT. 2000 Printed in Japan

CONTENTS

1. CONTRAST OF MISCELLANEOUS PARTS........2

2. PCB CONNECTION DIAGRAM..........................12

3. SCHEMATIC DIAGRAM .....................................14

AUDIO/VIDEO MULTI-CHANNEL RECEIVER

VSX-839RDS

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

Type Model Power Requirement The voltage can be converted by

VSX-839RDS the following method.

HYXJI ‡AC220-230V AC240V, ∗

HVXJI ‡AC230V AC240V, ∗

∗:Alter the wiring of the Power-supply block at the primary winding of Power-transformer referring to the "Line Voltage Selection" described

in Service Manual.

Model No. Order No. Remarks

VSX-35TX/KUXJI/CA RRV2351

¶This service manual should be used together with the following manual(s):

VSX-839RDS

Part No.

Ref. No. Mark Symbol and Description VSX-35TX VSX-839RDS VSX-839RDS Remarks

/KUXJI/CA /HYXJI /HVXJI

PCB ASSEMBLIES

P5- 1 FM/AM TUNER UNIT AXQ7231 AXQ7232 AXQ7232

NSP MAIN ASSY AWK7591 AWK7621 AWK7621

P5- 5 MAIN CONTROL ASSY AWX7560 AWX7625 AWX7625

P5-12 DSP ASSY AWX7561 AWX7626 AWX7626

NSP COMPLEX ASSY AWK7592 AWK7622 AWK7624

P5- 2 EX I/O (5.1CH I/O) ASSY AWX7568 AWX7627 AWX7627

P5- 6 A-CONNECTION ASSY AWX7566 AWX7619 AWX7619

P5-12 V-CONNECTION ASSY AWX7567 AWX7717 AWX7717

P5-13 TRANS2–2 ASSY AWX7565 AWX7720 AWX7720

P5-15 PRIMARY ASSY AWX7563 AWX7596 AWX7604

NSP POWER ASSY AWK7593 AWK7669 AWK7669

P5- 4 INPUT ASSY AWX7573 AWX7600 AWX7600

P5-10 SP/PS ASSY AWX7571 AWX7735 AWX7735

FAN DRIVER ASSY Not used AWX7599 AWX7599 No.1

NSP FRONT ASSY AWK7594 AWK7623 AWK7623

P5- 7 COMPOSITE ASSY AWX7581 AWX7617 AWX7617

P5- 8 S VIDEO ASSY AWX7580 AWX7616 AWX7616

P6- 3 V-AMP ASSY AWX7578 AWX7723 AWX7723

P7- 1 DISPLAY ASSY AWX7574 AWX7601 AWX7601

P7- 6 FRONT DIGIN ASSY AWX7648 Not used Not used

P- SW ASSY Not used AWX7593 AWX7593 No.2

PACKING SECTION

P3- 2 FM Wire Antenna ADH7004 ADH7005 ADH7005

P3- 3 Operating Instructions (English) ARB7222 ARB7225 ARB7225

P3- 3 Operating Instructions (German) Not used ARC7293 Not used

P3- 3 Operating Instructions (French) Not used ARC7292 Not used

P3- 3 Operating Instructions (Italian) Not used ARC7294 Not used

P3- 3 Operating Instructions (Dutch) Not used ARC7296 Not used

P3- 3 Operating Instructions (Swedish) Not used ARC7298 Not used

P3- 3 Operating Instructions (Spanish) Not used ARC7295 Not used

P3- 3 Operating Instructions (Portuguese) Not used ARC7297 Not used

P3- 4 Remote Control Unit (35TX) AXD7266 Not used Not used

P3- 4 Remote Control Unit (839RDS) Not used AXD7270 AXD7270

P3- 8 Packing Case AHD7860 AHD7866 AHD7866

P3-11 NSP Warranty Card ARY7007 ARY7022 ARY7022

1. CONTRAST OF MISCELLANEOUS PARTS

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

Screws adjacent to mark on product are used for disassembly.

Reference Nos. indicate the pages and Nos. in the service manual for the base model.

NOTES:

When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

561

473

R50

1R0

5621

560

47k

0.5

RD1/4PU J

RN2H K

RS1P K

56 x 101

47 x103

R50

1R0

561

473

5.62k RN1/4PC F562 x 1015621

CONTRASTTABLE

VSX-839RDS/HYXJI, HVXJI and VSX-35TX/KUXJI/CA are constructed the same except for the following:

VSX-839RDS

Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.

÷For PCBASSEMBLIES, Refer to “CONTRAST OF PCBASSEMBLIES”, “2. PCB CONNECTION DIAGRAM” and “3. SCHE-

MATIC DIAGRAM”.

Part No.

Ref. No. Mark Symbol and Description VSX-35TX VSX-839RDS VSA-839RDS Remarks

/KUXJI/CA /HYXJI /HVXJI

EXTERIOR SECTION

P5-18 Power Transformer ATS7284 ATS7285 ATS7285

P5-19 Fuse ( FU4, FU5 : ) REK1112 REK1025 REK1025

( 2.5A ) ( T2.0A ) (T2.0A )

P5-21 Fuse ( FU1 : ) VEK1029 REK-106 REK-106

( 10A ) ( T4.0A ) (T4.0A )

P5-26 Cord Stopper CM-22C CM-22B CM-22B

P5-27 AC Power Cord VDG1075 VDG1080 VDG1076

P5-28 Spacer AEB7210 AEB7213 AEB7213

P5-31 Rear Panel ANC7910 ANC7913 ANC7940

P5-35 Trans Shield ANG7293 ANG7294 ANG7294

P5-41 Earth Terminal AKE-031 Not used Not used

P5-46 65 Label ARW7050 Not used Not used

Fan Motor Not used AXM7012 AXM7012 No. 3

Locking Card Spacer Not used AEC7160 AEC7160 No. 4

HEAT SINK SECTION

Thermistor Not used AEX7004 AEX7004 No.5

FRONT PANEL SECTION

P7- 9 4P Flexible Cable/60V ADD7238 Not used Not used

P7-12 5P Shield Wire with Housing ADX7344 Not used Not used

P7-14 Door AMB7692 ANB7223 ANB7223

P7-19 Digital Cap AAD7576 Not used Not used

P7-21 Window AAK7769 AAK7770 AAK7770

P7-22 Door Sheet AAK7783 AAK7779 AAK7779

P7-25 Front Panel AMB7691 ANB7231 ANB7231

P7-30 Damper Assy AXA7089 AXA7088 AXA7088

P7-31 Name Plate PAM1776 PAN1376 PAN1376

POWER Button Not used ADD7442 ADD7442 No.6

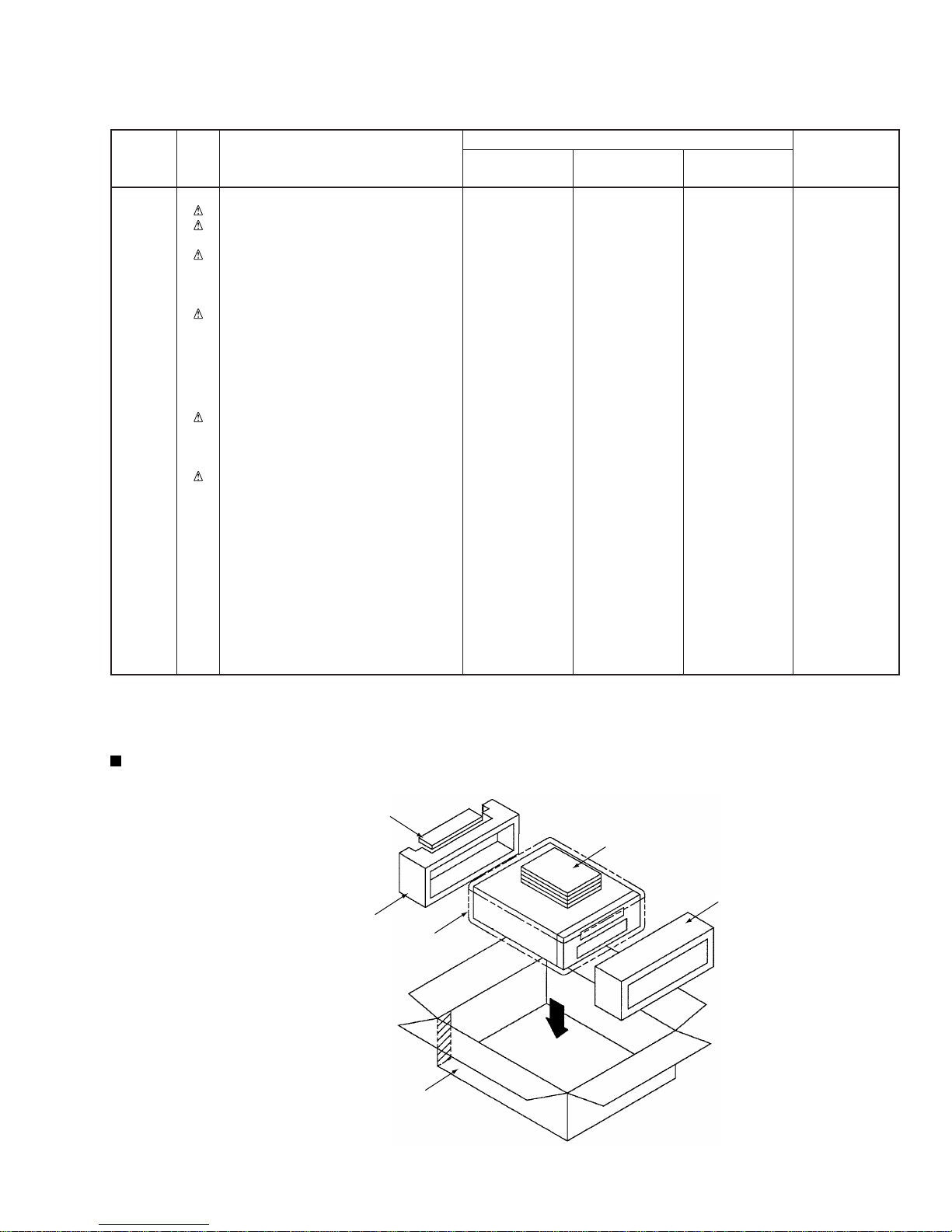

÷PACKING SECTION

Front Pad

Rear Pad Sheet

Packing Case

Remote Control Unit

Operating Instructions

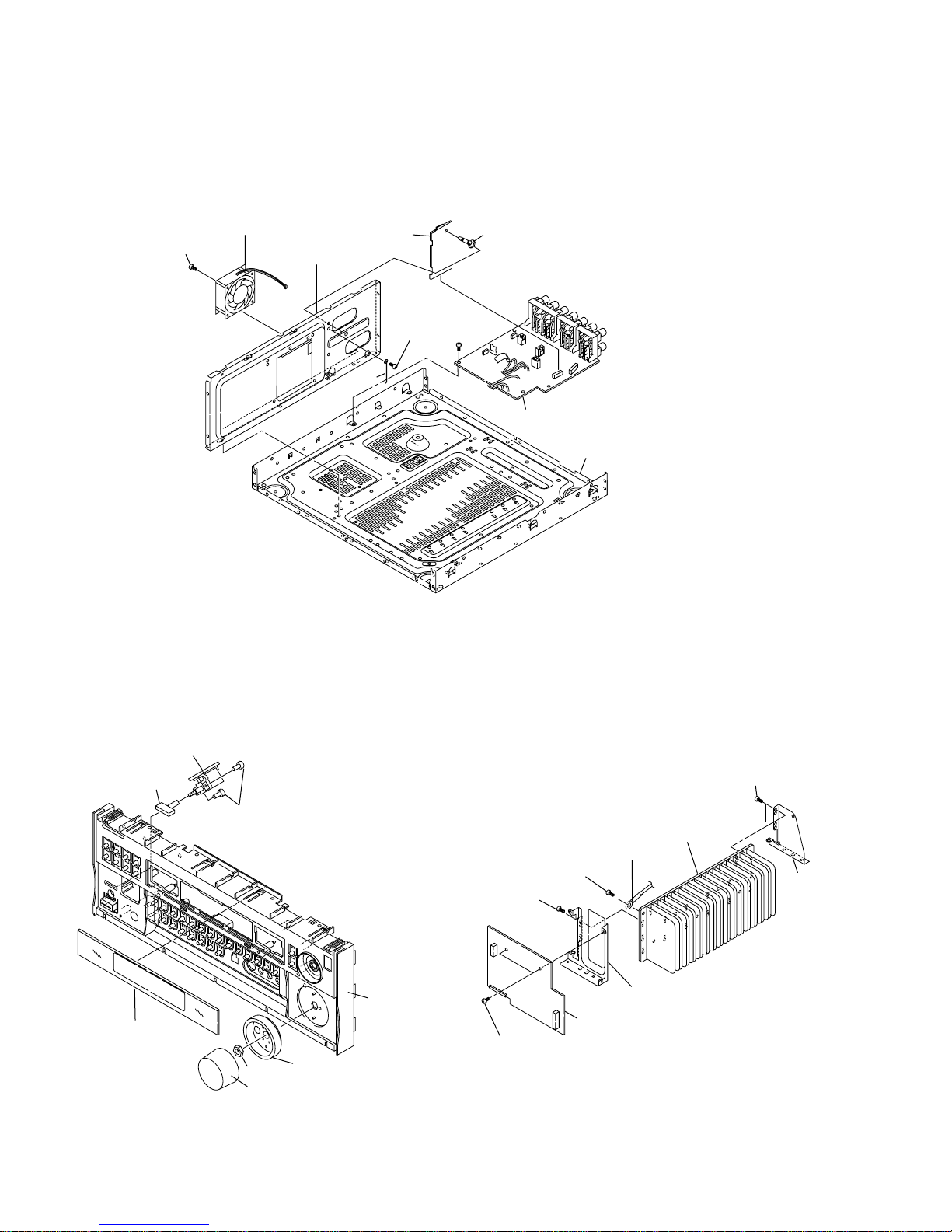

EXPLODEDVIEWS

VSX-839RDS

÷FRONT PANEL and HEAT SINK SECTIONS

÷EXTERIOR SECTION

Nut

Panel Base

Heat Sink

Volume Ring

Window

Volume Knob

No.6

No.2

BPZ30P080FMC

BBZ30P080FZK

Heat Sink Angle F

Heat Sink

Angle R

No.5

BBZ30P080FZK

V-AMP Assy

SP/PS Assy

Trans Shield

Cord Clamper

Under Base

No.3 No.4

No.1

BBZ30P080FZK

VSX-839RDS

CONTRAST OF PCB ASSEMBLIES

AXQ7232 and AXQ7231 are constructed the same except for the following :

FM/AMTUNER UNIT

Mark Symbol and Description Part No. Remarks

AXQ7231 AXQ7232

BN201 AKA7003 AKA7002

Q601 Not used 2SC2412K

Q602 Not used DTC124EK

D101 Not used UDZS6.8B

D601 Not used HVU187

L601 Not used LCTA270J2520

L602 Not used LAU2R2J

F601 Not used ATF7025

C101 CKSRYB103K50 Not used

C103, C104, C609 Not used CKSRYB102K50

C206 CCSRCH100D50 CCSRCH120J50

C209 CKSRYB223K50 Not used

C210 CEJA470M16 CEJQ470M16

C211 CEJA1R0M50 CEJQ1R0M50

C215 CKSRYB681K50 CKSRYB471K50

C216, C217 CKSRYB153K50 CKSRYB103K50

C244, C611 Not used CKSRYB223K50

C601, C602 CKSRYB103K50 Not used

C603 CKSRYB223K50 CKSRYB392K50

C604, C610, C615 Not used CKSRYB103K50

C605 Not used CCSQCH680J50

C606 Not used CKSRYB561K50

C607, C608 Not used CKSRYB182K50

C614 Not used CCSRCH101J50

R101 Not used RS1/16S0R0J

R102, R225, R243 RS1/16S0R0J Not used

R103 RS1/10S331J RS1/10S221J

R104 RS1/10S391J RS1/10S221J

R105, R605 Not used RS1/16S222J

R201 RS1/16S391J Not used

R202 RS1/16S221J RS1/16S101J

R212 RS1/16S392J RS1/16S512J

R216 RS1/16S123J RS1/16S103J

R218, R219 RS1/16S102J RS1/16S681J

R222 RS1/16S472J RS1/16S103J

R227 RS1/16S103J RS1/16S183J

R601 Not used RS1/16S561J

R602, R604 Not used RS1/16S221J

R603 Not used RS1/16S472J

R606 Not used RS1/16S121J

R607 Not used RS1/16S473J

0001 FM FRONT END AXF7003 AXF7005

0002 MW RF TUNING BLOCK AXX7071 AXX7072

VSX-839RDS

AWX7627 and AWX7568 are constructed the same except for the following :

5.1CH I/O ASSY

Mark Symbol and Description Part No. Remarks

AWX7568 AWX7627

IC1104 UPC4570G2 Not used

Q1157, Q1158 HN1C03F Not used

C1101–C1106, C1117–C1122, C1161–C1165 Not used CCSQCH101J50

C1115, C1116 CEAT4R7M50 Not used

C1131, C1132 CEAT100M50 Not used

C1139, C1140 CKSQYB103K50 Not used

C1151–C1156 Not used CCSQCH331J50

C1166 Not used CCSQCH471J50

R1107, R1108 RS1/10S331J Not used

R1115, R1116 RS1/10S104J Not used

R1125, R1126 RS1/10S474J Not used

R1157, R1158 RS1/10S271J Not used

R1165, R1166 RS1/10S121J Not used

R1173, R1174 RS1/10S101J Not used

R1181, R1182, R1189, R1190 RS1/10S103J Not used

JA1113, JA1163 AKB7046 Not used

AWX7600 and AWX7573 are constructed the same except for the following :

INPUT ASSY

Mark Symbol and Description Part No. Remarks

AWX7573 AWX7600

Q1001, Q1002 2SC2878 Not used

D1051 1SS133 Not used

C1001–C10012 Not used CCCSL221J50

C1051 CGCYX103M16 Not used

R1013– R1016 RD1/4PU102J Not used

R1017, R1018 RD1/4PU473J Not used

R1051 RD1/4PU102J Not used

CN1002 KP200TA6L Not used

JA1004 AKB7046 Not used

JA1051 AKN7014 Not used

AWX7616 and AWX74580 are constructed the same except for the following :

SVIDEO ASSY

Mark Symbol and Description Part No. Remarks

AWX7580 AWX7616

IC852 BU4053BCF Not used

C854 CCSQCH151J50 Not used

C855, C856 CKSQYB103K50 Not used

R855 RS1/10S103J Not used

R868, R869,R870 RS1/10S102J Not used

R883, R885 Not used RS1/10S0R0J ∗

R884 RS1/10S0R0J Not used

Note ∗: These parts are used for VSX-33TX/KUXJI/CA. Refer to service manual RRV2351.

VSX-839RDS

AWX7625 and AWX7560 are constructed the same except for the following :

MAIN CONTROL ASSY

Mark Symbol and Description Part No. Remarks

AWX7560 AWX7625

IC101 M5220FP Not used

IC103 TC9164AF Not used

IC104 NJM4558MD Not used

IC251 Not used NJM4558MD

Q905 DTA124EK Not used

D251, D252 Not used 1SS355

D253 Not used UDZS5.1B

C101– C110 Not used CCSQCH221J50

C113, C114 CEAT100M50 Not used

C115, C116 CCSQCH181J50 Not used

C117, C118 CEAT470M25 Not used

C121, C122 CQMA822J50 Not used

C123, C124 CQMA242L50 Not used

C125, C126 CEAT2R2M50 Not used

C127, C128 CEJQ101M25 Not used

C133, C134, C911 CKSRYB103K50 Not used

C135, C136 CEAT1R0M50 Not used

C145, C146, C169, C170, C181, C182 Not used CCSRCH101J50

C157, C158 Not used CCSQCH101J50

C191– C193 CCSRCH101J50 Not used

C252 Not used CEAT470M25

C253– C256 Not used CKSRYB103K50

C291 CEJA101M16 CEJQ101M16

R111, R112 RS1/10S0R0J Not used

R113, R114, R117, R118, R129, R130 RS1/10S104J Not used

R139, R140, R203, R204 RS1/10S104J Not uesd

R115, R116 RS1/10S331J Not used

R119, R120 RS1/10S511J Not used

R121, R122 RS1/10S394J Not used

R123, R124 RS1/10S303J Not used

R125, R126, R133, R134 RS1/10S471J Not used

R131, R132 RS1/16S474J Not used

R135, R136, R934, R944, R945, R946 RS1/16S102J Not used

R990, R991 RS1/10S102J Not used

R933 RS1/16S473J Not used

R211– R215, R252, R253 Not used RS1/16S104J

R251 Not used RS1/16S474J

R254 Not used RS1/16S102J

R255 Not used RS1/16S393J

R295 Not used RS1/10S0R0J

R921 Not used RS1/16S103J

CN0103 AKP7057 Not used

CN0906 52045-0445 Not used

JA151 VKB1060 Not used

VSX-839RDS

AWX7619 and AWX7566 are constructed the same except for the following :

A-CONNECTION ASSY

Mark Symbol and Description Part No. Remarks

AWX7566 AWX7619

IC1501 TC9215AF Not used

IC1502 TC9459F Not used

IC1503 NJM4558MD Not used

IC1551 M62429FP Not used

D1551 UDZS5.1B Not used

C1501- C1504, C1517, C1518 CKSQYB103K50 Not used

C1507, C1508, C1515, C1516, C1551–C1553 CEAT100M50 Not used

C1511, C1512 CCSQCH560J50 Not used

C1541– C1543, C1554, C1555 CCSQCH101J50 Not used

C1556, C1557 CEAT1R0M50 Not used

R1503, R1504, R1511, R1512 RS1/10S104J Not used

R1505, R1506 RS1/10S103J Not used

R1507, R1508 RS1/10S472J Not used

R1509, R1510 RS1/10S152J Not used

R1541– R1545, R1552, R1553 RS1/10S102J Not used

R1551 RS3LMF391J Not used

R1554, R1555 RS1/10S103J Not used

R1569, R1570, R1571, R1572, R1573, R1574 RD1/10S0R0J Not used

CN1552 AKP7068 Not used

CN1554 KM200TA6 Not used

AWX7617 and AWX7581 are constructed the same except for the following :

COMPOSITE ASSY

Mark Symbol and Description Part No. Remarks

AWX7581 AWX7617

IC731 NJM2279 Not used

IC751 TC4W53FU Not used

Q701 2SA933S Not used

D731 DAN202K Not used

C707 CCSQCH181J50 Not used

C712, C713, C734, C735 CEAT101M10 Not used

C714, C732, C733, C736, C785, C786 CKSQYB473K50 Not used

C715 CCSQCH150J50 Not used

C737 CCSQCH470J50 Not used

R707 RS1/10S750J Not used

R712 RS1/10S183J Not used

R713 RS1/10S103J Not used

R714 RS1/10S101J Not used

R715 RD1/2VM201J Not used

R733– R735, R766 RS1/10S102J Not used

R767 RS1/10S104J Not used

JA703 2P PIN JACK Not used VKB1048 ∗

703 2P PIN JACK AKB7017 Not used

Note ∗: These parts are used for VSX-33TX/KUXJI/CA. Refer to service manual RRV2351.

VSX-839RDS

AWX7720 and AWX7565 are constructed the same except for the following :

TRANS 2-2 ASSY

Mark Symbol and Description Part No. Remarks

AWX7565 AWX7720

C5501 CQMA224J50 Not used

C5502 CQMA224J50 Not used

R5501 RD1/4MUF100J Not used

AWX7735 and AWX7571 are constructed the same except for the following :

SP / PS ASSY

Mark Symbol and Description Part No. Remarks

AWX7571 AWX7735

D3001, D3002 D5SBA20 D5SBA20(B)

D3052, D3054, D3056, D3058, D3059 Not used 1SS133

D3201 Not used MTZJ5.1B

C3001, C3002 (22000µF/56V) ACH7147 ACH7145

C3101- C3105 CFTYA104J50 CFTYA224J50

C3106- C3110 Not used CFTYA224J50

C3111- C3117 CQHA102J2A CQHA332K2E

C3119 Not used CKPUYB221K50

L3111, L3112 ATX1012 Not used

R3111 Not used RD1/4PU4R7J

R3133, R3134 Not used RS1LMF471J

Heat Sink ANH1021 Not used

CN3002 6P PLUG Not used KM200TA6

CN3101 AKE7058 AKE7059

CN3102 AKE7060 AKE7061

AWX7717 and AWX7567 are constructed the same except for the following :

V-CONNECTION ASSY

Mark Symbol and Description Part No. Remarks

AWX7567 AWX7717

Q601 KRC103M Not used

C601 CKSQYB103K50 Not used

R601 RS1/10S103J Not used

CN604 KM200TA10 Not used

AWX7723 and AWX7578 are constructed the same except for the following :

V-AMP ASSY

Mark Symbol and Description Part No. Remarks

AWX7578 AWX7723

CN2201 3P CONNECTOR Not used KM250MA3

VSX-839RDS

AWX7601 and AWX7574 are constructed the same except for the following :

DISPLAY ASSY

Mark Symbol and Description Part No. Remarks

AWX7574 AWX7601

IC7051 TC7W53FU Not used

IC7401 Not used BU1923

Q7053 FMA1A Not used

Q7054 DTC124EK Not used

Q7401 Not used 2SA1037

Q7402 Not used DTC143ES

Q7403 Not used 2SC2412K

D7054– D7057 1SS355 Not used

L7401 Not used LFA2R2J

C7053 CKSQYB153K50 Not used

C7401 Not used CKSQYB472K50

C7402 Not used CEAT2R2M50

C7403, C7404 Not used CKSQYB102K50

C7405 Not used CEAT101M10

C7406, C7407 Not used CCSQCH270J50

C7408 Not used CKSQYB561K50

C7409 Not used CEAT1R0M50

R7047 RS1/10S223J RS1/10S103J

R7056 RS1/10S223J Not used

R7057 RS1/10S392J Not used

R7058, R7061 RS1/10S103J Not used

R7401, R7407, R7408 Not used RS1/10S102J

R7403 Not used RS1/10S222J

R7404 Not used RS1/10S473J

R7405 Not used RS1/10S333J

R7406 Not used RS1/10S104J

CN7007 52045-0445 Not used

X7401 CRYSTAL RESONATOR (4.332MHz) Not used ASS7004

C6011, C6012, C6013 Not used CCCSL101K2H CCCSL101K2H

R6001 RCN1080 Not used Not used

J0032 Not used D20PYY0330E D20PYY0330E

T6001 ATT7043 ATT7040 ATT7040

6004 AKP7136 AKP7135 Not used

6001 3P CONNECTOR Not used 51048-0300 51048-0300

Mark Symbol and Description Part No.

AWX7563 AWX7596 AWX7604 Remarks

PRIMARY ASSY

AWX7596, AWX7604 and AWX7563 are constructed the same except for the following:

Autres manuels pour VSX-839RDS

Table des matières

Autres manuels Pioneer Récepteur

Pioneer

Pioneer AVH-X5800BHS Manuel utilisateur

Pioneer

Pioneer SC-LX85 Manuel utilisateur

Pioneer

Pioneer MVH-X189UI Manuel utilisateur

Pioneer

Pioneer PRO-100 Manuel utilisateur

Pioneer

Pioneer MVH-190UI Manuel utilisateur

Pioneer

Pioneer DEH-P510UB - Premier Radio / CD Manuel utilisateur

Pioneer

Pioneer VSX-918V Manuel utilisateur

Pioneer

Pioneer Elite VSX-55TXi Manuel utilisateur

Pioneer

Pioneer VSX-609RDS Manuel utilisateur

Pioneer

Pioneer VSX-1122-K Manuel utilisateur

Pioneer

Pioneer MVH-270DAB Manuel utilisateur

Pioneer

Pioneer DVH-330UB Manuel utilisateur

Pioneer

Pioneer Elite VSX-70 Manuel utilisateur

Pioneer

Pioneer Elite VSX-41 Manuel utilisateur

Pioneer

Pioneer Elite VSX-33 Manuel utilisateur

Pioneer

Pioneer VSX-C301-S Manuel utilisateur

Pioneer

Pioneer DVH-P5000UB Manuel utilisateur

Pioneer

Pioneer CX-3287 Manuel utilisateur

Pioneer

Pioneer VSX-415-S/-K Manuel utilisateur

Pioneer

Pioneer XV-DV232 Manuel utilisateur

Pioneer

Pioneer XV-DV313 Manuel utilisateur

Pioneer

Pioneer MVH-S600BS Manuel utilisateur

Pioneer

Pioneer MVH-7300 Manuel utilisateur

Pioneer

Pioneer VSX-9130TXH-K - 140 Watts A/V Receiver Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
