MVH-S720BHS Operation Manual

Mode d’emploi

Manual de operación

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be sure to

record this number on the enclosed warranty card.

Important (Numéro de série)

Le numéro de série se trouve au bas de cet appareil. Pour votre sécurité et votre commodité, veillez à noter ce

numéro sur la carte de garantie fournie.

Importante (Número de serie)

El número de serie se encuentra en la parte inferior de esta unidad. Por su propia seguridad y comodidad,

asegúrese de anotar este número en la tarjeta de garantía que se adjunta.

- 2 -

English

Getting Started ........................................................................................ 3

HD Radio™ Technology .......................................................................... 7

USB/iPhone®/AUX................................................................................. 10

Bluetooth ............................................................................................... 12

Pandora® ................................................................................................ 16

Spotify® .................................................................................................. 18

SiriusXM Satellite Radio ...................................................................... 19

Using Pioneer Smart Sync/APP.......................................................... 23

Audio Adjustments .............................................................................. 26

Settings .................................................................................................. 28

FUNCTION settings ............................................................................... 28

AUDIO settings ...................................................................................... 31

SYSTEM settings.................................................................................... 34

ILLUMINATION settings........................................................................ 37

MIXTRAX settings.................................................................................. 38

Additional Information ....................................................................... 40

About this manual:

•In the following instructions, a USB memory or USB audio player are referred to as

“USB device”.

Table of Contents

- 3 -- 3 -

English

MVH-S720BHS

Optional remote control

The remote control CD-R510 is sold separately.

Frequently used operations

Getting Started

Basic operation

Purpose Operation

Turn on the power* Press SRC/OFF to turn on the power.

Press and hold SRC/OFF to turn off the

power.

Adjust the volume Turn the M.C. dial.

Select a source Press SRC/OFF repeatedly.

Change the display information Press DISP repeatedly.

Return to the previous display/list Press BAND/.

Return to the normal display from the menu Press and hold BAND/.

Change the display brightness (not

available when [SIRIUSXM] is selected as a

source)

Press and hold BAND/.

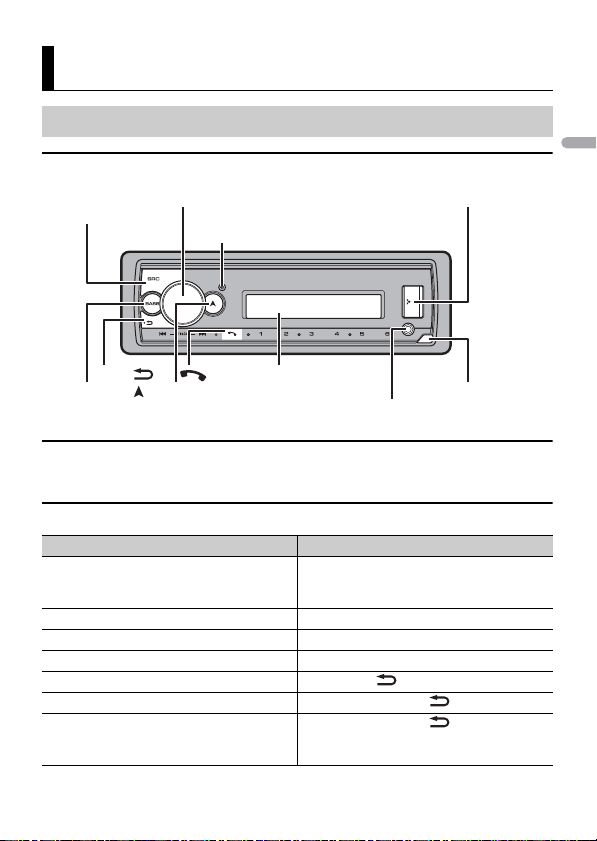

SRC (source)/OFF

Detach button

Display window

M.C. (multi-control) dial

BAND/

DISP (display)

(navigation)/LIST

USB port

AUX input jack (3.5 mm stereo jack)

BASS

- 4 -

English

* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal,

the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the

source off.

Display indication

Detach the front panel to prevent theft. Remove any cables and devices attached to the

front panel and turn off the unit before detaching it.

Important

•Avoid subjecting the front panel to excessive shock.

•Keep the front panel out of direct sunlight and high temperatures.

•Always store the detached front panel in a protective case or bag.

Answering a call Press any button.

Ending a call Press .

Boost the bass level Press BASS.

•You can select the bass level ([HI] or

[LOW]) in [D.BASS] (page 33).

Indication Description

Appears when a lower tier of the menu or folder exists.

BASS Appears when the BASS function is activated.

Appears when random/shuffle play is set (except when BT AUDIO is

selected as the source).

Appears when repeat play is set (except when BT AUDIO is selected as the

source).

Appears when a Bluetooth connection is made (page 12).

APP Appears when a Pioneer Smart Sync connection is made (page 23).

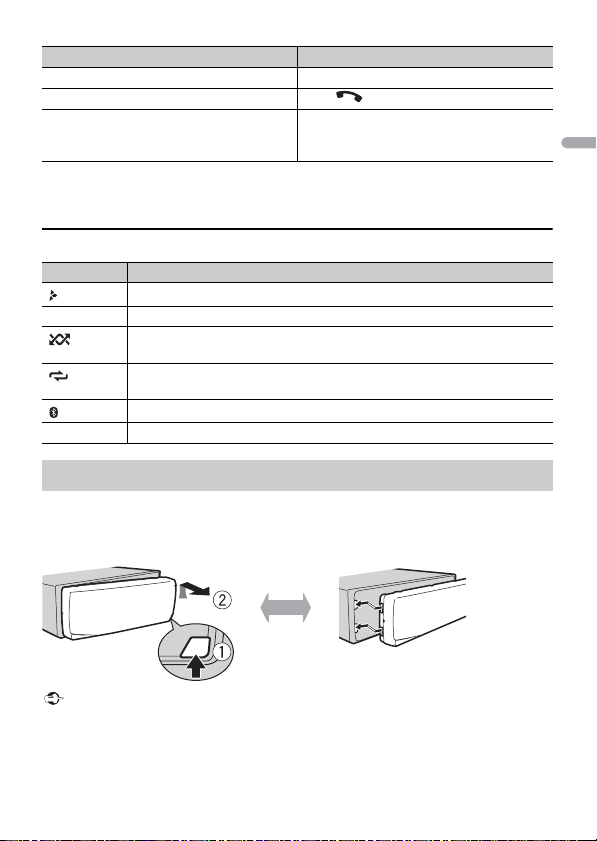

Detaching the front panel

Purpose Operation

Detach Attach

- 5 -- 5 -

English

The microprocessor must be reset in the following situations:

– Before using this unit for the first time after installation

– If the unit fails to operate properly

– When strange or incorrect messages appear on the display

1Remove the front panel (page 4).

2Press the RESET button with a pointed instrument longer than 8 mm.

When you turn the ignition switch to ON after installation, the setup menu appears in

the display.

WARNING

Do not use the unit in standard mode when a speaker system for network mode is connected to the

unit. Do not use the unit in network mode when a speaker system for standard mode is connected to

the unit. This may cause damage to the speakers.

1Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Resetting the microprocessor

Setup menu

Menu Item Description

LANGUAGE Select the language to display the text information from a

compressed audio file.

[ENG](English),

[ESP](Spanish),

[FRA] (Canadian

French)

CLOCK SET Set the clock.

1Turn the M.C. dial to adjust the hour, then press to confirm.

The indicator moves to the minute setting automatically.

2Turn the M.C. dial to adjust the minute, then press to confirm.

RESET button

- 6 -

English

2[QUIT :YES] appears.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO],

then press to confirm.

3Press the M.C. dial to confirm the settings.

NOTE

These settings other than [SPEAKER MODE] can be made at any time from the SYSTEM settings

(page 34).

1Press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [SYSTEM], then press to confirm.

3Turn the M.C. dial to select [DEMO OFF], then press to confirm.

4Turn the M.C. dial to select [YES], then press to confirm.

1Press and hold SRC/OFF until the unit turns off.

2Press the M.C. dial to display the main menu.

3Turn the M.C. dial to select [INITIAL], then press to confirm.

4Turn the M.C. dial to select an option, then press to confirm.

SPEAKER MODE Switch between two operation modes: the 2-way network mode

(NETWORK) and the standard mode (STANDARD) according to

the connections you have established. For details on operation

modes, see page 26.

After selecting the appropriate mode, turn the M.C. dial to

select [YES], then press to confirm.

•You cannot complete the setup menu without setting the

[SPEAKER MODE].

•Once the speaker mode is set, this setting cannot be changed

unless the default settings of this product are restored. Restore

the default settings to change the speaker mode setting (refer

to SYSTEM RESET on page 7).

•When [NETWORK] is selected, the beep tone function is not

available.

[STANDARD],

[NETWORK]

Canceling the demonstration display (DEMO OFF)

INITIAL settings

Menu Item Description

- 7 -- 7 -

English

The tuner frequencies on this unit are allocated for use in North America. Use in other

areas may result in poor reception.

About HD Radio™ stations

HD Radio™ stations offer high-quality audio and data services. HD Radio stations are

brought to you by local FM/AM stations.

HD Radio stations feature the following:

– High quality audio

–FMmulticasting

– Data services

Menu Item Description

REAR-SP Select when there is a full-range speaker connected to the rear

speaker output leads.

[FUL]

[SW] Select when there is a subwoofer connected directly to the rear

speaker output leads without any auxiliary amplifier.

SYSTEM UPDATE Select [SYSTEM INFO] to confirm the latest system information

on the unit.

Select [S/W UPDATE] to update the unit to the latest software

and initialize the unit settings. For details on the latest software

and updating, visit our website.

[SYSTEM INFO], [S/

W UPDATE]

SXM RESET Select to initialize the SiriusXM settings.

[YES], [NO]

SYSTEM RESET Select [YES] to initialize the unit settings. The unit will be

restarted automatically.

[YES], [NO]

HD Radio™ Technology

- 8 -

English

Program Service Data: Contributes to the superior user experience of HD Radio

Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other

relevant data streams.

Adjacent to traditional main stations are extra local FM channels. These HD2/HD3

Channels provide new, original music as well as deep cuts into traditional genre.

Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast

a clean digital signal. AM sounds like today’s FM and FM sounds like a CD.

1Press SRC/OFF to select [HD RADIO].

2Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM].

3Press a number button (1/ to6/).

The six strongest stations are stored on the number buttons (1/ to6/).

1After selecting the band, press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [FUNCTION], then press to confirm.

Receiving preset stations

Best stations memory (BSM)

Analog AM Digital AM

Analog FM

Analog FM Digital FM-1 ch

Digital FM-2 ch

Digital FM-3 ch

Digital FM

FM band

Analog AM

AM band

- 9 -- 9 -

English

3Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1After selecting the band, press / to select a station.

Press and hold / then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press / .

NOTE

Depending on the reception status, seek tuning can be changed between digital station seek and all

station seek (page 28).

To store stations manually

1While receiving the station you want to store, press and hold one of the number

buttons (1/ to6/ ) until it stops flashing.

In emergency situations, drivers can receive messages via their local radio stations when

[AR] is set to [ON] in the FUNCTION settings (page 29).

While receiving an emergency alert, the following functions are available.

To ignore the alert

1Press the M.C. dial, SRC/OFF, or .

To postpone the alert

1Press BAND/.

1While receiving an emergency alert, press and hold .

The last four items that have been received appear.

2Turn the M.C. dial to select one of the items, then press to confirm.

The detail of the selected item appears.

NOTE

[/TEST/] appears at the beginning of an item if it was a test message.

Emergency alerts

Alert history

- 10 -

English

To delete an alert history

1Press and hold the M.C. dial in step 2 above.

2Turn the M.C. dial to select [DELETE YES], then press to confirm.

(iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings

(page 35).)

Disconnect headphones from the device before connecting it to the unit.

USB devices (including Android™)/iPhone

1Open the USB port cover.

2Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB

AUTO] to [ON] in the SYSTEM settings (page 36).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the

unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

A device running Android OS 4.1 or later installed and also supports AOA (Android Open

Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the

device.

NOTE

If you use an AOA connection, [APP CONTROL] needs to be set to [WIRED] (page 35) and [USB MTP]

needs to be set to [OFF] (page 35) in the SYSTEM settings.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP,

using the cable supplied with the device. However, depending on the connected device, OS version or

the numbers of the files in the device, audio files/songs may not be able to be played back via MTP.

Note thatMTP connection is not compatible with WAV file formats and FLAC file formats, and cannot be

used with the MIXTRAX function.

USB/iPhone®/AUX

Playing back

Table des matières

Langues :

Autres manuels Pioneer Récepteur

Pioneer

Pioneer Elite VSX-54TX Manuel utilisateur

Pioneer

Pioneer VSX-LX52 Manuel utilisateur

Pioneer

Pioneer VSX-D510 Manuel utilisateur

Pioneer

Pioneer XR-A9800D Manuel utilisateur

Pioneer

Pioneer SC-89/CUXJ Manuel utilisateur

Pioneer

Pioneer VSX-828-K, VSX-828-S, VSX-528- Manuel utilisateur

Pioneer

Pioneer VSX-517-K Manuel utilisateur

Pioneer

Pioneer Elite VSX-56TXi Manuel utilisateur

Pioneer

Pioneer MVH-S219BT Manuel utilisateur

Pioneer

Pioneer SC-LX58-K Manuel utilisateur

Pioneer

Pioneer SX-316-S Manuel utilisateur

Pioneer

Pioneer SC-09TX - Elite AV Network Receiver Manuel utilisateur

Pioneer

Pioneer DMH-160BT Manuel utilisateur

Pioneer

Pioneer GEX-AIRWARE1 Manuel utilisateur

Pioneer

Pioneer AVH-X5800DAB Manuel utilisateur

Pioneer

Pioneer VSX-521 -K Manuel utilisateur

Pioneer

Pioneer MVH-85UB Manuel utilisateur

Pioneer

Pioneer VSX-D510 Manuel utilisateur

Pioneer

Pioneer DMH-A340DAB Manuel utilisateur

Pioneer

Pioneer VSX-D712 Manuel utilisateur

Pioneer

Pioneer avm-p900ruc Manuel utilisateur

Pioneer

Pioneer VSX-1325-K Manuel utilisateur

Pioneer

Pioneer SD-P4053 Manuel utilisateur

Pioneer

Pioneer MVH-8300BT Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
