MVH-330DAB

MVH-130DAB

Getting Started

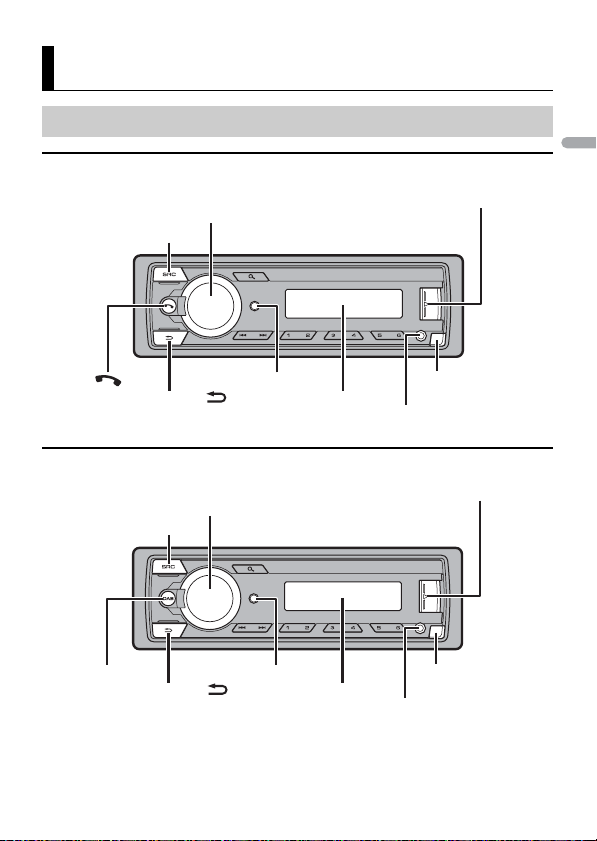

Basic operation

SRC (source)/OFF

USB port

M.C. (multi-control) dial

BAND/DIMMER Display window

DISP (display)/DISP OFF Detach button

AUX input jack (3.5 mm stereo jack)

SRC (source)/OFF

Detach button

Display window

M.C. (multi-control) dial

BAND/DIMMER

DISP (display)/DISP OFF

DAB button

AUX input jack (3.5 mm stereo jack)

USB port

- 4 -

English

Frequently used operations

The available buttons vary depending on the unit.

* When this unit’s blue/white lead is connected to the vehicle’s auto-antenna relay control terminal,

the vehicle’s antenna extends when this unit’s source is turned on. To retract the antenna, turn the

source off.

Display indication

Detach the front panel to prevent theft. Remove any cables and devices attached to the

front panel and turn off the unit before detaching it.

Purpose Operation

Turn on the power* Press SRC/OFF to turn on the power.

Press and hold SRC/OFF to turn off the

power.

Adjust the volume Turn the M.C. dial.

Select a source Press SRC/OFF repeatedly.

Change the display information Press DISP/DISP OFF repeatedly.

Press and hold DISP/DISP OFF to turn off

the display information and key

illumination.

Return to the previous display/list Press BAND/DIMMER .

Return to the normal display from the menu Press and hold BAND/DIMMER .

Answering a call Press any button.

Ending a call Press .

Indication Description

Appears when a lower tier of the menu or folder exists.

Appears when the button is pressed.

Appears when random play is set (except when AOA is used).

Appears when repeat play is set (except when AOA is used).

Appears when a Bluetooth connection is made (page 11) (only for MVH-

330DAB).

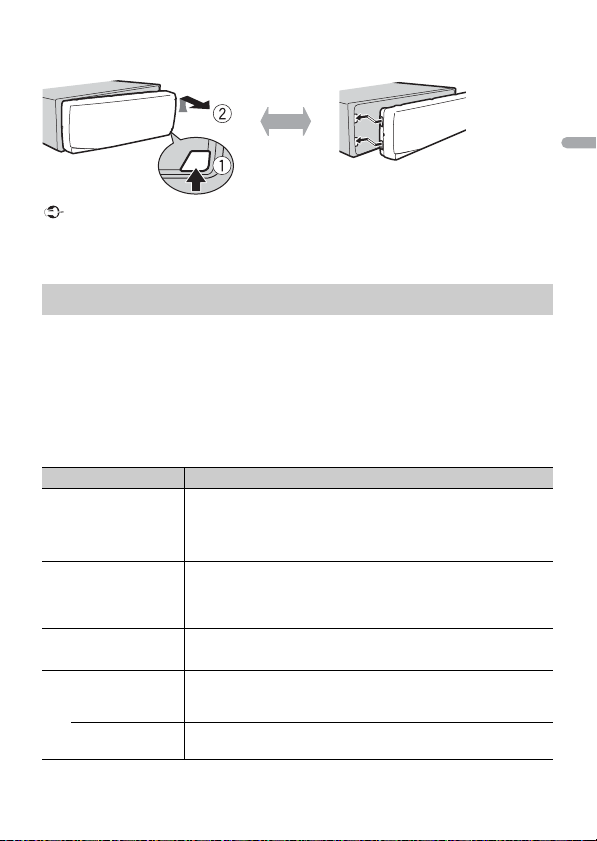

Detaching the front panel

- 5 -- 5 -

English

Important

•Avoid subjecting the front panel to excessive shock.

•Keep the front panel out of direct sunlight and high temperatures.

•Always store the detached front panel in a protective case or bag.

When you turn the ignition switch to ON after installation, [SETUP:YES] appears in the

display.

1Press the M.C. dial.

The setup menu disappears after 30 seconds of no operation. If you prefer not to set

at this time, turn the M.C. dial to select [NO], then press to confirm.

2Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Setup menu

Menu Item Description

LANG Select the language to display.

[ENG](English),

[FRA](French),

[DEU](German)

CLOCK Set the clock.

1Turn the M.C. dial to adjust the hour, then press to confirm.

The indicator moves to the minute setting automatically.

2Turn the M.C. dial to adjust the minute, then press to confirm.

FM STEP Select the FM tuning step from 100 kHz or 50 kHz.

[100KHZ], [50KHZ]

DAB ANT Supply power to a DAB antenna. Select this when using the

optional DAB antenna (CA-AN-DAB.001, sold separately) with

the unit.

[ON]

[OFF] No power is supplied to a DAB antenna. Select this when using a

passive antenna with no booster.

Detach Attach

- 6 -

English

3[QUIT :YES] appears when all the settings have been made.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO],

then press to confirm.

4Press the M.C. dial to confirm the settings.

[UPDATING] appears in the display and the service list will be updated.

NOTES

•You can cancel the menu setting by pressing SRC/OFF.

•These settings can be made at any time from the SYSTEM settings (page 18) and INITIAL settings

(page 6).

1Press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [SYSTEM], then press to confirm.

3Turn the M.C. dial to select [DEMO OFF], then press to confirm.

4Turn the M.C. dial to select [YES], then press to confirm.

1Press and hold SRC/OFF until the unit turns off.

2Press the M.C. dial to display the main menu.

3Turn the M.C. dial to select [INITIAL], then press to confirm.

4Turn the M.C. dial to select an option, then press to confirm.

Canceling the demonstration display (DEMO OFF)

INITIAL settings

Menu Item Description

FM Select the FM tuning step from 100 kHz or 50 kHz.

[100], [50]

DIMMER Change the display brightness.

Select [SYNC CLK] to set the duration of activating dimmer.

Select [MANUAL] to turn on/off dimmer by a press and hold of

BAND/DIMMER button.

[SYNC CLK],

[MANUAL]

RESET Select [YES] to initialize the unit settings. The unit will be

restarted automatically.

(Some of the settings may be retained even after resetting the

unit.)

[YES], [NO]

- 7 -- 7 -

English

To receive DAB signals, connect a DAB antenna (CA-AN-DAB.001) (sold separately) to the

unit.

1Press SRC/OFF to select [DAB].

2Press BAND/DIMMER/ to select the band from [D1], [D2] or [D3].

3Press / to select a service component/station.

NOTE

Press and hold / then release to seek an available service. Scanning stops when the unit

receives a service.

To select service component/station from service lists

1During DAB reception, press .

Displays the list of all service components/stations.

2Select a service component/station from the list you selected, then press the M.C.

dial to confirm.

NOTE

You can update the service list by pressing and holding .

To store service components/stations

1While receiving the service component/station you want to store, press and hold

one of the number buttons (1/ to6/ ) until it stops flashing.

DAB ANT Supply power to a DAB antenna. Select this when using the

optional DAB antenna (CA-AN-DAB.001, sold separately) with

the unit.

[ON]

[OFF] No power is supplied to a DAB antenna. Select this when using a

passive antenna with no booster.

Digital Audio Broadcasting (DAB)

Seeking a service component/station

Presetting service components/stations

Menu Item Description

- 8 -

English

To retrieve stored service components/stations

1Select the band, then press a number button (1/ to6/).

The tuner frequencies on this unit are allocated for use in Western Europe, Asia, the

Middle East, Africa and Oceania. Use in other areas may result in poor reception. The RDS

(radio data system) function only works in areas that broadcast RDS signals for FM

stations.

The six strongest stations are stored on the number buttons (1/ to6/).

1After selecting the band, press the M.C. dial to display the main menu.

2Turn the M.C. dial to select [FUNCTION], then press to confirm.

3Turn the M.C. dial to select [BSM], then press to confirm.

To seek a station manually

1After selecting the band, press / to select a station.

Press and hold / then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press / .

NOTE

[SEEK] needs to be set to [MAN] in the FUNCTION settings (page 17).

To store stations manually

1While receiving the station you want to store, press and hold one of the number

buttons (1/ to6/ ) until it stops flashing.

The unit searches for a station by PTY (program type) information.

1Press during FM reception.

2Turn the M.C. dial to select a program type from [NEWS/INF], [POPULAR],

[CLASSICS] or [OTHERS].

Radio

Best stations memory (BSM)

Using PTY functions

- 9 -- 9 -

English

3Press the M.C. dial.

The unit begins to search for a station. When it is found, its program service name is

displayed.

NOTES

•To cancel the search, press BAND/DIMMER/.

•The program of some stations may differ from that indicated by the transmitted PTY.

•If no station is broadcasting the type of program you searched for, [NOT FND] is displayed for about

two seconds and then the tuner returns to the original station.

1Press SRC/OFF to select [RADIO].

2Press BAND/DIMMER to select the band from [F1], [F2], [F3] or [AM].

3Press a number button (1/ to6/).

TIP

The / buttons can be also used to select a preset station when [SEEK] is set to [PCH] in the

FUNCTION settings (page 17).

Disconnect headphones from the device before connecting it to the unit.

USB devices (including Android™)

1Open the USB port cover.

2Plug in the USB device using an appropriate cable.

NOTE

To automatically switch to [USB] source when a USB device is connected to the unit, set [USB A] to [ON]

in the SYSTEM settings (page 18).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the

unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

Receiving preset stations

USB/AUX

Playing back

- 10 -

English

AOA connections

A device installed with Android OS 5.0 or later (up to Android 7.x)* can be connected to

the unit via AOA, using the cable supplied with the device.

* AOA 2.0 does not support Android OS 8.0 or later.

This function is compatible with devices that have Android OS 5.0 or later (up to Android

7.x)* installed and also support AOA (Android Open Accessory) 2.0.

* AOA 2.0 does not support Android OS 8.0 or later.

1Press SRC/OFF to select [USB].

"ANDROID" is displayed after reading.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own

software design, regardless of the OS version.

Basic operations

AUX

1Insert the stereo mini plug into the AUX input jack.

2Press SRC/OFF to select [AUX] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX] cannot be selected as a source (page 18).

You can make various adjustments in the FUNCTION settings (page 15).

Note that the following operations do not work for an AUX device. To operate an AUX

device, use the device itself.

Listening to music on Android

Purpose Operation

Select a track Press or .

Pause/resume playback Press 4/.

Operations

Purpose Operation

Select a folder Press 1/ or2/.

Select a track Press or .

Fast forward or reverse Press and hold or .

Autres manuels pour MVH-330DAB

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Pioneer Récepteur

Pioneer

Pioneer VSX-D512-S Manuel utilisateur

Pioneer

Pioneer VSX-330 Manuel utilisateur

Pioneer

Pioneer XV-DV740 Manuel utilisateur

Pioneer

Pioneer HTP-2750DV Manuel utilisateur

Pioneer

Pioneer XR-A9800D Manuel utilisateur

Pioneer

Pioneer XV-DV303 Instructions d'utilisation

Pioneer

Pioneer VSX-D607S Manuel utilisateur

Pioneer

Pioneer VSX-1014TX Manuel utilisateur

Pioneer

Pioneer SPH-DA230DAB Manuel utilisateur

Pioneer

Pioneer VSX-523-K Manuel utilisateur

Pioneer

Pioneer VSX-521 -K Manuel utilisateur

Pioneer

Pioneer DCS-370 Manuel utilisateur

Pioneer

Pioneer AVH-X5800DAB Manuel utilisateur

Pioneer

Pioneer VSX-D601 Manuel utilisateur

Pioneer

Pioneer Elite VSX-33 Manuel utilisateur

Pioneer

Pioneer VSX-516 Manuel utilisateur

Pioneer

Pioneer XV-S100DV Manuel utilisateur

Pioneer

Pioneer VSX-D2011-S Manuel utilisateur

Pioneer

Pioneer VSX-518 Manuel utilisateur

Pioneer

Pioneer VSX-72TXV-S Manuel utilisateur

Pioneer

Pioneer XV-LX61DV Manuel utilisateur

Pioneer

Pioneer SC-1223-K Manuel utilisateur

Pioneer

Pioneer VSX-9100TX Manuel utilisateur

Pioneer

Pioneer MVH-S510BT Manuel utilisateur

Manuels Récepteur populaires d'autres marques

Garmin

Garmin GA 23 Manuel utilisateur

Aiphone

Aiphone PS-12F Manuel utilisateur

IMES

IMES TCS-01CA-PMI Manuel utilisateur

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuel

AMIMON

AMIMON AMN12310 WHDI Manuel utilisateur

Dual

Dual DMCPA79BT Mode d'emploi

Sound Associates

Sound Associates SA652P Manuel utilisateur

Sherwood

Sherwood NewCastle R-772 Manuel utilisateur

Audio

Audio A10-RX Series Manuel utilisateur

AllSee

AllSee PushShare PSRV1.1 Manuel utilisateur

DEMAG

DEMAG DRC-DR D2 Manuel utilisateur

Teleco

Teleco TVRCL868A02 Manuel utilisateur

Bosch

Bosch RF3222E Manuel utilisateur

Kramer

Kramer 631R Manuel utilisateur

Xpress

Xpress xmc10 Manuel utilisateur

JVC

JVC KD-MR1BTS Manuel utilisateur

Omega Engineering

Omega Engineering UWTC-REC3 Manuel utilisateur

e-survey

e-survey E300 Pro Manuel utilisateur
