COLOR LCD DISPLAY

Service

Manual

AVD-W6000/UC

AVD-W6000 UC

AVD-W6000 EW

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................2

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM.....8

4. PCB CONNECTION DIAGRAM ................................30

5. ELECTRICAL PARTS LIST........................................39

6. ADJUSTMENT..........................................................48

7. GENERAL INFORMATION.......................................57

7.1 DIAGNOSIS ........................................................57

7.1.1 TEST MODE..............................................57

7.1.2 DISASSEMBLY .........................................59

7.1.3 CONNECTOR FUNCTION DESCRIPTION61

7.2 IC ........................................................................62

7.3 OPERATIONAL FLOW CHART...........................71

8. OPERATIONS AND SPECIFICATIONS....................73

-This product has the unit part numbers as below.

Unit Part No. (AVD-W6000/UC) Unit Part No. (AVD-W6000/EW) Description

CPN1733 CPN1754 Monitor Assy

CPN1734 CPN1755 Power Supply Assy

*) The unit part numbers listed above are not for the service components.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVD-W6000

2. EXPLODED VIEWS AND PARTS LIST

2.1 PACKING

13 12

1. SAFETY INFORMATION

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVD-W6000

-Owner's Manual

Model Part No. Language

AVD-W6000/UC CRD3432 English, French

AVD-W6000/EW CRD3430 English, Spanish, German

CRD3431 French, Italian, Dutch

* 1-1 Card See Contrast table(2)

1-2 Owner’s Manual See Contrast table(2)

1-3 Owner’s Manual See Contrast table(2)

1-4 Owner’s Manual See Contrast table(2)

* 1-5 Warranty Card See Contrast table(2)

1-6 Cushion See Contrast table(2)

1-7 Polyethylene Bag CEG1116

2 Cord Assy CDE6544

* 3 Packing Cover CEG-186

4 Carton See Contrast table(2)

5 Contain Box See Contrast table(2)

6 Protector CHP2368

7 Protector CHP2369

8 Polyethylene Bag CEG1260

9 Installation Metal Fittings See Contrast table(2)

10 Accessory Assy CEA2657

* 11 Polyethylene Bag CEG1101

12 Fastener(Rough) CNM6888

13 Fastener(Soft) CNM6889

(1) PACKING SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

(2) CONTRAST TABLE

AVD-W6000/UC and AVD-W6000/EW are constructed same except for the following:

Part No.

Mark No. Description AVD-W6000/UC AVD-W6000/EW

* 1-1 Card ARY1048 Not used

1-2 Owner’s Manual CRD3432 Not used

1-3 Owner’s Manual Not used CRD3430

1-4 Owner’s Manual Not used CRD3431

* 1-5 Warranty Card Not used CRY1157

1-6 Cushion Not used CNM4680

4 Carton CHG4388 CHG4387

5 Contain Box CHL4388 CHL4387

9 Installation Metal Fittings Not used CXB3629

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVD-W6000

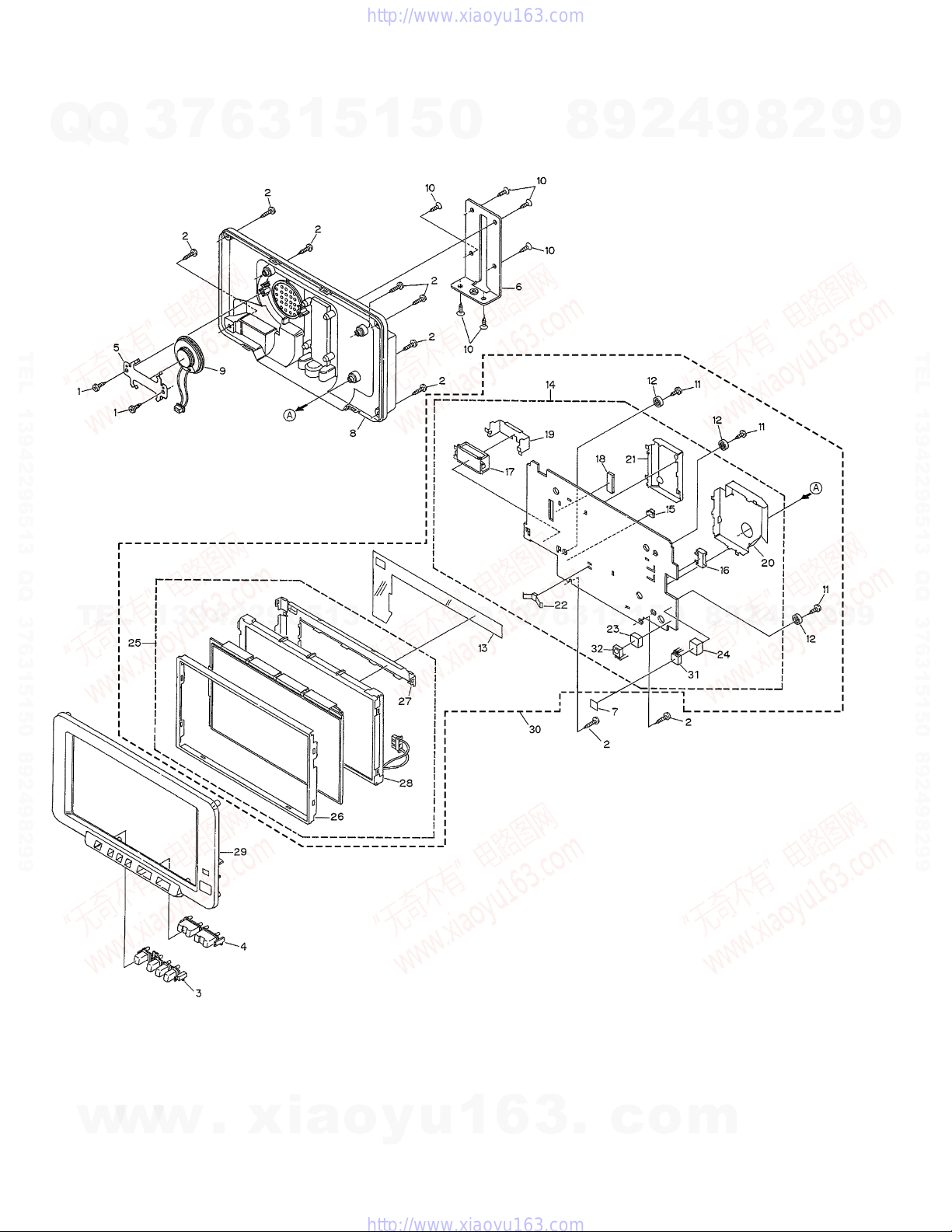

2.2 EXTERIOR(1)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVD-W6000

1 Screw BPZ20P060FMC

2 Screw BPZ20P080FZK

3 Button(POWER,V,SP,W) CAC7079

4 Button( ) CAC7080

5 Holder CNC7283

6 Bracket CNC7352

7 Filter CNM6583

8 Case CNS6649

9 Speaker CPV1041

10 Screw CPZ26P100FZK

11 Screw(M2x5) CBA1501

12 Spacer CNC8893

13 Insulator CNM6458

14 Monitor Unit CWM7817

15 Connector(CN3001) CKS3124

16 Connector(CN3251) CKS3192

17 Connector(CN3101) CKS3976

18 Connector(CN3701) CKS3991

19 Holder CNC8334

20 Shield CNC8486

21 Shield CNC8487

22 Earth CNC8667

23 Spacer CNM6263

24 Spacer CNM6618

25 LCD Module CWX2460

26 Front Case NML55920911

27 Back Case NML55923321

28 Back Light Unit NML75923311

29 Grille Unit CXB7547

30 LCD Assy CXB7438

31 IC(IC3051) PNA4603H00LB

32 IC(IC3071) SBX8035-H

/ / /

-EXTERIOR(1) SECTION PARTS LIST

Mark No. Description Part No.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVD-W6000

25 21

22 19

414

11 28

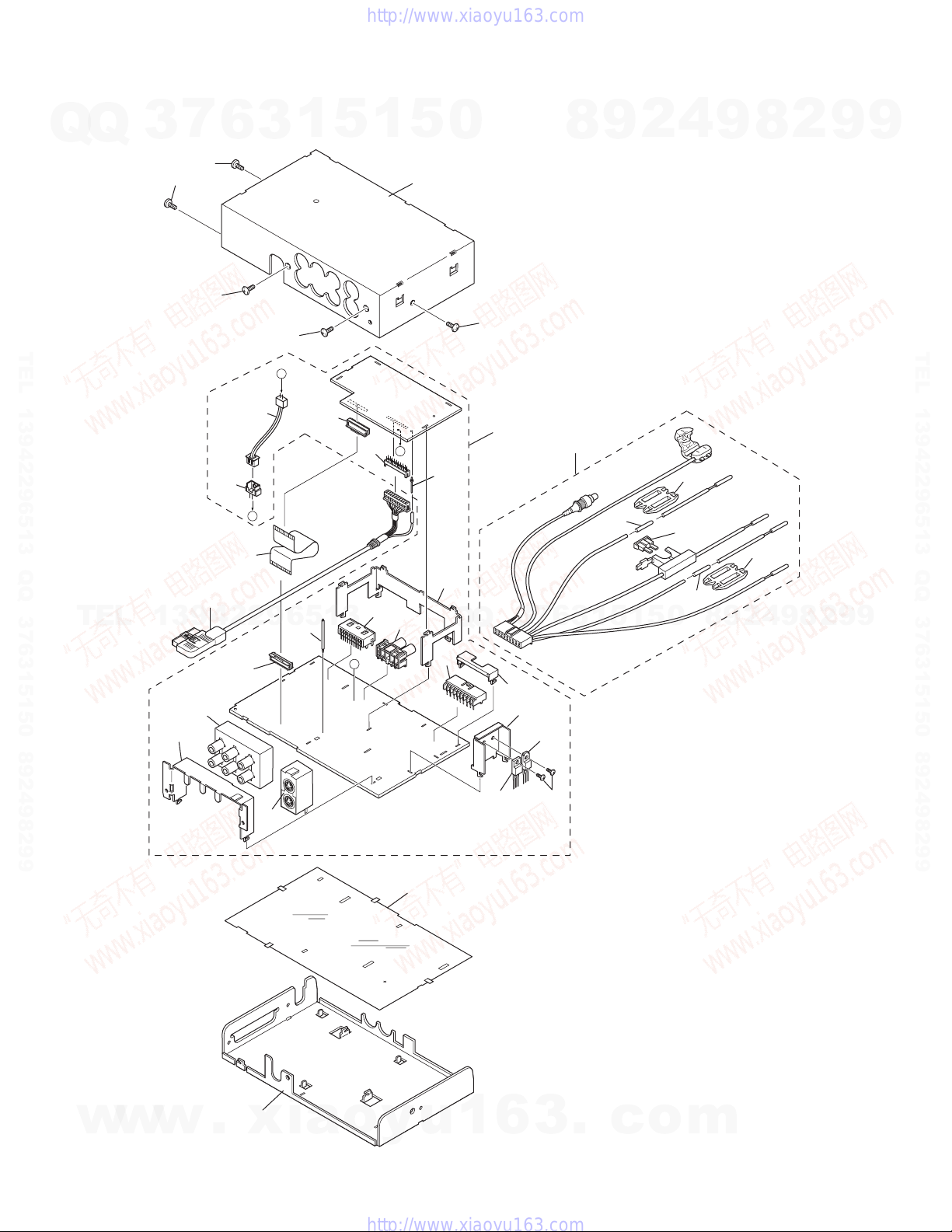

2.3 EXTERIOR(2)

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

AVD-W6000

1 Cord Assy CDE6544

2 Cap CNS1472

3 Resistor RS1/2PMF102J

4 Screw BSZ30P060FMC

5 Cord Assy CDE6351

6 Transistor(Q911) 2SD2375

7 Fuse(4A) CEK1001

8 Holder CNC8869

9 FFC CDE6393

10 IC(IC912) BA178M05T

11 Holder CNC9129

12 Holder CNC9012

13 Chassis CNA2299

14 Case CNB2585

15 Insulator CNM6725

16 Power Supply Unit CWM7818

17 Screw BMZ30P060FMC

18 Clamper CEF1008

19 Terminal(CN757) CKF-047

20 Plug(CN752) CKM1136

21 Pin Jack(CN754) CKS3144

22 Connector(CN756) CKS3236

23 Connector(CN101) CKS3751

24 Connector(CN102) CKS3751

25 Connector(CN751) CKS4458

26 Connector(CN755) CKS4405

27 Holder CNC8868

28 Pin Jack(CN753) CKB1047

29 Cord Assy(CN301) CDE6541

30 Connector(CN801) CKS3124

-EXTERIOR(2) SECTION PARTS LIST

Mark No. Description Part No.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

1234

AVD-W6000

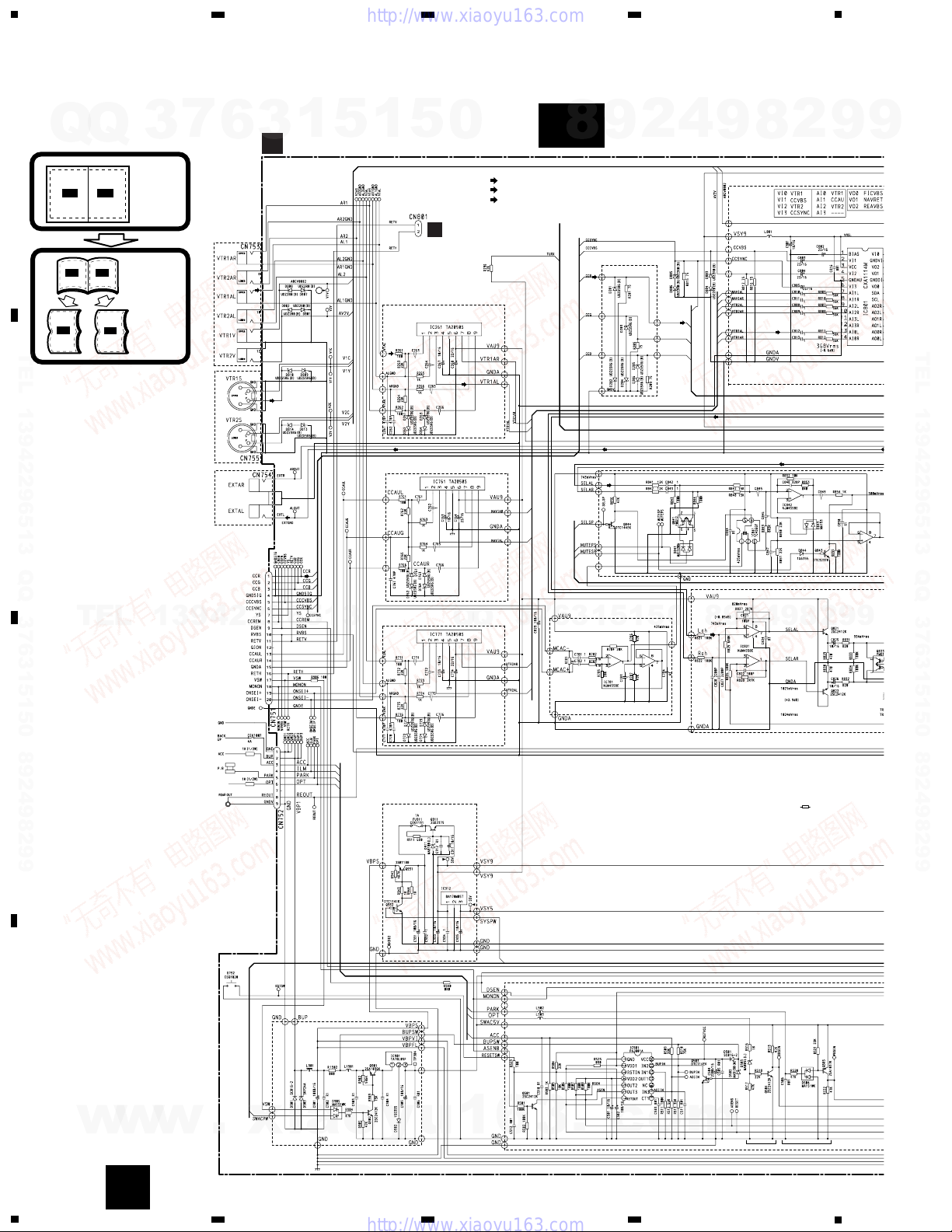

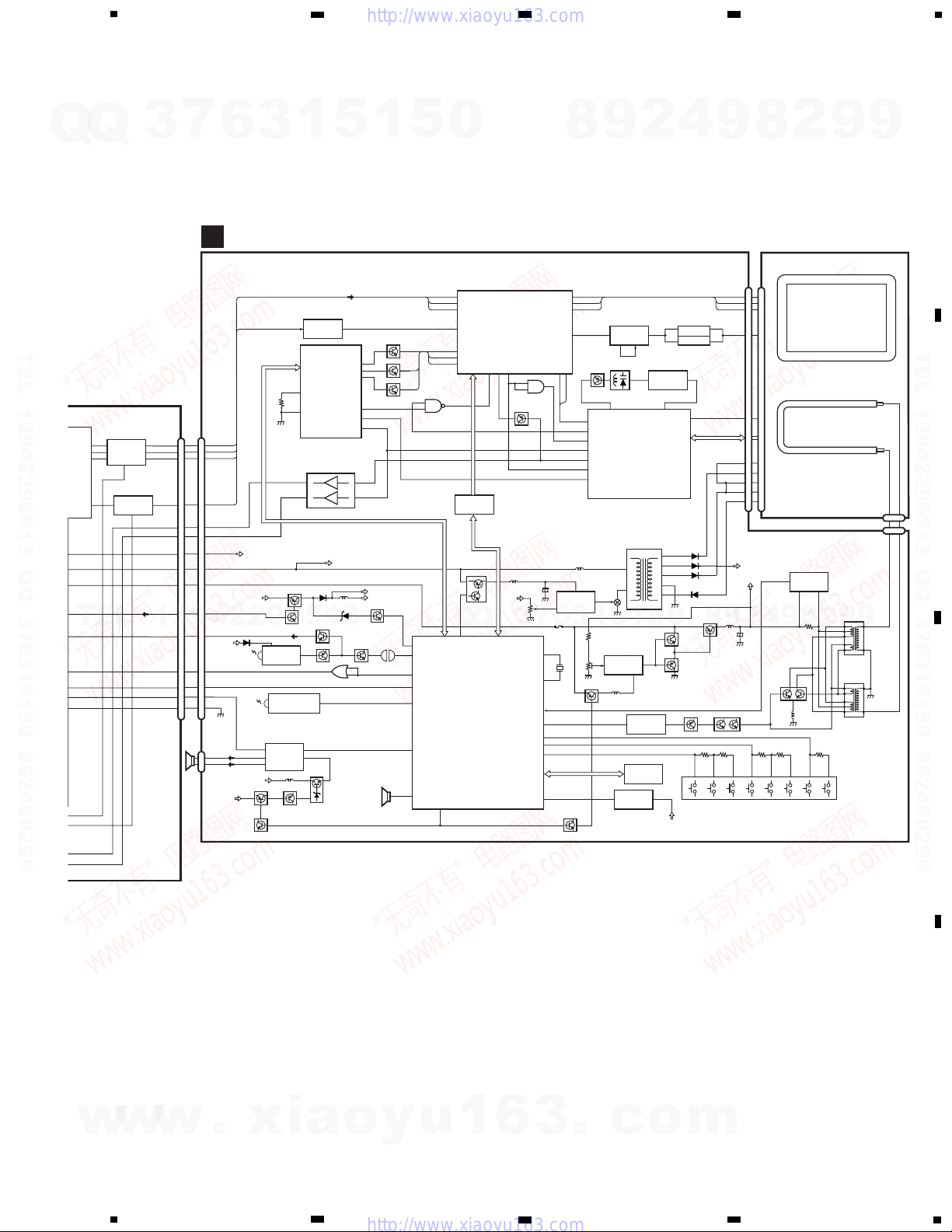

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

3.1 BLOCK DIAGRAM

B.U

Q841

PS MUTE

NAVI AL

CCC VBS

LOUT

REOUT

334

38 36 37

Y/CV

212 7

CCSYNC

SWACC5

PWRVI

PWRFL

SWACPW

HTXD

HRXD

SPOUT

MVISEL

MUTEV

HTXD

HRXD

SPOUT

MVISEL

MUTEV

SYNMTE SYNMTE

CCB

CCG

CCR

V1C

V1Y

V2C

V2Y

VTR1AL

VTR2AL

312

50 51

SEL SP

SP +

SP –

IC 821

NJM4558M

AUX AUDIO

BUFFER MUTE75

Q911

AUDIO/VIDEO

SELECTOR

75ΩDRIVER

CHROMA DECODER YUV TO RGB

IC 761

TA2050S

SCL

AO1L

VO2

VO0

AO2L

AI1L

4VI2

28 VI0

9AI2L

13 AI0L

VI1

VI3

RGBARI

ASENS

DSENS

SDA

IC 801

CXA1114M

Q821 Q823

Q601

Q221

Q222

IC 332

NJM2267M

CIN VOUT

YOUT

UOUT

CVBS/YIN

VSYNC

IC 301

CXA2019AQ 20 12

VTIN

HTIN 14

Y1 Z

3X1

2X0 CONT

CN754

CN101 CN102

CCREM

SWACC5

PWRVI

PWRFL

SWACPW

CCREM

TXD

RXD

Q603

IC 781

NJM4558M

IC 841 TC4S66F

Q844

IC 842

NJM4558E

MIX AMP

SCL

MIXSP

MUTESP

MUTEPS

SIN

MUTEV

TXD

RXD

MUTEAU

MONPW

SYNMTE

RGBSEL

SDA

RGBARI

DSENS

SELSENS

PBKSEN

ASENS

BSENS

RESET

IC 302

CXL5520M

IC 281

SYSTEM CONTROLLER

IC 601

PE5233A

Q501

Q508

Q509

Q503

B.U

GND

BUP

ACC

PARK

OPT

REOUT

L901 IN3

IN2

RSTIN

OUT3

OUT2

RSTOUT

IC 501

PAJ001A

BSEN

RESET

ASEN

SYSPW

X601

Q931

Q932

SYSPW

B.U

VIDEO

OUT

P.BREAK

ACC

BACK UP

GND

Q301

Q901

Q902

IC 901

TA78L05F

IC 602 TC4S81F

5V REGULATOR

B.U

B.U FU702

FU701

PWRFL

PWRVI

Q651 Q652

Q843

Q604

FU911

VSY5

VSY9

S752

RESET

SWITCH

VTR1AL

VTR2AL

VTR1V

CN755

CN753

VTR2V

MUTEAU

BU4551BF

RGB SELECTOR

Q504

Q505

SELSENS

PBSENS

CN752

REMOTE CONTROL

BUFFER

1IC 912

BA178M05T

IC 603

S-29131AFJ

Q291

1IC 251

NJM2268V

IC 241

NJM2285V

SDASCL

33 9

38 4

DV 1229

CCSYNC

CCB

CCG

CCR

1130

140

1922

374 383 392 401

365 356

2219

1823

2120

2021

2318

1625

1526

1724

IC 1601

NJM2116V

Q701

Q702

Q703

Q704

Q271

10 IC 271

TC74HC123AF

IC 272 TC7S86F

S/V

SELECTOR

CTL1

SIN

S1 CTL2

CTL3

OUT1

OUT3

IN2A

IN1A

IN2B

IN1B

IN3A

EXTAL

VTR1S

VTR2S

9GNDV

DSEN DSEN

HSYNC

ISOLATOR

AUXILIARY

ISOLATOR

CN801 CN301

2PRV

PRH

RETV

RETH

CCAUL

CCCVBS

CCSYNC

CCR

CCG

CCB

GNDA

VSW

CCREM

ONSEI +

ONSEI –

MONON

DSEN

CN751

RGB

(AUXILIARY)

RETV

RETH

ISOLATOR

IC 261

TA2050S

IC 771

TA2050S

AMAIN PCB

BSUB PCB

AUTOMATIC

INPUT

SWITCHING

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

IC 331

TK15405MI

ANR

ANG

ANB

CSYNC

PRH

PWRVI

PWRFL

SWACC5

ONT

OUTc1

OUTa1

OUTb1

INc

INa

INb

MUTE

CN756

SWACPW 11

MOREM

HTXD

HRXD

AUDIO

RGB

75ΩDRIVER

IC 351

BA7660FS

C 281

4551BF

ELECTOR

75ΩDRIVER

DSEN 14

PRV 10

48 14

4718

IC 3451

TC7W34FU

1ANR

CSYNC

OSDDT

OSDCK

OSDCS

ANR/ANG/ANB

ANG

ANB

CSYNC

RETH

PWRVI

PWRFL

ACC5V

CN3101

ACPW

REM

TXB

AUDIO

SPEAKER VOLUME

VCOM

IC 3331

NJM2235V

Q3431

Q3426

Q3421

OSR

ODG

OSB

RETH 53

PWRVI

P1/R

P3/G

P5/B

HOR

12 3

VERT

SIN

CSK

CS –

OSC2

OSC1

RIN2

GIN2

BIN2

ROUT

GOUT

BOUT

COMOUT

HFILIN

RIN1

GIN1

BIN1

SYNCIN

SYNCOUT

FRP

57 CX

DRR/DRG/DRB

COMFRP

VIDEO SIGNAL

PROCESSOR

IC 3301

IR3Y26A1

OSD

IC 3401

PD5582A

IC 3446

TC7W00FU Q3303

IC 3351

TC7S08FU

POLS

OSCI

PDO

NVD

BLK

NDSV

NCLP

9NDSH

Q3751 IC 3731

NJM2107F

LCD CONTROLLER

IC 3701

TC160G11AF-1146

ACC5

Q3601

SWACC5

ACC5

VU5

VF5

Q3604

Q3603

Q3061

Q3071

IC 3071

SBX8035-H

IC 3051

PNA4603H00LB

VDDSEN

MVIPW

61 REM IN

9TXD

8RXD

79 LSEN

S3087

S3088

S3089

S3086

S3085

S3083

S3084

S3082

2SPVDL

RESET

KDT2

KDT1

KDT0

DIMMER

45 BEEP

Q3102

T3101

Q3103

IC 3651

M62352GP

IC 3371

NJM082BV Q3371

Q3372

IC 3651

M62352GP

IC 3651

M62352GP

IC 3651

M62352GP

IC 3001

TDA7052BT

Q3001

VU5

BZ3601

ALARM

BUZZER

60 6 7

OVICHK 56

154

X3601

VIDEO CONTROLLER

IC 3601

PE5232A

BACK LIGHT

DRIVE

POWER SUPPLY

+ 5V

+ 8V

+ 5V 12

+ 18V 15

– 15V 2

CN3701

CN3251

PWRFL

DC-AC INVERTER

Q3201

Q3203

Q3271

IC 3101

FA7610CN

IC 3271

NJM2903V

IC 3681

S-29131AFJ

Q3255 Q3253

T3251

T3101

Q3101

LENS

T3252

Q3252 Q3251

IC 3631

M51957BFP

LCD

BACK LIGHT

Q3202

IC 3211

FA7612CN

REMOTE CONTROL

SENSOR

AUTOMATIC

DIMMER SENSOR

POWER AMP

CN3001

IC 3261

NJM2903V

DSEN

Q3602

RETV

RETV 71

22 NHD

PWRVI

IC 3602 TC7S32FU

Q3004

PWRVI

Q3005

Q3002

DDON

Q3211

Q3212

CN3601

CMONITOR UNIT LCD MODULE

5678

AVD-W6000

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

1234

AVD-W6000

A-a A-b

A-b

A-a

Large size

SCH diagram

Guide page

Detailed page

R102

0R0

V1 AUDIO ISOLATOR

NAVI RGB INPUT

SOURCE SELECTOR

PARKING ON/OFFOPTION

SENSOR

BACK UP AND REMOTE

CONTROL POWER SUPPLY

SYSTEM POWER SUPPLY

V2 AUDIO ISOLATOR

MONITOR SPEAKER ISOLATOR

AUDIO OUTPUT BUF

MONITOR SPEAKER AUDIO OUTPU

AUXILIARY AUDIO ISOLATOR

RESET

RGB

(AUXILIARY INPUT)

AUDIO OUT VIDEO IN AUDIO IN

R: RED SIGNAL

A: AUDIO SIGNAL

Y: Y SIGNAL

2.4mH

A. I. S.

AMAIN PCB

BCN301

A-a

3.2 MAIN PCB (GUIDE PAGE)

Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL

PARTS LIST”.

TEL 13942296513 QQ 376315150 892498299

http://www.xiaoyu163.com

Autres manuels pour AVD-W6000

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pioneer Moniteur

Pioneer

Pioneer PDP 507CMX Manuel utilisateur

Pioneer

Pioneer PDP 507CMX Manuel utilisateur

Pioneer

Pioneer PDP-4345HD Manuel utilisateur

Pioneer

Pioneer PDP-615EX Manuel utilisateur

Pioneer

Pioneer PDP-435FDE Manuel utilisateur

Pioneer

Pioneer Elite PRO-950HD Manuel utilisateur

Pioneer

Pioneer PDP-5000EX Manuel utilisateur

Pioneer

Pioneer PDP-505PG Manuel utilisateur

Pioneer

Pioneer PDP 502MX Manuel utilisateur

Pioneer

Pioneer PDP 502MX Manuel utilisateur

Pioneer

Pioneer Elite PRO-1000HDI Manuel utilisateur

Pioneer

Pioneer HIGH DEFINITION PLASMA TELEVISION PRO1130HD Manuel utilisateur

Pioneer

Pioneer PDP-436SXE Manuel utilisateur

Pioneer

Pioneer PDP-5040HD Instructions de montage

Pioneer

Pioneer PDP-505HD Manuel utilisateur

Pioneer

Pioneer AVR-W6100 UC Manuel utilisateur

Pioneer

Pioneer PDM-4001 Manuel utilisateur

Pioneer

Pioneer PDP 433CMX Manuel utilisateur

Pioneer

Pioneer PDP-505PE Manuel utilisateur

Pioneer

Pioneer PDP505CMX - HD Plasma Display Manuel utilisateur

Pioneer

Pioneer PDP5050SX Manuel utilisateur

Pioneer

Pioneer PDP-V402EA Manuel utilisateur

Pioneer

Pioneer PURE Vision Black PDP-506PE Manuel utilisateur

Pioneer

Pioneer KURO PDP 6010FD Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
