Before Start

What's in the box .................................................................... 2

Part Names

Front Panel ............................................................................. 3

Rear Panel .............................................................................. 4

Remote Controller .................................................................. 5

Display .................................................................................... 6

Install

Connections with an amplifier ................................................. 7

Connecting the power cord, etc. ............................................. 9

Initial Setup

Power On & Initial Setup ...................................................... 10

Playback

USB Storage Device/HDD .................................................... 12

Internet Radio ....................................................................... 14

Spotify ................................................................................... 15

AirPlay® ................................................................................ 16

Music Server ......................................................................... 17

Entering text ......................................................................... 19

Supplementary information

Supplementary information for player functions .................... 20

Advanced Setup

Advanced Settings................................................................. 21

Firmware Update .................................................................. 24

Others

Troubleshooting .................................................................... 26

General Specifications .......................................................... 28

License and Trademark Information ..................................... 29

> Before Start > Part Names > Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

NETWORK AUDIO PLAYER

N-30AE

Instruction

Manual

> Before Start > Part Names > Install > Initial Setup > Playback

Supplementary information |Advanced Setup | Others

What's in the box

Before Start

0The power cord must be connected only after all other cable connections are completed.

0We will not accept responsibility for damage arising from the connection of equipment

manufactured by other companies.

0Functionality may be introduced by firmware updates and service providers may cease

services, meaning that some network services and content may become unavailable in

the future.

0Specifications and appearance are subject to change without prior notice.

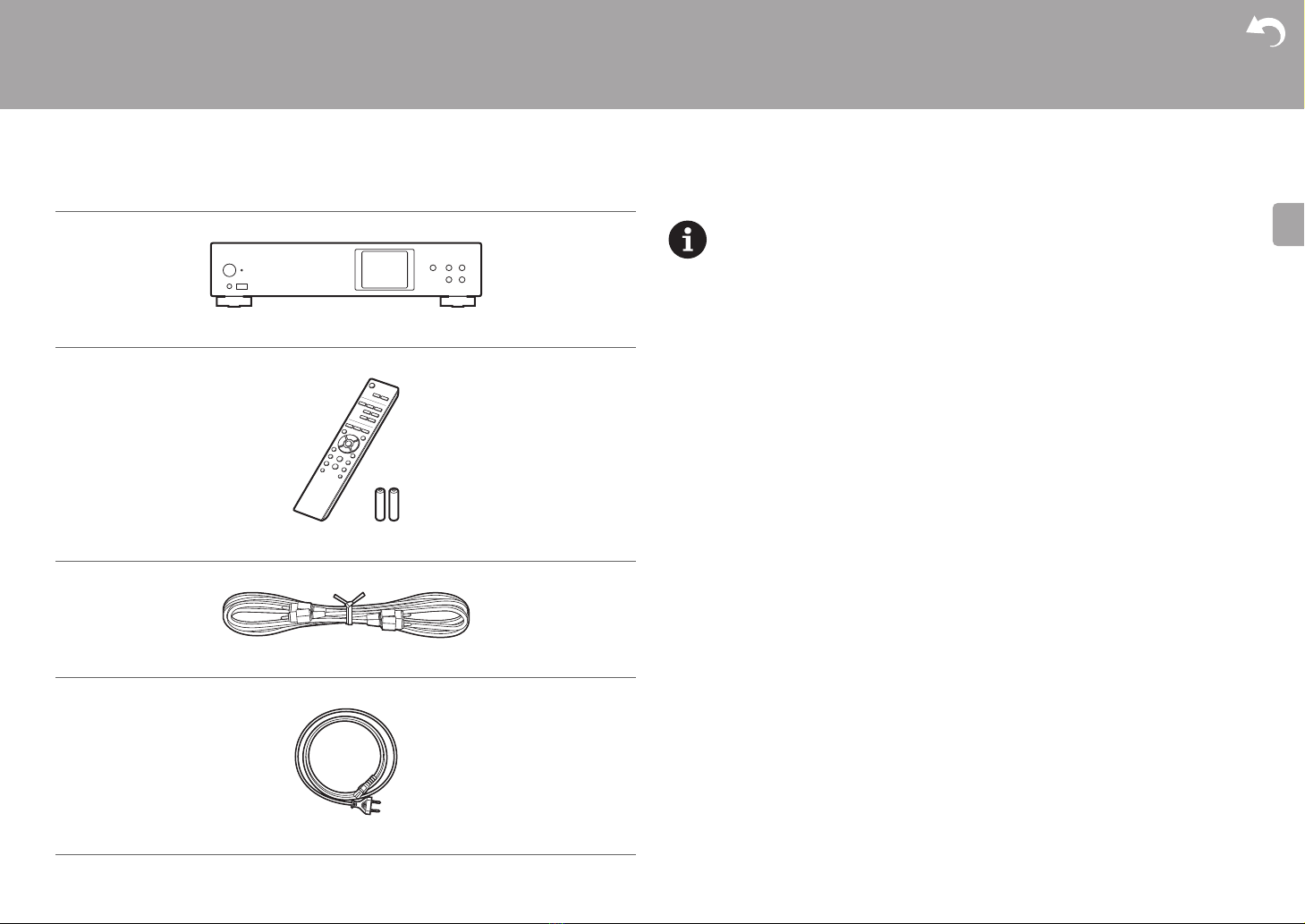

Main unit (1)

Remote controller (RC-944E) (1), Batteries (AAA/R03) (2)

Analog audio cable (1)

Power cord (1)

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information |Advanced Setup | Others

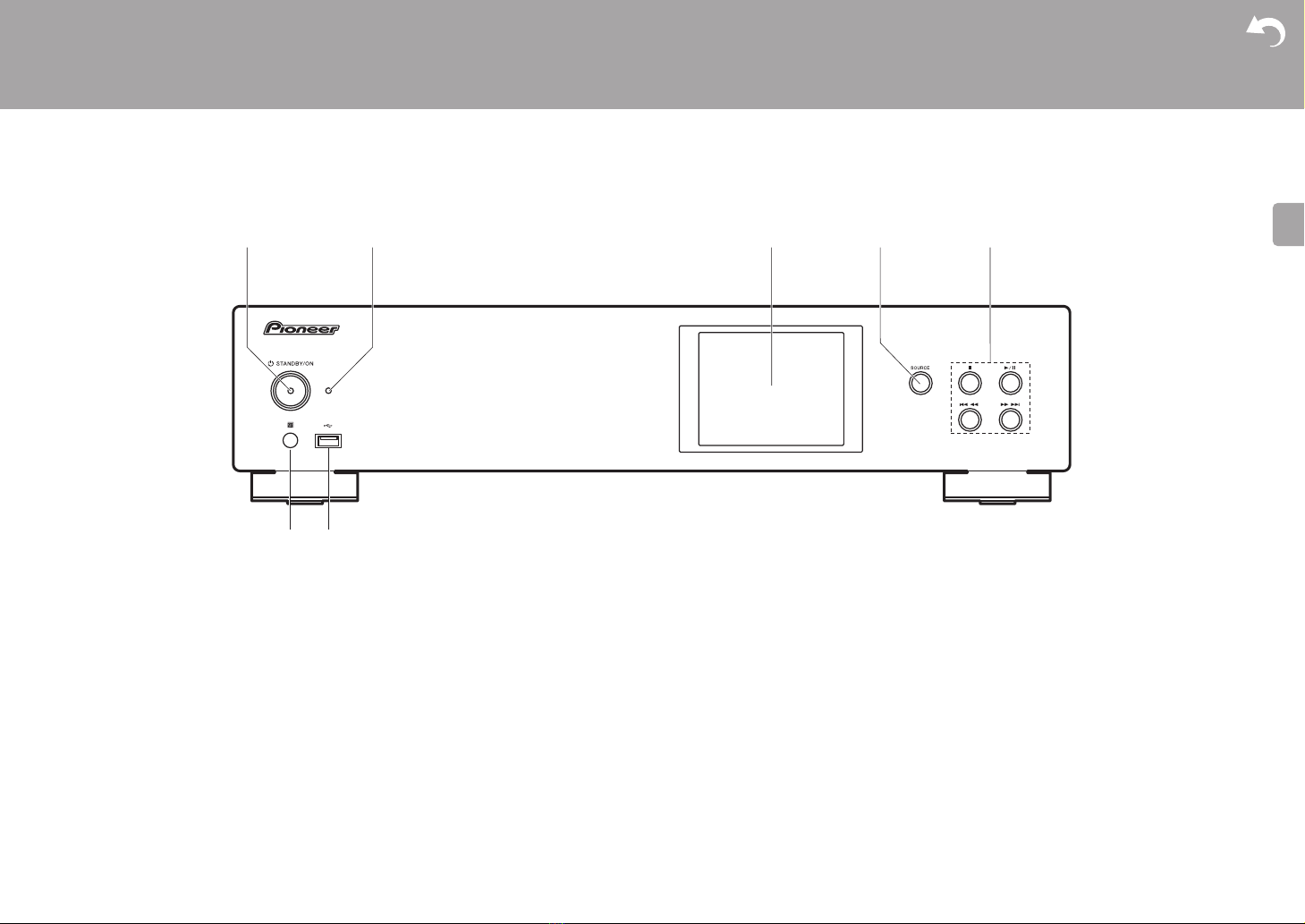

Front Panel

Part Names

1. ÍSTANDBY/ON button: Turns the unit on or to standby mode.

2. STANDBY/ON indicator: This lights red when this unit is on standby and blue when it is

on.

3. Display (P6)

4. SOURCE button: Switches the input to be played.

5. Play button:

∫

: This button stops playback.

/; : This button pauses the playback.

: Move to the previous track.

: Move to the next track.

0Depending on the input, the operation may not start.

6. Remote control sensor

7. USB

port: Connect a USB storage device or HDD (hard disk drive) to play music files. You can

also supply power (maximum 5 V/0.5 A) to USB devices with a USB cable.

0When connecting a HDD that requires more than 5 V/0.5 A, connect to the USB port

(maximum 5 V/1 A) on the rear of the unit.





 



> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information |Advanced Setup | Others

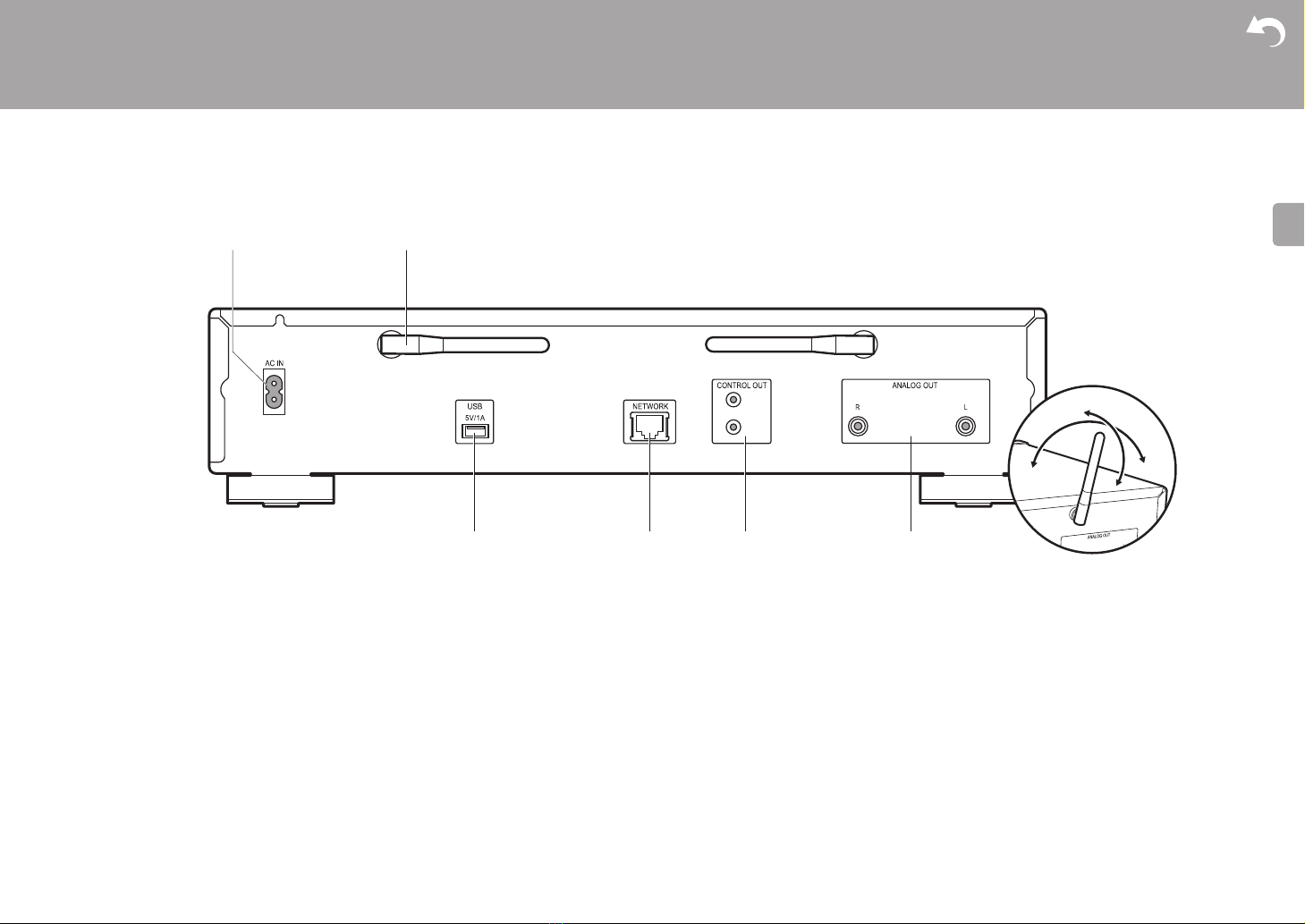

Rear Panel

1. AC IN: Connect the supplied power cord.

2. Wireless antenna: Used for Wi-Fi connection. Adjust their angles according to the

connection status.

3. USB port: Connect a USB storage device or HDD (hard disk drive) to play music files. You

can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.

4. NETWORK jack: Connect to the network with an ethernet cable.

5. CONTROL OUT jack: By connecting Pioneer brand amplifiers and CD players,

centralized control is possible, for example you can control the amplifiers and CD players

from the Pioneer Remote App.

6. ANALOG OUT jacks: Use the supplied analog audio cable to connect an integrated

amplifier, for example.



   



180°

90°

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information |Advanced Setup | Others

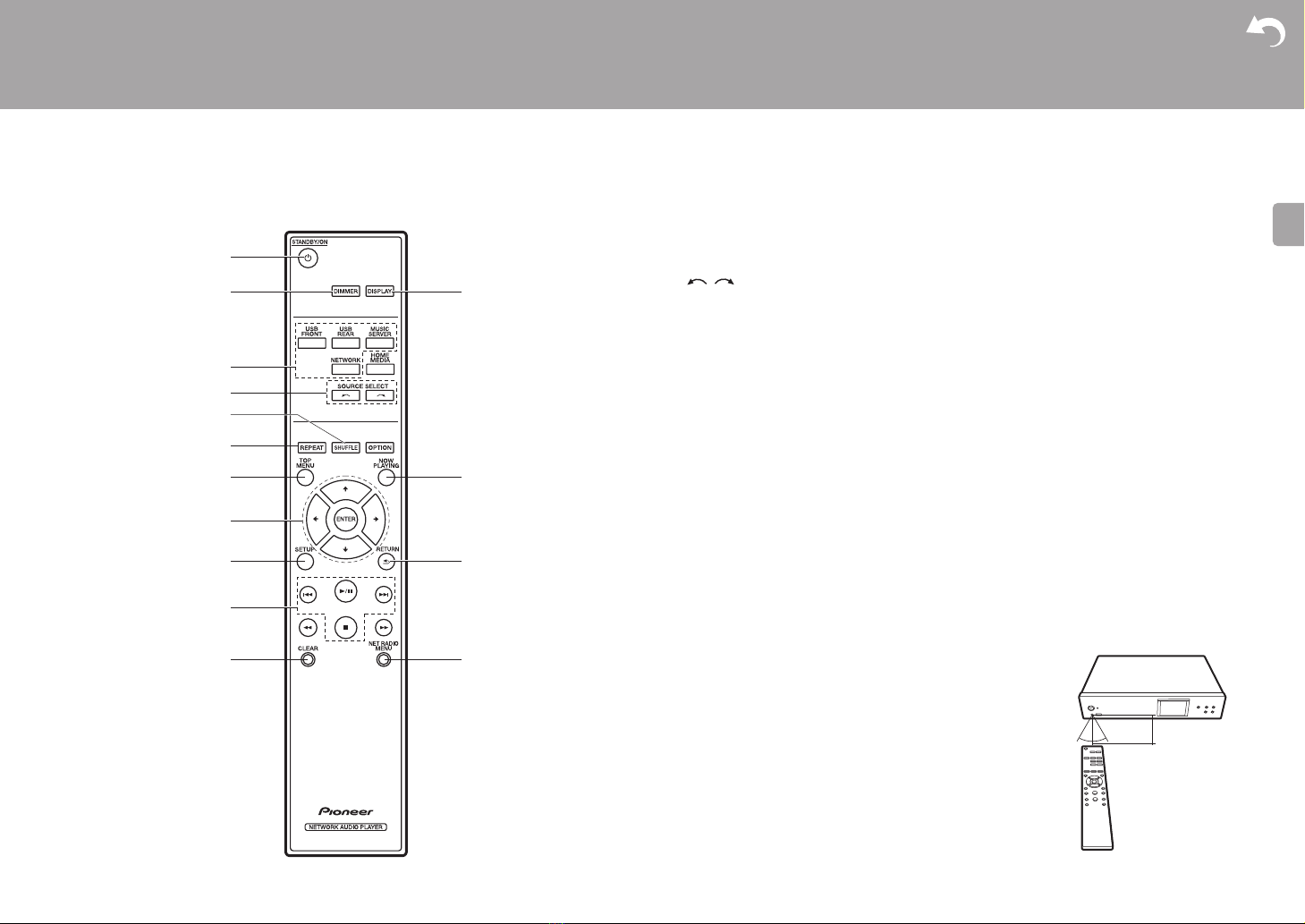

Remote Controller

1. ÍSTANDBY/ON button: Turns the unit on or into standby mode.

2. DIMMER button: Switch the display off or adjust the brightness of the display in three

steps.

3. INPUT SELECTOR buttons: Switches the input to be played.

4. button: Input source played switches each time you press one of these buttons.

5. SHUFFLE button: Set shuffle play.

6. REPEAT button: Set repeat play.

7. TOP MENU button: Move to the top menu of the selected input.

8. Cursors, ENTER button: Select the item with the cursors and press ENTER to confirm.

9. SETUP button: Displays the Setup menu.

10.

Play buttons:

:: Move to the track before the one being played.

/;: Play or pause play.

9: Move to the next track.

∫: Stop playback.

0Depending on the input, the operation may not start.

11.

CLEAR button: Used when entering text, etc.

12.

DISPLAY button: Press to turn off the display of this unit. Press again to turn the display

on.

13.

NOW PLAYING button: When you have changed the display during play, for example, this

button returns the display to show information about the file being played.

14.

RETURN button: Returns the display to the previous state.

15.

NET RADIO MENU button:Use this when playing the internet radio.

0HOME MEDIA, OPTION, 22, and 11 are not used.































30° 30°

Approx.7 m

> Before Start >PartNames > Install > Initial Setup > Playback

Supplementary information |Advanced Setup | Others

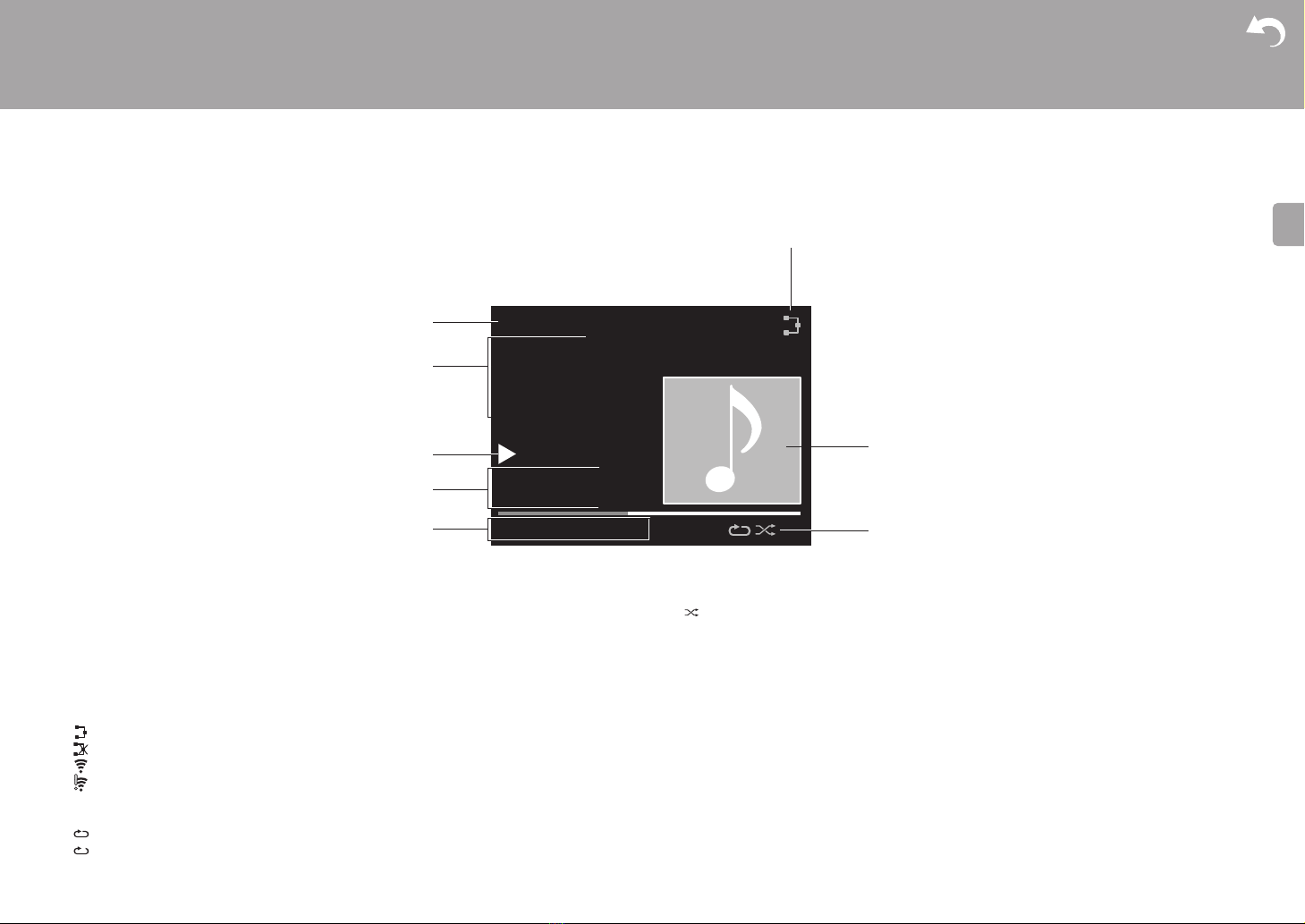

Display

1. The input mode is displayed.

(USB Front / USB Rear / Music Server / Network)

2. The name of the file, artist, album, etc., is displayed.

3. Displays the play status.

4. Displays file format, sampling frequency, and quantization bit information.

5. The file play status is displayed. This may not be displayed depending on the input or file.

6. Lights in the following conditions.

When the connection setting on the unit is

Wired

and the unit is connected to the network.

When the connection setting on the unit is

Wired

and the unit is not connected to the network.

When the connection setting on the unit is

Wi-Fi

and the unit is connected to the network.

When the connection setting on the unit is

Wi-Fi

and the unit is not connected to the network.

7. If an album jacket is recorded for the file being played, it is displayed here.

8. Lights in the following conditions.

: When all track repeat play is on

: When one track repeat play is on

: When shuffle play is on

FLAC

44.1kHz/24bit

USB Front

Song

Artist

Album

















> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

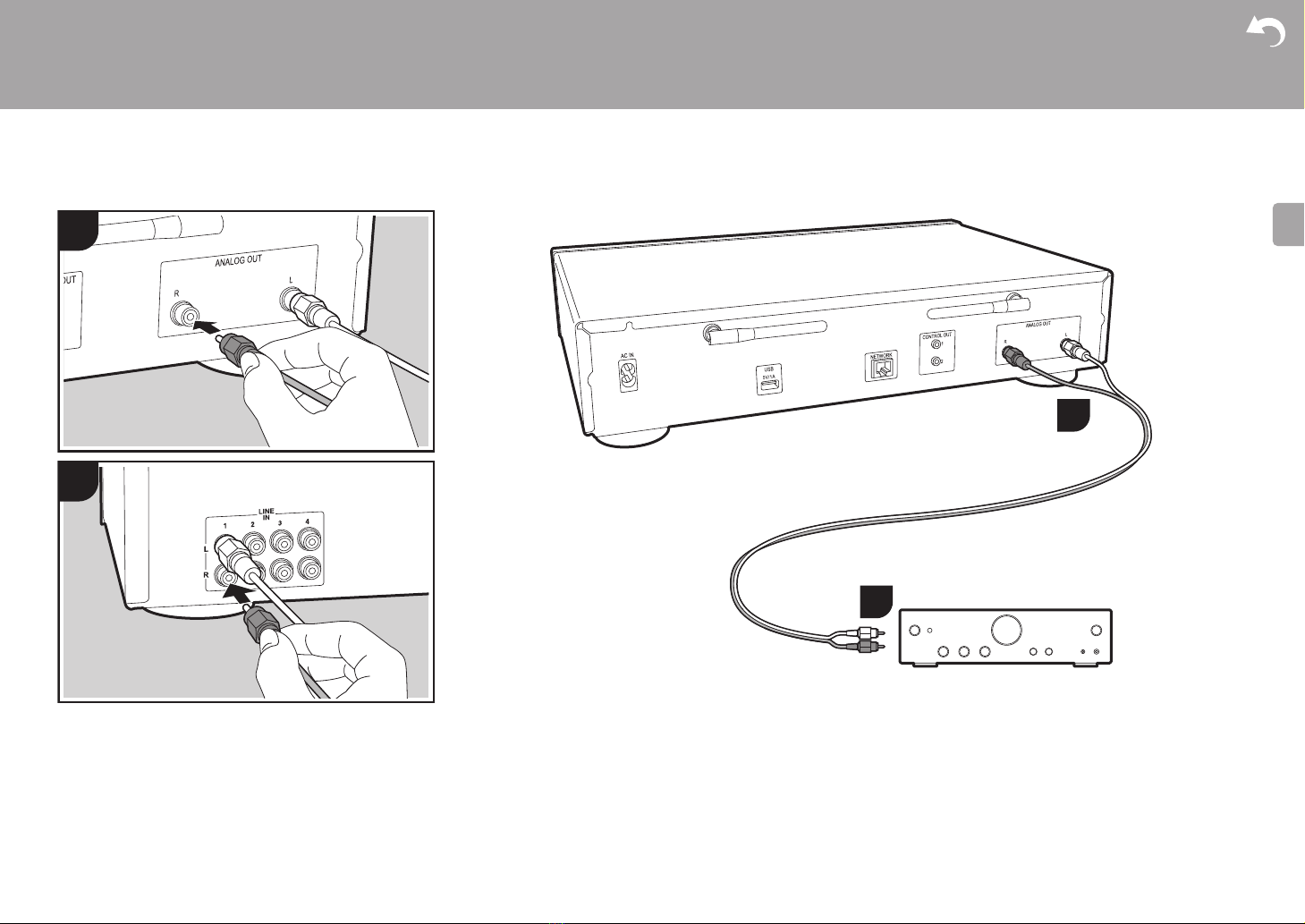

Connections with an amplifier

Install

N-30AE

a Analog audio cable

Integrated amplifier, AV receiver, etc.

Connection with an analog audio cable

You can play the audio from network features such as

internet radio through speaker systems connected to

integrated amplifiers or AV receivers. To connect, use the

supplied analog audio cable to connect from the ANALOG

OUT jack on this unit to the LINE IN input on an integrated

amplifier, AV receiver, etc.

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary information | Advanced Setup | Others

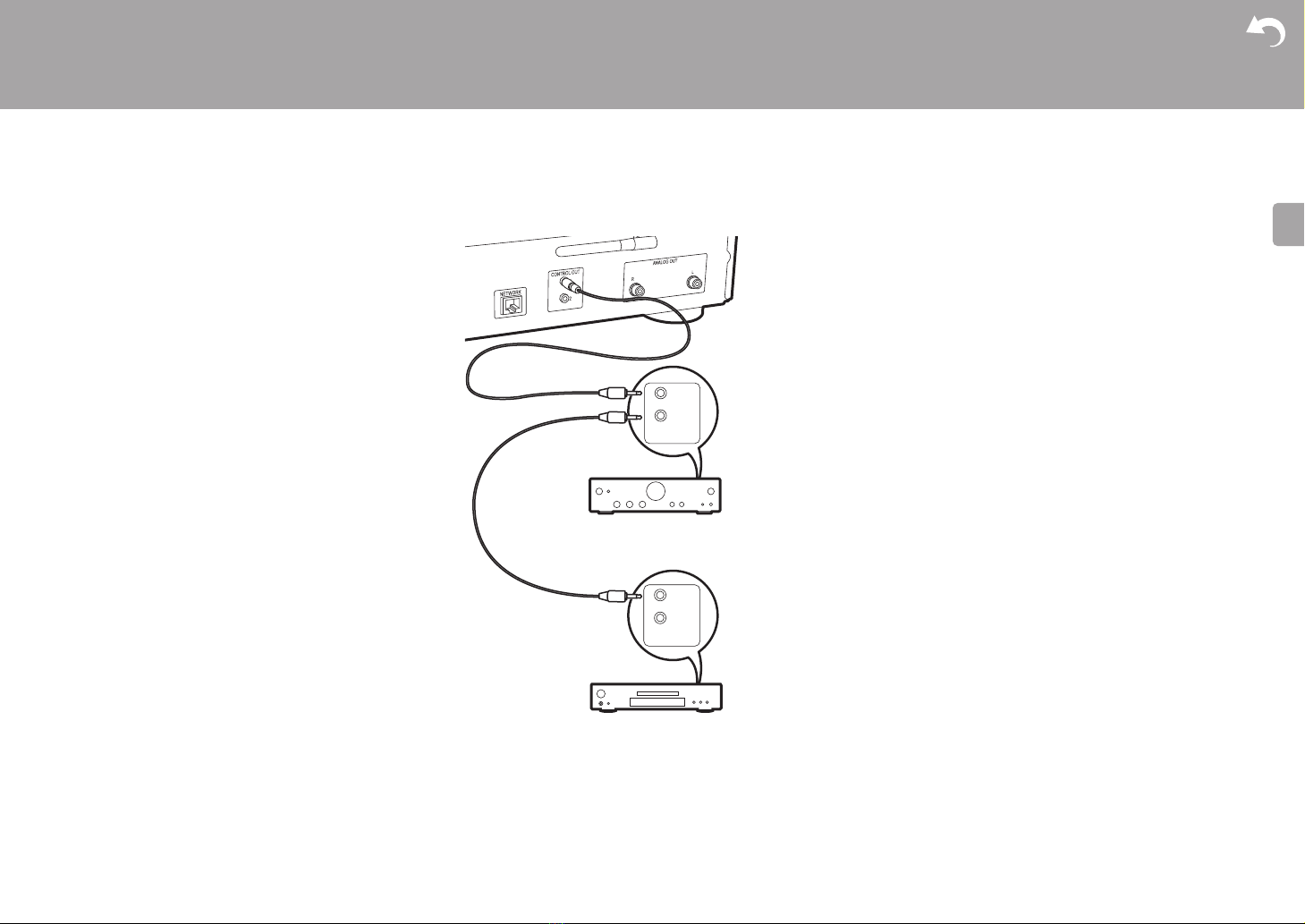

The control jack

By connecting Pioneer brand amplifiers or CD players, for

example, that have control jacks using monaural miniplug

cables (without resistors), you can centralize control of the

devices using the Pioneer Remote App.

Furthermore, even when the other devices are put in places

where the remote control signal is unable to reach, you can

enable operation of the other components through the

remote control sensor of this unit.

0Also make sure to connect with the analog audio cable.

Centralized control cannot work correctly with only the

control jack connection.

0With this connection, the remote control sensors on the

amplifier and CD player stop working. Point the remote

controller at remote control sensor of this unit.

CONTROL

OUT

CONTROL

OUT

CD player

Amplifier

N-30AE

a Monaural miniplug cables (without resistors)

> Before Start > Part Names >Install > Initial Setup > Playback

Supplementary information |Advanced Setup | Others

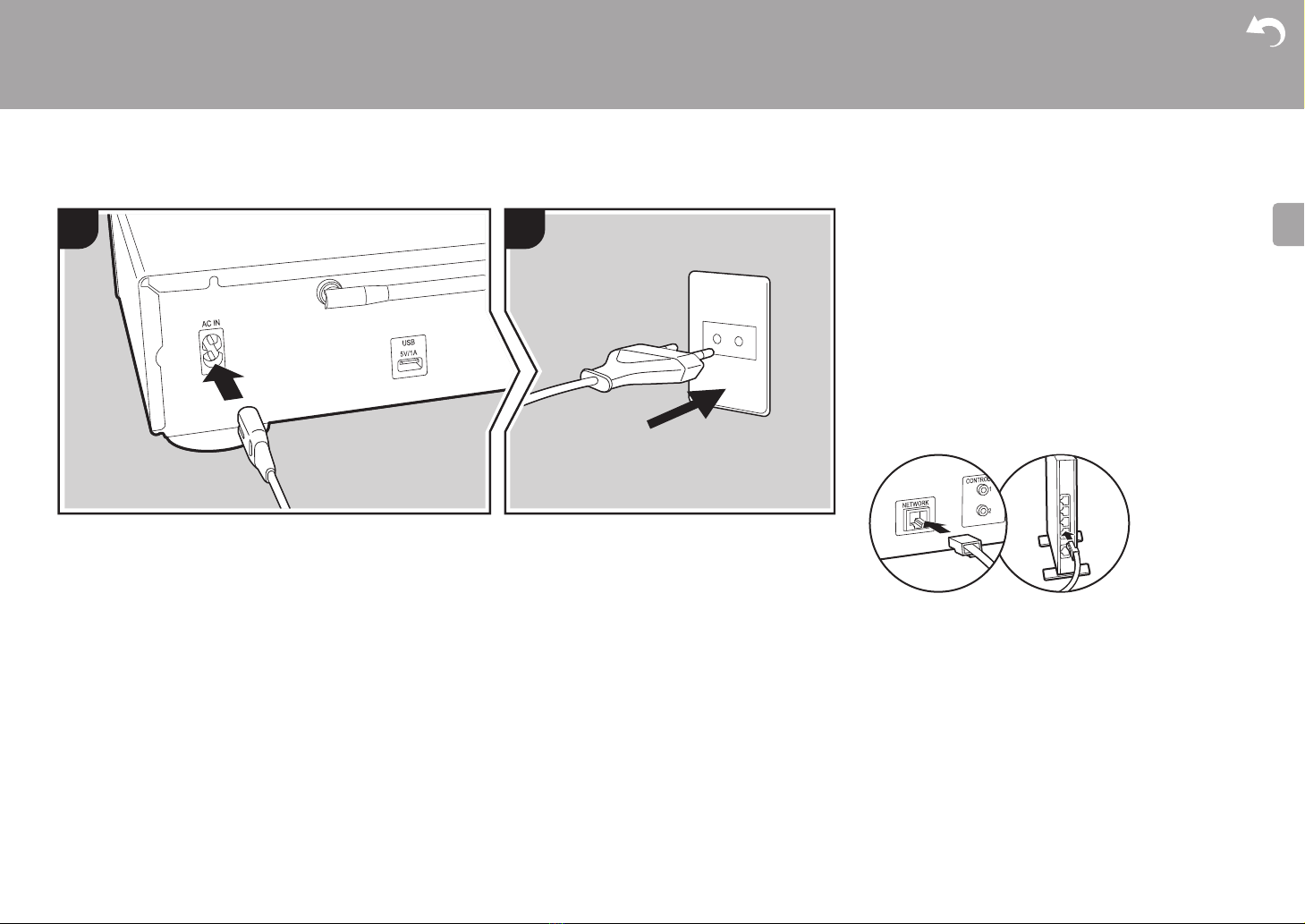

Connecting the power cord, etc.

1 2

Power cord connection

This model includes a removable power cord.

The power cord must be connected only after all other

connections are completed. Make sure you first connect the

power cord to AC IN terminal of the unit and then connect to

the outlet. Always disconnect the outlet side first when

disconnecting the power cord.

Ethernet cable connection

To connect to the network with an ethernet cable, use the

NETWORK jack. When using Wi-Fi connection, make

settings in initial settings (P10). You can enjoy features

such as internet radio and AirPlay by connecting to the

network.

a Power cord
