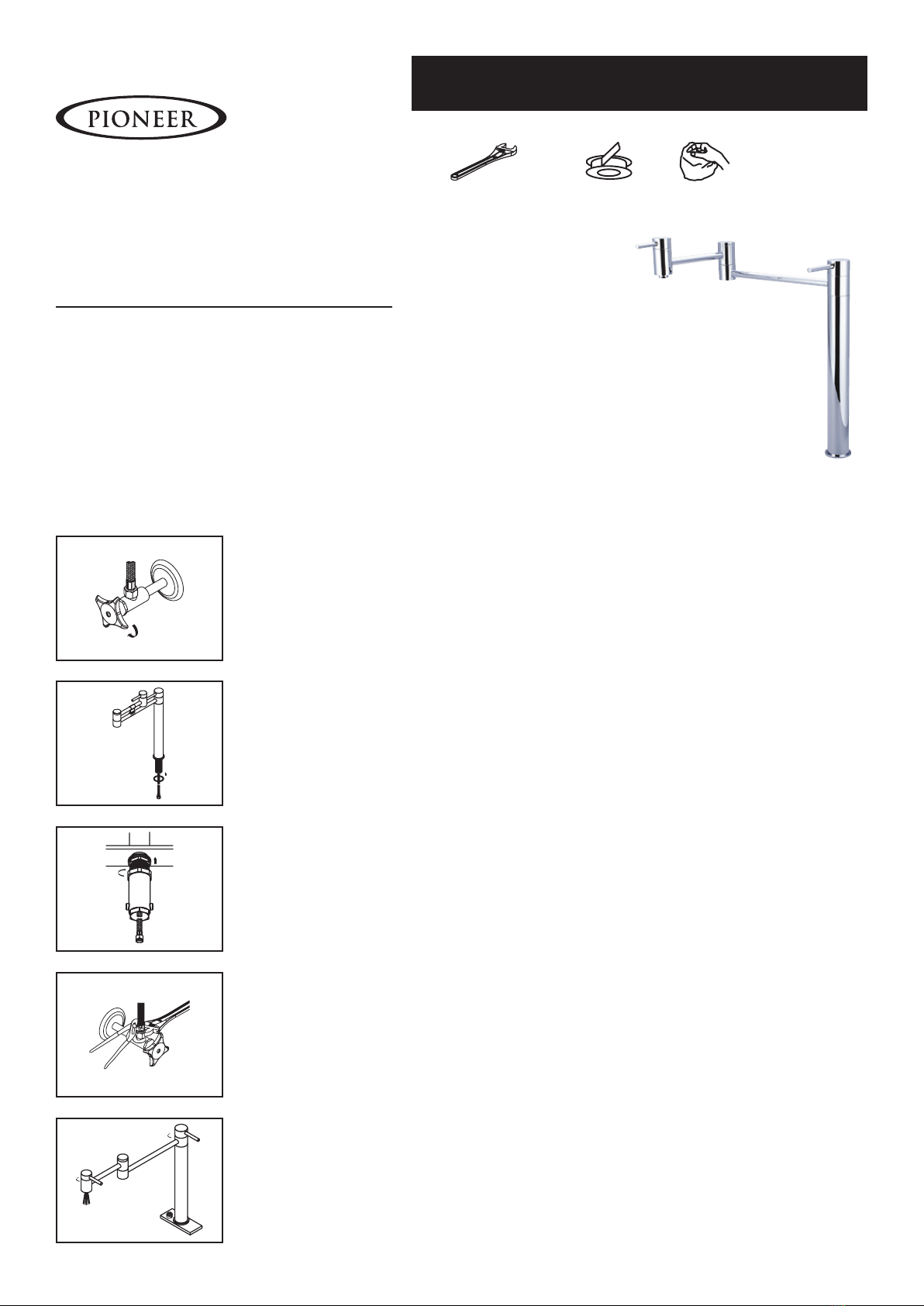

INSTALLATION
Tools:
Adjustable Wrench Teon Tape Rags
Model Number: 2MT700, 2AM700
Warnings and Notes:
Check with local plumbing code requirements before installation.
This product should be installed by a local listed plumber.
Do not use plumbers putty on threads.
Installation Steps:
Deck Mount Pot-Filler
(1) Shut off water supply. Remove old faucet.
Clean mounting surface in preparation for new
faucet.
PIONEER INDUSTRIES, INC.
3325 S. Gareld Ave
Commerce, CA 90040
(800) 338-9468
www.pioneerind.com
(2) Do not remove plastic arm bracket before
nish installation to prevent damage on swivel
arms. Be sure to place gasket underneath of
faucet to form watertight seal.
(3) Guide the faucet through mounting hole.
Slide the washer from beneath the mounting
surface. Install the locknut with the help of
mounting tool
(4) Use faucet inlet supply hose to connect
to supply stop. You may need adapter(not
included) if supply stop outlet size is not 3/8”
compression.
(6) Remove the aerator from the spout by
turning counter-clockwise. Turn on supply
stop. Check of any leaks. Make sure all the
connection are secure. Open both handles.
Flush and allow water to run at full ow for at
least one minute. Turn off water. Replace the
aerator.

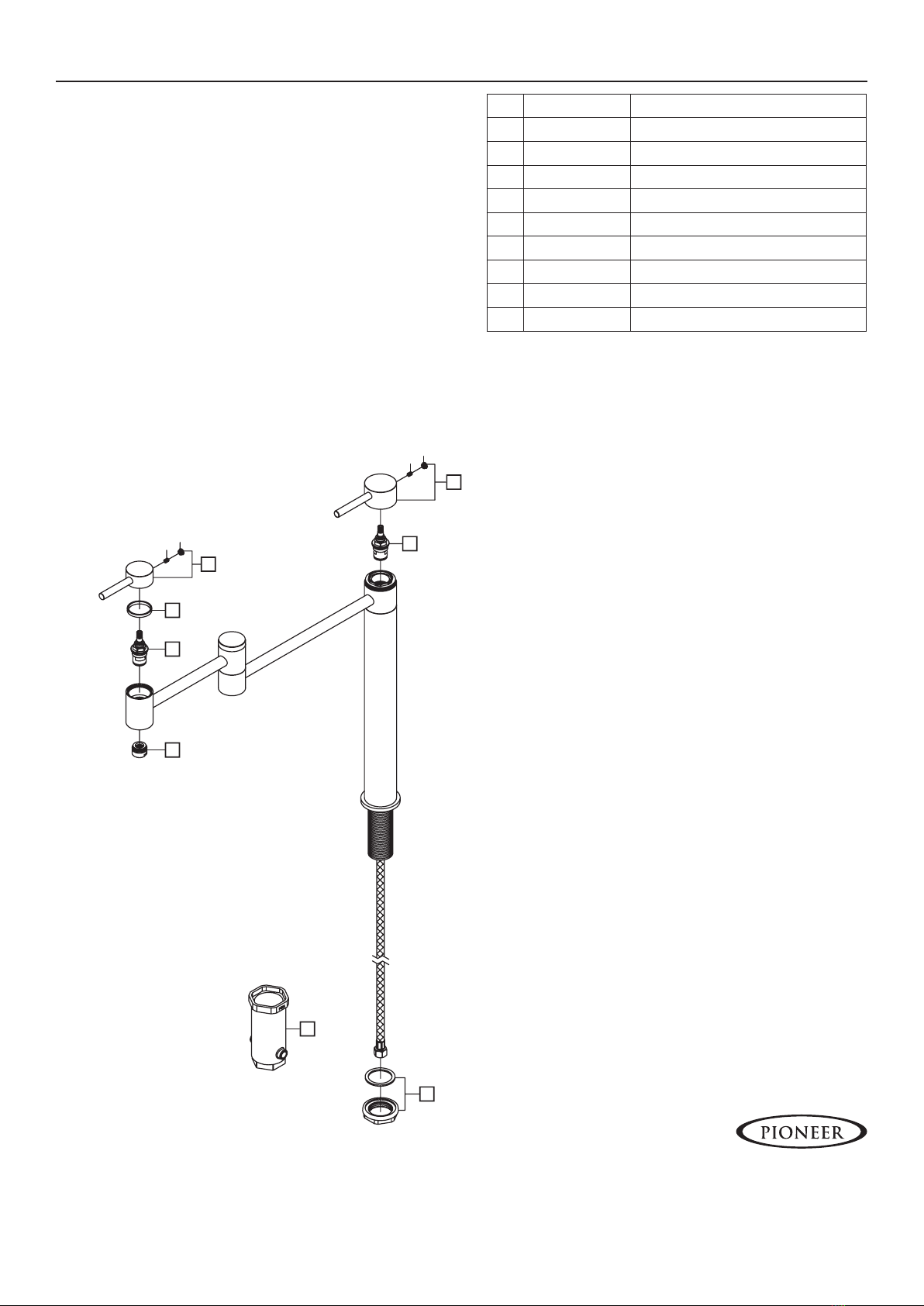

Exploded Drawing (2MT700)
* Note: Please specify nish/color when ordering.
A
B
C
D
B
E
F
G
1
2
1
2
ITEM # DESCRIPTION
AX-1200019* Main Handle
B X-3200004H Ceramic Cartridge
CX-1200018* Secondary Handle
DX-4200153 Gasket
E X-4900041* 2.0 GPM Aerator
F X-5200019 Mounting Kit
G X-5200021 Mounting Tool
1X-4400073* Hole Cover
2X-4900002 Allen Screw
For more care information or trouble shooting inquiries
about your Pioneer product, please call:
Pioneer Industries, Inc. (800) 338-9468
Monday-Friday 8AM to 8PM EST (5AM to 5PM PST)
www.pioneerind.com

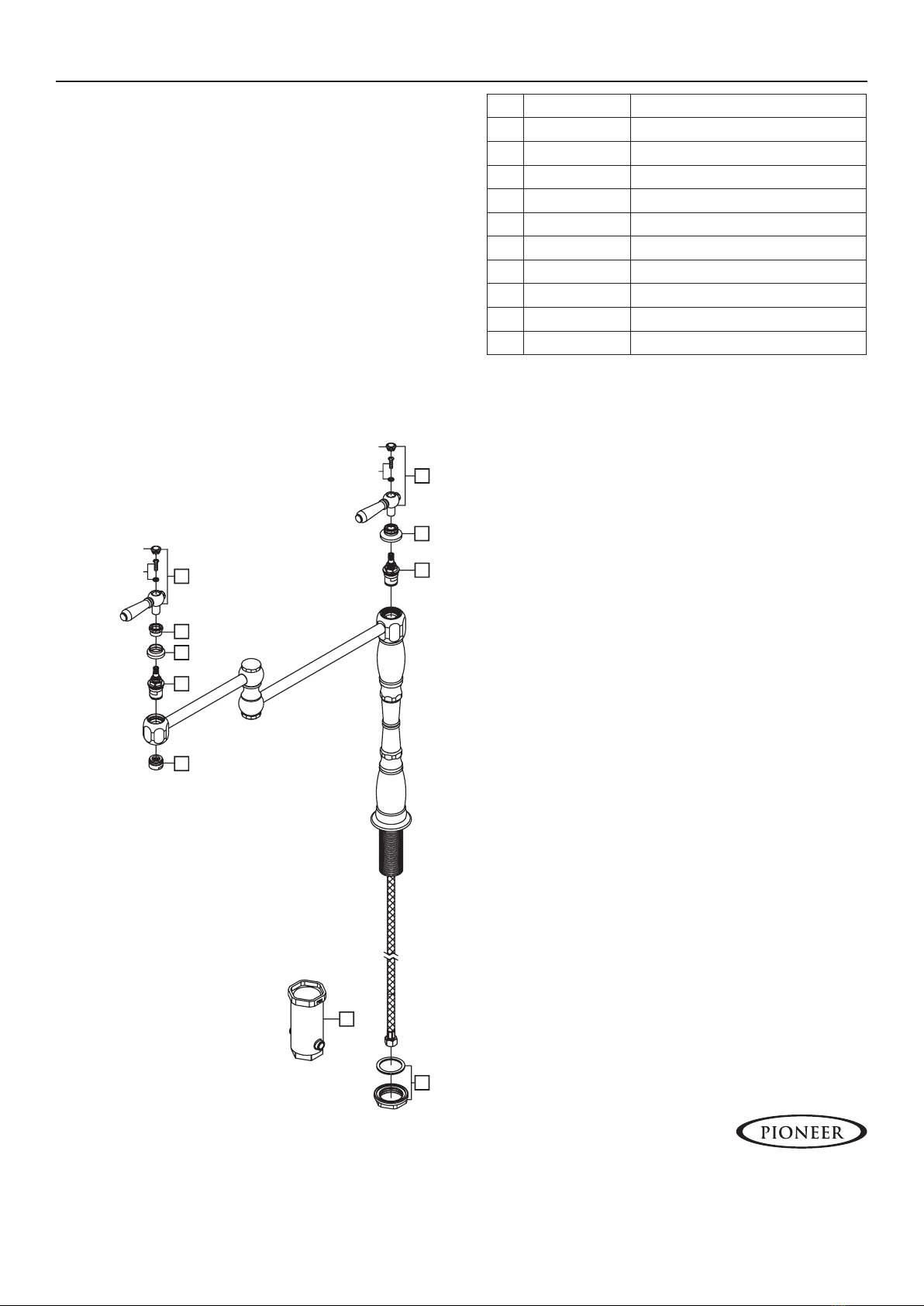

Exploded Drawing (2AM700)
* Note: Please specify nish/color when ordering.
A
B
C
A
D
E
C
F
G
H
1
2
1
2
ITEM # DESCRIPTION
AX-1200010* Americana Lever Handle
B X-4200154* Retainer Sleeve
CX-3200004H Ceramic Cartridge
DX-4200093* Handle Sleeve
E X-4200067* Handle Escutcheon
F X-4900041* 2.0 GPM Aerator
G X-5200019 Mounting Kit
HX-5200021 Mounting Tool
1X-4900042P* Handle Button-Plain
2X-4900043 Handle Screw
For more care information or trouble shooting inquiries
about your Pioneer product, please call:
Pioneer Industries, Inc. (800) 338-9468
Monday-Friday 8AM to 8PM EST (5AM to 5PM PST)
www.pioneerind.com
