CLD-S320F

RRV2091

1. CONTRAST OF MISCELLANEOUS PARTS........ 2

2. SCHEMATIC DIAGRAM ....................................... 7

3. PCB CONNECTION DIAGRAM.......................... 13

CONTENTS

T – IZE JAN. 1999 Printed in Japan

Type Model Power Requirement Remarks

CLD-S320F

WYXQ/FR AC220-240V

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).

CD CDV LD PLAYER

Refer to the service manual RRV1342 for CLD-S310F/

WEZW/FR.

CLD-S320F

Mark No. Description Part No. Mark No. Description Part No.

1. CONTRAST OF MISCELLANEOUS PARTS

NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.

•The mark found on some component parts indicates the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of identical designation.

•Reference Nos. indicate the pages and Nos. in the service manual for the base model.

•When ordering resistors, first convert resistance values into code form as shown in the following examples.

Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,

and K=10%).

560 Ω→56 × 101→561 ........................................................ RD1/4PU

47k Ω→47 × 103→473 ........................................................ RD1/4PU 47

0.5 Ω→R50 ..................................................................................... RN2H

1 Ω→1R0 ..................................................................................... RS1P 1

Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).

5.62k Ω→ 562 × 101→5621 ...................................................... RN1/4PC 56

Mark Ref. Symbol and Description Part No. Remarks

CLD-S310F CLD-S320F

No. /WEZW/FR /WYXQ/FR

2.1 PACKING

NSP P4-1 Caution (EW) VRM1027 Not used

P4-4 Operating Instructions (French) VRC1041 VRC1070

P4-5 Protector VHB1007 Not used

NSP P4-8 Dry Cell Battery (R6P, AA) VEM-013 VEM1010

P4-9 Remote Control Unit VXX2268 Not used

P4-9 Remote Control Unit (CU-CLD155) Not used VXX2614

P4-12 Protector B VHB1012 Not used

P4-13 Mirror Mat Sheet Z23-007 DHL1006

NSP P4-14 Warranty Card ARY7008 ARY7022

P4-15 Packing Case VHG1450 VHG1752

NSP Cord Bag Not used VEG-012 for AC Power Cord

Pad L Not used VHA1193 ∗1 No. 1

Pad R Not used VHA1194 ∗1 No. 2

2.2 EXTERIOR AND DISC TRAY SECTION

P6-1 Bonnet S VXX2117 VXX2351

P6-7 CD Tray VNK2687 VNK3007

NSP P6-10 LD Tray VNK2686 VNK3188

P6-12 Door Spring VBH1247 VBH1248

P6-13 Door Holder VNL1658 VNL1697

P6-15 Door Shaft VLL1455 Not used

NSP P6-15 Door Shaft Not used VLL1466 ∗2

P6-16 CD Door VNK2791 Not used

NSP P6-16 CD Door Not used VNK3316 ∗2

P6-17 Damper Assy VXA1999 Not used

P6-18 Tray Panel VNK2801 VNK3315

P6-19 Disc Pad VEC1682 (×12) VEC1682 (×14)

P6-20 Tray Assy-S VXX2171 Not used

NSP P6-22 Caution Label (F) VRW-328 Not used

CD Door Assy Not used VXA2237 ∗2

2.3 TOP VIEW SECTION

NSP P9-15 Panel Holder VNA1710 VNA1840

CONTRAST TABLE

CLD-S320F/WYXQ/FR and CLD-S310F/WEZW/FR are constructed the same except for the following :

CLD-S320F

Mark No. Description Part No. Mark No. Description Part No.

Mark Ref. Symbol and Description Part No. Remarks

CLD-S310F CLD-S320F

No. /WEZW/FR /WYXQ/FR

2.4 FRONT PANEL SECTION

NSP P8-1 Front Panel VNK3195 Not used

P8-1 Front Panel Not used VNK4305 ∗1 No. 1

P8-2 Pioneer Badge PAM1608 PAM1776 ∗1 No. 2

P8-3 FL Lens VEC1791 VEC2002 ∗1 No. 3

P8-4 Key A VNK2793 Not used

P8-6 PW Button VNK2329 Not used

P8-7 L Key VNK2812 Not used

P8-8 Main Key VNK3181 Not used

P8-10 FLKY Assy VWG1657 VWG1965 ∗1 No. 4

NSP P8-11 KEYB Assy VWG1627 Not used

Key K Not used VNK2998 ∗1 No. 5

LD Key Not used VNK4087 ∗1 No. 6

CD Key Not used VNK4088 ∗1 No. 7

10 Key Not used VNK4201 ∗1 No. 8

Lens Holder Not used VNK4266 ∗1 No. 9

Play Key Not used VNK4306 ∗1 No. 10

Skip Key Not used VNK4307 ∗1 No. 11

Stop Key Not used VNK4308 ∗1 No. 12

NSP KALB Assy Not used VWG1964 ∗1 No. 13

2.5 BOTTOM VIEW SECTION

P10-1 MOTHER Assy VWS1198 VWS1372

P10-3 SYPS Assy VWR1234 VWR1275

P10-4 AC Power Cord VDG1061 ADG1154

P10-5 Cord Stopper CM-22B Not used

P10-7 Rear Panel R VNA1598 VNA1977

P10-12 Insulator PNW1912 (×4) PNW1912 (×2) ∗1 No. 1 (for Front)

NSP P10-14 Base Chassis VNA1461 VNA1564

NSP P10-15 Rear Panel L VNA1580 Not used

P10-15 Rear Panel L Not used VNA1976

NSP P10-20 SCRB Assy VWV1432 VWV1656

Insulator Assy Not used VXA2295 (×2) ∗1 No. 2 (for Rear)

Power Joint Not used VNK4302 ∗1 No. 3

∗1 : The numbers in the remarks column correspond to the numbers on the "EXPLODED VIEWS".

∗2 : CD Door Assy VXA2237

NSP Door Shaft VLL1466

NSP CD Door VNK3316

CLD-S320F

Mark No. Description Part No. Mark No. Description Part No.

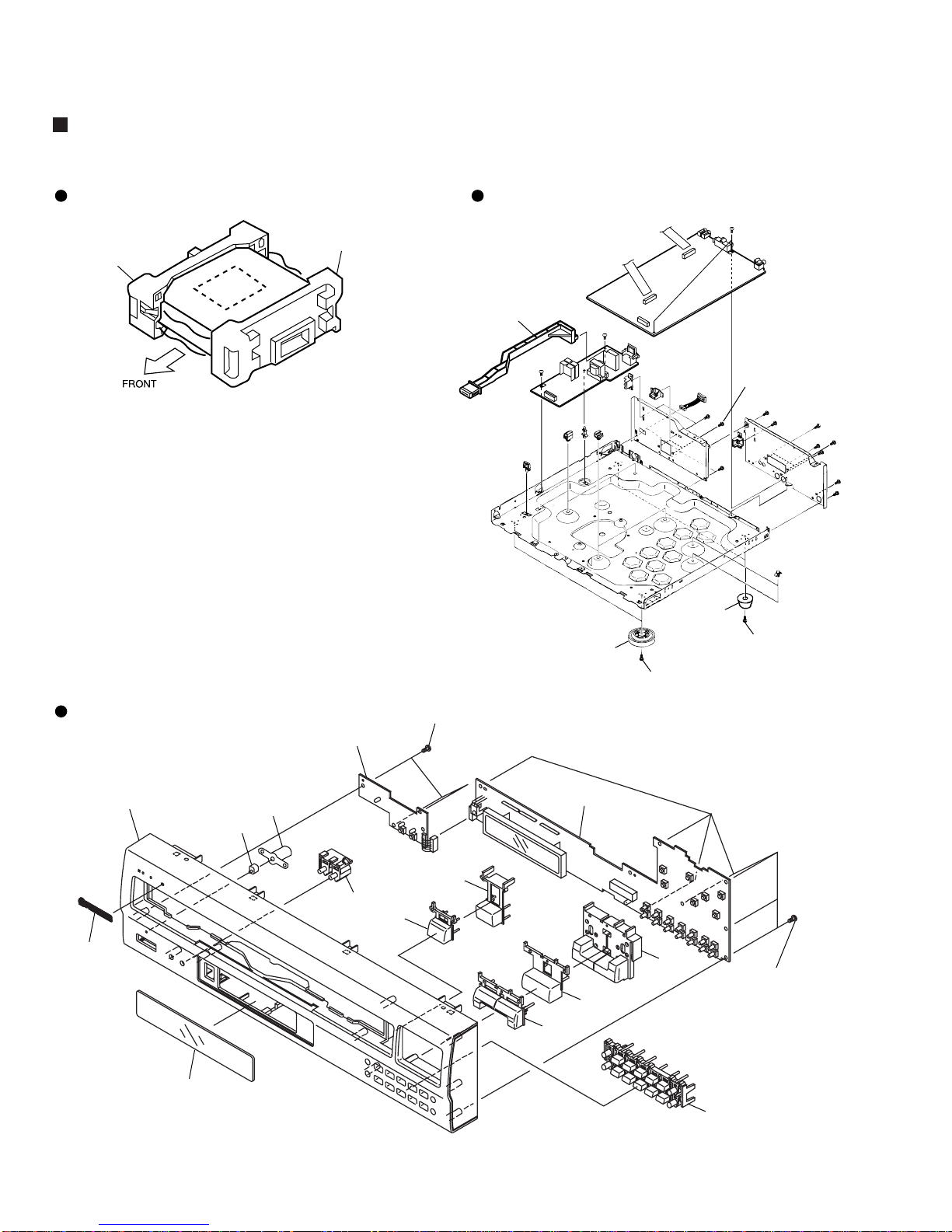

EXPLODED VIEWS

No. 1 No. 2

No. 5

No. 6

No. 2

No. 1

No. 3

No. 1

Packing

Note : The numbers on the exploded views correspond to the numbers on the "CONTRAST TABLE".

Front Panel Section

Bottom View Section

No. 3

No. 9

No. 13

No. 12

No. 4

No. 7

Screw

(BBZ30P080FMC)

Screw

(BBZ30P100FMC)

Screw

(BBZ30P080FMC)

No. 6

No. 10

No. 8

No. 11

Screw

(BBZ30P100FMC)

Screw

(BBZ30P080FMC)

CLD-S320F

Mark No. Description Part No. Mark No. Description Part No.

PCB PARTS LIST

Mark Symbol and Description Part No. Remarks

CLD-S310F CLD-S320F

/WEZW/FR /WYXQ/FR

NSP MACB ASSY VWM1507 VWM1507

NSP LMSB ASSY VWG1554 VWG1554

NSP PKSB ASSY VWG1555 VWG1555

NSP FG ASSY VWG1556 VWG1556

NSP FLKB ASSY VWM1592 Not used

NSP KEYB ASSY VWG1627 Not used

FLKY ASSY VWG1657 Not used

NSP FLKB ASSY Not used VWM1844

NSP KALB ASSY Not used VWG1964

FLKY ASSY Not used VWG1965

MOTHER ASSY VWM1601 VWM1899

MOTHER ASSY VWS1198 VWS1372

NSP SCRB ASSY VWV1432 VWV1656

SYPS ASSY VWR1234 VWR1275

LIST OF WHOLE PCB ASSEMBLIES

MOTHER ASSY

VWS1372 and VWS1198 are constructed the same except for the following :

Mark Symbol and Description Part No. Remarks

VWS1198 VWS1372

IC400 PAC005B LA7133

IC801 PAC002A LA9425

IC901 PAC003A LA9420M

Q103,Q161,Q207,Q901,Q910 UN2212 DTC124EK

Q209,Q514,Q515 UN2112 DTA124EK

Q152 2SC3802K 2SC3082K

C444,C917 CEAS100M50 CEAT100M50

C424,C543,C565 CEAS101M10 CEAT101M10

C300 Not used CEAT102M6R3 Refer to page 12.

C904 CEAS1R0M50 CEAT1R0M50

C274,C275,C465,C922,C967,C968,C987 CEAS220M25 CEAT220M25

C519,C532,C576,C974,C975 CEAS221M10 CEAT221M10

C845,C902,C926 CEAS2R2M50 CEAT2R2M50

C101,C207,C225,C226,C270,C271,C422,C450,C458 CEAS470M10 CEAT470M10

C508,C516,C527,C530,C542,C547,C549,C553,C555 CEAS470M10 CEAT470M10

C558,C562,C564,C569,C801,C803,C833,C842,C844 CEAS470M10 CEAT470M10

C893,C927,C933 CEAS470M10 CEAT470M10

C210,C216 CEAS471M10 CEAT471M10

C850,C870 CEAS4R7M50 CEAT4R7M50

R106 RS1/10S104J RS1/10S103J

R220,R222 (4.7Ω, 1/6W) DCN1001 RFA1/6PU4R7J

VR450 (2.2kΩ) RCP1019 VCP1123

VR603 (4.7kΩ) RCP1020 VCP1154

VR604,VR607,VR612 (47kΩ) RCP1047 VCP1160

SCRB ASSY

VWV1656 is the same as that of VWV1432.

CLD-S320F

Mark No. Description Part No. Mark No. Description Part No.

PKSB ASSY

SWITCHES

S104,S105 DSG1017

FG ASSY

SEMICONDUCTOR

D101 GP1S24

LMSB ASSY

SWITCHES

S101-S103 DSG1017

OTHERS

CN101 10P FFC CONNECTOR 52044-1045

SYPS ASSY

SEMICONDUCTORS

IC201 HA17431P

IC210 ICP-N15

IC211 ICP-N20

IC202 UPC358C

Q207,Q208,Q214 2SA933S

Q205,Q206,Q210 2SC1740S

Q102,Q103 2SC3377

Q213 2SD2395

Q203,Q204 T7F4S

Q201,Q202 T7F4T

Q209 VZF1040

Q101 VZF1041

D104 1SS270A

D209-D212,D216 AG01Z-VO

D101 D2SB60F4004

D102 EG01C

D103 MTZJ2.7B

D218 MTZJ8.2B

D200 PS2561L1-1VM

D106 RD18FB2

D207 RD33FB2

D206 VZF1039

D202,D203 VZF1042

D204 VZF1043

RESISTORS

R257 (68Ω, 1/4W) VCN1048

R258 (10Ω, 1/4W) VCN1051

R256 (0.22Ω, 1/4W) VCN1055

OTHERS

F101 FUSE (T1.6A/H250V) REK1033

F205 FUSE (2A) VEK1033

F201,F202 FUSE VEK1034

F203,F204 FUSE (1.0A/125V) VEK1036

FLKY ASSY

SEMICONDUCTORS

IC101 PD3389A

IC102 S-806D

Q102 DTA144ES

Q101 DTC114ES

D101 1SS254

SWITCHES

S113-S119 ASG1034

S101-S112,S120,S121 RSG1034

CAPACITORS

C105,C109 CEAL100M16

C101,C103 CEAL470M6R3

C111-C113 CKPUYB101K50

C110 CKPUYB102K50

C108 CKPUYF223Z25

C102,C104,C106 CKPUYY103N16

RESISTORS

All Resistors RD1/4PU J

OTHERS

CN102 6P CONNECTOR 06R-FJ

CN101 FFC CONNECTOR 16P 52492-1620

X101 CERAMIC RESONATOR EFOEC8004A4

(8.00MHz)

REMOTE RECEIVER UNIT GP1U28X

V101 FL TUBE VAW1045

SPACER VEC1599

FL HOLDER VNF1085

KALB ASSY

SEMICONDUCTOR

D303 SLR-342VCT31

SWITCHES

S301,S302 ASG1034

RESISTORS

All Resistors RD1/4PU J

OTHERS

CN301 FJ CONNECTOR 6P 06P-FJ

CLD-S320F

1234

Note : When ordering service parts, be sure to refer to "EXPLODED VIEWS and PARTS LIST" or "PCB PARTS LIST".

2. SCHEMATIC DIAGRAM

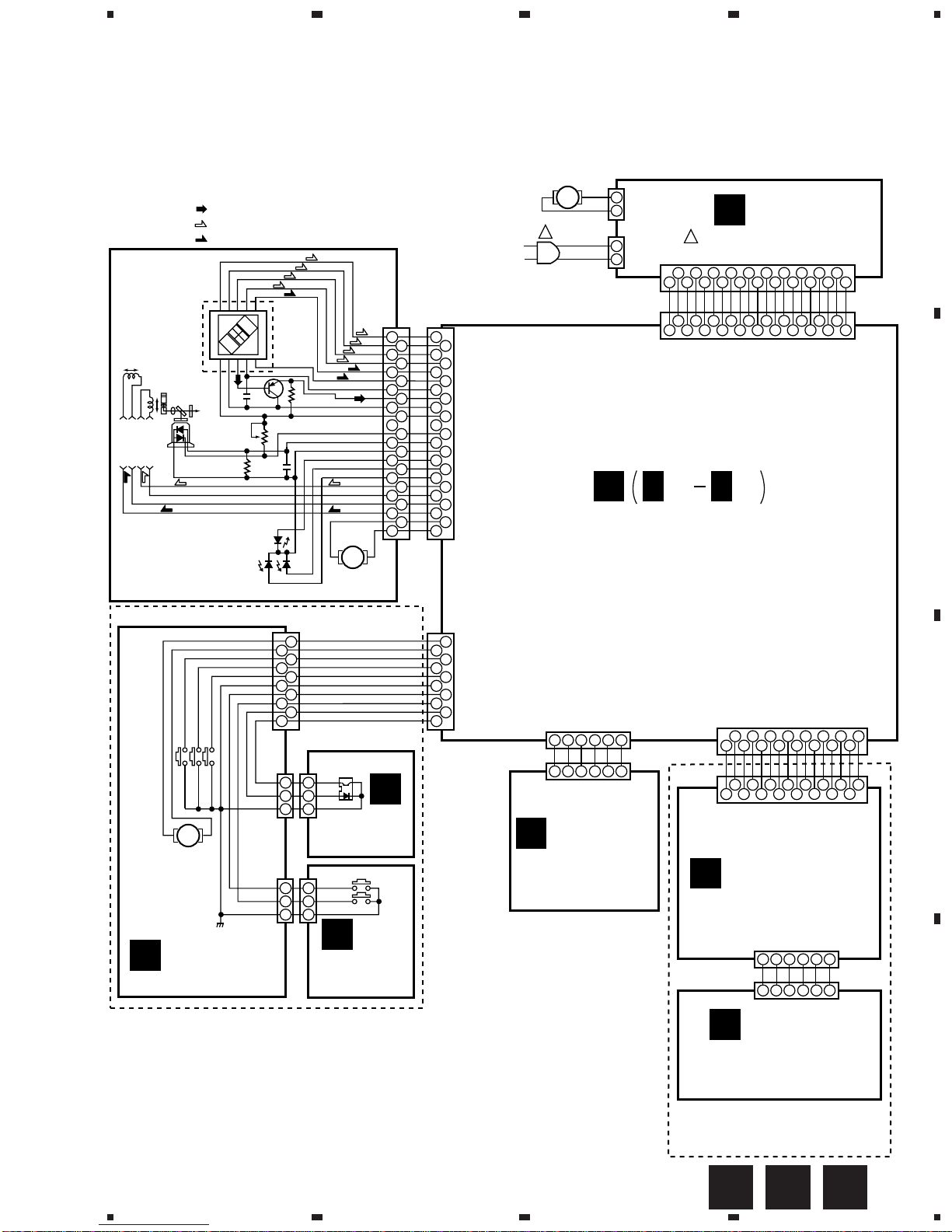

2.1 OVERALL CONNECTIONS, PKSB, FG and LMSB ASSEMBLIES

910

1112

1314

1516

1718

1920

2122

MTR GND

MGND

TILT/LOAD DRV

SW3

SW1

SW2

GND

OUTER

INNER

LED

GND

OUTER

S103

S101

S102

S105

D101 GP1S24

S104

INNER

GND

OUTER

INNER

GND

LED

GND

LED

TOP VIEW

Q101

C102

1µ

R101

10k

2SC4081

C101

TRKG DRV

GND

FOCUS DRV

GND

LASER

DIODE

MONITOR

DETECTOR

0.047µ

R102 1.5k

1.5k

CN202

CN101

CN201

CN102

CN103

CN101

CN101 CN101

CN105

CN102

CN103 CN104

CARRIAGE

ASSY

VWT1141

: RF SIGNAL ROUTE

: FOCUS SERVO LOOP LINE

: TRACKING SERVO LOOP LINE

MACB ASSY VWM1507

LMSB ASSY

VWG1554

FG ASSY

VWG1556

PKSB ASSY

VWG1555

B3 B4

SLIDER MOTOR

ASSY

VXX2472

MOTOR

ASSY

VXX2045

SPINDLE MOTOR

ASSY

VXA2271

AC220V - 240V

50 / 60Hz

AC POWER CORD

ADG1154

PDPD

MTR DRV

TRK DRV

TRK RTN

FCS RTN

FCS DRV

OUTER

INNER

TILT LED

LD GND

MPD

-5V

+5V

RF GND

MTR GND

MTR DRV

TRK DRV

TRK RTN

FCS RTN

FCS DRV

OUTER

INNER

TILT LED

LD GND

MPD

-5V

+5V

RF GND

212019181716151413121110 987654321

123456789101112131415161718192021

CN121

CN101

-29V

EV+5V

GND

POWER ON

XSCK

S-FTOM

S-MTOF

XCS

XRESET

FSX

EFLG

SHAKE

SEL IR

-29V

EV+5V

GND

POWER ON

XSCK

S-FTOM

S-MTOF

XCS

XRESET

FSX

EFLG

SHAKE

SEL IR

-27V

GND

EV5V

P-ON

GND

-12V

+12V

GND

SW+5V(C)

SW+5V(B)

SW+5V(A)

SW-5V

GND(M)

GND(R)

RET+

ACCEL

BRAKE

RET-

SPDL M+

SPDL M-

NEUTRAL

LIVE

MGND

TILT/LOAD DRV

SW3

SW1

SW2

GND

OUTER

INNER

LED

SYPS ASSY

VWR1275

FLKB ASSY

VWM1844

MOTHER ASSY

VWS1372

1/2

2/2

FLKY ASSY

VWG1965

KALB ASSY

VWG1964

1716

1514

1312

1110

2322

2120

1918

12345678910 12 14 16

11 13 15

12345678910 12 14 16

11 13 15

3 4 5 621

CN102

CN301

EV+5V

SINGLE

PBC

STDBY

KIN2

GND

SCRB ASSY

VWV1656

3 4 5 621

CN206

CN601

VIDEO

+10V STUS

GND

AUDIO R

GND

AUDIO L

CLD-S320F

1234

2.2 SYPS ASSY

SYPS ASSY (VWR1275)

NOTE OF SPARE PARTS IN POWER SUPPLY (SYPS) ASSY

• In case of repairing, use the described parts only to prevent an accident.

• Please write the red mark on the board when the primary section of POWER SUPPLY (SYPS) Assy is repaired.

• Please take care to keep the space, not touching other parts when replacing the parts.

CAUTION : FOR CONTINUED PROTECTION AGAINST

RISK OF FIRE, REPLACE ONLY WITH

SAME TYPE NO. ICP-N15 MFD. BY ROHM

CO., LTD. FOR IC210.

CAUTION : FOR CONTINUED PROTECTION AGAINST

RISK OF FIRE, REPLACE ONLY WITH

SAME TYPE NO. ICP-N20 MFD. BY ROHM

CO., LTD. FOR IC211.

SPINDLE MOTOR

ASSY

VXA2271

CN102

1/2

F201

VEK1034

F202

VEK1034

F205

VEK1033

Q209

VZF1040

IC210

ICP-N15

F204 VEK1036

F203 VEK1036

D210

AG01Z-VO

D212

AG01Z-VO

D211

AG01Z-VO D209

AG01Z-VO

1/2

2/2

CLD-S320F

5678

• NOTE FOR FUSE REPLACEMENT

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.

REPLACE WITH SAME TYPE AND RATINGS ONLY.

CAUTION -

AC POWER CORD

ADG1154

F101

REK1033

D101

D2SBA60F4004

Q101

VZF1041

D216

AG01Z-VO

D206

VZF1039

D204

VZF1043

D203

VZF1042

D202

VZF1042

D207

RD33FB2

CLD-S320F

1234

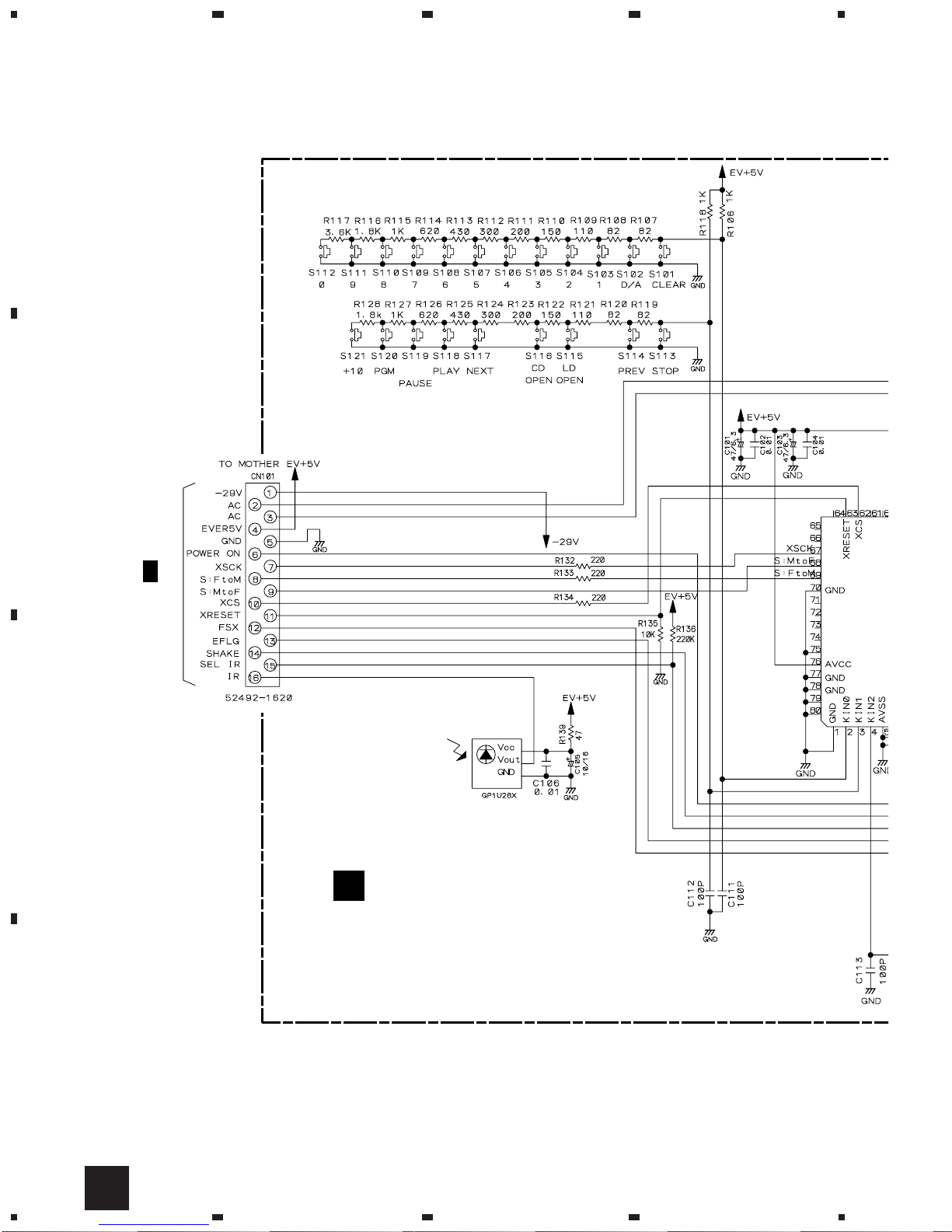

2.3 FLKY and KALB ASSEMBLIES

FLKY ASSY

(VWG1965)

CN121

1/2

REMOTE

RECEIVER

UNIT

Table des matières

Autres manuels Pioneer Lecteur DVD

Pioneer

Pioneer DV-505 Manuel utilisateur

Pioneer

Pioneer HD-V9000 Manuel utilisateur

Pioneer

Pioneer DVD-V5000 Manuel utilisateur

Pioneer

Pioneer DV-263 Manuel utilisateur

Pioneer

Pioneer VRD1160-A Manuel utilisateur

Pioneer

Pioneer BDP-LX70A Manuel technique

Pioneer

Pioneer DV-C302D Manuel utilisateur

Pioneer

Pioneer BDP-LX70 Manuel utilisateur

Pioneer

Pioneer DVL-909 Manuel utilisateur

Pioneer

Pioneer DV-355 Manuel utilisateur

Pioneer

Pioneer DV-989AVi-S Manuel utilisateur

Pioneer

Pioneer DV-440 Manuel utilisateur

Pioneer

Pioneer DV-353-K Manuel utilisateur

Pioneer

Pioneer DV-535 Manuel utilisateur

Pioneer

Pioneer DV-2850-S Manuel utilisateur

Pioneer

Pioneer DV-600AV-S Manuel utilisateur

Pioneer

Pioneer DV-220V-K Manuel utilisateur

Pioneer

Pioneer DV383S Manuel utilisateur

Pioneer

Pioneer HD-V9000 Manuel utilisateur

Pioneer

Pioneer Elite DV-37 Manuel utilisateur

Pioneer

Pioneer DVD-V7400 Manuel utilisateur

Pioneer

Pioneer DV-310-K Manuel utilisateur

Pioneer

Pioneer DV-600AV-S Manuel utilisateur

Pioneer

Pioneer DV-220V-K Manuel utilisateur

Manuels Lecteur DVD populaires d'autres marques

Sony

Sony DVP-F11 Manuel utilisateur

Philips

Philips DVP3560K/F8 Manuel utilisateur

LENCO

LENCO DVP-740 X2 Manuel utilisateur

JVC

JVC XV-N650BEU Manuel utilisateur

Aiwa

Aiwa XD-DV370 Manuel utilisateur

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manuel utilisateur

Denon

Denon DVM-1805 - DVD Changer Manuel utilisateur

Toshiba

Toshiba SD-3815 Manuel utilisateur

Tevion

Tevion 44330 Manuel utilisateur

Samsung

Samsung DVD-HD860 Manuel utilisateur

Sylvania

Sylvania DP170SL8 Manuel utilisateur

Toshiba

Toshiba SD-P1200 Manuel utilisateur

JVC

JVC XV-D9000E Manuel utilisateur

Dolby Laboratories

Dolby Laboratories CP650 Manuel utilisateur

Philips

Philips DVD737K/931 Manuel utilisateur

Denon

Denon DVD-5900 Manuel utilisateur

Philips

Philips DVD 951 Manuel utilisateur

Philips

Philips DVDR3460 Manuel utilisateur
