Operation Manual

High power CD player with FM/AM tuner

DEH-1770

English

Português (B)

Español

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate

your model properly. After you have finished reading the instructions, keep this man-

ual in a safe place for future reference.

Before You Start

About this unit 3

Protecting your unit from theft 3

Removing the front panel 3

Attaching the front panel 3

Whats What

Head unit 4

Power ON/OFF

Turning the unit on and selecting a

source 5

Turning the unit off 5

Tuner

Listening to the radio 6

Storing and recalling broadcast

frequencies 6

Tuning in strong signals 6

Storing the strongest broadcast

frequencies 7

Built-in CD Pla er

Playing a D 8

Playing tracks in a random order 8

Repeating play 8

Pausing D playback 8

Audio Adjustments

Introduction of audio adjustments 9

Using balance adjustment 9

Using the BTB (bass treble booster) 9

Adjusting BTB 9

Adjusting loudness 10

Adjusting source levels 10

Initial Settings

Adjusting initial settings 11

Setting the clock 11

Turning the clock display on or off 11

Setting the FM tuning step 11

Additional Information

Understanding built-in D player error

messages 12

D player and care 12

D-R/ D-RW discs 12

Specifications 14

Contents

About this unit

The tuner frequencies on this unit are allo-

cated for use in entral or South America. Use

in other areas may result in poor reception.

CAU ION:

USE OF CON ROL OR ADJUS MEN OR

PERFORMANCE OF PROCEDURES

O HER HAN HOSE SPECIFIED HEREIN

MAY RESUL IN HAZARDOUS RADIA ION

EXPOSURE.

CAU ION:

HE USE OF OP ICAL INS RUMEN S

WI H HIS PRODUC WILL INCREASE

EYE HAZARD.

CAUTION

!Do not allow this unit to come into contact

with liquids. Electrical shock could result.

Also, this unit damage, smoke, and overheat

could result from contact with liquids.

!Keep this manual handy as a reference for op-

erating procedures and precautions.

!Always keep the volume low enough so that

you can hear sounds from outside the vehicle.

!Protect this unit from moisture.

!If the battery is disconnected or discharged,

the preset memory will be erased and must be

reprogrammed.

!If this unit does not operate properly, contact

your dealer or nearest authorized Pioneer Ser-

vice Station.

Protecting your unit from

theft

The front panel can be detached from the

head unit and stored in the protective case

provided to discourage theft.

Important

!Never use force or grip the display and the

buttons too tightly when removing or attach-

ing.

!Avoid subjecting the front panel to excessive

shocks.

!Keep the front panel out of direct sunlight and

high temperatures.

Removing the front panel

1 Press DETACH to release the front

panel.

Press DETACH and the right side of the panel

is released from the head unit.

2 Grab the front panel and remove.

Grab the right side of the front panel and pull

away to the left. The front panel will be de-

tached from the head unit.

3 Put the front panel into the protective

case provided for safe keepin .

Attaching the front panel

1 Place the front panel flat a ainst the

head unit.

2 Press the front panel into the face of

the head unit until it is firmly seated.

Before You Start

En 3

English

Section

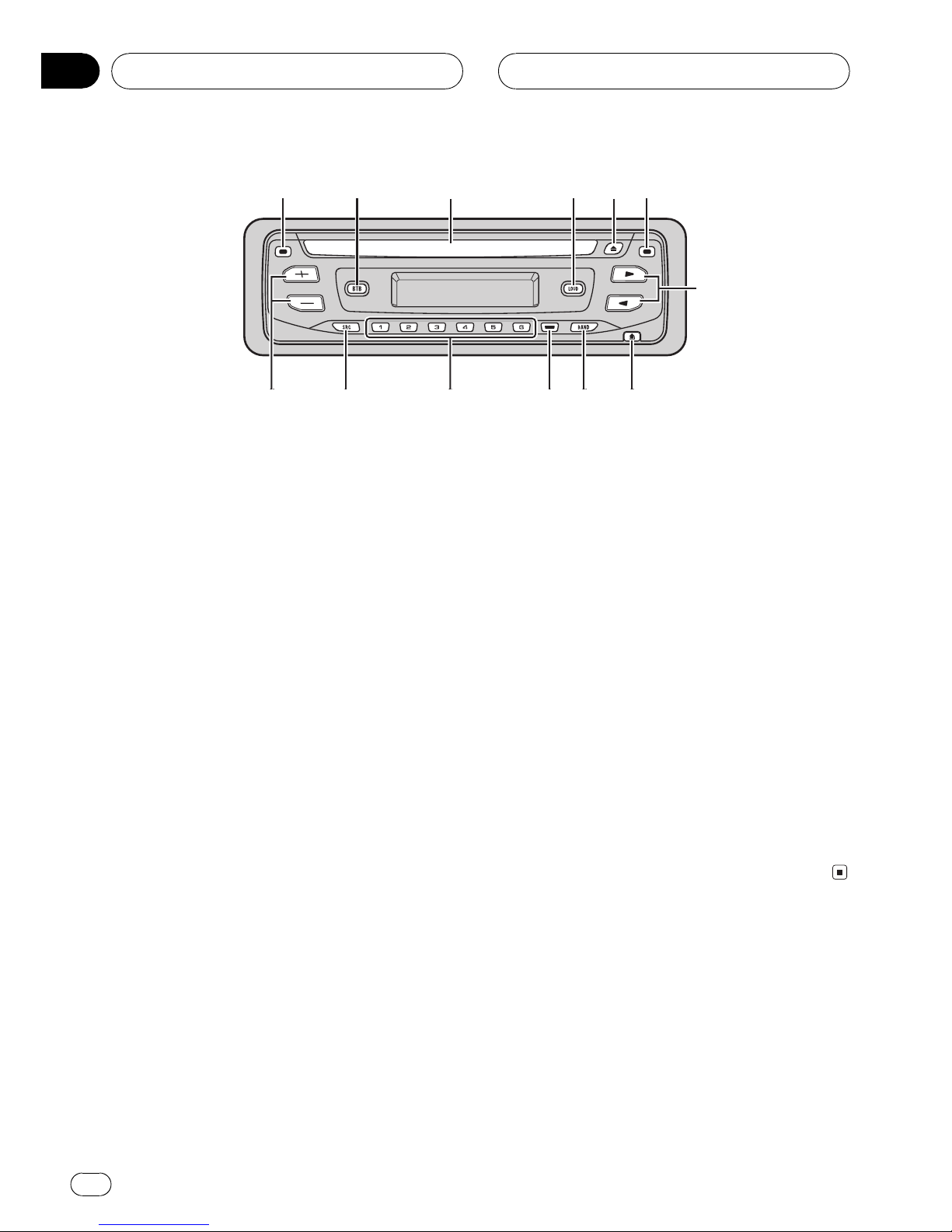

Head unit

1CLOCK button

Press to change to the clock display.

2BTB button

Press to select various BTB (bass treble

booster) setting.

3Disc loadin slot

Insert a disc to play.

4LOUDNESS button

Press to turn loudness on or off.

5EJECT button

Press to eject a D from your built-in D

player.

6AUDIO button

Press to select various sound quality con-

trols.

7c/dbuttons

Press to do manual seek tuning, fast for-

ward, reverse and track search controls.

Also used for controlling functions.

8DETACH button

Press to remove the front panel from the

head unit.

9BAND button

Press to select among three FM bands and

one AM band and to cancel the control

mode of functions.

aLOCAL/BSM button

Press to turn local function on or off.

Press and hold to turn BSM function on or

off.

b16 buttons

Press for preset tuning.

cSOURCE button

This unit is turned on by selecting a source.

Press to cycle through all the available

sources.

dVOLUME (+/) buttons

Press to increase or decrease the volume.

Whats What

Section

Turning the unit on and

selecting a source

You can select a source you want to listen to.

To switch to the built-in D player, load a disc

in the unit (refer to page 8).

%Press SOURCE to select a source.

Press SOURCE repeatedly to switch between

the following sources:

Built-in CD pla erTuner

When you select a source the unit is turned

on.

Notes

!When no disc has been set in the unit, the

source will not switch to the built-in D player.

!When this units blue/white lead is connected

to the vehicles auto-antenna relay control

terminal, the vehicles antenna extends when

this units source is turned on. To retract the

antenna, turn the source off.

Turning the unit off

%Press SOURCE and hold until the unit

turns off.

Power N/ FF

En 5

English

Section

Listening to the radio

1 2 4 53

1Band indicator

Shows which band the radio is tuned to, AM

or FM.

2LOC indicator

Shows when local seek tuning is on.

3Stereo (5) indicator

Shows that the frequency selected is being

broadcast in stereo.

4Frequency indicator

Shows to which frequency the tuner is

tuned.

5Preset number indicator

Shows which preset has been selected.

1 Press SOURCE to select the tuner.

2 Use VOLUME to adjust the sound level.

3 Press BAND to select a band.

Press BAND until the desired band is dis-

played, F1,F2,F3 for FM or AM.

4 To perform manual tunin , briefly press

cor d.

5 To perform seek tunin , press and hold

cor dfor about one second and release.

The tuner will scan the frequencies until a

broadcast strong enough for good reception is

found.

#You can cancel seek tuning by briefly pressing

either cor d.

#If you press and hold cor dyou can skip sta-

tions. Seek tuning starts as soon as you release

the button.

Storing and recalling

broadcast frequencies

If you press any of the preset tuning buttons

16you can easily store up to six broadcast

frequencies for later recall with the touch of a

button.

!Up to 18 FM stations, six for each of the

three FM bands, and six AM stations can

be stored in memory.

%When you find a frequency that you

want to store in memory press one of pre-

set tunin buttons 16 and hold until the

preset number stops flashin .

The number you have pressed will flash in the

preset number indicator and then remain lit.

The selected radio station frequency has been

stored in memory.

The next time you press the same preset tun-

ing button the radio station frequency is re-

called from memory.

Tuning in strong signals

Local seek tuning lets you tune in only those

radio stations with sufficiently strong signals

for good reception.

%Press LOCAL/BSM repeatedly to turn

local seek tunin on or off.

When local seek tuning is on, LOC appears in

the display.

Tuner

Section

Storing the strongest

broadcast frequencies

BSM (best stations memory) lets you automa-

tically store the six strongest broadcast fre-

quencies under preset tuning buttons 16and

once stored there you can tune in to those fre-

quencies with the touch of a button.

!Storing broadcast frequencies with BSM

may replace broadcast frequencies you

have saved using buttons 16.

%Press LOCAL/BSM and hold until the

BSM turns on.

BSM begins to flash. While BSM is flashing

the six strongest broadcast frequencies will be

stored under preset tuning buttons 16in the

order of their signal strength. When finished,

BSM stops flashing.

#To cancel the storage process, press

LOCAL/BSM.

Tuner

En 7

English

Section

Playing a CD

1 2

1Track number indicator

Shows the track currently playing.

2Play time indicator

Shows the elapsed playing time of the cur-

rent track.

1 Insert a CD into the CD loadin slot.

Playback will automatically start.

#Be sure to turn up the label side of a disc.

#After a D has been inserted, press SOURCE

to select the built-in D player.

#You can eject a D by pressing EJECT.

2 Use VOLUME to adjust the sound level.

3 To perform fast forward or reverse,

press and hold cor d.

4 To skip back or forward to another

track, press cor d.

Pressing dskips to the start of the next track.

Pressing conce skips to the start of the cur-

rent track. Pressing again will skip to the pre-

vious track.

Notes

!The built-in D player plays one, standard, 12-

cm or 8-cm (single) D at a time. Do not use

an adapter when playing 8-cm Ds.

!Do not insert anything other than a D into

the D loading slot.

!If an error message such as ERROR-11 is dis-

played, refer to Understanding built-in CD

player error messages on page 12.

Playing tracks in a random

order

Random play lets you play back tracks on the

D in a random order.

%Press 4 repeatedly to turn random play

on or off.

When random play is on, RDM appears in the

display.

Repeating play

Repeat play lets you hear the same track over

again.

%Press 5 repeatedly to turn repeat play

on or off.

When repeat play is on, RPT appears in the

display.

#If you perform track search or fast forward/re-

verse, repeat play is automatically cancelled.

Pausing CD playback

Pause lets you temporarily stop playback of

the D.

%Press 6 repeatedly to turn pause on or

off.

When pause is on, PAUSE appears in the dis-

play.

Built-in CD Player

Section

Introduction of audio

adjustments

1 2

1Audio display

Shows the audio adjustments status.

2LOUD indicator

Appears in the display when loudness is

turned on.

%Press AUDIO to display the audio func-

tion names.

Press AUDIO repeatedly to switch between

the following audio functions:

FAD (balance adjustment)BASS (bass ad-

justment)TREBLE (treble adjustment)

LOUD (loudness)SLA (source level adjust-

ment)

#When selecting the FM tuner as the source,

you cannot switch to SLA.

#If you do not operate the audio function within

about 30 seconds, the display is automatically re-

turned to the source display.

#To return to the display of each source, press

BAND.

Using balance adjustment

You can select a fader/balance setting that

provides an ideal listening environment in all

occupied seats.

1 Press AUDIO to select FAD.

#If the balance setting has been previously ad-

justed, BAL will be displayed.

2 Press + or to adjust front/rear speaker

balance.

FAD F15 FAD R15 is displayed as the front/

rear speaker balance moves from front to rear.

#FAD 0 is the proper setting when only two

speakers are used.

3 Press cor dto adjust left/ri ht speaker

balance.

BAL L9 BAL R9 is displayed as the left/right

speaker balance moves from left to right.

Using the BTB (bass treble

booster)

There are five stored BTB settings such as

DYNAMIC,POWER,MAX,CUSTOM and

FLAT that can easily recall at any time.

!CUSTOM is an adjusted BTB setting that

you create.

!When FLAT is selected no supplement or

correction is made to the sound. This is

useful to check effect of the BTB settings

by switching alternatively between FLAT

and set BTB setting.

%Press BTB to select the desired BTB set-

tin .

Press BTB repeatedly to switch between the

following BTB setting:

POWERMAXCUSTOMFLAT

DYNAMIC

Adjusting BTB

You can adjust the currently selected BTB set-

ting as desired. Adjusted BTB settings are

memorized in CUSTOM.

Adjusting bass

You can adjust the bass level.

Audio Adjustments

En 9

English

Section

1 Press AUDIO to select BASS.

2 Press + or to adjust the bass level.

+6 6is displayed as the level is increased

or decreased.

Adjusting treble

You can adjust the treble level.

1 Press AUDIO to select TREBLE.

2 Press + or to adjust the treble level.

+6 6is displayed as the level is increased

or decreased.

Adjusting loudness

Loudness compensates for deficiencies in the

low- and high-sound ranges at low volume.

1 Press AUDIO to select LOUD.

2 Press + to turn loudness on.

LOUD indicator is displayed.

#To turn loudness off, press .

#You can also turn loudness on or off by press-

ing LOUDNESS.

3 Press cor dto select a desired level.

LOW (low)HI (high)

Adjusting source levels

SLA (source level adjustment) lets you adjust

the volume level of each source to prevent ra-

dical changes in volume when switching be-

tween sources.

!Settings are based on the FM tuner volume

level, which remains unchanged.

!The AM tuner volume level can also be ad-

justed with source level adjustments.

1 Compare the FM tuner volume level

with the level of the source you wish to ad-

just.

2 Press AUDIO to select SLA.

3 Press + or to adjust the source vo-

lume.

SLA +4 SLA 4is displayed as the source vo-

lume is increased or decreased.

Audio Adjustments

Section

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Pioneer Lecteur CD

Pioneer

Pioneer PD-7050 Manuel utilisateur

Pioneer

Pioneer cld-v850 Manuel utilisateur

Pioneer

Pioneer PD-S801 Manuel utilisateur

Pioneer

Pioneer CDJ 1000MK3 - Professional CD/MP3 Turntable Manuel utilisateur

Pioneer

Pioneer Elite PD-F17 Manuel utilisateur

Pioneer

Pioneer DEH-513 Manuel utilisateur

Pioneer

Pioneer PD-217 Manuel utilisateur

Pioneer

Pioneer PDF904 Manuel utilisateur

Pioneer

Pioneer CDX-FM1259 Manuel utilisateur

Pioneer

Pioneer PD-S601 Manuel utilisateur

Pioneer

Pioneer PD-50-K Manuel utilisateur

Pioneer

Pioneer Elite PD-D9-J Manuel utilisateur

Pioneer

Pioneer DEH-P945R Manuel utilisateur

Pioneer

Pioneer PD-M406 Manuel utilisateur

Pioneer

Pioneer SUPER AUDIO CD PLAYER PD-D9MK2-K Manuel utilisateur

Pioneer

Pioneer PD-7500 Manuel utilisateur

Pioneer

Pioneer PD-F1007 Manuel utilisateur

Pioneer

Pioneer PDF904 Manuel utilisateur

Pioneer

Pioneer CDJ-800 Manuel utilisateur

Pioneer

Pioneer CD-P75FM Manuel utilisateur

Pioneer

Pioneer LaserActive CLD-A100 Manuel utilisateur

Pioneer

Pioneer PD-F507 Manuel utilisateur

Pioneer

Pioneer Elite PD-D6MK2-KElite D6 Manuel utilisateur

Pioneer

Pioneer CDJ-400 - Cd/Media Player Manuel d'utilisation et d'entretien

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur
