Pioneer CDS-9036ZT/ES Manuel utilisateur

CAR COMPACT DISC PLAYER
CDS-9036ZT ES
Se
r
v
i
c
e
M
a
nu
a
l
TOYOTA
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880
C PIONEER ELECTRONIC CORPORATION 1998
ORDER NO.
CRT2262
K-ZZS. SEPT. 1998 Printed in Japan
VEHICLE DESTINATION PRODUCED AFTER TOYOTA PART No. ID No. PIONEER MODEL No.
Not specified THAILAND August 1998 08601-00894 CDS-9036ZT/ES
-The CDS-9036ZT/ES is a genuine model of option from TOYOTA MOTOR CORPORATION.
-The CDS-9036ZT/ES uses AVC-LAN for bus.
-See the separate manual CX-597(CRT1829) for the CD mechanism description, disassembly and circuit
description.
-The CD mechanism employed in this model is one of S7 series.
CONTENTS
1. SAFETY INFORMATION ............................................2
2. EXPLODED VIEWS AND PARTS LIST.......................3
3. SCHEMATIC DIAGRAM .............................................8
4. PCB CONNECTION DIAGRAM ................................20
5. ELECTRICAL PARTS LIST ........................................26
6. ADJUSTMENT..........................................................29
7. GENERAL INFORMATION .......................................33
7.1 IC ........................................................................33
7.2 DIAGNOSIS ........................................................35
7.2.1 SELF-DIAGNOSTIC FUNCTION...............35
7.2.2 DISASSEMBLY .........................................39
7.2.3 TEST MODE..............................................40
7.2.4 CONNECTOR FUNCTION DESCRIPTION.......42
7.3 BLOCK DIAGRAM ..............................................43
8. OPERATIONS AND SPECIFICATIONS.....................44

CDS-9036ZT

1. SAFETY INFORMATION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

-CD Player Service Precautions

1. For pickup unit(CXX1231) handling, please refer

to"Disassembly"(CX-597 Service Manual CRT1829).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 31).

CDS-9036ZT

2. EXPLODED VIEWS AND PARTS LIST

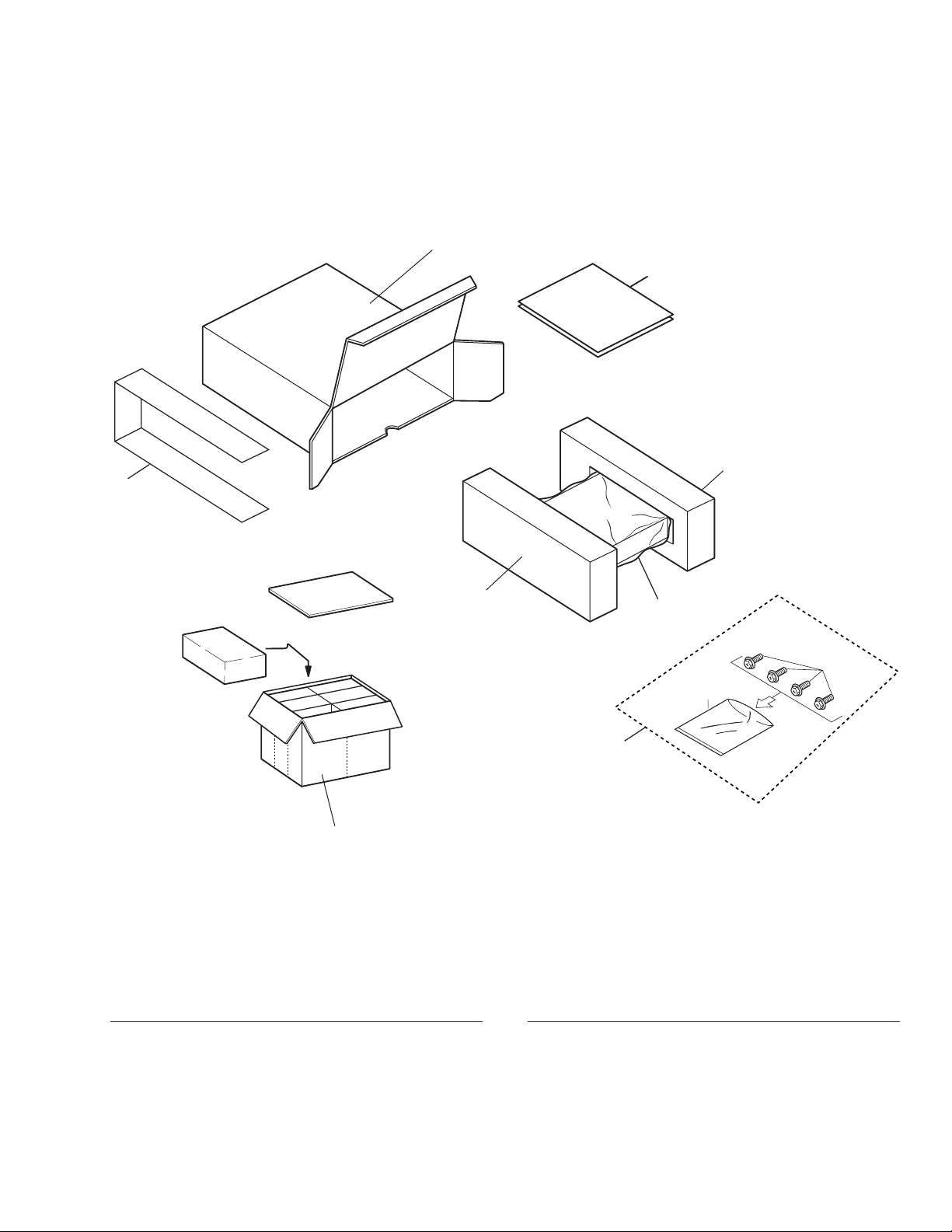

2.1 PACKING

NOTE:

-Parts marked by "*"are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

-PACKING SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

1 Screw Assy CEA1854

2 Protector CHP1944

3 Protector CHP1945

* 4 Sheet CHW1645

5 Owner’s Manual CRD2796

(English,Thai)

* 6 Polyethylene Bag E36-609

7 Carton CHA2424

8 Contain Box CHL3594

* 9 Polyethylene Bag CEG-127

10 Screw HMF50P080FMC

CDS-9036ZT

2.2 EXTERIOR

CDS-9036ZT

1 Screw BMZ26P050FMC

2 Cord Assy CDE5259

3 Connector CDE5447

4 Insulator CNM5365

5 Holder CNV5014

6 Control Unit CWM5461

7 Screw BMZ26P050FMC

8 Connector(CN601) CKS2228

9 Plug(CN901) CKS2721

10 Holder CNC2218

11 Holder CNC6071

12 Holder CNC7188

13 Spacer CNM2683

14 Spacer CNM4676

15 Spacer CNM5523

16 Screw BPZ20P080FMC

17 Button(Eject) CAC5244

18 Lighting Conductor CNV5013

19 Grille Unit CXB1803

20 CD Mechanism Module CXK5020

21 Case Unit CXB2146

22 Chassis Unit CXB1552

23 Screw IMS30P050FMC

24 Choke Coil(L901) CTH1129

25 Push Switch(S601) CSG1065

26 Transistor(Q704, 911) 2SB1185

27 Case CNB2203

28 Cushion CNM5473

-EXTERIOR SECTION PARTS LIST

Mark No. Description Part No.

CDS-9036ZT

2.4 CD MECHANISM MODULE

1 Control Unit(S7) CWX2332

2 Pickup Unit(Service) CXX1231

3 Screw IMS26P035FMC

4 Screw BMZ20P025FMC

5 Screw BMZ20P040FMC

6 Screw BSZ20P040FMC

7 Screw(M2×3) CBA1077

8 Screw(M2×2) CBA1250

9 Screw(M2×5) CBA1296

10 Screw(M2×3.85) CBA1362

11 Spring CBH1724

12 Spring CBH1729

13 Spring CBH1730

14 Spring CBH1731

15 Spring CBH1732

16 Spring CBH1745

17 Spring CBH1848

18 Spring CBH1849

19 Spring CBH1939

20 Spring CBL1214

21 Roller CLA2627

22 Frame CNC5796

23 Bracket CNC5871

* 24 Bracket CNC6376

25 Cushion CNM3917

26 Sheet CNM4873

* 27 Sheet CNM5116

28 PCB CNP4230

29 Bearing CNR1415

30 Belt CNT1071

31 Damper CNV3974

32 Gear CNV4128

33 Gear CNV4129

34 Gear CNV4857

35 Gear CNV4131

36 Holder CNV4663

37 Holder CNV5071

38 Guide CNV4484

39 Screw Unit CXA8699

40 CRG Motor Unit(M2) CXB3043

41 Motor Unit(M1) CXA8912

42 Lever Unit CXA9300

43 Chassis Unit CXB2574

44 Screw JFZ20P025FMC

45 Connector(CN101) CKS1953

46 Connector(CN701) CKS2774

47 Connector(CN801) CKS2196

48 Spring CBH1832

49 Spring CBH1833

50 Roller CLA2627

51 Arm CNV4136

52 Arm Unit CXA8565

53 Bracket CNC6056

54 Load Motor Unit(M3) CXA8702

55 Screw JFZ20P025FMC

56 Arm CNV4120

57 Roller CNV4509

58 Gear Unit CXA8701

59 Screw(M2×5) CBA1455

60 Frame CNC5797

61 Damper CNV3974

62 Spring CBH1736

63 Spring CBH1863

64 Spring CBH1945

65 Spring CBL1269

66 Arm CNC5799

67 Lever CNC6054

68 Spacer CNM3315

69 Sheet CNM4849

70 Arm CNV5436

71 Arm CNV4123

72 Arm CNV4124

73 Arm CNV4125

74 Arm CNV4138

75 Arm CNV4139

76 Clamper CNV4140

77 Screw(M2×2) CBA1250

78 Connector CDE4576

79 Arm CNC7383

* 80 Gathering PCB CNX2533

81 Photo-transistor(Q1, 2) CPT-230S-X

82 ELBO Arm Assy CXA8889

83 Load Motor Assy CXA8891

84 LO Arm Assy CXA8892

85 Shaft CLA3133

86 Guide Arm Assy CXB1851

CDS-9036ZT

-CD MECHANISM MODULE SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

CDS-9036ZT

1234

3. SCHEMATIC DIAGRAM

3.1 OVERALL CONNECTION DIAGRAM

Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS

LIST”.

CONTR

CONTROL UNIT(S7)

CDS-9036ZT

5678

CONTROL UNIT

Connector No Description

1R+

2L+

3 SGND

4 MUTE

5+B

6R≠

7L≠

8 GND

9TX≠

10 TX+

11 NC

12 ACC

CDS-9036ZT

1234

3.2 CD MECHANISM MODULE(GUIDE PAGE)

CONTROL UNIT(S7)

PICKUP UNIT(SERVICE)

PHOTO UNIT

CXB3043

A-a A-b

A-aA-a A-bA-b

A-bA-b

A-aA-a

Large size

SCH diagram

Guide page

Detailed page

B-a
