HIGH POWER CD PLAYER WITH FM/AM TUNER

DEH-1100 X1M/UC

Service

Manual

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................2

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM .....8

4. PCB CONNECTION DIAGRAM ................................26

5. ELECTRICAL PARTS LIST ........................................36

6. ADJUSTMENT..........................................................41

7. GENERAL INFORMATION .......................................45

7.1 DIAGNOSIS ........................................................45

7.1.1 TEST MODE ..............................................45

7.1.2 DISASSEMBLY .........................................48

7.2 PARTS .................................................................52

7.2.1 IC................................................................52

7.2.2 DISPLAY ....................................................58

7.3 OPERATIONAL FLOW CHART...........................59

8. OPERATIONS AND SPECIFICATIONS.....................60

DEH-11 X1M/UC

DEH-1100/X1M/UC

-This service manual should be used together with the following manual(s):

Model No. Order No. Mech. Module Remarks

CX-958 CRT2423 S8.1 CD Mech. Module:Circuit Description, Mech.Description, Disassembly

DEH-1100,11

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(see page 48).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 43).

2. EXPLODED VIEWS AND PARTS LIST

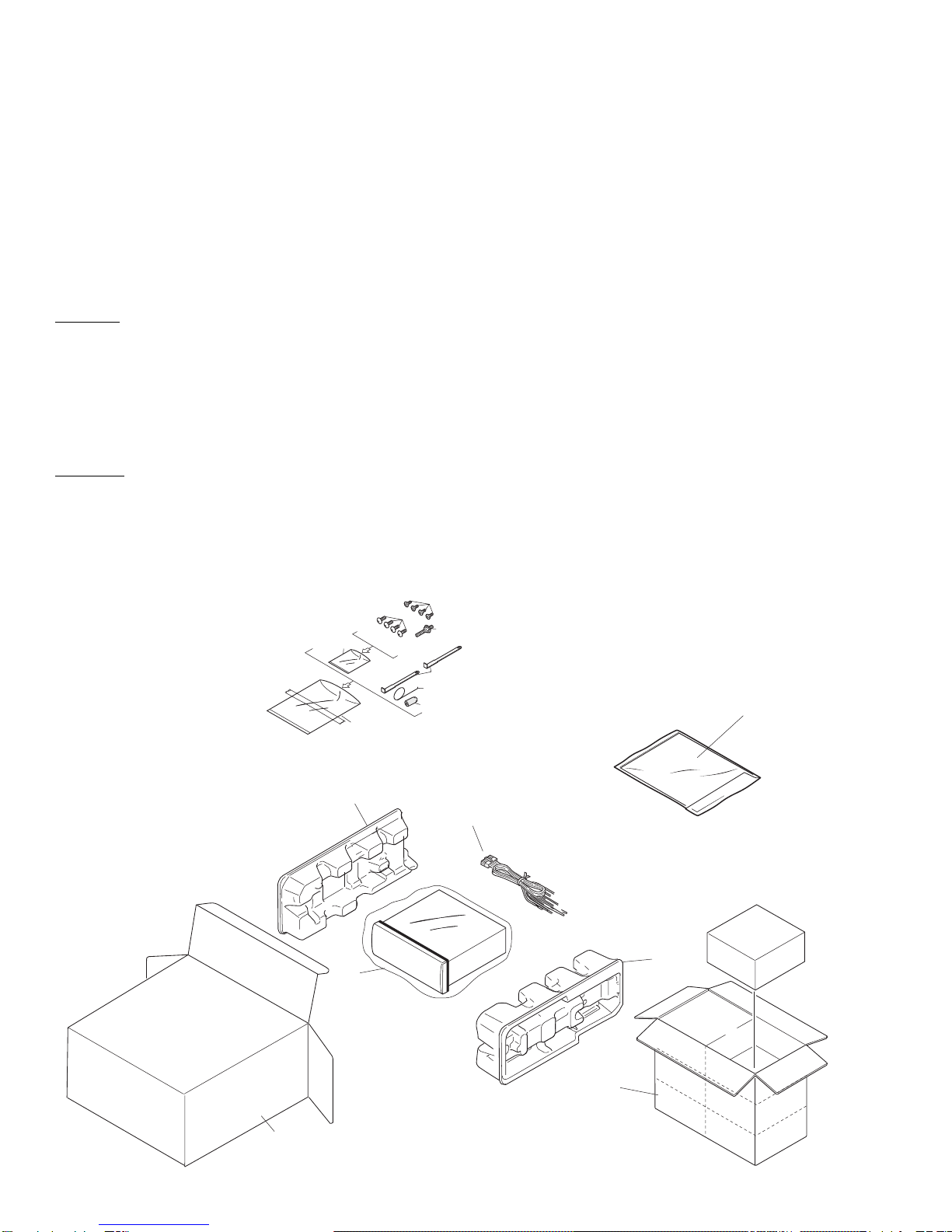

2.1 PACKING

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

1. SAFETY INFORMATION

DEH-1100,11

1 Cord Assy CDE6124

2 Spring CBH1650

3 Screw CBA1002

* 4 Polyethylene Bag CEG-127

5 Screw CRZ50P090FMC

6 Screw TRZ50P080FMC

* 7 Polyethylene Bag CEG-158

8 Handle CNC5395

9 Bush CNV3930

10 Polyethylene Bag CEG1173

11-1 Polyethylene Bag CEG1116

11-2 Owner’s Manual CRD3133

11-3 Installation Manual CRD3134

* 11-4 Card ARY1048

12 Carton See Contrast table(2)

13 Contain Box See Contrast table(2)

14 Protector CHP2243

15 Protector CHP2244

Mark No. Description Part No. Mark No. Description Part No.

(1) PACKING SECTION PARTS LIST

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

Part No.

Mark No. Symbol and Description DEH-1100/X1M/UC DEH-11/X1M/UC

12 Carton CHG3953 CHG3954

13 Contain Box CHL3953 CHL3954

(2) CONTRAST TABLE

DEH-1100/X1M/UC and DEH-11/X1M/UC are constructed the same except for the following:

-Owner's Manual, Installation Manual

Model Part No. Language

DEH-1100/X1M/UC CRD3133 English, French, Spanish

DEH-11/X1M/UC CRD3134

DEH-1100,11

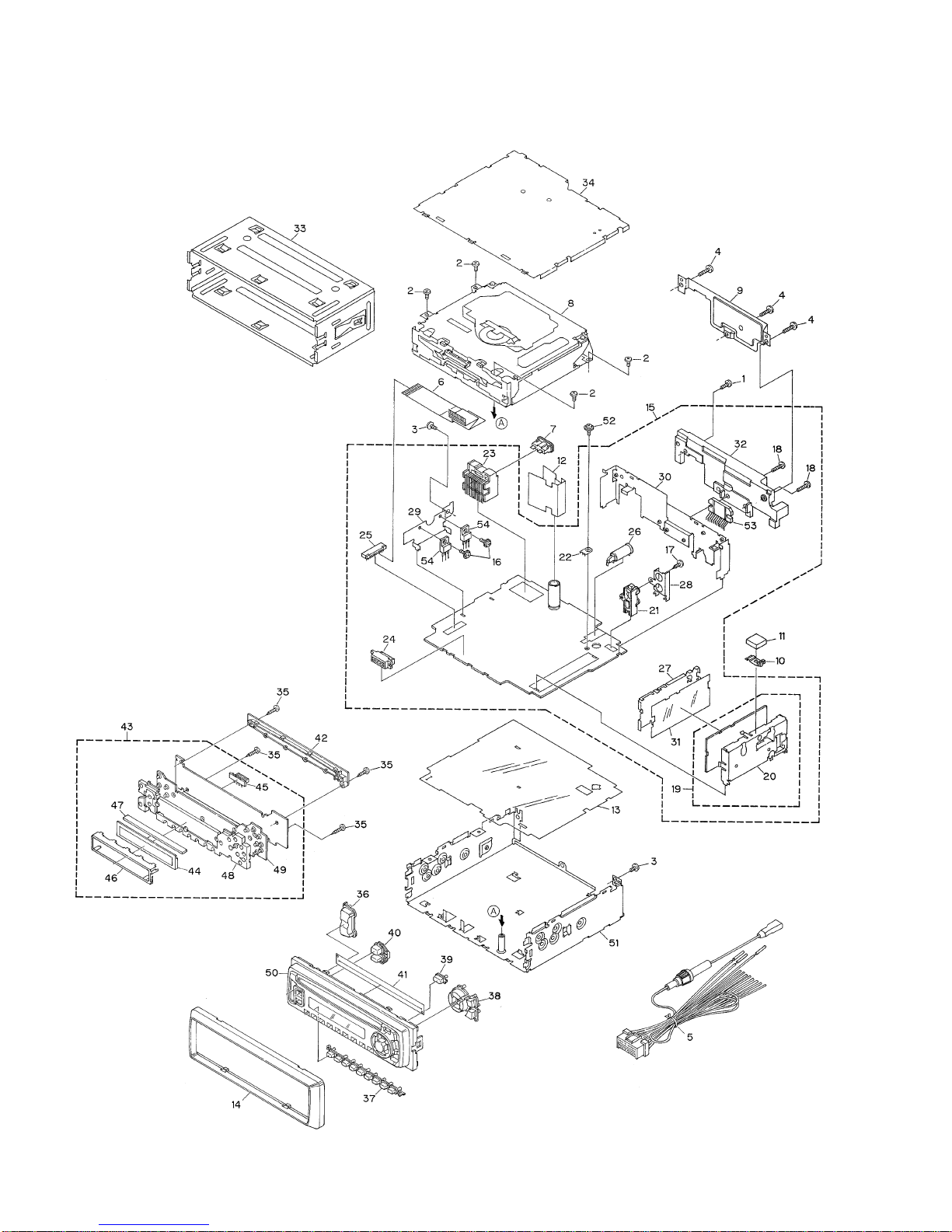

2.2 EXTERIOR

DEH-1100,11

1 Screw BMZ26P120FMC

2 Screw BSZ26P060FMC

3 Screw BSZ30P060FMC

4 Screw BSZ30P120FMC

5 Cord Assy CDE6124

6 Cable CDE6160

7 Fuse(10A) CEK1136

8CD Mechanism Module(S8.1) CXK5203

9 Cover CNC8367

10 Holder CNC8884

11 Spacer CNM4913

12 Insulator CNM6224

13 Insulator CNM6386

14 Panel CNS5132

15 Tuner Amp Assy CWM6769

16 Screw ASZ26P080FMC

17 Screw BPZ26P080FMC

18 Screw BSZ26P160FMC

19 FM/AM Tuner Unit CWE1501

20 Holder CNC7532

21 Pin Jack(CN301) CKB1041

22 Terminal(CN403) CKF1059

23 Connector(CN901) CKM1299

24 Connector(CN601) CKS3581

25 Connector(CN605) CKS3838

26 Antenna Jack(CN402) CKX1056

27 Holder CNC7533

28 Holder CNC8041

29 Holder CNC8043

30 Holder CNC8588

31 Insulator CNM5967

32 Heat Sink CNR1506

33 Holder Unit CXB2687

34 Case Unit CXB4033

35 Screw BPZ20P080FMC

36 Button(+, -) CAC6273

37 Button(1-6) CAC6275

38 Button(B, A, Cross) CAC6276

39 Button(Eject) CAC6277

40 Button(Source) CAC6495

41 Cover CNM6434

42 Holder CNV5963

43 Keyboard Unit See Contrast table(2)

44 LCD(LCD1801) CAW1560

45 Connector(CN1801) CKS3580

46 Holder CNC8517

47 Rubber CNV5954

48 Lighting Conductor CNV5965

49 Rubber CNV5966

50 Grille Unit See Contrast table(2)

51 Chassis Unit CXB4625

52 Screw ISS26P055FUC

53 IC(IC302) TDA7384

54 Transistor(Q904, 981) 2SD2396

(1) EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

Part No.

Mark No. Symbol and Description DEH-1100/X1M/UC DEH-11/X1M/UC

43 Keyboard Unit CWM6783 CWM6782

50 Grille Unit CXB4619 CXB4620

(2) CONTRAST TABLE

DEH-1100/X1M/UC and DEH-11/X1M/UC are constructed the same except for the following:

DEH-1100,11

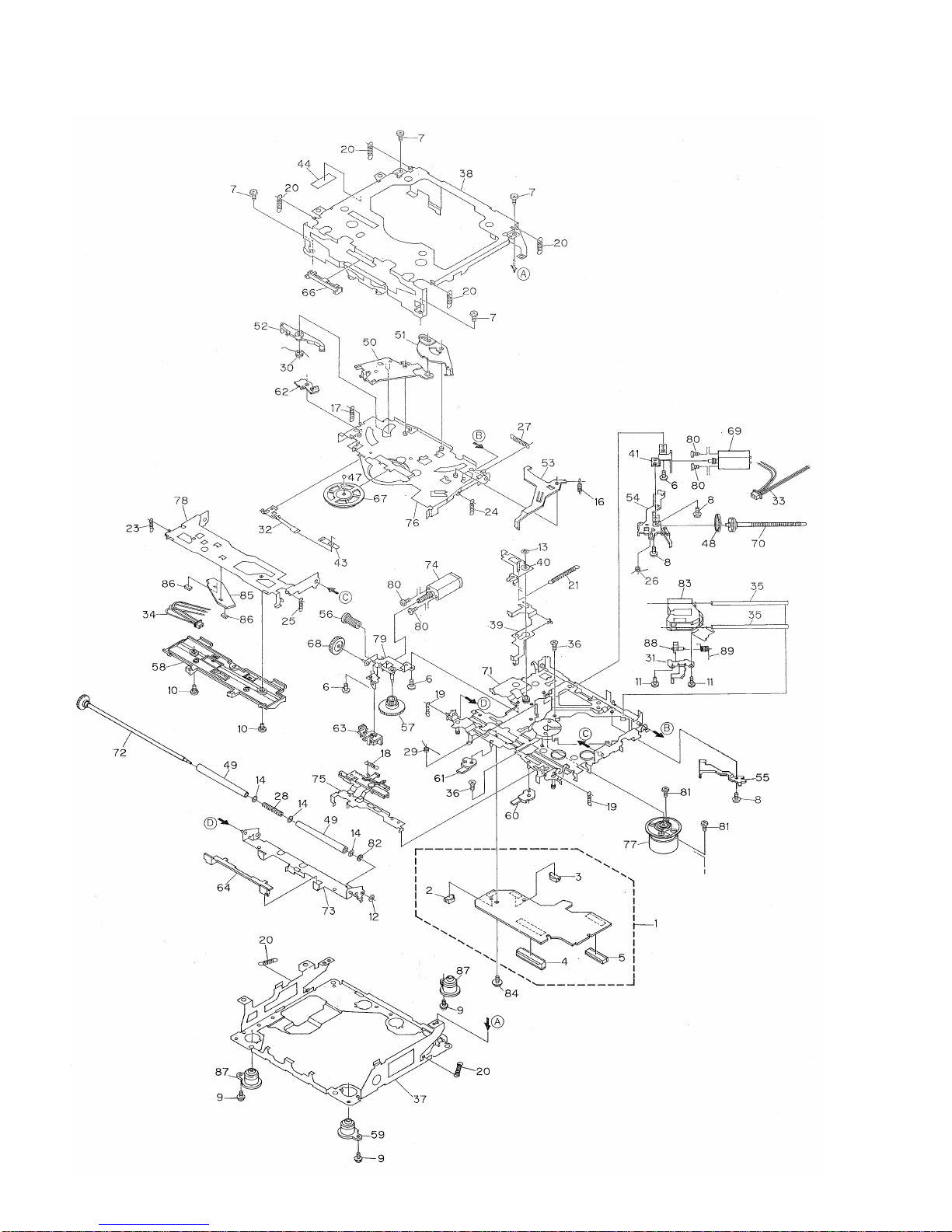

2.3 CD MECHANISM MODULE

DEH-1100,11

Mark No. Description Part No. Mark No. Description Part No.

1 Control Unit CWX2411

2 Connector(CN802) CKS2192

3 Connector(CN801) CKS2193

4 Connector(CN701) CKS2773

5 Connector(CN101) CKS3486

6 Screw BMZ20P030FMC

7 Screw BSZ20P040FMC

8 Screw(M2x3) CBA1077

9 Screw(M2x5) EBA1028

10 Screw CBA1243

11 Screw(M2x4) CBA1362

12 Washer CBF1037

13 Washer CBF1038

14 Washer CBF1060

15 •••••

16 Spring CBH2079

17 Spring CBH2117

18 Spring CBH2314

19 Spring CBH2110

20 Spring CBH2282

21 Spring CBH2318

22 •••••

23 Spring CBH2324

24 Spring CBH2118

25 Spring CBH2161

26 Spring CBH2163

27 Spring CBH2189

28 Spring CBH2249

29 Spring CBH2260

30 Spring CBH2262

31 Bracket CNC8568

32 Spring CBL1369

33 Connector CDE5531

34 Connector CDE5532

35 Shaft CLA3304

36 Screw(M2.6x6) CBA1458

37 Frame CNC8565

38 Frame CNC8749

39 Lever CNC7546

40 Arm CNC8663

41 Bracket CNC8567

42 •••••

43 Spacer CNM3315

44 Sheet CNM6659

45 •••••

46 •••••

47 Ball CNR1189

48 Belt CNT1086

49 Roller CNV4509

50 Arm CNV6037

51 Arm CNV5247

52 Arm CNV5248

53 Arm CNV5249

54 Guide CNV5254

55 Guide CNV5255

56 Gear CNV5257

57 Gear CNV5256

58 Guide CNV6176

59 Damper CNV6174

60 Arm CNV6096

61 Arm CNV6031

62 Arm CNV6211

63 Guide CNV6012

64 Guide CNV5510

65 •••••

66 Guide CNV5751

67 Clamper CNV6013

68 Gear CNV5813

69 Motor Unit(M1) CXB2190

70 Screw Unit CXB4726

71 Chassis Unit CXB4797

72 Gear Unit CXB4728

73 Arm Unit CXB4729

74 Motor Unit(M2) CXB2195

75 Lever Unit CXB4730

76 Arm Unit CXB4731

77 Motor Unit(M3) CXB2562

78 Arm Unit CXB4732

79 Bracket Unit CXB4795

80 Screw JFZ20P025FMC

81 Screw JGZ17P025FZK

82 Washer YE20FUC

83 Pickup Unit(Service)(P8) CXX1285

84 Screw IMS26P030FMC

* 85 PCB CNX2982

86 Photo-transistor(Q1, 2) CPT230SX-TU

87 Damper CNV6175

88 Rack CNV6014

89 Spring CBH2315

-CD MECHANISM MODULE SECTION PARTS LIST

DEH-1100,11

1234

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM

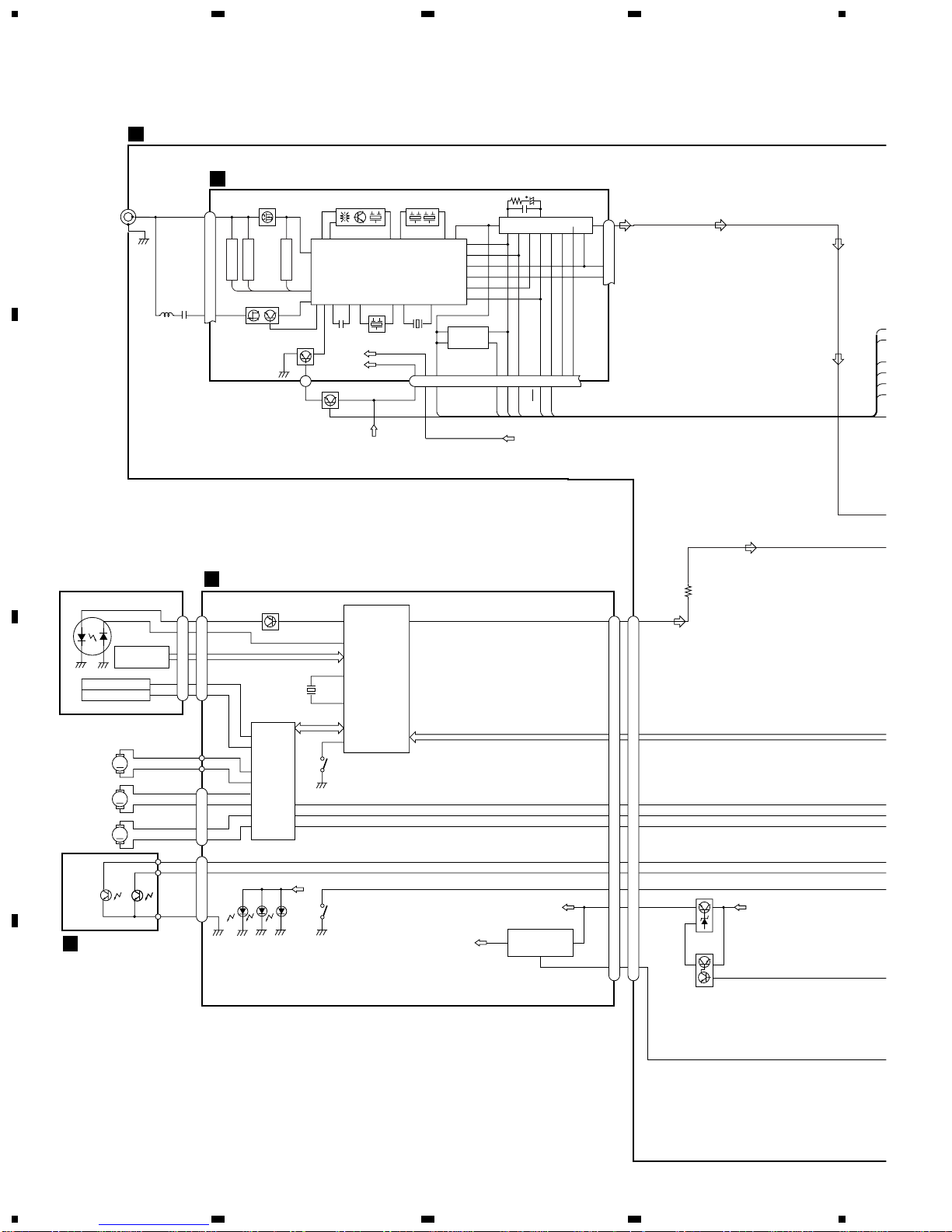

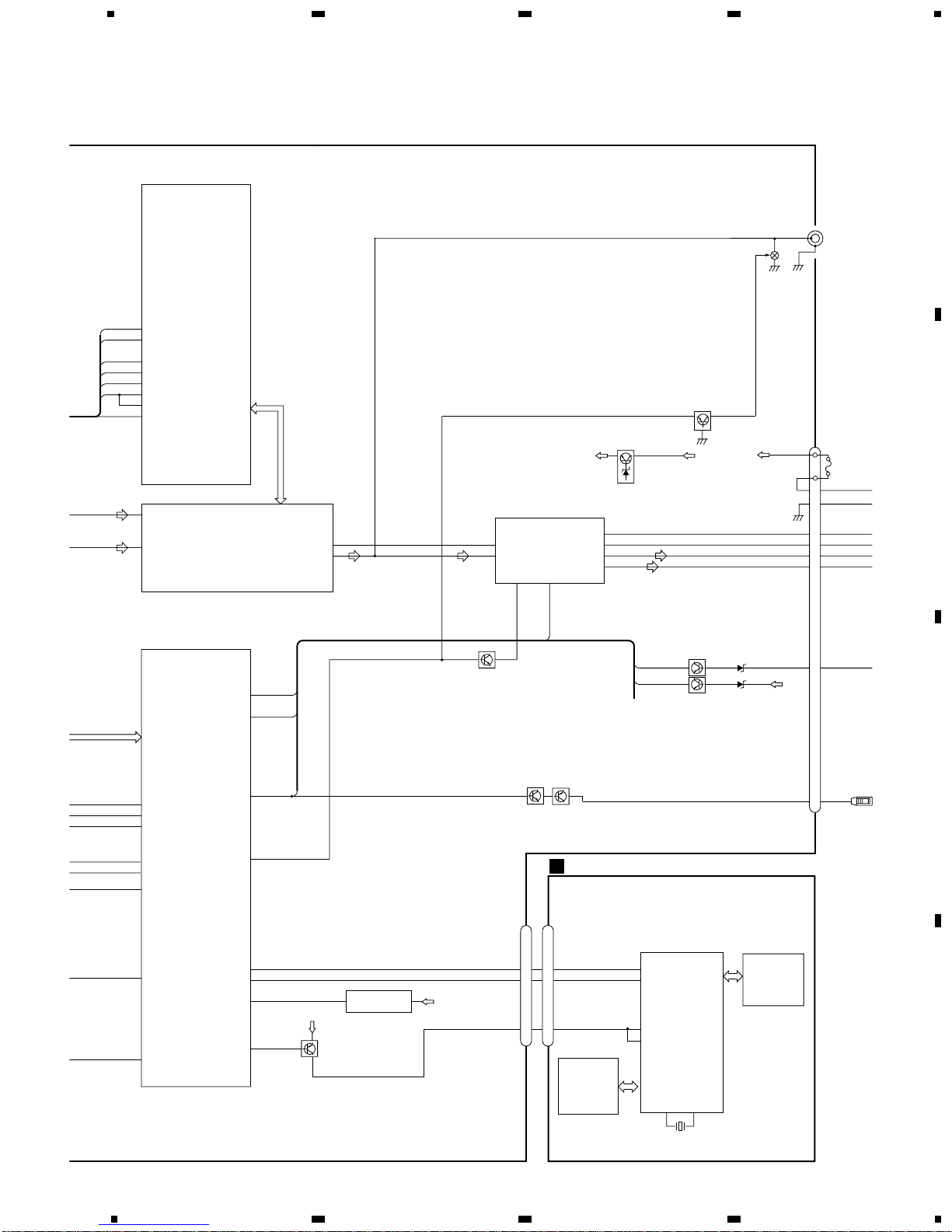

3.1 BLOCK DIAGRAM

ANT1 TV

ANT2 TV

RF TV

IC 3

BR9010FV

AM 2ND IF 450kHz

LD MD

HOLOGRAM

UNIT

FOCUS ACT

TRACKING ACT

LD+

FO+

TO+

SPINDLE

MOTOR

CARRIAGE

MOTOR

SELECT

SENSE

DISC SENSE

CN801

CN802

D803 D802 D801

S802

CLAMP

CDLOAD

CDEJET

CONT

EJTSNS

DSCSNS

CLAMP

CD5VON

VDCONT

VDD IC 701

BA05SFP IN

+5V REGULATOR

Q981

Q982

B.U

ANTENNA CN402

FM FRONT END

Q201 Q204

AM RF

FM/AM 1ST IF 10.7MHz

T51 Q51 CF51 CF52 CF53

MIXER.IF AMP DET

IC 1

PML002A

38 39 42 44 46 63

32 19

LDET

COMP

34 33 41 44 11 12 13

75746157554533

2225 10 14 12 15 16 13 2 3 4

CF202

VDD

LOCL

VCC

Q411

VCC VDD

DI/DO

CE2

CE1

FMSD

PCE2

PCE1

PCK

PDIO

NL1

NL2

EEPROM

IC 2 PM4008A

FM MPX

Q101

CN101

FOP

TOP

A+C/F

B+D/E

98 LD L_OUT

HOME

X201

TD/FD

SD/MD

RF-AMP, DSP,

SERVO, DAC

IC 201

UPD63711GC

16 CN701 CN605

CDL

IC 301

BA5985FM

S801

HOME

SOP

TOP

FOP

SOM

COP

COM

LOP

LOM

FWD

REV

MUTE

25 24

CD DRIVER

718

CLAMP

DINC

EJTD

CDLOAD

EJET

CONT

Q202

TUNER AMP ASSY

FM/AM TUNER UNIT

CONTROL UNIT

PICKUP UNIT(SERVICE)(P8)

PHOTO UNIT(S8)

CD5VON

DEH-1100,11

5678

KYDT

DPDT

LCD DRIVER

IC 1801

PD6293A

KEY MATRIX

TUNPCE

TUNPCK

TUNPCE2

TUNPDO

LOCL

IN1

IN2

SYSTEM

CONTROLLER

IC 601(1/2)

PE5091A

VST

VCK

VDT

B.U

VDD Q903 B.U BACKUP

FL–

FL+

RL–

RL+

ACC

ELECTRONIC VOLUME/

SOURCE SELECTOR

IC 301

SN761029DL

SYSTEM

CONTROLLER

IC 601(2/2)

PE5091A

ASENS 63

BSENS 64

SYSPW 42

MUTE 44

KYDT 8

DPDT 9

RESET 60

SWVDD 41

Fout 19

Rout 20

POWER AMP

IC 302

TDA7384

22 4

MUTE STBY

B.U

bsens

asens

Q902

Q351 MUTE

CKEYBOARD UNIT

CN1801

CN601

LCD

22 23

X1801

Q650

RESET

IC 602

S–80834ANY VDD

SYSPW

BACK UP

GND

FL–

FL+

RL–

RL+

B.REMOTE

FUSE

10A

GND

ACC

B.REMOTE

CD5VON

VDCONT

CLAMP

DSCSNS

EJTSNS

CDLOAD

CDEJECT

CONT

TUNPDI

PDIO

VST/ VCK/ VDT

Q901

VDD

VLCD

Q346

CN301 REAR L CH

Q353

Q942 Q941

DEH-1100,11

1234

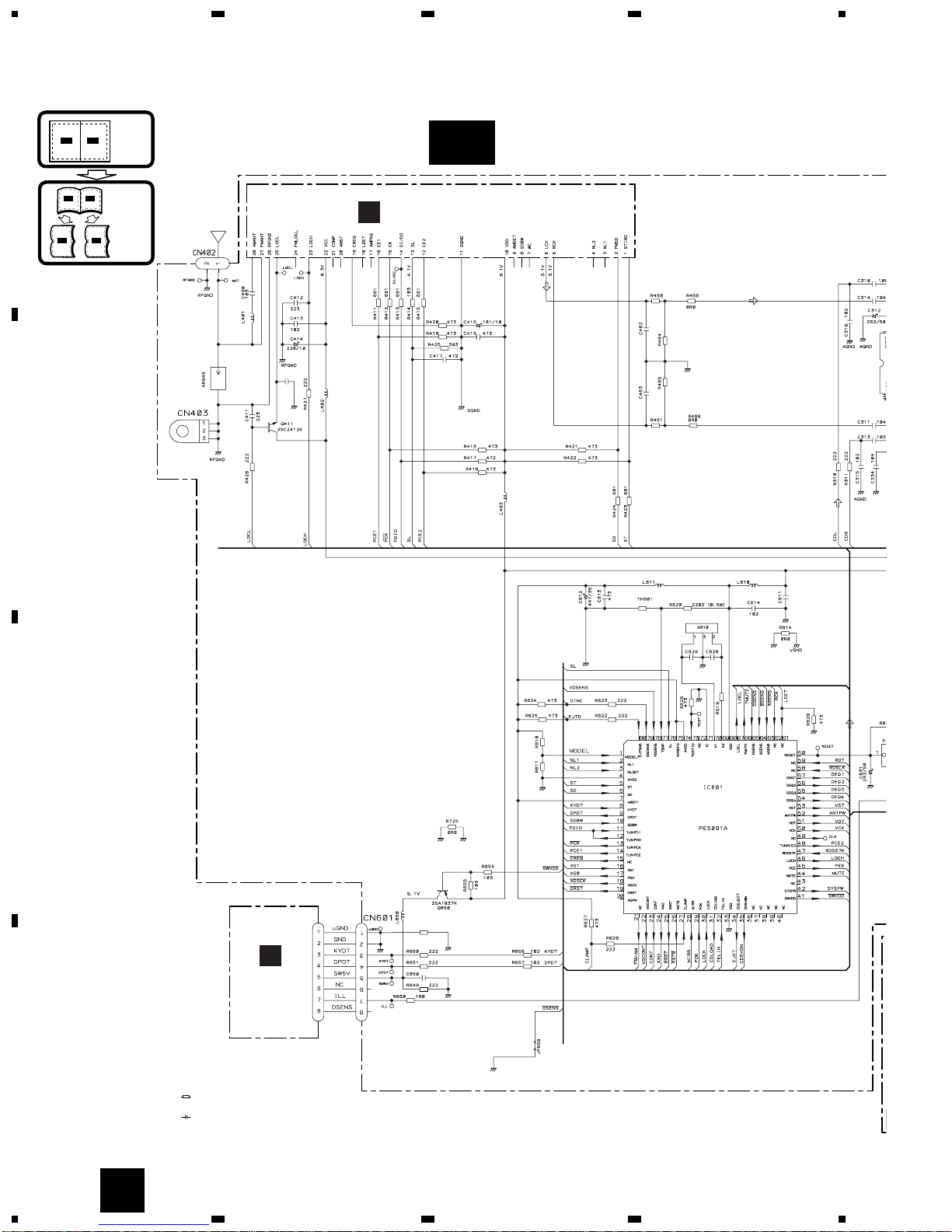

3.2 OVERALL CONNECTION DIAGRAM(GUIDE PAGE)

Note: When ordering service parts, be sure to refer to “EXPLODED VIEWS AND PARTS LIST” or “ELECTRICAL PARTS

LIST”.

A-a A-b

A-a

A-b

A-a

Large size

SCH diagram

Guide page

Detailed page

A-a

DSP-201M-S00B

C499

103

272

183

162 162

104

4.194304MHz

CSS1023

104

433 822

682

R699 0R0

150 150

FM(100%):-19.5dBs

AM (30%):-30dBs

CD:+4.

FM(100%):-19

AM (30%):-30

FM/AM TUNER UNIT

For resistors and capacitors in the circuit diagrams, their resistance values or

capacitance values are expressed in codes:

Ex. *Resistors

Code Practical value

123 12k ohms

103 10k ohms

*Capacitors

Code Practical value

103 0.01µF

101/10 100µF/10V

The >mark found on some component parts indicates

the importance of the safety factor of the part.

Therefore, when replacing, be sure to use parts of

identical designation.

Symbol indicates a resistor.

No differentiation is made between chip resistors and

discrete resistors.

NOTE :

Symbol indicates a capacitor.

No differentiation is made between chip capacitors and

discrete capacitors.

SYSTEM CONTROLLER

KEYBOARD

UNIT

Autres manuels pour DEH-1100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pioneer Récepteur de voiture

Pioneer

Pioneer DEH-P4850MP Manuel utilisateur

Pioneer

Pioneer Super Tuner IIID DEH-P680MP Manuel utilisateur

Pioneer

Pioneer deh-p836 Manuel utilisateur

Pioneer

Pioneer DEH-P5050UB Manuel utilisateur

Pioneer

Pioneer DEH-3400 Manuel utilisateur

Pioneer

Pioneer DEH-X8700DAB Manuel utilisateur

Pioneer

Pioneer DEH-P9000R Manuel utilisateur

Pioneer

Pioneer DEH-3700MP Manuel utilisateur

Pioneer

Pioneer DEH-P7600MP Manuel utilisateur

Pioneer

Pioneer FX-MG8006ZT-91/UC Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

Pioneer

Pioneer AppRadio SPH-DA01 Manuel d'utilisation et d'entretien

Pioneer

Pioneer KPX-9500 Manuel utilisateur

Pioneer

Pioneer DXT-X2769UI Manuel utilisateur

Pioneer

Pioneer KEH-1033 Manuel utilisateur

Pioneer

Pioneer GEX-P5750TVP Manuel utilisateur

Pioneer

Pioneer RX-Z36 Manuel utilisateur

Pioneer

Pioneer Premier DEX-P9 Manuel utilisateur

Pioneer

Pioneer DEH-2800 Manuel utilisateur

Pioneer

Pioneer KEH-6100QR Manuel utilisateur

Pioneer

Pioneer Sdvp7 - Din Sized Dvd Player Manuel utilisateur

Pioneer

Pioneer XC-P410M Manuel utilisateur

Pioneer

Pioneer 12.301001-12 Manuel utilisateur

Pioneer

Pioneer AVH-P6050DVD Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur

Philips

Philips CEM5000 Manuel utilisateur
