Operation Manual

ADD-ON NAVIGATION SYSTEM

AVIC-U220

Notice to all users:

This software requires that the navigation system is

properly connected to your vehicle’s parking brake and

depending on your vehicle, additional installation may

be required. For more information, please contact your

Authorized Pioneer Electronics retailer or call us at

(800) 421-1404.

Be sure to read Important Information for the User

first!

Important Information for the User includes the

important information that you must understand before

using this navigation system.

Indications of this unit may be different from the actual

value.

Some of the features of this device do not take in to

consideration the type of vehicle it is installed into.

English

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate

your model properly. After you have finished reading the instructions, keep this man-

ual in a safe place for future reference.

Important

The screens shown in the examples may differ

from actual screens.

Actual screens may be changed without notice

for performance and function improvements.

Introduction

Manual overview 5

–How to use this manual 5

–Conventions used in this manual 5

–Terms used in this manual 5

Map coverage 5

Resetting the microprocessor 5

Before you start

Checking part names and functions 7

Removing and attaching the detachable

device 7

–Removing the detachable device 7

–Attaching the detachable device 8

Charging the battery of the detachable

device 8

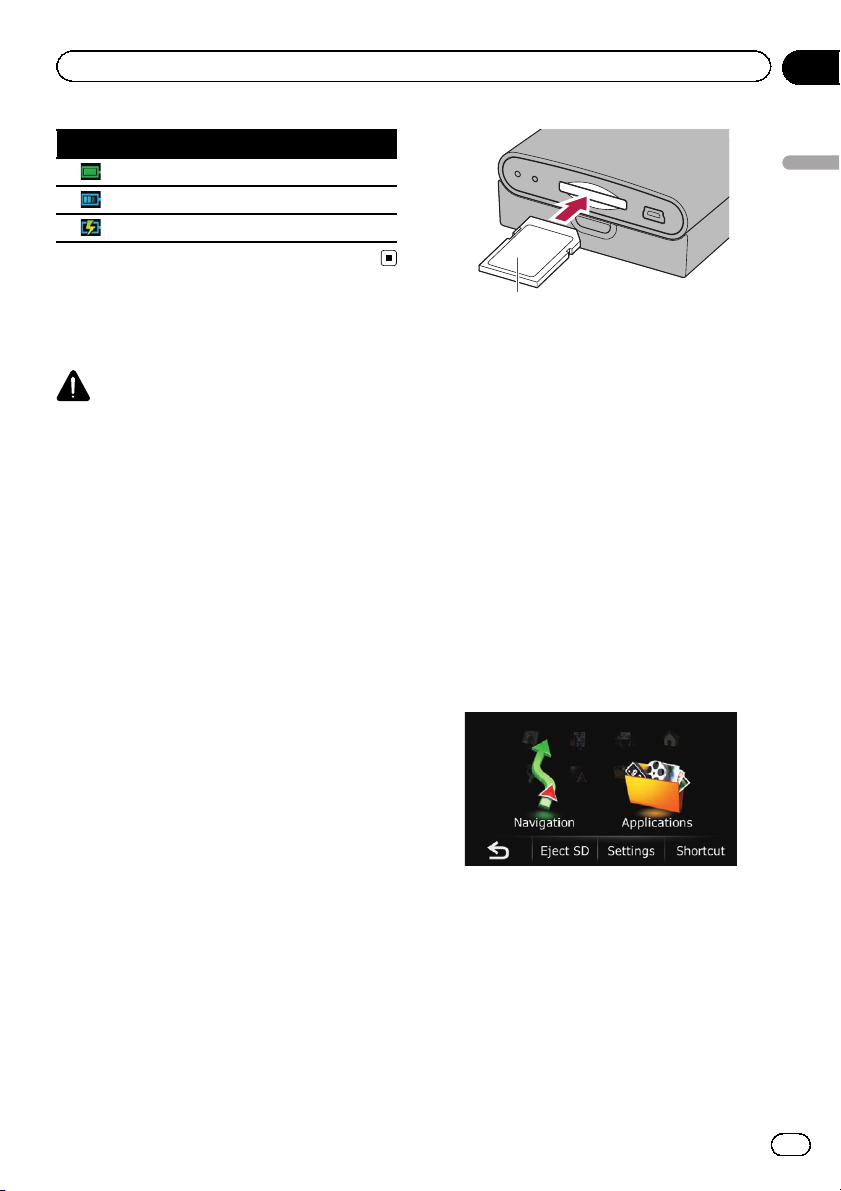

Monitoring the battery status 8

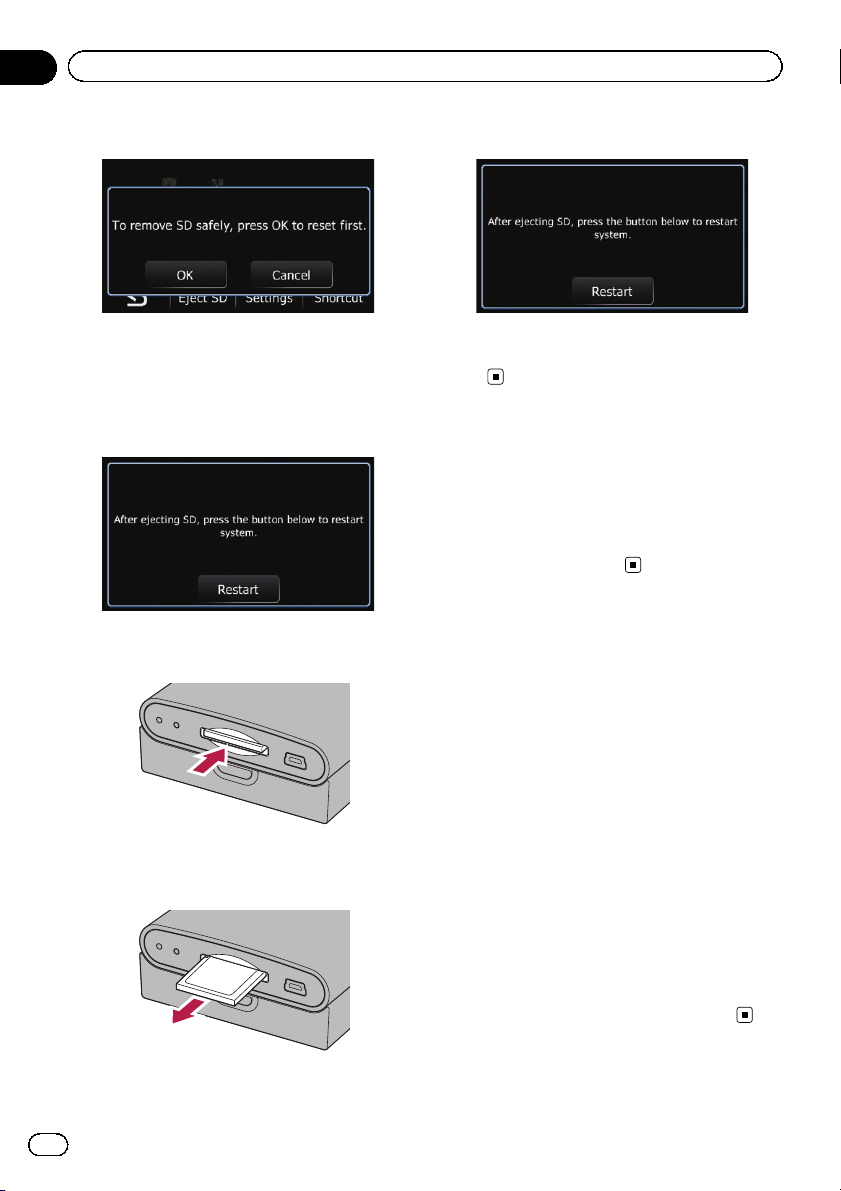

Inserting and ejecting an SD memory

card 9

–Inserting an SD memory card 9

–Ejecting an SD memory card 9

Protecting your product from theft 10

Flow from startup to termination 10

On first-time startup 11

Regular startup 11

How to use the navigation menu screens

Screen switching overview 12

What you can do on each menu 13

Shortcut Menu 13

–Selecting the shortcut 13

–Canceling the shortcut 14

Operating menu screens (e.g. “Navigation

Menu”screen) 14

Operating list screens (e.g. city list) 14

Operating the on-screen keyboard 15

How to use the map

How to read the map screen 16

–Audio information bar 17

–Enlarged map of the intersection 17

–Display during freeway driving 17

–Types of the road stored in the map

database 18

Operating the map screen 18

–Changing the scale of the map 18

–Switching the map orientation 18

–Switching the map between 2D and

3D 19

–Displaying “Eco Graph”20

–Scrolling the map to the position you

want to see 20

Viewing information about a specified

location 20

Eco-driving function

Displaying “Eco Graph”22

–Reading the screen 22

Displaying Eco Drive Level guidance 23

Sudden start alert 23

Changing the eco-function setting 23

Searching for and selecting a location

The basic flow of creating your route 25

Searching for a location by address 26

–Searching for a name by entering

multiple keywords 27

Setting up a route to your home 28

Searching for Points of Interest (POI) 28

–Searching for a POI directly from the

name of the facilities 28

–Searching for a nearby POI 29

Contents

–Searching for POIs around the

destination 29

–Searching for POIs around the city 29

Selecting destination from “Favorites”30

Searching for POIs by using the data on the

SD memory card 31

Selecting a location you searched for

recently 31

Searching for a location by coordinates 31

Searching for a location by scrolling the

map 32

After the location is decided

Setting a route to your destination 33

Checking and modifying the current

route

Displaying the “Route info”screen 34

Modifying the route calculation

conditions 34

–Items that users can operate 34

Checking the current itinerary 35

Editing waypoints 35

–Adding a waypoint 35

–Deleting a waypoint 36

–Sorting waypoints 36

Canceling the route guidance 37

Registering and editing locations

Storing a location in “Favorites”38

–Registering a location by

“Favorites”38

–Registering a location by scroll

mode 38

Editing registered locations 38

–Editing the entry in the “Favorites”

list 38

–Editing your home 39

–Sorting the entry in the “Favorites”

list 39

–Deleting the entry from the “Favorites”

list 40

Registering and editing your home 40

–Registering your home 40

–Editing your home 41

Deleting the entry from the “History”list 41

Exporting and importing “Favorites”

items 42

–Exporting “Favorites”items 42

–Importing the “Favorites”items edited

on AVIC FEEDS 42

Fuel cost management

Using the “Gas Mileage”function 44

–Inputting the fuel consumption

information for calculating the fuel

cost 44

–Calculating the fuel consumption 44

–Exporting the data of fuel cost

information 45

Exporting the data of “Gas Mileage”from

“Export/Import Menu”screen 45

Using Applications

Preparing in advance 47

Launching the application 47

Customizing preferences

Displaying the “Settings Menu”screen 48

Setting the volume for navigation system 48

Customizing the regional settings 48

–Selecting the language 48

–Setting the time difference 49

–Changing the unit between km and

miles 50

–Changing the virtual speed of the

vehicle 50

–Setting the keyboard layout 50

Customizing the map screen settings 51

–Displaying POI on the map 51

En 3

Contents

–Switching the map between 2D and

3D 52

–Displaying maneuvers 52

–Setting the map color change between

day and night 53

–Changing the road color 53

–Setting the auto-zoom display 53

–Setting the “Favorites”icon display 53

–Setting the current street name

display 54

–Displaying the fuel consumption

information 54

Checking the version information 54

Registering and editing your home 54

Correcting the current location 55

Checking the connections of leads 55

Using the demonstration guidance 55

Recording your travel history 56

Other functions

Replicating the settings 57

Returning the navigation system to the

default or factory settings 57

–Restoring the default setting 57

–Returning the navigation system to the

initial state 58

–Setting items to be deleted 59

Interruption of the AV receiver screen 60

–When a phone call is received 60

–When XM or SIRIUS alert is

received 60

–When the rear view camera is

activated 60

Appendix

Troubleshooting 62

Messages and how to react to them 64

Positioning technology 65

–Positioning by GPS 65

–Map matching 65

Handling large errors 65

–When positioning by GPS is

impossible 66

–Conditions likely to cause noticeable

positioning errors 66

Route setting information 68

–Route search specifications 68

Common notes about the SD memory

card 69

SD and SDHC logo 69

Display information 70

–“Navigation Menu”screen 70

–“Settings Menu”screen 70

–“Settings Menu”screen 71

Glossary 72

Specifications 73

Contents

Manual overview

Before using this product, be sure to read Im-

portant Information for the User (a separate

manual) which contains warnings, cautions,

and other important information that you

should note.

How to use this manual

Finding the operation procedure for

what you want to do

When you have decided what you want to do,

you can find the page you need from the Con-

tents.

Finding the operation procedure from

a menu name

If you want to check the meaning of an item

displayed on the screen, you will find the ne-

cessary page from the Display information at

the end of the manual.

Glossary

Use the glossary to find the meanings of

terms.

Conventions used in this manual

Before moving on, take a few minutes to read

the following information about the conven-

tions used in this manual. Familiarity with

these conventions will help you greatly as you

learn how to use your new equipment.

!Buttons on your navigation system are de-

scribed in ALL CAPITAL,BOLD lettering:

e.g.)

MODE button

!Items in different menus, screen titles, and

functional components are described in

bold with double quotation marks “”:

e.g.)

“Navigation Menu”screen

!Touch panel keys that are available on the

screen are described in bold in brackets [ ]:

e.g.)

[Address], [Settings].

!Extra information, alternatives and other

notes are presented in the following for-

mat:

e.g.)

pIf the home location has not been stored

yet, set the location first.

!Descriptions of separate operations to be

performed on the same screen are indi-

cated with #at the beginning of the de-

scription:

e.g.)

#Touch [OK].

!References are indicated like this:

e.g.)

=For details, refer to Registering your

home on page 40.

Terms used in this manual

“SD memory card”

The SD memory card and SDHC memory card

are collectively referred to as the “SD memory

card”.

Map coverage

For details about the map coverage of this na-

vigation system, refer to the information on

our website.

Resetting the microprocessor

CAUTION

Please refer to the related section before clearing.

=For detailed information about the items

which would be erased, refer to Returning the

navigation system to the default or factory set-

tings on page 57.

The microprocessor must be reset under the

following conditions:

!Prior to using this product for the first time

after installation.

!If the product fails to operate properly.

En 5

Chapter

Introduction

!If there appear to be problems with the op-

eration of the system.

!When changing the combination of equip-

ment.

!When adding/removing additional pro-

ducts that connect to the navigation sys-

tem.

!If your vehicle position is shown on the

map with a significant positioning error.

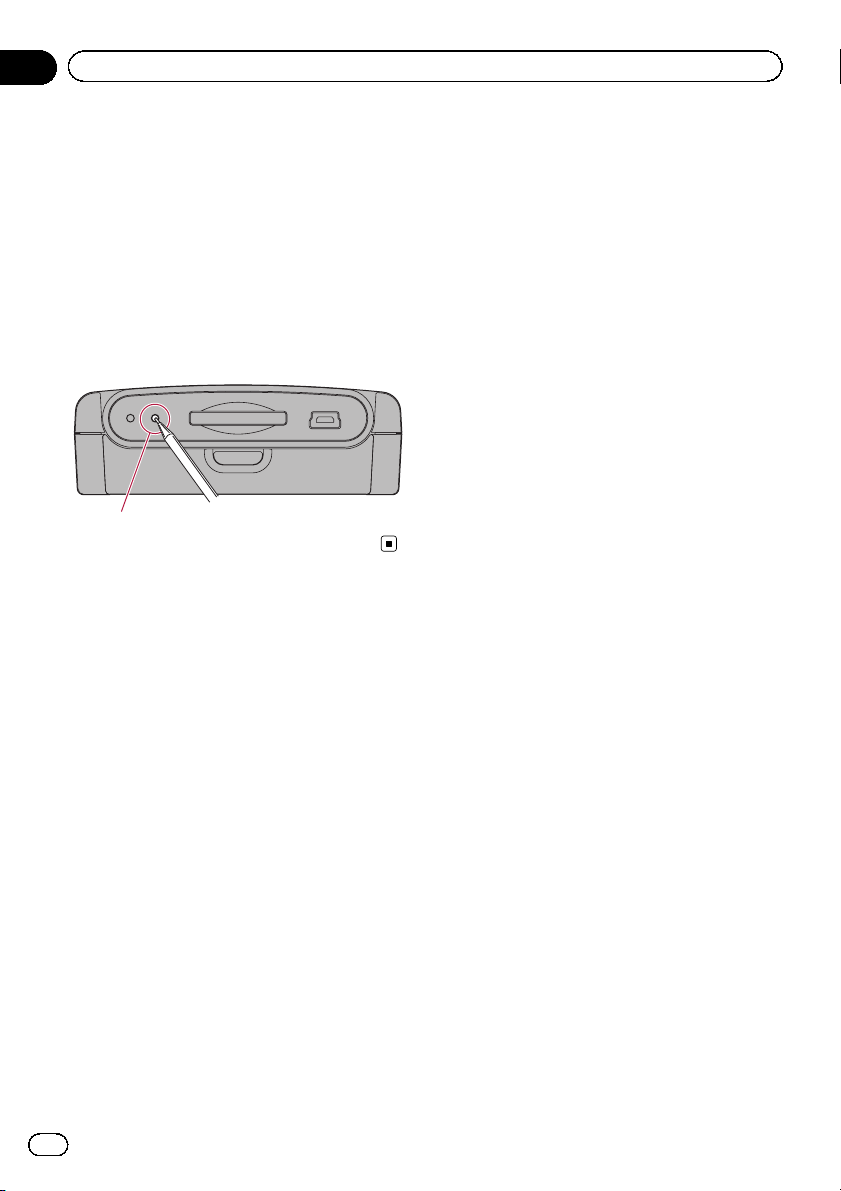

%Press the RESET button with a pen tip

or other pointed implement.

RESET button

Chapter

01 Introduction

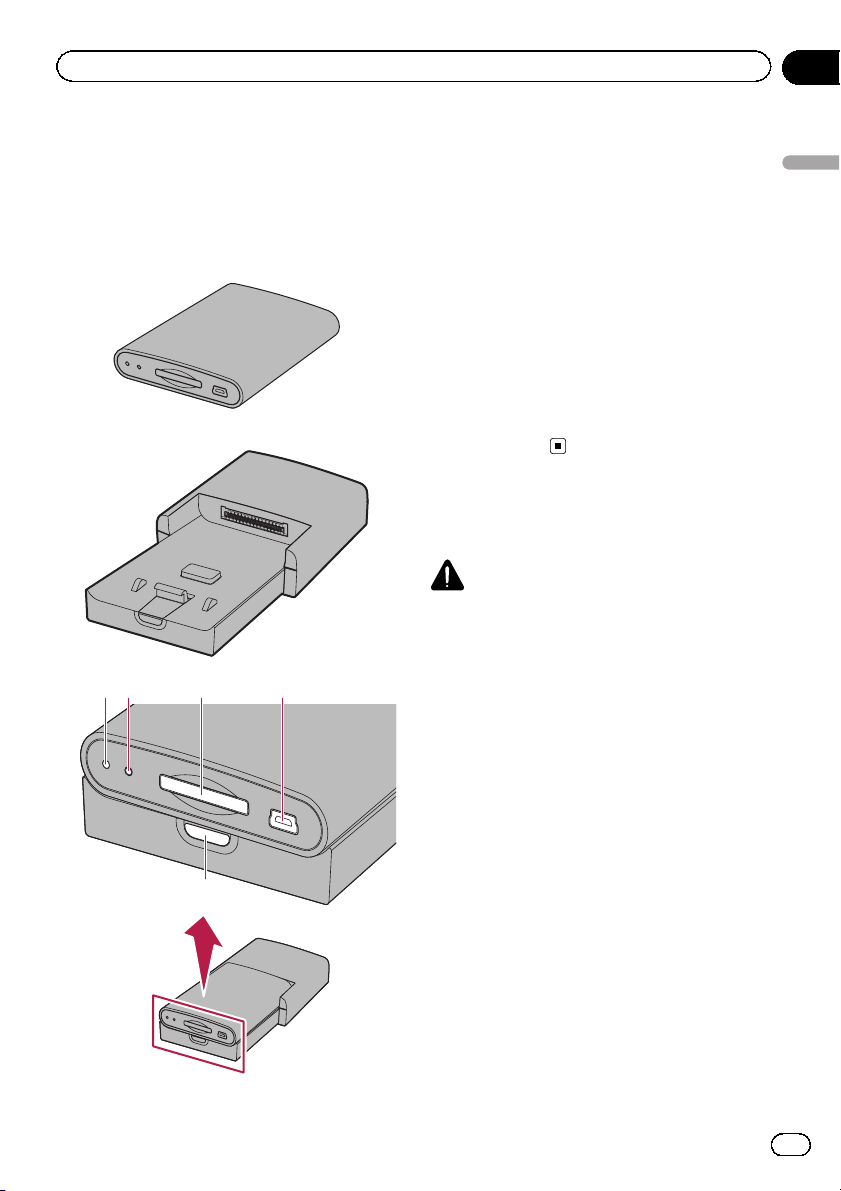

Checking part names and

functions

This chapter gives information about the

names of the parts and the main features

using the buttons.

Detachable device

Base unit

324

1Power indicator

2RESET button

=For details, refer to Resetting the micro-

processor on page 5.

3SD card slot

=For more detailed information, refer to In-

serting and ejecting an SD memory card

on page 9.

4USB port (Mini-B)

Use to connect with your PC.

5Detach button

Press to remove the detachable device from

the base unit.

Removing and attaching

the detachable device

CAUTION

!Before removing the detachable device, turn

the ignition switch off (ACC OFF).

!When you attach the detachable device, be

sure to attach it to the base unit before turn-

ing the ignition switch on (ACC ON).

!Never use force when removing or attaching.

!Avoid subjecting the detachable device to ex-

cessive shocks.

!Keep the detachable device out of direct sun-

light and high temperatures.

!After removing the detachable device, keep it

in a safe place so it is not scratched or da-

maged.

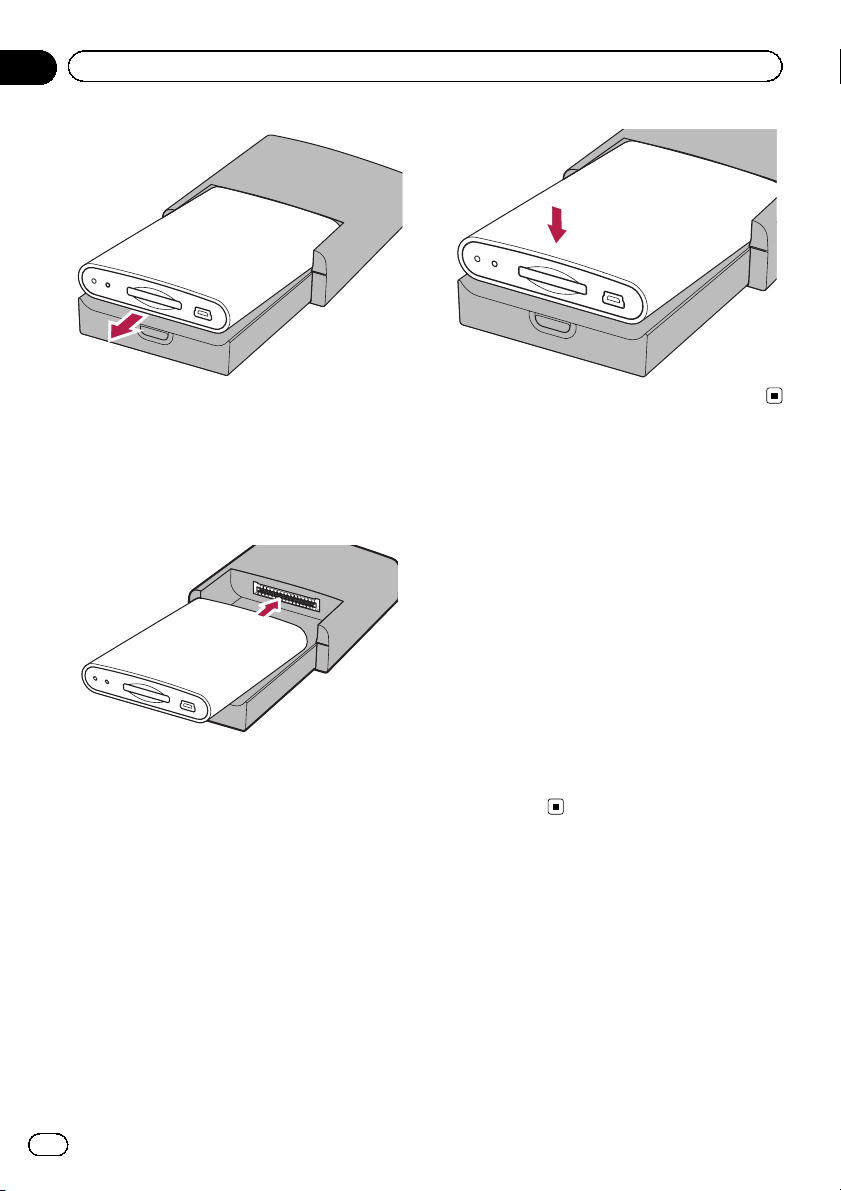

Removing the detachable device

1 Press the Detach button to release the

detachable device.

2 Gently grip both sides of the detach-

able device and slowly pull it out.

Take care not to drop the detachable device

and protect it from contact with water or other

fluids to prevent permanent damage.

En 7

Chapter

Before you start

Attaching the detachable device

1 Slide the detachable device all the way

into the base unit.

Make sure that the detachable device is se-

curely connected to the base unit terminal.

2 Press the center of the front of the de-

tachable device until you hear a click.

If you fail to successfully attach the detach-

able device to the base unit, try again but be

careful not to force it as the unit could be da-

maged.

Charging the battery of the

detachable device

!Charging cannot be done when the tempera-

ture is outside of the charging temperature

range.

!The operating temperature range of the bat-

tery is from –4 °F to +140 °F.

!The charging temperature range of the battery

is from 32 °F to +131 °F.

The battery of the detachable device is

charged in the following situations.

!When the detachable device is attached to

the base unit while the ignition switch is

turned on (ACC ON).

!When the detachable device is connected

to your PC.

Monitoring the battery status

You can check the battery status of the detach-

able device.

1 Touch [Home] on the map screen.

The “Top Menu”screen appears.

2 Touch [Settings].

The “Settings Menu”screen appears.

The battery status indicator is displayed on the

upper right of the “Settings Menu”screen.

Chapter

02 Before you start

Battery status indicator

Fully charged

Sufficient power

Charging

Inserting and ejecting an

SD memory card

CAUTION

!Ejecting an SD memory card during data

transfer can damage the SD memory card. Be

sure to eject the SD memory card by following

the procedure described in this manual.

!If data loss or corruption occurs on the sto-

rage device for any reason, it is usually not

possible to recover the data. Pioneer accepts

no liability for damages, costs or expenses

arising from data loss or corruption.

pThis system is not compatible with Multi

Media Card (MMC).

pCompatibility with all SD memory cards is

not guaranteed.

pThis unit may not achieve optimum perfor-

mance with some SD memory cards.

pDo not insert anything other than SD mem-

ory cards.

pIf data related to map data, such as custo-

mized POI data, is stored on the SD mem-

ory card, the navigation system restarts.

Inserting an SD memory card

%Insert an SD memory card into the SD

card slot.

Insert the card with the contact end first into

the SD card slot and press the card until it

clicks and completely locks.

Label side

Ejecting an SD memory card

1 Press the MODE button of the AV recei-

ver.

After a short pause, the navigation screen ap-

pears.

pThe display will turn off if you press the

MODE button of the AV receiver immedi-

ately after the navigation system restarts, so

wait (approximately 10 seconds) after re-

start before pressing the MODE button.

=For details of the operations, refer to Screen

switching overview on page 12.

2 Touch [Home] on the map screen.

The “Top Menu”screen appears.

3 Touch [Eject SD].

A message confirming whether to restart the

navigation system appears.

En 9

Chapter

Before you start

4 Touch [OK].

The navigation system restarts.

After a short pause, the navigation screen re-

turns.

5 Check that the following screen is dis-

played.

6 Press the middle of the SD memory

card gently until it clicks.

The SD memory card is ejected.

7 Pull the SD memory card out straight.

8 Touch [Restart].

The navigation system restarts.

After a short pause, the navigation screen re-

turns.

Protecting your product

from theft

The detachable device can be removed from

the base unit to discourage theft.

=For details, refer to Removing the detach-

able device on page 7.

Flow from startup to

termination

1 Start the engine to boot up the system.

2 Press the MODE button of the AV recei-

ver.

After a short pause, the navigation screen ap-

pears.

pThe display will turn off if you press the

MODE button of the AV receiver immedi-

ately after the navigation system restarts, so

wait (approximately 10 seconds) after re-

start before pressing the MODE button.

=For details of the operations, refer to Screen

switching overview on page 12.

3 Turn off the vehicle engine to termi-

nate the system.

The navigation system is also turned off.

Chapter

02 Before you start

Autres manuels pour AVIC-U220

Table des matières

Autres manuels Pioneer Système de navigation automobile

Pioneer

Pioneer AVIC-F60BT Manuel utilisateur

Pioneer

Pioneer AVIC-F20BT Manuel utilisateur

Pioneer

Pioneer Super Tuner IIID AVIC-F900BT Manuel utilisateur

Pioneer

Pioneer Super Tuner IIID AVIC-F700BT Manuel utilisateur

Pioneer

Pioneer AVIC-D2 Manuel utilisateur

Pioneer

Pioneer AVIC-HD3II Manuel utilisateur

Pioneer

Pioneer AVIC-9DVD Manuel utilisateur

Pioneer

Pioneer AVIC-EV01 Manuel utilisateur

Pioneer

Pioneer AVIC-Z110BT Manuel utilisateur

Pioneer

Pioneer AVIC-Z2 - Navigation System With DVD player Manuel utilisateur

Pioneer

Pioneer AVIC-S1 Manuel utilisateur

Pioneer

Pioneer AVIC-X1BT Manuel utilisateur

Pioneer

Pioneer CNDV-50MTP Manuel utilisateur

Pioneer

Pioneer AVIC-505 Manuel utilisateur

Pioneer

Pioneer AVIC U310BT - Navigation System With CD... Manuel utilisateur

Pioneer

Pioneer AVIC-Z910DAB Manuel utilisateur

Pioneer

Pioneer AVIC N2 - Navigation System With DVD player Manuel utilisateur

Pioneer

Pioneer AVIC-U260 Manuel utilisateur

Pioneer

Pioneer AVIC-F8430BT Manuel utilisateur

Pioneer

Pioneer F500BT - AVIC - Navigation System Manuel utilisateur

Pioneer

Pioneer AVIC-Z120BT Instructions de montage

Pioneer

Pioneer AVIC-880DVD Manuel utilisateur

Pioneer

Pioneer AVIC-F160-2 Manuel utilisateur

Pioneer

Pioneer AVIC-Z930DAB Manuel utilisateur

Manuels Système de navigation automobile populaires d'autres marques

Clarion

Clarion Navigation In-Car Entertainment Manuel utilisateur

Rosen

Rosen DP-1001 Manuel utilisateur

Alpine

Alpine INE-W970HD Manuel utilisateur

Skoda

Skoda AMUNDSEN+ Manuel utilisateur

Blaupunkt

Blaupunkt TravelPilot DX-N Manuel utilisateur

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Manuel utilisateur

Kenwood

Kenwood DNN991HD Manuel utilisateur

AvMap

AvMap Geosat 2C Manuel utilisateur

Eonon

Eonon GE01B Manuel utilisateur

Nextar

Nextar M3-MX - Automotive GPS Receiver Manuel utilisateur

Furrion

Furrion NV2200 Manuel utilisateur

Mio

Mio MOOV 200-Series Manuel utilisateur

Prestigio

Prestigio GeoVision 5150 Manuel utilisateur

Hummer

Hummer 2006 H3 Manuel utilisateur

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Guide de configuration

Garmin

Garmin StreetPilot c510 Manuel utilisateur

Garmin

Garmin nüvi 2200 Manuel utilisateur

Garmin

Garmin 2610/2650 Manuel utilisateur
