Pioneer GM-6300F/XU/UC Manuel utilisateur

ORDER NO.

PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.

PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936

PIONEER CORPORATION 2006

CRT3842

BRIDGEABLE FOUR-CHANNEL POWER AMPLIFIER

GM-6300F

/XU/UC

GM-6300F

/XU/EW5

GM-6300F

/XU/ES

GM-6300F

/XU/CN5

This service manual should be used together with the following manual(s) listed below.

For the parts numbers, adjustments, etc. which are not shown in this manual,

refer to the following manual(s).

Model No. Order No. Mech. Module Remarks

GM-6200F/XU/UC CRT3520

K-ZZA. NOV. 2006 Printed in Japan

GM-6300F/XU/UC2

1234

SAFETY INFORMATION

EXPLODED VIEWS AND PARTS LIST

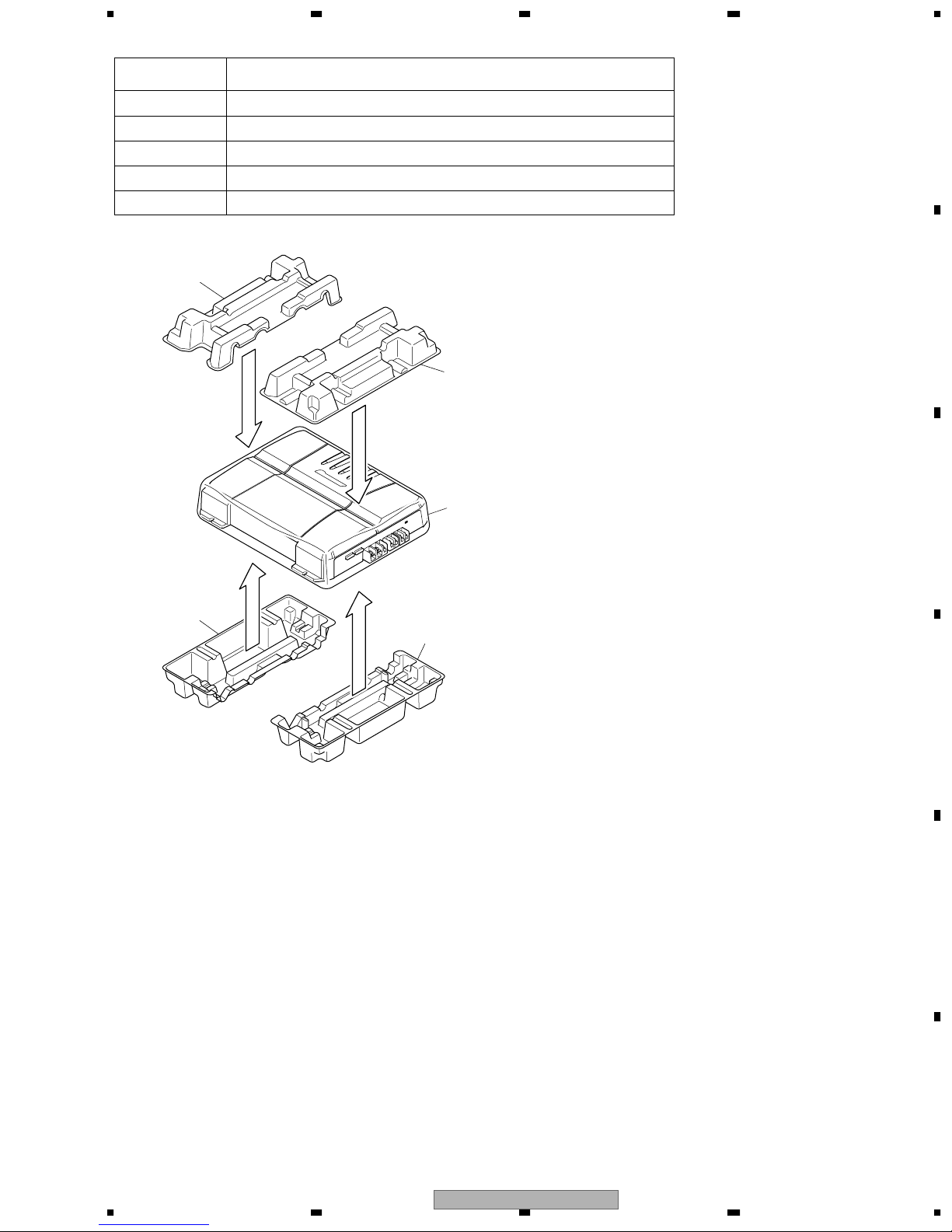

PACKING(Page 8)

PACKING SECTION PARTS LIST

*:Non spare part

Mark No. Description GM-6200F/XU/UC GM-6300F/XU/UC

5 Protector CHP3066 Not used

7 Carton CHG5591 YHG5140

8 Contain Box CHL5591 YHL5140

9-2 Owner's Manual CRD4019 YRD5104

* 9-6 Caution Card CRP1337 YRP5006

10 Protector Not used YHP5020

11 Protector Not used YHP5021

Mark No. Description GM-6200F/XU/EW GM-6300F/XU/EW5

5 Protector CHP3066 Not used

7 Carton CHG5591 YHG5139

8 Contain Box CHL5591 YHL5139

9-2 Owner's Manual CRD4019 YRD5103

* 9-6 Caution Card CRP1337 YRP5006

10 Protector Not used YHP5020

11 Protector Not used YHP5021

Mark No. Description GM-6200F/XU/ES GM-6300F/XU/ES

5 Protector CHP3066 Not used

7 Carton CHG5593 YHG5138

8 Contain Box CHL5593 YHL5138

9-2 Owner's Manual CRD4021 YRD5101

9-5 Owner's Manual CRD4022 YRD5102

* 9-6 Caution Card CRP1337 YRP5006

10 Protector Not used YHP5020

11 Protector Not used YHP5021

Mark No. Description GM-6200F/XU/CN GM-6300F/XU/CN5

5 Protector CHP3066 Not used

7 Carton CHG5594 YHG5137

8 Contain Box CHL5594 YHL5137

9-2 Owner's Manual CRB2108 YRB5040

* 9-6 Caution Card CRP1337 YRP5006

10 Protector Not used YHP5020

11 Protector Not used YHP5021

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

GM-6300F/XU/UC 3

5 678

5678

Owner's Manual

Part No. Language

YRD5104 English, French, Spanish

YRD5103 English, Spanish, German, French, Italian, Dutch, Russian

YRD5101 English, Spanish

YRD5102 Portuguese(B), Arabic

YRB5040 Simpliﬁed Chinese

GM-6300F/XU/UC4

1234

EXTERIOR(Page 10)

EXTERIOR SECTION PARTS LIST

Mark No. Description GM-6200F/XU/UC GM-6300F/XU/UC

* 4 Badge CAH1946 YAH5033

6 Case CNB3199 YNB5019

7 Panel CNB3204 YNB5029

8 Panel CNB3208 YNB5024

9 Heat Sink CNR1833 YNR5036

11 Lighting Conductor CNV8692 YNV5091

12 Amp Unit CWH1289 YWH5019

17 Sub Heat Sink CNR1809 YNR5054

18 Sub Heat Sink CNR1811 YNR5055

24 Terminal (CN601) CKE1055 YKE5008

31 Cover Not used YNR5045

32 Screw Not used IBZ30P100FTC

Mark No. Description GM-6200F/XU/EW GM-6300F/XU/EW5

* 4 Badge CAH1946 YAH5033

6 Case CNB3199 YNB5019

7 Panel CNB3204 YNB5029

8 Panel CNB3208 YNB5024

9 Heat Sink CNR1832 YNR5036

11 Lighting Conductor CNV8692 YNV5091

12 Amp Unit CWH1289 YWH5019

17 Sub Heat Sink CNR1809 YNR5054

18 Sub Heat Sink CNR1811 YNR5055

24 Terminal (CN601) CKE1055 YKE5008

31 Cover Not used YNR5046

32 Screw Not used IBZ30P100FTC

Mark No. Description GM-6200F/XU/ES GM-6300F/XU/ES

* 4 Badge CAH1946 YAH5033

6 Case CNB3199 YNB5019

7 Panel CNB3204 YNB5029

8 Panel CNB3208 YNB5024

9 Heat Sink CNR1833 YNR5036

11 Lighting Conductor CNV8692 YNV5091

12 Amp Unit CWH1289 YWH5019

17 Sub Heat Sink CNR1809 YNR5054

18 Sub Heat Sink CNR1811 YNR5055

24 Terminal (CN601) CKE1055 YKE5008

31 Cover Not used YNR5045

32 Screw Not used IBZ30P100FTC

GM-6300F/XU/UC 5

5 678

5678

Mark No. Description GM-6200F/XU/CN GM-6300F/XU/CN5

* 4 Badge CAH1946 YAH5033

6 Case CNB3199 YNB5019

7 Panel CNB3204 YNB5029

8 Panel CNB3208 YNB5024

9 Heat Sink CNR1833 YNR5036

11 Lighting Conductor CNV8692 YNV5091

12 Amp Unit CWH1289 YWH5019

17 Sub Heat Sink CNR1809 YNR5054

18 Sub Heat Sink CNR1811 YNR5055

24 Terminal (CN601) CKE1055 YKE5008

31 Cover Not used YNR5045

32 Screw Not used IBZ30P100FTC

GM-6300F/XU/UC6

1234

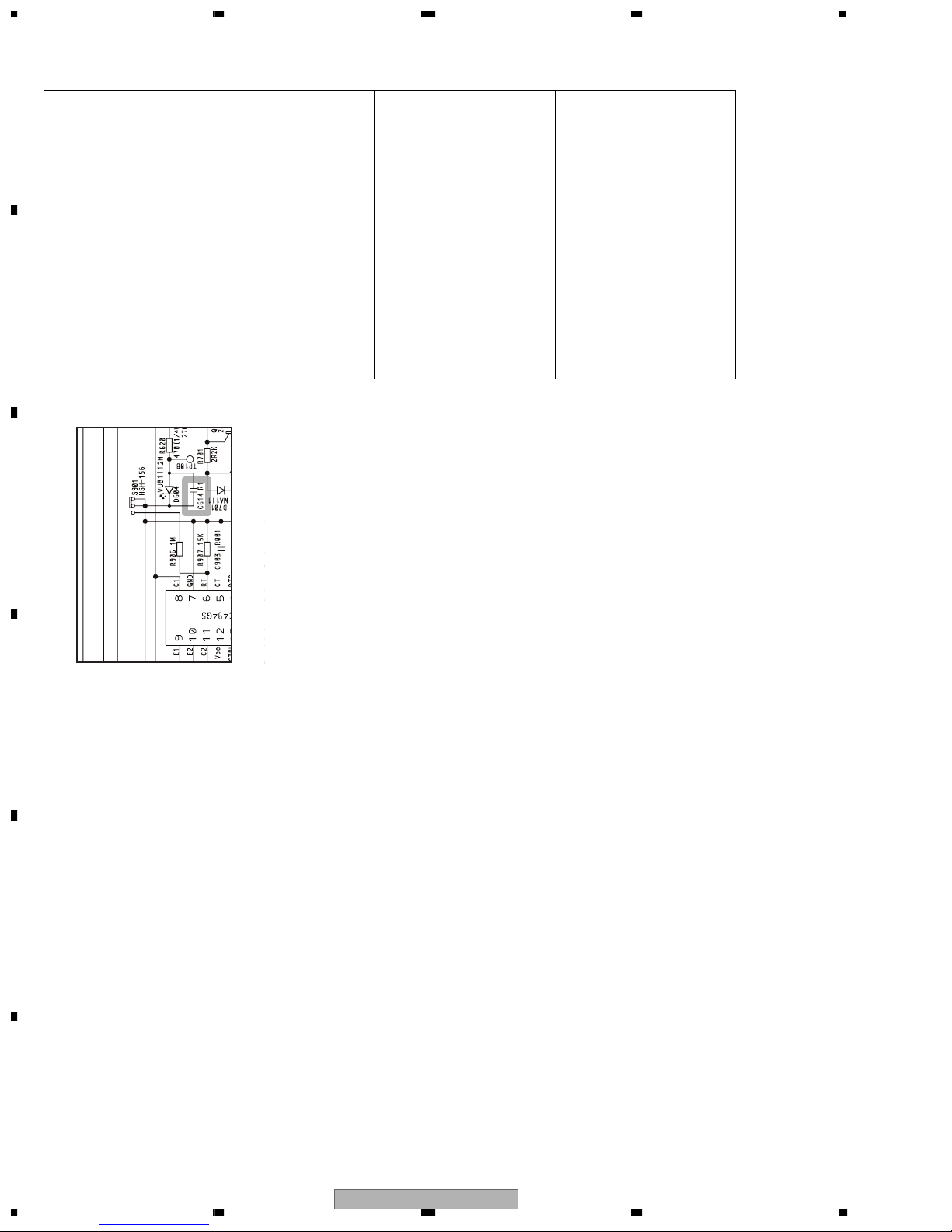

ELECTRICAL PARTS LIST(Page 22)

AMP UNIT

Circuit Symbol and No. Part Name

GM-6200F/XU/UC

GM-6200F/XU/EW

GM-6200F/XU/ES

GM-6200F/XU/CN

GM-6300F/XU/UC

GM-6300F/XU/EW5

GM-6300F/XU/ES

GM-6300F/XU/CN5

Q604 Transistor DTA124EU DTA124EUA

Q701 Transistor DTA114EU DTA114EUA

Q702 Transistor DTC114TU DTC114TUA

Q704 Transistor DTC114TU DTC114TUA

D604 LED FR1112H VUB1112H-4B63B

L901 Choke Coil 50 µH CTH1323 CTH1341

R619 RD1/4PU271J RD1/4PU331J

R620 RD1/4PU471J RD1/4PU331J

C614 Not used CKSQYB104K50

BFC

Page 17 Address 7F
