Pioneer RAB Series Manuel utilisateur

DUCTED CONCEALED (CEILING RECESSED) MINI SPLIT SYSTEM

AIR CONDITIONER/HEAT PUMP

MEDIUM EXTERNAL STATIC PRESSURE TYPE

IMPORTANT NOTICE:

Please read this manual carefully before installing

or operating your new air conditioning system.

Be sure to save this manual for future reference.

Installation

Manual

RAB/RYB Series

RAB: Cooling Only Version

RYB Cooling and Heating Version

Inverter+ and Inverter++ Models

9,000-48,000 BTU/hr

If your indoor unit is a part of a MULTI-SPLIT system set, refer to the installation manual

that is packed with your outdoor unit as well.

Accessories.......................................................................05

a. Indoor Unit Parts.........................................................08

b. Indoor Unit Installation Instructions............09

Safety Precautions....................................................06

Outdoor Unit Installation....................................13

a. Outdoor Unit Installation Instructions..........13

b. Outdoor Unit Types and Speciﬁcations........14

c. Notes on Drilling Wall Hole....................................15

Drainpipe Installation...........................................16

Table of Contents

Installation Manual

Indoor Unit Installation.......................................08

Installation Overview............................................07

Page 3 

Refrigerant Piping Connection...............................18

A. Notes on Pipe Length and Elevation......................18

B. Refrigerant Piping Connection Instructions.....20

Wiring...................................................................23

a. Outdoor Unit Wiring.............................23

b. Indoor Unit Wiring.................................24

c. Power Speciﬁcations.............................26

Air Evacuation....................................................................28

a. Evacuation Instructions..............................................28

b. Note on Adding Refrigerant...................................29

Test Run.............................................................30

MC MC

L1 L2

Impedance Information 31

11 ..................

Page 5 

Accessories 1

The air conditioning system comes with the following accessories. Use all of the installation parts

and accessories to install the air conditioner. Improper installation may result in water leakage,

electrical shock and re, or equipment failure.

Connecting Wire for Display (2m)

Cord Protection Rubber Ring

QUANTITY

SHAPE

NAME

Soundproof/Insulation Sheath 2

Tubing & Fittings

Others

Installation Manual

Transfer Connector (Φ12.7-Φ15.9)/

( )(Packed with the indoor unit )

NOTE: Pipe size may dier from appliance to

appliance. To meet dierent pipe size requirements,

sometimes the pipe connections need a transfer

connector installed on the outdoor unit .

Transfer Connector (Φ6.35-Φ9.52)/

( )(Packed with the indoor unit)

NOTE: Pipe size may dier from appliance to

appliance. To meet dierent pipe size requirements,

sometimes the pipe connections need a transfer

connector installed on the outdoor unit .

Transfer Connector (Φ9.52-Φ12.7)/

( ) (Packed with the indoor unit,

used for multi-type models only )

NOTE: Pipe size may dier from appliance to

appliance. To meet dierent pipe size requirements,

sometimes the pipe connections need a transfer

connector installed on the outdoor unit .

Owner‘s Manual

Drain Joint (some models)

Seal Ring (some models)

Drainpipe Fittings

(for cooling & heating)

Seal Sponge (some models)

EMC Magnetic Ring

(some models)

Magnetic Ring

(wrap the electric wires S1 & S2 ( P & Q & E )

around the magnetic ring twice)

Magnetic Ring

(Hitch on the connective cable between the indoor

unit and outdoor unit after installation.)

Orice (some models) 1

Φ0.5in-Φ0.63in

Φ0.25in-Φ0.375in

Φ0.375in-Φ0.5in

(on some models)

1(on some models)

Optional accessories

There are two types of remote controls: wired and wireless.

Select a remote controller based on customer preferences and requirements, and install in an

appropriate place.

Refer to catalogues and technical literature for guidance on selecting a suitable remote controller.

•

S1&S2(P&Q&E)

Display Panel

*For testing purposes only

1(on some models-

KJR-120G,KJR-120H)

Safety Precautions 2

Read and Understand Safety Precautions Prior to Installation

Improper installation due to negligence of instructions may result in serious damage or injury.

The magnitude of potential damages or injuries is classiﬁed as either a WARNING or a CAUTION.

WARNING

• Read the Safety Precautions carefully before installation.

• In certain functional environments, such as kitchens, server rooms, etc., the use of specially

designed air-conditioning units is highly recommended.

• Only trained and certied technicians should install, repair, and service this air

conditioning unit.

• Attempts to self-install can lead to inecient performance, and risk of equipment damage over

time.

• Strictly follow the installation instructions set forth in this manual.

• Improper installation may result in electrical shock, short circuit, leaks, ﬁre or other damage to

the equipment.

• Before you install the unit, consider strong winds, typhoons, and earthquakes that might aect

your unit, and locate it accordingly. Failure to do so could cause the equipment to fail.

• After installation, ensure there are no refrigerant leaks and that the unit is operating properly.

Refrigerant is both toxic and ﬂammable, and poses a serious health and safety risk.

Note about Fluorinated Gases

This air-conditioning unit contains ﬂuorinated gases. For speciﬁc information on the type of gas

and the amount, please refer to the relevant label on the unit itself.

Installation, service, maintenance, and repair of this unit must be performed by a certiﬁed

technician.

Product uninstallation and recycling must be performed by a certiﬁed technician.

If the system has a leak-detection system installed, it must be checked for leaks at least every 12

months.

When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.

Failure to observe a warning may result in death. The product must be installed by

installers or contractors who are licensed HVAC professionals and in compliance with

all local, state, and provincial laws.

Failure to observe a caution may result in injury or equipment damage.

WARNING

CAUTION

Page 6 

Installation Overview 3

Unit Installation

Overview

L1 L2

123

MC MC

Install the Indoor Unit

(Page 8)

INSTALLATION ORDER

Install the Outdoor Unit

(Page 13)

Install the Drainpipe

(Page 15)

Evacuate the Refrigeration System

(Page 26)

Connect the Wires

(Page 23)

Connect the Refrigerant Pipes

(Page 18)

Perform a Test Run

(Page 28)

Page 7 

Indoor Unit Installation 4

Indoor Unit

Installation

Indoor Unit Parts

Fig. 4.1

WARNING

• Securely install the indoor unit on a structure

that can sustain its weight. If the structure is

too weak, the unit may fall, causing personal

injury, unit and property damage, or even

death.

• DO NOT install the indoor unit in a bathroom

or laundry room, as excessive moisture can

short the unit and corrode the wiring.

CAUTION

• Install the indoor and outdoor units, cables,

and wires at least 1m (3.2’) from televisions

or radios, to prevent static or image

distortion. Depending on the appliances, a

1m (3.2’) distance may not be sufﬁcient.

• If the indoor unit is installed on a metal

part of the building, it must be grounded.

Indoor Unit Installation Instructions

Step 1: Select installation location

The indoor unit should be installed in a location

that meets the following requirements:



Enough room for installation and maintenance.

Enough room for the connecting pipe and

drainpipe.

The ceiling is horizontal, and its structure can

sustain the weight of the indoor unit.

The air inlet and outlet are not impeded.

The airﬂow can ﬁll the entire room.

There is no direct radiation from heaters.

CAUTION

DO NOT install the unit in the following

locations:

Where oil drilling or fracking is taking place.

Coastal areas with high salt content in the air

Near geothermal activity and corrosive gas

Buildings that may experience power

uctuations

Enclosed spaces

Areas with strong electromagnetic waves

Areas that store ammable materials or gas

Rooms with high humidity, such as

bathrooms or laundry rooms

Air Outlet

Air Inlet

Air filter(on selected models)

Drain hose

Electric control cabinet

Refrigerant connecting pipe

√

Safety Precautions

Page 8 

It is an embeded installation.

√

Models with a cooling capacity of 9000 BTU to

18000 BTU are only applicable to one room.

√

Indoor Unit

Installation

Air Outlet

Air Inlet

Step 2: Hang the Indoor Unit.

1. Please refer to the following diagrams to locate the four positioning screw bolt holes on the

ceiling. Be sure to mark the places where you will drill ceiling hook holes.

Maintenance Space

Installation Location

Left

Side

Right

Side

Strong, durable ceiling

Indoor Unit

>4in (10cm) >12in (30cm)

>0.8in (2cm)

>3/4 in(2cm)

>11.8in (30cm)

> 8’ (250cm)

Floor

Service Access Ceiling

(When no ceiling)

Fig. 4.2

Air Outlet dimensions

Page 9 

>(20cm)

8 in 12in

24inx24in (60cmx60cm)

inspection opening

>(30cm)

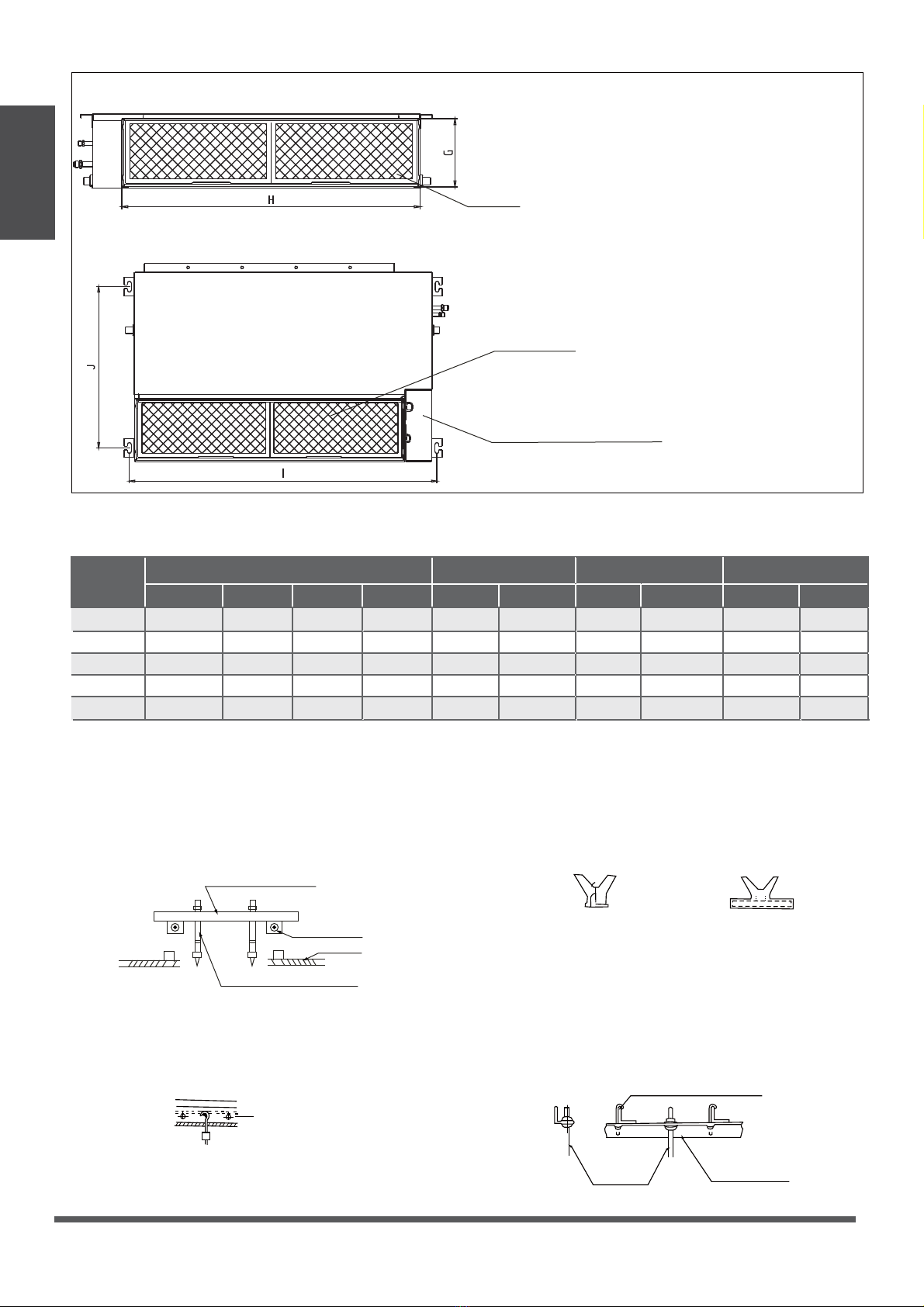

Fig. 4.3

Air Filter

Descending Ventilation Opening and Mounted Hook

Air Filter

Electric Control Box

Table.4-1 (unit: mm/inch)

MODEL

(Btu/h)

Outline dimension

ABC

Air Outlet Opening size

DEF

Air Return Opening size

Size of Mounted Lug

18K 210/8.3 674/26.5880/34.6

24K 249/9.8 774/30.51100/43.3

30K~36K 249/9.8 774/30.51360/53.5

36K~60K 300/11.8 874/34.41200/47.2

136/5.4 706/27.8600/23.6

175/6.9 926/36.5700/27.6

175/6.9 1186/46.7700/27.6

227/8.9 1044/41.1800/31.5

190/7.5

228/8.9

280/11

920/36.2782/30.8

1140/44.91001/39.4

1400/55.11261/49.6

1240/48.81101/43.3

508/20

598/23.5

697/27.4

9K/12K 200/7.9 506/19.9700/27.6 152/6 537/21.1450/17.7 186/7.3 741/29.2599/23.6

360/14.2

Indoor Unit

Installation

Fig. 4.6 Fig. 4.7

Original Concrete Bricks

Use an embedding screw bolt, crock, and stick

harness. (See Fig. 4.6)

Steel Roof Beam Structure

Install and use the steel supporting angle.

(See Fig. 4.7)

Fig. 4.4

Wood

Place the wood mounting across the roof beam,

then install the hanging screw bolts. (See Fig. 4.4)

Wood Mounting

Roof Beam

Hanging Screw Bolts

Ceiling Fig. 4.5

New Concrete Bricks

Inlay or embed the screw bolts. (See Fig. 4.5)

(Blade shape insertion) (Slide insertion)

Steel Bar

Embedding Screw Bolt

(Pipe Hanging and Embedding Screw Bolt)

Hanging Screw bolt

Hanging

Bolts

Steel

Supporting Angle

Page 10 

Air Inlet dimensions

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pioneer Climatiseur

Pioneer

Pioneer WYT Inverter Series Mode d’emploi

Pioneer

Pioneer WAS series Manuel utilisateur

Pioneer

Pioneer CYK009GMFILCAD-10 Manuel utilisateur

Pioneer

Pioneer Inverter+ WAS Series Manuel utilisateur

Pioneer

Pioneer YN030GLFI22M2D Manuel utilisateur

Pioneer

Pioneer YN020GMFI22M2D Manuel utilisateur

Pioneer

Pioneer WYT012GLFI22RL Mode d’emploi

Pioneer

Pioneer WT009GLFI22HLD Manuel utilisateur

Pioneer

Pioneer UB018 Manuel utilisateur

Pioneer

Pioneer QUANTUM INVERTER Series Manuel de service

Pioneer

Pioneer WYQ Series Manuel utilisateur

Pioneer

Pioneer CYB Series Manuel utilisateur

Pioneer

Pioneer WYT Series Manuel utilisateur

Pioneer

Pioneer YN018GMFI16M2D Manuel utilisateur

Pioneer

Pioneer WAS Series Manuel utilisateur

Pioneer

Pioneer YN020GMFI22M2D Manuel utilisateur

Pioneer

Pioneer YN-M Series Manuel utilisateur

Pioneer

Pioneer WYF-25 Series Mode d’emploi

Pioneer

Pioneer PYR009AZFRVBKE Manuel utilisateur

Pioneer

Pioneer WAS series Manuel utilisateur

Pioneer

Pioneer YN-M Series Manuel utilisateur

Pioneer

Pioneer WAE012AMFI15RL Manuel utilisateur

Pioneer

Pioneer FB009 Manuel utilisateur

Pioneer

Pioneer KFDH125 Manuel d'instructions

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
