Pion Power PVSolver GS-03

GROUND RACKING SYSTEM INSTALLATION MANUAL

(UPDATED – July 12 2022)

Racking System Installation Manual, July 12, 2021

Contents

1 Racking Structure Brief ............................................................................................................................................. 3

1.1 Brand and Model .......................................................................................................................................... 3

1.2 Revision review ............................................................................................................................................. 3

1.3 Declaration ................................................................................................................................................... 3

2 Standards & References ............................................................................................................................................ 3

2.1 Standards ..................................................................................................................................................... 3

2.2 References .................................................................................................................................................... 3

3 Applicability & Certification ..................................................................................................................................... 4

3.1 Applicability ................................................................................................................................................. 4

3.1.1 Foundation ....................................................................................................................................... 4

3.1.2 Solar panel ....................................................................................................................................... 4

3.1.3 Inverter............................................................................................................................................. 4

3.2 Certifications ............................................................................................................................................... 4

4 Installation guide ......................................................................................................................................................5

4.1 Safety operation guide .................................................................................................................................5

4.2 Tools list .......................................................................................................................................................5

4.3 Installation (Sequence based on installation order) .......................................................................................5

4.3.1 Step-1： ........................................................................................................................................... 6

4.3.2 Step-2：............................................................................................................................................ 7

4.3.3 Step-3： ........................................................................................................................................... 8

4.3.4 Step-4：........................................................................................................................................... 8

4.3.5 Step-5： ........................................................................................................................................... 9

4.3.6 Step-6： ......................................................................................................................................... 10

4.3.7 Step-7： .......................................................................................................................................... 11

4.3.8 Step-8：.......................................................................................................................................... 11

4.3.9 Step-9： ......................................................................................................................................... 13

4.3.10 Step-10： ...................................................................................................................................... 13

4.3.11 Step-11： ...................................................................................................................................... 16

4.3.12 Final Inspection ............................................................................................................................ 24

5 Warranties ............................................................................................................................................................. 24

5.1 10 Years Limited Product Warranty- Shingle Roof Racking System ........................................................... 24

5.2 Warranty service contact ........................................................................................................................... 24

5.3 Warning ...................................................................................................................................................... 25

Racking System Installation Manual, July 12, 2021

1 Racking Structure Brief

1.1 BRAND AND MODEL

Brand: Pion Power PVSolver

Model: GS-03

1.2 REVISION REVIEW

Product version: V1-0213

Manual version: 01-0213

1.3 DECLARATION

a. The information contained in this document represents the current view of Pion Power PVSolver on the issues

discussed as of the date of publication. Since Pion Power PVSolver must respond to changing market conditions,

it should not be interpreted to be a commitment on Pion Power PVSolver part. Pion Power PVSolver cannot

guarantee the accuracy of any information presented after the date of publication. This document is for

informational purposes only and makes no guarantees, expressed, implied or statutory, to the information within

this document.

b. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under

transmitted in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), or for

any purpose, without the expressed written permission of Pion Power PVSolver.

c. Pion Power PVSolver may have patents, patent applications, trademarks, copyrights, or other intellectual

property rights covering subject matter in this document. Except as expressly provided in any written license

agreement from Pion Power PVSolver, the furnishing of this document does not give you any license to these

patents, trademarks, copyrights, or other intellectual property.

or their affiliates in China/or other countries.

e. The names of actual companies & products mentioned herein may be the trademarks of their respective owners.

2 Standards & References

2.1 STANDARDS

CAN/CSA-086-01(R2006), Engineering Design in Wood, Standards Council of Canada;

CSA S304.1-04 (R2010), Design of Masonry Structures, Standards Council of Canada;

CAN/CSA-A23.3-04 (R2010), Design of Concrete Structures, Standards Council of Canada;

CAN/CSA -A23.1-14/A23.2,14 (R2014), Concrete materials and methods of concrete construction / Test

methods and standard practices for concrete, Standards Council of Canada;

CAN/CSA-S16-01 (R2007), Limit States Design of Steel Structures, Standards Council of Canada;

CAN/CSA-S413-14(R2012), Parking structures, Standards Council of Canada;

2.2 REFERENCES

Ontario Building Code 2012 4.1.6 Snow Load;

Ontario Building Code 2012 4.1.7 Wind load;

Ontario Building Code 2012 9.4.3 Deflections

Racking System Installation Manual, July 12, 2021

3 Applicability & Certification

3.1 APPLICABILITY

3.1.1 FOUNDATION

Helical pile

Ballasted concrete block

3.1.2 SOLAR PANEL

60-cells, 72-cells, and other customized solar panels

Panel frame height: 30mm, 35mm,40mm,45mm

3.1.3 INVERTER

Micro inverter

Power Optimizer

String inverter

3.2 CERTIFICATIONS

Certification: UL2703

Testing involved:

Bonding Path Resistance Test

Temperature Cycling test

Humidity Test

Mechanical Loading Test

Bonding Conductor Test

Racking System Installation Manual, July 12, 2021

4 Installation guide

4.1 SAFETY OPERATION GUIDE

1. The manual must be read and understood before installation. Workers must comply with all of these safety

instructions to minimize the risk of danger, property damage and personal injury.

2. All installations must be performed by qualified personnel in compliance with all applicable codes including O.B.C

2012 and N.B.C 2010.

3. Always check with local building and safety departments for specific codes and permits.

4. Make sure that the building structure can support the racking system under all the applicable design loads

including but not limited to snow, rain, wind and seismic loads per these codes.

5. All applicable OSHA (Occupational Safety and Health Act) guidelines must be followed to ensure proper safety.

6. Always use the appropriate tools for the correct applications. Never modify or change an existing tool to meet a

specific need. The list of specific tools needed for installation has been included in the manual.

7. If the fall height is greater than 10’ (3m), persons working on the roof must be provided with anti-fall protection.

Debris netting or similar equipment is required to protect persons on the ground from falling objects.

8. The environment needs to be free of roofing obstructions, rain, snow, ice, high winds or any other elements that

may cause potential harm or injury to an installer.

9. Please keep in mind that as long as the modules are exposed to light, for safety of installation personnel, open all

disconnect switches, circuit breakers, and keep wire ends insulated during installation, also keep the wire ends

insulated during assembly.

10. Photovoltaic modules produce electricity when sunlight or other sources illuminate the front face. The voltage

from a single module is not considered a shock hazard. When modules are connected in series, voltages are

additive. When modules are connected in parallel, current is additive. Consequently, a multi-module system can

produce high voltages and current which constitute an increased hazard and could cause serious injury or death.

11. The installer should visit the site and become familiarized with all the characteristics affecting new and existing

construction. The contractor shall check all dimensions on working drawings and report any discrepancies to the

engineer prior to proceeding with the work. Additionally, any changes, alterations, or revisions must be reported

to the engineer before proceeding with the work.

4.2 TOOLS LIST

1. Torque wrench

2. Ratchet wrench and Hexagonal key(M8\M10\M12\M16\M30)

3. 6/19” Fractional socket

4. Flathead screwdriver

5. Cordless drill

6. Scissors

7. Tape measure

8. Approved extension ladder

9. Marking crayon or keel

10. Personal protective equipment (PPE)

4.3 INSTALLATION (SEQUENCE BASED ON INSTALLATION ORDER)

Racking System Installation Manual, July 12, 2021

4.3.1 STEP-1：

The Pion Power PVSolver Adjustable Ground Mount Solar Racking System can be installed on either helical pile

foundations or cast/ballasted concrete foundations. This installation manual covers only the most basic preparation

steps for helical pile and ballasted concrete foundations.

For helical pile foundations, ensure that the helical piles have been installed as per the layout diagram. Drive piles as

accurately as is practical, then adjust to +/- ¼” of given layout. Piles need to be perpendicular to the ground. Top of

piles to be close to level approx. 20” above highest grade. The distance between solar units will vary depending on

the type of solar modules used.

For ballasted concrete foundations, use concrete anchors to connect the T-Beam Footings to the bottom of the

concrete ballasts. Mark the placement locations as per the helical pile layout diagram. Ensure the pile of the T-beam

footing sits right above the marking points.

Racking System Installation Manual, July 12, 2021

4.3.2 STEP-2：

Start building the table which is at the highest ground, ensure all Bottom Beams of the other tables are at a similar

elevation to avoid shading. Attach the Bottom Beams to the helical piles or piles of the T Beam Footing using U-

bolts and Saddles. A spirit level tool may be helpful when installing the beams. You may use the Rail or a long and

straight object to horizontally level multiple the Bottom Beams.

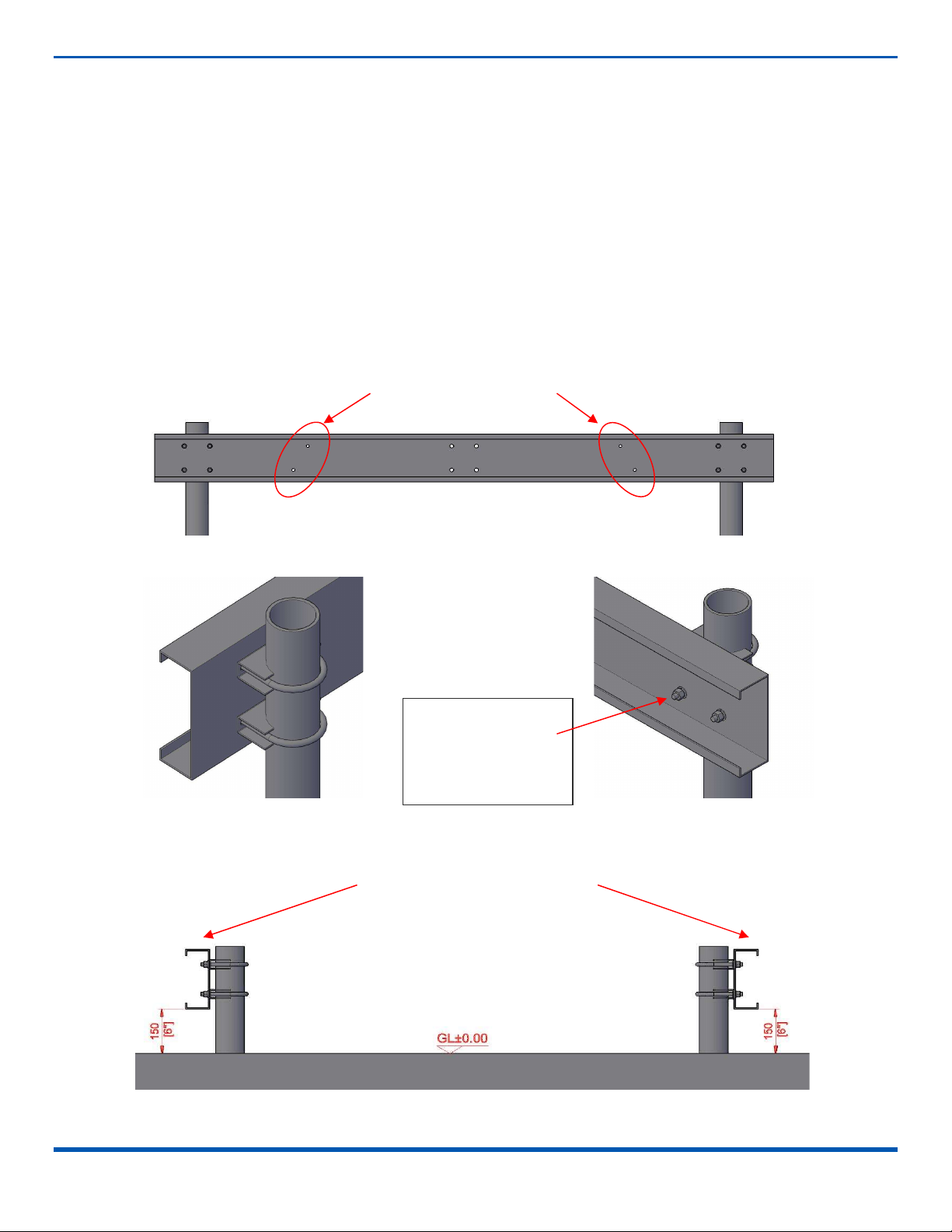

The two beams should be installed on the outside of the piles, with the flat sides facing toward each other. Ensure

that the angled holes are oriented as in the picture below. Once the beams have been accurately positioned,

tighten the U-bolts using M12 Hex Bolt Sets. Leave 8” of clear space under the Bottom Beam to prevent frost heave

from pushing up on the beams.

Ensure these holes angles up and

toward each other

Ensure the two beams are

installed on the outside of the

piles and leveled at the same

elevation

M12-Hex Bolt Set

Racking System Installation Manual, July 12, 2021

4.3.3 STEP-3：

Attach the Posts to the Bottom Beams using the M16 Helix Bolt Sets as shown. Ensuring the flat sides of the Posts

go on the flat sides of the Bottom Beams. Do not tighten the bolts until the Post Supports (next step) have been

installed with all their bolts loosely installed.

4.3.4 STEP-4：

Install the left and right Supports as shown using the M12 Helix Bolts Sets. Use a spirit level tool to ensure the Posts

are vertical then tighten all bolts on the Posts and Supports.

M16x50 Hex Bolt Sets

M12x40 Hex Bolt Sets

Base Rail

Racking System Installation Manual, July 12, 2021

4.3.5 STEP-5：

Attach the Angle Pieces to the Main Beams forming two pivot plates using M16 Hex Bolt Sets. Fix the pivot plates to the Posts using

the Stiffeners and M30 Hex Bolt Sets. The plates need to be able to pivot easily around the top bolt, so do not over-tighten the top

bolts. Move the pivot plates to the “Summer Position” by rotating the plate until the top flange is at 20-degree angle then tighten

the bottom bolt.

M16x50 Hex Bolt Sets

M30x80 Hex Bolt Sets

Stiffener

Racking System Installation Manual, July 12, 2021

4.3.6 STEP-6：

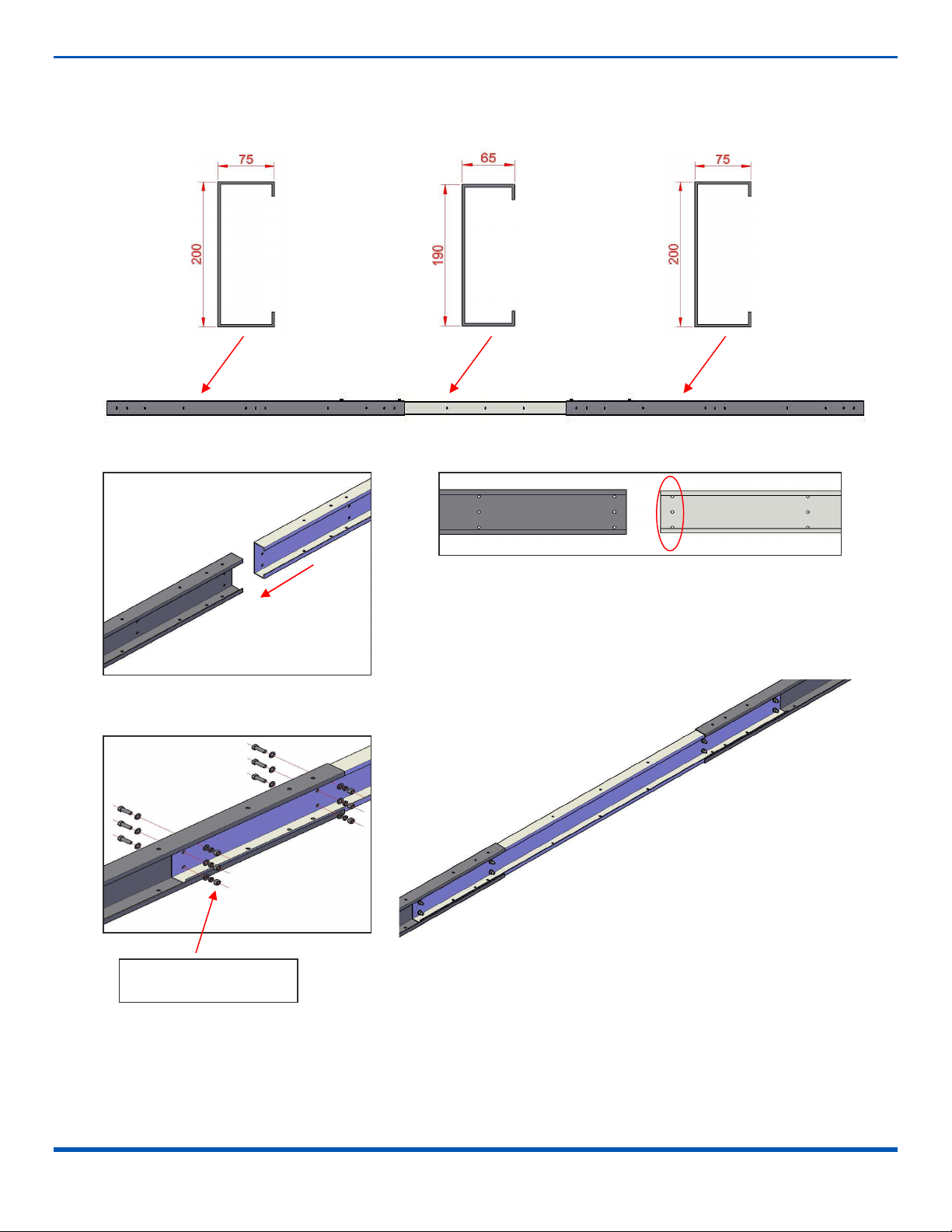

Each rail consists of two outer pieces and one inner piece. Slide rails together to where holes match up, then tighten all bolts,

washers, and nuts.

M12x40 Hex Bolt Sets
