Pichler Flash Manuel du propriétaire

Wingspan 910mm

Length 750mm

Wing area 21.7dm

Wing loading 53g/dm

Flying Weight 950 ... 1150g

R/C 3 channels

Servos 3

Motor 250 ... 650W

ESC 40 ... 50A

Battery 2200 ... 3500mAh

910mm

750mm

21.7dm

53g/dm

950 ... 1150g

3 Kanal

250 ... 650W

40 ... 50A

2200 ... 3500mAh

95% ALMOST READY TO FLY

Flash

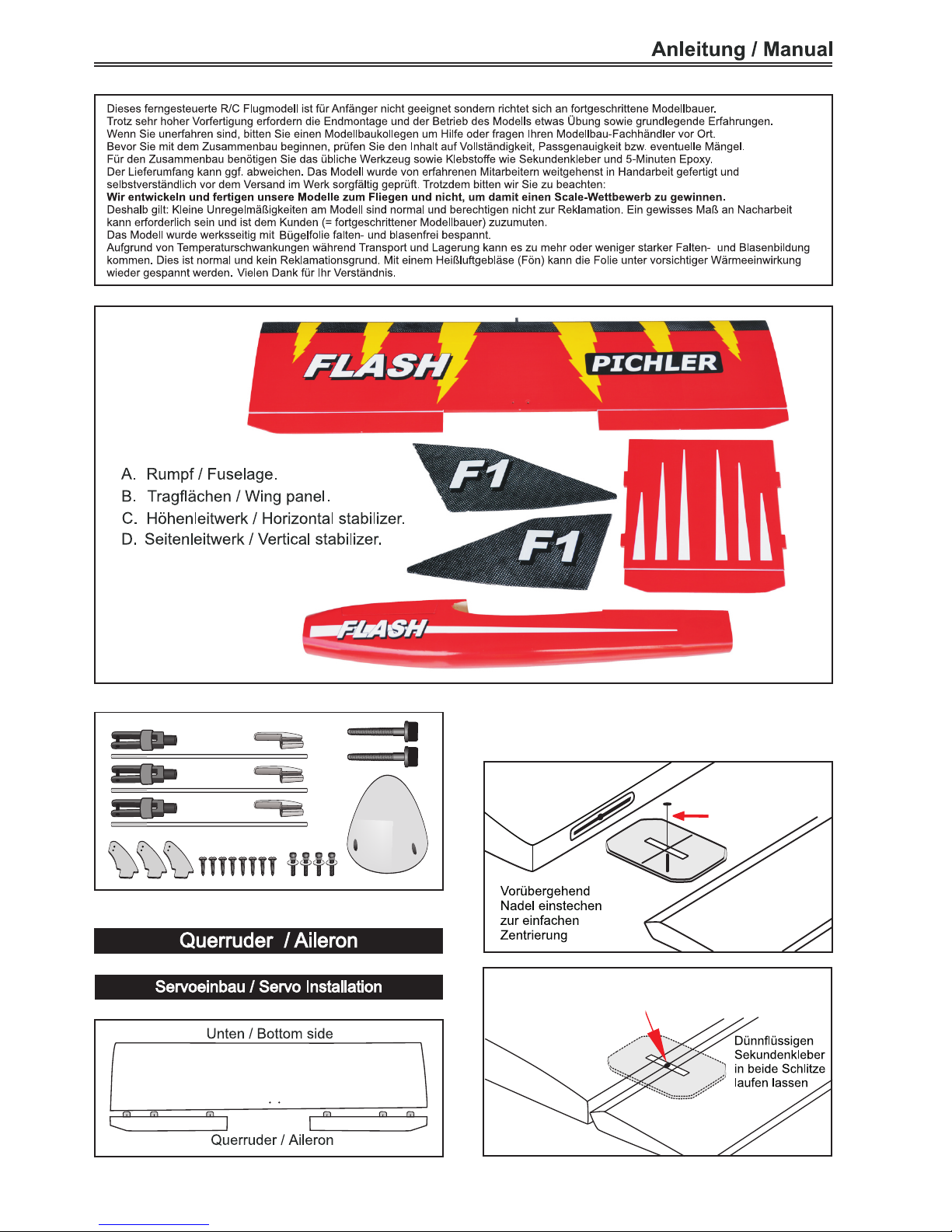

Test fit the ailerons to the wing with the hinges. If the

hinges don’t remain centered, stick a pin through the

middle of the hinge to hold it in position.

Temporary pin to

keep hinge centered.

Assemble then apply drops of thin

C/A to center of hinge,on both sides.

2x10mm 3x15mm

Flash

Install the rubber grommets and brass eyelets on to the

aileron servos.

Using a modeling knife, remove the covering from over

the pre-cut servo arm exit hole on the aileron servo tray

/ hatch.This hole will allow the servo arm to pass

through when installing the aileron pushrods.

Using the thread as a guide and using masking tape,

tape the servo lead to the end of the thread: carefully

pull the thread out. When you have pulled the servo

lead out, remove the masking tape and the servo lead

from the thread.

Befestigen

Secure

Drill a hole 1.5 mm

1.5 mm

Place the servo into the servo tray. Center the servo

within the tray and drill 1.5mm pilot holes through the

block of wood for each of the four mounting screws

provided with the servo.

Electric wire

Drill a hole 1.5 mm

1.5 mm

2x10mm

Befestigen

Secure

Remove the covering from the slot on the bottom of the

aileron.

Insert the control horn into the slot and secure it by A+B

Epoxy glue.

1. A/B glue

5-Min. Epoxy Klebstoff

Epoxy

2. Push in

control horn

Aileron

Aileron Control Horn

Flaslink

Pushrod wire Control horn

Repeat the procedure to install the second aileron.

After both linkages are completed. connect both of

the aileron servo loads using a Y-harness you have

purchased.

Flash

100mm

Snap keeper.

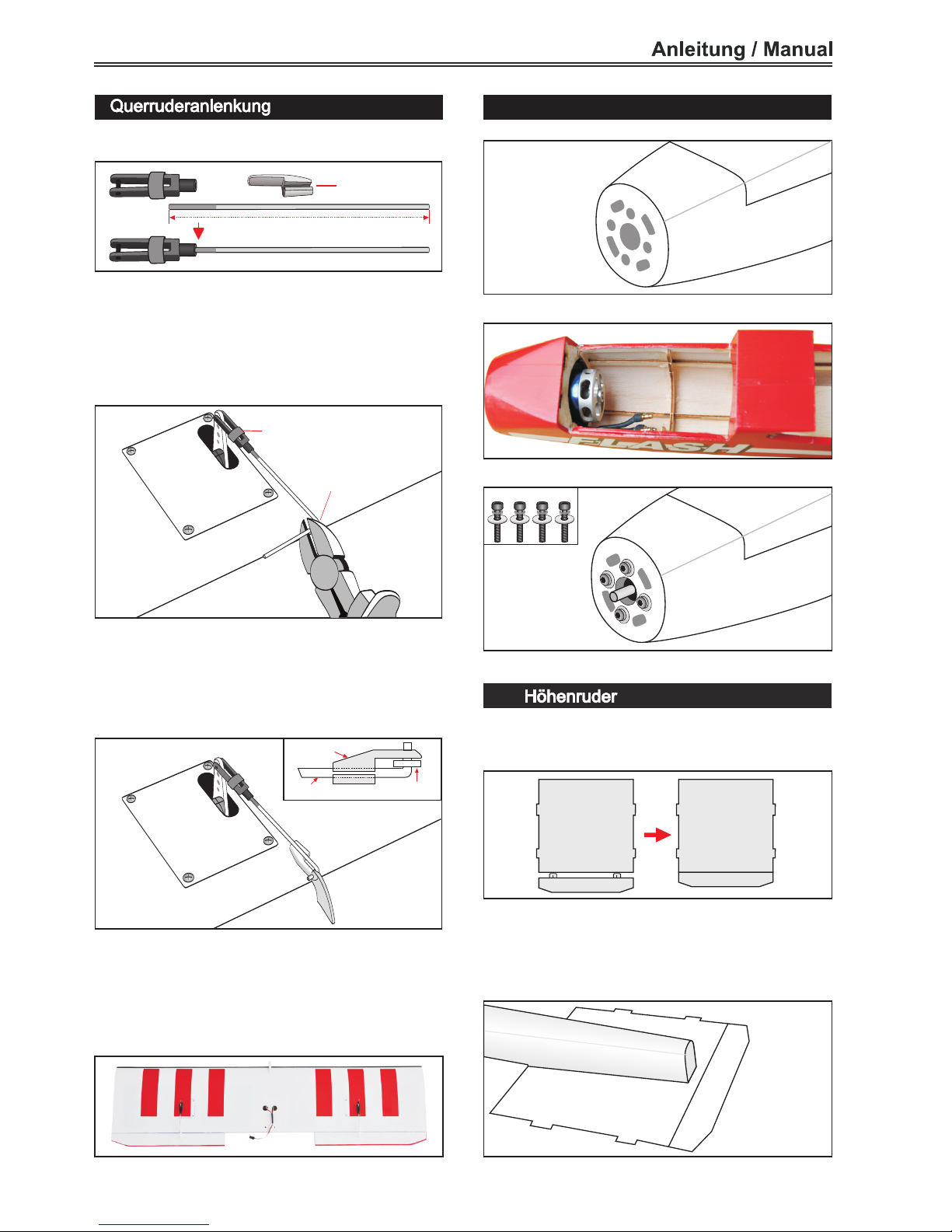

Attach the clevis to the outer hole in the servo arm.

Install a silicone tube on the clevis.

Using pliers, carefully make a 90 degree bend down

at the mark made. Cut off the excess wire, leaving

about 6mm beyond the blend.

/ Aileron Linkages

Insert the 90 degree bend down through the hole in the

control horn. Install one nylon snap keeper over the

wire to secure it to the control horn. Install the control

horn retaining screw and remove the masking tape

from the aileron.

Bend and cut.

Silicone Tube

Installing the aileron linkages as pictures below.

Motoreinbau / Motor Installation

Elevator install as same as the way of aileron.

Please see pictures below.

/ Horizontal stabilizer

3x15mm

Put the horizontal into the fuselage.

horizontal stabilizer in its slot. Make sure the horizontal

stabilizer is square and centered to the fuselage by

taking measurements, but don’t glue anything yet.

Check the fit of the

Flash

After the epoxy has fully cured, remove the masking

tape or T-pins used to hold the stabilizer in place and

carefully inspect the glue joints. Use more epoxy to fill in

any gaps that may exits that were not filled previously

and clean up the excess using a paper towel and

rubbing alcohol.

C/A glue.

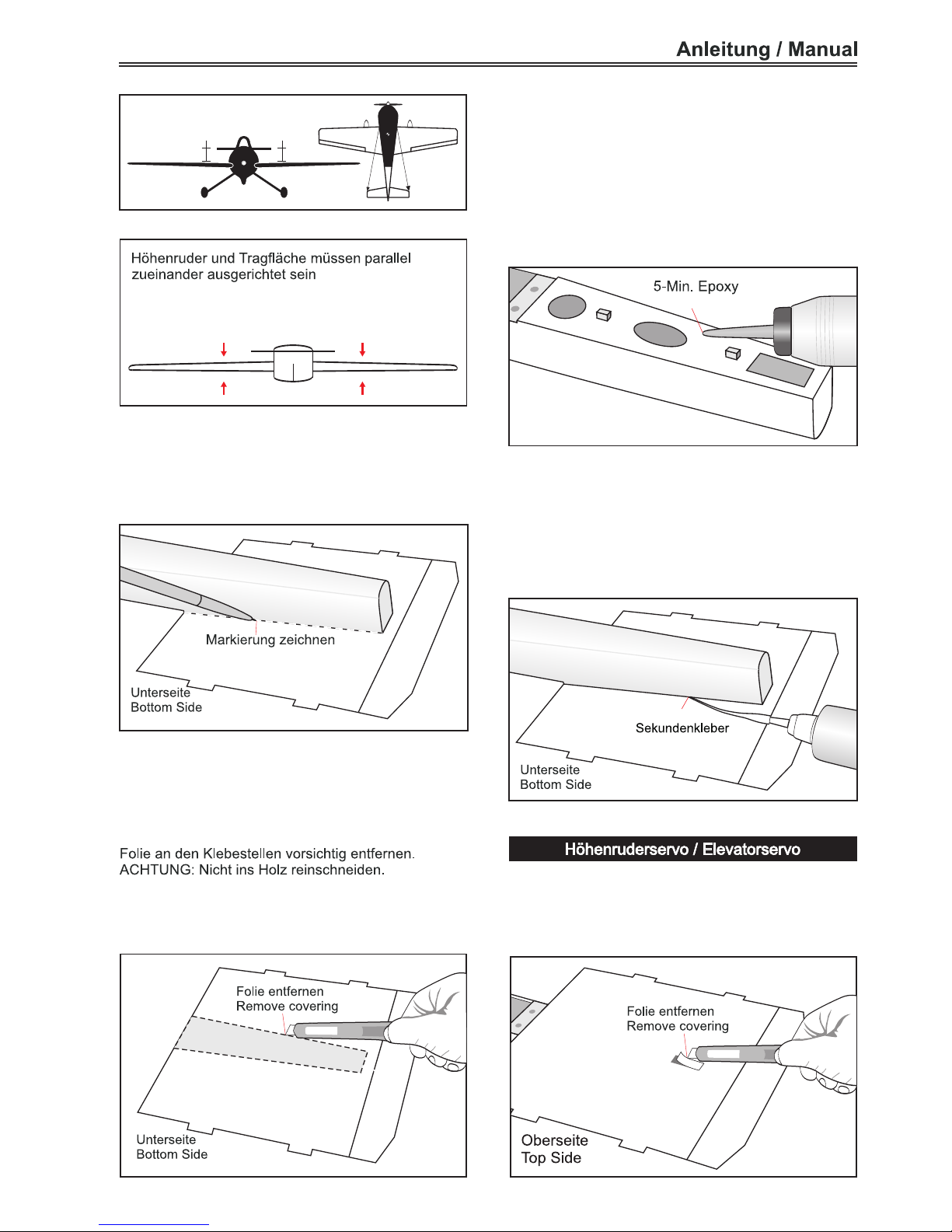

With the horizontal stabilizer correctly aligned,mark the

shape of the fuselage on the bottom of the tail plane

using a water soluble / non permanent felt-tip pen.

Remove covering film on glueing areas.

ATTENTION: Do not cut into the wood.

Remove the stabilizer. Using the lines you just drew as

a guide, carefully remove the covering from between

them on the bottom of the tail plane using a modeling

knife.

B B

A A

A = A

Elevator and Main wing must be aligned parallel to

each other

Mark line

When you are sure that everything is aligned correctly,

mix up a generous amount of 5- minute epoxy. Apply a

thin layer to the bottom of the stabilizer mounting area

and to the stabilizer mounting platform sides in the

fuselage. Slide the stabilizer in place and re-align.

Double check all of your measurements one more time

before the epoxy cures. Remove any excess epoxy

using a paper towel and rubbing alcohol and hold the

stabilizer in place with T-pins or masking tape.

Using a modeling knife, remove the covering from over

the pre-cut servo arm exit hole on the horizontal

stabilizer servo tray / hatch.

A/B Epoxy glue

Flash

C/A glue.

Mark line

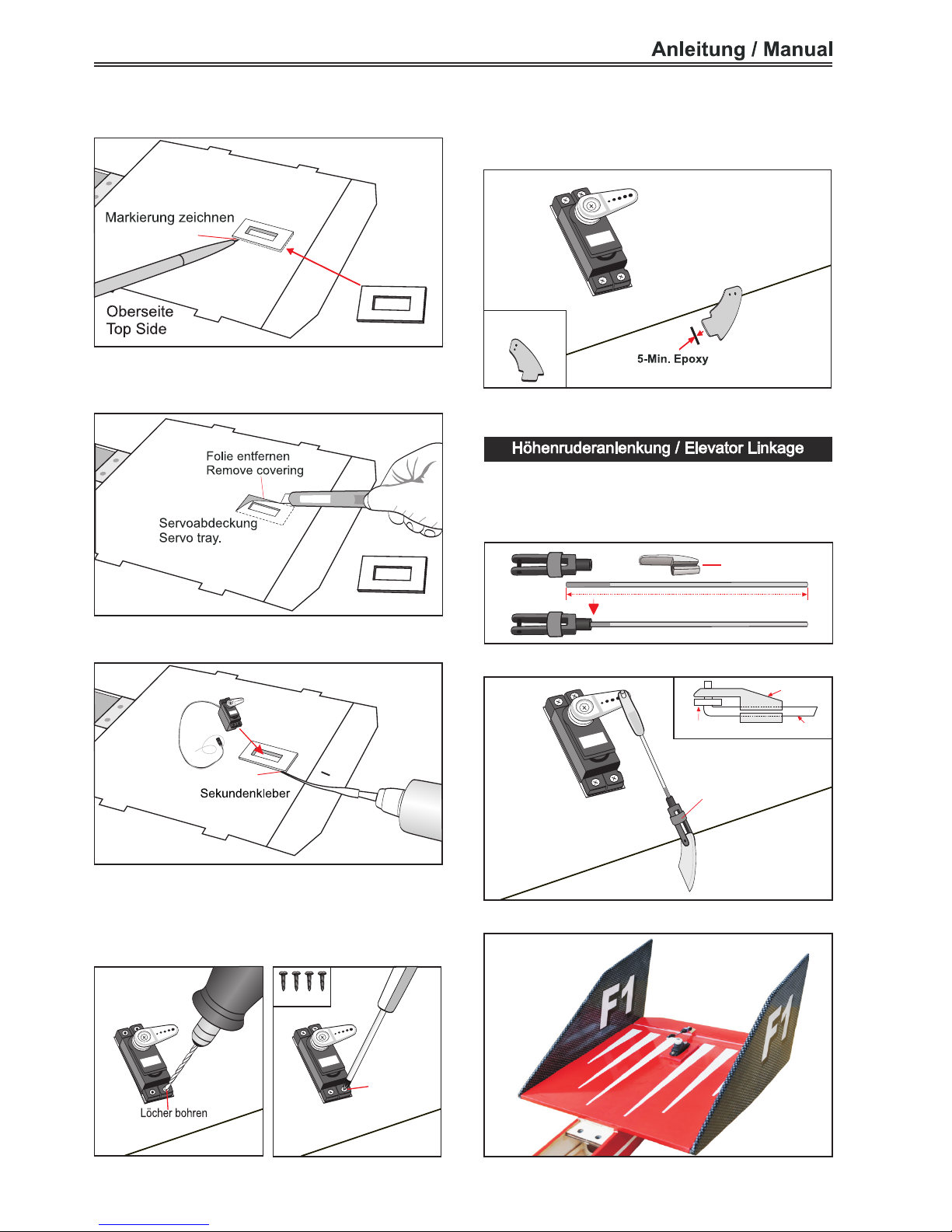

Use a pen to mark the position of the mount on the

covering

Using a ruler and sharp knife, carefully cut through and

remove the covering film as shown.

Attach the mount in place using C/Aglue.

Place the servo into the servo tray. Center the servo

within the tray and drill 1.5mm pilot holes through the

block of wood for each of the four mounting screws

provided with the servo.

Drill a hole 1.5 mm

1.5 mm

Befestigen

Secure

2x10mm

Remove the covering from the slot on the top of the

elevator. Insert the control horn into the slot and secure

it byA+B Epoxy glue.

Elevator

control horn

Top side

2. Push in

1. A+B Epoxy glue

Flaslink

Pushrod wire

Servo arm

Silicone Tube

100mm

Snap keeper.

Elevator control horn and install as same as the

way of aileron. Please see pictures below.

linkage

Flash

Akku Battery

Receiver

Regler ESC

Seitenflosse / Vertical stabilizer

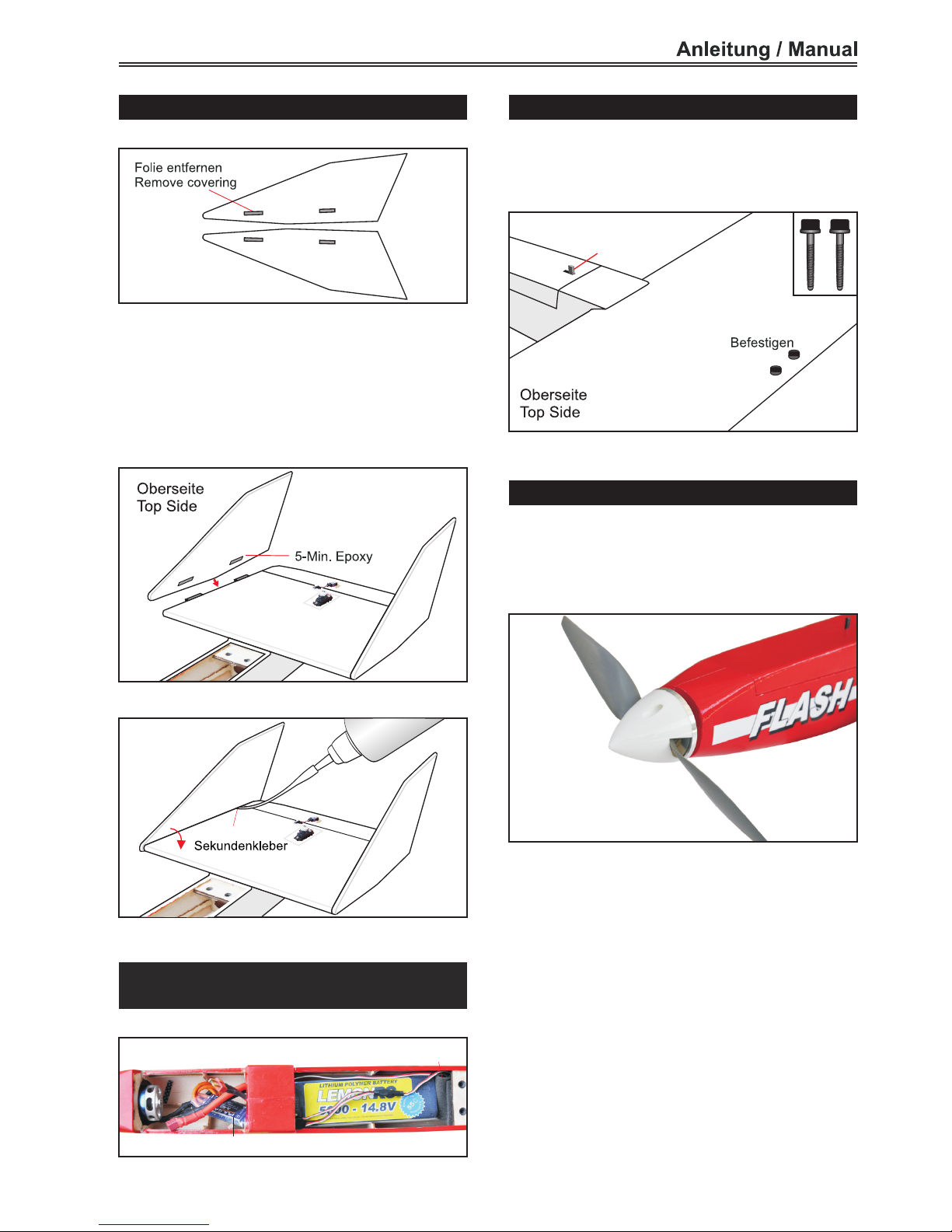

Using a modeling knife, remove the covering on the slot

of the vertical stabilizer. Mix up a generous amount of

30 minute epoxy. Apply a thin layer to the slot in the

vertical stabilizer. Slide the vertical stabilize into the

mounting platform of the horizontal stabilize. Using a

triangle, check to ensure that the vertical stabilizer is

aligned 90 degree to the horizontal.

Attach into the fuselage.

in position.

the wing Screw the wing panel

Secure

Open and close

Install the spinner backplate, propeller and spinner

cone. The spinner cone is held in place using two

3mm x 15 mm machine screws.

Receiver, ESC And Battery

Empfänger, Regler und Akku

Tragflächen / Main Wings

Spinner

1. A/B Epoxy glue

2. Push in

90 C/A glue.

Flash

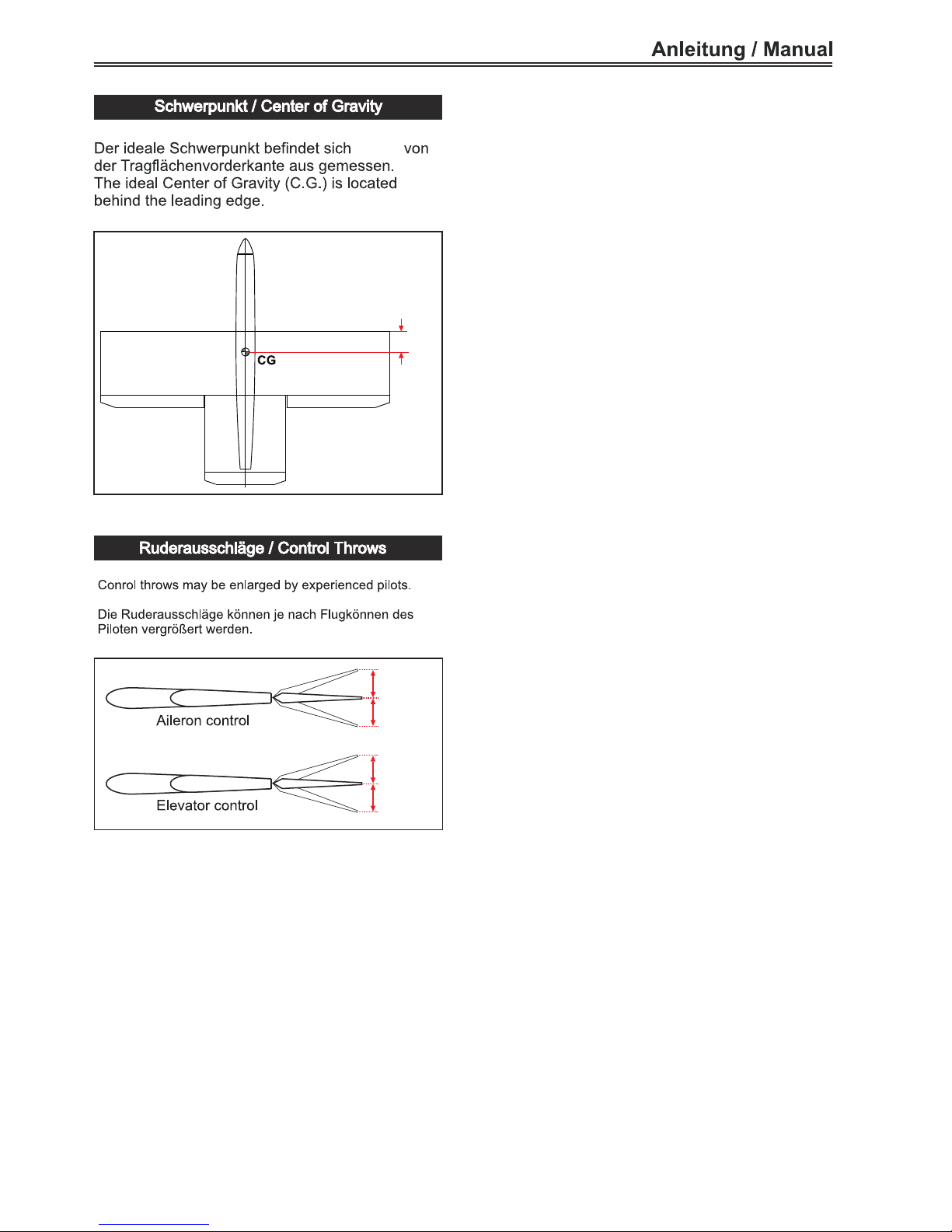

10 mm

7 mm

65mm

www.pichler-modellbau.de
