Phonic Ear Detect Door Manuel utilisateur
wireless doorbell
other resources online at www.phonicear.dk
© 2004 Phonic Ear A/S 921-03-010-00/Rev. A 0105
Your local representative:
international: +45 3917 7101
u.s.: 800.227.0735, then press 7 • canada: 800.263.8700
website: www.phonicear.dk
GB user guide
DETECT DOOR function . . . . . . . . . . . . . . . . . . . . . . . . . . 1
DETECT DOOR features. . . . . . . . . . . . . . . . . . . . . . . . . . . 2
DETECT DOOR instructions. . . . . . . . . . . . . . . . . . . . . . . . 7
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Test and approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
table of contents
2
1push button
To activate the unit
5input connector
To interface to existing
doorbell installation
2status light
To indicate that unit is
transmitting
DETECT DOOR features
English
3alarm selector
To select alarm pattern
1
DETECT DOOR function
DETECT DOOR is one of the PUZZLE system’s alerting transmitters.
It functions as a wireless doorbell that connects to the existing
doorbell installation and replaces the standard push button
outside the door.
When a visitor pushes the DETECT DOOR button, a wireless
alarm signal is sent to the PUZZLE system's receiver. DETECT
DOOR works with the following receivers in the PUZZLE system:
CALL, FLASH, WAKE, POCKETVIB, LOOP, BEAM, and LINK.
6fail indicator
Indicates if the wire to
the existing doorbell is
not correctly installed
7battery
compartment
8 battery
Lithium type ½ AA,
3.6V
4 channel selector
To select personal code 9 mounting holes
English

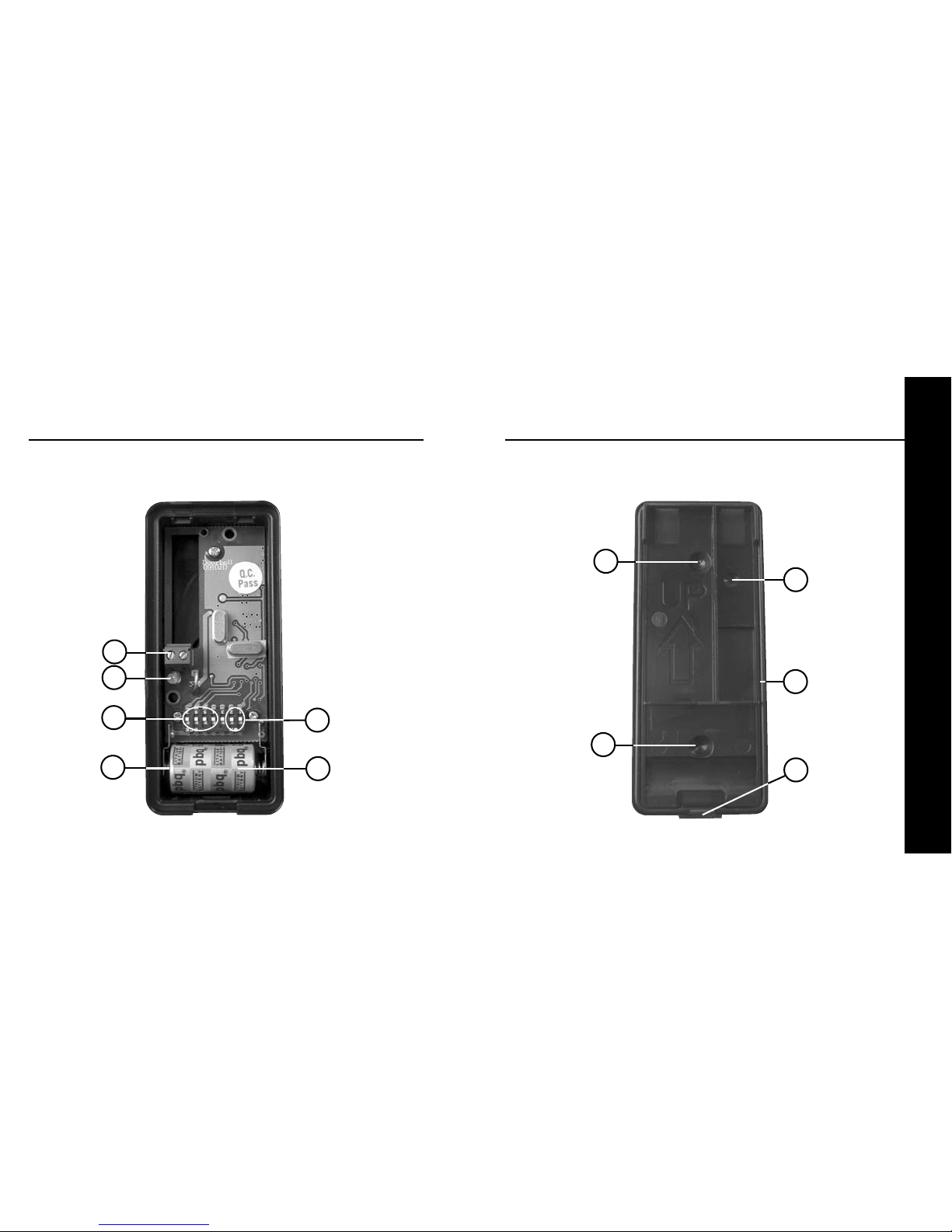

DETECT DOOR features DETECT DOOR features
34
1
front
11 disassembly nub
12 gasket
To keep it water
resistant
2
13
10 wire hole
For wire to existing
doorbell installation
13 screwdriver
English
DETECT DOOR features DETECT DOOR features
9
6
10
7
5
11
9
8
front from the inside back from the inside
56
34
12
English
7
DETECT DOOR instructions
preparation

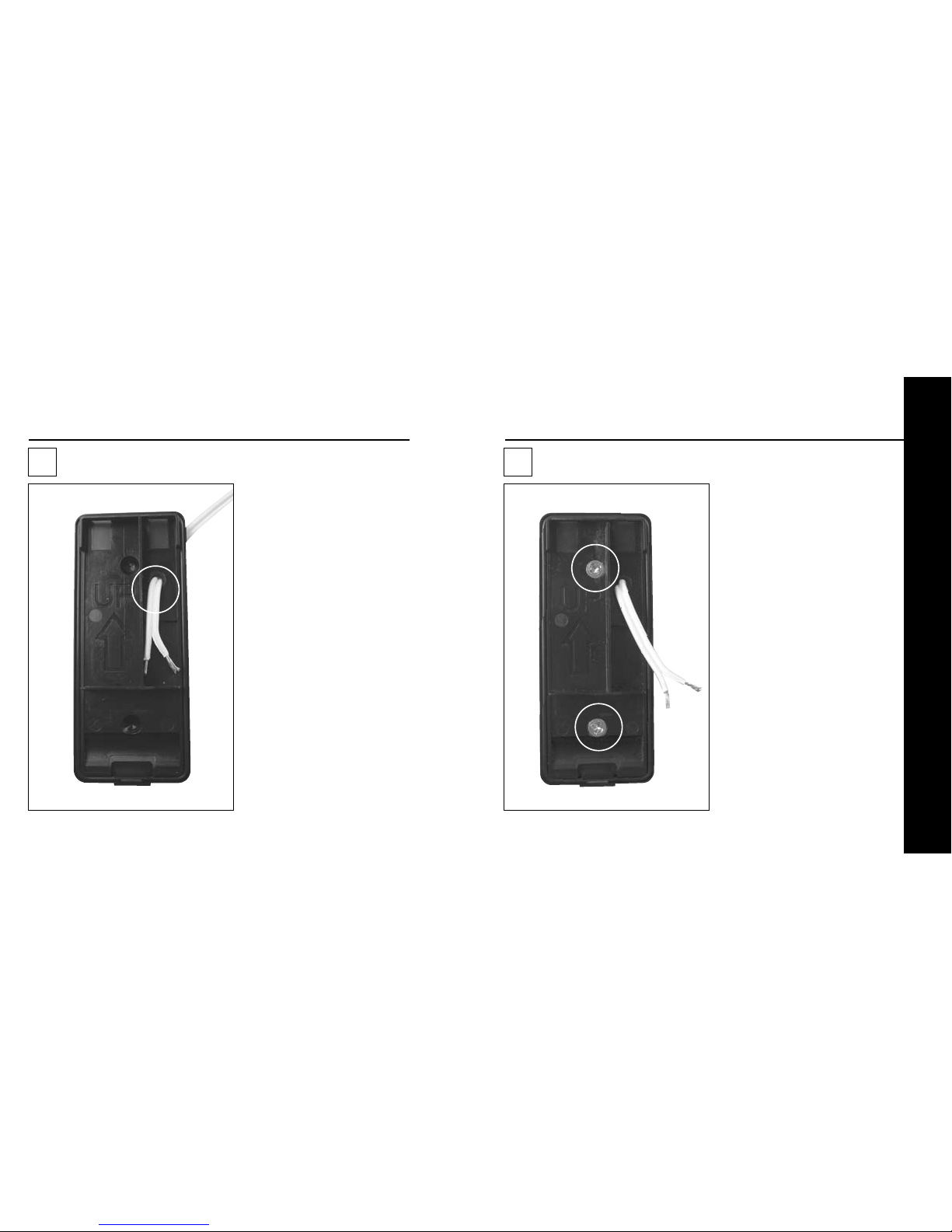

Screw the back of
DETECT DOOR into
desired position using
the two mounting
holes.
1b
DETECT DOOR instructions
preparation
Disassemble your DETECT
DOOR by lifting the bot-
tom end of the front part
while pushing the
release nub with the
screwdriver.
If DETECT DOOR connects
to an existing doorbell
installation remove exist-
ing doorbell plate. Then
push out the material in
the wire hole of DETECT
DOOR using the screw-
driver. Run the wires
through the hole. Other-
wise leave the material in
the wire hole in place.
1a
8
10
English
DETECT DOOR instructions
install battery

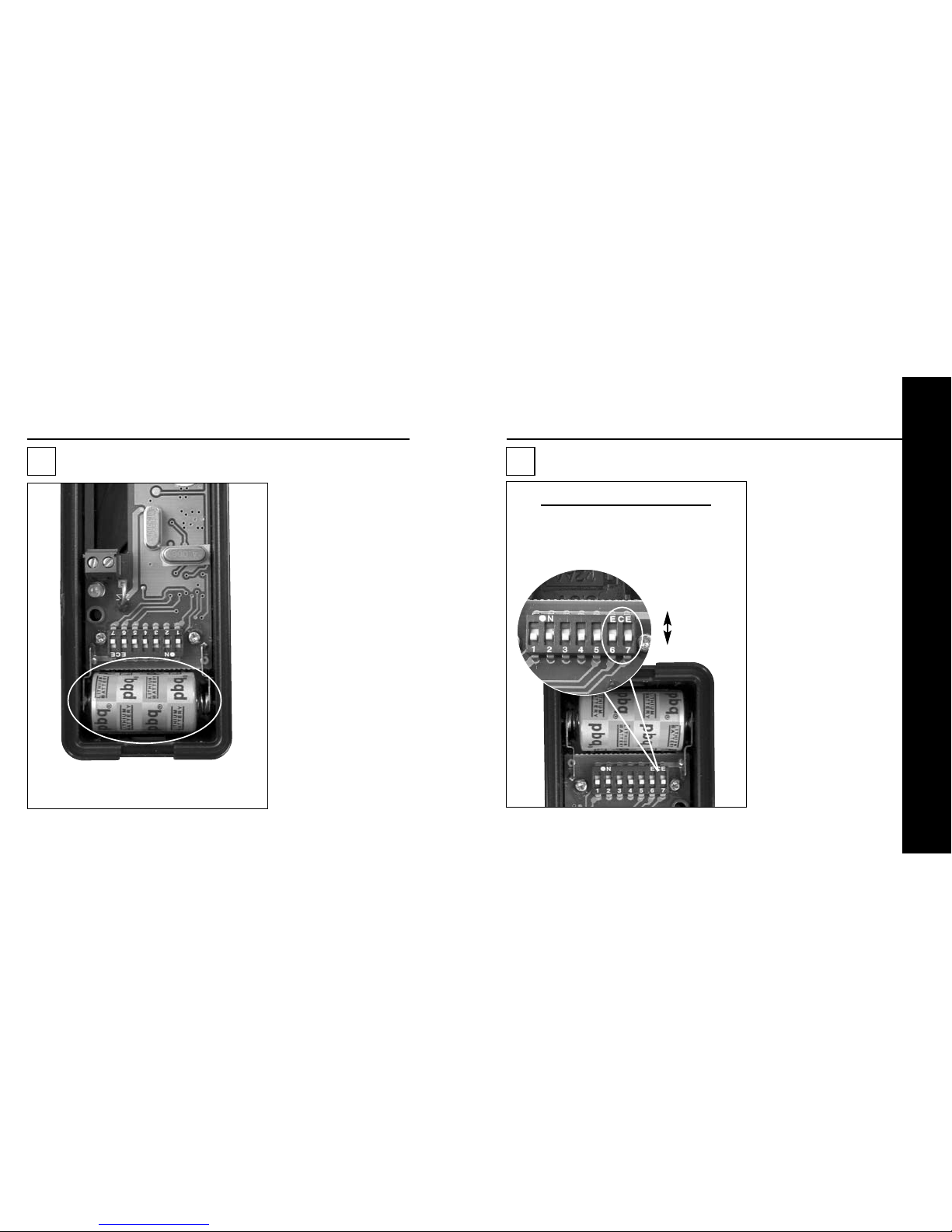

Install the battery
into the battery
compartment,
being sure to orient
the battery accord-
ing to the symbols.
2
9
DETECT DOOR instructions
select alarm pattern
3a
Alarm patterns that
DETECT DOOR sends
to the PUZZLE sys-
tem's receivers are
selected with pin 6
and 7 (see table).
Setting a distinctive
pattern for your
DETECT DOOR will
help you distinguish
the arrival of a visi-
tor from other alerts
you may have set up
PUZZLE transmitters
to detect.
on
off
Pattern Pin 6 Pin 7
2
3
6
7
on
on
off
off
on
off
on
off
on
off
English
DETECT DOOR instructions
select alarm pattern
3b
If you select e.g. alarm
pattern 2 for the
DETECT DOOR at the
front door then you
should select alarm
pattern 3 for the
DETECT DOOR at the
back door, and so on.
As each DETECT DOOR
has its own alarm pat-
tern you can become
familiar with the dif-
ferent patterns.
NOTE: Use the screwdriver included
with DETECT DOOR to change the
position of the pins.
DETECT DOOR instructions
12
11
select personal code

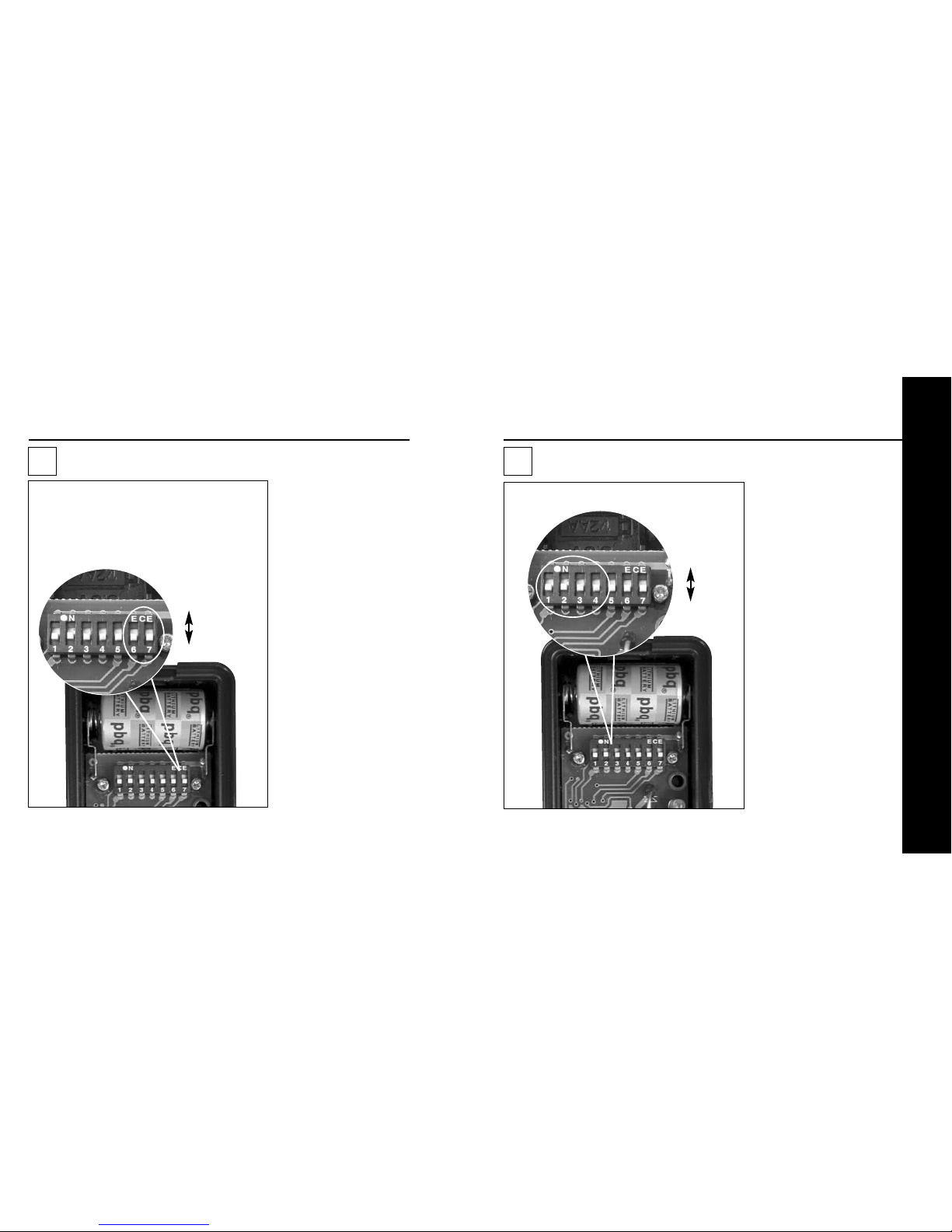

Personal code is
selected by the pins
1, 2, 3, 4 according
to the table on page
13.
4a
NOTE: The PUZZLE
system's different
receivers should be set
to the same personal
code.
NOTE: Use the
screwdriver included
with DETECT DOOR
to change the position
of the pins.
on
off
NOTE: Patterns 1, 4,
and 5 are available
with other PUZZLE
transmitters.
English
14
DETECT DOOR instructions
13
DETECT DOOR instructions
select personal code
4b
Code Pin 1 Pin 2 Pin 3 Pin 4
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Off
Off
Off
Off
Off
Off
Off
Off
On
On
On
On
On
On
On
On
Off
Off
Off
Off
On
On
On
On
Off
Off
Off
Off
On
On
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
Off
On
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On
Off
On

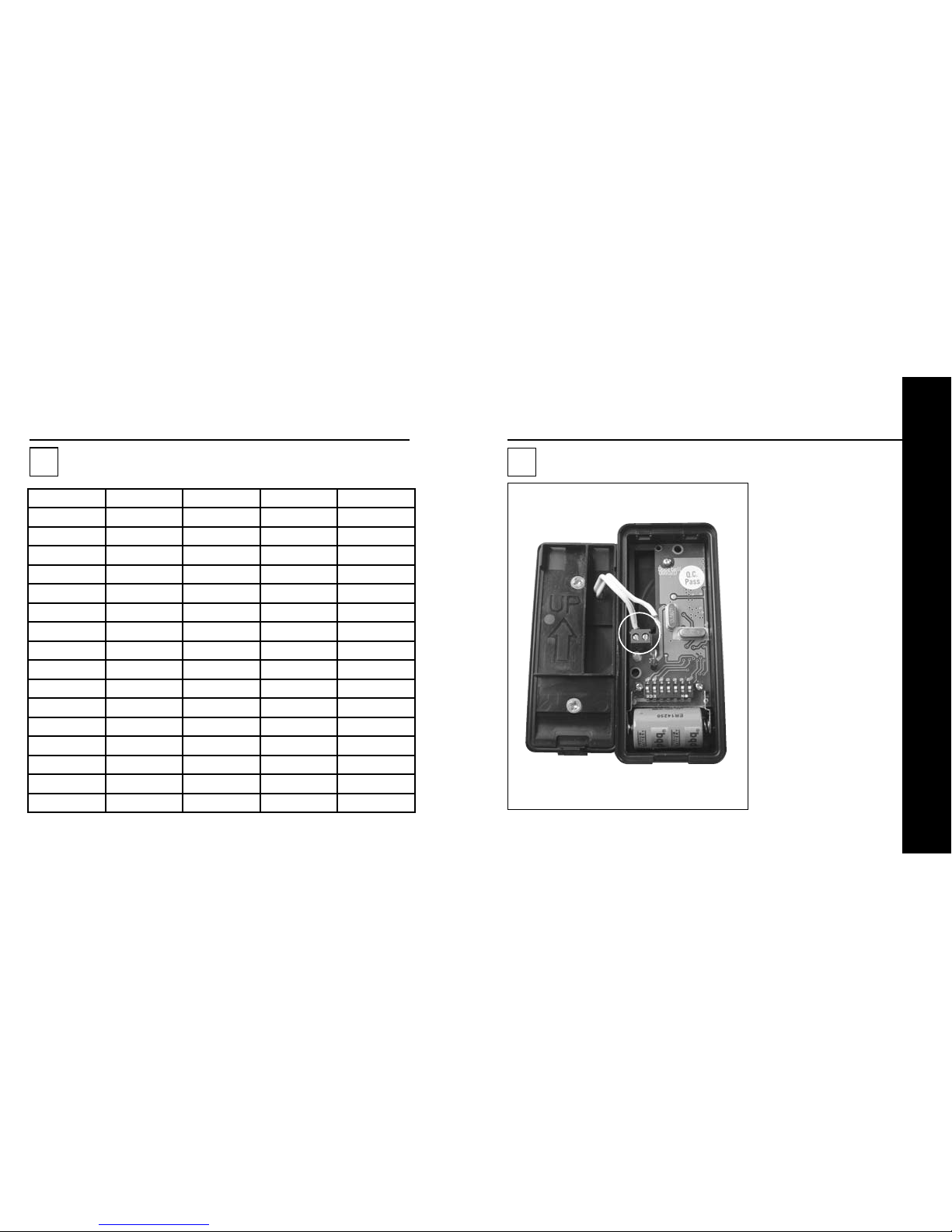

connect existing doorbell
Cut the wire from
the existing doorbell
installation to
approximately 5cm
length and remove
3mm of insulation
from each of the
two wires. Insert
one of the two wires
into one of the
input connector
holes. Firmly tight-
en the screw to
secure the wire.
5a
