Phoenix Model Classic Manuel utilisateur

Instruction Manual

All wood construction.

95% almost ready to fly.

All accessories are included.

Most parts are cut by laser machine.

Easy to assemble and easy to prepair.

Pre-covered and decorated

with real iron - on film.

144.5 cm

(56.9 in)

2250 gr

(4.95 lbs)

114.5 cm

(45.1 in)

40 - 46

two stroke

4 channels

4 servos

KIT CONTENTS

AIR FRAME ASSEMBLIES

(2) Wing

(1) Fuselage

(1) Horizontal

(1) Vertical

(1) Instruction manual

main gear assembly

(2) Main gear

(2) 60mm wheel

(4) Collar

(4) 3mm x 4mm screw

(2) Nylon clasp

(4) 3mm x 12mm screw

nose gear assembly

(1) Nose gear

(1) 60mm wheel

(2) Collar

(2) 3mm x 4mm screw

(1) Steering arm

elevator control system

(1) Clevis

(1) Silicon tube

(1) Nylon clasp

(1) Nylon control horn

(2) 2mm x 16mm screw

(1) 1,7mm x 900mm metal rod

rudder control system

(1) Clevis

(1) Silicon tube

(1) Nylon clasp

(1) Nylon control horn

(2) 2mm x 16mm screw

(1) 1,7mm x 900mm metal rod

aileron control horn

(2) Clevis

(2) Silicon tube

(2) Nylon control horn

(2) Nylon snap keeper

(2) 1,7mm x 300mm metal rod

engine mount

(4) 3mm x 20mm screw

(4) Lock washer

FUel TANK

(1) Fuel tank

(1) Clunk

(1) 110mm silicone tube

(1) Stopper

(1) 80mm x 120mm foam

miscellaneous items

(1) Dihedral

(1) Spinner

(1) Trim tape 25mm x 600mm

(12) Rubber band

(2) 12mm dowel

(1) Wooden servo box

(1) Piece of wood

(1) Metal connector

(1) Servo box

Instruction Manual Classic

KIT CONTENTS: We have organized the parts as they come out of the box for better

identification during assembly. We recommend that you regroup the parts in the same

manner. This will ensure you have all of parts required before you begin assembly.

1 2

3 4

5 6

7 8

Draw a center line. Remove the covering.

Glue the wing joiner to the wing. Apply the epoxy into the wing section.

Glue the wing by epoxy. Apply the trim tape to the center section of the wing where

they join.

Remove the covering. Glue the two hard wood by C.A glue.

Instruction Manual Classic

ng the w

ng halves.

Joining the wing halves.

Installing the aileron servo and linkage.

Center line

910

11 12

13 14

15 16

Mark the shape of the servo box to the wing. Remove the covering.

Glue the servo box by C.A glue. Install and secure the aileron servo.

Install the two nylon control horn. Attach the clevis to the control horn.

Cut away the aileron pushrod. Bend "L" the aileron pushrod.

Instruction Manual Classic

Nylon control horn

Silicon tube

17 18

19 20

22 23

Attach the nylon clasp to the aileron servo arm. Make the same way to install the second aileron pushrod.

Draw a center line. Remove the covering from the fuselage.

Attach the horizontal to the fuselage and check it. Check the horizontal and the wing.

Mark the shape of the fuselage onto the top and bottom of

the horizontal.

Remove the covering from the top and bottom of the

horizontal.

Instruction Manual Classic

nstall

ng the hor

zontal and vert

cal

Installing the horizontal and vertical.

A1 A2

A1 = A2

A1 A2

BB1

AA-1

Center line

24 25

26 27

a1 a2

a1 = a2

29 30

Glue the horizontal and fuselage by epoxy and check it. Cut away the covering from the fuselage.

Mark the shape of the fuselage onto the both side of

the vertical.

Remove the covering from the vertical.

Glue the vertical into the fuselage by epoxy and check it. Check the fin before it dry and remove the wing out of the

fuselage.

The landing gear and nose gear. Install the collar.

Instruction Manual Classic

ng the land

ng gear and nose gear.

Joining the landing gear and nose gear.

Collar

Gear

31 32

33 34

35 36

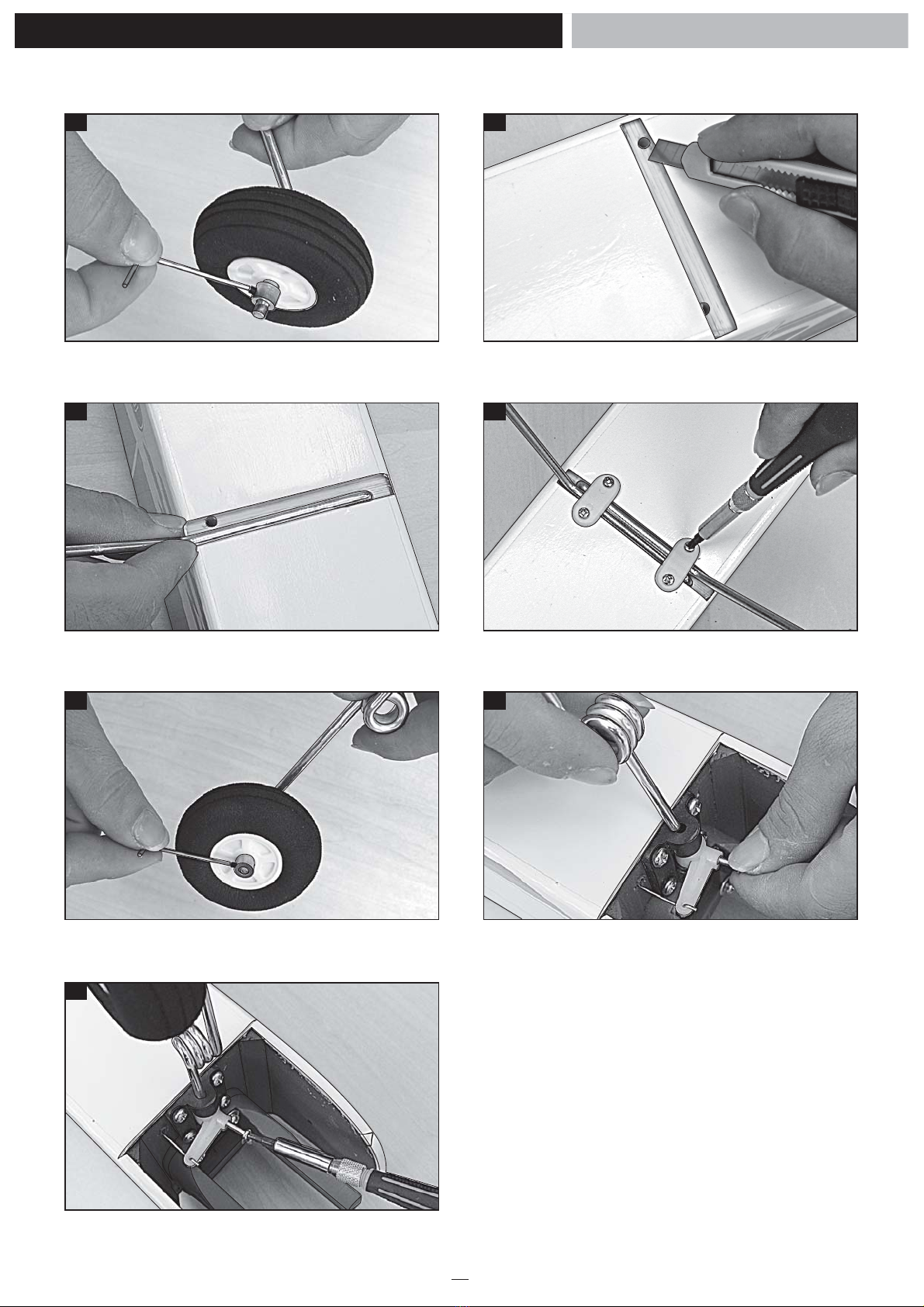

Install the wheel. Cut away the covering on the fuselage.

Install the landing gear. Secure the landing gear.

Install the wheel. Attach the wire pushrod to the steering arm.

Install the nose gear and secure it.

Instruction Manual Classic

38 39

40 41

42 43

44 45

The control horn and pushrod. Insert the silicon tube to the clevis of the rudder pushrod.

Remove the covering. Insert the ruder pushrod into the fuselage.

Install the nylon control horn. Attach the clevis to the control horn.

Install the rudder servo. Install the metal connector to the servo arm.

Instruction Manual Classic

nstall

ng the rudder and elevator pushrod

Installing the rudder and elevator pushrod.

Silicon tube

Control horn

Clevis

Control horn

46 47

48 49

50 51

52 53

Connect the rudder pushrod and the nose gear pushrod to

the rudder servo.

Secure the nose gear pushrod.

Cut away the rudder pushrod. Bend "L" the rudder pushrod.

Attach the nylon clasp to the servo arm. Remove the covering from the slot.

Insert the elevator pushrod into the fuselage. Install the control horn.

Instruction Manual Classic

54 55

56 57

59 60

Attach the clevis to the control horn. Install the elevator servo.

Cut away the elevator pushrod. Bend "L" the elevator pushrod.

Attach the nylon clasp to the servo arm.

Cut away the fuel tube. Install the stopper to the tank.

Instruction Manual Classic

Install

ng the

uel tank.

Installing the fuel tank.

5mm
