Phoenix Mecano OKIN Refined RF3017A Manuel utilisateur
Issue Department：Bedding Division Date：2017-8-15
System Instruction Author：
Instruction of RF3017A
Edition：1.1
Page 1 of 5
1/6
Instruction of
RF3017A

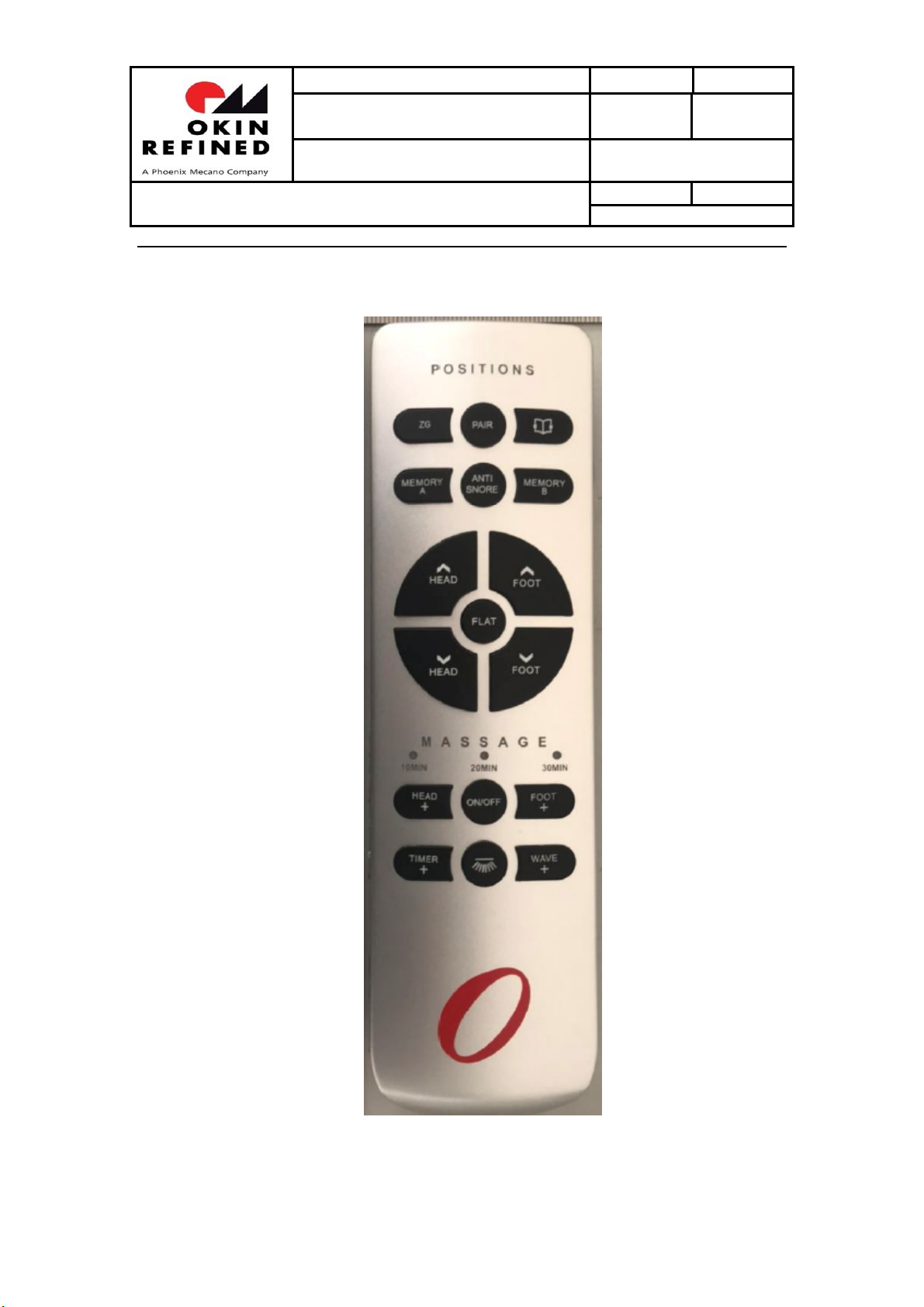

Figure1buttonofremote
button 1 button3
button 4button 6
button 7button 8
button 9
button 11
button 10
button 13
button 12 button 14
button 15button 16
button 17
Issue Department：Bedding Division Date：2017-8-15
System Instruction Author：
Instruction of RF3017A
Edition：1.1
Page 2 of 5
2/6
Item
1.1 ZG button（button 1 in figure 1）
Click the ZG button, the actuator moves to ZG position, stop when click any button during the
movement;
Press and hold the ZG button for 5s, timer LED of remote flashes, the control box records
current position as ZG position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.2 AntiSnore button（button 3 in figure 1）
Click
AntiSnore
button, actuators move to
AntiSnore
position, stop when click any button
during movement；
Press and hold
AntiSnore
button for 5s, timer LED of remote flashes, the control box records
current position as
AntiSnore
position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.3 TV/PC button（button 4 in figure 1）
Click
TV/PC
button, actuators move to
TV/PC
position, stop when click any button during
movement；
Press and hold
TV/PC
button for 5s, timer LED of remote flashes, the control box records
current position as
TV/PC
position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.4 LOUNGE button（button 6 in figure 1）
Click
LOUNGE
button, actuators move to
LOUNGE
position, stop when click any button
during movement；
Press and hold
LOUNGE
button for 5s, timer LED of remote flashes, the control box records
Issue Department：Bedding Division Date：2017-8-15
System Instruction Author：
Instruction of RF3017A
Edition：1.1
Page 3 of 5
3/6
current position as
LOUNGE
position;
When in the process of moving to memory positions, the head and foot actuators move first,
then the tilt and lumbar actuators move;
1.5 Reset all memory positions to default settings（button 1 and 11 in figure 1）
Pressa and hold ZG+FLAT buttons
（button 1 and 16 in figure 2）for
5s, timer LED of
remote flashes, the control box reset all memory positions to default settings；
1.6 Head up（button 7 in figure 1）
Press and hold
HEAD UP button of remote, head actuator moves out, stop when
released
；
1.7 Head down（button 9 in figure 1）
Press and hold HEAD DOWN button of remote, head actuator moves in, stop when released；
1.8 Foot up（button 8 in figure 1）
Pressa and hold FOOT UP button of remote, foot actuator moves out, stop when released;
1.9 foot down（button 10 in figure 1）
Press and hold FOOT DOWN button of remote, foot actuator moves in , stop when released；
When moving to flat position, lumbar actuator and tilt actuator move first, after 500ms, head and
foot actuators start moving;
1.10 Flat（button 11 in figure 1）
Click FLAT button, the bed goes flat, stop when click any button during the process of going
flat；
Issue Department：Bedding Division Date：2017-8-15
System Instruction Author：
Instruction of RF3017A
Edition：1.1
Page 4 of 5
4/6
1.11 Massage head（button 12 in figure 1）
Click MASSAGE HEAD button, head massage motor switches massage intensity, massage
intensityswitches among 0-1-2-3；
1.12 Massage timer（button 13 in figure 1）
If the massage motors do not work, the button is invalid, if the massage motors work, click the
button to switch the massage time, when massage time switch to 0, turn off the massage;
1.13 Massage ON/OFF（button 15 in figure 1）
Click
Massage ON/OFF
button, if the massage motors are on, then it turns off massage
motors,if massage motors are off, then it turns on the massage motors;
1.14 Under bed light（button 16 in figure 1）
Click the under bed light button, the under bed light switch its on/off state; After the under bed
light opens, if do not manually close, it will automatically turn off after 5 minutes;
1.15 Massage Type（button 17 in figure 1）
Click massage type button, to switch the massage mode og massage motors, massage mode
switches among type0type1type2type3type0; this button can only switch the massage
mode, it can not open massage motors；
Issue Department：Bedding Division Date：2017-8-15
System Instruction Author：
Instruction of RF3017A
Edition：1.1
Page 5 of 5
5/6
FCC Warning：
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
ISED RSS Warning:
This device complies with Innovation, Science and Economic Development Canada licence-
exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radioexempts de
licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
ISED RF exposure statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment.The device has been evaluated to meet general RF exposure requirement.
Le matériel est conforme aux limites de dose d'exposition aux rayonnements énoncés pour fac un
autre environnement.ce dispositif a été évalué à satisfaire l'exigence générale de l'exposition aux
rf.
2 0 1 7 .0 7 .3 1 John
B.15227 B.15226
CB.13.22.01
R5.113.00.011
R5.504.01.250
JLDP.10.023.000
JLDP.14.027.000
JLDP.05.032.000
R5.216.01.015C

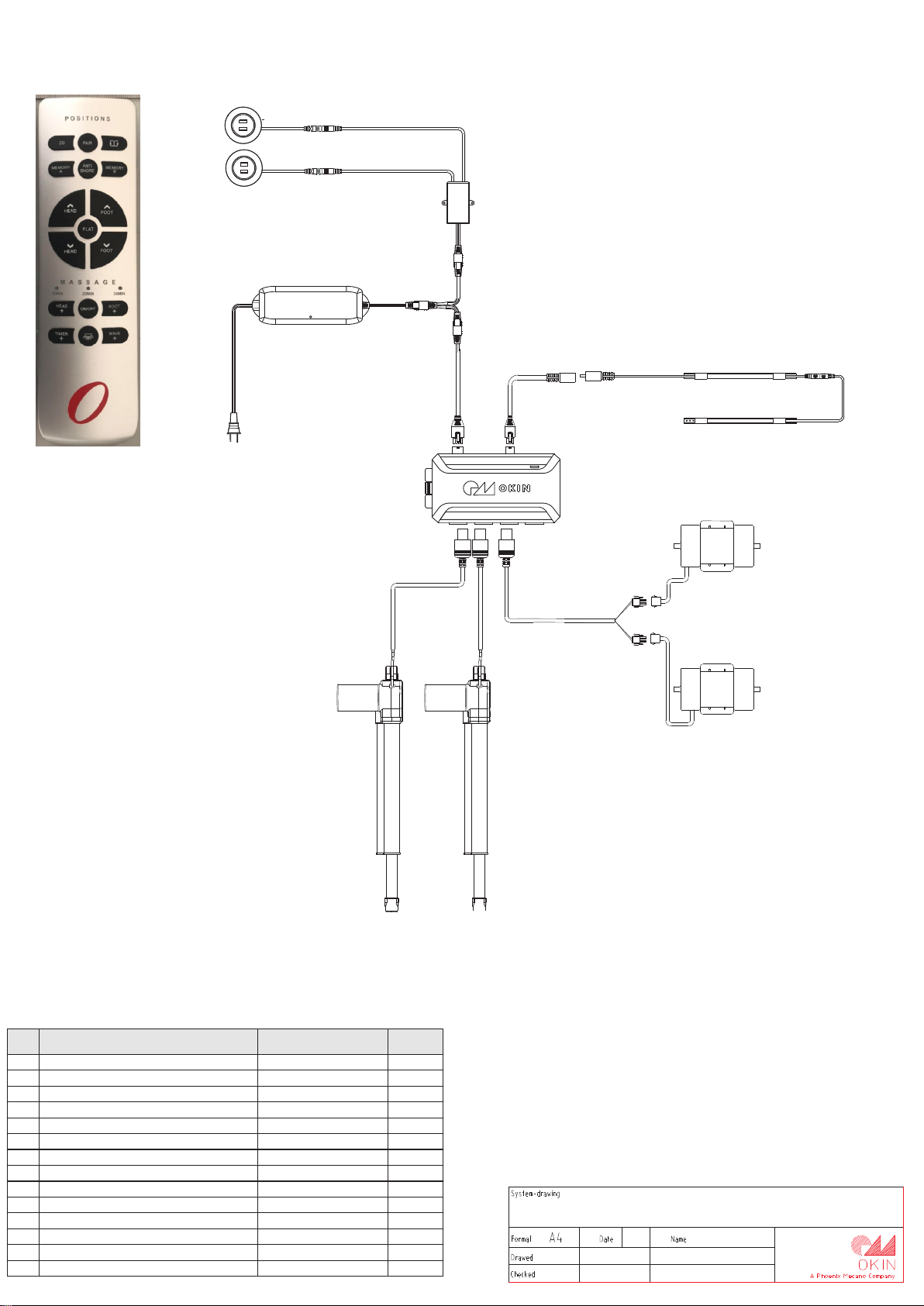

NO.
Product name Product code number
1
Head Motor
B.15227 1
2
Foot Motor
B.15226 1
3
Massage Motor
JLDQ.9.001.130C 2
4
Massage Motor Cable
R5.410.01.009 1
5
Control Box
CB.13.22.01 1
6
Power Supply
JLDP.10.023.000 1
7
Power Cord
R5.217.01.016 1
8
ANSI power cord
R5.504.01.250 1
9
Y cable
R5.216.01.015C 1
10
Patch cord of LED strip
R5.413.01.005 1
11
LED strip/ LED
R5.113.00.011 1
12
USB Socket/USB
JLDP.05.032.000 1
13
Double USB Chager
JLDP.14.027.000 2
14
19Keys remote RF3017A
1
R5.413.01.005
R5.217.01.016
RF3017A
JLDQ.9.001.130C
R5.410.01.009
6/6
FCC ID: PCU-RF3017A
IC:21319-RF3017A
FCC ID: PCU-CB1322
IC:21319-CB1322
