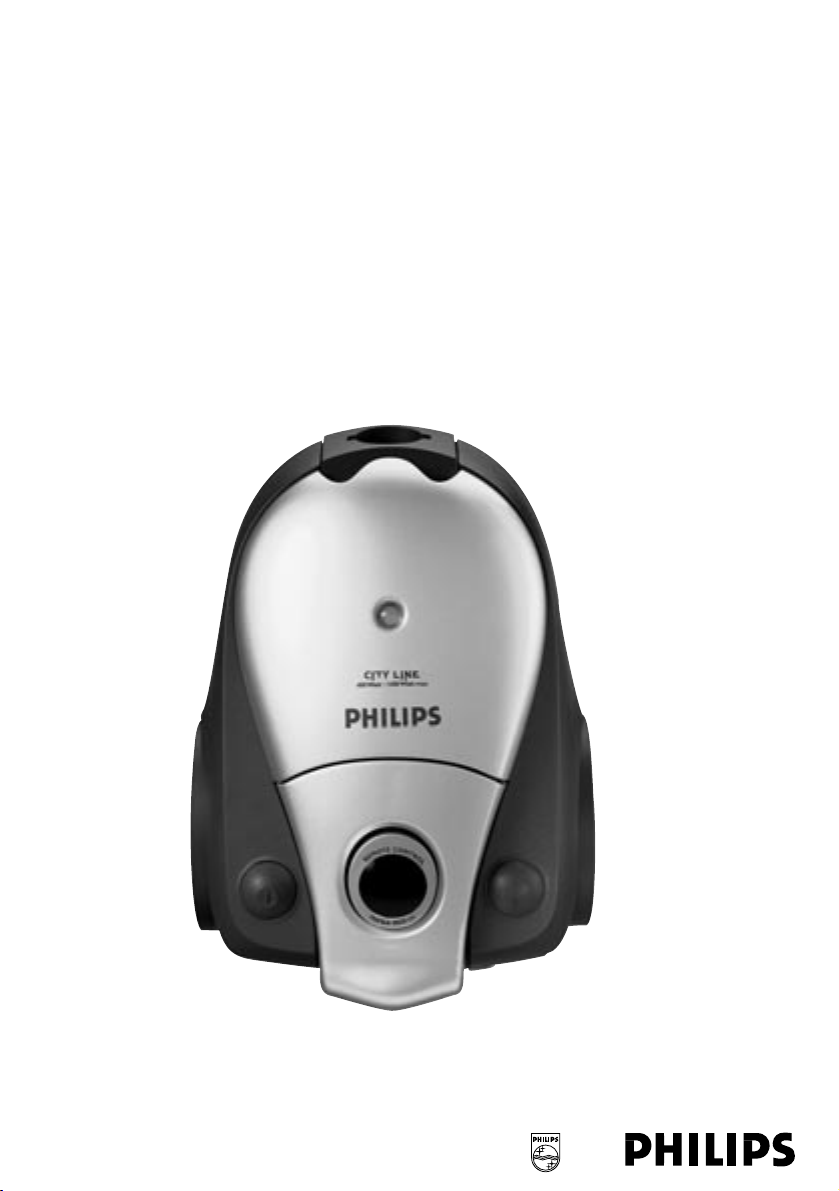

Philips HR8378/07 Manuel utilisateur

City line Infrared remote control

ENGLISH 4
DEUTSCH 12
FRANÇAIS 21
NEDERLANDS 29
ESPAÑOL 38
ITALIANO 47
PORTUGUÊS 56
NORSK 65
SVENSKA 74
SUOMI 82
DANSK 91
 99
TÜRKÇE 108
CITY LINE
3

Important

◗Only use Philips s-bag`double-layer paper dustbags (FC 8021) or

Philips Sydney+ double-layer paper dustbags (type HR 6999

Sydney+).

◗Check if the dustbag has been placed correctly.

◗Never use the vacuum cleaner to suck up water or any other

liquid. Never pick up ashes until they are cold.

◗When the vacuum cleaner is used to suck up fine dust, the pores

of the dustbag may become clogged, causing the passage of air

through the dustbag to become obstructed.As a result, the

dustbag-full indicator will indicate that the dustbag needs to be

replaced, even though the dustbag is not full at all.

◗Never use the appliance without the Motor Protection Filter.This

could damage the motor and shorten the life of the appliance.

◗The infrared remote control on the handgrip contains electronic

components.

To avoid defects, never clean this part with water.

Connecting accessories

C◗To connect the hose to the appliance, push it into the appliance

and turn it clockwise.

To disconnect the hose from the appliance, turn it anticlockwise and

pull it out of the appliance.

Conical coupling

C1To connect the tubes to the handgrip, insert the narrow

section into the wider section while turning it clockwise.The

tube with the clip is the lower tube.

Use the same method to connect the accessories to the tube.

2To disconnect, turn the tube or the accessories anticlockwise

and pull.

Telescopic tube

C◗Adjust the tube to the length you find most comfortable during

vacuum cleaning.

ENGLISH4

Convertible nozzle

◗The convertible nozzle can be used on either carpets or hard

floors.

1Connect the convertible nozzle to the telescopic tube.

C2Push the rocker switch on top of the convertible nozzle with

your foot to make the brush strip for cleaning hard floors

come out of the nozzle housing.

C3Push the rocker switch again to make brush strip disappear

into the convertible nozzle housing again.

Crevice nozzle, brush nozzle and small nozzle

The crevice nozzle can be used either for cleaning narrow corners or

hard-to-reach places.

C1Lift the handle on the vacuum cleaner to gain access to the

accessory storage compartment.

2Connect the crevice nozzle to the tube or directly to the

handgrip.

C3The brush nozzle can be used for cleaning computers,

bookshelves etc.

C4The small nozzle can be used for vacuum cleaning small areas,

e.g. the seats of chairs and sofas.

ENGLISH 5

Vacuum cleaning

C1Pull the cord out of the appliance and put the mains plug in the

wall socket.

C2Switch the appliance on by pushing the on/off button on top of

the appliance with your foot.

C3To carry the appliance, put the handle in upright position and

lift the appliance by the handle.

Adjusting suction power

◗This appliance is equipped with an infrared remote control.

C1With the infrared remote control you can set the suction

power to one of 5 different suction power settings.When you

switch the appliance on, it will always start running at the

highest suction power setting.

C2By pushing the - button, you will reduce the suction power by

one setting.

ENGLISH6

C3By pushing the + button, you will increase the suction power

by one setting.

C4Push the standby button to temporarily switch the vacuum

cleaner off, for instance when you have to move some

furniture.

5To continue vacuum cleaning, simply press the - button or the

+ button.The appliance will start operating at the previously

selected suction power setting again.

Storage

1Switch the appliance off.

2Remove the mains plug from the wall socket.

C3Rewind the mains cord by pressing the cord rewind button.

C4Put the appliance in upright position and attach the lower tube

to the appliance by means of the clip.

◗The height of the clip can be adjusted by sliding it along the tube.

Replacing the dustbag

◗Replace the dustbag as soon as the "dustbag-full indicator" changes

colour (when the nozzle is not placed on the floor).

1Switch the appliance off.

C2Open the cover.

ENGLISH 7

C3Push the dustbag holder backwards.

C4Remove the full dustbag from the holder by pulling the

cardboard tag.

When you do this, the dustbag will be automatically sealed.

C5Slide the cardboard front of the new dustbag into the two

grooves of the dustbag holder. Press it down as far as possible.

C6Pull the dustbag holder forwards (you will hear a click).

You cannot close the cover if no dustbag has been inserted.

Replacing filters

Motor Protection Filter

1Replace the Motor Protection Filter when you insert the first

of a new set of dustbags or once a year.

C2Insert the filter into the appliance with the white side facing

upwards.

ENGLISH8

AFS Micro Filter

The AFS Micro Filter in this appliance will remove a large part of the

smallest particles from the exhaust air by means of its electrostatically

charged fibres.

C1Replace the AFS Micro Filter when you insert the first of a new

set of dustbags or once a year.

C2Place the sides and the bottom edge of the new filter properly

behind the ridges of the holder.

3Make sure the filter has been properly inserted into the holder

before you close the filter holder.

ACF-S Combi Filter (specific types only)

Some appliances are equipped with an ACF-S Combi Filter.This filter

not only removes household dust, but also harmful microscopic vermin.

It also absorbs 80% of all unpleasant smells.

1Replace the ACF-S Combi Filter at least once a year.

C2Open the filter grille.

C3Push both catches sideward and remove the filter.

C4Place the new filter with its white side pointing towards the

appliance. Make sure that the Philips logo on the filter is visible

and in the upper right-hand corner.

ENGLISH 9

C5Secure the filter by pushing the catches home and close the

filter grille.

Ordering dustbags and filters

Philips s-bag`paper dustbags are available under type number FC

8021. Philips s-bag`dustbags are the most suitable dustbag for your

vacuum cleaner.

If S-bag dustbags are not available, you can also use Philips Sydney+

paper dustbags in your vacuum cleaner. Sydney+ dustbags are available

under type number HR 6999.

When buying Sydney+ dustbags, be sure to check the presence of the

"+" indication and check whether your vacuum cleaner type is shown

on the back of the box. Sydney dustbags without the "+" indication are

not suitable for your vacuum cleaner.

The recommended dustbags fit a variety of Philips vacuum cleaners.

For compact vacuum cleaners like the City Line or the Impact, this

means that the dustbags will not be filled to their maximum capacity, as

the capacity of the dust compartment is smaller than that of the

dustbag. However, this does not prevent your vacuum cleaner from

functioning optimally.

Two AFS Micro Filters and one Motor Protection Filter are available

under type number FC 8032.

ACF-S Combi Filters are available under type number HR 6998.

If you have any difficulties obtaining dustbags, filters or other accessories

for this appliance, please contact the Philips Helpdesk.

See the worldwide guarantee leaflet for telephone numbers of the

Philips Helpdesk.

Environment

To make recycling possible, the plastics used for this appliance have

been coded.

The cardboard packaging has been made of recycled material and is

fully recyclable.

ENGLISH10
