ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9228

06/07

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Emperor red

- Power consumption : 1800 W

(IEC) 230V

- Maximum Air displacement : 37 l/s

- Vacuum : 285 mbar / 28.5 kPa

- Duststorage capacity : 2 L

- Cord length : 7 m

- Motor : Infrared remote controlled

- Fiter system : HEPA cyclone-filtration

auto-clean system

: Permanent motor

protection filter

: Ultra Clean Air

HEPA13 exhaust filter

- Dimensions of cleaner : 470 x 320 x 340 mm

- Dimensions of packaging : 590 x 390 x 380 mm

- Net weight : 7.2 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Additional Nozzle : Super parquet nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Brush, crevice nozzle and

small nozzle

- Accessory storage : Active accessory storage bridge in

handgrip

- Coupling : Button coupling

OPTIONAL (accessories)

- FC 8030 : Super Clean Air filter, High-Flow

AFS exhaust filter

- FC 8031 : Super Clean Air HEPA filter,

HEPA12 exhaust filter

FC9228

- To open the appliance, first remove the filter cover

(item 33).

- Then remove the hinge;

first remove the end caps

(item 17) this can be done

with a screwdriver, see

picture.

When the end caps are removed, the hinging pin can be

removed and the hinge can be taken off the appliance.

- Remove the can with the filters.

- Now remove the drive coupling (item 13) by turning it

clockwise.

- To remove the housing (10 screws), for some screws you

will require a screwdriver with 14.5 cm long shrank.

Screwdriver 4322 009 08490 for T15 can be used.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver no.

T10, which is one of a set consisting of T20; T15; T10; T9;

T8; T7 and T6 (code number 4822 395 50145)

Further disassembly advise for the hinge:

- First remove the 2 screws (A) underneath the handle to

remove the hinge back (item 2)

- The user panel can be removed after removing the screw (B)

in the middle of the hinge on the inside.

- PCB can be removed.

- Choke valve can be taken out.

- To remove the sealing disk and the detector with the spring

you have to remove the 2 screws (C) next to the sealing

disk.

REPAIR INSTRUCTION

- Due to precisely pre-adjusted belt-tension, rattle drive unit

(item 27) may only be replaced as a complete unit.

Do not disassemble this unit in any way!

- If the reel half spring unit is replaced, shaft (K) must be

lubricated with silicone grease. Do not apply any silicone

grease to or spill any grease on terminals (item 50) or

conductors (item 51).

- The cord winder spring must be tensioned to the maximum

level and the be rewound approx 1.5 turn.

- Item 9, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

ELECTRICAL DIAGRAM

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

Blue

Black

Red

Brown

Blue

Black

Red

Brown

RATTLE

DRIVE

MOTOR

Black

Brown

CORD

WINDER

TRANSMITTER

MOTOR

POWER

MODULE

2-7

FC9228

PARTS LIST

3-7

Pos Service code Description

4322 009 09660

4322 005 20500

4322 005 20530

4322 003 27010

4322 006 22990

4322 003 28120

4322 005 19690

4322 005 20480

4322 001 73370

4322 005 19760

4322 005 19600

4322 005 19650

4322 003 26980

4322 005 21080

4322 003 25310

4322 005 20450

4322 000 38800

4322 003 27060

4322 003 26870

4322 000 09750

4322 006 07540

4322 001 73550

4322 003 27620

4322 003 28920

4322 005 19570

4322 003 25000

4322 003 26890

4322 003 26900

4322 003 27560

4322 005 17510

4322 005 21020

4322 004 92990

4322 001 73460

Handle assy Emperor red

Hinge back Emperor red

User Panel PR RMC assy

Light Guide

PCB 220-240V 50/60Hz IR

Choke valve cap

Choke valve

Hinge front Emperor red

Bucket sealing

Detector assy

Drive coupling

Permanent rattle ﬁlter assy

Tower assy Bright Lime

Bucket assy Emperor red

End caps s. grey

Upper housing Emperor red

Motor inlet ﬁlter

Inlet sealing air channel

Air channel Dark Raven

Pedal spring

Wire Beam Assy

Rubber bump

Backpanel Dark Raven

PCB Lock

Rattle drive unit assy

Bumper grey

Bucket hook left Dark Raven

Bucket hook right Dark Raven

Lower housing Dark Raven

Caster assy

Filter cover assy Emperor red

HEPA 13 ﬁlter heat res.

Exhaust sealing

Pos Service code Description

4322 000 38790

4322 003 25460

4322 000 38670

4322 000 38770

4322 003 27610

4322 003 25390

4322 003 27580

4322 001 73440

4322 009 09430

4322 000 38820

4322 003 26030

4322 001 73520

4322 003 25370

4322 005 18670

4322 005 17430

4322 005 17910

4322 006 07410

4322 006 07390

4322 003 25520

4322 005 17570

4322 009 09670

4322 007 31640

4322 004 22510

4322 001 99120

4322 007 45550

4341 004 20510

4322 003 25560

4322 005 17590

4341 004 20490

4322 004 23260

4322 005 11040

8838 041 01010

4322 004 20110

4322 005 20330

4322 003 19420

Silencer 4 wall backpanel

S-Class h. sealing

Silencer 1 wall

Silencer 2 bottom

Cord Outlet Dark Raven

Inlet sealing 1

Motor housing top Dark Raven

Motor buffer front

Motor 1761 220-240V Domel

Silencer 3 compas

Motor bracket

Motor buffer back green

Motor housing bottom

Reel half spring unit

Reelh. cordside assy

Contact plate assy

Cordset UK/HK L = 9.3 m

Cordset Euro 4.8mm L = 9.3 m

Curve bend B2

Curve bend a1/conical hose

Curve bend/hose assy IR

Leaf spring assy

Telescopic tube silver

Coupling bush

Coupling spring

Plumeau assy

Crevicle nozzle 140 mm

Accessory bridge assy

Small nozzle

Tri-active nozzle

Polishing disc

Polishing brushes

Super parquet nozzle

IR RMC Send unit

Battery lid

FC9228

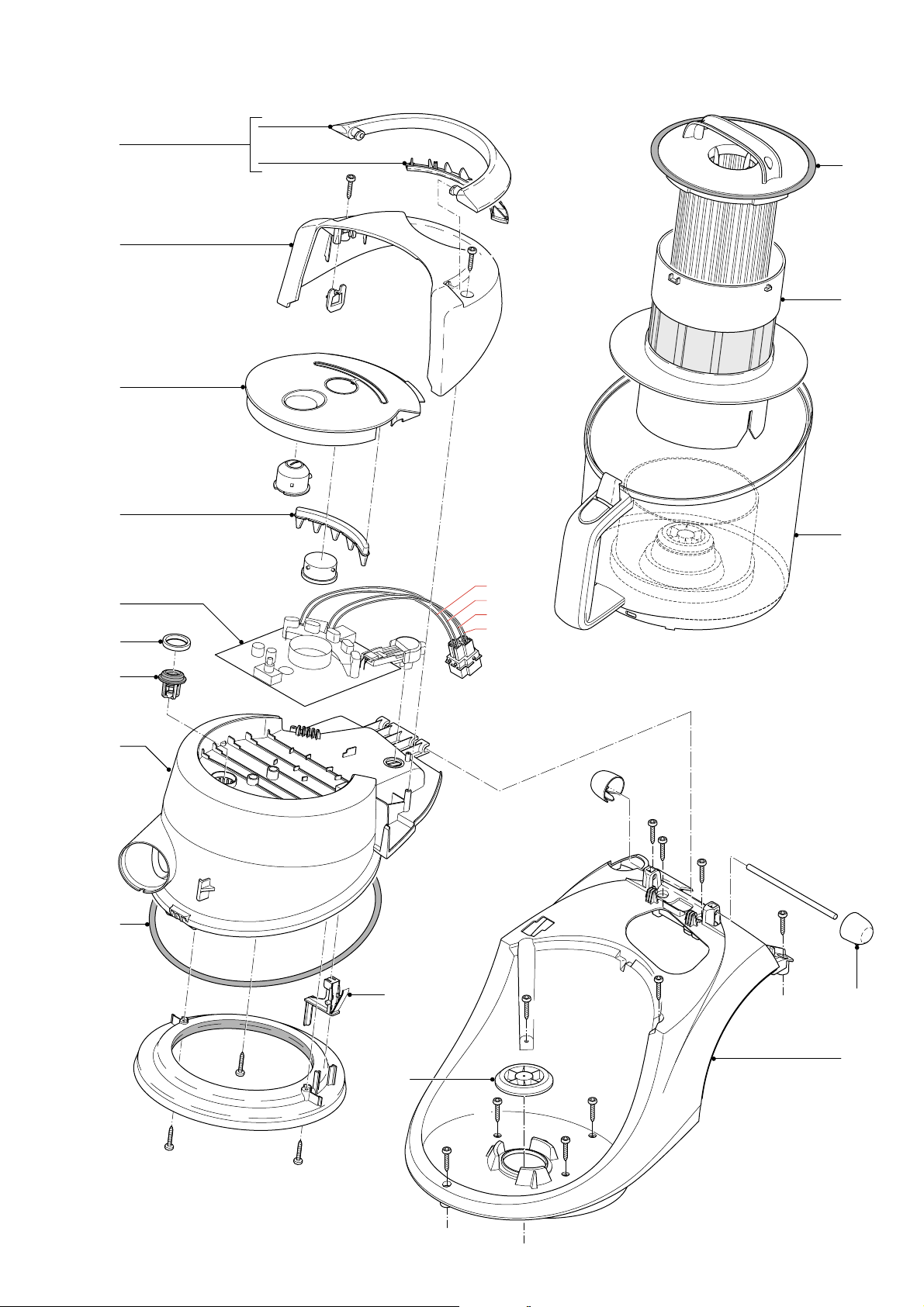

EXPLODED VIEW

Brown

Black

Blue

Red

4-7

FC9228

EXPLODED VIEW

Red

Black

Brown

Red

Brown

Blue

Brown

5-7

FC9228

EXPLODED VIEW

52 53

Black

Blue

Brown

Black

6-7

FC9228

EXPLODED VIEW

Europe Ø 4.8mm 53

Swiss

Italy

52U.K. / H.K.

54 55

7-7
