Philips FC9081 Manuel utilisateur

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9081

09/03

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Pearl Beige/Signal Yellow

- Power consumption : 1800 W (IEC) 230 V

- Maximum Air displacement : 40 l/s

- Vacuum : 30 kPa

- Duststorage capacity : 3 L

- Cord length : 8 m

- Fiter system : Classic S-Baglong

performance

: 3 layer permanent motor

protection filter

: Ultra clean air washable

HEPA13 exhaust filter

- Net weight : 7.5 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tube

- Accessories : Crevice nozzle and small nozzle

- Accessory storage : Accessory clip on tube

- Coupling : Button coupling

OPTIONAL (accessories)

- FC8021 : S-bag Classic

- FC8022 : S-bag Clinic

- FC8023 : S-bag Anti-Odour

- FC8038 : Ultra clean air washable HEPA13 exhaust filter

FC9081

- To open the appliance, first remove the exhaust filter cover

and filter.

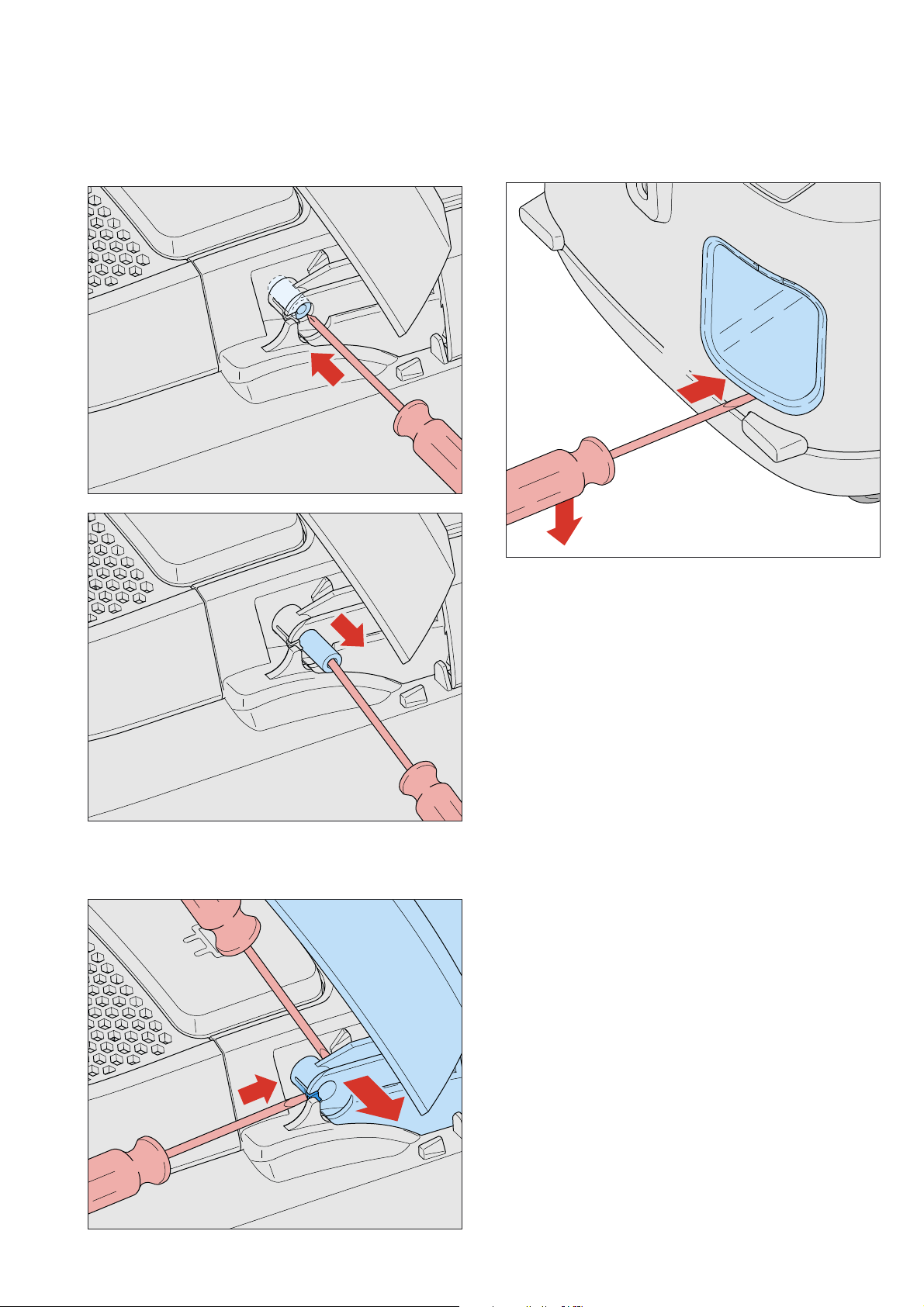

- Remove the hinge lock-pin (see pictures).

- Remove the dustcover by simultaneously pushing the click

hook in the hinge and bending the hinge outside with a

screwdriver (see picture).

- To be able to remove the upper housing the cord outlet

must be removed using a screwdriver in the lower section

(see picture).

- After removing the 6 screws (A) the upper housing can be

removed.

- When the repair is finished, check whether all functions of

the appliance work properly.

- To disassemble the cord winder, use TORX screwdriver

no. T10, which is one of a set consisting of T20; T15; T10;

T9; T8; T7 and T6 (code number 4822 395 50145).

REPAIR INSTRUCTION

- The spare parts have been standardized as much as possible.

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn.

- Item 16, safety valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

2-7

FC9081

PARTS LIST

ELECTRICAL DIAGRAM

MOTOR

POWER

MODULE

Black

White

CORD WINDER

Brown

3-7

Pos Service code Description

4222 459 45586

4222 459 45582

4222 459 45583

4222 459 45578

4222 459 45585

4222 459 45579

4322 004 93350

4222 459 45584

4222 459 45581

4322 001 74110

4222 459 45605

4222 459 45604

4222 459 45592

4822 480 10228

4322 003 33280

4322 005 16990

4222 459 45595

4222 459 45588

4222 459 45587

4222 459 45591

4222 459 45589

4322 006 23880

4222 459 45590

4222 459 45593

4222 459 45594

Hinge pin

Dustcover assy FC9081 Beige

Dustbag detector incl. spring

Dustbagholder Vapour dusk

Handle assy White

Exhaust grille Beige

HEPA ﬁlter

Cord outlet kit Yellow

HEPA lock grille Beige

Exhaust seal

Support right Beige

Support left Beige

Control wheel ring Chrome

Inlet ﬁlter

Inlet grille

DBFI/valve assy

Brake lever

CW button Yellow

On/Off button Yellow

Control wheel Yellow

Switch lever

PCB assy Pilatus HV

Pedal spring

Backpanel/Dustchamber

Silencer 3

Pos Service code Description

39*

4222 459 45606

4322 001 73440

4322 009 09430

4222 459 45607

4222 459 45608

4322 001 73450

4222 459 45609

4222 459 45598

4222 459 45599

4322 009 00080

4322 005 26610

4222 459 45596

4222 459 45603

4322 006 07390

4222 459 45602

4222 459 45601

4222 459 45600

4222 459 45597

4222 459 45610

4322 004 21750

4322 004 22070

4322 003 36690

4322 004 22080

4322 004 20330

Motor housing top

Bufferring front

Motor Domel 1761 220-240 V

Silencer 4

Motor bracket

Buffer back

Motor housing bottom

Front handle inside White

Front handle outside White

Cordwinder no cord!

Contact plate

Rubber knee bend dustchamber

Casterwheel kit Beige

Cordset Euro 4.8 mm 9 m

S-Class sealing

Silencer 2

Silencer 1

Lower housing Beige

Bend/hose/connection assy Beige

2p Telescopic tube Beige

Crevice nozzle Beige

Accessory clip Beige

Small nozzle Beige

Tri-active nozzle Beige

* Standardized colour

FC9081

EXPLODED VIEW

4-7

FC9081

EXPLODED VIEW

Black

White

Brown

5-7

FC9081

EXPLODED VIEW

White

Brown

Black

6-7

FC9081

EXPLODED VIEW

7-7
