Philips FC9060 Manuel utilisateur

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Vacuum cleaner

FC9060

06/01

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Colour : Blue bonnet

- Power consumption : 1800 W

(IEC) 230V

- Maximum Air displacement : 43 l/s

- Vacuum : 300 mbar / 30.0 kPa

- Type number dustbag : FC8021

- Duststorage capacity : 3 L

- Cord length : 7 m

- Fiter system : Double layered

compatible s-bag™

: 3 layer permanent motor

protection filter

: Super Clean Air

exhaust filter

- Dimensions of cleaner : 449 x 324 x 250 mm

- Dimensions of packaging : 593 x 393 x 296 mm

- Net weight : 5.7 kg

ACCESSORIES

- Nozzle : Tri-Active all purpose nozzle

- Tubes : Metal lacquered telescopic tubes

- Accessories : Crevice nozzle and small nozzle

- Accessory storage : Accessory clip on tube

- Coupling : Button coupling

OPTIONAL (accessories)

- FC 8021 : S-bag Classic

- FC 8022 : S-bag Clinic

- FC 8023 : S-bag Anti-Odour

- FC 8024 : S-bag Long Performance

- FC 8025 : S-fresh scent granules

- FC 8030 : Super Clean Air filter, High-Flow

AFS exhaust filter

- FC 8031 : Super Clean Air HEPA filter,

HEPA12 exhaust filter

FC9060

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- To open the apliance,

First remove the filter cover

(item 24) then remove the

vario knob button (item 11)

with a screwdriver as shown

in the picture.

- To remove the button panel (item 13), first loosen

mounting screws (A), now by using a screwdriver unlock

the 4 snap connection and separate the panel from the

housing. (see picture)

- Display cover (item 12) now can easely be removed from

the button panel.)

- To remove the motor, you need a torx screwdriver with a

14.5cm long shank. Screwdriver 9965 000 08332 can be

used.

REPAIR INSTRUCTION

- Cotton dustbags, are used in countries in which paper

dustbags are not available.

- If the reel half spring unit is replaced, shaft Gmust be

lubricated with silicone grease. Do not apply any silicone

grease to or spill any grease on terminals (39) or conductors

(38).

- Item 37 is provided with a long cord-winder spring, but

both long and short cords can be used in combination with

this spring. (L = 9.3 m)

- Depending on the original cord, the spare cord must be

shortened to the length of the original cord.

- The cord winder spring must be tensioned to the maximum

level and then be rewound approx. 1.5 turn

- Item 10, air valve, opens to cool the motor if the air

displacement is too low or if the airflow is blocked.

- To adjust the telescopic tube (item 46) to the required

length, push the adjustment collar in the direction of the

arrow while sliding the top section of the telescopic tube

into or out of the lower section.

- If the function of the electronic control unit (item 15) is

not required, the Triac must be short-circuited in the

manner shown in the circuit diagram.

- When the vacuum cleaner is used to suck up fine dust the

pores of the dustbag may become clogged, causing the

passage of air through the dustbag to become obstructed.

As a result, the dustbag-full indicator will indicate that the

dustbag needs to be replaced, eventhough the dustbag is not

full at all.

ELECTRICAL DIAGRAM

Triac

iac

Short-circuit

Short-circui

circu

Short-circuit

MOTOR

POWER

MODULE

Black

Black/White

Brown

Blue

CORD WINDER

2-7

FC9060

PARTS LIST

3-7

Pos Service code Description

4322 005 19460

4322 003 23610

4322 000 67810

4322 003 23840

4322 000 37300

4322 003 23820

4322 003 23930

4322 003 23650

4322 000 09750

4322 005 19550

4322 003 23660

4322 005 19510

4322 003 27440

4322 003 23900

4322 006 22740

4322 003 23640

4322 003 23920

4322 003 23940

4322 003 23910

4322 003 27280

4322 005 17010

4322 005 15150

4322 003 23620

4322 003 27400

4322 004 92910

Dustcover / Pr / Light Blue

Dustcover lock / Light grey

DB detector spring

DB detector

Triple inletﬁlter

Inlet grille

Dustchamber / Blue

Cordwinder Knob / Select grey

Pedal spring

DBFI/Valve assy Jewel FL

Vario knob / Select grey

Display c. Transp. Light Blue / Pr

Button Panel / Light Blue

Adjuster

PCB assy mb turn 220-240 V

Switch knob / Select grey

Back panel / Blue

Cord outlet / Blue

Lowerhousing back / Blue

Lowerhousing / Light Blue

Caster assy / Select grey

Cyl. ass. fra. blck / Li. purple

Filter cover lock / Light grey

Filter cover fr. / Light Blue

Electrostatic ﬁlter Phoenix

Pos Service code Description

4322 001 73360

4322 000 38790

4322 003 23220

4322 000 38760

4322 000 38770

4322 003 23880

4322 001 73520

4322 001 73400

4322 006 97940

4322 000 38820

4322 003 23870

4322 009 07940

4322 009 07950

4322 009 07970

4322 006 01720

4322 006 01410

4322 003 18850

4322 005 17090

4322 004 22510

4341 003 02470

4322 004 22560

4322 004 23190

4322 003 23830

4322 003 18870

4322 003 26030

4322 001 99120

4322 007 45550

4322 007 16000

Exhaust sealing

Silencer 4 wall backpanel

S-class H-sealing

Silencer 1 wall

Silencer 2 bottom

Motorhousing top inside

Buffer back green

Bufferring fr. Ans-Atlas

Motor 1761 Domel 220-240 V

Silencer 3

Motorhousing Bottom ans

Reel half spring unit (L = 9 m)

Reel half contact unit

Contact ring plate

U.K. / H.K. L = 9.3 m

Euro 4.8 mm pins L = 9.3 m

Curved bend B1

Curved bend / Hose assy

Telescopic tube stand

Accessory clip

Small Nozzle

Tri-active Nozzle stand

DB-holder

Crevice Nozzle stand

Motor Bracket

Coupling bush

Coupling spring

Leaf spring assy

FC9060

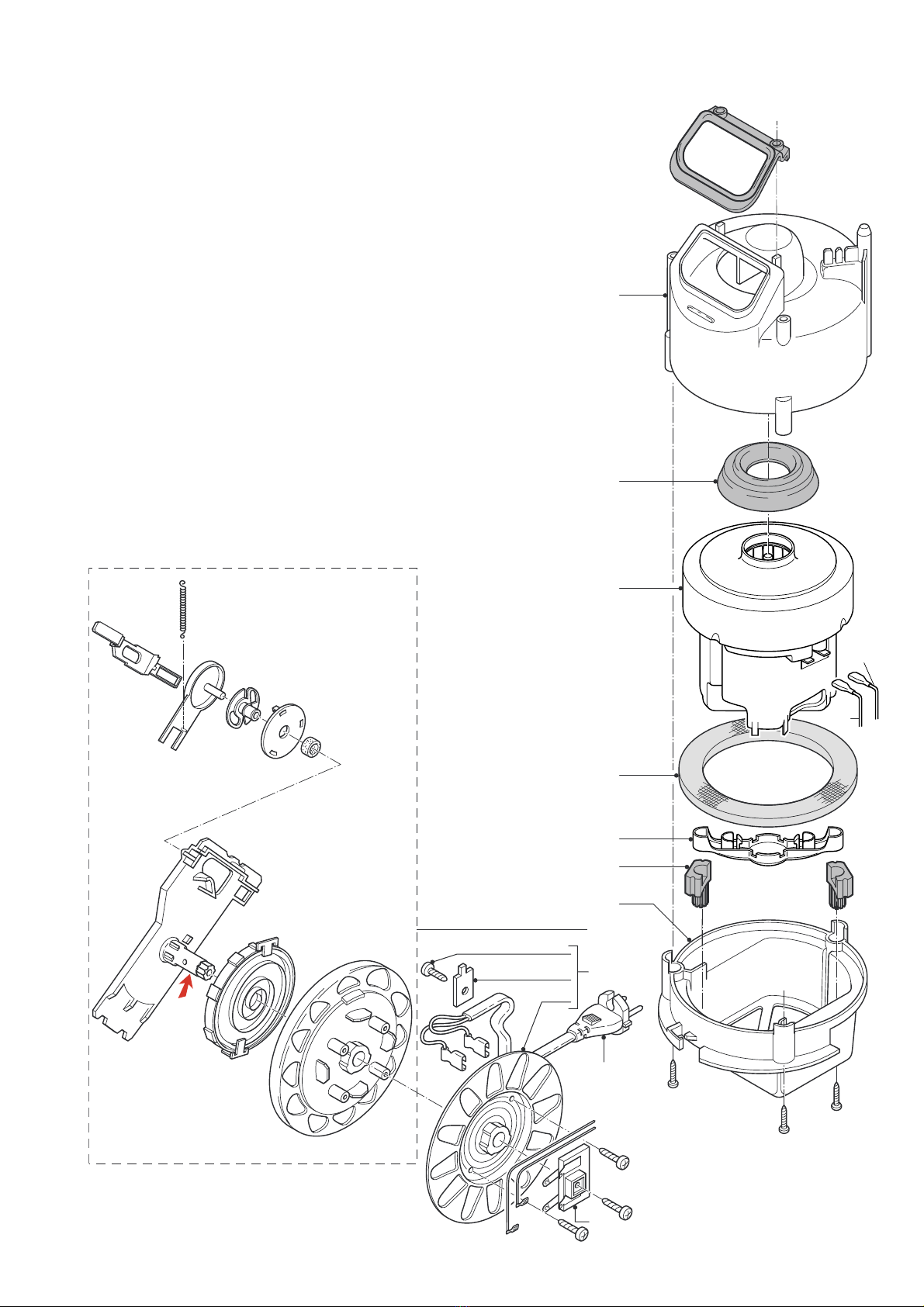

EXPLODED VIEW

Black/

White

Black

brown

blue

4-7

FC9060

EXPLODED VIEW

5-7

FC9060

EXPLODED VIEW

brown

blue

40 41,

Black/

White

Black

6-7

FC9060

EXPLODED VIEW

Europe Ø 4.8mm 41

Swiss

Italy

40U.K. / H.K.

7-7
