Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

ServiceManual

Philips Consumer Lifestyle

SmartPro Compact Robot vacuum cleaner

FC8700/01

FC8700/71

15/07 Version 1.3

PRODUCT INFORMATION

•This product meets the requirements regarding

interference suppression on radio and TV.

•After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

•Colour : Deep Black & Basic

Blue

•Battery type : Li-Ion

•Battery voltage : 12.8 V

•Charging time : 6 hour(s)

•Runtime : 80 min.

Usability

•Threshold climbing : 13 mm

•24-hour scheduling

•Infrared sensors

•Types of Floors : Hardfloor

•Smart detection system : 12 sensors

Nozzles and accessories

•Exhaust filter, AC power adaptor, Side brushes (2 pairs)

Dimensions & weight

•Dimensions : 60.1 x 330 mm

•Product weight : 1.53 kg

with packaging : 2.9 kg

Accessories included

•Docking station

OPTIONAL (accessories)

•No specific issues

FC8700/01 / FC8700/71

2-14

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

•First make sure that the appliance is unplugged.

•To empty and/or replace the Dustbin assy, the Top Cover

has to be removed (see picture).

•Turn the appliance upside down .

•The brushes can easily be pulled out and replaced, after

hearing the < click> the brush is placed in a correct way.

•Remove the battery cover by removing the 2 screws A,

the battery can now be removed or replaced.

•To open the appliance:

First remove the cover of the Bumper assy by removing

the 4 screws B.

Remove the Upper housing by removing the 6 screws C,

2 screws are positioned in the battery compartment, be

aware to unplug the wire.

•Now the wheel scan easily be pulled out and be replaced

if necessary.

Remark: notice that each wheel assy have different wires

to avoid mis-repair.

•To replace the inner parts of the Bumper assy:

Lift the Main PCB by removing the 4 screws D, now

you can replace the Bumper bracket by removing the 2

screws.

•To replace the Fan motor:

Turn the Bottom housing upside down and remove the 2

screws F, unplug the connector. Now the Fan motor can

be replaced and re-connected.

REPAIR INSTRUCTION

Display Error codes:

FC8700/01 / FC8700/71

3-14

PARTS LIST

Pos Service code Description Remark

4322 006 67901

4322 006 22901

4322 006 09961

4322 006 08901

4322 006 23111

Suction motor assy A

Recharable battery 1300 mAh - 12.8 V

Switching adaptor 24 V - 1000 mA

Docking station A

Super Li-Ion

Euro plug

AU/NZ plug

4322 004 25961

4322 006 67941

4322 006 67951

4322 005 36651

4322 004 94152

Side brush

Side brush motor assy Left

Side brush motor assy Right

Dustbin assy A

Filter Hawk A

4322 005 36681

4322 005 36711

4322 006 25401

9965 100 72827

Big wheel assy M500 A

Frint bumper assy A

Power PCBA

Main PCB FC8700

FC8700/01 / FC8700/71

4-14

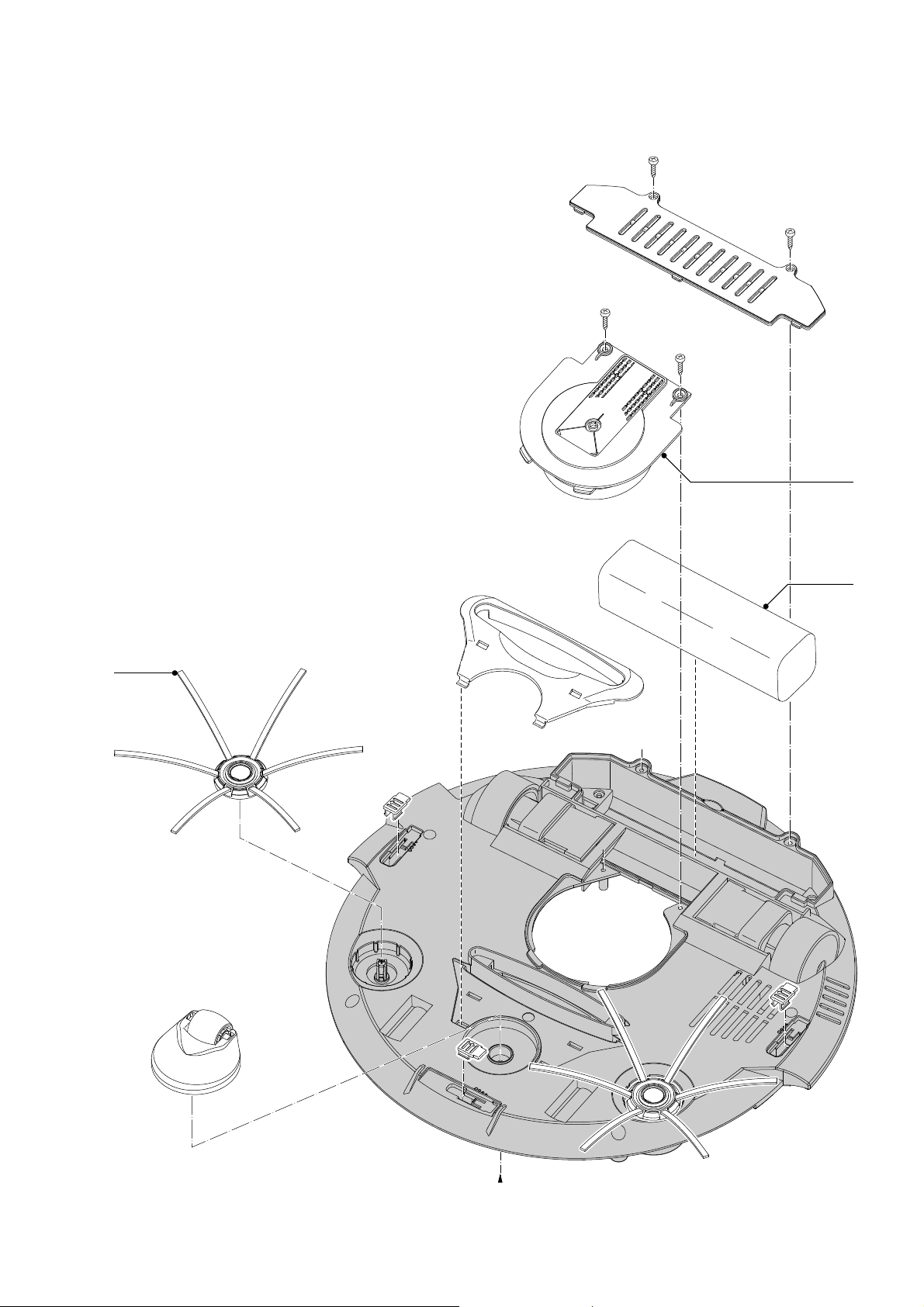

EXPLODED VIEW

FC8700/01 / FC8700/71

5-14

EXPLODED VIEW

FC8700/01 / FC8700/71

6-14

EXPLODED VIEW

FC8700/01 / FC8700/71

7-14

EXPLODED VIEW

FC8700/01 / FC8700/71

8-14

EXPLODED VIEW

FC8700/01 / FC8700/71

9-14

EXPLODED VIEW

FC8700/01 / FC8700/71

10-14

EXPLODED VIEW
