1. Important

This electronic user’s guide is intended

for anyone who uses the Philips

monitor. Take time to read this user's

manual before you use your monitor.

It contains important information and

notes regarding the operation of your

monitor.

The Philips guarantee applies provided

the product is handled properly for

its intended use, in accordance with

its operating instructions and upon

presentation of the original invoice

or cash receipt, indicating the date of

purchase, dealer’s name and model and

production number of the product.

1.1 Safety precautions and

maintenance

Warnings

Use of controls, adjustments or

procedures other than those specified

in this documentation may result in

exposure to shock, electrical hazards

and/or mechanical hazards.

Read and follow these instructions

when connecting and using your

computer monitor.

Operation

• Please Keep the monitor out of

direct sunlight, very strong bright

lights and away from any other heat

source. Lengthy exposure to this

type of environment may result in

discoloration and damage to the

monitor.

• Remove any object that could fall

into ventilation holes or prevent

proper cooling of the monitor’s

electronics.

• Do not block the ventilation holes

on the cabinet.

• When positioning the monitor, make

sure the power plug and outlet are

easily accessible.

• If turning off the monitor by

detaching the power cable or DC

power cord, wait for 6 seconds

before attaching the power cable or

DC power cord for normal operation.

• Please use approved power cord

provided by Philips all the time. If

your power cord is missing, please

contact with your local service

center. (Please refer to Service

contact information listed in

Important information manual.)

• Operate under the specified power

supply. Be sure to operate the

monitor only with the specified

power supply. Use of an incorrect

voltage will cause malfunction and

may cause fire or electric shock.

• Do not disassemble the AC adapter.

Disassembling the AC adapter may

expose you to the danger of fire or

electric shock.

• Protect the cable. Do not pull or

bend the power cable and signal

cable. Do not place the monitor

or any other heavy objects on the

cables, if damaged, the cables may

cause fire or electric shock.

• Do not subject the monitor to severe

vibration or high impact conditions

during operation.

• To avoid potential damage, for

example the panel peeling from the

bezel, ensure that the monitor does

not tilt downward by more than -5

degrees. If the -5 degree downward

tilt angle maximum is exceeded, the

monitor damage will not be covered

under warranty.

• Do not knock or drop the monitor

during operation or transportation.

1. Important

• Excessive usage of monitor can

cause eye discomfort, it’s better to

take shorter breaks more often at

your workstation than longer breaks

and less often; for example a 5-10

minute break after 50-60-minute

continuous screen use is likely to

be better than a 15-minute break

every two hours. Try to keep your

eyes from eye strain while using the

screen for a constant period of time

by :

• Looking at something varying

distances after a long period

focusing on the screen.

• Conscious Blinking often while

you work.

• Gently closing and rolling your

eyes to relax.

• Reposition your screen to ap-

propriate height and angle ac-

cording to your height.

• Adjusting the brightness and

contrast to appropriate level.

• Adjusting the environment light-

ing similar to that of your screen

brightness, avoid the uorescent

lighting, and surfaces that don’t

reect too much light.

• Seeing a doctor if your symp-

toms.

Maintenance

• To protect your monitor from

possible damage, do not put

excessive pressure on the LCD

panel. When moving your monitor,

grasp the frame to lift; do not lift

the monitor by placing your hand or

fingers on the LCD panel.

• Unplug the monitor if you are not

going to use it for an extensive

period of time.

• Unplug the monitor if you need to

clean it with a slightly damp cloth.

The screen may be wiped with a

dry cloth when the power is off.

However, never use organic solvent,

such as, alcohol, or ammonia-based

liquids to clean your monitor.

• To avoid the risk of shock or

permanent damage to the set, do

not expose the monitor to dust,

rain, water, or excessive moisture

environment.

• If your monitor gets wet, wipe it with

dry cloth as soon as possible.

• If foreign substance or water gets in

your monitor, please turn the power

off immediately and disconnect

the power cord. Then, remove the

foreign substance or water, and

send it to the maintenance center.

• Do not store or use the monitor in

locations exposed to heat, direct

sunlight or extreme cold.

• In order to maintain the best

performance of your monitor and

use it for a longer lifetime, please

use the monitor in a location

that falls within the following

temperature and humidity ranges.

• Temperature: 0-40°C 32-104°F

• Humidity: 20-80% RH

Important information for Burn-in/

Ghost image

• Always activate a moving screen

saver program when you leave

your monitor unattended. Always

activate a periodic screen refresh

application if your monitor will

display unchanging static content.

Uninterrupted display of still or

static images over an extended

period may cause “burn in”, also

known as “after-imaging” or “ghost

imaging”, on your screen.

• “Burn-in”, “after-imaging”, or

“ghost imaging” is a well-known

1. Important

phenomenon in LCD panel

technology. In most cases, the

“burned in” or “after-imaging” or

“ghost imaging” will disappear

gradually over a period of time after

the power has been switched off.

Warning

Failure to activate a screen saver, or

a periodic screen refresh application

may result in severe “burn-in” or “after-

image” or “ghost image” symptoms

that will not disappear and cannot be

repaired. The damage mentioned above

is not covered under your warranty.

Service

• The casing cover should be opened

only by qualified service personnel.

• If there is any need for any

document for repair or integration,

please contact with your local

service center. (Please refer to

Service contact information listed in

Important information manual.)

• For transportation information,

please refer to “Technical

Specifications”.

• Do not leave your monitor in a car/

trunk under direct sun light.

Note

Consult a service technician if the

monitor does not operate normally, or

you are not sure what procedure to take

when the operating instructions given in

this manual have been followed.

1.2 Notational Descriptions

The following subsections describe

notational conventions used in this

document.

Notes, Cautions andWarnings

Throughout this guide, blocks of text

may be accompanied by an icon and

printed in bold or italic type. These

blocks contain notes, cautions or

warnings. They are used as follows:

Note

This icon indicates important

information and tips that help you make

better use of your computer system.

Caution

This icon indicates information that

tells you how to avoid either potential

damage to hardware or loss of data.

Warning

This icon indicates the potential for

bodily harm and tells you how to avoid

the problem.

Some warnings may appear in alternate

formats and may not be accompanied

by an icon. In such cases, the specific

presentation of the warning is mandated

by the relevant regulatory authority.

2. Setting up the monitor

1.3 Disposal of product and

packing material

Waste Electrical and Electronic

Equipment-WEEE

This marking on the product or on

its packaging illustrates that, under

European Directive 2012/19/EU

governing used electrical and electronic

appliances, this product may not be

disposed of with normal household

waste. You are responsible for disposal

of this equipment through a designated

waste electrical and electronic

equipment collection. To determine the

locations for dropping off such waste

electrical and electronic, contact your

local government office, the waste

disposal organization that serves your

household or the store at which you

purchased the product.

Your new monitor contains materials

that can be recycled and reused.

Specialized companies can recycle

your product to increase the amount of

reusable materials and to minimize the

amount to be disposed of.

All redundant packing material has been

omitted. We have done our utmost to

make the packaging easily separable

into mono materials.

Please find out about the local

regulations on how to dispose of your

old monitor and packing from your sales

representative.

Taking back/Recycling Information for

Customers

Philips establishes technically and

economically viable objectives

to optimize the environmental

performance of the organization's

product, service and activities.

From the planning, design and

production stages, Philips emphasizes

the important of making products that

can easily be recycled. At Philips,

end-of-life management primarily

entails participation in national take-

back initiatives and recycling programs

whenever possible, preferably

in cooperation with competitors,

which recycle all materials (products

and related packaging material) in

accordance with all Environmental

Laws and taking back program with the

contractor company.

Your display is manufactured with high

quality materials and components

which can be recycled and reused.

To learn more about our recycling

program please visit

http://www.philips.com/a-w/about/

sustainability.html

2. Setting up the monitor

2. Setting up the

monitor

2.1 Installation

Package contents

Stand/Base

www.philips.com/welcome

Quick

Start

E Line

343E2E

* HDMI

* CD

* DP

AC/DC Adapter

This product has been manufactured by and is sold

under the responsibility of Top Victory Investments Ltd.,

and Top Victory Investments Ltd. is the warrantor in

relation to this product. Philips and the Philips Shield

Emblem are registered trademarks of Koninklijke Philips

N.V. and are used under license.

Contents:

Drivers

User’s Manual

www.philips.com/welcome

使用产品前请阅读使用说明

保留备用

Monitor

*USB C-C

* Different according to region.

Note

Use only the AC/DC adapter model:

Philips ADPC20120

Install base stand

1. Place the monitor face down on soft

and smooth surface taking care to

avoid scratching or damaging the

screen.

2. Hold the base stand with both

hands and firmly insert the base

stand into the base column.

(1) Gently attach the base to the

stand.

(2) Use your fingers to tighten the

screw located at the bottom of

the base.

(3) Use a screwdriver to tighten the

screw located at the bottom of

the base, and secure the base to

the stand tightly.

3Prevent Tipping

When using the display, fasten the

LCD to a wall using a cord or chain that

can support the weight of the monitor

in order to prevent the monitor from

falling.

Cord or chain

2. Setting up the monitor

Connecting to your PC

6 5 2

1Kensington anti-theft lock

2Audio out

3USB Type C input

4DisplayPort input

5HDMI 2 input

6HDMI 1 input

7AC/DC power input

Connect to PC

1. Connect the power cord to the back

of the monitor firmly.

2. Turn off your computer and unplug

its power cable.

3. Connect the monitor signal cable to

the video connector on the back of

your computer.

4. Plug the power cord of your

computer and your monitor into a

nearby outlet.

5. Turn on your computer and monitor.

If the monitor displays an image,

installation is complete.

2.2 Operating the monitor

Description of the control button

Press to switch power on.

Press more than 3 seconds

to switch power off.

Access the OSD menu.

Confirm the OSD

adjustment.

Adjust the brightness level.

Adjust the OSD menu.

Change the signal input

source.

Adjust the OSD menu.

There are multiple

selections : FPS, Racing,

RTS, Gamer 1, Gamer 2,

LowBlue Mode,EasyRead

and Off.

Return to previous OSD

level.

2. Setting up the monitor

Description of the On Screen Display

What is On-Screen Display (OSD)?

On-Screen Display (OSD) is a feature in

all Philips LCD monitors. It allows an end

user to adjust screen performance or

select functions of the monitors directly

through an on-screen instruction

window. A user friendly on screen

display interface is shown as below:

 









 



 



 

Basic and simple instruction on the

control keys

To access the OSD menu on this Philips

Display simply use the single toggle

button on the backside of the Display

bezel. The single button operates like

a joystick. To move the cursor, simply

toggle the button in four directions.

Press the button to select desired

option.

The OSD Menu

Below is an overall view of the structure

of the On-Screen Display. You can use

this as a reference when you want to

work your way around the different

adjustments later on.

Main menu Sub menu


OSD Setting

USB Settings

Language

Color

Audio

PIP/PBP

LowBlue

Mode

Input

Horizontal

Vertical

Transparency

OSD Time Out

Color Temperature

sRGB

User Dene

USB Standby Mode

SmartContrast

Gamma

Contrast

Brightness

Volume

Mute

Audio Source

PIP / PBP Mode

Swap

PIP / PBP Input

0~100

O, 1, 2, 3, 4

5, 10, 20, 30, 60

Native,5000K,6500K,7500K,8200K,9300K,11500K

Red: 0~100

Green: 0~100

Blue: 0~100

On, O

0~100

On, O

1.8, 2.0, 2.2, 2.4, 2.6

0~100

O, PIP, PBP

Sharpness 0~100

O

On 1,2,3,4

2 HDMI 1.4

DisplayPort

USB C

Pixel Orbiting On, O

English, Deutsch, Español, Ελληνική, Français, Italiano, Maryar, Nederlands,

Português, Português do Brasil, Polski , Русский, Svenska, Suomi, Türkçe,

Čeština, Українська, 简体中文, 繁體中文,日本語,한국어

Over Scan On, O

PIP Size

1 HDMI 1.4,2 HDMI 1.4, DisplayPort, USB C(343E2E)

PIP Position

Small, Middle, Large

Top-Right, Top-Left, Bottom-Right, Bottom-Left

HDMI1, HDMI2, DisplayPort, USB C(343E2E)

1 HDMI 1.4

SmartImage FPS,Racing,RTS,Gamer1,Gamer2,LowBlue Mode,EasyRead,O

Game Setting MPRT Level

MPRT On, O

SmartFrame

SmartResponse

0~20

O, Fast , Faster, Fastest

On, O

Size (0,1,2,3,4,5,6,7)

Brightness (0~100)

Contrast(0~100)

H. position

V. position

SmartSize Panel Size

1:1

Aspect

17'' (5:4) 19'' (5:4) 19''W (16:10) 22''W (16:10) 18.5''W (16:9)

19.5''W (16:9) 20''W (16:9) 21.5''W (16:9) 23''W (16:9) 24''W (16:9)

27'W (16:9) 34'W

On, O

Auto

Setup Resolution Notication

Reset

Information

Yes, No

On, O

Note

• MPRT: To reduce motion blur, LED

backlight will strobe synchronously

with screen refresh, which may

cause noticeable brightness change.

• 75Hz refresh rate or higher is

required for MPRT.

• FreeSync and MPRT cannot be

enabled simultaneously.

• MPRT is to adjust brightness for

blur reduction, so cannot adjust

brightness while MPRT is turned on.

• MPRT is gaming-optimized mode.

It is recommended to turn off

2. Setting up the monitor

when you are not using the gaming

function.

Resolution notification

This monitor is designed for optimal

performance at its native resolution,

2560×1080 When the monitor is

powered on at a different resolution,

an alert is displayed on screen: Use

2560×1080 for best results.

Display of the native resolution alert can

be switched off from Setup in the OSD

(On Screen Display) menu.

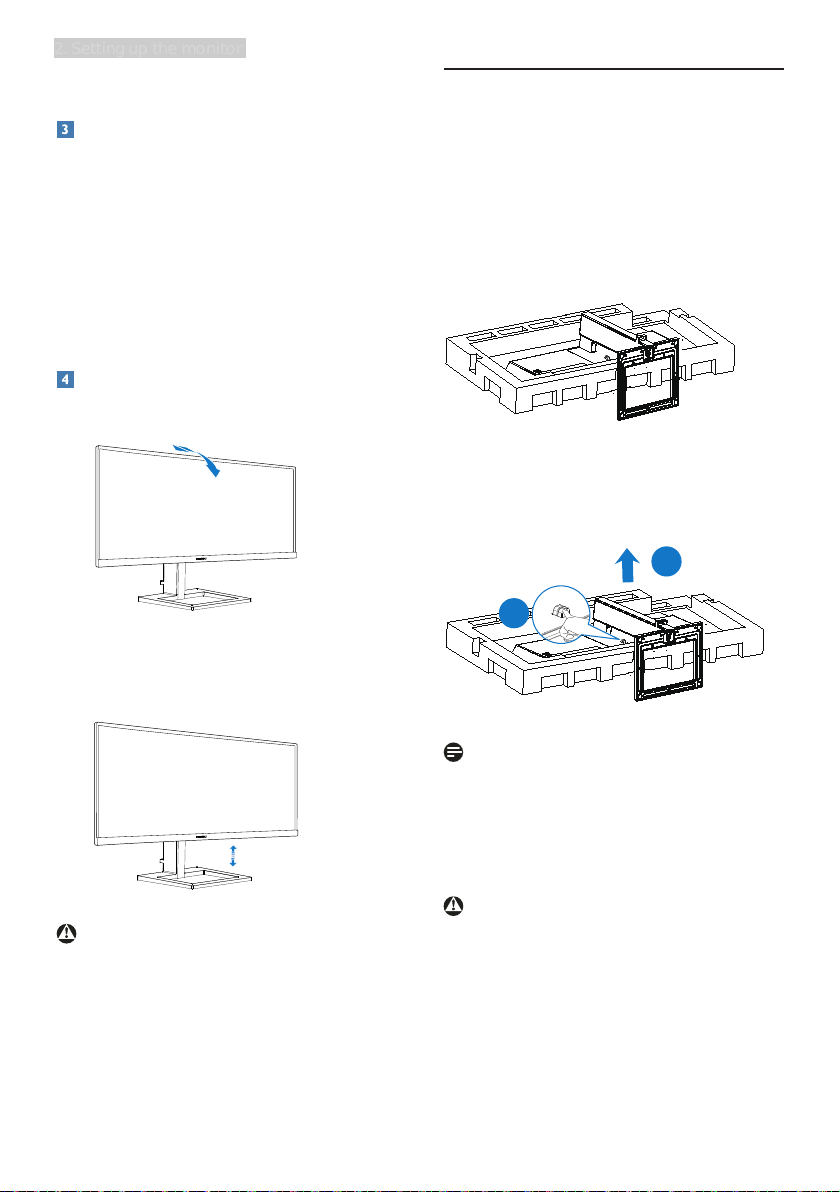

Physical Function

Tilt

-5˚

20˚

Height

100mm

Warning

• To avoid potential screen damage,

such as panel peeling, ensure that

the monitor does not tilt downward

by more than -5 degrees.

• Do not press the screen while

adjusting the angle of the monitor.

Grasp only the bezel.

2.3 Remove the Base Assembly

for VESA Mounting

Before you start disassembling the

monitor base, please follow the

instructions below to avoid any possible

damage or injury.

1. Place the monitor face down on a

smooth surface. Pay attention not to

scratch or damage the screen.

2. While keeping the release button

pressed, tilt the base and slide it

out.

Note

This monitor accepts a 100mm x 100mm

VESA-Compliant mounting interface.

VESA Mounting Screw M4. Always

contact manufacturer for wall-mount

installation.

Warning

• To avoid potential screen damage,

such as panel peeling, ensure that

the monitor does not tilt downward

by more than -5 degrees.

• Do not press the screen while

adjusting the angle of the monitor.

Grasp only the bezel.
