Contents

English

Your remote control 2

Preparation 3

Installation 5

Store TV channels 5

Select the menu language and country 5

Automatic installation 6

Manual installation 6

Give name 7

Reshuffle the programme list 7

Select favourite TV channels 7

Define decoder/descrambler programme numbers 8

Install TV setup 8

EasyLink features are based on the “one touch operation” approach.This

means that a sequence of actions are executed at the same time in both

the television and the video cassette recorder, provided both are fitted

with the EasyLink function and connected with the eurocable

supplied with your video recorder.

Installation

Operation

Use of the remote control 9-11

Use of the menus

Picture menu 12

Sound menu 12-13

Features menu 14-15

The keys on the front of the receiver box 15

Dual screen 16

Teletext 17-18

Connect peripheral equipment

Connecting and selecting equipment 19-24

Remote control functions for peripherals 25

Recording 26-27

Tips 28

Index 28

Glossary 29

2Preparation

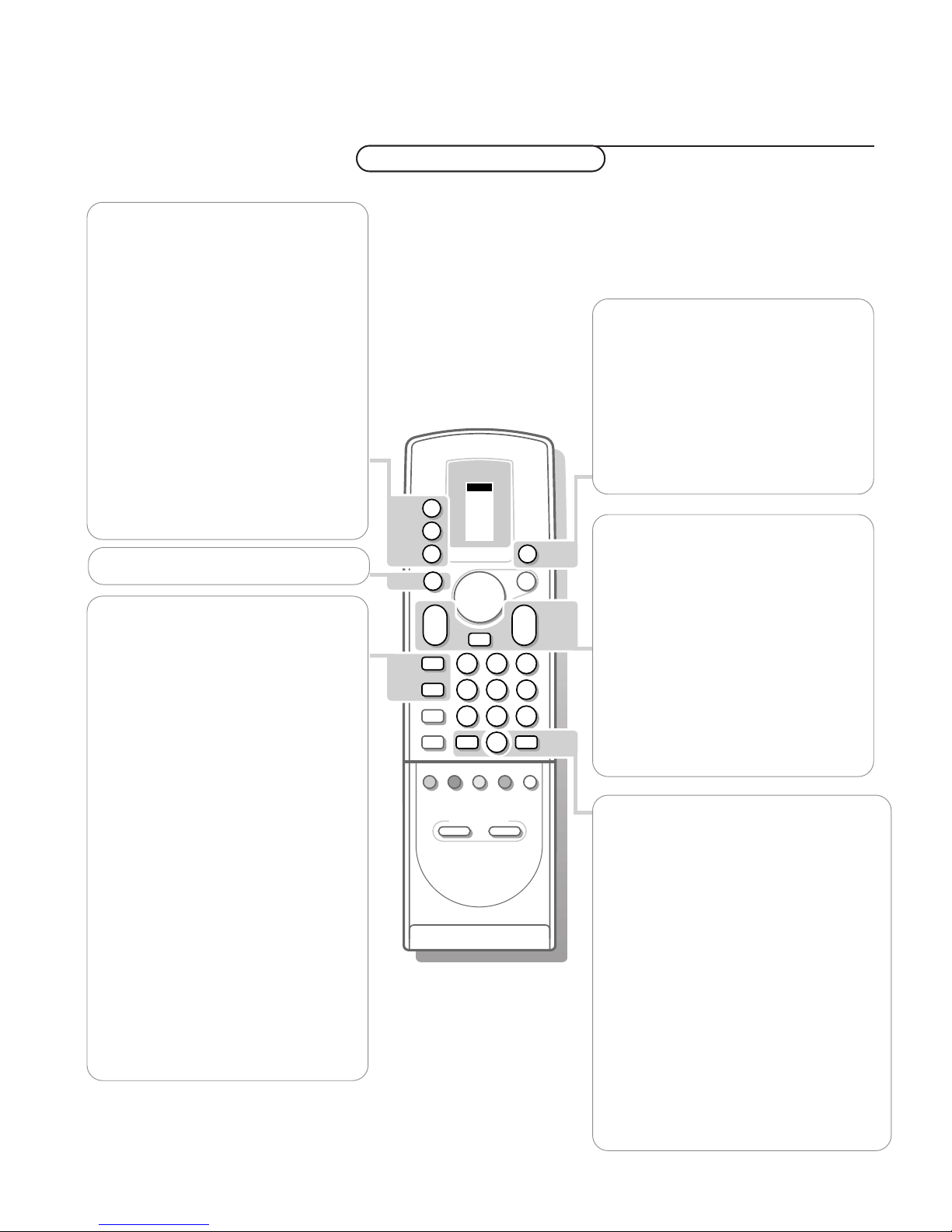

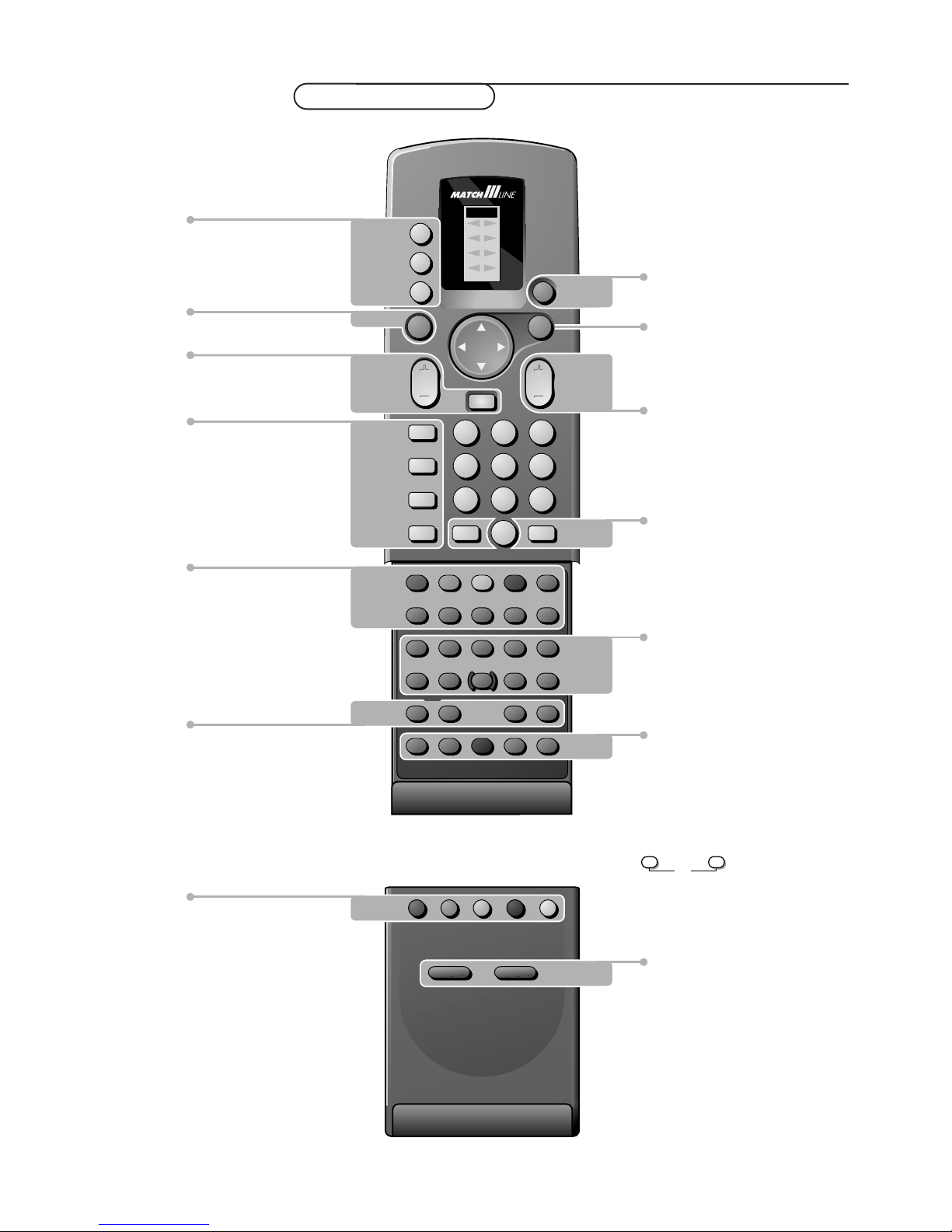

Your remote control

Teletext p. 17

direct txt page or subject selection

kindex page selection

einterrupt teletext display

cmix tv/txt picture

henlarge

fsolution to puzzles

Utime display/subpage selection p. 10

Dual screen p. 16

-P+ channel selection

cswitching screens

dfreeze the subpicture

Smart Controls p. 10

picture and sound settings

bdual screen on/off p. 16 Aselect your choice p. 5

OK activate your choice

Sfreeze the main picture p. 11

Preduce image noise

ﬁmulti screen on/off

spersonal preference

PICTURE,SOUND,FEATURES menus p. 10

programme list p. 10

VGA menu p. 24

direct txt page or subject selection p. 17

Pprogramme selection p. 9

Video recorder p. 25

Digital Video Disc p. 25

Installation p. 5

yÚ

Vvolume up/down p. 9

¬sound mute p. 9

uselection of EXT1,EXT2,EXT3,FRONT,

VGA or TV channels p. 9

Mperipheral selection with

remote control

TV TV selection

qpicture format p. 9

Xbilingual choice/sound info p. 9

jcontinuous subtitles p. 10

subtitle language selection p. 25

(DVD - Digital Video Disc)

bteletext on/off p. 17

VCR 1

VCR 2

DVD

AMP

TUNER

TAPE

SAT

123

456

789

ce fh U

‡

ÏN

π†

PP cd

SPﬁs

T-C AUDIO

PICTURE SOUND

DVD SELECT DVD

ion screen info p. 9

0previous programme p. 9

Bswitch to standby p. 9

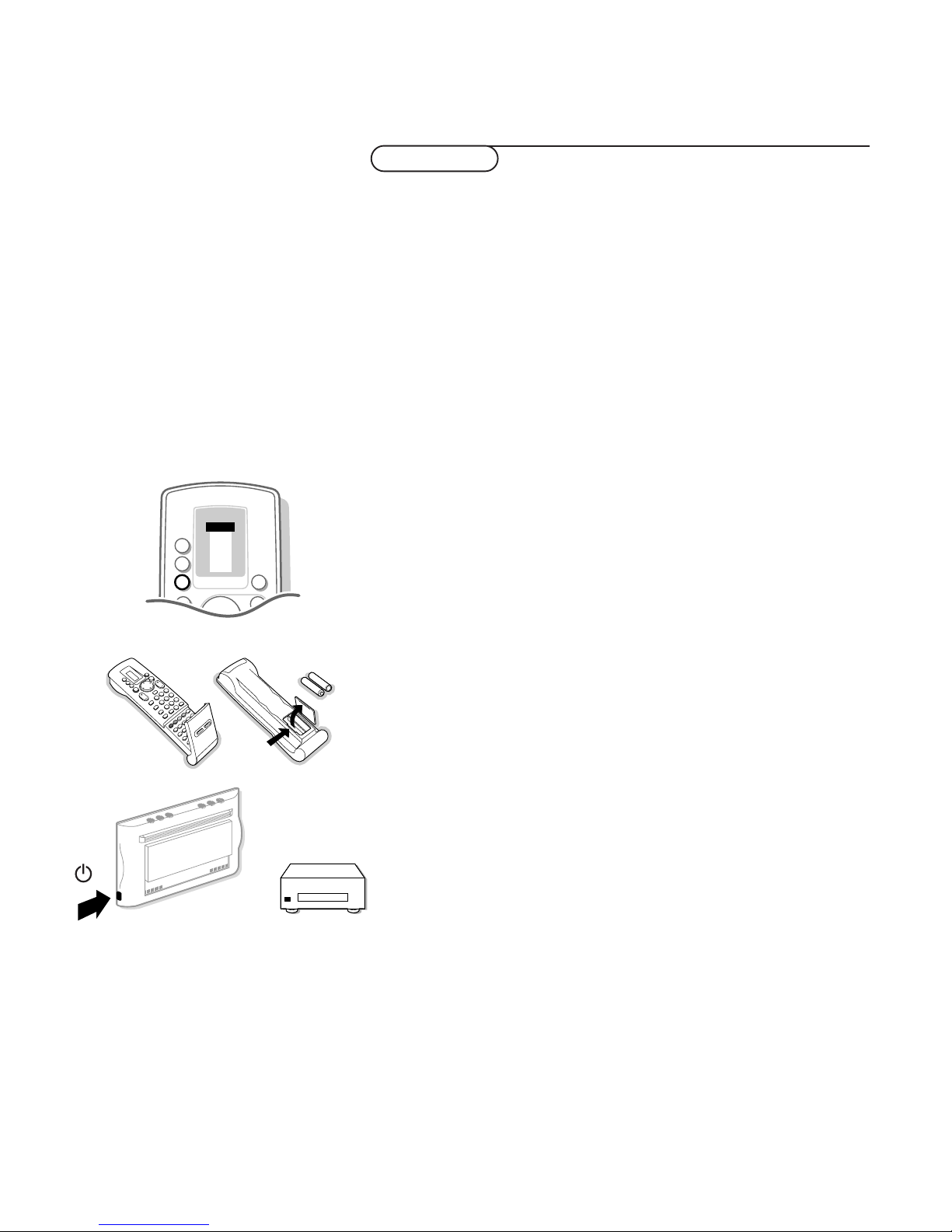

&Place the receiver box wherever you want, but leave at least 5 cm space free

all around the box for ventilation and do not cover the ventilation openings.

(E.g. on the ground, in a cupboard, behind a wall, in another room....)

To prevent any unsafe situations, do not place any objects on top of the

monitor or the receiver. Avoid heat, direct sunlight and exposure to rain or

water.

éConnect the supplied aerial cable 1and the VGA cable with trailing audio

cinch connectors 2as shown in the inside frontcover of this handbook.

Make sure all screws of the cable 2are tightened well.

“To connect your computer, see p. 22.

To connect other peripherals, see p. 19.

In order to obtain the best result, please use only the supplied antenna cables

between the receiver box and videorecorder, and between videorecorder and

antenna connector.

‘Insert the mains cord supplied 3(with filter) into the MAINS INLET at the

back of the monitor and the mains cord 4 at the back of the receiver. Put

both in the wall sockets.

Please, only use the mains cord 3(with filter) supplied with the

monitor, for the monitor, the mains cord 4supplied with the

receiver, only for the receiver.

(Remote control: Remove the cover of the battery compartment.

Insert the 2 batteries supplied (Type R03G-1.5V).

Press the TV key next to the display to be sure your remote control is in the

TV mode.

The batteries supplied do not contain the heavy metals mercury and cadmium.

Nevertheless in many countries batteries may not be disposed of with your

household waste. Please check on how to dispose of batteries according to local

regulations.

§Switch the TV on : Press the power button Aat the right side of the

monitor and the one on the front of the receiver box.

A green indicator lights up and the screen comes on.

If the indicator is red, press the -P+ key on the remote control.

The green indicator blinks every time you press a key on the remote control.

When you switch on your set for the first time, the menu LANGUAGE

automatically appears on the screen. The explanation appears in different languages

one at a time.

3Preparation

Preparation

RO3 / AAA

VCR 1

VCR 2

DVD

AMP

TUNER

TAPE

SAT

ZOOM

TV B

4Preparation

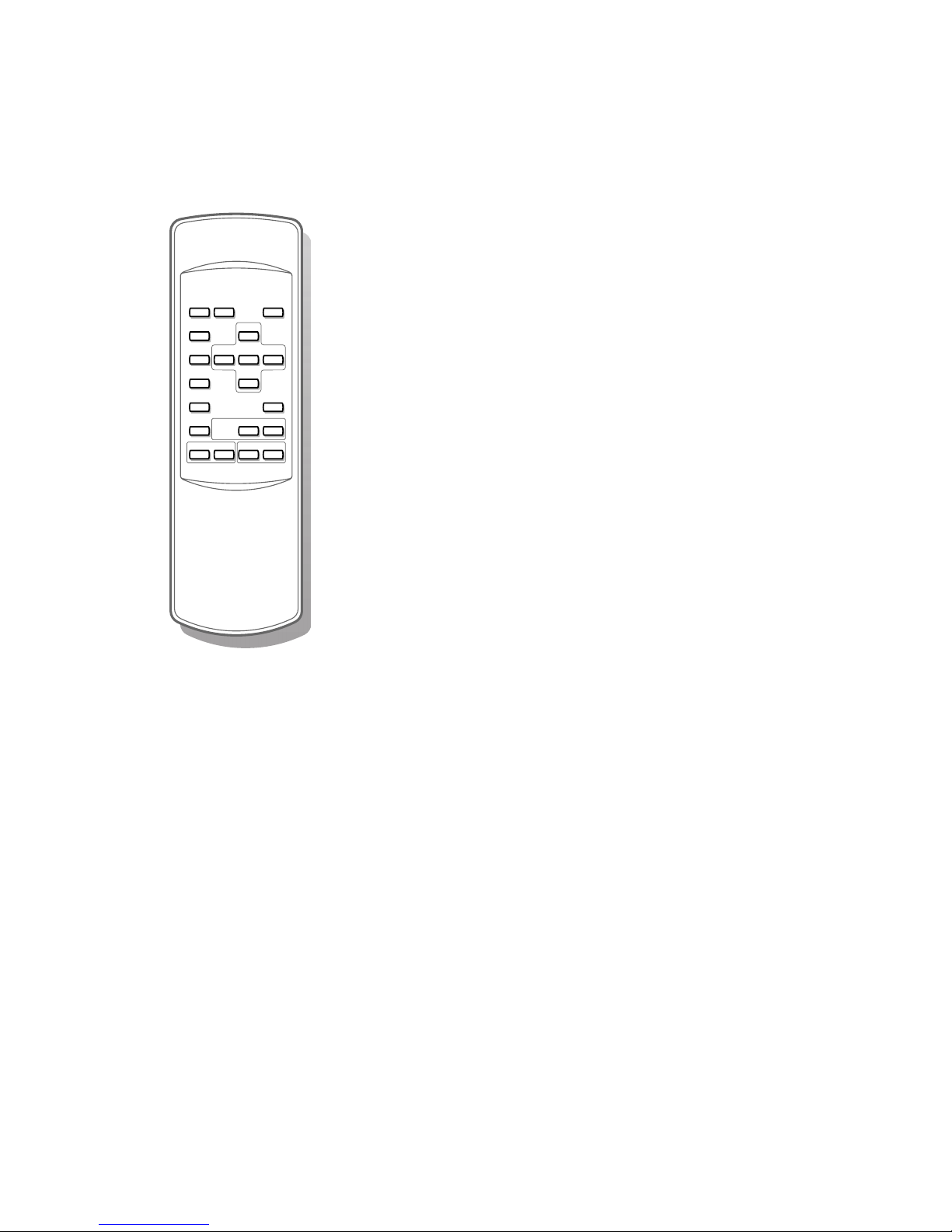

With the simplified remote control supplied with the monitor you can:

• switch menu on or off with the MENU key

• select a menu or menu item with the cursor keys

• activate the selection you made with the OK key

• switch your flat colour television to standby or on again with the Bkey

• mute the sound with the ¬key

• select predefined picture and sound settings with the SMART CONTROLS

PICTURE and SOUND keys

(not with a monitor in a stand alone situation)

• select the desired programme number with the - CH/P +

(not with a monitor in a stand alone situation)

• adjust the volume with the - V+ keys

• select one of the connected externals with the VGA,FRONT,AV1,AV2 or

AV3 keys (see p. 19-21)

Note: the AV4 key has no function.

VGA OK

FRONT o

AV1 pMENU π

AV2 œ

AV3 ¬

AV4

SMART

CONTROLS

PICTURE SOUND

CH/P + V+

5Installation

Store TV channels

First, select your language and country.

&Select Menu Language in the INSTALLATION menu and press the OK key.

éSelect your language and press the OK key.

“Select Country and press the OK key.

‘Select the country where you are now located and press the OK key.

Select Other when none of the countries applies.

You can now search for and store the TV channels in two different ways:

using automatic installation or manual installation (tuning-in channel by

channel).

Select your choice and press the OK key.

Select the menu language and country

&Open the door of the remote control.

éPress Sand sat the same time.

Installation

Select the INSTALLATION menu

&Use the cursor in the up/down, left/right directions to select a menu item.

éPress the OK key to activate.

“Press one of the colour menu keys on the door of the remote control to

return or to switch menu off.

To use the menus

q456

789


SOUND

SMART

π†

ÒC

‡

Sﬁs

TXT dfh U

yÚ

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

Reshuffle

Favourite Programmes

Decoder/Descrambler

Setup

INSTALLATION

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

Reshuffle

Favourite Programmes

Decoder/Descrambler

Setup

INSTALLATION

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

INSTALLATION

LANGUAGE

English

... ...

••• ••• •••

COUNTRY UK

•••

••• •••

•••

Other

VCR 1

VCR 2

DVD

AMP

TUNER

TAPE

SAT

123

456

789

activate

picture menu

sound menu

features menu

programme list

select

adjustments

6Installation

Searching for and storing TV channels is done channel by channel.

You must go through every step of the Manual Installation menu.

Selection Mode is only present and lights up if the country selected also

offers the channel option (C-channels for aerial channels, S-channels for cable

channels).

You can choose either channel or frequency mode.

&Select the TV system

Select the country or part of the world from where you want to receive the

TV channel.

If you are connected to a cable system, select your country or part of the

world where you are now located.

éSearch for a TV channel

The frequency or the channel number increases until a TV channel is found.

In case of poor reception, you can improve the reception by adjusting the

frequency with the - P + keys.

Direct selection of a TV channel

If you know the frequency, the C- or S-channel number, enter the 3 digits of

the frequency directly with the digit keys 0 to 9 (e.g. 048).

“Enter the programme number.

‘To store your TV channel, select Store and press the OK key.

Repeat steps &to ‘to store another TV channel.

(To exit from the menu press one of the colour menu keys on the remote

control.

&In the Automatic installation menu select On with the cursor left/right to

activate the searching. All TV channels are searched for and stored

automatically.

Wait until the Searching bar at the bottom of the screen has disappeared.

If a cable system or a TV channel which broadcasts ACI (Automatic Channel

Installation) or a TV channel transmitting a teletext page with the frequencies

and programme names of all the TV channels which can be received, is

detected, the search is stopped and the programme list appears.

The programme list is automatically filled with all the programme numbers

and names of the TV channels transmitted.

It is possible that the cable company or the TV channel displays a broadcast

selection menu. Layout and items are defined by the cable company or the TV channel.

Make your choice with the cursor and press the OK key.

éPress one of the colour menu keys on the door of the remote control to

return to the INSTALLATION menu.

Manual installation

Automatic installation

Automatic Installation

Searching O%.....................100%

AUTOMATIC

INSTALLATION

MANUAL

INSTALLATION

05 10

16 11

27 12

38 13

4 9 ...

(Selection Mode)

System

Programme No

Store

AUTOMATIC

INSTALLATION

0 10 ...

1 BBC1 11 ...

2 BBC2 12 ...

3 ITV 13 ...

4 ... .. ...

. ... .. ...

Automatic Installation Off

After the new or extra TV channel has been stored, the TV automatically transfers the TV channel(s) to the video recorder provided with the

EasyLink function.The message: EasyLink : Downloading Presets ... appears at the bottom of the screen.

The programme list of the video recorder is now equal to the one of the TV.

7Installation

Give name

It is possible to change the name stored in the memory or to assign a name

to a TV channel for which a name has not yet been entered.A name with up

to 5 letters or numbers can be given to the programme numbers 0 to 99. For

example SUPER, BBC1,...

Between 99 and 0, in the column in the middle, you can also name any

peripherals that are connected to a euroconnector.

&Select Give Name in the INSTALLATION menu and press the OK key.

éSelect the programme number.

“Press the OK key.

‘Select the character with the cursor up/down.

(Select the following position with the cursor right.

§Select the following character.

èPress the OK key when finished.

!Press one of the colour menu keys to return to the INSTALLATION menu.

Spaces, numbers and other special characters are located between Z and A.

According to your preference you can change the order of the stored TV

channels.

&Select Reshuffle in the INSTALLATION menu and press the OK key.

éSelect the programme number you want to change.

Use the cursor left/right to select another column of the programme list.

“Press the OK key.

‘Select the new number you want to exchange it with.

(Press the OK key.

Repeat the operation until all TV channels are allocated as you like.

§Press one of the colour menu keys to return to the INSTALLATION menu.

Reshuffle the programme list

After leaving the installation you can browse through the TV channels by

pressing the - P + key. Only those TV channels which are in the favourite list

will be displayed. Non-favourite TV channels can still be selected with the digit

keys.

You can also do this for a programme number reserved for the programmes

you receive from your decoder.

&Select Favourite programmes in the INSTALLATION menu and press

the OK key.

éSelect your programme number.

“Select Favourite with the cursor up/down.

‘Select Ye s or No with the cursor left/right.

(Repeat éto ‘for every TV channel you want to make a favourite or a

non-favourite TV channel.

(Press one of the colour menu keys to return to the INSTALLATION menu.

Select Favourite TV channels

RESHUFFLE 90

0 10 ...

91 1 BBC1 11 ...

92 2 BBC2 12 ...

93 3 .... 13 ...

94 4 .... 14 ...

95 5 .... 15 ...

96 ...... ......

FAVOURITE

PROGRAMMES

EXT1 0 ... 10 ...

EXT2 1 ... 11 ...

EXT3 2 ... 12 ...

FRONT 3 ... 13 ...

4 ... 14 ...

5 ... 15 ...

..... ......

Programme Number

Favourite

GIVE NAME 90

EXT1 0

91 EXT2 1 BBC1

92 EXT3 2 BBC2

93 FRONT 3 ....

94 4 ....

95 5 ....

96 .......

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

Reshuffle

Favourite Programmes

Decoder/Descrambler

Setup

INSTALLATION

8Installation

Define Decoder/Descrambler programme numbers

If a decoder or a descrambler is connected, see p. 19, you can define one or

more programme numbers as decoder programme numbers.

&Select Decoder/Descrambler in the INSTALLATION menu and press the

OK key.

éSelect the programme number with the cursor up/down. Select the

programme number under which you have stored the programme coming

from your decoder with the digit keys

“Select Decoder Status with the cursor up/down.

•Press the cursor left/right to select the input used to connect your decoder:

TV,EXT1 or EXT2.

•Select TV if you do not want the selected programme number being

activated as a decoder programme number.

‘Use the red menu key to return or switch menu off.

If the TV is connected to a video recorder with the EasyLink function, the message

EasyLink: Downloading Presets.... appears at the bottom of the screen.

The programme list of the video recorder is equal again to the one of the TV.

The Setup menu allows you to adjust initial settings, i.e. those which are not

related to the installation of the TV channels.

The Setup menu contains items that control the settings of the TV’s functions,

features, services and peripherals you may have connected.

&Select Setup in the INSTALLATION menu and press the OK key.

éUse the red menu key to return or switch menu off.

Ext2 Output

See Record with your video recorder without EasyLink, p. 26.

Photo CD

See Connect Peripheral Equipment, Other equipments, p. 20.

Information Line

Press the cursor left/right to select On.

After the selection of a TV programme or after pressing the ikey on the

remote control, a TV channel which broadcasts teletext may transmit the

name of the TV channel or the programme name or another message which

appears briefly in the information line at the bottom of the screen.

When selected Off, the information line will only appear after pressing the

ikey, and not after the selection of a TV channel.

Picture mute

Press the cursor left/right to select a Blue or Black screen when there is no

picture or information. In VGA mode always black mute is used.

Auto Format

When Ye s is selected with the cursor left/right,Auto format is part of the

picture formats that are selectable with the qkey.

With the picture format Auto format, the picture will fill the screen as much

as possible. See p. 9.

Install TV Setup

Menu Language

Country

Automatic Installation

Manual Installation

Give Name

Reshuffle

Favourite Programmes

Decoder/Descrambler

Setup

INSTALLATION

Ext2 Output

Photo CD

Information Line

Picture mute

Auto Format

SETUP

DECODER/

DESCRAMBLER

Programme

Decoder Status

9Use of the remote control

Operation

Use of the remote control

VCR 1

VCR 2

DVD

AMP

TUNER

TAPE

SAT

123

456

PICTURE SOUND

SMART CONTROLS

wSelect your computer or other

peripherals

Press this key repeatedly to select EXT1,

EXT2, EXT3,FRONT, VGA or TV channels,

according to where you connected your

peripherals (see p. 24).

Remark: in VGA mode only some keys are valid.

See VGA menu, p. 24.

Menus and on screen information will disappear

if you select VGA.

MMode selection

Press this key repeatedly to indicate the

peripheral equipment you want to operate

with the remote control.

TV TV operation

Press this key to use the remote control

directly in the TV mode

BStandby

The set is switched off and the red indicator

lights up in front of receiver box and the

screen.

To switch the TV on again press the Bkey

or press - P + or the digit keys.

Although this set is provided with low power

standby it is still advised to switch off your TV

overnight instead of leaving it on standby.You

save energy.

bDual screen see p. 16

qPicture format

Press this key repeatedly to select another

picture format: 4:3, Movie Expand 14:9,

Movie Expand 16:9 with or without subtitling,

Super Wide,Wide Screen or Auto Format

(when Auto Format is set to Yes in the

SETUP menu).

Auto Format makes the picture to fill the

screen as much as possible.

Sometimes also video recorder programmes

carry special signals which will automatically

switch the TV to the correct screen format.

Note: In VGA mode press the qkey to switch

between a 4:3 or a 16:9 picture format.

In Dual screen mode press the qkey to switch

between a full or a squeezed picture format.

XBilingual choice and

sound mode selection

Press this key

•to switch from Stereo to Mono sound, in

case of stereo transmission, or from

Digital Sound to Digital Sound available,

in case of digital transmission;

•to choose between language Y(Dual Y) or

language Z(Dual Z), in case of bilingual

transmission.The setting is separately

stored for each TV channel.

0/9 Digit keys

To select a TV channel.

For a two digit programme number, enter the

second digit within 2 seconds.

0Previous programme

The previously selected TV channel is displayed.

The ◊keys are only used with some video

recorders and DVDs.

iPermanent programme number

Screen information

Press for 5 seconds to activate/de-activate the

continuous display of the programme number.

Press briefly to display information about the

selected TV channel and programme, the sound

mode, picture format settings, the selected

DNR setting and the remaining time set with

the sleeptimer.

Use of the remote control

VVolume

Press + or - to adjust the volume.The

volume is adjusted. If you want to store the

volume adjustment in the memory, see the

Features menu, General PP store, p. 14 to

store the same volume adjustment for all

the stored TV channels

PProgramme selection

To browse through the TV channels

activated in the Favourite Programme menu.

¬ Sound mute

Temporarily interrupt the sound or restore

it.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 29PT786A-75R Manuel utilisateur

Philips

Philips 27I REALFLAT CTV W-PIP-DBX STEREO-REMOTE... Manuel utilisateur

Philips

Philips 37PFL5322D Document technique

Philips

Philips 43 4 Series Manuel utilisateur

Philips

Philips 32PFS4132 Manuel utilisateur

Philips

Philips 5214U Series Manuel utilisateur

Philips

Philips 7601 series Instructions d'installation

Philips

Philips 28 PT 7159 Manuel utilisateur

Philips

Philips 40PFL4707/F8 Manuel utilisateur

Philips

Philips The One 55PUS8508/62 Manuel utilisateur

Philips

Philips 43PUS6754 Manuel utilisateur

Philips

Philips Roku TV 32PFL6472 Manuel utilisateur

Philips

Philips 21PT5026 Manuel utilisateur

Philips

Philips 7607 Series Manuel utilisateur

Philips

Philips 42PFL3604H/12 Manuel utilisateur

Philips

Philips OLED986 Series Manuel utilisateur

Philips

Philips 37PFL7422/79 Manuel utilisateur

Philips

Philips 7505 Series Manuel utilisateur

Philips

Philips 7263 Series Manuel utilisateur

Philips

Philips BDL5531EL Manuel utilisateur

Philips

Philips 79 6 Series Manuel utilisateur

Philips

Philips 6704 series Manuel utilisateur

Philips

Philips 32PT563S Manuel utilisateur

Philips

Philips 32PFL8605K Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
