Thank you for purchasing this television set.

This handbook has been designed to help you install and operate your TV set.

We strongly recommend that you read it thoroughly.

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Preparation / Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Television keys and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remote Control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote Control keys (Other functions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Quick installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Programme sort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Auto store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Manual store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Naming of channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Picture and Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Using the Contrast+ and (NR) Noise Reduction features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Timer function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the PIP (Picture-in-Picture) feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Screen Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Using the Smart Picture and Sound features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Active Control feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the TV as PC monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the TV in HD (High Definition) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Introduction

Table of Contents

Recycling

The packaging of this product is intended to be recycled. Apply to the local authorities

for correct disposal.

Disposal of your old product

Your product is designed and manufactured with highly quality material and components,

which can be recycled and reused. When this crossed-out wheeled bin symbol is attached

to a product, it means the product is covered by the European Directive 2002/976/EC.

Please inform yourself about the local seperate collection system for electrical and

electronic products.

Please act according to your local rules and do not dispose of your old products with your

normal household waste. The correct disposal of your product will help prevent potential

negative consequences for the environment and human health.

10 cm 10 cm

10 cm

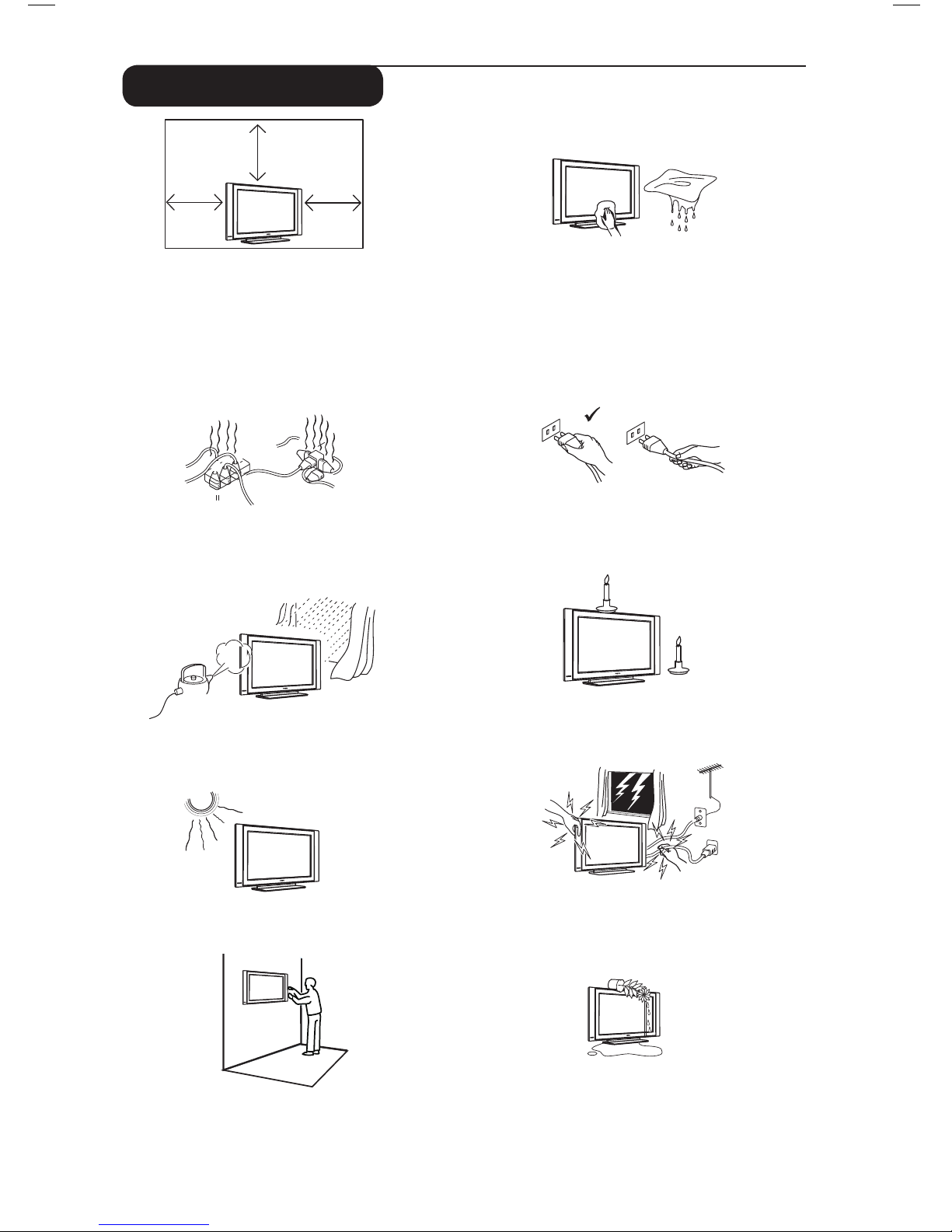

Safety Information

Avoid placing your TV set under direct sunlight

or heat.

To prevent fire or shock hazard, do not expose

your TV to rain or moisture.

Take care not to connect too many equipment

to the same mains socket as it may cause

overloading resulting in fire or electric shock.

Pull the power lead by the plug. Do not pull on

the power lead. Do not use a poor fitting mains

socket. Insert the plug fully into the mains. If it is

loose, it may cause arching and result in fire.

No naked flame sources (lighted candles) should

be placed on the top of the set or near it.

When cleaning the surface or the screen of the

set, wipe gently with absorbent cotton or cloth

or other soft material like chamois. Do not use

too wet a cloth which is dripping with water.

Do not use acetone, toulene or alcohol to

clean the TV. As a safety precaution, unplug the

power cord from the mains.

As a safety precaution, do not touch any part of

the TV, power lead or aerial lead during lightning

storms.

Installation of the TV set on the wall should be

carried out by qualified serviceman. Improper

and incorrect installation may render the set

unsafe.

Avoid placing vase filled with water on the TV.

Water spilled into the set could result in electric

shock. Do not operate set if water is spilled into

it. Have it checked immediately by a qualified

serviceman.

Leave at least 10 cm around each side of the

TV set to allow for proper ventilation. Place

the set on a stable, level surface. Never cover

the ventilation slots of the TV with a cloth or

other material. It may cause overheating. Do not

insert anything in the ventilation holes. If metal

or something flammable is inserted in these

holes, it may result in fire or electric shock.

Using the Remote Control

Pull out the plastic insulation sheet from the

battery to enable the remote control to operate.

Switching on the TV set

• To switch on the TV set, press the POWER

button. A green indicator comes on and the

screen lights up.

• If the TV set remains in standby mode (red

indicator), press the PROGRAM – /

+ key on

the keyboard or the P – / + key on the

remote control.

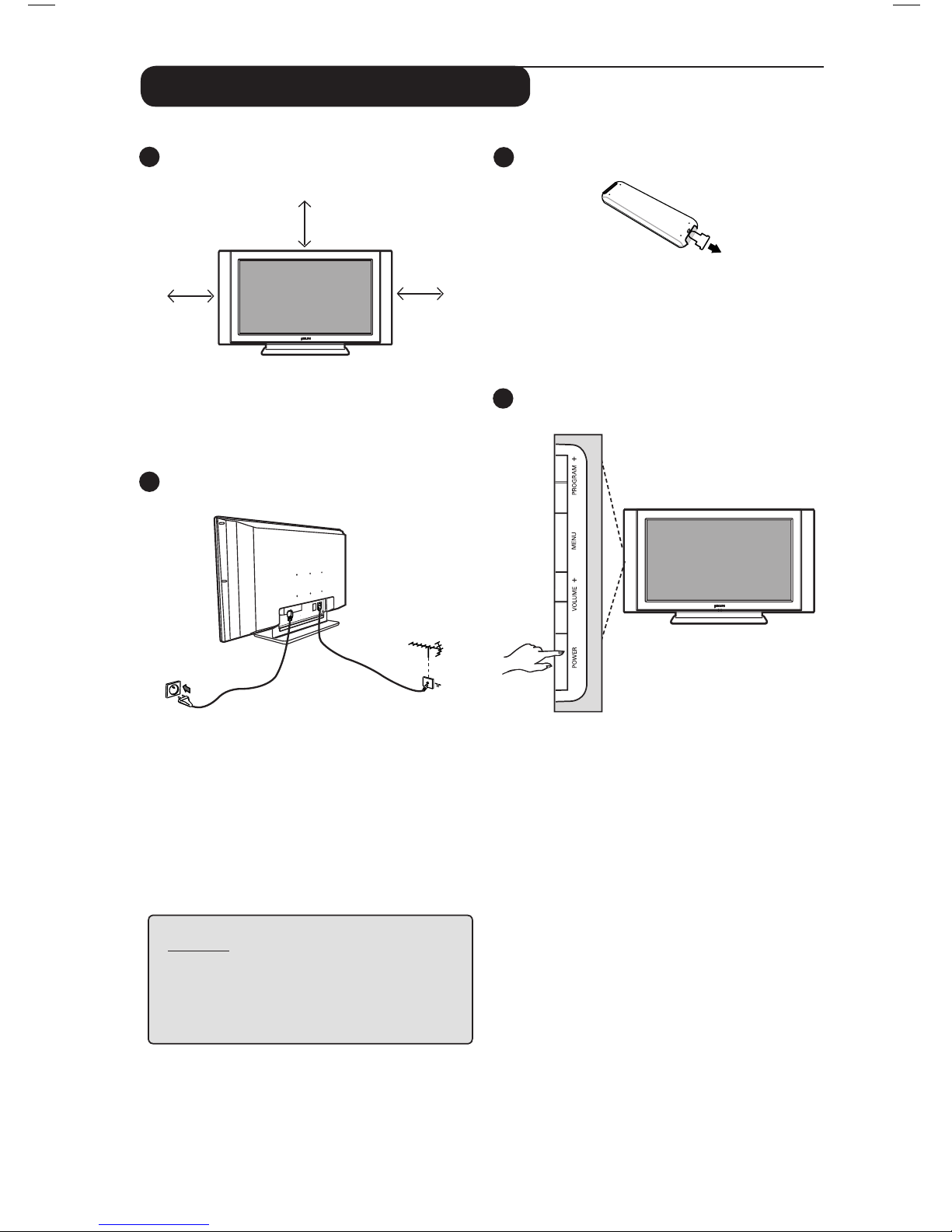

Preparation / Getting started

10 cm

Positioning the TV set

Place your TV set on a solid stable surface,

leaving a space of at 10 cm around the set.

Connections

• Insert the aerial plug into the 75Ω :

socket at the bottom of the set.

• Insert the mains plug into a wall socket

(220-240V / 50/60Hz).

NOTE

For more details on other

connections,

see

“CONNECTION GUIDE”.

–

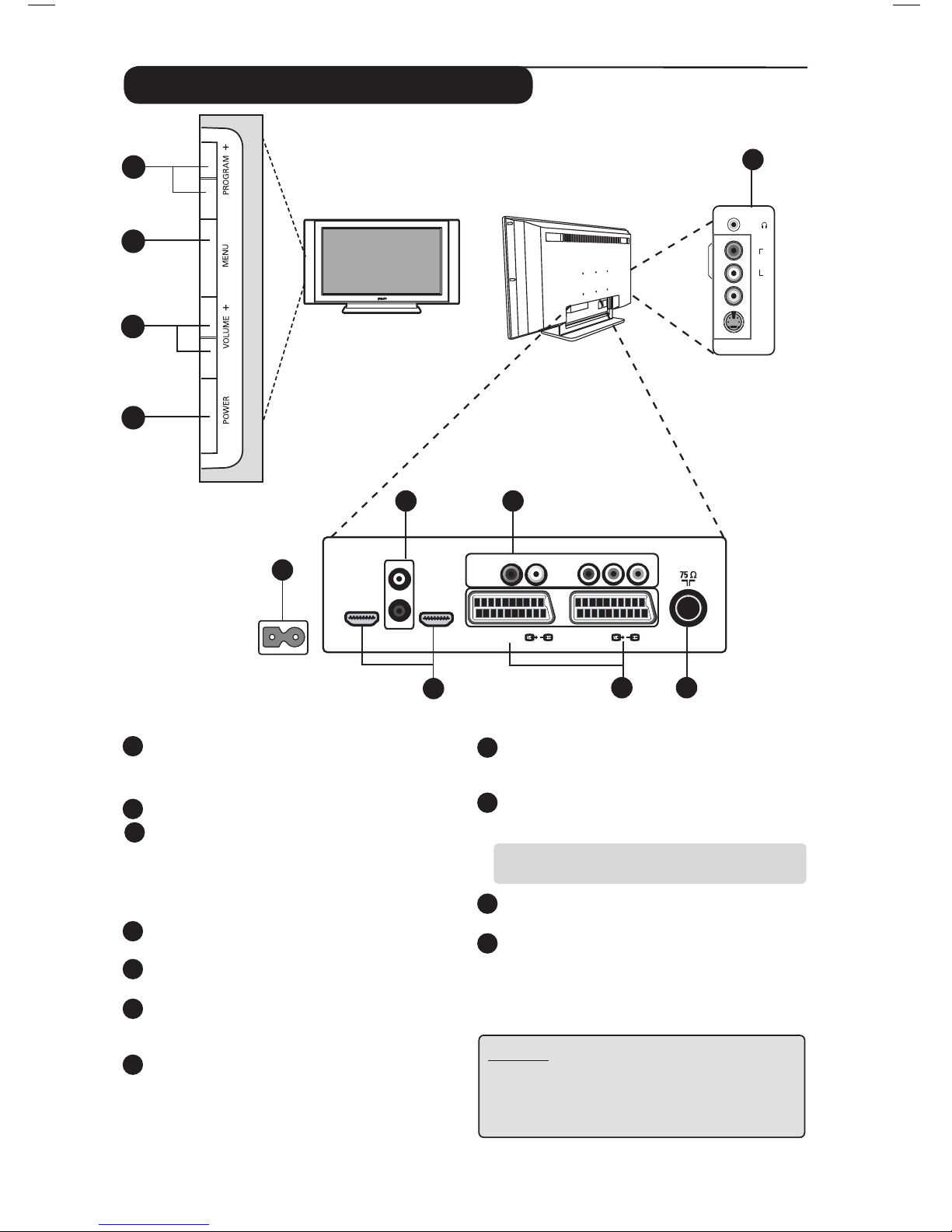

Televison keys and connectors

Headphone

Audio In

Video In

S-Video

AUDIO

VIDEO

S-VIDEO

EXT 4

EXT 2 /SVHS2

EXT 1

DVI

(AUDIO IN)

HDMI 2 HDMI 1

AUDIO

R L

Pb Y

AC in ~

1 POWER . : to switch the TV on and off.

Note : The power remains on even when the

Power switch is turned off.

2 VOLUME –/+: to adjust sound level.

3 MENU : to access or close menus.

The PROGRAM /CHANNEL –/+ keys can

be used to select a menu item and the

VOLUME –/+ keys to enter into the selected

menu item and make adjustments.

4 PROGRAM / CHANNEL –/+ : to select

programmes.

POWER socket :

Insert the mains plug into

a wall socket.

DVI Audio Input : for connecting a HD (high

definition) equipment or computer with DVI

output.

Component Video inputs / Audio Inputs :

to connect to equipment like DVD, Set-Top

box which have the same sockets. Connect the

audio inputs of the TV to the outputs of the

device together with the Component Video

Inputs.

HDMI 1 /HDMI 2 sockets : to connect to

set-top boxes, DVD player/recorder, High

Definition equipment or Personal Computer.

EXT1 and EXT2/SVHS2 sockets : connect to

equipment

like DVD player/recorder, VCR,

Decorder which have scart connections.

Important : In order to connect your

Canal + decoder, please use EXT1 scart only.

TV Aerial socket :

Insert the aerial plug into

the 75 Ω : socket .

Side connections : for connecting to devices

like camera or camcorder. Also allows you to

connect your headphone for your personal

listening pleasure.

NOTE

For more details on connections,

see CONNECTION GUIDE.

––

EXT3/SVHS3

Standby

To set the TV to standby mode. To switch the

TV set on again, press , to ,

P – / + or AV key.

Unused key in TV mode .

DVD / AUX (see page 6).

Surround Sound

To activate / deactivate the surround sound

effect. In stereo, this gives the impression that

the speakers are further apart. For models

equipped with Virtual Dolby Surround, you can

experience Dolby Surround Pro Logic sound

effects

Telextext keys (see page 14).

To display Source List to select TV or peripheral

equipment connected to EXT 1, EXT 2/SVHS2,

EXT 3/SVHS3, EXT 4, HDMI 1 or HDMI 2.

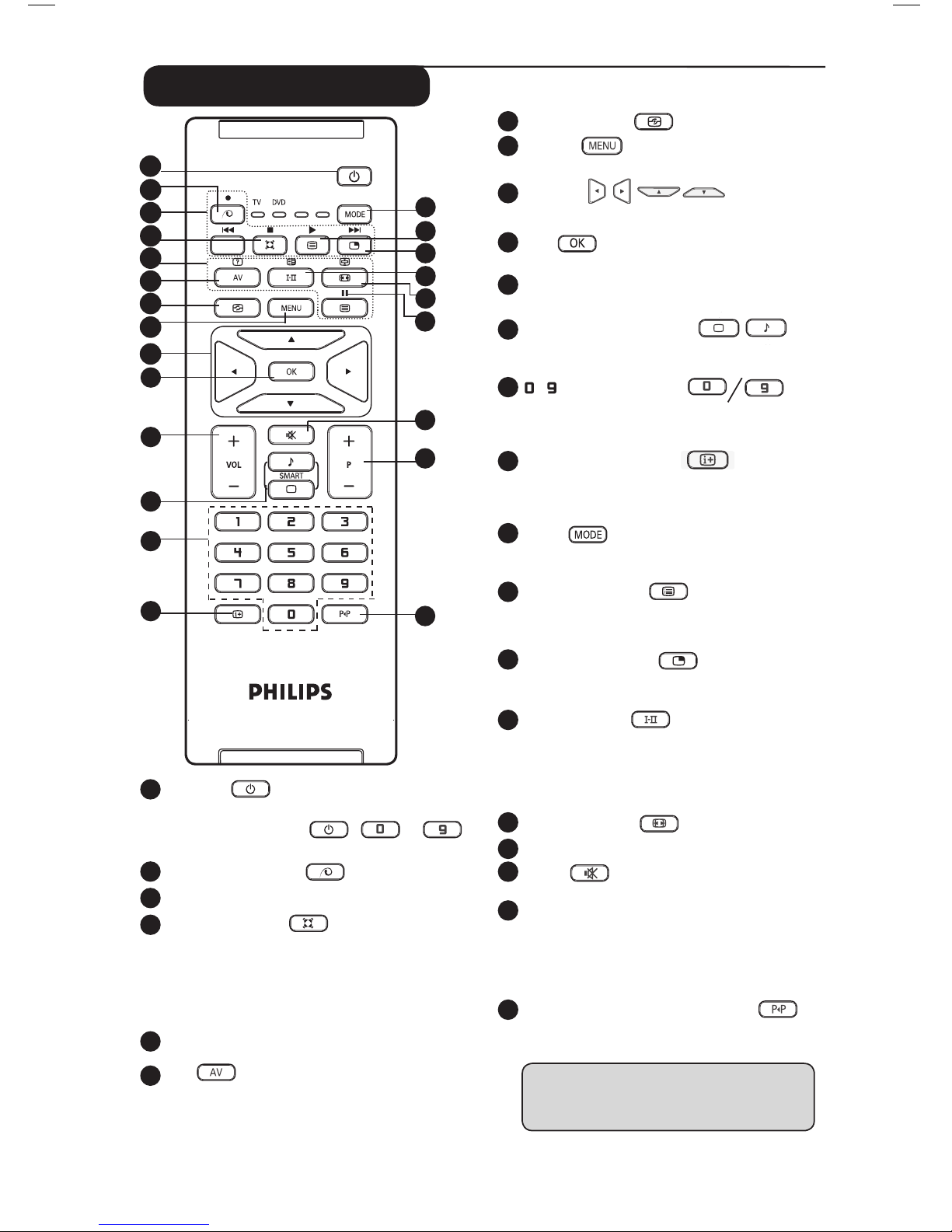

Remote Control keys

Active Control (

ee page 13).

To call up or exit the TV menus.

Cursors

These 4 keys are used for selection and adjustment

of menu items.

Conﬁrms selection.

Volume ( – VOL + )

To adjust the sound level.

12 Smart Picture /Sound

Used to access a series of predeﬁned picture

and sound settings (see page 13).

13 / Numerical keys

For direct access to programmes. For a 2

digit programme number, the 2nd digit must

be entered before the dash disappears.

14 Screen information

To display/remove the programme number,

the sound mode, the remaining time of the

sleeptimer and the *signal strength indicator.

Mode

Select between TV, DVD and AUX mode (see

“Remote Control - other functions on page 6).

Programme List

To display / clear the list of programmes.

Use the Î ï keys to select a programme and

the Æ key to display it.

Picture-in-Picture

To display a PIP window on the TV screen (see

page 10 on how to use the PIP feature).

18 Sound mode

Used to force programmes in Stereo

and Nicam Stereo to Mono or, for

bilingual programmes, to choose between

Dualå or Dual». The Mono indication is red

when in forced position.

Screen Format (see page 12).

DVD / AUX (see page 6).

Mute

Press to mute or restore sound.

22 Selecting TV programmes (P – / +)

To select the next or previous programme.

The number and the sound mode

are displayed for a few seconds. For some

TV programmes, the title of the programme appears

at the bottom of the screen.

Previous/Present programme

To alternate between the last viewed and

present programme.

* The signal strength indicator shows

the signal strength of the transmission

of the programme you are watching.

AUX

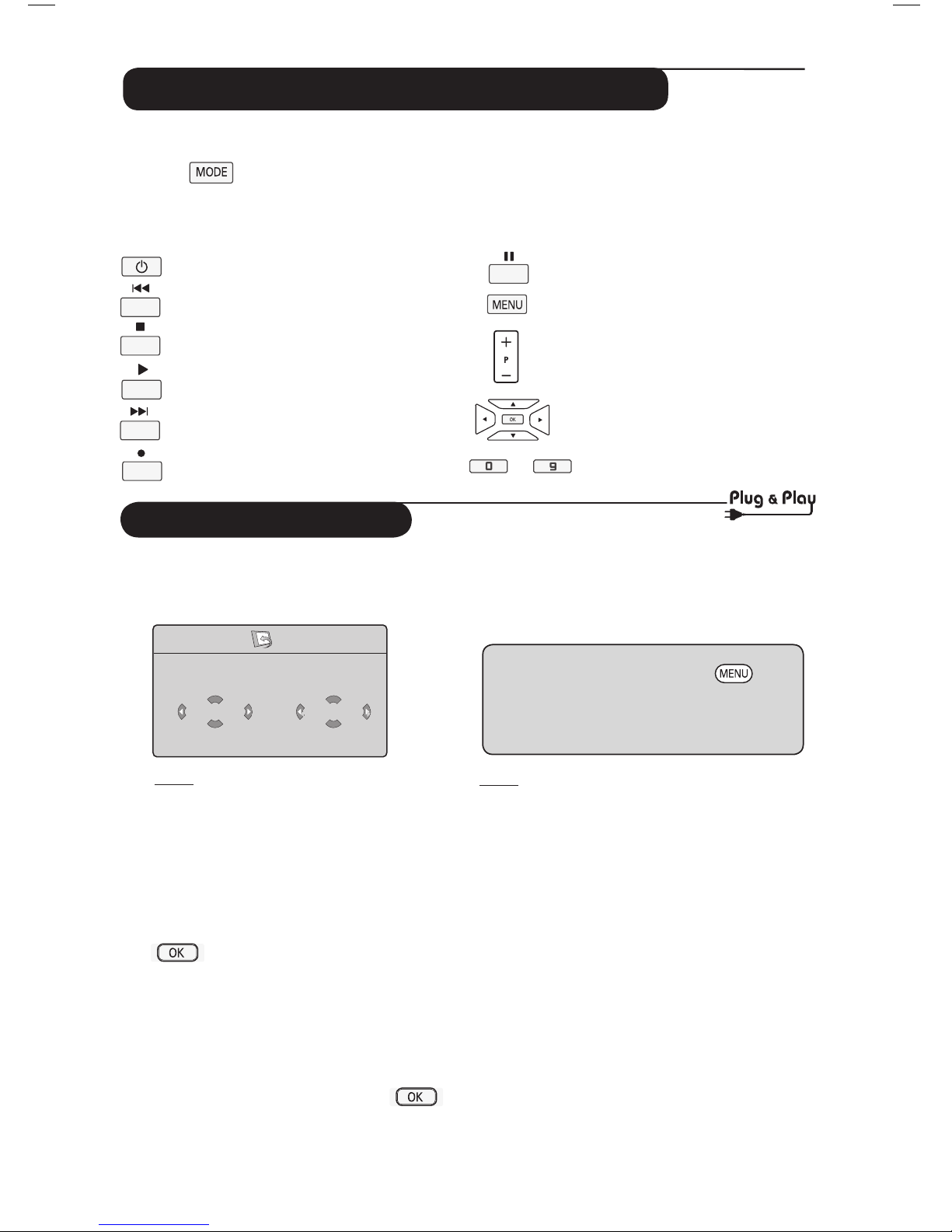

Remote Control keys (DVD or AUX)

The remote control also allows you to control the main functions of some Philips DVD models

NOTE : Functions not available to Philips DVD-R device.

Press the key to select the required mode: DVD or AUX.

The remote control indicator lights up to display the selected mode. It switches off automatically

after 20 seconds if left idle. The mode automatically returns to TV mode.

The following buttons are operational, depending on the equipment:

standby

fast rewind

stop

play

fast forward

record

pause

display and exit menu

programme selection

navigation and adjustments,

confirms selection

digit keys

Quick Installation

When you switch on the TV set for the

first time, a menu is displayed on screen.

This menu prompts you to select the

country and language for the menus.

Note

If the above menu is not displayed, proceed to

do the installation of channels by the

Auto Store method (see page 7). If above

menu is displayed, proceed to do the following

steps.

& Use the Î ï keys on the remote control

to select your country and confirm with the

key. If your country does not appear in

the list, select “. . . “ . Refer to the “Reference

table of Countries available for selection” on

page 19.

é Use the Æ key to move to the Language

mode and select your language by the Î ï

keys.

“ Confirm selection language with the

key.

‘ Use the Æ key to start search.

Plug’n’Play

Country

Language

English

The search starts automatically. All the

available TV programmes will be stored. This

operation takes a few minutes. The display

shows the progress of the search and the

number of programmes found.

Important : To exit or interrupt the search

before it is completed, press the key.

If you interrupt search during auto store, not

all channels will be stored. For all channels to

be stored, you need to do a complete auto

store search again.

Note

ATS (Automatic Tuning System) feature

If the transmitter or cable network sends the

automatic sort signal, the programmes will be

numbered correctly. In this case, the installation

is complete. If this is not the case, you need to

use the Sort menu to number the programmes

correctly.

ACI (Automatic Channel Installation)

feature

If a cable system or a TV channel which

broadcasts ACI is detected, a programme

list appears. Without ACI broadcast, the channels

are numbered according to your language and

country selection. You can

use the Sort menu to renumber them.

Some transmitters or cable networks broadcast their

own sort parameters (region, language, etc.). In this

case, indicate your choice using the Î ï keys and

confirm with Æ key.

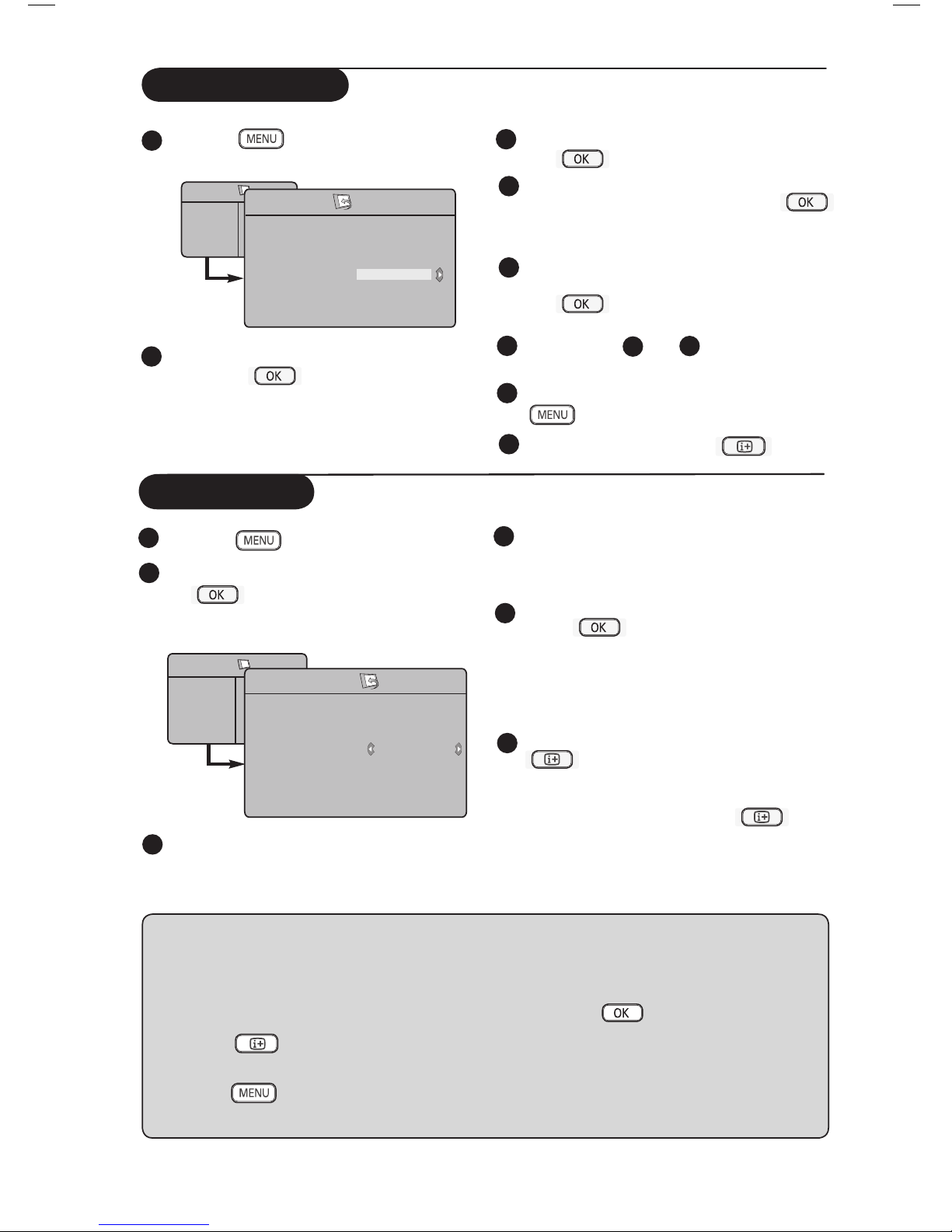

Program Sort

Press the key. The TV Menu is

displayed on the screen.

Use the ï key, select the Install menu

and the Æ / key to enter the

Install menu.

Use the ï key to select Sort and the

Æ / key to enter sort mode.

Select the programme number you want to

move using the Î ï keys and the Æ /

key to enter sorting mode (The arrow cursor

now points to the left).

Use the Î ï keys to select the new

programme number and confirm with the

Í / key. (The arrow points to the

right and sorting is completed).

Repeat steps and for each

programme number you wish to re-number.

To return to previous menu, press the

key.

To exit the menu, press the key.

TV Menu


Sound

Features

Install

Language

Country

Auto Store

Manual Store

Sort

Name

Æ • 0

Æ • 1

Æ • 2

Æ • 3

Æ • 4

Æ • 5

Auto Store

Press the key.

Using the ï key, select Install and the

Æ / key to enter the Install menu

(Language is highlighted).

Before you proceed to do auto store

of channels, select your desired menu

*Language with the Í Æ keys.

Select Country with the ï key and

use the Í Æ keys to select the country of

your choice.

Using the ï key, select Auto Store and

the Æ / key to start automatic

searching of the channels. All the available TV

programmes will be stored. This operation

takes a few minutes. The display shows the

progress of the search and the number of

programmes found.

After the search is completed, press the

key to exit menu.

Important : To exit or interrupt the search

before it is completed, press the key.

If you interrupt search during auto store, not

all channels will be stored. For all channels to

be stored, you need to do a complete auto

store search again.

TV Menu


Sound

Features

Install

Language

Country

Auto Store

Manual Store

Sort

Name

* Selecting the language

If you have selected the wrong language for one

reason or another and do not understand the

language to operate the set, do the following to

bring you back to your preferred language :

– press the key to exit the existing

menu.

– press the key to enter the TV menu.

– press the

ï key repeatedly until the

FOURTH item in the TV menu is

highlighted.

– press the

Æ / key to go into the Install

menu.

– press the Í Æ keys to select your preferred

language (the menu will now appear in the

chosen language). You can proceed to install

the TV channels automatically.

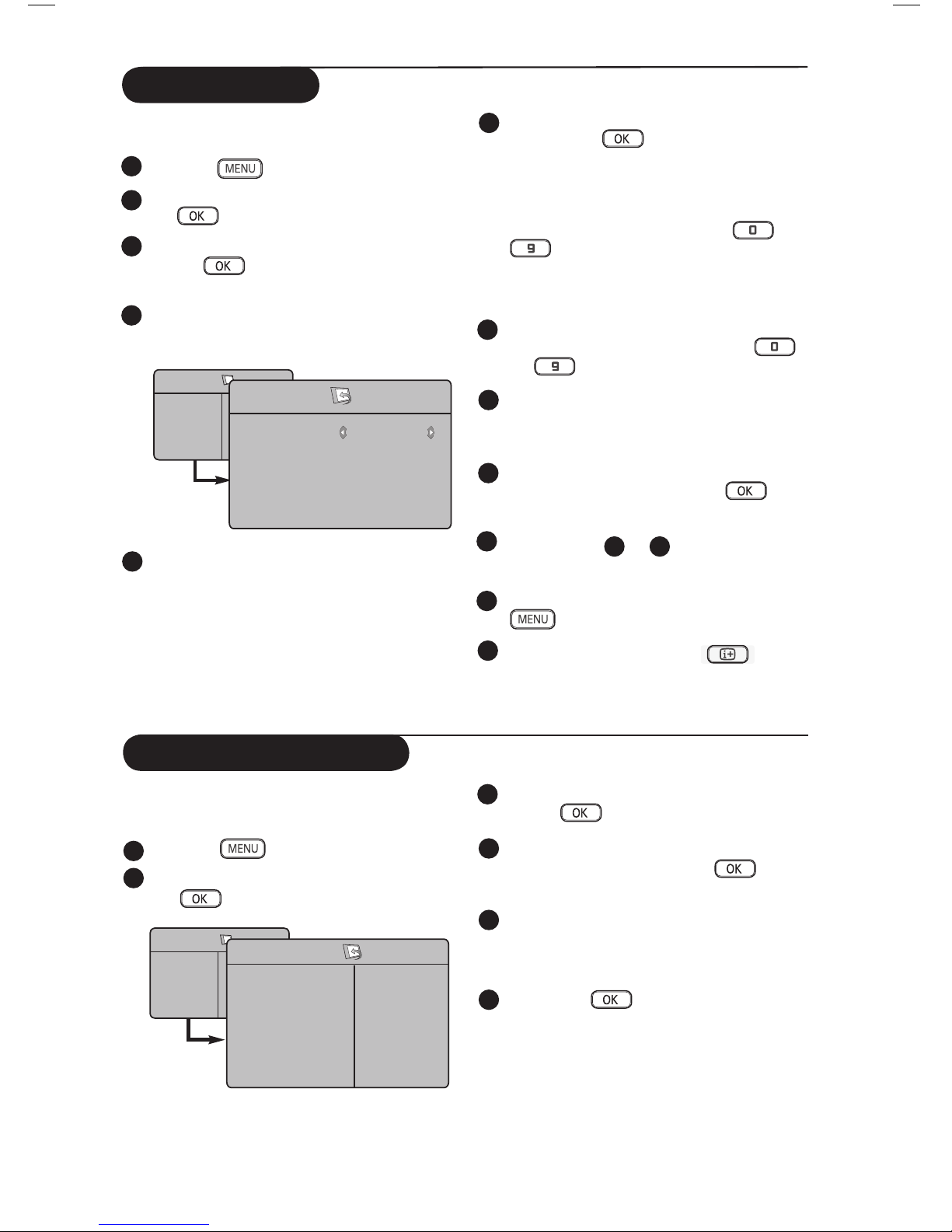

Manual Store

Search :

Press the Æ / key. The search starts.

Once a programme is found, the scanning

stops and its name is displayed (if available).

Go to the next step. If you know the

frequency of the required programme, this

can be entered directly using the to

keys.

If no picture is found, see “Troubleshooting Tips”

on page 17 and 18..

Program No. :

Enter the required number with the

to or Í Æ keys.

Fine Tune :

If the reception is not satisfactory, adjust

using the Í Æ keys.

Store :

To store the changes, press Æ / key .

The programme is now stored.

Repeat steps 6 to 9 for each programme

to be stored.

To return to previous menu, press the

key.

To exit the menu, press the key.

System : Use the Í Æ keys to select

Europe (automatic detection*),

France (LL’ standard) or

UK (I standard),

West Europe (BG standard),

East Europe (DK standard). or

* Except for France (LL’ standard), you must

select France.

This menu is used to store the programmes

one at a time.

Press the key.

With the ï key, select Install and the

Æ / key to enter the Install menu.

Use the ï key to select Manual Store and

the Æ / key to enter Manual Store

menu.

Use the Î ï keys to select the items in the

Manual Store menu to adjust or activate.

TV Menu


Sound

Features

Install

Manual Store

System

Program No.

Fine Tune

Store

Europe

Naming of Channel

If required, you can give a name to the TV

channel.

Press the key.

With the ï key, select Install and the

Æ / key to enter the Install menu.

Use the ï key to select Name and

the Æ / key to enter name mode.

Use the Î ï keys to select the programme

you want to name and the Æ / key to

enter naming mode.

Use the Î ï keys to select the characters

(maximum of 5 characters) and use the Í Æ

keys to move around the name display area.

Press Í Æ / key until the name

appears at the top right hand corner of the

TV screen. The name is now stored.

TV Menu


Sound

Features

Install

Language

Country

Auto Store

Manual Store

Sort

Name 8

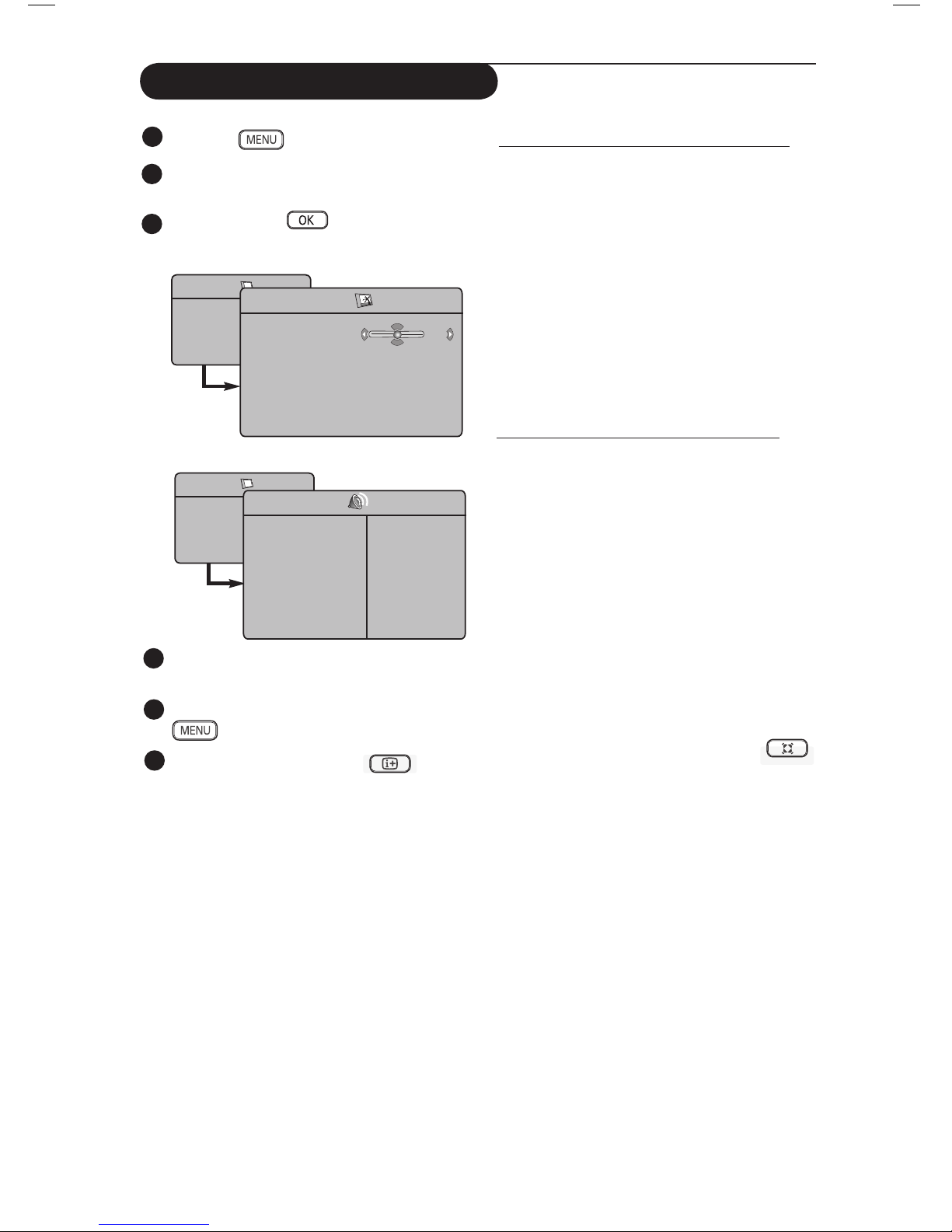

Picture and Sound Settings

Press the key.

Use the Î ï keys to select Picture or

Sound.

Use the Í Æ / keys to enter

Picture or Sound menu.

Use the Î ï keys to select a Picture or

Sound setting and the Í Æ keys to adjust.

To return to previous menu, press the

key.

To exit the menu, press the key.

TV Menu


Sound

Features

Install


Brightness

Colour

Contrast

Sharpness

Colour Temp.

Store

TV Menu


Sound

Features

Install

Sound

• 120 Hz

• 500 Hz

• 1500 Hz

• 5 KHz

• 10 KHz

Equalizer Æ

Balance Æ

Delta Voliume Æ

AVL Æ

Dolby Virtual Æ

Store Æ

Description of the Picture settings

Brightness : this changes picture brilliance.

Colour : this changes the intensity of the colour.

Contrast : this changes the difference between

the light and dark tones.

Sharpness : this increases or decreases the

sharpness level to improve details in the picture.

Colour Temp. : this changes the colour

rendering: Cold (bluer), Normal (balanced) or

Warm (redder).

Store : to store the picture adjustments and

settings.

Description of the Sound settings

Equalizer : to adjust the sound tone (from bass:

120 Hz to treble : 10 KHz).

Balance : this balances the sound on the left and

right speakers.

Delta Volume : this is used to compensate

any volume differences between the different

programmes or EXT sockets. Note : Programmes

0 to 40 have individual volume setting and

programmes 41 and above share common setting.

AVL (Automatic Volume Leveller) : this is used

to limit sudden increases in sound, especially on

programme change or advertising slots.

Dolby Virtual : To activate / deactivate the

surround sound effect.

You can also access these settings with the

key.

Store : this is used to store the sound settings.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 15PF9945/37 Manuel utilisateur

Philips

Philips 4354 Series Manuel utilisateur

Philips

Philips 29PT5642 Manuel utilisateur

Philips

Philips 21PT2252 Manuel utilisateur

Philips

Philips 26PFL4306/V7 Manuel utilisateur

Philips

Philips 21PT5207 Manuel utilisateur

Philips

Philips 27PC4326/37 Instructions de montage

Philips

Philips Cineos 32PF9631D Manuel utilisateur

Philips

Philips OLED807 Series Manuel utilisateur

Philips

Philips 55PFL6900/F8 Manuel utilisateur

Philips

Philips 20TA1600/98 Manuel utilisateur

Philips

Philips 42PFL5403/77 Manuel utilisateur

Philips

Philips 7906 Series Manuel utilisateur

Philips

Philips TPM10.1E LA Manuel utilisateur

Philips

Philips 65OLED803/75 Manuel utilisateur

Philips

Philips 5231 series Manuel utilisateur

Philips

Philips BDL5588XH/00 Manuel utilisateur

Philips

Philips 43PUS8535 Mode d’emploi

Philips

Philips 21TCDI30/01 Manuel utilisateur

Philips

Philips SK5.1L Manuel utilisateur

Philips

Philips Econova 46PFL6806T/12 Manuel utilisateur

Philips

Philips COLOR TV 32 INCH TABLE TP3267C Manuel utilisateur

Philips

Philips 32HF5335D Manuel

Philips

Philips Q549.2E LA Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
