3139 125 26802

Instructions for use

Colour Television

29PT5683

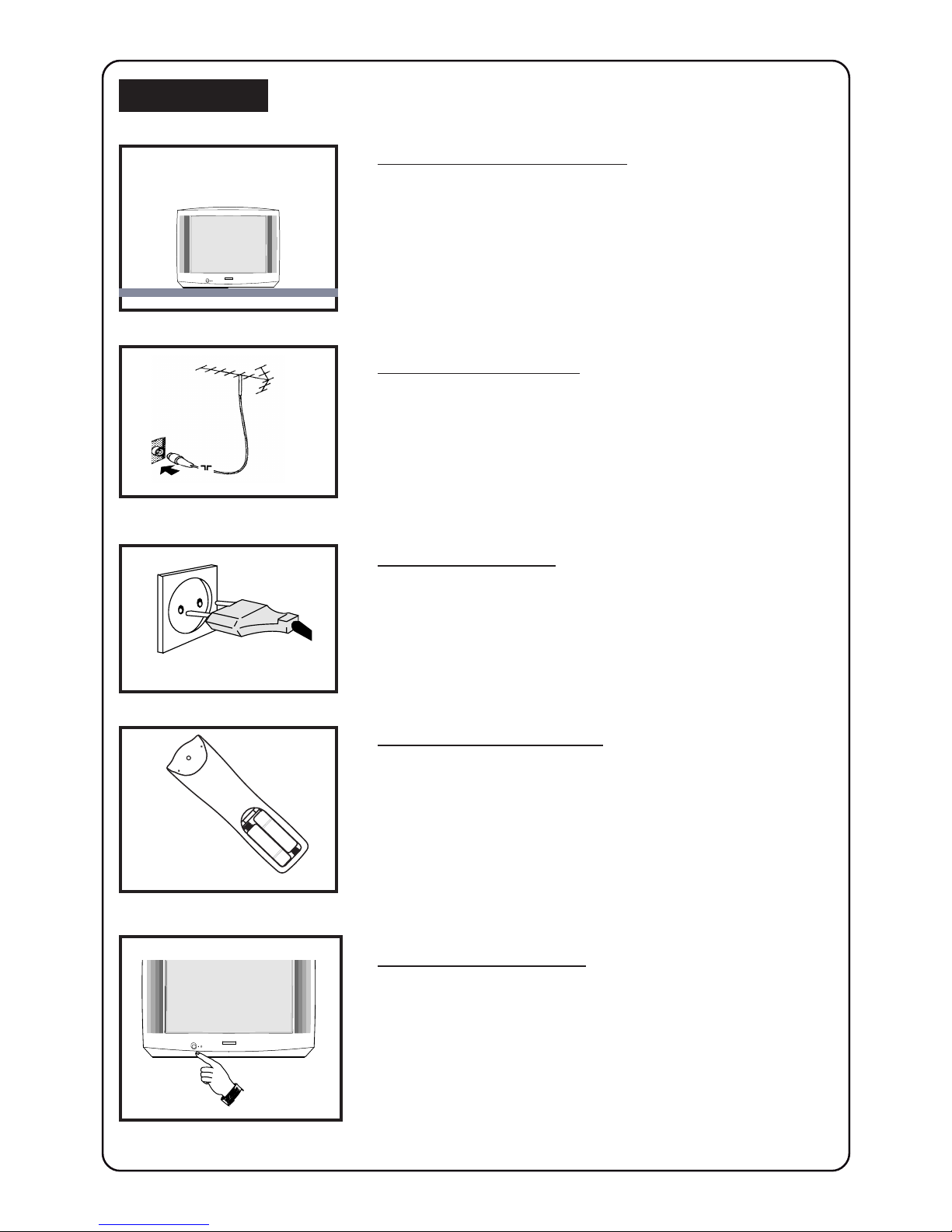

Positioning of the TV set

• Place TV set on a solid base (e.g. a TV/Video cabinet)

• Leave at least 5 cm around each side of TV set for

ventilation to avoid over-heating.

• Do not place TV set near a radiator or other sources of

heat.

• Do not place TV set where it can be exposed to rain or

excessive moisture.

Antenna Connection

• Connect the aerial plug to the antenna socket ¬¬

¬¬

¬on the

backcover.

Mains Connection

• For correct mains voltage, refer to type sticker at the rear

of the TV set

• Consult your dealer if mains supply is different.

Note : This diagram is not representative of the actual

plug and socket.

Use of Remote Control

• Insert correct type of batteries into the compartment.

• Replace the battery cover.

Note : Always remove the batteries from the remote

control handset if it is not used for a long period.

This can help prevent damage to handset from possible

battery leakage.

Switching on the Set

• Press the main power button to switch on/off the TV.

If the set is on standby (indicator is red), press STANDBY

button on the remote control to switch on set.

INSTALLATION

PHILIPS

÷÷

◊

5 cm 5 cm

5 cm

PHILIPS

FUNCTIONS OF TV CONTROLS/SOCKETS

123

➠

S-VIDEO

AV1

VIDEO

AUDIO

AV2

out

Monitor

810 11 12

1Mains Power button

Switch mains power on or off.

2Standby light indicator

Indicate red light when standby mode is

activated.

3Remote Sensor

Aim remote control handset at remote

sensor when operating the TV.

4Volume +/ – button

Adjust sound volume louder/softer.

5P (Programme) +/ – button

Select channel in ascending/descending order.

Note

• You can enter the main menu by pressing both

the Volume + / – buttons at the same time.

• Press Programme + / – button to select

sub-menu.

• Press Volume + / – button to activate sub-menu.

6AV3 in sockets

Connect to Output sockets of VCR/laser disc

player to the AV3 in sockets to playback

programmes.

7Headphone socket

Connect headphone jack to socket for

personal listening.

8Antenna socket

Connect the aerial plug to the antenna socket

on the backcover.

9S-Video In socket

Connect the S-VIDEO Output socket (if available)

of the VCR to the S-VIDEO in socket to enhance

picture quality.

10 AV1 In sockets

Connect the Output sockets of the VCR/laser disc

to the AV1 in sockets to playback programmes.

11 AV2 In sockets

Connect the Output sockets of the VCR/laser disc

to the AV2 in sockets to playback programmes.

12 Monitor out sockets

Connect the VIDEO out socket of the TV to the

Input socket of VCR to record programmes.

To enhance sound of your TV, connect the

AUDIO L and Rsockets to an external audio

system.

K

K

S-VIDEO

VIDEO

AUDIO

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

FUNCTIONS OF REMOTE CONTROL

1SLEEPTIMER

Allows you to select a time period after which the set

will switch to standby mode automatically. You can

set the timer in steps of 15 minutes from OFF mode

up to a maximum of 120 minutes.

2PIP ON/OFF

Switch on or off PIP (Picture in Picture).

3A/CH (ALTERNATE CHANNEL)

Alternate between last viewed channel and present

channel.

4PIP SWAP

Interchange channel on main screen and subscreen.

5PIP SOURCE

Allows you to select various external connections for

PIP.

6SMART SOUND

Allows you to select 4 types of sound settings

7MENU

Allows you to adjust picture and sound settings and

activate the features and install the channels

automatically.

8CURSOR UP

Allows you to select the sub-menus.

9CURSOR LEFT

Allows you to access or adjust the sub-menus.

10 VOLUME + / –

Increases / decreases volume.

11 AV

Selects AV1, S-VID1, AV2, AV3, S-VID3 and the last

viewed channel respectively. The correct channel

must be selected when viewing a playback

programme.

12 OSD (On-Screen Display)

Displays :

– channel number.

– remaining time of the sleeptimer.

– programme name.

– information line

– transmission mode.

13 TELETEXT

Allows you to select teletext information.

14 INCREDIBLE SURROUND

Allows you to select incredible surround sound

when transmission is in stereo mode.

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

FUNCTIONS OF REMOTE CONTROL

15 POWER

Switch set off temporarily to standby mode.

(The red light indicator lights up when set is on

standby mode). To switch on set from standby

mode, press and hold button for a few seconds.

16 PIP POSITION

Allows you to move the PIP screen to your desired

position.

17 PIP FREEZE

Allows you to freeze or resume the PIP screen.

18 PIP DOWN

Selects a PIP channel in descending order.

19 PIP UP

Selects a PIP channel in ascending order.

20 DIGIT (0 - 9)

Allows you select a channel. For a 2-digit channel

number, the second digit must be entered before

the “ – “ sign disappears

21 SMART PICTURE

Allows you to select 4 types of picture settings.

22 SURF

Allows you to select up to a maximum of 10

channels and view quickly the selected channels.

23 CURSOR RIGHT

Allows you to access or adjust the sub-menus.

24 CURSOR DOWN

Allows you to select the sub-menus.

25 CHANNEL + / –

Allows you to select channel in ascending or

descending order.

26 MUTE

Mutes sound. To restore sound, press button again.

27 TIMER

Not applicable.

28 44

Allows you to switch from Stereo to Mono sound

(stereo transmission) or to choose between

language5and language 6.

29 INCREDIBLE PICTURE

Allows you to view a more vivid and realistic

picture with better contrast when the “ON”

function is selected.

30 GAME

Allows you to select Video mode as input for

video games.

MENU SURF

MENU SURFMENU SURF

MENU SURF

ACCESSING THE MAIN MENU

The main menu allows you access to the PICTURE, SOUND, FEATURES and INSTALL

menus.

How to call up the main menu

1. Press the MENU button. 2. The main menu appears on the screen.

How to access the menus in the main menu

The 4 buttons (CURSOR DOWN, UP, LEFT and RIGHT) allow you to select the desired

menu, make adjustments and access the sub-menus.

How to exit from the menus

Press the (OSD) button to exit menu from screen or press (MENU) button

repeatedly to exit all menus from screen.

➠

PICTURE BRIGHTNESS

SOUND COLOUR

FEATURES CONTRAST

INSTALL SHARPNESS

COLOUR TEMP

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

LANGUAGE SELECTION /AUTOMATIC TUNING OF TV CHANNELS

How to tune in the channels automatically (Auto Store)

Press button Result on TV Screen

Enter main menu .

Press button repeatedly

until INSTALL is selected.

Enter install menu.

Enter language mode.

Select desired language

– ENGLISH, B. MELAYU

or .

Go back to language

mode.

Select AUTO STORE.

Start automatic tuning.

Note : To interrupt

tuning, press MENU

button.

Exit menu from screen.

PICTURE BRIGHTNESS

SOUND COLOUR

FEATURES CONTRAST

INSTALL SHARPNESS

COLOUR TEMP


SOUND LANGUAGE

FEATURES AUTO STORE

INSTALL MANUAL STORE

SORT

CHANNEL EDIT

INSTALL

LANGUAGE ENGLISH

AUTO STORE B. MELAYU

MANUAL STORE

SORT

CHANNEL EDIT

➤

INSTALL

LANGUAGE ENGLISH

AUTO STORE B. MELAYU

MANUAL STORE

SORT

CHANNEL EDIT

➤

INSTALL

LANGUAGE

AUTO STORE

MANUAL STORE

SORT

CHANNEL EDIT

INSTALL

AUTO STORE

SEARCHING

PLEASE WAIT

CHAN. FOUND 8

INSTALL

LANGUAGE

AUTO STORE

MANUAL STORE

SORT

CHANNEL EDIT

MANUAL TUNING OF TV CHANNELS

How to tune in the channels manually (Manual Store)

Manual tuning of channels allows you to select your preferred programme number

for every available programme.

Press button Result on TV Screen

Enter main menu

Press button repeatedly

until INSTALL is selected.

Enter INSTALL menu

Press button repeatedly

until MANUAL STORE

is selected.

Enter MANUAL STORE

menu. Press button

again to enter SYSTEM

mode.

Select the respective

transmission – AUTO,

NTSC -M, SECAM-DK,

PAL -DK, PAL -I or PAL-BG.

Note : If AUTO is selected,

the respective colour system

will be automatically selected

according to the transmission

system.

Go back to MANUAL STORE.

Highlight SEARCH.

INSTALL

MANUAL STORE

SYSTEM AUTO

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

SEARCH 062.25 MHZ

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM NTSC -M

CHANNEL

STORE

NAME

➤


SOUND LANGUAGE

FEATURES AUTO STORE

INSTALL MANUAL STORE

SORT

CHANNEL EDIT

INSTALL

LANGUAGE

AUTO STORE SYSTEM

MANUAL STORE SEARCH

SORT CHANNEL

CHANNEL EDIT STORE

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

INSTALL

MANUAL STORE

SYSTEM

SEARCH 062.25 MHZ

CHANNEL

STORE

NAME

➤

......MANUAL TUNING OF TV CHANNELS

Press button Result on TV Screen

Enter MANUAL STORE

menu.

Enter MANUAL STORE

mode.

Start searching for the next

transmitting channel.

Searching stops once a

transmitting channel is found.

Go back to MANUAL STORE

menu.

Highlight CHANNEL.

Key in the desired channel

number.

Highlight STORE.

Store tuned channel.

To continue searching for

the next transmitting

channel, repeat all the above

steps.

Exit menu from screen.

INSTALL

MANUAL STORE

SYSTEM

SEARCH 196.25 MHZ

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

CHANNEL 3

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

CHANNEL 8

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

SEARCH 196.25 MHZ

CHANNEL

STORE

NAME

➤

A/CH

PIP UP PIP DOWN

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

SMARTSMART

±`

1010

INSTALL

MANUAL STORE

CHANNEL

STORE

NAME

➤

FINE TUNING OF TV CHANNELS

How to do fine tuning

This feature allows you to adjust the picture reception in area of weak reception.

Press Button Result on TV Screen

Select the channel you

want to fine-tune.

Enter main menu.

Press button repeatedly

until INSTALL is selected.

Enter INSTALL menu.

Press button repeatedly

until MANUAL STORE

is selected.

Enter MANUAL STORE

menu .

Press button repeatedly

until FINE TUNE is

selected.

Start fine-tuning until

desired picture and sound

is obtained.

Press button repeatedly

until STORE is selected.

Store last fine-tuned

status.

Exit menu from screen.


SOUND LANGUAGE

FEATURES AUTO STORE

INSTALL MANUAL STORE

SORT

CHANNEL EDIT

➠

INSTALL

MANUAL STORE

SYSTEM

SEARCH 224.25 MHZ

CHANNEL

STORE

➤

INSTALL

LANGUAGE

AUTO STORE SYSTEM

MANUAL STORE SEARCH

SORT CHANNEL

CHANNEL EDIT STORE

A/CH

PIP UP PIP DOWN

AV 4

MENU SURF

SMARTSMART

±`

nor

GAME

INCREDIBLEINC. SURR.

SMARTSMART

±`

INSTALL

MANUAL STORE

CHANNEL

STORE

NAME

FINE TUNE

➤

Autres manuels pour 29PT5683

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 14PT1573 Manuel utilisateur

Philips

Philips Aurea 37PFL9903H/10 Manuel utilisateur

Philips

Philips 28PT5008 Manuel utilisateur

Philips

Philips 20-LCD TV 20PF9925 Manuel utilisateur

Philips

Philips GR2.2AA Manuel utilisateur

Philips

Philips 19PFL3403/77 Manuel utilisateur

Philips

Philips 25ML8966 Manuel utilisateur

Philips

Philips 25GR9963/32B Manuel utilisateur

Philips

Philips 43PUS6814 Manuel utilisateur

Philips

Philips 9 Series Manuel utilisateur

Philips

Philips 34PT9421/69R Manuel utilisateur

Philips

Philips 32PW6332 - annexe 2 Manuel utilisateur

Philips

Philips 7906 Series Manuel utilisateur

Philips

Philips 37PFL5332D - 37" LCD TV Manuel utilisateur

Philips

Philips 50PF7320G/98 Manuel utilisateur

Philips

Philips 7608 Series Manuel utilisateur

Philips

Philips 21PT2001 Manuel utilisateur

Philips

Philips 20PT3331 Manuel utilisateur

Philips

Philips OLED706 Series Manuel utilisateur

Philips

Philips LC7.5E Manuel utilisateur

Philips

Philips 21PT5525/V7 Manuel utilisateur

Philips

Philips Matchline 34PW9815 Manuel utilisateur

Philips

Philips 8507 Series Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
