User Manual

22PFS4022

22PFT4022

24PFS4022

24PFT4022

24PHS4022

24PHT4022

Contents

1 Get Support 3

1.1 Identify and Register your TV 3

1.2 TV Help and User Manual 3

1.3 On-line Help and User Manual 3

1.4 Consumer Care / Repair 3

2 Software 4

2.1 Update Software 4

2.2 Software Version 4

3 Quick Guide 5

3.1 Remote Control 5

3.2 IR sensor 6

3.3 Joysticker - Local Control (if available) 6

4 Setting Up 8

4.1 Read Safety 8

4.2 TV Placement 8

4.3 Turn on TV 10

5 Connections 12

5.1 Connectivity guide 12

5.2 Antenna (4022, 4032, 4132, 4232 series) 12

5.3 Antenna (4112 series) 12

5.4 Satellite for 4022, 4032, 4132, 4232 series (if

available) 13

5.5 Satellite for 4112 series (if available) 13

5.6 Video Device (4022, 4032, 4132, 4232 series)

5.7 Video Device (4112 series) 16

5.8 Audio Device (4022, 4032, 4132, 4232 series)

5.9 Audio Device (4112 series) 18

5.10 Computer 19

5.11 CAM with Smart Card - CI+ 20

5.12 USB Device (4022, 4032, 4132, 4232 series) 21

5.13 USB Device (4112 series) 22

5.14 Network for Freeview (for xxPxT4xx2/05 series TV)

6 Switch Source 25

6.1 Source List 25

6.2 Rename Device 25

7 Channels 26

7.1 About Channels and Switch Channels 26

7.2 Install Channel 26

7.3 Channel List 31

7.4 Favourite Channels 32

8 TV Guide 34

8.1 What You Need 34

8.2 Using the TV Guide 34

9 Recording and Pause TV 36

9.1 What You Need 36

9.2 Recording 36

9.3 Pause TV 37

10 Videos, Photos and Music 38

10.1 From a USB Connection 38

10.2 Photos 38

10.3 Videos 38

10.4 Music 39

11 Open TV Setting Menus 40

11.1 Home Menu Overview 40

11.2 Utilities Menu 40

11.3 Quick Settings and All Settings 40

11.4 All Settings 40

12 Environmental 47

12.1 European Energy Label 47

12.2 Product Fiche 47

12.3 End of Use 48

13 Specifications 49

13.1 Power (For 4022, 4032, 4112, 4132 Series) 49

13.2 Power (For 4232 Series) 49

13.3 Reception 49

13.4 Display Resolution 49

13.5 Display Input Resolution 50

13.6 Sound 50

13.7 Multimedia 51

13.8 Connectivity 51

14 Troubleshooting 53

14.1 Tips 53

14.2 Switch On 53

14.3 Remote Control 53

14.4 Channels 53

14.5 Picture 54

14.6 Sound 54

14.7 HDMI 54

14.8 USB 55

15 Safety and Care 56

15.1 Safety 56

15.2 Screen Care 57

15.3 Terms of Use 57

16 Copyrights 59

16.1 HDMI 59

16.2 Dolby Audio 59

16.3 DTS 2.0 + Digital Out ™ 59

16.4 Other Trademarks 59

17 Open Source 60

17.1 Open Source Software 60

17.2 Open Source License 60

Index 63

Get Support

1.1

Identify and Register your TV

Identify your TV - TV model number and serial

number

You might be asked to provide the TV product model

number and serial number. Find these numbers on

the packaging label or on the type label on the back

or bottom of the TV.

including full support (including downloads),

privileged access to information about new products,

exclusive offers and discounts, the chance to win

prizes and even participate in special surveys about

new releases.

Go to www.philips.com/welcome

1.2

TV Help and User Manual

Press  Settings > Help

In Help menu, you can easily get software updated,

reset TV to default settings, and read user manual.

- Update software: Check available software updates.

- User manual: Read the user manual for TV

information.

- Troubleshooting: Find a solution for frequent ask

questions.

- Factory settings: Reset all settings to factory

settings.

- Reinstall TV: Reinstall and redo the complete TV

installation.

- Contact info: Show the telephone number or web

address for your country or region.

1.3

On-line Help and User

Manual

To solve any Philips TV related problem, you can

consult our online support. You can select your

language and enter your product model number.

Go to www.philips.com/support.

On the support site you can find your country's

telephone number to contact us as well as answers to

frequently asked questions (FAQs). In some countries,

you can chat with one of our collaborators and ask

your question directly or send a question by email.

You can download new TV software or the manual to

read on your computer.

For more TV troubleshooting and frequently asked

questions (FAQs)...

to http://philips-tvconsumercare.kxondemand.com/

portal/en/ModelSelect

TV Help on your tablet, smartphone or computer

To carry out extended sequences of instructions more

easily, you can download the TV Help in PDF format

to read on your smartphone, tablet or

computer. Alternatively, you can print the relevant

Help page from your computer.

To download the Help (user manual) go

to www.philips.com/support

1.4

Consumer Care / Repair

For support and repair, call the Consumer Care

hotline in your country. Our service engineers will take

care of a repair, if necessary.

Find the telephone number in the printed

documentation that came with the TV.

Or consult our

website www.philips.com/support and select your

country if needed.

TV model number and serial number

You might be asked to provide the TV product model

number and serial number. Find these numbers on

the packaging label or on the type label on the back

or bottom of the TV.

 Warning

Do not attemp to repair the TV yourself. This may

cause severe injury, irrepairable damage to your TV or

void your warranty.

Software

2.1

Update Software

Search for Updates

 (Home) > Settings > Update

software > Search for updates.

You need a computer and a USB memory device to

upload the software on the TV. Use a USB memory

device with 256MB free space. Make sure that write

protection is switched off.

1. Start the update on TV

- (Home) > Settings > Update

software > Search for updates.

2. Identify the TV

- Insert the USB memory into one of the USB

connections of the TV.

Select Start and press OK. An identification file is

written on the USB memory device.

3. Download the TV software

- Insert the USB memory into your computer.

- On the USB memory device, locate the

file update.htm and double click it.

- Click on Send ID.

- Select your region

- If new software is available, download the .zip file.

After the download, unzip the file and copy the

file autorun.upg onto the USB memory device.

Do not place this file in a folder.

4. Update the TV software

- Insert the USB memory into the TV again. The

update starts automatically.

The TV switches itself off for 10 seconds and then

back on again. Please wait.

Do not . . .

- use the remote control

- remove the USB memory device from the TV

If a power cut occurs during the update, never

remove the USB memory device from the TV. When

the power returns, the update will continue.

Local Updates

For dealers and expert users…

 (Home) > Settings > Update software > Local

updates.

Look for OAD updates (Over-the-air

Download)

Scan to search for an Over-the-air software update.

 (Home) > Settings > Update software > Look

for OAD updates.

* The availability of OAD updates is dependent on

your country.

2.2

Software Version

To view the current TV software version…

 (Home) > Settings > Update

software > Current software Info

Quick Guide

3.1

Remote Control

Batteries and Cleaning

Replace batteries

If the TV does not react on a key press on the remote

control, the batteries might be empty.

To replace the batteries, open the battery

compartment on the back of the remote control.

1. Slide the battery door in the direction shown by the

arrow.

2. Replace the old batteries with 2

type AAA-R03-1.5V batteries. Make sure the + and

the - ends of the batteries line up correctly.

3. Reposition the battery door and slide it back until it

clicks.

- Remove the batteries if you are not using the

remote control for a long time.

- Safely dispose of your old batteries according to the

end of use directions.

Cleaning

Your remote control is treated with a scratch-resistant

coating.

To clean the remote control, use a soft damp cloth.

Never use substances such as alcohol, chemicals or

household cleaners on the remote control.

Key Overview

Top

1.  Standby / On

To switch the TV on or back to Standby.

2. Playback keys

- Play , to playback

- Pause , to pause playback

- Stop , to stop playback

- Rewind , to rewind

- Fast forward , to go fast forward

- Record , to record now

3.  TV GUIDE

To open or close the TV Guide.

4.  FORMAT

To open or close the Picture format menu.

5.  SETUP

To open the Settings menu.

Middle

1. HOME

To open or close the home menu.

2.  SOURCES

To open or close the Sources menu - the list of

connected devices.

3. Colour keys

The buttons function follow the on-screen

instructions.

4.  INFO

To open or close programme infomation.

5.  BACK

To switch back to the previous channel you selected.

To close a menu without changing a setting.

6.  EXIT

To switch back to watching TV.

7.  OPTIONS

To open or close the Options menu.

8. OK key

To confirm a selection or setting.

9. Arrow / navigation keys

To navigate up, down, left or right.

10.  LIST

To open or close the channel list.

Bottom

1.  Mute

To mute the sound or to restore it.

2.  Volume

To adjust the volume level.

3. Number keys

To select a TV channel directly.

4. SUBTITLE

To switch subtitles on, off or Automatic.

5.  Channel

To switch to the next or previous channel in the

channel list. To open the next or previous page in

Text/Teletext. To start the next or previous chapter on

a disc.

6. TEXT

To open or close Text / Teletext.

3.2

IR sensor

The TV can receive commands from a remote control

that uses IR (infrared) to send commands. If you use

such a remote control, always make sure you point

the remote control at the infrared sensor on the front

of the TV.

 Warning

Do not put any objects in front of IR sensor of the TV,

it may block the IR signal.

3.3

Joysticker - Local Control (if

available)

Keys on TV

If you lost the remote control or its batteries are

empty, you can still do some basic TV operations.

To open the basic menu…

1. With the TV switched on, press the joystick key on

the back of the TV to bring up the basic menu.

2. Press left or right to

select  Volume,  Channel or  Sources.

Press up or down to adjust the volume or tune to the

next or previous channel. Press up or down to go

through the list of sources, including the tuner

selection.

The menu will disappear automatically.

Setting Up

4.1

Read Safety

Read the safety instructions first before you use the

TV.

To read the instructions, in User manual, see

chapter Safety and Care.

4.2

TV Placement

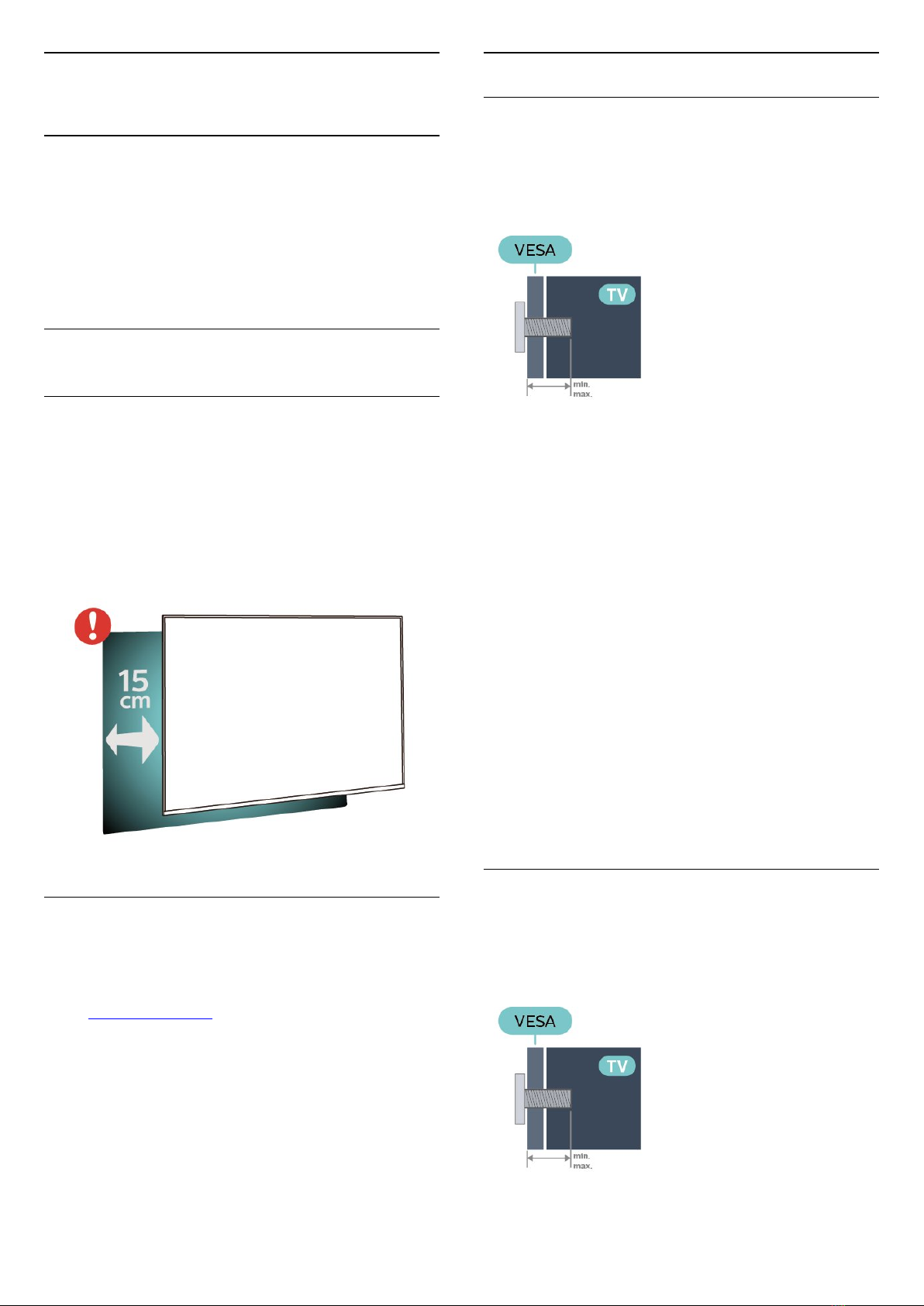

Tips on Placement

- Position the TV where light does not shine directly

on the screen.

- Position the TV up to 15 cm away from the wall.

- The ideal distance to watch TV is 3 times its

diagonal screen size. When seated, your eyes should

be level with the centre of the screen.

TV Stand

You can find the instructions for mounting the TV

stand in the Quick Start Guide that came with the TV.

In case you lost this guide, you can download it

from www.philips.com.

Use the model number of the TV to look for

the Quick Start Guide to download.

Wall Mounting

4022 series TV

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 22Pxx4022 - VESA MIS-F 75x75, M4 (Minimum 10

mm, Maximum 10.5 mm)

- 24Pxx4022 - VESA MIS-F 75x75, M4 (Minimum 10

mm, Maximum 10.5 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

4032 series TV

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 24Pxx4032 - VESA MIS-F 75x75, M4 (Minimum 10

mm, Maximum 10.5 mm)

- 32Pxx4032 - VESA MIS-F 100x100, M4 (Minimum

10 mm, Maximum 14 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

4112 series TV - 43 inch

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 43Pxx4112 - VESA MIS-F 200x100, M6 (Minimum 9

mm, Maximum 10 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

4112 series TV - 32 inch, 39 inch

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 32Pxx4112 - VESA MIS-F 200, M4 (Minimum 10

mm, Maximum 14 mm)

- 39Pxx4112 - VESA MIS-F 200, M6 (Minimum 10

mm, Maximum 14 mm)

Preparation

First remove the 2 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

4132 series TV

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 32Pxx4132 - VESA MIS-F 100x100, M4 (Minimum

10 mm, Maximum 14 mm)

- 43Pxx4132 - VESA MIS-F 200x200, M6 (Minimum

10 mm, Maximum 15 mm)

- 49Pxx4132 - VESA MIS-F 400x200, M6 (Minimum

10 mm, Maximum 15 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

4232 series TV

Your TV is also prepared for a VESA-compliant wall

mount bracket (sold separately).

Use the following VESA code when purchasing the

wall mount . . .

- 22PFx4232 - VESA MIS-F 75x75, M4 (Minimum 10

mm, Maximum 10.5 mm)

Preparation

First remove the 4 plastic screw caps out of the

threaded bushes on the back of the TV.

Make sure that the metal screws, to mount the TV to

the VESA-compliant bracket, go about 10mm deep

inside the threaded bushes of the TV.

Caution

Wall mounting the TV requires special skills and

should only be performed by qualified personnel. The

TV wall mounting should meet safety standards

according to the TVs weight. Also read the safety

precautions before positioning the TV.

TP Vision Europe B.V. bears no responsibility for

improper mounting or any mounting that results in

accident or injury.

4.3

Turn on TV

Connect Power Cable (4022, 4032,

4132 series)

- Insert the power cable into the POWER connector

on the back of the TV.

- Make sure the power cable is securely inserted in

the connector.

- Make sure that the power plug, in the wall socket, is

accessible at all times.

- When you unplug the power cable, always pull the

plug, never pull the cable.

For 32"/39"/43"/49"

For 22"/24"

Although this TV has a very low standby power

consumption, unplug the power cable to save energy

if you do not use the TV for a long period of time.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 26PW8402137 User m Manuel utilisateur

Philips

Philips 32PT740H99 Manuel utilisateur

Philips

Philips 27PT643R/17 Manuel utilisateur

Philips

Philips 7906 Series Manuel utilisateur

Philips

Philips M-Link 36PT71B1 Manuel utilisateur

Philips

Philips 25PT4103 - annexe 1 Manuel du propriétaire

Philips

Philips 43PUS6162/12 Manuel utilisateur

Philips

Philips 28PT4404 Manuel utilisateur

Philips

Philips 32HFL4462F Manuel utilisateur

Philips

Philips 55PUS9109 Manuel utilisateur

Philips

Philips 5823 series Manuel utilisateur

Philips

Philips 33PT912B Manuel utilisateur

Philips

Philips 19PFL3504D - 19" LCD TV Manuel utilisateur

Philips

Philips OLED806 Series Manuel utilisateur

Philips

Philips 40PFL9704H/12 Manuel utilisateur

Philips

Philips 29PT760A Manuel utilisateur

Philips

Philips 42PFL3403/98 Manuel utilisateur

Philips

Philips SK4.0A CA Manuel utilisateur

Philips

Philips 29PT8420 Manuel utilisateur

Philips

Philips 21GR2356 Manuel utilisateur

Philips

Philips 65PFL5766 Manuel utilisateur

Philips

Philips 40PFL4707/F8 Manuel utilisateur

Philips

Philips PL7119C Manuel utilisateur

Philips

Philips 14PT4626/V7 Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
