Introduction

Thanks for purchasing this television set;it is equipped with the latest technologies and a logic that

automatically memorises your picture settings.The use of the Smart Controls allows you to find back the

Factory settings.For more details on these functionalities,please refer to page 6 of your Instruction for use.

For a quick start up of your newTV,we advise you to read the Easy installation guide card first.

Installation

Insert the mains plug

into a wall socket

(220-240V/50Hz).

Insert the 2 LR03-type

batteries (supplied)

making sure they are

the right way around.

Press the on/off key to

switch on the television.

If the television remains in

standby mode,press the

Pkey on the remote

control.

Insert the aerial plug

in to the socket M

at the rear of the set.

Using the menus

The menus are displayed on the television screen.They are used to tune in the

channels and to access all settings.They are used in the following way:

Press the key to display

the main menu.

Use the keys to

select an adjustment.

Use the keys to adjust

or access a sub-menu.

Press the key to exit

from the menu.

N.B.:The main menu automatically disappears after 30 seconds

if no action is taken.The /key also allows you to exit the menus.

Remark:When you switch on theTV set for the first time,

the INSTALLATION menu automaticaly appears on the screen.

Tuning-in theTV channels

To call-up the Installation menu

ÂSelect INSTALLATION.êPress the key.

The INSTALLATION menu

appears on the screen.

Selecting the menu language and the country

From the INSTALLATION menu:

æSelect LANGUAGE and choose the language you wish to use ( key).

The text for all the menus will appear in the language you have chosen.

ÂSelect COUNTRY ( key) and choose the country (GB for Great Britain).

Automatic store From the INSTALLATION menu (once the COUNTRY has been selected):

æPress the key.

ÂSelect AUTOSTORE ( key) and press .

TheTV set searches and stores all the programmes it finds.The search

operation takes a few minutes.When the search is complete,the

INSTALLATION menu reappears automatically.

The programmes found will be numbered in ascending order starting from

1, 2, 3, 4, ....Use the SORT menu to re-number the programmes correctly.

Thesearch starts from the programme number displayedon the screen.

If the transmitter emits theautomatic sort signal,the programmes are correctly numbered.

If some programme have no sound,check that you have the correct SYSTEM(see

MANUAL STORE p.3).If no programme is found,referto the chapter entitled «Tips» (p.8).

To exit or interrupt the search,press the key.

Programme sort This menu allows you to re-number the programmes in the order you prefer.

From the INSTALLATION menu:

æSelect SORT using the key and press .

The SORT menu is displayed.

ÂSelect FROM ( key) and choose the programme to be re-numbered

using the or using keys to .

If,for example,you want to re-number programme 10 as 2:Type: .

êSelect TO ( key) and enter the new number using the keys or

using keys to (in our example,type ).

®Select EXCHANGE ( key) and press .

The message OK appears and the exchange is made ( can be used to

cancel).In our example programme 10 is re-numbered as programme 2

(and programme 2 is re-numbered as programme 10).

Repeat this operation for as many programmes as you wish to re-number.

†To exit from the SORT menu,press the key several times.

N.B.:If the INSTALLATION menu is not displayed the childlock function is enabled (page 8).

æPress the key.

Manual store This menu allows you to store each programme manually.

From the INSTALLATION menu:

æSelect MANUAL STORE ( key) and press .

The MANUAL STORE menu appears.

ÂSelect SYSTEM (according to model).Use the key to select

the standard reception,EUR. W (standard BG) or EUR. E (DK).

êSelect SEARCH and press .The search begins.

As soon as a programme is found,the search will stop.

The frequency band is displayed (VHF1,VHF3 or UHF).

Use the key to select the frequency band.

If no programme is found,refer to the «Tips» chapter (page 8).

®If the reception is not satisfactory,select FINE TUNE and hold down

key or to adjust.

†Select PROG. NUMBER and enter the required programme number using

the keys or using keys to .

ÚSelect STORE and press .

The message OK appears.The programme is stored.

ºRepeat steps êto Úfor each programme to be stored.

îTo exit from the MANUAL STORE menu,press the key several times.

Skip the programmes

To exit from the menus ...

This menu allows you to skip programmes which can be accessed using

the Pkeys on the remote control.

From the INSTALLATION menu:

æSelect SKIP ( key) and press .

The SKIP menu appears

ÂSelect PROG. NUMBER ( key) and use the keys or keys

to to select the programme you wish to skip.

êSelect SKIP and use the keys to choose YES to skip the

programme or NO so that it remains accessible

Only the programmes found during the search are set to NO (all other

programmes are set toYES by default).

®Repeat steps Âand êfor as many programmes as you wish to skip.

†Press the key 3 times to exit from the INSTALLATION menu.

The Pkeys on the remote control can now be used to access

those programmes and EXT sockets which are set to NO in the list.

The programmes skipped can always be accessed using keys to .

Press the key several times.

The remote control keys

SelectingTV programmes

Use the Pand keys to move up or down a

programme.To sequentially display all of the programmes

hold the key down for 3 seconds.Press again to cancel.

For some programmes equiped with teletext,the title of the

programme appears briefly at the bottom of the screen.

N.B.:Programmes which have been skipped or

locked are not accessible (refer to SKIP and

CHILDLOCK menus,pages 3 and 7).

Select EXT sockets

This key is used to select EXT(1)

(rear socket),EXT2 (front socket:on

certain versions) and to return to

theTV programme.

Surf ƒ

Use this key to return to the

previous programme or to display

the surf list (page 6).

Sound mode (stereo models)

Pressing this key allows you to

switch from STEREO to MONO

sound or to choose between

language fand language gin the

event of bilingual transmissions.

Game

This key is used for the direct

selection of the front (on certain

versions) and rear EXT sockets with

a picture preset that is adapted to

game consoles.

Timer

This key provides direct access to

the TIMER menu (page 7).

To exit from this menu,press the

key twice.

Screen information

To briefly display the programme

number and the sound mode

(stereo models).

Volume

Use keys and

to adjust the volume.

Mute key

To disable or enable the sound.

Numerical keys

For direct access to programmes.

For a 2 figure programme number,

the second figure must be entered

before the dash disappears.

Switch teletext on/off

To call-up or exit from teletext.

Teletext features

Refer to next page.

Smart controls

Press the key to obtain the

following picture settings:RICH,SOFT,

NATURAL and return to MANUAL.

Press the key to obtain the

following sound settings:THEATRE,

MUSIC,SPEECH and NORMAL (or

MANUAL for stereo models).

To call-up or exit from the menus.

Use the keys for selection

and the keys for adjustment.

Standby

To set theTV to standby mode.The

red indicator lights up.To switch the

TV set on again,press P,P

or keys to .

The keys on theTV set

TheTV set has 4 keys (on some models these are located behind a flap).

The VOLUME - + keys are used to adjust sound levels.

The PROGRAMME - + keys are used to select the required programmes.

To access the menus,hold down the VOLUME - and VOLUME + keys.

The PROGRAMME - + keys may then be used to select an adjustment

and the VOLUME - + keys to make that adjustment.

To exit from the menus,select the EXIT item (by using the

PROGRAMME - + keys) and press the VOLUME + key.

Using teletext

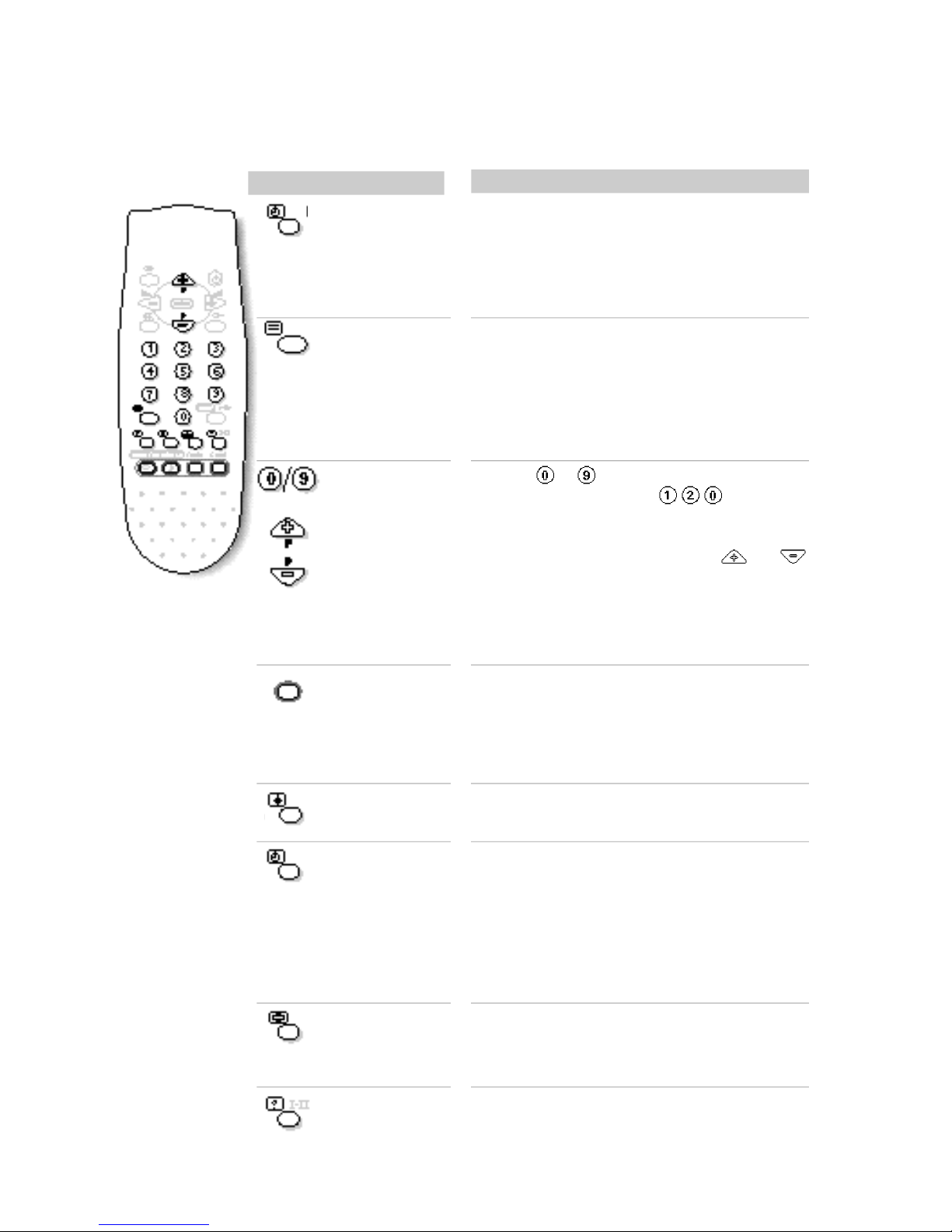

Press: Result:

Time display When the teletext is switched off,press this key

to display the time in the top right-hand corner

of the screen.

The time is not displayed if the channel selected does

not broadcast teletext.

To call-up or exit from teletext.The main index page

presents a list of subjects to which you have access.

Each subject has a corresponding 3 digit page number.

f the selectedTV channel does not broadcast teletext,

100 is displayed and the screen remains black (if this is the

case, switch off teletext and choose anotherTV channel).

Switch teletext

on/off

Use keys to to enter the page number

required.E.g. page 120,type .The number

is displayed in the top left-hand corner of the

screen,the page counter starts searching and then

the page selected is displayed.Keys Pand

allow you to access previous or following pages.

If > xxx < flashes briefly or the counter continues

searching,this means that the selected page is not

broadcast.If this is the case,choose another number.

Selecting a

teletext page

Coloured zones are displayed at the bottom of

the screen.The 4 keys with coloured borders allow

access to the subjects or their corresponding pages.

The coloured zones flash when the page or the subject

is not yet available.

Direct access to

a subject

Press this key to display the upper part,the lower

part and then to return to the normal page size.

Enlarging a

page

Certain pages have sub-pages whichfollow on

automatically.To access a sub-page directly,press

theÒkey.The page number is replaced by 4 dashes.

Type the number of the sub-page required using

4 numbers,e.g.type0002 to consult sub-page 2.

The number of the current page reappears,the page

counter searches and then the sub-page is displayed.

Direct selection

of a sub-page

Pressing this key enables and disables the sequence

of sub-pages.The message Iappears in the top

left-hand corner of the screen.

Use this key to reveal/conceal hidden information

(solutions to games).

Stop the

sequence of

sub-pages

Reveal

Teletext is an information system,broadcast by certainTV channels,which can be

consulted in the same way as a newspaper.It also provides subtitles.

Other menu adjustments

Picture adjustment

Display the Picture menu.You can now access the adjustments for

BRIGHTNESS, COLOUR, CONTRAST, SHARPNESS and

COL. TEMP.:which adjusts the colour temperature of the picture;COOL

(blue white),NORMAL (balanced) or WARM (red white).

CONTRAST PLUS:which enables clarity of the contrast.

Sound adjustment

Display the Sound menu.You can now set the VOLUME,and make the

following adjustments for stereo equipment:BALANCE, TREBLE, BASS and:

SPATIAL:this function enhances the stereo effect,giving the impression

that the speakers are positioned further apart.

VOLUME LIMITER:this function is used for automatic level control in

order to avoid sudden increases in volume (particularly when changing

channels or during advertisements).

Storing adjustments

Storing is automatic:once an adjustment is made using the menus,

it is stored automatically (this happens after 1 minute if no action is taken

or as soon as an other programme is selected).

The adjustments for the

EXT sockets and for programmes 0to 11 are stored individually:a different

adjustment is possible for each of these programmes (except for the volume).

The adjustments for programmes 12 to 99 are stored in the same way.

To restore the factory picture adjustments,set the smart controls on NATURAL and

modify one of the Picture menu items (this will automatically store the settings).

Surf function

This menu is used to select the function to be attributed to the ƒ ﬁ

key on the remote control.Display the menu,then:

æSelect P<P and choose PREVIOUS PROG.or SURF LIST.

ÂPress the key to exit the menu.

PREVIOUS PROG.mode :the ƒ ﬁ key on the remote control is used

to access the last programme watched.

SURF LIST mode :the ƒ ﬁ key is used to display a list of favourite

programmes (maximum of 8).To store this list:

æDisplay one of your favourite programmes (e.g.number 4).

ÂBefore the number disappears,press the ƒ ﬁ key.

The SURF LIST message appears.The programme is stored.

êRepeat operations æand Âfor each programme to be stored

(e.g.programme No.9,1 and 12).

®Use the ƒ ﬁ key to access you favourite programmes directly

(in our example Nos.4,9, 1 and 12).

To reset the surf list,set the P<P menu to PREVIOUS PROG and then

to SURF LIST.

ÂSelect. êAdjust.æDisplay menu.

Timer

This menu allows you to program theTV to automatically switch on with

the programme of your choice.

æDisplay the menu,select TIMER and then press .

The TIMER menu appears.

ÂSelect SET CLOCK and enter the time using keys to .

N.B.:Every time theTV is switched on the clock is automatically updated on the

basis of the teletext information in programme No.1.

If theTV set does not feature teletext, this update will not occur.

êSelect START TIME and enter the time at which you wish theTV to

switch on.

®Select PROGRAMME and enter the programme number required.

†Select TIMER ACTIVE and set to ON.(OFF to disable).

ÚPress twice on the key to exit from the menu.

If you now switch theTV set to standby ( key),it will automatically

switch on at the time programmed.

To cancel: Switch TIMER ACTIVE back to OFF.

N.B.:The programming will not function correctly if you use the on/off key on

the front of theTV to switch off theTV set.

Sleeptimer

Display the menu,select SLEEPTIMER and use the key to enter

the length of time after which theTV will switch to standby mode

(up to 120 mins).

Press the /key on the remote control to display the length of time remaining.

Childlock

This menu allows you to lock theTV set and to disable access to certain

or all of the programmes.

N.B.:When a programme is locked, the search function is no longer possible

(the INSTALLATION menu is no longer accessible).

æDisplay the menu,select CHILDLOCK and press .

The CHILDLOCK menu appears.

ÂSelect PROGRAMME and enter the number of the programme you wish

to lock.To lock all programmes,select ALL using the key (above

programme No.0) .

êSelect LOCK and thenYES.The screen turns black.Repeat operations

Âand êfor each programme to be locked (maximum of 5).

®Select CODE and enter your confidential 4 digit code.

†Select CONFIRM CODE and enter the same code number again.

The LOCK menu is replaced by a CODE menu.

TheTV set is now locked.The locked programmes are no longer visible:a

black screen appears with a LOCKED message.

To cancel: Select CODE and enter your confidential number.

The CHILDLOCK menu reappears.Now repeat operations Âto êby

selecting LOCK and then NO.

ÚPress the key to exit from the menu.

N.B.:The childlock will not function with EXT sockets that receive an RGB signal

(most game consoles).

Should you forget your confidential code,enter the universal code 8888.

Connecting peripheral equipment

Tips

Rear connection

You can connect any equipment that has a euroconnector socket to yourTV set

(video recorder,decoder,etc.).

For further information on connecting a video recorder,refer to its user manual.

Front connections

When the headphones are connected,the sound on theTV set is automatically

muted.Press keys aand to adjust the volume.

Some models have

AUDIO / VIDEO

connections on the front of theTV set

There is 1 video input + 1 sound input (mono models) or 2 (L) and (R) sound

inputs for stereo models.For a mono sound camcorder,connect the audio signal to

the AUDIO L input.Use the

f-g

key to reproduce the sound on the left and right

loudspeakers of the television.

To select the connected equipment

Use the Xkey on the remote control to select the EXT(1) (rear socket) or

EXT2 (front socket:on certain models).

Most equipment (decoder,video recorder) carries out the switching itself.

When a peripheral device provides RGB signals (game,satellite receiver,...),it has priority

over theTV programmes.The peripheral device has to be switched off if you want to watch

theTV channels. If you wish to avoid this inconvenience, configure the peripheral equipment

to provide composite video signals (CVBS PAL/SECAM) instead of RGB signals (refer to the

peripherasl user manual).

Installation

To avoid any dangerous situations and operating faults,do not place anything on the

TV set and leave a space of at least 5 cm around the appliance.

Impossible to call up the INSTALLATION menu?

The CHILDLOCK function is enabled (refer to page 5).To rapidly unlock all

programmes,call up the CHILDLOCK menu and enter your confidential code.

Set the PROGRAMME item to ALL. Set the LOCK item to YES and then to NO.

All the programmes are now unlocked.

Poor reception or no picture

The proximity of mountains or high buildings may be responsible for ghost pictures,

echoing or shadows.If this is the case, modify the orientation of the outside aerial

and check that theTV channel is tuned in correctly (refer to FINE TUNE page 3).

Does your antenna enable you to receive broadcasts in this frequency range? Have

you chosen the correct system (page 3)?

Are your aerial and euroconnector sockets correctly connected?

If the peripheral equipment connected to the EXT1 is on switch it off.

Standby

To save electricity it is advisable to switch theTV set off using the on/off key on the

front of the set.If the set receives no signal for 15 mins, it automatically switches to

standby mode.

Still no results?

If you have a problem with yourTV set,never attempt to repair it yourself:contact

your dealer’s after-sales service.

Recycling directive

YourTV set uses materials which are reusable or which can be recycled.

To minimise the amount of waste in the environment,specialist companies recover

used sets for dismantling and collection of reusable materials (consult your dealer).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 7P6051C Manuel utilisateur

Philips

Philips 27PT563S Manuel utilisateur

Philips

Philips 20PT 91S Manuel utilisateur

Philips

Philips 27PS55S Manuel utilisateur

Philips

Philips 77OLED807 Manuel utilisateur

Philips

Philips 36PW9765/05 Manuel utilisateur

Philips

Philips 32HFL3331/93 Manuel utilisateur

Philips

Philips 43PUS8808 Manuel utilisateur

Philips

Philips OLED973 Series Manuel utilisateur

Philips

Philips 21PT2443B Manuel utilisateur

Philips

Philips 7805 Series Manuel utilisateur

Philips

Philips 55PML9118 Manuel utilisateur

Philips

Philips 20-LCD TV 20PF9925 Manuel utilisateur

Philips

Philips Matchline 33PT702C Manuel utilisateur

Philips

Philips 29PT9221/93 Manuel utilisateur

Philips

Philips 27PT6441 Manuel utilisateur

Philips

Philips Magnavox TS3659C1 Manuel utilisateur

Philips

Philips 24PW9553/12 Manuel utilisateur

Philips

Philips 14GR1225 Manuel utilisateur

Philips

Philips 6908 Series Manuel utilisateur

Philips

Philips Signage Solutions 50BDL3050Q Manuel utilisateur

Philips

Philips 32PW8515 Manuel utilisateur

Philips

Philips 50PUN6102/61 Manuel utilisateur

Philips

Philips 3000 series Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
