Philips 20PF9925 - annexe 1 Manuel utilisateur

LCD

20”

LCD

20”

English

Contents

Installation

Use of the remote control 8-9

Keys in front of the TV 10

Picture menu 11

Sound menu 11

Special menu 12

Teletext 13-14

Your remote control 2

Preparation 3

To use the menus 4

Store TV channels 4

Select the menu language 4

Automatic installation 5

Manual installation 6

Reshuffle the programme list 7

Displaying the programme list 7

Connect peripheral equipment

Connecting and selecting equipment 15-17

Video recorder keys 18

Tips 19

Index 20

Help?

If this instruction manual does not

give an answer or if ‘Tips’ do not

solve your TV problem, you can call

your Local Philips Customer or

Service Centre. See the supplied

World-wide guarantee booklet.

Please, have the Model and

Product number which you can

find at the back of your television

set or on the packaging, ready,

before calling the Philips helpline.

Model:

Product No:

Operation

126 1013.1 gb 20-11-2001 14:30 Pagina 1

AUTO AUTO

54 6

87 9

Ò‡π

†

Y-ZD

0LIST

Ufg

cek

MENU main menu on/off

p. 9

w Peripherals p. 8

selection of TV or

AV mode

Xbilingual choice/sound

info p. 8

Mauto sound p. 8

aauto picture p. 8

Dset the sleeptimer p. 9

Vvolume up/down p. 9

¬sound mute p. 9

Pprogramme selection

p. 9

Bswitch to standby p. 8

Colour keys

- direct teletext page or

subject selection, p. 9

- video recorder functions

p. 18

®record

Òrewind

‡stop

πplay

†wind

CVCR timer

0previous programme p. 9

LIST programme list p. 9

Cursor to select

your choice

OK activate your choice

Your remote control

2Your remote control

Installation

Teletext p. 14

henlarge

bteletext on/off

Utime display

subpage selection

fsolution to puzzles

ghold

cmix tv/txt picture

einterrupt

kmain index

126 1013.1 gb 20-11-2001 14:30 Pagina 2

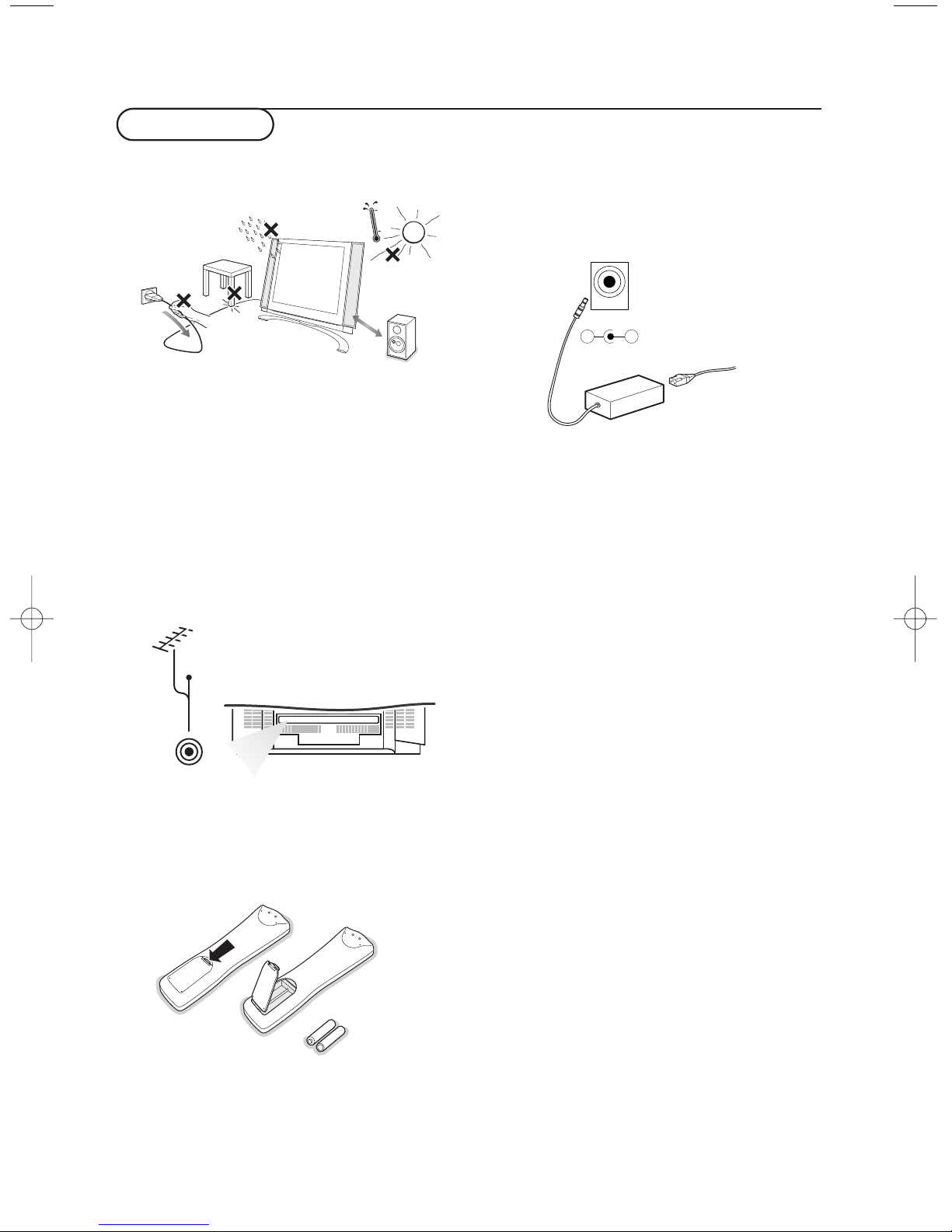

Preparation

&Place the TV on a solid surface.

Ensure that the TV is placed in a position

to allow free flow of air. Do not cover the

ventilation openings on the back cover.

To prevent any unsafe situations, no naked

flame sources, such as lighted candles,

should be placed on or in the vicinity.

Avoid heat, direct sunlight and exposure to

rain or water.The equipment shall not be

exposed to dripping or splashing.

éInsert the aerial plug firmly into the

aerial socket ANT IN x75 Ωat the back

of the TV.

“Remote control: Remove the cover of the

battery compartment. Insert the 2

batteries supplied (Type R6-1.5V).

min.

ANT IN

x75 Ω

CABLE

‘Power:This TV operates on a DC supply

provided by the AC-DC adaptor.The

voltage is as indicated on the label on the

back cover.

Only use the AC-DC adaptor supplied

with the TV and never apply an AC mains

to the TV directly.The AC-DC adaptor

operates on an AC mains supply, the

voltage is as indicated on the label of the

AC-DC adaptor.

Connect the DC plug of the AC-DC

adaptor to the DC 15V socket at the back

of the TV.

Connect the AC-DC adaptor and its mains

cord.

Insert the mains plug in the wall socket

having a mains voltage of 110V-240V.

Switch the TV on: Press the power key

at the front side of the TV to switch it on

or off.

If the TV is in standby mode, the standby

indicator in front of the TV illuminates brightly.

Press the standby key Bagain or the – P +

key or one of the digit keys on the remote

control to switch the TV on.

R6 / 1,5 V

3Preparation

DC 15V

126 1013.1 gb 20-11-2001 14:30 Pagina 3

&Press the MENU key repeatedly to display each menu.

éUse the cursor up/down to select a menu item.

“Use the cursor left/right to adjust the setting of a menu item or press the OK key to enter a

submenu.

AUTO AUTO

Y-Z

Ò‡π

00LIST

MENU OK

&Press the MENU key on the remote control

once to select the installation menu.

éUse the cursor down to select Language.

“Press the OK key.

‘Press the cursor up/down to select your

language.

Press the OK key.

You can search for and store the TV channels in

two different ways: using Automatic installation,

see p. 5 or Manual installation (tuning-in channel

by channel), see p. 6.

Select your choice and press the OK key.

4Installation

To use the menus

Store TV channels

Select the menu language

Automatic installation

Manual installation

Reshuffle

Language

oœ OK MENU

Language

Auto programme

Manual installation

Reshuffle

Language

oœ OK MENU

Automatic installation

switch menu on/off

select menu item

activate

126 1013.1 gb 20-11-2001 14:30 Pagina 4

Automatic installation

&Select the TV system.

éPress the cursor left/right to select the TV

system of the country or part of the

world from where you want to receive the

TV channels.

If you are connected to a cable system,

select the TV system of your country or

part of the world you are now located.

DK: PAL D/K, SECAM D/K (East Europe)

BG: PAL B/G, SECAM B/G

(Europe/East Europe/France)

I: PAL I/II ( U.K./Ireland)

L (if provided) (France)

“Press the cursor up/down to select

Storage from.

‘Press the cursor left/right to select a

channel number or enter the channel

number with the digit keys from where

you want to start searching for new

channels. If e.g. you want to keep the

channels 1 to 11 stored earlier, enter

channel number 12.

Your TV will search for new channels from

number 12 onwards.

Press the cursor up/down to select

Search.

§Press the OK key to start Automatic

programming.

All available TV channels are searched for

and stored automatically.

The names of the TV channels are stored

as well if the TV channels broadcast VPS

(Video Programme Service), PDC

(Programme Delivery Control) or

Teletext.

If no name can be assigned to the TV

channel, the channel number only is

assigned and stored as C-channel (V/UHF

01-69) or S-channel (Cable 01-47),

followed by a number.

To stop auto programming, press the

MENU key.

When auto programming is completed, the

Programme reshuffle menu appears. See

further on.

èPress the MENU key repeatedly if you

want to exit the menu.

Auto programme

Manual installation

Reshuffle

Language

oœ OK MENU

Automatic installation

System BG

Storage from 1

Search C 15

1 ‡2%

System BG

5Installation

126 1013.1 gb 20-11-2001 14:30 Pagina 5

Manual installation

Searching for and storing TV channels is

done channel by channel.Also you can

assign a name to a TV channel with up to

5 letters or numbers.

You must go through every step of

the manual programme menu.

&Select Manual installation in the

installation menu.

éPress the OK key to enter the Manual

installation menu.

“Press the cursor left/right to select the TV

system of the country or part of the

world from where you want to receive the

TV channel.

If you are connected to a cable system,

select the TV system of your country or

part of the world you are now located.

DK: PAL D/K, SECAM D/K (East Europe)

BG: PAL B/G, SECAM B/G

(Europe/East Europe/France)

I: PAL I/II ( U.K./Ireland)

L (if provided) (France)

‘Press the cursor up/down to select

Channel.

Press the cursor left/right to select C-ch

for aerial channels or S-ch for cable

channels.

If you know the C- (01-69) or S-channel

number (01-47), enter it directly with the

digit keys 0 to 9.

Ask for a list from your cable company or

dealer.

§Press the cursor up/down to select

Search.

èPress the cursor left/right to start

searching. If a channel is found the search

will stop.

Fine tune

In case of poor reception, you can

improve the reception by fine tuning.

Press the cursor up/down to select Fine

tune.

Press the cursor left/right to fine tune for

the best picture and sound.

Assigning a channel name

It is possible to change the name stored in

the memory or to assign a name to a TV

channel which has not yet been entered.A

name with up to five letters or numbers

can be given to the programme numbers 0

to 99.

Press the cursor up/down to select Name.

Select the character with the cursor

left/right.

Space, numbers and other special

characters are located between Z and A.

Press the OK key.

Select a following character.

Proceed with the following steps.

!If the channel is the one required, press

the cursor up/down to select Store.

çPress the cursor left/right to select a

channel number or enter the channel

number with the digit keys.

0Press the OK key to store the TV channel.

Repeat steps 4 to 10 to store another TV

channel.

Press the MENU key repeatedly if you

want to exit the menu.

Automatic installation

Manual installation

Reshuffle

Language

oœ OK MENU

Manual installation

System BG

Channel S-ch/C-ch

Fine tune πππ

Name C 01

Store 1

oœ p π OK MENU

6Installation

126 1013.1 gb 20-11-2001 14:30 Pagina 6

Reshuffle the programme list

According to your preference you can

delete or skip the stored TV channels.You

can also change the order of the stored

TV channels or insert a blank data into

the selected channel number.

&Press the cursor up/down to select

Reshuffle in the Installation menu.

éPress the OK key to enter the Reshuffle

menu.

Deleting a TV channel

&Press the cursor up/down, left/right to

select a TV channel to be deleted.

éPress the red key on the remote control

twice.

The selected TV channel number is

deleted, all the following channels are

shifted up one position.

Copying a TV channel

&Press the cursor up/down, left/right to

select a TV channel to be copied.

éPress the green key on the remote

control.

All the following channel numbers are

shifted down one position.

Moving a TV channel

&Press the cursor up/down, left/right to

select a channel number to be moved.

éPress the yellow key on the remote

control.

“Press the cursor up/down, left/right to

move the TV channel to the desired

channel number.

‘Press the yellow key again to release this

function.

Skipping a channel number

&Press the cursor up/down, left/right to

select a channel number to be skipped.

éPress the blue key on the remote control.

The skipped TV channel is displayed in

blue.

“Press the blue key again.

After leaving the installation you can

browse through the TV channels by

pressing the cursor keys up/down. Only

those TV channels which are not skipped

can be selected. Skipped TV channels can

still be selected with the digit keys or in

the programme list in which they will be

displayed in blue.

Press the MENU key repeatedly to exit

the menu.

Auto programme

Manual installation

Reshuffle

Language

oœ OK MENU

Automatic installation

0ARD

1 ZDF

2C12

3S4

4 CH-5

•Delete

•Move

oœ p π OK MENU

5 ARD1

6 ZDF1

7 C12

8S44

9 CH-5

•Copy

•Skip

1ZDF

Displaying the programme list &Press the LIST key on the remote control

to display the programme list.

éPress the cursor up/down, left/right to run

through the list of 100 channel numbers.

“Press the OK key to select the desired TV

channel.

Note:TV channels displayed in blue have been

set up to be skipped in the Reshuffle

menu.

0ARD

1 ZDF

2C12

3S4

4 CH-5

oœ p π OK MENU

5 ARD1

6 ZDF1

7 C12

8S44

9 CH-5

1ZDF

7Installation

126 1013.1 gb 20-11-2001 14:30 Pagina 7

Operation

Use of the remote control

8Use of the remote control

MENU OK

PV¬

0LIST

Ò‡π

†

AUTO AUTO

Y-Z

wSource

Select other peripherals: press

repeatedly to select TV, AV1,

AV2 or S-VIDEO mode.

XBilingual choice and

sound mode selection

Press this key

•to switch from Stereo to

Mono sound in case of

stereo transmission, or from

Nicam Stereo to Nicam

Mono, in case of digital

transmission

•to switch from Nicam Dual

Yto Nicam Dual Zor

Nicam Dual Xin case of

Nicam Dual transmission

•to choose between Dual Y,

Dual Zor Dual Xin case

of bilingual transmission:

Dual Ysends the primary

broadcast language to the

loudspeakers;

Dual Zsends the secondary

broadcast language to the

loudspeakers;

Dual Xsends a separate

language to each loudspeaker.

Note: in case of weak stereo

sound signals, with stereo or

Nicam stereo transmission, select

mono reception.

Sound output selection in AV mode

In AV mode, you can select the output sound for the left and right loudspeakers.

Press the Xkey repeatedly to select:

•L+R: the audio signal from the audio L input is sent to the left loudspeaker, the audio signal

from the audio R input to the right loudspeaker

•L+L: the audio signal from the audio L input is sent to the left and right loudspeakers

•R+R: the audio signal from the audio R input is sent to the left and right loudspeakers.

BStandby

Switches the TV on from

standby or off to standby.

AUTO keys

To select predefined picture

and sound settings.

a AUTO picture

Each time it is pressed, a

different picture setting is

selected, corresponding with

specific factory settings of

Contrast, Brightness, Colour

and Sharpness.

MAUTO sound

Each time it is pressed, a

different sound setting is

selected, corresponding with

specific factory settings of

treble and bass.

Personal refers to the personal

preference settings of picture

and sound selected and stored

in the picture and sound menu.

126 1013.1 gb 20-11-2001 14:30 Pagina 8

AUTO AUTO

Y-Z

Ò‡π

†

00LIST

MENU OK

VVolume

Press + or - to adjust the

volume.

¬Mute

Temporarily interrupt the

sound or restore it.

P Programme selection

•to browse through the TV

channels which are not

skipped

•to switch the TV on from

standby.

®Ò‡π† Video

recorder keys see p. 18.

UTime display

The time, downloaded from the

TV channel (with teletext

broadcast) stored on

programme number 1 or the

lowest not skipped programme

number, is displayed on the

screen.

0/9 Digit keys

To select a TV channel.

For a channel number under

10, first enter a 0, e.g. 05 for 5.

0Previous programme

To display the previously

selected TV channel.

LIST Programme list

To display the programme list.

bTeletext on/off

see p. 13.

Teletext functions see p. 14.

hUfgcek

DSleeptimer

With this key you can set a

time period after which the

TV should switch itself to

standby.

Press the key repeatedly to

select the number of minutes.

The counter runs from B0,

10, 20, 30.... to 240 minutes.

The timer begins to count

down from the number of

minutes selected.

Note:To view the remaining time,

press the Dkey once.To cancel

the sleep time, repeatedly press

the Dkey until B0 appears.

9Use of the remote control

MENU Press repeatedly to

display each menu.

OK Press this key to activate

your choice, when in the menus.

126 1013.1 gb 20-11-2001 14:31 Pagina 9

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Philips TV

Philips

Philips 29PT 8306 Manuel utilisateur

Philips

Philips Signage Solutions 50BDL3050Q Manuel utilisateur

Philips

Philips 32PT830H99 Manuel

Philips

Philips 29PT9413 - annexe 1 Manuel utilisateur

Philips

Philips 8506 Series Manuel utilisateur

Philips

Philips Cineos 32PF9966/10 Manuel utilisateur

Philips

Philips 32PT8419 Manuel utilisateur

Philips

Philips 22PFH4000/88 Manuel utilisateur

Philips

Philips COLOR TV 32 INCH TABLE TP3267C Manuel utilisateur

Philips

Philips 8548 Series Manuel utilisateur

Philips

Philips BDL4221M Manuel utilisateur

Philips

Philips Brilliance BDM4350 Manuel utilisateur

Philips

Philips 40PFH6550 Manuel utilisateur

Philips

Philips 75PUS7101 Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips 14PT1415 Manuel utilisateur

Philips

Philips 32RF50S Manuel

Philips

Philips 55PW9383 Manuel utilisateur

Philips

Philips TPM9.1LA Manuel utilisateur

Philips

Philips 28PW8608/12 Manuel utilisateur

Philips

Philips 40PFL6605 Manuel utilisateur

Philips

Philips The One 8558 Series Manuel utilisateur

Philips

Philips TV Manuel utilisateur

Philips

Philips HTL1190B Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
