English

One of Philips’ leading Business Principles is to

take all necessary health and safety measures

for our products, to comply with all applicable

legal requirements and to stay well within

the EMF standards applicable at the time of

producing the products.

Philips is committed to develop, produce and

market products that cause no adverse health

effects. Philips conrms that if its products are

handled properly for their intended use, they

are safe to use according to scientic evidence

available today.

Philips plays an active role in the development

of international EMF and safety standards,

enabling Philips to anticipate further

developments in standardisation for early

integration in its products.

VESA, FDMI and the VESA Mounting Compliant

logo are trademarks of the Video Electronics

Standards Association.

® Kensington and Micro Saver are registered

US trademarks of ACCO World corporation

with issued registrations and pending

applications in other countries throughout the

world.

All other registered and unregistered

trademarks are the property of their respective

owners.

1 Notice

2008 © Koninklijke Philips Electronics N.V. All

rights reserved.

Specications are subject to change without

notice.Trademarks are the property of

Koninklijke Philips Electronics N.V. or their

respective owners.

Philips reserves the right to change products at

any time without being obliged to adjust earlier

supplies accordingly.

The material in this manual is believed

adequate for the intended use of the system.

If the product, or its individual modules or

procedures, are used for purposes other than

those specied herein, conrmation of their

validity and suitability must be obtained. Philips

warrants that the material itself does not

infringe any United States patents. No further

warranty is expressed or implied.

Warranty

No components are user serviceable. Do not

open or remove covers to the inside of the

product. Repairs may only be done by Philips

Service Centres and ofcial repair shops. Failure

to do so shall void any warranty, stated or

implied.

Any operation expressly prohibited in

this manual, any adjustments, or assembly

procedures not recommended or authorised in

this manual shall void the warranty.

Pixel characteristics

This LCD product has a high number of

colour pixels.Although it has effective pixels of

99.999% or more, black dots or bright points of

light (red, green or blue) may appear constantly

on the screen.This is a structural property of

the display (within common industry standards)

and is not a malfunction.

Compliance with EMF

Koninklijke Philips Electronics N.V. manufactures

and sells many products targeted at consumers,

which, like any electronic apparatus, in

general have the ability to emit and receive

electromagnetic signals.

If placing the TV on a at, solid surface be

sure to use only the supplied stand. Do not

move the TV if the stand is not properly

screwed to theTV.

Wall mounting of the TV should only be

performed by qualied personnel. The TV

must only be mounted on an appropriate

wall bracket and on a wall that can safely

hold the weight of theTV. Improper wall

mounting can result in severe injury or

damage. Do not attempt to wall mount

the TV yourself.

If the TV is mounted on a swivel base or

swivel arm, ensure no strain is placed on

the power cord when the TV is swivelled.

Strain on the power cord can loosen

connections and cause arcing or re.

Disconnect the TV from the mains and

antenna before lightning storms. During

lightning storms do not touch any part of

the TV, mains cord or antenna cable.

Be sure that you have full access to the

mains cord for easy disconnection of the

TV from the mains.

When disconnecting the TV from the

mains, be sure to:

1Turn off the TV, then the mains power (if

available).

2Unplug the mains cord from the mains

socket outlet.

3Unplug the mains cord from the power

connector at the back of the TV. Always

pull the mains cord by the plug. Do not

pull the mains cord.

Permanent hearing loss can occur if you

use earphones or headphones at high

volumes.Though high volume may sound

•

2 Important

Read this user manual before you start to use

this product.

Pay close attention to this section and follow

the safety and screen care instructions.The

product warranty does not apply if damage is

caused by failing to follow these instructions.

The model and serial number of your TV can

be found on the back of the TV as well as on

the packaging.

Safety

Two people are required to lift and carry a

TV that weighs more than 25 kilos (55lb).

Improper handling of the TV can result in

serious injury.

If transporting the TV in low temperatures

(less than 5°C), open the box and

wait until the TV matches the ambient

temperature of the room before

unpacking.

To avoid short circuit, do not expose the

TV, remote control or remote control

batteries to rain or water.

To avoid risk of re or electric shock,

do not place the TV, remote control or

remote control batteries near naked ame

sources (e.g. lighted candles) and other

heat sources including direct sunlight.

Do not place vessels lled with water on

top of or near to the TV. Spilling water into

the TV can result in electric shock. If you

spill water into the TV, do not operate the

TV. Immediately disconnect the TV from

the power and have the TV checked by a

qualied technician.

Do not install the TV in a conned space

such as a bookcase. Leave a space of

at least 10cm (four inches) around the

TV for ventilation. Be sure air ow is not

obstructed.

•

English

and reused.When you see the crossed-out

wheel bin symbol attached to a product, it

means the product is covered by the European

Directive 2002/96/EC:

Do not dispose your used product with

household waste. Ask your dealer for

information on how to safely dispose of the

product. Uncontrolled waste disposal harms

both the environment and human health.

Disposing used batteries

The supplied batteries do not contain

mercury or cadmium. Dispose supplied and all

other used batteries according to your local

regulations.

Power consumption

The TV consumes minimal energy in standby

mode to minimize environmental impact. Active

power consumption is displayed at the back of

the TV. For more product specications, see the

product leaet at www.philips.com/support.

normal over time, it can damage your

hearing.To protect your hearing, limit the

amount of time you use earphones or

headphones at high volume.

Screen care

Turn off and unplug the mains cord before

cleaning the screen. Clean the screen with

a soft, dry cloth. Do not use substances

such as household cleaning agents as these

may damage the screen.

To avoid deformations or colour fading,

wipe off water droplets as soon as possible.

Do not touch, push, rub or strike the

screen with hard objects as this may

damage the screen permanently.

Where possible, avoid stationary images

that remain on-screen for extended

periods of time. Examples include screen

menus, teletext pages, black bars or stock

market tickers. If you must use stationary

images, reduce the screen contrast and

brightness to avoid screen damage.

Environmental care

Recycling your packaging

The packaging of this product is intended to

be recycled. Contact your local authorities for

information on how to recycle the packaging.

Disposing your used product

Your product is manufactured with high-quality

materials and components that can be recycled

•

Connectors

aHDMI

HDMI for DVD player, HD digital receiver,

HD game console, PC, etc.

bVGA AUDIO

Mini-jack connector for PC audio when

connecting a PC via DVI-HDMI or VGA.

cVGA PC

To connect a PC.

dYPBPR

Component video input with YPbPr and

Audio L/R connectors for DVD, digital

receiver or game console, etc.

eAV1

Composite video input to be used with

Audio L/R connectors for camcorder,

game console, etc.

fTV (75 )

Antenna input

gSERV C

For software update.

hSIDE AV

Composite video (side) to be used with

Audio L/R connectors for camcorder,

game console, etc.

iS-VIDEO

123 4 5 6 7

3 Your TV

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product

at www.philips.com/welcome.

TV overview

This section gives you an overview of

commonly-used TV controls and functions.

Side controls and indicators

aStandby indicator / remote control

sensor

bPOWER: Switches the TV on from

standby or back to standby.The TV is

not powered off completely unless it is

physically unplugged.

cCHANNEL + / -: Switches to the next or

previous channel.

dMENU:Toggles the main menu on or off.

eVOLUME + / -: Increases or decreases

volume.

POWER

CHANNEL

VOLUME

POWER

CHANNEL

VOLUME

English

cNot used.

dSLEEP

Sets a delay after which the TV switches

to standby.

eTIMER

Sets the clock and timers.

fSMART SOUND

Selects pre-dened sound settings.

gNavigation keys

Navigates through the menus.

hMENU/BACK

Toggles the menu on or off or returns to

a previous screen.

iVOL + / -

Increases or decreases volume.

jMute

Mutes or unmutes audio.

kNumber buttons

Selects a channel, page or setting.

lSTATUS/EXIT

Displays status information or exits the

menu.

mSAP

Selects Secondary Audio Program (SAP),

stereo or mono.

nCC

Displays closed captions settings.

oSURF

Displays a list of all channels marked as

favorite.

pTV/PC

Toggles between PC mode and the last

accessed mode.

qSMART PIC

Selects pre-dened picture settings.

rOK

Activates a selection or accesses the

menu.

sFORMAT

S-Video (side) to be used with Audio L/R

connectors for camcorder, game console,

etc.When you use the S-Video (side) for

video signals, do not use the Composite

video (side) input for video signals.

jHeadphones

Headphone stereo mini jack.

For software update.

Remote control

aPower

Switches the TV on from standby or

back to standby.The TV is not powered

off completely unless it is physically

unplugged.

bSOURCE

Selects connected devices.

Selects a picture format.

tCH + / -

Switches to the next or previous channel.

uA/CH

Toggles between the current channel and the

last viewed channel.

English

Wall mount the TV

Warning

Wall mounting of the TV should only be performed by

qualied installers. Koninklijke Philips Electronics N.V.

bears no responsibility for improper mounting that

results in accident or injury.

•

Screen

size

VESA-compatible

bracket (mm)

Bolt type and

min length

(not supplied)

19”

(48cm)

Adjustable 100 x

100

M4 x 10mm

26”

(66cm)

Adjustable 200 x

100

M4 x 10mm

The minimum bolt length is 10mm. If you use

a spacer, the bolt length should be the spacer

length plus 10mm. For example, if you use a

40mm spacer, the bolt length should be 50mm

(40mm + 10mm).

Connect the antenna cable

Connect the antenna cable to theTV antenna

socket (75 ) at the back of the TV.

4 Get started

This section supplements information in the

Quick Start. For information about how to

mount and install yourTV, refer to the Quick

Start.

Position the TV

Warning

Do not insert the power plug into the wall socket

before all the connections are made.

Large screen TVs are heavy.Two people are required to

carry and handle a large screen TV.

Before you move the TV, disconnect the cables to

prevent breakage.

•

In addition to reading and understanding the

safety instructions (see ‘Safety’ on page 5),

consider the following before positioning your

TV:

Ensure that you always have easy access to

the power cord or plug to disconnect the

TV from the power.

If the TV is mounted on a swivel base,

ensure that no strain is placed on the

power cord when the TV is swiveled.

Strain on the power cord can loosen

connections.

The ideal viewing distance for watching TV

is three times its screen size.

Position the TV where light does not fall on

the screen.

Connect your devices before you position

the TV.

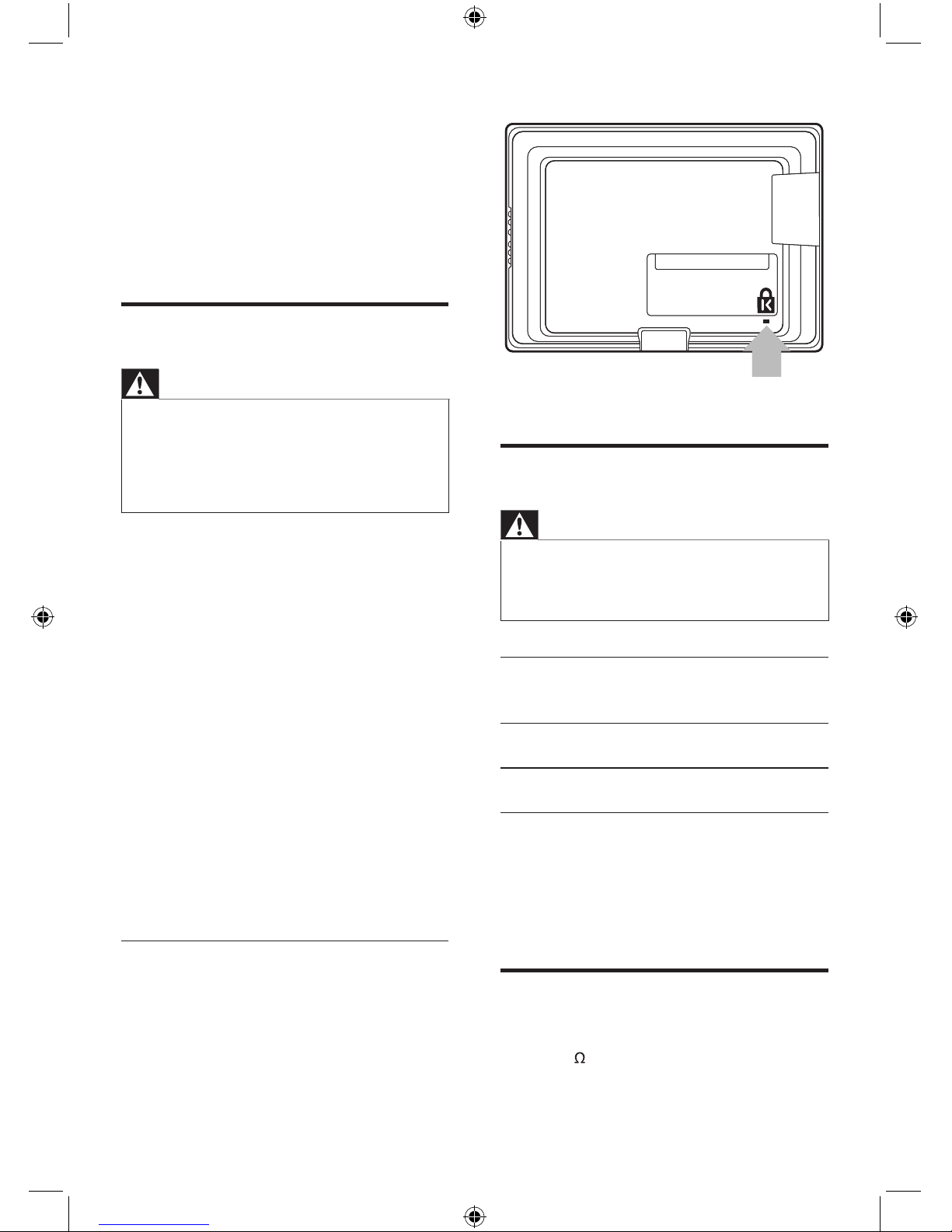

Use a Kensington lock

There is a Kensington security slot at the back

of the TV. If you connect a Kensington lock

(not supplied), position the TV near a heavy or

immovable object that you can attach the cable

to.

•

Autres manuels pour 19PFL3403/77

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips TV

Philips

Philips 42PF9630A/37 Manuel utilisateur

Philips

Philips 32PFL3404/77 Manuel utilisateur

Philips

Philips 8506 Series Manuel utilisateur

Philips

Philips COLOR TV 32 INCH TABLE TP3267C Manuel utilisateur

Philips

Philips 9636 Series Manuel utilisateur

Philips

Philips 20GR1250-07B Manuel utilisateur

Philips

Philips 55HFL2879T Manuel utilisateur

Philips

Philips 32PW6006 - annexe 1 Manuel de la liste des pièces

Philips

Philips TPM15.3L Manuel utilisateur

Philips

Philips 42PFL4008S Manuel utilisateur

Philips

Philips Essence 5000 Series Manuel utilisateur

Philips

Philips 42PF9830A - Hook Up Guide Manuel utilisateur

Philips

Philips 46HFL3683S/F7 Manuel technique

Philips

Philips Matchline 34PW9819/17 Manuel utilisateur

Philips

Philips 42PF7621D/10 Manuel utilisateur

Philips

Philips 26HF5334D Guide de démarrage rapide

Philips

Philips 65PUT8516 Manuel utilisateur

Philips

Philips 75PUS7906 Manuel utilisateur

Philips

Philips 32PFL9705H Manuel utilisateur

Philips

Philips A02E Manuel utilisateur

Philips

Philips 24CE3270 Manuel utilisateur

Philips

Philips LC7.1HE LA Manuel utilisateur

Philips

Philips 21PT5307S/60 Manuel utilisateur

Philips

Philips FM23 AC Manuel utilisateur

Manuels TV populaires d'autres marques

Toshiba

Toshiba 27A10 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Sony

Sony XBR-100Z9D Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur

Sanyo

Sanyo CE19LD90N-B Manuel utilisateur

North State

North State TV2GO Manuel utilisateur

RCA

RCA RTU7877 Manuel utilisateur

Sharp

Sharp 21K-FG1RU Manuel utilisateur

Sony

Sony Esprit TAV-L1 Manuel utilisateur

Grundig

Grundig 43 VLE 4820 Manuel utilisateur

Samsung

Samsung LN26C350D1D Manuel utilisateur
