Contents

1 Important 4

Safety 4

2 Your Philips Wireless HD Net Connect 5

What is in the box 5

3 Overview 6

The transmitter 6

The receiver 6

4 Installation 8

Connect the transmitter to your computer 8

Connect the receiver to the HDTV set 8

5 Activate your Philips Wireless HD

Net Connect and set up the link 9

Turn on the power of your HDTV 9

Activate the wireless link 9

On screen display on HDTV 10

6 Mount your receiver 11

Mount your receiver on the wall 11

Mount your receiver on the back of the

HDTV 12

7 Technical data 13

Supported resolution 13

Product specications 13

8 Notice 14

Declaration of conformity 14

Compliance with EMF 14

Environmental-Recycling the product 14

Warranty information 15

9 Frequently asked questions 16

English

other apparatus (including ampliers) that

produce heat.

iProtect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

j Only use attachments/accessories specied

by the manufacturer.

kUnplug this apparatus during lightning

storms or when unused for long periods of

time.

l Refer all servicing to qualied service

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

mApparatus shall not be exposed to

dripping or splashing.

nDo not place any sources of danger on the

apparatus (e.g. liquid lled objects, lighted

candles).

Warning

•Use only the provided power adapter.

1 Important

Safety

This ‘bolt of lightning’ indicates uninsulated

material within your unit may cause an electrical

shock. For the safety of everyone in your

household, please do not remove product

covering.

The ‘exclamation point’ calls attention to

features for which you should read the enclosed

literature closely to prevent operating and

maintenance problems.

WARNING: To reduce the risk of re or electric

shock, this apparatus should not be exposed to

rain or moisture and objects lled with liquids,

such as vases, should not be placed on this

apparatus.

Important Safety Instructions

aRead these instructions.

bKeep these instructions.

cHeed all warnings.

dFollow all instructions.

eDo not use this apparatus near water.

fClean only with dry cloth.

gDo not block any ventilation openings.

Install in accordance with the

manufacturer’s instructions.

hDo not install near any heat sources such

as radiators, heat registers, stoves, or

USB cable for the power supply of the

transmitter (0.5 meters)

Power adapter for the receiver

Anchors x 2

Screws x 2

Adhesive tape x 2

Quick Installation Guide

Quick start guide

User manual

2 Your Philips

Wireless HD

Net Connect

Congratulations on your purchase and welcome

to Philips!

To fully benet from the support that

Philips offers, register your product at

www.philips.com/welcome.

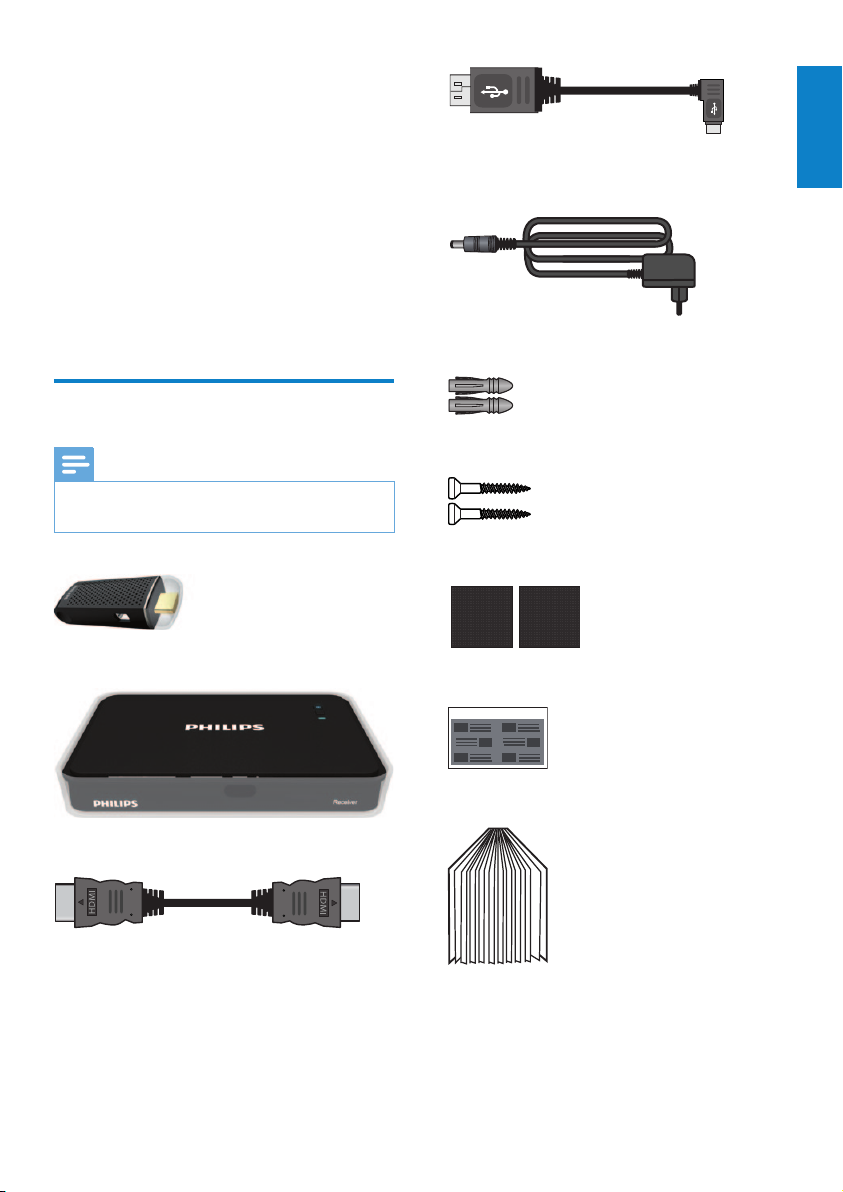

What is in the box

Note

•Make sure you have all these items in the box. Contact

your dealer for any missing or damaged items.

Transmitter

Receiver

HDMI cable (1.5 meters)

English

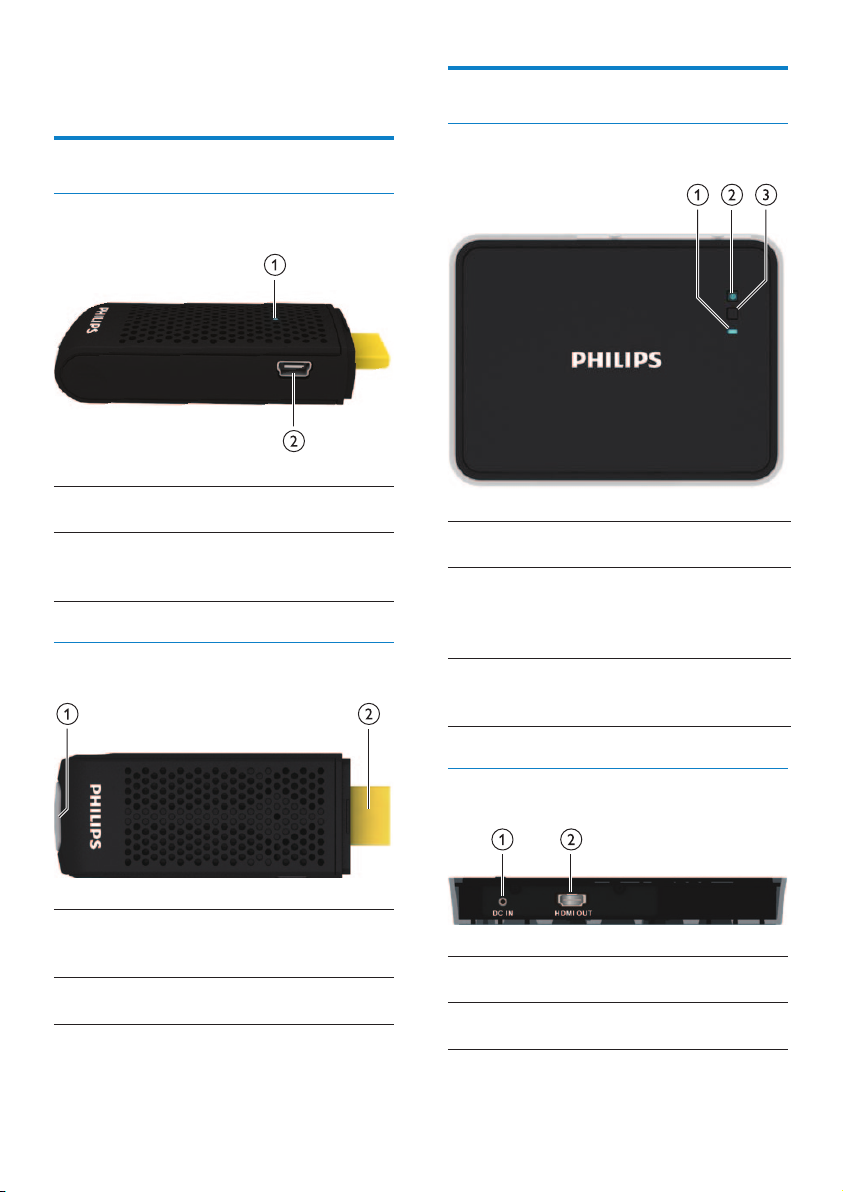

The receiver

Top view

1 LED

indicator

Displays the status of the

receiver.

2Power

button

with LED

indicator

Press to turn the receiver on/

off or to standby mode.

3INFO

button

Displays on the HDTV the

connection status of the

receiver.

Rear view

1DC IN

connector

Connect the power adapter

of the receiver.

2HDMI OUT

connector

Connect to the HDTV with

an HDMI cable

3 Overview

The transmitter

Front view

POWER

1 LED

indicator

Displays the connection status

of the transmitter.

2 USB

power jack

Connect the transmitter to

the computer with the USB

cable.

Top view

1INFO

button

Displays on the HDTV the

connection status of the

transmitter.

2 HDMI IN

connector

Plug into the HDMI port of

the computer.

The Philips Wireless HD Net Connect gives

you a total wireless solution to enjoy the

content from your computer on your HDTV.

The transmitter can transmit an uncompressed

video content up to 7 meters (without

obstruction between the transmitter and

receiver) without latency. The receiver can

receive signals for viewing on your HDTV. All

you need to do is to:

• Connect the transmitter to your computer.

• Connect the receiver to your HDTV set.

English

3Connect the other end of the USB cable

to your the USB port of your computer.

Note

•For some computers, the HDMI and USB ports are

located in different sides of the computer.

»The power LED indicator of the

transmitter ashes in blue, then turns

into solid blue when the connection is

established.

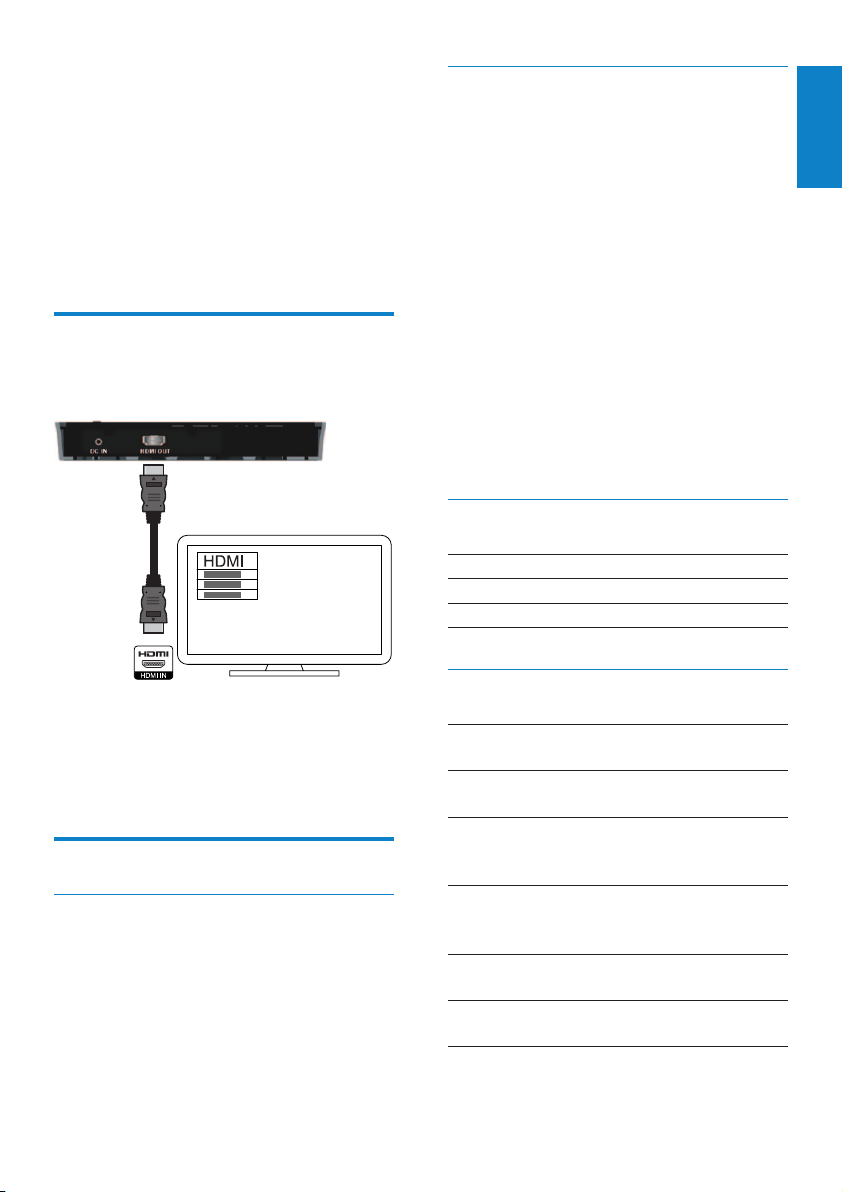

Connect the receiver to the

HDTV set

HDMI

1Connect the receiver with the supplied

HDMI cable:

• Connect one end of the HDMI cable to

HDMI OUT connector of the receiver.

• Connect the other end of the HDMI

cable to the HDMI in connector of

your HDTV.

2Connect the power adapter to the

receiver with the supplied power adapter:

• Connect one end of the power

adapter to the DC IN connector of

the receiver.

• Connect the other end of the power

adapter to a power socket.

4 Installation

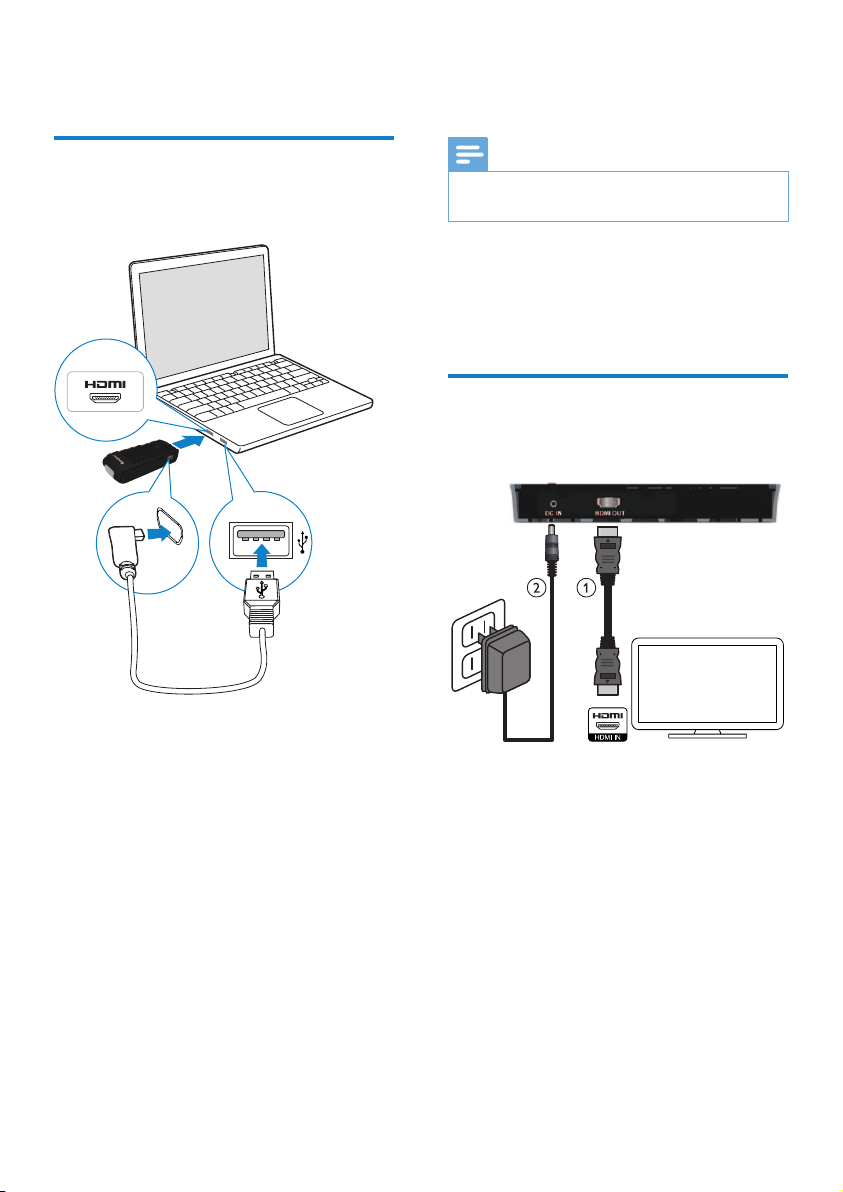

Connect the transmitter to

your computer

Connect the transmitter to the computer using

the supplied USB cable.

1Connect the transmitter to the HDMI port

of the computer.

2Connect the small end of the USB cable to

the POWER jack of the transmitter;

Establish the link between the

transmitter and receiver

• A ashing blue power LED is displayed

until the signal link between the two units

is established. Normally, it takes around

15-20 seconds for the link to establish

successfully.

• When you unplug the power cord of the

transmitter, the receiver enters standby

mode after 5 minutes.

»The power LED of the receiver lights

up in red.

• The link between the transmitter and

receiver re-established when you plug in

the power cord of the transmitter again.

»The power LED of the receiver ashes

in blue.

LED indicator status of the transmitter

Power LED indicator Status

Solid blue The link is established.

Flashing blue Linking is in progress.

LED indicator status of the receiver

Power

LED

Status

LED

Mode and status

Solid

red

Off Standby mode for power-

saving

Flashing

blue

Flashing Setting up a Link between

the transmitter and

receiver

Solid

blue

Flashing

quickly

On mode but without

input from the computer/

source device

Solid

blue

Flashing

slowly

On mode with

unrecognized video format

Solid

blue

Solid

blue

On mode with recognized

video format

5 Activate your

Philips Wireless

HD Net

Connect and set

up the link

Turn on the power of your

HDTV

HDMI

1Go to the source menu under the settings

menu of your HDTV.

2Select the HDMI input to which the

receiver is connected.

Activate the wireless link

Switch on the transmitter and

receiver

When there is power supply for the transmitter

and receiver, they are on automatically.

»The link between the transmitter and

receiver is established.

English

Note

•If the link is not established after 80 seconds, move the

transmitter, receiver and HDTV closer to each other.

The maximum transmission range is up to 7 meters

without obstruction between the transmitter and

receiver.

•If more than one set of Philips Wireless HD Net

Connect is placed in the same room, make sure that

the minimum distance among each one is 2 meters.

•Make sure the computer is on and switched the signal

output to the HDMI.

•Make sure the video format is supported before the

video is displayed, see the chapter onTechnical data for

information.

On screen display on HDTV

On screen display Mode and status

Standby mode: it is a

power-saving mode

..... Start up in progress: It

takes 15-20 seconds.

x and .... Searching available

channels: It occurs

when the link cannot

establish over

80 seconds after

initialization.

HDMI CH1 On mode with

unrecognized video

format

HDMI CH1 On mode but

without input from

the computer/source

device

HDMI CH1 1080P On mode with

recognized video

format
