Philips Streamium WACS7000 Manuel utilisateur

Version 1.0

waCS7000

Wireless Audio Center & Station

all versions

Published by YB 0630 Service Audio Subject to modification

system or transmitted, in any form or by any means, electronic, mechanical, photocopying,

or otherwise without the prior permission of Philips.

www.freeservicemanuals.info

…

)

…

TABLE OF CONTENTS

Handling chip component ……………………………………… 1-1

Service tools ……………………………………………………. 1-1

Leadfree and safety information ………………………………. 1-2

Technical specification …………………………………………. 2-1

Connections and controls ……………………………. 3-1 … 3-4

Disassembly Instructio ……………………………….. 4-1 … 4-5

Service test program ………………………………….. 5-1 … 5-2

Software upgrading procedure …………………… … 5-3

CD database upgrading procedure …………………………… 5-4

Set block diagram (waC7000) ………………………………. 6-1

Set wiring diagram (waC7000) ………………………………. 7-1

Set wiring diagram (waS7000) ………………………………. 7-2

Keys & RC Board (waC7000)

circuit diagram …………………………………………….. 8-1

layout diagram …………………………………………….. 8-2

Standby Key Board (waC7000) ………………………………. 8-3

Eject Key Board (waC7000) ………………………………. 8-3

AF Board (waC7000)

circuit diagram ………………………………….. 9-1 … 9-3

layout diagram ………………………………….. 9-4 … 9-5

AMP Socket Board (waC7000) ………………………………. 9-6

AMP Board (waC7000)

circuit diagram ………………………………… 10-1 … 10-2

layout diagram ………………………………… 10-3 … 10-4

Slot CD Loader Control Board (waC7000)

circuit diagram …………………………………………….. 11-1

layout diagram …………………………………………….. 11-2

Interface HDD to Melody Board (waC7000)

circuit diagram …………………………………………….. 11-1

layout diagram …………………………………………….. 11-2

Interface HDD-supply Board (waC7000)

circuit diagram …………………………………………….. 12-1

layout diagram …………………………………………….. 12-2

Interface Ethernet (waS7000) ………………………………. 13-1

Interface IPOD (waS7000 …… ………………………………. 13-2

Keys & RC Board (waS7000)

circuit diagram …………………………………………….. 14-1

layout diagram ………………………………… 14-2 … 14-3

AF Board (waS7000)

circuit diagram ………………………………… 15-1 … 15-4

layout diagram ………………………………… 15-5 … 15-6

HAS Module …………………………………………………….. 16-1

circuit diagram ………………………………… 16-2 … 16-11

layout diagram ………………………………… 16-12 … 16-13

Exploded view diagram (waC7000) …………………………… 17-1

Exploded view diagram (waS7000) …………………………… 17-2

Mechanical & Electrical Partslist …………………… 17-3 … 17-4

…

……

Set block diagram (waS7000) ………………………………. 6-2

www.freeservicemanuals.info

1 - 1

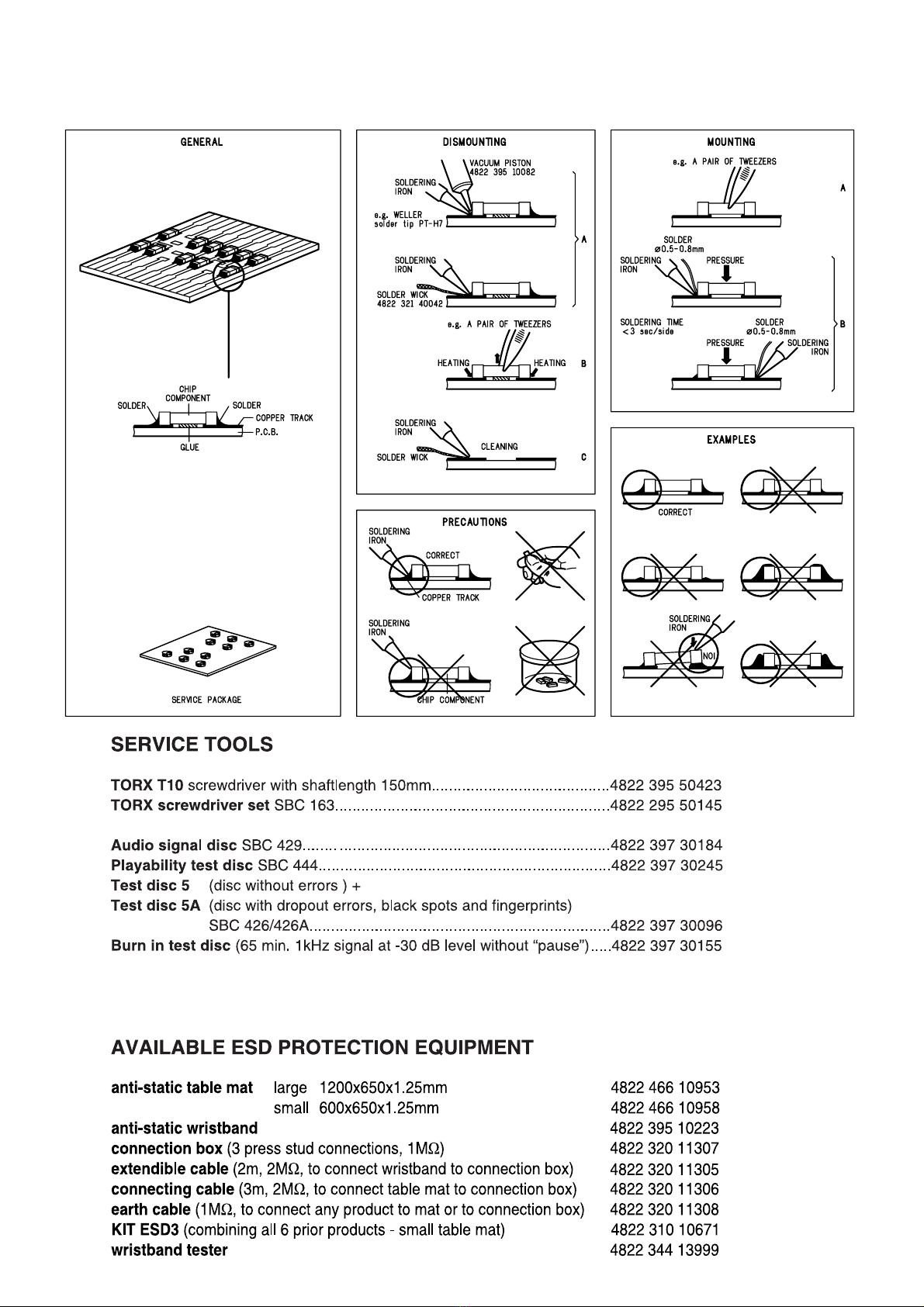

HANDLING CHIP COMPONENTS

www.freeservicemanuals.info

1 - 2

www.freeservicemanuals.info

)

2-1

TECHNICAL SPECIFICATION

Mains voltage /37 :~120V

/05/12/79 :~230V

/55/97 :~240V/120V

( with voltage selection )

Mains frequency /37 :60Hz

/05/12/79 :50Hz

/55/97 :50Hz/60Hz

Battery Center remote :4 x AA

Station remote :2 x AA

Power consumption

Maximum :25W

Active standby :İ14W

Eco-standby :İ1W

Dimension ( W x H x D )

waC7000 :608x303x175mm

waS7000 :360x283x128mm

Weight waC7000 :7.7 kg

waS7000 :4.2 kg

Amplifier

Out power ( RMS waC7000 :2 x 15 + 1 x 25W

waS7000 :2 x 6 + 1 x 12W

Speaker impedance

waC7000 :16 ȍ( panels )

:8ȍ( subwoofer )

waS7000 :16 ȍ( panels )

:8ȍ( subwoofer )

Frequency response :50Hz-12KHz (±3dB)

S/N :İ72dB( IEC )

Aux input sensitivity :500mV

Headphone impedance :21 – 150 ȍ

Wireless Wireless standard :802.11g

( backward compatible to 802.11b )

Wireless security :WEP 64 or 128bit

:WPA , AES-CCM

Frequency range :2142 – 2462 MHz

( channel 1-11)

Transmit range :>220m(mp3,320kbps)

:>150m(pcm,1.6mbps)

Tuner-FM Tuning range :87.5 – 108.0MHz

IF frequency :10.7MHz

Sensitivity limit :25dBf

Image rejection :>25dB

IF rejection :>60dB

Number of preset :60

Antenna/cable :75 ȍ(coax or T-ant)

HDD/USB/CD player (for waC7000 only)

MP3 :all variable bit rate audio

WMA :up to 160kbps bit rate

HDD storage* :80GB

Actual free space is 75GB or less due to the buffer partition for MP3

Compression , firmware ,music CD database and demo tracks storing.

www.freeservicemanuals.info

3 - 1

CONNECTION AND CONTROLS

1345

0!@# $ %^&

967

Wireless Music Center 7000

98 7

Wireless Music Station 7000

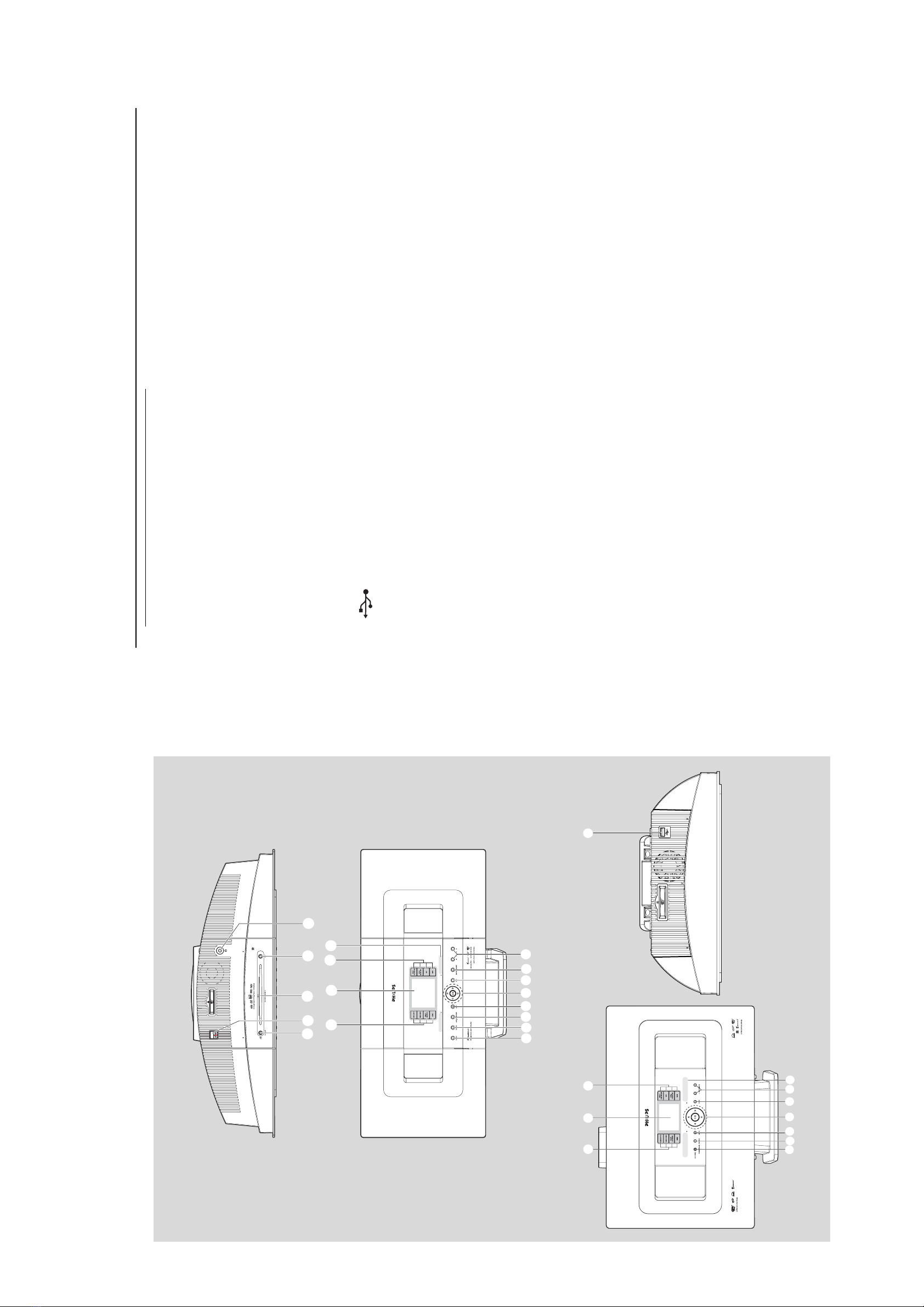

Controls

Controls on Center and

Station (Top and front panels)

1ST

ANDBY-ON/ ECO POWER

– press brieﬂy to switch the set on or to standby

mode;

– press and hold to switch the set to power-

saving mode or on

–Green indicator:lights up green when the set

is on

–Red indicator:lights up red when the set is

switched to standby mode or power-saving

mode

–jack for the external USB mass storage device

3CD slot loader

4EJECT

–ejects a disc from the slot loader

–3.5 mm headphone socket

Helpful hints:

– Adjust the volume to a moderate level

before you plug in the headphones.

– Connecting headphones will switch off the

speakers.

6IR

–sensor for the infrared remote control

Helpful hints:

– Always point the remote control towards this

sensor.

7MUSIC FOLLOWS ME

–HD:moves music playback from Center to

Station, or from Station to Center

MUSIC BROADCAST

–HD:broadcast music from Center to Station

DBB (Dynamic Bass Boost)

– turns the bass enhancement on (DBB1, DBB2,

DBB3) or off

VIEW

– toggles playback display and previous option list

8Display

– shows status of the set

9SAME ARTIST

–HD:plays all the tracks of current Artist

SAME GENRE

–HD:plays all the tracks of current Genre

SMART EQUALIZER

–HD:selects the matched sound setting for

current Genre

– enters or exits setup menu

0SOURCE

–selects sound source HD(hard disk), CD, Radio,

USB, UPnP or AUX

–In standby mode:switches the set on and

selects sound source HD, CD, Radio, USB,

UPnP or AUX

!RECORD

–CD/Radio/AUX:starts the recording to hard

disk

@INCR. SURROUND

– selects surround sound effect

#MUTE

–switches the sound off temporarily

$1/2/3/4

–navigation controls (left, right, up, down) to

scroll through the option list

–HD/CD:returns to previous option lists

–Radio: enters the list of preset stations

3/4

–HD/CD: skips/searches tracks/passage

backward/forward (in playback screen); fast

scrolls the option list

–Radio: tunes to radio stations

2 / OK

– conﬁrms selection

–HD/CD: starts or pauses playback

www.freeservicemanuals.info

Controls

%STOP

– stops playback or recording

^Mark•UNMark

–CD: selects or deselects tracks to be recorded

on hard disk

&VOLUME -,+

– adjusts the volume level

PORTABLEPORTABLE SEARCHSEARCH

SOURCE

SAME ARTIST

SMART EQSMART EQ

DBBDBB

(

)

≤

∞

™

REC

PROGRAM

INCR.SURR.

SLEEP

MUSIC BROADCAST

SMART EQ

MUSIC FOLLOWS ME

DIM RDS/NEWS

SCROLL VOL

VIEW

mno

wxyz

pqrs 8

tuv

MARK/UNMARK

DBB

(

)

CD/MP3-CD HD SOURCE

REPEAT SHUFFLE

abc

SAME GENRE SAME ARTIST

jkl

ghi

™

≤

≥

2-way remote control 1-way remote control

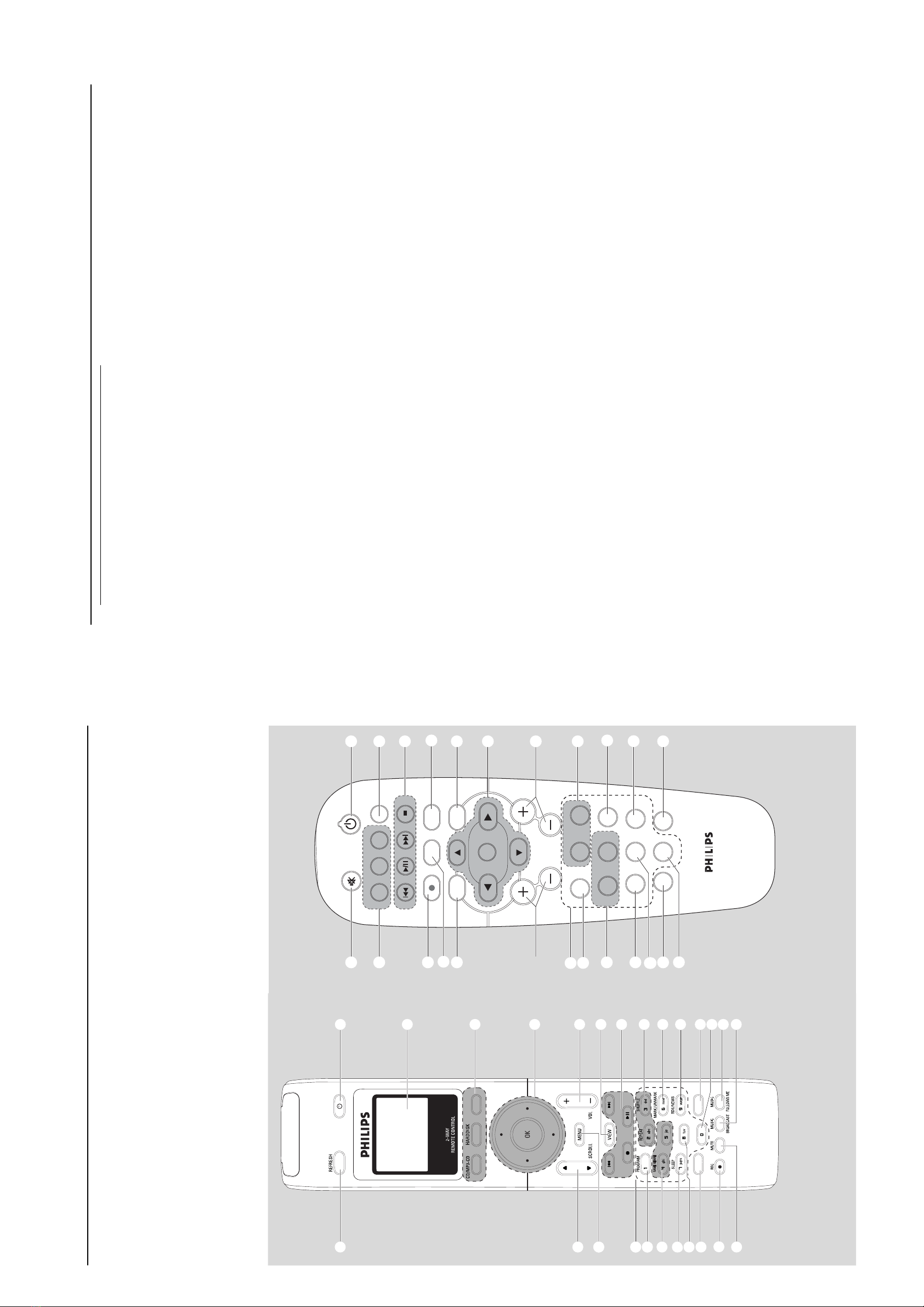

Remote control

–– press brieﬂy to switch the set on or to standby

mode;

– press and hold to switch the set to power-

saving mode or on

2Synchro display

– synchronous display of the set’s status

3CD/MP3-CD

–selects CD source

–In standby mode: switches the set on and

selects CD source.

HARDDISK (HD)

– selects HD (hard disk) source

–In standby mode: switches the set on and

selects HD source

SOURCE

– selects Radio source, UPnP source, USB source

or AUX from an additional connected

appliance

–In standby mode: switches the set on and

selects Radio source, USB source, UPnP source

or the audio input from an additional connected

appliance

41/2/3/4

–navigation controls (left, right, up, down) to

scroll through the option list

–HD/CD: returns to previous option lists

–Radio: enters the list of preset stations

–Text input: moves the cursor backward

3/4

–HD/CD: skips/searches tracks/passage

backward/forward (in playback screen); fast

scrolls the option list

–Radio: tunes to radio stations

2 / OK

– conﬁrms selection

–Text input: conﬁrms input and moves the

cursor forward

–HD/CD: starts or pauses playback

5VOL +,-

– adjusts the volume level

6VIEW

–toggles playback screen and previous option list

74/¢

–skips/searches tracks/passage backward/forward

(in playback screen)

–T

ext input: deletes the input before cursor

É/Å

– starts or pauses playback

– stops playback or recording

8REPEA

– selects continuous playback

SHUFFLE

– selects random playback

9MARK/UNMARK (Center only)

–CD: selects or deselects tracks to be recorded

on hard disk

0RDS/NEWS

–Radio: selects RDS information

–HD/CD/UPnP/AUX: turns NEWS function on

or off

!SEARCH

–searches by keywords

@SMART EQ

–HD: selects the matched sound setting for

current Genre

#MUSIC FOLLOWS ME

–HD: moves music playback between Center

and Station

Controls

3 - 2

www.freeservicemanuals.info

3 - 3

CONNECTION AND CONTROLS

Controls

$MUSIC BROADCAST(Center only)

–HD: broadcast music from Center to Station

%MUTE

–switches the sound off temporarily

^REC

–switch

–CD/Radio/AUX: starts the recording to hard

disk

&PORTABLE

– select the audio input from a connected hard

disk player

*DBB (Dynamic Bass Boost)

–turns the bass enhancement on (DBB1, DBB2,

DBB3) or off

(SLEEP

–adjusts/displays/switches off sleep timer

)SAME GENRE

–HD: plays all the tracks of current Genre

SAME ARTIST

–HD: plays all the tracks of current Artist

¡PROGRAM

–Radio: manually programs preset radio stations

™Alphanumeric keys

– for text input

£MENU

–enters or exits setup menu

≤SCROLL 3/4

– scrolls the display screen upward or downward

∞REFRESH

–sychronize remote control’s display with the

set’s display

§INCR. SURR.

– selects surround sound effect

≥DIM

–changes the brightness of display illumination

For more information onoperation instruction please visit Philips

Audio internet site :

http://www.audio.philips.com

www.freeservicemanuals.info

3 - 4

CONNECTION AND CONTROLS



www.freeservicemanuals.info

4 - 1 4 - 1

DISASSEMBLY INSTRUCTION(waC7000)

Press the button

Step1

Step2

Lift up the stand

2 screws

1. Remove Stand

2. Remove Loudspeaker Box

a. remove screws M2x8 - 2 pcs

b. pull out speaker cable connector

c. take out loudspeakers

3. Separate Front and Back Cabinet.

a1. remove screws T3x20 - 6 pcs.

f. pull out Core Pre-assembly

c. lift the back cabinet till the terminals sinked.

b. remove screw M2X10 - 1pcs and remove ant cover.

d. lift the back cabinet till the terminals sinked.

e. remove screws M3X12 - 2pcs.

a2. remove screws T3x10 - 4 pcs.

www.freeservicemanuals.info

Autres manuels pour Streamium WACS7000

Autres manuels Philips Système stéréo

Philips

Philips FW-C85 Manuel utilisateur

Philips

Philips MCM158 Manuel utilisateur

Philips

Philips BTD7170 Manuel utilisateur

Philips

Philips FW-C70 Manuel utilisateur

Philips

Philips MCM510/25 Manuel utilisateur

Philips

Philips MCD280/30 Manuel utilisateur

Philips

Philips FW-C390 Manuel utilisateur

Philips

Philips MCM108B Manuel utilisateur

Philips

Philips FWM653/77 Manuel utilisateur

Philips

Philips AS9513 Manuel utilisateur

Philips

Philips WACS7500 - Streamium Wireless Music Center&Station Network Audio... Manuel utilisateur

Philips

Philips OTT2000/05 Manuel utilisateur

Philips

Philips AS9413 Manuel utilisateur

Philips

Philips MCM239/12 Manuel utilisateur

Philips

Philips FW-C150 Manuel utilisateur

Philips

Philips FWV780 Manuel utilisateur

Philips

Philips FWM139/12 Manuel utilisateur

Philips

Philips MC147/79 Manuel utilisateur

Philips

Philips MCM233/58 Manuel utilisateur

Philips

Philips FWM4000X/78 Manuel utilisateur

Philips

Philips MCM276R Manuel utilisateur

Philips

Philips FWD39 Manuel d'utilisation

Philips

Philips MCW770 Instructions d'utilisation d'origine

Philips

Philips MC230 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

LG FB165DAB Manuel utilisateur

Sanyo

Sanyo DC-UB1475M/XE/UK Manuel utilisateur
