Philips FWM417X/78 Manuel utilisateur

Version 1.0

FWM417X/78

3141 785 34070

MP3 Mini Hi-Fi System

FWM417/55

Published by LX 0919 Service Audio Subject to modification

system or transmitted, in any form or by any means, electronic, mechanical, photocopying,

or otherwise without the prior permission of Philips.

CONTENTS

�

Technical specification ..................................................................1-2

Service measurement setup..........................................................1-3

Service aids .................................................................................1-4

Instructions on CD playability ................................................2-1..2-2

Block diagram................................................................................3-1

Wiring diagram ..............................................................................4-1

Disassembly diagram............ ................................................5-1..5-2

Main board

Circuit diagram ..................................................................6-1..6-2

Layout diagram..................................................................6-3..6-4

Display board

Circuit diagram .........................................................................7-1

Layout diagram..................................................................7-2..7-3

CD board

Circuit diagram .........................................................................8-1

Layout diagram..................................................................8-2..8-3

MCU board

Circuit diagram .........................................................................9-1

Layout diagram.........................................................................9-2

Tuner Board

Circuit diagram. ......................................................................10-1

Layout diagram.......................................................................10-2

Power Board

Circuit diagram. ...................................................................... 11-1

Layout diagram....................................................................... 11-2

HF Board

Circuit diagram. ......................................................................12-1

Layout diagram.......................................................................12-2

Exploded view diagram ...............................................................13-1

Mechanical parts list...........................................................13-2..13-3

Electrical parts list...............................................................14-1..14-2

All manuals and user guides at all-guides.com

all-guides.com

Tuner

Tuning range FM: 87.5 - 108MHz;

AM: 531 - 1602kHz

(9KHz); 530 - 1700KHz

(10KHz)

Tuning grid 100KHz (FM);

9KHz/10KHz (AM)

Number of presets 40 (FM + AM)

FM 75ohm wire

AM loop antenna

Speakers

Speaker Impedance 6ohm

Woofer 2 x 5.25”

Tweeter 2 x 1.75”

Dimensions

(W x H x D)

249 x 344 x 250mm

Weight 3.58kg each

General information

AC power 110 - 127/220 - 240V,

50/60Hz

Operation power

consumption

180W

Standby power

consumption

<2W

USB direct Version 2.0/1.1

Dimensions

Main Unit

(W x H x D)

265 x 310 x 403mm

Weight

(without speakers)

6.09kg

Amplifier

Total output power 280W RMS

Frequency response 60 - 16kHz

Signal-to- noise ratio >67dB A (IEC)

Aux input 1500mV/2000mV

Disc

Laser type Semiconductor

Disc diameter 12cm/8cm

Support disc CD-DA, CD-R,

CD-RW, MP3-CD,

WMA-CD

Audio DAC 24Bits / 44.1kHz

Total harmonic

distortion

<1.5%

Frequency response 60Hz -16kHz (44.1kHz)

S/N ratio >75dBA

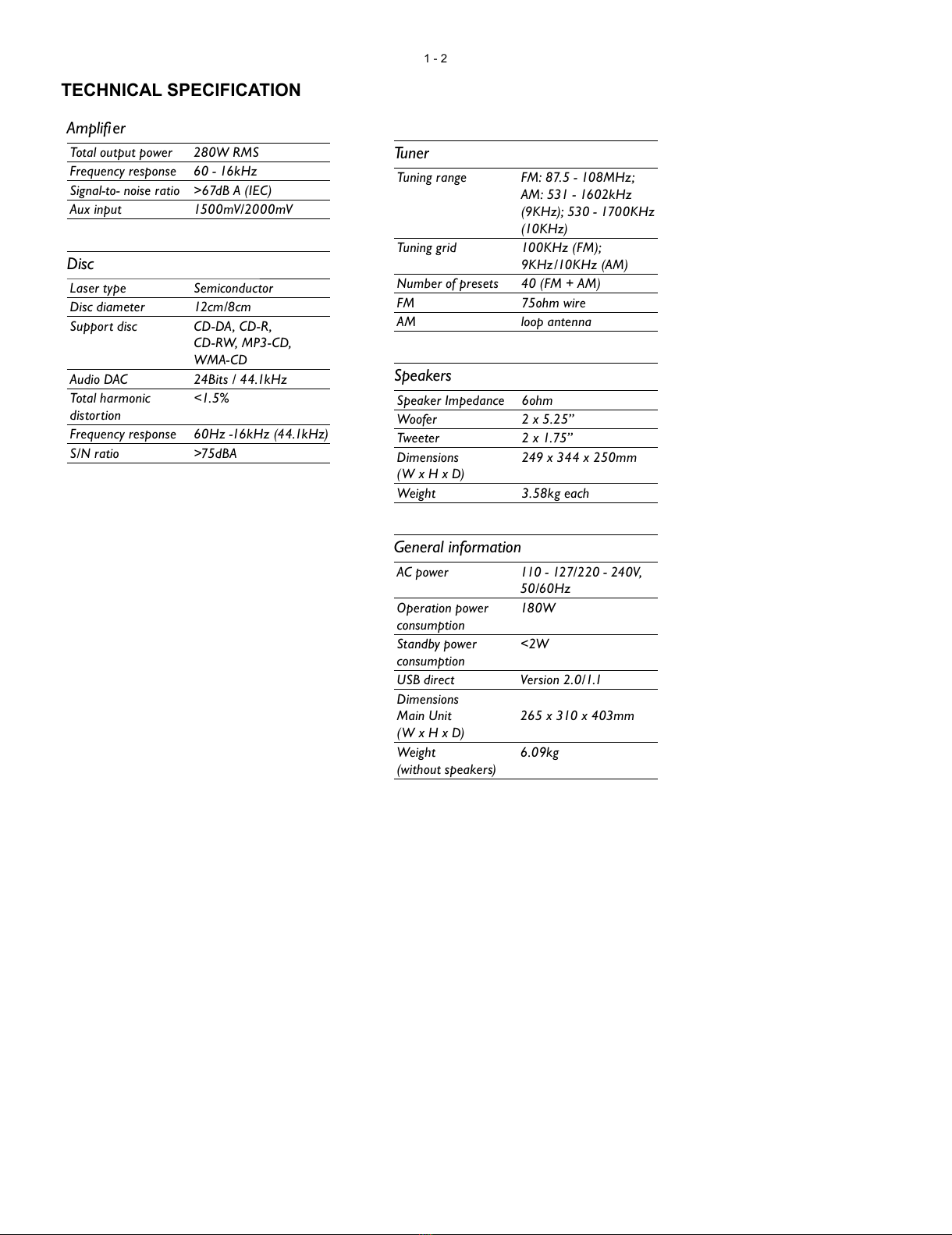

TECHNICAL SPECIFICATION

1 - 2

All manuals and user guides at all-guides.com

1-3

LF Generator

e.g. PM5110

Recorder

Use Universal Test Cassette CrO2 SBC419 4822 397 30069

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion met

e.g. Sound Technology ST170

DUT

or Universal Test Cassette Fe SBC420 4822 397 30071

LEVEL METER

e.g. Sennheiser UPM550

with FF

filter

S/N and distortion meter

e.g. Sound Technology ST1700B

DUT

Use Audio Signal Disc

(replaces test disc 3)

SBC429 4822 397 30184

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

S/N and distortion meter

e.g. Sound Technology ST1700B

Frame aerial

e.g. 7122 707 89001

Tuner AM (MW,LW)

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.

Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).

RF Generator

e.g. PM5326

Ri=50:

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

RF Generator

e.g. PM5326

S/N and distortion meter

e.g. Sound Technology ST1700B

Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).

Ri=50:

Tuner FM

MEASUREMENT SETUP

All manuals and user guides at all-guides.com

1-4

SERVICE AIDS

GB WARNING

All ICs and many other semi-conductors are

susceptible to electrostatic discharges (ESD).

Careless handling during repair can reduce life

drastically.

When repairing, make sure that you are

connected with the same potential as the mass

of the set via a wrist wrap with resistance.

Keep components and tools also at this

potential.

ESD

CLASS 1

LASER PRODUCT

Safety regulations require that the set be restored to its original

condition and that parts which are identical with those specified,

be used

Safety components are marked by the symbol !.

Lead free

All manuals and user guides at all-guides.com

Set remains closed!

Play a CD

for at least 10 minutes

playability

ok ?

playability

ok ?

add Info for customer

"SET OK"

check playability

playability

ok ?

check playability

return set

Customer complaint

"CD related problem"

"fast" lens cleaning

3For flap loaders (= access to CD drive possible)

cleaning method 4is recommended

INSTRUCTIONS ON CD PLAYABILITY

2 - 1

Exchange CDM

1-4For description - see following pages

All manuals and user guides at all-guides.com

PLAYABILITY CHECK

For sets which are compatible with CD-RW discs

use CD-RW Printed Audio Disc ....................7104 099 96611

TR 3 (Fingerprint)

TR 8 (600µ Black dot) maximum at 01:00

• playback of these two tracks without audible disturbance

playing time for: Fingerprint 10seconds

Black dot from 00:50 to 01:10

• jump forward/backward (search) within a reasonable time

For all other sets

use CD-DA SBC 444A..................................4822 397 30245

TR 14 (600µ Black dot) maximum at 01:15

TR 19 (Fingerprint)

TR 10 (1000µ wedge)

• playback of all these tracks without audible disturbance

playing time for: 1000µ wedge 10seconds

Fingerprint 10seconds

Black dot from 01:05 to 01:25

• jump forward/backward (search) within a reasonable time

CUSTOMER INFORMATION

It is proposed to add an addendum sheet to the set which

informs the customer that the set has been checked

carefully - but no fault was found.

The problem was obviously caused by a scratched, dirty or

copy-protected CD. In case problems remain, the customer

is requested to contact the workshop directly.

The lens cleaning (method 3) should be mentioned in the

addendum sheet.

The final wording in national language as well as the printing

is under responsibility of the Regional Service Organizations.

LIQUID LENS CLEANING

Because the material of the lens is synthetic and coated

with a special anti-reflectivity layer, cleaning must be done

with a non-aggressive cleaning fluid. It is advised to use

“Cleaning Solvent

The actuator is a very precise mechanical component and

may not be damaged in order to guarantee its full function.

Clean the lens gently (don’t press too hard) with a soft and

clean cotton bud moistened with the special lens cleaner.

The direction of cleaning must be in the way as indicated in

the picture below.

Before touching the lens it is advised to clean the

surface of the lens by blowing clean air over it.

This to avoid that little particles make scratches on

the lens.

INSTRUCTIONS ON CD PLAYABILITY

2 - 2

All manuals and user guides at all-guides.com

all-guides.com

3-1 3-1

SET BLOCK DIAGRAM

FUNCTION IC

TDA7468D

CD SERVO

BU9543

BX8800

CD L/R

RC5/RC6 CODE

KEY PART

AMPFILER

STK-433-

090E(SANYO)

MAIN L/R

SENSOR

16M

SDRAM

8M NOR

FALSH

PICK UP

DA11

PICK UP

DA11

MOTOR

ADC

WM8782

MUX

74LVC157

AUX

TUNER

SI4730/31

MICRO

PHONE

USB

RTC

HT1381

MOTOR DRIVER

BA5826

IIC

AUDIO L&R

IIC

PCM BCK ,LRCK ,DATE PCM

CD PCM

INPUT

TUNER L/R

IIC

CONTR OL DAT A

CD PCM BCK, LRCK,DATE

I/O

Expand IC

74HC4094

LCD

DRIVER

E T 8862

LCD

AMPFILER

STK-433-

090E(SANYO)

3CDC MOTOR

DRIVER

TDA7073A

All manuals and user guides at all-guides.com

4-14-1

SET WIRING DIAGRAM

All manuals and user guides at all-guides.com

DISMANTLING INSTRUCTIONS

1) Loosen 4 screws to remove the Cover Top of the set.

2) Loosen 2 screws to remove the Panel Left and 2 screws to

remove the Panel Right of the set.

3) Slide out the CDC Tray as shown in the diagram below with

the help of a flat head screw driver.

Dismantling of the CDC Module and Front Panel

Remove CDC Module

4) Remove the Cover Tray CDC as indicated.

Sliding Out The CDC Tray

Front View CDC

Remove Cover Tray CDC

5) Loosen 2 screws A and 2 screws B to remove the CDC

Module as indicated.

6) Remove 2 screws at the bottom to separate the

Front Panel Assembly from the Plate Bottom.

5-15-1

All manuals and user guides at all-guides.com

5-25-2

1)Remove 2 screws C as indicated to loosen the Front Cabinet.

2)Remove 2 screws D as indicated to loosen the Tuner Module.

3)Remove 9 screws E&I as indicated to loosen the Main Board.

4)Remove 8 screws G&H as indicated to loosen the POWER Board.

5)Remove 3 screws F as indicated to loosen the Bottom Cabinet.

1)Remove 14 screws J as indicated to loosen the DISPLAY1 Board.

2)Remove 11 screws K as indicated to loosen the KEY Board.

3)Remove 2 screws L as indicated to loosen the USB Jack Board.

Dismantling of Rear portion

Dismantling of the PCB Board

All manuals and user guides at all-guides.com

Autres manuels pour FWM417X/78

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Système stéréo

Philips

Philips MCD135/55 Manuel utilisateur

Philips

Philips BTM2180/85 Manuel utilisateur

Philips

Philips AZ1834 Manuel utilisateur

Philips

Philips MCI300/05 Manuel utilisateur

Philips

Philips MC235B/05 Manuel utilisateur

Philips

Philips Streamium WACS700 Manuel utilisateur

Philips

Philips MCM108 Manuel utilisateur

Philips

Philips FWM452X/78 Manuel utilisateur

Philips

Philips NTRX900SA/55 Manuel utilisateur

Philips

Philips FWD14/98 Manuel utilisateur

Philips

Philips FWM576/BK Manuel utilisateur

Philips

Philips MC165C/37 Manuel utilisateur

Philips

Philips FW-C30 Manuel utilisateur

Philips

Philips Streamium 544-9056 Manuel utilisateur

Philips

Philips MCM196D Manuel utilisateur

Philips

Philips FWM210X/77 Manuel utilisateur

Philips

Philips Streamium WAS700 Guide de configuration

Philips

Philips FW-M355 Manuel utilisateur

Philips

Philips MCW770 Instructions d'utilisation d'origine

Philips

Philips AZ 2700 Manuel utilisateur

Philips

Philips FWM143/79 Manuel utilisateur

Philips

Philips FW-C50 Manuel utilisateur

Philips

Philips AS 665C Manuel utilisateur

Philips

Philips MC-222/22 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Sony

Sony SS-CEP50 Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

LG FB165DAB Manuel utilisateur

Sanyo

Sanyo DC-UB1475M/XE/UK Manuel utilisateur
