FWM208

Mini Hi-Fi System

EN User manual

EN 1

English

Contents

1 Important 2

Safety 2

Notice 2

2 Your Mini Hi-Fi System 3

Introduction 3

What’s in the box 3

Overview of the main unit 4

Overview of the remote control 5

3 Get started 7

Install remote control batteries 7

Connect speakers 7

Connect power 7

Set the clock 8

Turn on 8

Switch to standby 8

4 Play 9

Play disc 9

Play from USB 9

5 Play options 10

Repeat play 10

Play a track repeatedly 10

Play all tracks or an album repeatedly 10

Random play 10

Program tracks 10

6 Listen to the radio 11

Tune to a radio station 11

Program radio stations automatically 11

Program radio stations manually 11

Select a preset radio station 11

7 Adjust sound 12

Adjust volume 12

Select a preset sound effect 12

Enhance bass 12

Mute sound 12

8 Other features 13

Listen to an external device 13

Set the sleep timer 13

Set the alarm timer 13

Activate and deactivate alarm timer 13

Listen through headphone 13

9 Product information 14

Speciﬁcations 14

Ampliﬁer 14

Disc 14

Tuner 14

FM 14

MW 14

Speakers 14

General information 14

USB playability information 15

Supported MP3 disc formats 15

10 Troubleshooting 16

2EN

1 Important

Safety

Where the MAINS plug or an appliance•

coupler is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

Never remove the casing of this apparatus.•

Never lubricate any part of this apparatus.•

Never place this apparatus on other electrical•

equipment.

Keep this apparatus away from direct sunlight, naked•

ﬂames or heat.

Never look into the laser beam inside this apparatus.•

Ensure that you always have easy access to the power•

cord, plug or adaptor to disconnect this apparatus

from the power.

Notice

Any changes or modiﬁcations made to this

device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and

old equipment.

Windows Media and the Windows logo are

trademarks, or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

This apparatus includes this label:

Class I equipment symbol

This symbol indicates that the apparatus has a

double insulation system.

EN 3

English

2 Your Mini Hi-Fi

System

Congratulations on your purchase, and

welcome to Philips! To fully beneﬁt from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With this unit, you can enjoy audio from discs,

USB devices and other external devices, or

radio stations.

The unit offers you multiple sound effect

settings that enrich sound with Digital Sound

Control (DSC) and Dynamic Bass Boost (DBB).

The unit supports the following media formats:

What’s in the box

Check and identify the contents of your

package:

Main unit•

Speaker box x 2•

Remote control•

Power cable•

MP3 link cable•

User manual•

Quick start guide•

4EN

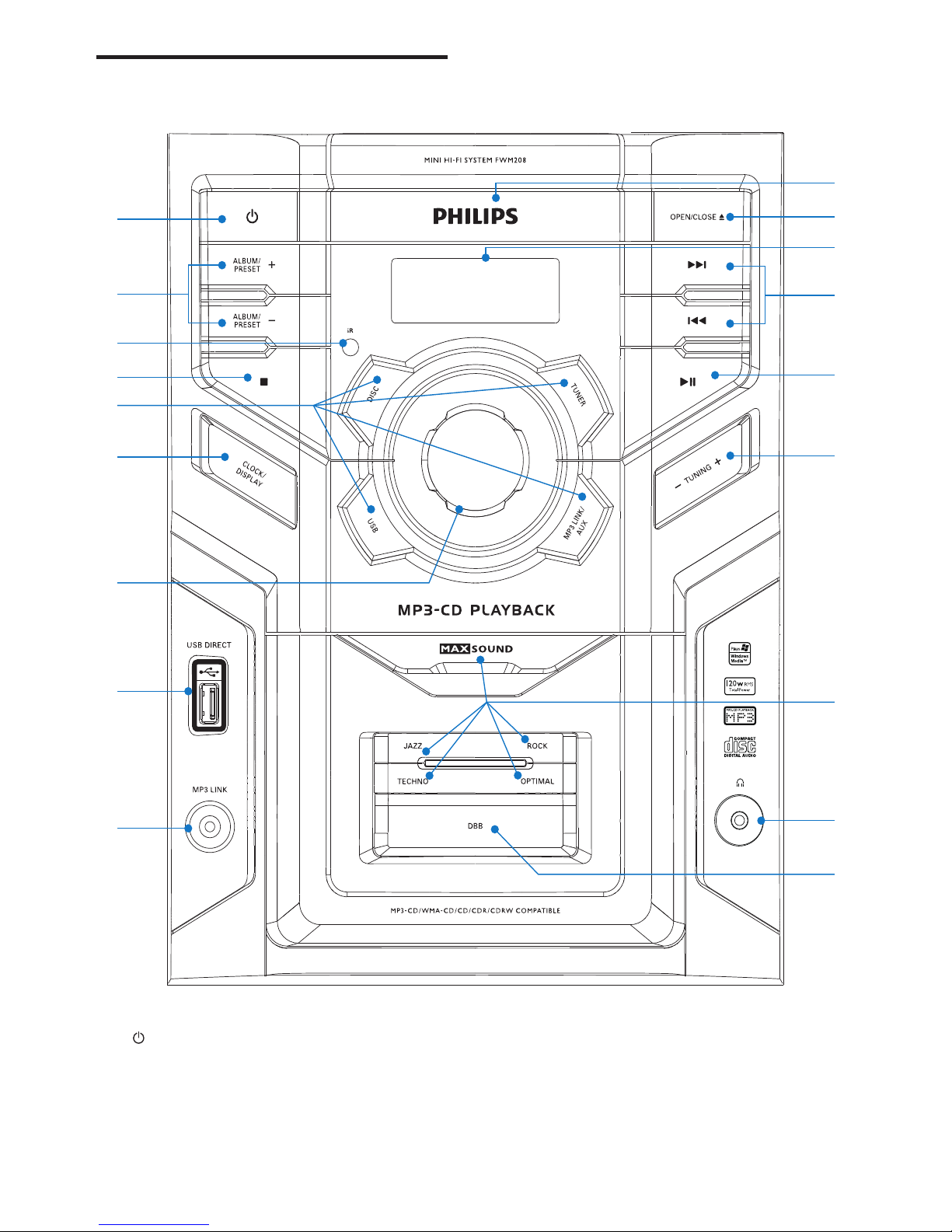

Overview of the main unit

Turn on the unit.•

Switch to standby mode.•

b ALBUM/PRESET +/-

Select a preset radio station.•

Skip to the previous/next album.•

c IR sensor

EN 5

English

Stop play or erase a program.•

e Source buttons (DISC, TUNER, USB,

MP3 LINK/AUX)

Select a source: DISC, TUNER, USB,•

MP3 LINK, or AUX.

f CLOCK/DISPLAY

Set the clock.•

During play, display the clock.•

g Volume control

Adjust volume.•

Jack for a USB mass storage device.•

i MP3 LINK

Audio input jack (3.5mm ) for an•

external audio device.

j DBB

Turns on or off dynamic bass•

enhancement.

Jack for headphones.•

lMAX SOUND/JAZZ/ROCK/TECHNO/

OPTIMAL

Select a preset sound setting.•

m TUNING+/-

Tune to a radio station.•

Start or pause play.•

o /

Skip to the previous/next track.•

Search within a track/disc.•

Adjust time.•

p Display panel

Show current status.•

q OPEN/CLOSE

Open or close the disc•

compartment.

r Disc compartment

Overview of the remote

control

Turn on the unit, switch to standby•

mode, or switch to Eco power

standby.

b Source buttons (DISC, TUN, USB,

AUX/MP3 LINK)

Select a source: DISC, TUNER, USB,•

or AUX/MP3 LINK.

c REPEAT

Play a track repeatedly.•

d REPEAT ALL

Play all tracks repeatedly.•

e SLEEP

Set the sleep timer.•

f /

Search within a track/disc.•

Tune to a radio station.•

6EN

g /

Skip to the previous/next track.•

Adjust time.•

h DSC

Select a preset sound setting.•

i ALBUM/PRESET +/-

Select a preset radio station.•

Skip to the previous/next album.•

j Numeric keypad

Select a track from a disc directly.•

Select a preset radio station directly.•

k PROGRAM

Program tracks.•

Program radio stations.•

Review the program.•

l SHUFFLE

Play tracks randomly.•

m DISPLAY

During play, display the clock.•

n TIMER

Set the alarm timer.•

Review the alarm timer.•

Start or pause play.•

p DBB

Turns on or off dynamic bass•

enhancement.

Stop play or erase a program.•

r VOL +/-

Adjust volume.•

s MUTE

Mute volume.•

t CLOCK

Set the clock.•

EN 7

English

3 Get started

Caution

Use of controls or adjustments or performance of•

procedures other than herein may result in hazardous

radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in

sequence.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

back of the apparatus.Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Install remote control

batteries

Caution

Risk of explosion! Keep batteries away from heat,•

sunshine or ﬁre. Never discard batteries in ﬁre.

Risk of decreased battery life! Never mix different•

brands or types of batteries.

Risk of product damage! When the remote control is•

not used for long periods, remove the batteries.

1 Open the battery compartment.

2 Insert 2 AAA batteries with correct

polarity (+/-) as indicated.

3 Close the battery compartment.

Connect speakers

1 Plug the two gray-blue cables into the

“HIGH CH” sockets as indicated by the

“+/-” symbols, right speaker to “R” and

left speaker to “L”.

2 Plug the two red-black cables into the

“LOW CH” sockets as indicated by the

“+/-” symbols, right speaker to “R” and

left speaker to “L”.

Connect power

Caution

Risk of product damage! Ensure that the power supply•

voltage corresponds to the voltage set on the voltage

selector on the back of the unit.

Before connecting the AC power cord, ensure you•

have completed all other connections.

Note

The type plate is located on the back of the main unit.•

HIGH

R+

LOW

8EN

1If your power supply voltage is 110V-127V,

adjust the voltage selector to 110V-127V.

2Connect the AC power cable to:

.tinuniameht•

.tekcosllaweht•

kcolcehtteS

1dlohdnasserp,edomybdnatsnI CLOCK.

nigebdnadeyalpsiderastigidruohehT»

to blink.

2 Press / ro( / )tinuniamehtno

to set the hours.

3Press CLOCK .

dnadeyalpsiderastigidetunimehT»

begin to blink.

4 Press / ro( / )tinuniamehtno

to set the minutes.

5Press CLOCKto con�rm the time.

piT

sserpnacuoy,yalpgniruD•DISPLAY .kcolcehtweivot

nonruT

1 Press .

detcelestsalehtotsehctiwstinuehT»

source.

ybdnatsothctiwS

1 Press ybdnatsottinuehthctiwsot

mode.

ehtnosraeppa)tesfi(kcolcehT»

display panel.

EN 9

English

4 Play

Play disc

1 Press DISC to select the disc source.

2 Press OPEN/CLOSE on the front panel

to open the disc tray.

3 Insert a disc with the printed side facing

up, then close the disc tray.

Play starts automatically.»

To pause/resume play, press• .

To stop play, press• .

For MP3/WMA disc: to select an•

album, press ALBUM/PRESET +/-.

To skip to a track, press• / .

To search within a track, press and•

hold / . Release to resume

normal play.

Play from USB

Note

Ensure that the USB device contains playable audio•

content.

1 Connect the USB device into the

socket.

2 Press USB to select the USB source.

Play starts automatically.»

To pause/resume play, press• .

To stop play, press• .

To select an album, press• ALBUM/

PRESET +/-.

To skip to a track, press• / .

To search within a track, press and•

hold / . Release to resume

normal play.
