SET-UP AND QUICK USE GUIDE

TABLE OF CONTENTS

Getting Started

Warning/Precautions..................................1

Hooking Up Your TV ................................1

How to Use the First Time Set-Up Control ..............2

Basic TV and Remote Control Operation .................3

How to Use the On-Screen Menu Controls...............4

12 1

• For details on product registration, warranty,

and service refer to the other literature included

with your TV information packet.

Please retain all these materials and keep them

handy for future reference.

For homes with Cable

TV Converter

Descrambler Boxes (with

Premium/Movie Channels

scrambled), follow the

steps to the right for an

alternative ANT A and

ANT B PIP feature

hookup. Note the Cable TV

signal will be split before

connection to the

Converter box (an option-

al two-way 75 ohm Signal

Splitter will be required).

CABLE BOX

CABLE CONVERTER BOXES

Connect your Cable

TV signal to the single 75 ohm

INPUT plug on a two-way

Signal Splitter (optional).

Connect one end of RF

Coaxial Cable to each of the

OUTPUT plugs on the 75 ohm

Signal Splitter. The two lengths

of RF Coaxial Cable need F-

type connectors (screw-on or

push type) for both ends.

BEGIN

Round Cable

75ΩOhm Cable TV Company

Cable TV Signal

Connect one of the Signal

Splitter OUTPUTs to the

INput terminal on the Cable

TV Converter Box. Then route

another connection from the

Cable Converter OUTput ter-

minal to the ANT A Input on

the rear of the TV.

STOP

Your TV has two sepa-

rate ANT(enna)/Cable

inputs on the rear of the

set. These two signal

inputs offer convenient

hook-up options for both

normal TV program view-

ing and Picture-In-Picture

(PIP) features.

The ANT(enna) A input is

intended for use and view-

ing on the TV’s main

screen. Your home’s pri-

mary Antenna, or Cable

TV signal, should be con-

nected to this input for

normal TV setup, use and

feature operation.

The ANT(enna) B input is

a second, or auxiliary sig-

nal source, designed to

supply your TV’s Picture-

In-Picture (PIP) feature.

For many homes the use of

a single existing Antenna

(or Cable TV) source, for

both ANT A and B, will be

the preferred method of

connection. This type of

connection (optional

Signal Splitter required)

will work properly for the

TV’s Main on-screen fea-

tures, as well as retain all

the features designed for

PIP. For more details refer

to the Picture-In-Picture

section in your other

owner’s manual.

ANTENNA OR

CABLE TV

ANT(ENNA) A & B INPUTS Remember,

be sure to set the

TV for the type sig-

nal you've connect-

ed (see "SETUP"

on page 2 of this

Guide.)

Your TV can set

itself to select only

the channel numbers

on your Cable sys-

tem (see “Setup"

page 2). If you use a

Cable Converter box,

set the TV to the

same channel as the

converter's CH 3/4

switch (on the rear of

the converter.)

To order any

optional accessory

contact your dealer

or call the toll-free

accessory ordering

number (1-800-851-

8885):

• Two Way Splitter

(M61000)

• 300-75 ohm

Adapter

(M61020)

• UHF/VHF

Antenna

Combiner

(SBV111133A01)

SMART

HELP

A typical ANT(enna)

A and B connection (using a

common signal source and an

optional Signal Splitter):

If your Antenna or Cable TV

signal has a round cable con-

nector (75 ohm) on the end,

then you're ready to connect it

to the 75ohm Signal Splitter.

If your antenna has flat twin-

lead wire (300 ohm), you first

need to attach the antenna wires

to the screws on a 300 to 75

ohm adapter before connecting

to the 75ohm Signal Splitter.

Connect your Antenna or

Cable TV signal to the single

75 ohm input plug on the two-

way Signal Splitter (optional).

Then connect two lengths of RF

Coaxial Cable to the two Output

plugs on the two-way Signal

Splitter (F-type connector on

both ends).

300 to 75ΩAdapter

(483521827003)

Twin Lead

Wire

Back of TV

BEGIN

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD DO NOT EXPOSE THIS UNIT TO

RAIN OR EXCESSIVE MOISTURE.

Round Cable

75ΩOhm

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

Note: Proper operation of your TV is not dependent upon

connection of the ANT B input. Its main purpose is to provide

an easily connected, dedicated picture source for PIP feature

use. Other signal source options (such as a satellite dish sys-

tem, additional external antenna, VCR, or Video Game) could

also be connected and displayed on the TV screen through the

use of the ANT B input.

Note: Although theANT B input can be used and swapped

as the source for the TV’s Main picture, certain setup fea-

tures (such as Smart Clock) are only based on a signal being

detected at the ANTA input. To ensure that all features are

operating properly, you may not want to rely solely on the ANT

B input as your TV’s Main screen signal source.

Connect the twin Output

plugs on the Signal Splitter to

the ANT A and ANT B inputs

on the rear of the TV. Push the

round connector end of the RF

Coaxial Cable onto the

ANT(enna) plug and screw it

down tight (if using threaded

cables).

OPTIONAL TWO-WAY

SIGNAL SPLITTER

STOP

Combination VHF/UHFAntenna

(single 75ohm Input to twin

75 ohm Outputs - optional

RF Coaxial connecting

cables also required)

ANT(enna) A

Input ANT(enna) B

Input

• The signal routed to the TV’s ANT B input will allow for

the selection and viewing of Cable channels at the TV

(except for the scrambled Premium/Movie channels).

OPTIONAL TWO-WAY

SIGNAL SPLITTER

Cable TV Converter

Box Connection

Cable TV Company

Connect the remaining

Signal Splitter OUTPUT

from the Splitter to the ANT

B Input on the rear of the TV.

• The signal routed to the TV’s ANT A input will allow for

Premium/Movie channels to be viewable on the TV.

• Channel selection will be at the Converter.

• The ANT Ainput channel on the TV should be set to the same

output channel as the Converter box (usually CH3 or 4).

Connect to ANT A Input Connect to ANT B Input

1 - 3135 015 15511

NOTE: This owner's manual is used with several different

television models. Not all features (and drawings) dis-

cussed in this manual will necessarily match those found

with your television set. This is normal and does not

require you contacting your dealer or requesting service.

Projection Television and Remote Control

HELP

FEATURES

EXIT

MAIN MENU

SOUNDPICTURE

1ST TIME SETUP

POSITION

213

546

879

TV VCR ACC

GUIDE

INFO

SWAP PIP CH

ON UP

SOURCE FREEZE

SLEEP AUTO

STATUS/

EXIT

VOL CH

MUTE

SURF

100+

POWER

This completes the

First-Time Setup.

Press "M" to Exit Setup

Press "M" to Continue

- or -

Press " " to Return

If there is RED or BLUE

fringe on the WHITE cross,

use this adjustment to

improve the picture.

TV GUIDE PLUS +

Setup

10:17a

Where do you live?

B USA

Y CANADA

Press color key to select

STOP

After ALL connections

and First-Time Setup for

the GUIDE PLUS+ system

are completed, the TV

will have to be turned

OFF overnight to receive

program information.

Many of the current TV

control settings will be

modified by continuing

with First-Time Setup.

Press STATUS to Quit

Press "M" to Continue

System is testing for

correct tuning mode

for ANT A.

* Please Wait *

The search for active

channels is complete

for ANT A.

17 channels were found

and saved in memory

Press "M" to Continue

System is searching for

all active channels

on ANT A.

* Please Wait *

Testing channel 2

in cable mode.

The First-Time Setup

provides a simple method

of adjusting the most

important controls for

this television receiver.

Press "M" To Continue

Press "▲▼" to select the

language you would like

the TV displays to use.

ENGLISH

ESPANOL

FRANCAIS

Press "M" to Continue

Please check that your

other antenna or cable is

connected to the plug

marked ANT B on

the TV rear input panel.

This TV is equipped with

the TV Guide Plus+ feature.

This feature is designed

to operate only on the

main antenna, ANT A.

Press "M" to Continue

Please check that your

main antenna or cable is

connected to the plug

marked ANT A on

the TV rear input panel.

Press STATUS to Quit

Press "M" to Continue

System is testing for

correct tuning mode

for ANT B.

* Please Wait *

The search for active

channels is complete

for ANT B.

17 channels were found

and saved in memory

Press "M" to Continue

System is searching for

all active channels

on ANT B.

* Please Wait *

Testing channel 2

in cable mode.

Press STATUS to Quit

Press "M" to Continue

This TV is equipped with

a Surround-Sound system.

Surround Sound requires

the use of additional

speakers being placed

around your room.

Press "M" to Continue

Please thoroughly read

the section in your

owners manual which

details the proper setup

and operation of the

Surround-Sound System.

Press "M" to Continue

MENU/

SELECT

PLEASE REFER

TO YOUR

GUIDE PLUS+™

INSTRUCTION MANUAL

FOR DETAILS ON

1st TIME SETUP.

HOW TO USE FIRST TIME SETUP

First Time Setup automati-

cally takes care of some

basic TV control settings for

you. Follow the steps in this

section to quickly add area

channel numbers into the

TV's memory, and set the TV

for your connected signal

(Antenna or Cable.) You can

also set the TV's Guide Plus+

system feature (if desired).

AUTOMATIC SETTINGS

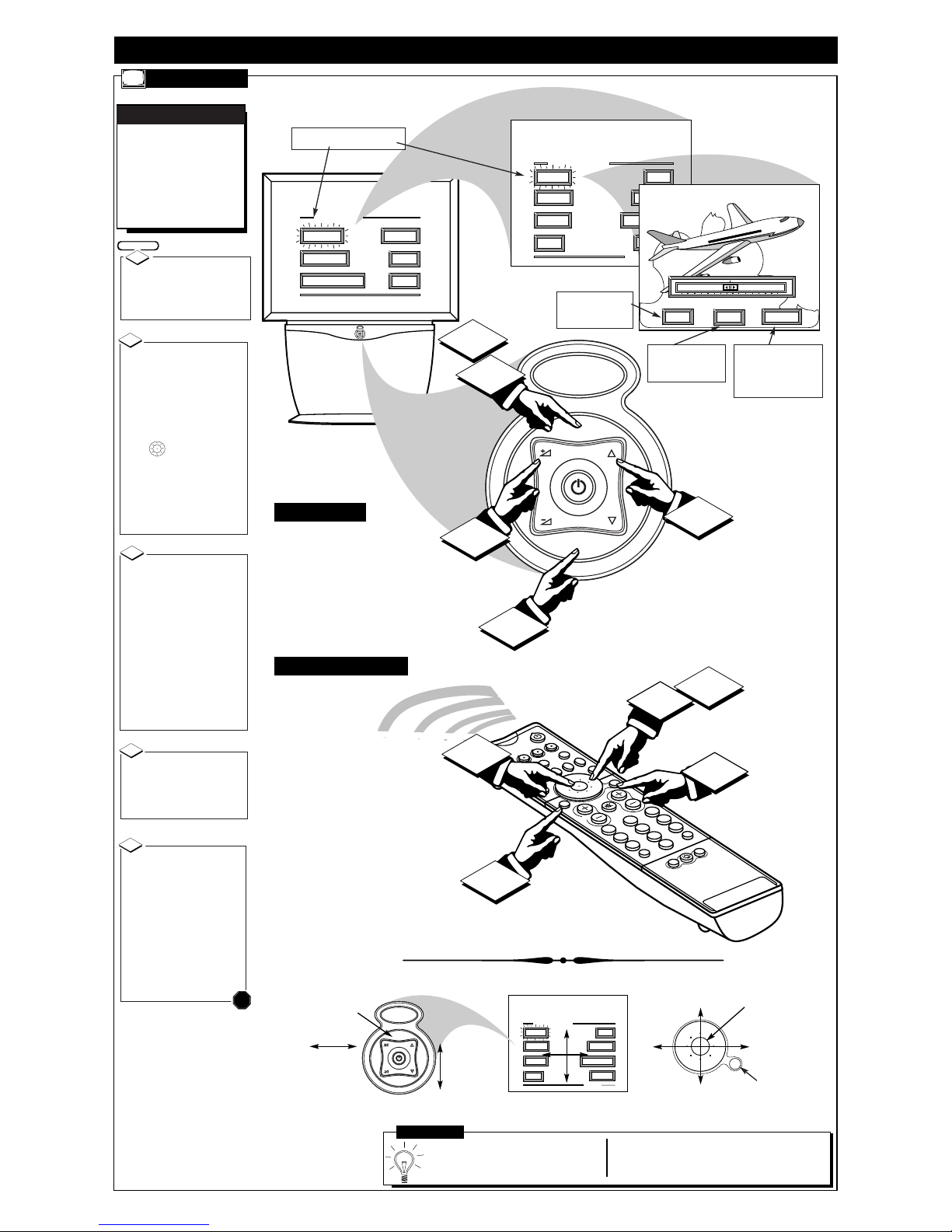

SETUP Press the MENU

SELECT button on the

remote or TV.

An on-screen list of TV fea-

tures shows on the "MAIN

MENU".

Note: You may also press the

center Menu ring button area

on the remote to select the

TV’s Main Menu.

BEGIN

Select "1ST TIME

SETUP" on the TV's Main

Menu. (Selected MENU item

is highlighted in RED.)

Press the remote's outer

Menu ring buttons to

move UP/DOWN and from

SIDE-TO-SIDE within the

list of on-screen features.

Press CH(annel) ▲▼and

VOL(ume) (+) (-) on the TV

keyboard to also move

UP/DOWN and from SIDE-

TO-SIDE within the list of

on-screen features.

Press the center Menu

ring button on the remote

(or the Menu button on the

TV) to begin SETUP.

Follow the instructions

shown on the TV screen to

guide you through the First

Time Setup and use of your

new TV.

STOP

• Press the STATUS button on

the remote or TV to stop the

SETUP at any time.

• Remember, SETUP is a first -use, one-

time operation and will not have to be

repeated (only the clock settings can be

lost).

• Even if there is no Antenna or Cable

signal connected to the ANT(enna) B

input (located on the rear of the TV), 1st

Time Setup will still attempt to add

channels into memory for that source.

In such cases, a channel search in the

Antenna Mode will be completed, and

“0 channels saved in memory” will be

displayed on-screen.

SMART HELP

Note: The Guide Plus+™ system is

an electronic program service avail-

able with your set to show you cur-

rent and future TV listings; program

content descriptions, and other pro-

gramming information. Your TV may display a Guide Plus+ sys-

tem demonstration mode when first turned on for normal opera-

tion and use. Pressing the TV’s control panel or remote control

buttons will enable you to bypass the demonstration and continue

with normal TV program viewing.

Remove the Guide Plus+ Demo Mode Pin (tag label attached to

the “IR BLASTER” connection plug at the rear of TV) when set-

ting up the Guide Plus+ system for use (and to completely disable

the automatic demo). Follow the instructions contained in your

separate Guide Plus+ information manual for feature installation

and other operation details.

POSITION

213

546

879

GUIDE

INFO

SWAP PIP CH SOURCE FREEZE

SLEEP AUTO

STATUS/

EXIT

VOL CH

MUTE

SURF

POWER

TV VCR ACC

123

100+ SURF

ON UP

MENU/

SELECT

PIP

VOL

STATUS/EXIT

2:30

WABC

VOL

STATUS/EXIT

TV AND REMOTE CONTROL OPERATION

TELEVISION

To load the supplied bat-

teries into the remote:

1. Remove the battery

compartment lid on the

back of the remote.

2. Place the batteries (2-

AA) in the remote. Be

sure the (+) and (-) ends

of the batteries line up

correctly (inside of case is

marked.)

3. Reattach the battery lid.

BATTERY INSTALLATION

Press the TV

"System" button on the

remote to be sure the remote

sends its commands to the TV.

Point the remote control

toward the remote sensor win-

dow on the TV when operating

the TV with the remote.

BEGIN

STOP

Press the POWER

button to turn the TV ON. Press the VOLUME UP

(+) or DOWN (-) buttons to

adjust the TV sound level.

Press the CHANNEL UP

(▲) or DOWN (▼)button to

select TV channels.

Note: Always press two number

buttons on the remote when

selecting channels.

For example: press "0" then "6"

for channel 6.

REMOTE

BEGIN

STOP

The remote's TV-ACC-VCR

System buttons control how

buttons on the remote are

used.

For example:

With the "TV" system but-

ton pressed:

the Menu ring buttons

and (+,-) buttons are used

to select and adjust on-

screen TV features.

With the "VCR" system

button pressed:

the Power, Channel, and

other dedicated VCR

buttons (see remote’s flip

down door) are used to

select and adjust VCR

model features.

With the "ACC" system

button pressed:

the Power, Channel

Number, and Channel

Up▲/Down▼buttons on

the remote can work with

Cable TV Converters,

Laser Disc players, and

Home Satellite Dish

systems.

Note: For more details on

how the TV remote works

with VCRs, Cable Converters,

and other accessory equip-

ment see the other owner's

manual supplied with your

TV.

TV-VCR-ACC "SYSTEM"

BUTTONS

213

546

879

TV VCR ACC

GUIDE

INFO

SWAP PIP CH

DN UP

SOURCE FREEZE

SLEEP AUTO

STATUS/

EXIT

VOL CH

MUTE

SURF

100+

RESET

POWER

VCR

PLUS+

REC

MENU/

SELECT

CLEAR

Power Button

Press to turn the TV (or select VCR,

Cable Converters, etc.) ON and OFF.

PIP Buttons

Press to operate Picture-In-Picture fea-

tures. See “PIP” section in your other

owner’s manual for details.

Auto Button

Press to select from a list of Auto con-

trols. Auto Picture for factory preset

picture control levels (set for different

types of viewing sources and pro-

grams.) Auto Sound to select various

audio mode settings matched to differ-

ent types of TV programming. Auto

Surf to quickly select up to 10 chan-

nels (separate from the TV’s normal

channel scan memory). See the "Auto

Features" section in your other owner's

manual for details.

Channel Scan Button

Press to scan up (+) or down (-)

through programmed channel num-

bers.

Number Buttons

Press the number buttons to select TV

channels. Press two number buttons to

select single digit channels. For exam-

ple: press "0" then "6" for channel 6.

Surf Button

Press to select previously viewed

channels. With the TV’s “Auto Surf”

control ON you can place up to 10

channels in memory. Then by pressing

the SURF button you can quickly view

the select channels.

See the "Auto Surf" section (in your

other owner's manual) to see how to

select a series of channels using the

Surf button.

A/V Button

Press to quickly select Auxiliary source

inputs on the TV (AUX1 VIDEO; AUX2

VIDEO; etc.), as well as Antenna A/B inputs,

and the last viewed channel on the TV.

Guide Plus+ Buttons

Press to use the Guide Plus+ electronic guide

for TV program listings and information.

Refer to your separate Guide Plus+ informa-

tion manual for setup and use details.

TV-ACC-VCR System Buttons

Press to send remote signals to either the TV or

accessory VCRs, Cable TV Converters, Laser

Disc players, etc.

Sleep Button

Press to set the TV to automatically turn itself

Off. Press the Sleep button repeatedly to

select the amount of time (15 minutes to 2

hours) before the TV shuts Off.

Menu Select Buttons

Press the Menu Select button to show on-

screen controls. Press the outer Menu ring

button to move up and down (or left and

right) through the list of on-screen controls.

Press the center Menu ring button to select

and access highlighted controls.

Status/Exit Button

Press to see the current channel number on

the TV screen. Also press to clear the TV

screen after control adjustments.

Volume Buttons

Press to adjust the TV sound level up (+) or

down (-).

Mute Button

Press to turn the sound OFF on the TV. Press

again to return the sound to its previous level.

100+ Button

Press to select channel numbers greater than

99 (by direct button entry). Press the 100 but-

ton then the remaining two digits to select the

desired channel.

VCR Buttons

For use of VCR buttons see the "Using the

Remote With a VCR" in your other owner's

manual.

Remember, You

can press any button on

the front of the TV to

turn the TV ON.

SMART HELP You can also press the STATUS

button (on the remote) to see

what channel the TV is ON.

The tuned channel number will

always briefly appear when the

TV is first turned ON (and with

channel changes.)

Note: You

can press any of the

TV’s front keyboard

buttons to turn the

TV ON, but the

Power button must

be used to turn the

set OFF (from the

TV’s local key-

board).

SMART

HELP

Remote Sensor

Window

Open the remote control VCR button

area with the pull tabs located on both

sides of the hinged door.

Press the Backlight button to illuminate or

light the remote’s buttons to make them easier to

read and use in dark room conditions.

POSITION

213

546

879

GUIDE

INFO

SWAP PIP CH SOURCE FREEZE

SLEEP AUTO

STATUS/

EXIT

VOL CH

MUTE

SURF

POWER

TV VCR ACC

123

100+ SURF

ON UP

MENU/

SELECT

VOL

STATUS/EXIT

VOL

STATUS/EXIT

MAIN MENU


FEATURES

SOUND

HELP

EXIT

COLOR

PICTURE MENU

SHARP


CLEARVIEW

EXIT

1 OF 2

TINT

MORE...

BRIGHT

HELP

EXIT NEXT...

MIN MAX

COLOR

1ST TIME SETUP

PIP

ON-SCREEN MENU CONTROLS

Features for your TV can

be adjusted from a

MENU screen shown on the

TV. A MENU is nothing more

than an on-screen list of fea-

tures. Each MENU item can

be adjusted by viewing the

screen and pressing a button.

FEATURE CONTROLS

MENUS

If the on-screen Menu disappears

and you are not finished working with it,

press the MENU button and the "Main

Menu" will return to the screen. Continue to

press the MENU button and the on-screen Menu

will advance until you are returned to the last fea-

ture control screen you had selected.

Press MENU on the

TV (or Menu Select button

on the remote). An on-screen

list of TV features shows on

the screen - "MAIN MENU".

BEGIN

Press CH(annel) ▲▼

and VOL(ume) (+) (-) on the

TV to move UP/DOWN and

from SIDE-TO-SIDE within

the list of on-screen features.

The selected MENU item will

be highlighted in RED.

Press the remote's outer

Menu ring buttons to

move UP/DOWN and from

SIDE-TO-SIDE within the

list of on-screen features.

See the "How to Select

Features" drawing on this

page.

Press (+) or (-) button

on the TV (or the outer

Menu ring buttons on the

remote) to adjust a selected

on-screen feature.

Press STATUS/EXIT

button on the remote or TV

to clear the screen after an

adjustment.

The screen can also be

cleared by selecting the Main

Menu's "EXIT" item and

pressing the MENU (M) but-

ton. Waiting about a minute,

without a button press, will

also remove the MENU from

the screen.

Press MENU on the

TV (or the center Menu ring

button on the remote) to

select the RED highlighted

feature control.

NOTE: Many Main Menu

features have 2 or 3 screens

of controls listed under its

heading. Select the "MORE"

on-screen item and press the

MENU (M) button to view all

of the individual controls list-

ed under a Main Menu fea-

ture heading.

STOP

ON THE TV

ON THE REMOTE

SELECTED FEATURE CONTROL

HIGHLIGHTED IN RED

Select and then press

MENU (M) button to

return to previous Menu

screens.

Select and then press

MENU (M) button to

view an explanation of

the selected feature.

Select and then press MENU

(M) button to view addition-

al controls grouped under

same feature heading. For

Example: Tint, Brightness,

Picture, etc.

PICTURE MENU

SHARP


CLEARVIEW

EXIT

1 OF 2

COLOR TINT

MORE...

BRIGHT

VOL

STATUS/EXIT

MENU/

SELECT

Press VOL(ume)

(+) and (-) to

move from Side-

to-Side within

the Menu.

Press CH(annel)

▲ ▼ to move Up

and Down within

the Menu.

Press MENU to

select RED high-

lighted feature.

Press outer MENU ring

button to move from

Side-to-Side within the

Menu.

HOW TO SELECT FEATURES

(WITH BUTTONS ON THE TV) HOW TO SELECT FEATURES

(WITH BUTTONS ON THE REMOTE)

Press outer MENU

ring button to move

Up and Down with-

in the Menu.

Press MENU SELECT button

to display on-screen Menu.

Can also be used to back up

through multi-level Menus

(one control screen at a time).

TV ON-SCREEN FEATURE MENU

Press MENU (M) to select RED highlighted item.

SMART HELP

Press center MENU

button to select RED

highlighted feature.

Ce manuel convient aux modèles suivants

Autres manuels Philips Téléviseur à projection

Philips

Philips Magnavox 7P5451C Manuel utilisateur

Philips

Philips Magnavox 7P5441C Manuel utilisateur

Philips

Philips 60PP9200D/37B Manuel utilisateur

Philips

Philips 55P916 Manuel utilisateur

Philips

Philips Magnavox 7P5451C Manuel utilisateur

Philips

Philips MATCHLINE 55PP9545/69 Manuel

Philips

Philips 55PP8620 Matchline Manuel utilisateur

Philips

Philips 51 IN DIGITAL WIDESCREEN HDTV MONITOR... Manuel

Philips

Philips 50PP8541Y Manuel

Philips

Philips Magnavox 9P5531C Manuel utilisateur

Philips

Philips 43PP9202 Manuel

Philips

Philips MAGNAVOX MX6472C101 Manuel utilisateur

Philips

Philips 43PP8545 Manuel utilisateur

Philips

Philips 60PP9910 Manuel utilisateur

Philips

Philips 64P9161099 Manuel utilisateur

Philips

Philips 7P4841C Manuel utilisateur

Philips

Philips 52PFL7432/98 Manuel utilisateur

Philips

Philips 60PL9200D Manuel utilisateur

Philips

Philips Magnavox 9P5031C Manuel utilisateur

Philips

Philips MatchLine 46PP9527 Manuel

Philips

Philips Magnavox 8P6051C Manuel utilisateur

Philips

Philips 51PP9910 Manuel utilisateur

Philips

Philips 64P 9161 Manuel utilisateur

Philips

Philips 9P5040C1 Manuel utilisateur

Manuels Téléviseur à projection populaires d'autres marques

Samsung

Samsung ST-43T6P Manuel utilisateur

Toshiba

Toshiba ColorStream TP50G60 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric WD-65734 Manuel utilisateur

Optoma

Optoma EP652A Manuel utilisateur

Samsung

Samsung SP43T8HPX/XEC Manuel utilisateur

Sony

Sony KP-57WS500 - 57" Hi-scan 1080i™ 16:9 Projection... Guide de l'utilisateur

Hitachi

Hitachi 51F510 Manuel utilisateur

RCA

RCA P52950 Manuel utilisateur

Sony

Sony KP-51DS1U Manuel utilisateur

Magnavox

Magnavox 51MP392H - 51" Widescreen Hd Ready Tv Manuel utilisateur

Hitachi

Hitachi 46F510 Manuel utilisateur

Pioneer

Pioneer Elite PRO 510HD Manuel utilisateur

JVC

JVC I'Art Pro AV-48P776 Manuel utilisateur

Sony

Sony GRAND WEGA KDF-55XS955 Manuel utilisateur

Sony

Sony KP-46WT520 - Wide Screen Projection Tv Manuel utilisateur

Toshiba

Toshiba 42HM66 - 42" Rear Projection TV Manuel utilisateur

Hitachi

Hitachi 51S715 Manuel utilisateur

Samsung

Samsung HC-P5256W Manuel utilisateur
