Setup and Installation

Product Highlights ..................................................................................................... 3

Installing the TV .......................................................................................................... 4

Using the TV Keys .................................................................................................... 5

Using the Remote Control Keys ..................................................................6-7

Operation

Using the Menus .................................................................................................7-17

Overview ................................................................................................................. 7

Install ....................................................................................................................8-10

Picture ..............................................................................................................11-13

Sound .......................................................................................................................14

Features .......................................................................................................... 15-17

Using Smart Surf ......................................................................................................18

Using Smart Picture and Smart Sound .......................................................19

Using Teletext (if provided) ......................................................................20-21

Peripheral Equipment

Connecting Peripheral Equipment ........................................................22-23

Selecting Connected Equipment for Viewing .........................................24

General Information

Care, Cleaning and Tips ......................................................................................25

Before Calling Service ...........................................................................................26

Specifications ..............................................................................................................27

Thank you for purchasing this television set. You are now the proud owner of a Philips TV, which promises full value to you as a customer.

Please read this manual carefully and thoroughly for help with installation and operation.

Contents

Safety Information

• No naked flame sources, such as lighted candles, should be placed on top of the TV or in the vicinity.

• Do not place your TV set under direct sunlight or heat.

• Leave at least 5 cm around each side of TV set to allow for proper ventilation.

• Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain or water.

• No objects (such as vases) filled with liquids should be placed on top the TV so as to avoid dripping or splashing of liquids on the set.

Disconnect mains plug when:

• the red light below the TV screen is flashing continuously

• a bright white line is displayed across the screen

• cleaning the TV screen (never use abrasive cleaning agents; use a slightly damp chamois leather or soft cloth)

• a lightning storm is occurring

• the set is left unattended for a prolonged period.

Never attempt to repair a defective TV yourself. Always consult a skilled service person.

Battery Usage CAUTION

To prevent battery leakage which may result in bodily injury or damage to the remote:

• Install ALL batteries correctly, + and – as marked on the remote control.

• Do not mix batteries: (OLD and NEW or CARBON and ALKALINE, etc.).

• Remove batteries when the remote is not used for a long time.

43.50PP7445_DFU_Eng_69.indd 2 2005-01-20 10:09:41 AM

Product Highlights

See it as an eyewitness

• Progressive Scan – double the visible picture lines for better resolution

• 100Hz Digital Scan eliminates flicker and line jitter for stable picture

• HDTV Monitor – HDTV is the latest and best television signal available

• Saphlon™ Screen – better picture and scratch resistance

Technology made simple

• Active Control measures signal to produce best picture

• APAC – Automatic Phosphor Aging Compensation

Rich sound experience

• Virtual Dolby®* Surround – surround sound without additional rear speakers

Product highlights

100Hz Digital Scan

Conventional TV creates a picture by scanning 50 times per second (50Hz). This frequency can be detected by the human eye in the

form of a field flickering picture. 100Hz sets scan 100 times per second, eliminating the field flickering.

Progressive Scan

A picture frame consists of two fields: the field with the odd lines (field A) and the field with the even lines (field B). Instead of sending

field A to the screen first, followed by field B, the fields A and B are written at one time. In one second, a full image is created using the

maximum resolution. At this speed, the human eye perceives a sharper picture with no line structure.

HDTV Monitor

HDTV Display Capability (1080i). HDTV monitors enable you to view high-definition or enhanced-definition TV programming in

the 1080i or 480p signal format. In order to do so, the TV must be connected via its component video or RGB inputs to a set-top

box, which is set to operate in the DTV mode. A DTV signal must be present in your area and the set-top box must be tuned to

the proper channel. An external over-the-air antenna may be required. Another option is HDTV broadcast satellite service. Stunning

realism in both picture and sound are delivered!

Saphlon™ Screen

Saphlon™ Screen technology is built with materials and processes that deliver more brightness and picture contrast. It guards against

most scratches and fingerprints and eliminates the glare associated with a separate protective screen.

Auto IntelliSense™ Focus

Sensors in the TV scan a predefined test pattern and readjust the signal on the CRTs to assure that red, green and blue are well

aligned.

Active Control

With over 3,000 picture adjustments per minute, this ‘proactive control system’ continuously analyzes incoming video signal qualities

for Dynamic Noise Reduction and sharpness and then automatically corrects them to be like the settings you previously selected in the

picture menu.

APAC

APAC is designed to minimize the effects of image retention from stationary images on the screen. Because both analog sources (cable

TV and DVD) and digital sources (HD and progressive scan DVD) have different aspect ratios (4:3, 16:9, 21:9, etc.), the picture on a

digital television may have black bars on the sides or top and bottom. When black bars are detected in either the 4:3 or 16:9 viewing

mode, APAC automatically shifts the television picture pixel-by-pixel, just enough to soften image retention. APAC works in both the

analog and digital modes, so it provides excellent protection.

Active Control and APAC, are trademarks of Philips Consumer Electronics North America. IntelliSense is a registered trademark of Philips

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

43.50PP7445_DFU_Eng_69.indd 3 2005-01-20 10:09:42 AM

Installing the TV

The major benefit of this projection television is its large

viewing screen. To see the large screen at its best, test various

locations in the room to find the optimal spot for viewing.

Be sure to allow a minimum of 15 cm of space around the

TV.

To avoid cabinet warping, cabinet colour changes, and

increased chance of set failure, do not place the TV where

temperatures can become excessively hot – for example, in

direct sunlight or near a heating appliance.

Magnetic fields, such as those of external speakers, may cause

the picture to distort if the speakers are placed too close to

the television. Move the magnetic field source away from the

TV until there is no picture distortion.

Insert the aerial plug firmly into the ANTENNA IN 75Ω

socket at the rear of the set.

Insert the mains plug in the wall socket. Refer to the back

of the TV set for the correct operation voltage. Consult

your local dealer if your main supply is different. To prevent

damaging the mains (AC) cord, which could cause hazard, do

not place the TV on the cord.

Remove the cover of the battery compartment on the remote

control. Insert the two batteries supplied (Type R6-1.5V).

The batteries supplied do not contain the heavy metals

mercury and cadmium. Nevertheless, in many countries

exhausted batteries may not be disposed of with your

household waste. Please check on how to dispose of

exhausted batteries according to local regulations.

See the battery caution statement on page 2.

Note: This remote control functions with TVs that use the RC5

signalling standard.

Switch the TV on: Press the mains power switch on the front

of the TV. If the Standby key is lighted, press the CH +/– keys,

digit keys or the Power key on the remote control. Or press

the Standby or CHANNEL keys on the front of the TV.

ANTENNA IN 75Ω

Socket on the rear of

the TV

Do not place

the TV in direct

sunlight or

near a heating

appliance.

15 cm

15 cm15 cm

Mains Power Switch

Power

43.50PP7445_DFU_Eng_69.indd 4 2005-01-20 10:09:44 AM

Using the TV Keys

MAINS POWER KEY

Switches the mains power

on or off.

VOLUME ïÎ

The ï key adjusts the sound volume

softer. The Î key adjusts the sound

volume louder.

CHANNEL ïÎ

The ï key selects channels in descending

order. The Î key selects channels in

ascending order. When the onscreen

menu is displayed, pressing ï or Î

selects the next item in the menu. Also,

use either of these keys to switch the TV

on from Standby mode.

POWER

Switches the TV on or

activates standby mode.

Press to activate the on-screen

menu.

REMOTE SENSOR

Receives infrared commands

to activate controls when

the remote control handset

is aimed at it and remote

keys are pushed.

SOURCE

Press to select the input source for

the TV.

43.50PP7445_DFU_Eng_69.indd 5 2005-01-20 10:09:45 AM

Using the Remote Control Keys

. (STANDBY)

• Switches the set off temporarily to standby mode. (The red

light indicator lights up when the set is in standby mode.)

• To switch the set on from standby mode, press the Standby,

CH +/–, or Digit (0-9) keys.

Allows you to switch from stereo to mono sound during

stereo transmission or to choose between language or

language during dual sound transmission.

A/CH (Alternate Channel)

Allows you to alternate between the last viewed channel and

the present channel.

TELETEXT

Allows you to navigate through a list of installed programmes

for a quick overview of the channels and to activate the

channel you have selected. See page 20-21.

SMART SOUND

Allows you to select from three predefined optimal settings

– Voice, Music and Theatre – and a Personal setting based on

your own selections through the onscreen Sound menu. Press

the key repeatedly to select a setting. See page 19.

DOLBY V. (with Dolby* Surround Signals)

Allows you to select various factory surround-sound listening

modes:

Dolby Virtual (Virtual Dolby* Surround)

Dolby Virtual uses two speakers to simulate the surround

effect produced by a multichannel system.

Incredible Surround™

• In Stereo sound mode – when switched on, the Incredible

Surround™ feature provides the feeling that the speakers

are farther apart to enhance the home-cinema effect.

• In Mono sound mode – when switched on, the Incredible

Surround feature enables you to hear a spatial sound effect.

Displays the main menu. Also allows you to go backwards in

the menu system.

CURSOR UP

Allows you to select the next or previous item in the menu

and to select a screen format.

CURSOR LEFT

Allows you to access the menus and adjust the settings.

” +/– (VOLUME)

Increases or decreases volume.

DIGIT (0-9)

Allows you to select a channel. Note: For a two-digit number,

the second digit must be entered before the “–” sign

disappears.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

43.50PP7445_DFU_Eng_69.indd 6 2005-01-20 10:09:46 AM

OSD (STATUS/EXIT)

• Displays the channel number, sound and colour transmission

modes, status of the sleep timer, channel name (if the

channel has been named) and the current time (if the time

has been set).

• Allows you to navigate or make adjustments in multipoint-

convergence mode.

• Allows you to switch the menu off.

SURF

Allows you to select up to 10 channels and quickly view them.

See page 18.

SLEEP TIMER

Allows you to select a time period after which the set will

automatically switch to standby mode. Choose 15, 30, 45, 60,

90, 120, 180, or 240 minutes.

SMART PICTURE

Allows you to select from four predefined optimal settings

– Rich, Natural, Soft and Multimedia – and a Personal setting

based on choices you make through the onscreen Picture

menu. See page 19.

ACTIVE CONTROL™

Allows you to switch the Active Control™ feature on or off.

When Active Control™ is on, it measures and corrects all

incoming signals to provide the best picture-quality settings,

controlling Sharpness and Noise Reduction continuously and

automatically. The onscreen Active Control™ display items

cannot be selected. See page 17.

∏ (FORMAT)

Each press selects another picture format. For AV1, CVI, or

AV2 the options are 4:3, Auto, and Expand 4:3. For AV3

1080i signal source, the option is 4:3 and compress 16:9.

For AV3 480p signal source, no screen format options are

available through the TV. Control the format at the source

(DVD player or digital set-top box).

CURSOR RIGHT

Allows you to access the menus and adjust the settings.

CURSOR DOWN

Allows you to select the next or previous item in the menu or

to select a screen format.

CH +/– (CHANNEL)

Allows you to select channels in ascending and descending

order.

[ (MUTE)

Allows you to mute the sound. To restore the sound, press

the key again.

Allows you to select the different signal sources connected to

the TV.

Using the Menus: Overview

Press the MENU key to display/cancel the main menu.

Use the cursor in the up/down directions to select a menu

item.

Note: Sometimes not all the menu items are visible on the screen;

press the cursor up/down until you can see the item you desire.

Use the cursor in the left/right directions to display the menu

and adjust the settings.

Press the MENU key to return.

Press the OSD key to switch the menu off.

Note: If no action is executed, the menu automatically disappears

after about 20 seconds.

MENU Select menu item

Switch menu off

43.50PP7445_DFU_Eng_69.indd 7 2005-01-20 10:09:47 AM

Using the Menus: Install

Selecting the Menu Language

Note: The menu languages available vary by model.

Press the MENU key.

Select INSTALL with the cursor down.

Press the cursor right to select LANGUAGE.

Press the cursor right again.

Select your language with the cursor up/down.

From this point on, all onscreen displays will appear in the

language that you have chosen.

Now you can search for and store the TV channels in two

different ways: with Auto Store or Manual Store (tuning in

channel by channel).

Tuning Channels Automatically

Select AUTO STORE in the INSTALL menu.

Press the cursor right to start the searching. All the TV

channels are searched for and stored automatically.

When the tuning is completed, press the MENU key to return

to the INSTALL menu or press the OSD key to switch the

menu off.

Note: Channel numbers will always be written in Latin characters,

even when a language that uses other characters has been

selected.

Tuning Channels Manually

Manual tuning allows you to store channel by channel. You must

go through every step of the manual store menu.

Select MANUAL STORE in the INSTALL menu.

Press the cursor right to enter the menu.

Select COLOUR SYSTEM and press the cursor right.

If AUTO is selected, the respective colour system will be

automatically selected according to the transmission system.

Note: If reception is poor, select another colour system with the

cursor up/down.

Press the MENU key or the cursor left.

Select SOUND SYSTEM and press the cursor right.

If AUTO is selected, the respective sound system will be

automatically selected according to the transmission system.

Note: If the reception is poor, select another sound system with

the cursor up/down.

Press the MENU key or the cursor left.

Select SEARCH and press the cursor left or right to start the

searching. Searching stops once a transmitting channel is found.

Note: If the reception is poor, select another colour and/or sound

system.

43.50PP7445_DFU_Eng_69.indd 8 2005-01-20 10:09:51 AM

Select CHANNEL.

Key in the desired channel number with the digit keys or with

the cursor left/right.

Press the cursor down.

In case of poor reception, you can improve the reception by

adjusting the frequency using FINE TUNE.

Select FINE TUNE and press the cursor left/right to adjust.

In rare cases, certain TV channels may reproduce distorted or

unstable pictures.

Select PLL (Phase Locked Loop) to switch to the setting

2 with the cursor left/right to restore the picture for the

respective transmission.

Select STORE.

Press the cursor right.

The message STORED appears and the search menu item is

highlighted again.

Now repeat steps 7-14 to continue searching for another

transmitting channel.

Press the MENU key to return to the INSTALL menu or

press the OSD key to switch the menu off.

Sorting Channels

According to your preference, you can change the order of the

stored TV channels.

Select SORT in the INSTALL menu.

Press the cursor right to enter the menu.

Key in the channel number in the FROM column you want to

swap from. Use the digit keys or the cursor left/right.

Press the cursor down and select TO.

Key in the channel number in the TO column you want to

swap to.

Press the cursor down and select EXCHANGE.

Press the cursor right.

The message EXCHANGED appears and the selected

channels are exchanged.

Repeat steps 3-7 until all TV channels are allocated as you like.

Press the MENU key to return to the INSTALL menu or

press the OSD key to switch the menu off.

43.50PP7445_DFU_Eng_69.indd 9 2005-01-20 10:09:52 AM

Using the Menus: Install

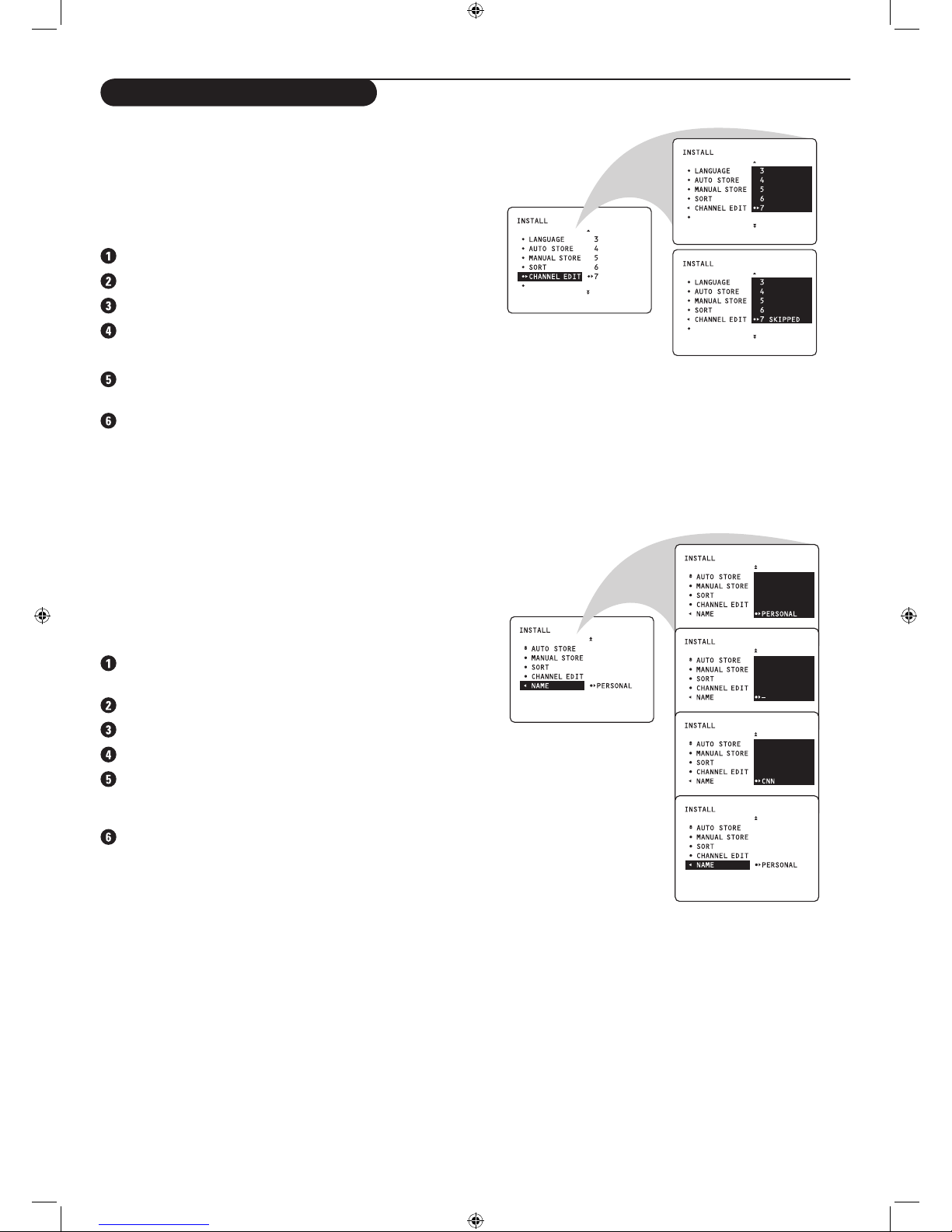

Editing Channels

This feature allows you to edit or skip channels from the channel

list that have bad or weak signals or channels that you do not

watch often.

Note: Once a channel is skipped, you cannot select it with the CH

– or + key. You can only access the channel with the digit keys.

Select CHANNEL EDIT in the INSTALL menu.

Press the cursor right to enter the channel list.

Select the channel you want to skip with the cursor up/down.

Press the cursor right to skip the selected channel.

The message SKIPPED is displayed.

Press the cursor up/down to select another channel and

repeat step 4.

Press the cursor left or the MENU key to return to the

INSTALL menu or the OSD key to switch the menu off.

Note: To add back channels to the list, repeat steps 1-4 and

press the OSD key to switch the menu off.

Naming Channels

It is possible to assign a name to a TV channel. This feature allows

you to enter a name or modify an existing name of a channel,

including peripherals.

Note: Even when you have selected another language in the

LANGUAGE menu, only the English language character set is offered

to enter names to the TV channels stored.

Select a TV channel or peripheral you want to assign a name

or modify the existing name.

Select NAME in the INSTALL menu.

Press the cursor right twice to enter the menu.

Key in the selected character with the cursor up/down.

Move to the next character with the cursor right and key in

the next character. You can key in up to a maximum of five

characters.

Press the MENU key to store the named channel.

43.50PP7445_DFU_Eng_69.indd 10 2005-01-20 10:09:54 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Téléviseur à projection

Philips

Philips 60PP9202 Manuel utilisateur

Philips

Philips 60PP9363 Manuel utilisateur

Philips

Philips Magnavox 9P5514C Manuel d'utilisation

Philips

Philips 60PP960199 Manuel d'utilisation

Philips

Philips 46PP9302 Manuel utilisateur

Philips

Philips Matchline 41GR8840 Manuel utilisateur

Philips

Philips SW559773/ZA Guide de l'utilisateur

Philips

Philips 60P916 Manuel utilisateur

Philips

Philips MX5471 Manuel utilisateur

Philips

Philips Magnavox 9P5531C Manuel utilisateur

Philips

Philips Magnavox 9P6040C Manuel utilisateur

Philips

Philips 51PP9363H Manuel utilisateur

Philips

Philips 60PP9363H Manuel utilisateur

Philips

Philips Magnavox 9P6044C Manuel utilisateur

Philips

Philips 60PP9200D/37B Manuel utilisateur

Philips

Philips Projection Television Manuel utilisateur

Philips

Philips 60P834199 Manuel

Philips

Philips 60PP9363H/17B Manuel d'instructions et de sécurité

Philips

Philips Magnavox 7P4830W Manuel utilisateur

Philips

Philips 50PL9126D/37E Manuel utilisateur

Philips

Philips Magnavox 7P5441C Manuel utilisateur

Philips

Philips TP4841 Manuel utilisateur

Philips

Philips Magnavox 9P5534C Manuel utilisateur

Philips

Philips 55PL9774 - 55" Rear Projection TV Manuel utilisateur

Manuels Téléviseur à projection populaires d'autres marques

Samsung

Samsung ST-43T6P Manuel utilisateur

Toshiba

Toshiba ColorStream TP50G60 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric WD-65734 Manuel utilisateur

Optoma

Optoma EP652A Manuel utilisateur

Samsung

Samsung SP43T8HPX/XEC Manuel utilisateur

Sony

Sony KP-57WS500 - 57" Hi-scan 1080i™ 16:9 Projection... Guide de l'utilisateur

Hitachi

Hitachi 51F510 Manuel utilisateur

RCA

RCA P52950 Manuel utilisateur

Sony

Sony KP-51DS1U Manuel utilisateur

Magnavox

Magnavox 51MP392H - 51" Widescreen Hd Ready Tv Manuel utilisateur

Hitachi

Hitachi 46F510 Manuel utilisateur

Pioneer

Pioneer Elite PRO 510HD Manuel utilisateur

JVC

JVC I'Art Pro AV-48P776 Manuel utilisateur

Sony

Sony GRAND WEGA KDF-55XS955 Manuel utilisateur

Sony

Sony KP-46WT520 - Wide Screen Projection Tv Manuel utilisateur

Toshiba

Toshiba 42HM66 - 42" Rear Projection TV Manuel utilisateur

Hitachi

Hitachi 51S715 Manuel utilisateur

Samsung

Samsung HC-P5256W Manuel utilisateur
