AZ2765 CD RADIO CASSETTE RECORDER

DIGITAL TUNER

Toll Free Help Line

Ligne d'assistance en service libre

Linea de ayuda telefónica sin cargo

800-531-0039

AZ 2765 /17 page 3

AZ2765 CD RADIO CASSETTE RECORDER

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

BASS REFLEX SPEAKER SYSTEM

ELECTRONIC SOURCE SELECT

BASS REFLEX SPEAKER SYSTEM

ELECTRONIC SOURCE SELECT

DECK B

PLAYBACK

DECK A

RECORD PLAYBACK

TUNER

SHUFFLE

POWER

REPEAT

STOP SEARCH PLAY/PAUSE

FM AM

BAND

TAPE PROG

DBB

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

LENS

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

BASS

LENS

ACCOUSTIC

TUNER

PRESET

DIGITAL TUNER

MAINS

SPEAKERS 4

+ R – + L –

2345

90!@

for AZ 2765 model only

SHUFFLE

REPEAT

TUNING

PRESET

STOP

VOLUME

igital

emote

ontrol

English

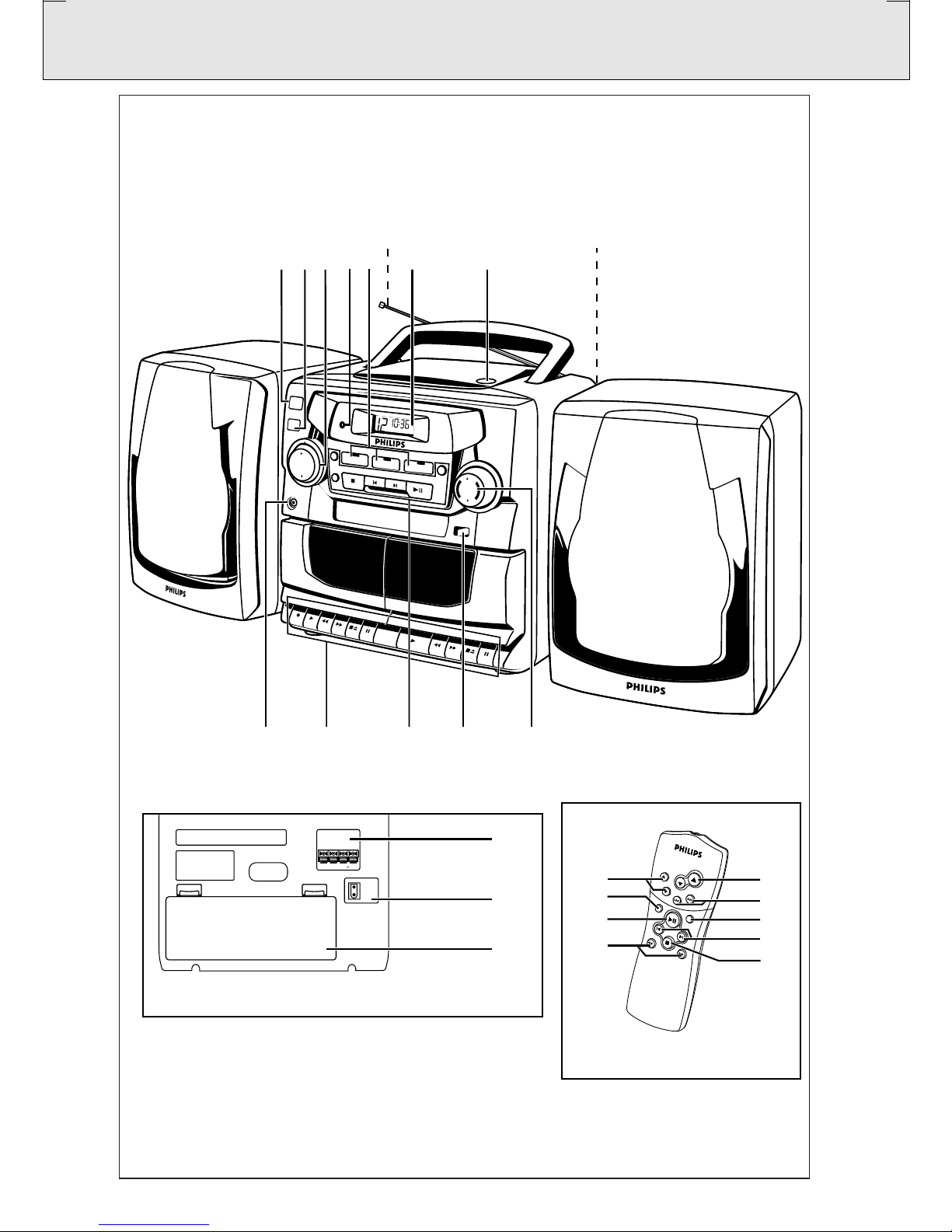

CONTROLS

TOP AND FRONT PANELS

1POWER - ON/OFF switch

2DBB (Dynamic Bass Boost) - to enhance

bass response

3VOLUME - to adjust volume level

4CD, TUNER, TAPE - to select the source of

sound

5REMOTE SENSOR - for the remote control

(for AZ 2765 model only)

6CD Display - to show the CD functions

7OPEN - to open/ close the CD door

8p3.5 mm jack for stereo headphone

connection

Note: Connecting headphones will mute the

speakers

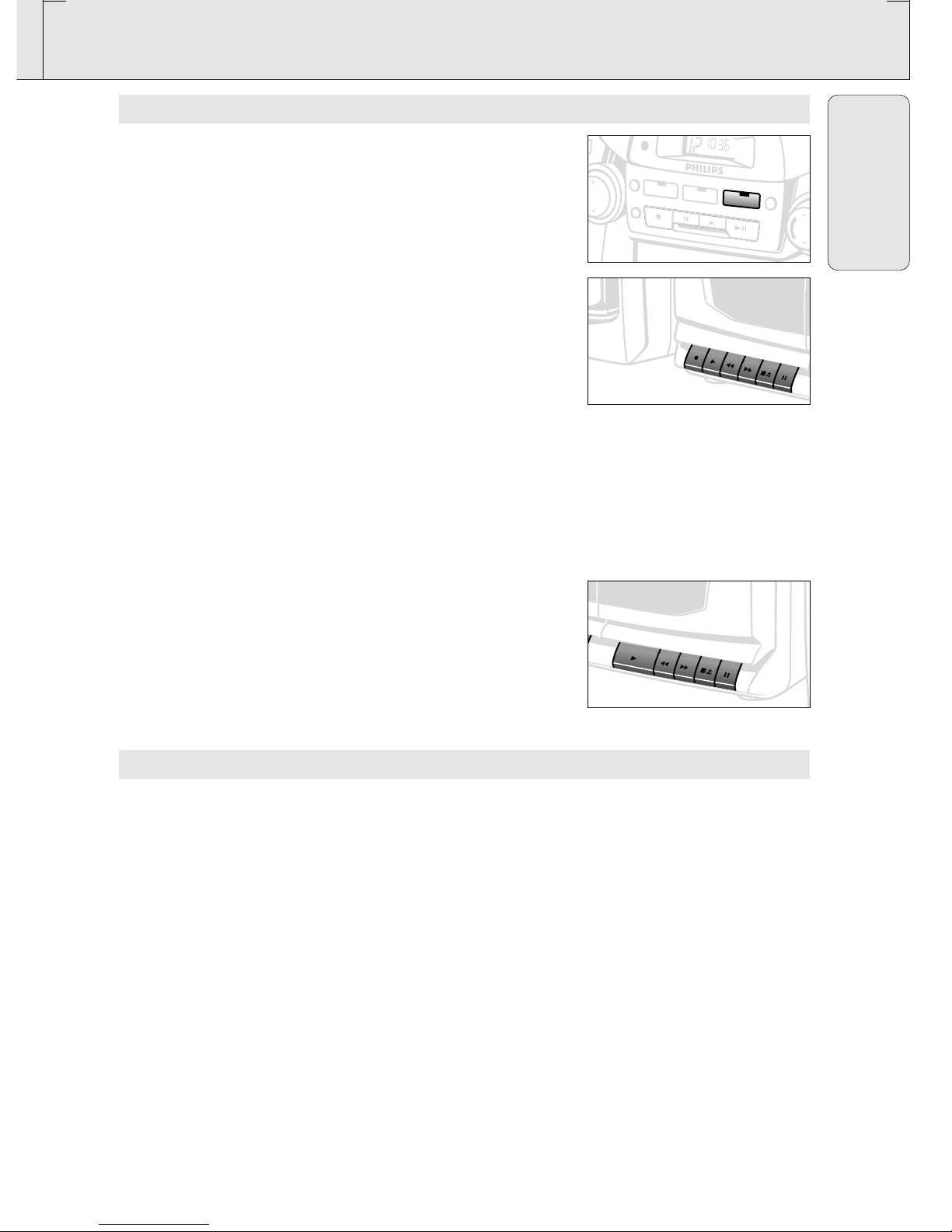

9CASSETTE RECORDER:

Deck 1:

RECORD 0- to start recording

PLAY 2- to start playback

SEARCH 5or 6- to fast rewind/wind the

tape

STOP•EJECT 9/ - to stop the tape and to

open the cassette door

PAUSE ;- to interrupt recording or playback

Deck 2:

PLAY 2- to start playback

SEARCH 5or 6- to fast rewind/ wind the

tape

STOP•EJECT 9/ - to stop the tape and to

open the cassette

holder

PAUSE ;- to pause recording or playback

0CD PLAYER:

SHUFFLE - to play tracks CD/ program in

random order

REPEAT - to repeat a track/ CD/ program

STOP 9- to stop playback

- to erase a program

SEARCH ¡, ™/ 5, 6

CD: - to skip or search a passage/ track

backwards or forward

Tuner: - to tune to a station (down,up)

PLAY/PAUSE 2; - to start or pause CD play

PROG - to program and review programmed

track numbers

CD: - to program and review programmed

track numbers

Tuner: - to program tuner preset stations

TUNER:

!BAND - to select FM/ AM waveband

@PRESET 4, 3- to select a preset station

(down, up)

BACK PANEL

#Telescopic antenna - to improve FM

reception

$Speaker levers - to unlock the loudspeaker

boxes

%Speaker - loudspeaker terminals

^AC MAINS - inlet for power cord

&Battery door - to open the battery

compartment

REMOTE CONTROL (for AZ 2765 model only)

1VOLUME 3,4

adjusts volume level

2PRESET 3,4

(up, down) selects a preset

radio station

3TUNING ∞, §

(down, up) tunes to radio

stations

4SHUFFLE

to play CD tracks in random order

5REPEAT

repeats a track/ CD program/ entire

62;

starts CD playback/ interrupts CD

playback

7¡, ™

skips to the beginning of a current

track/ previous/ subsequent track

8STOP 9

stops CD playback or erases a CD

program

9SEARCH 5, 6

searches backwards or

forwards within a track/CD

AZ 2765 /17 page 8

English

POWER SUPPLY

Whenever convenient, use the power supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall outlet before inserting batteries.

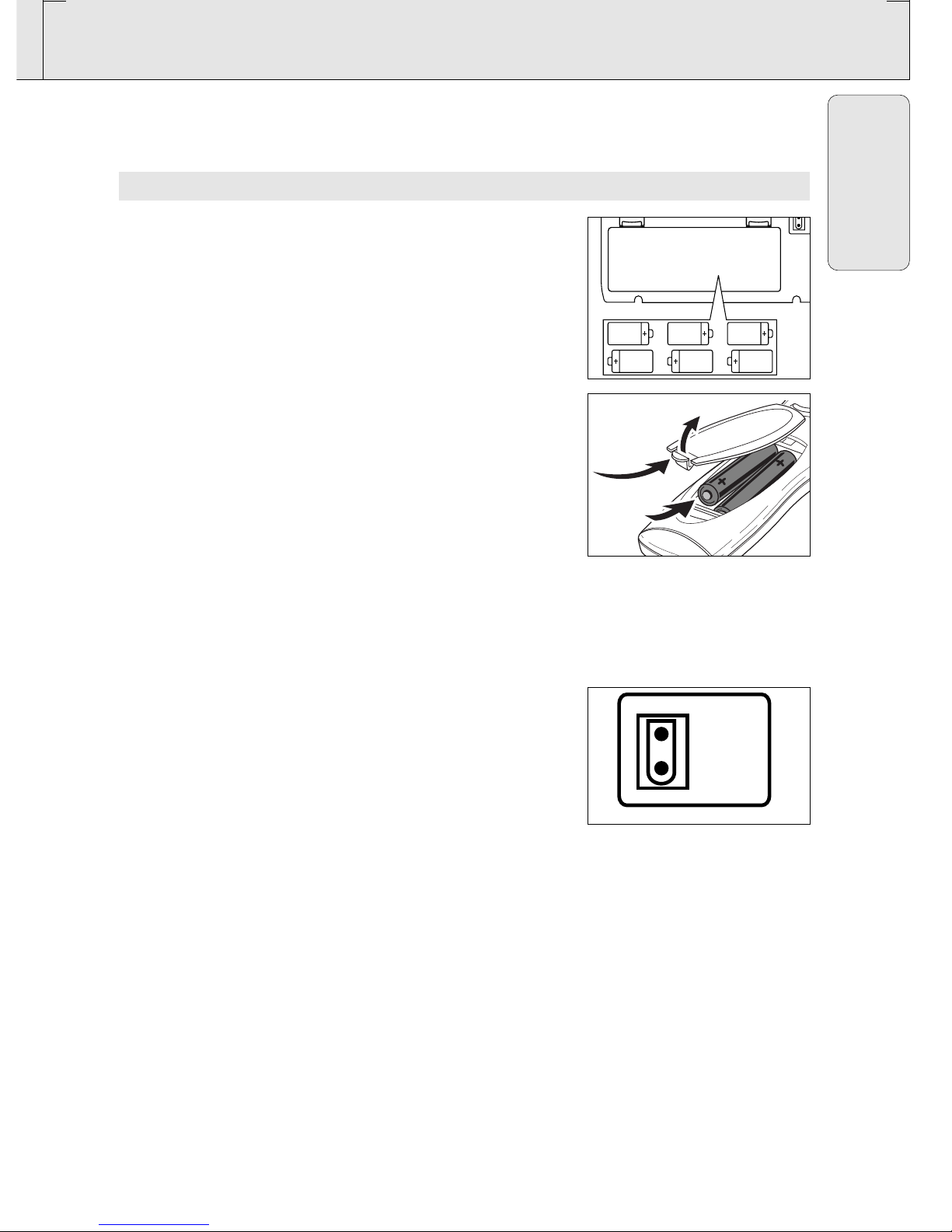

BATTERIES (OPTIONAL)

Open the battery compartment and insert six batteries, type

R-20, UM-1 or D-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

Remote control (supplied)

Open the battery compartment and insert two batteries,

type AAA, R03 or UM4 (preferably alkaline).

Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

Incorrect use of batteries can cause electrolyte leakage and will

corrode the compartment or cause the batteries to burst.

Therefore:

•

Do not mix battery types:

e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries

with the new ones.

• Remove the batteries if the set is not to be used for a long

time.

Using AC POWER

Check if the power voltage

as shown on the type plate on

the base of the set

, corresponds to your local power supply.

If it does not, consult your dealer or service center.

Connect the power cord to the MAINS inlet and the wall

outlet. The power supply is now connected and ready for use.

To switch off completely, withdraw the power cord from the

wall outlet.

–Disconnect the power cord from the wall outlet to protect

your set during heavy thunderstorms.

Batteries contain chemical substances, so they should

be disposed of properly.

The type plate is located on the bottom of the set.

Switching POWER on/off: Save energy

Whether you are using mains or battery supply, to avoid

unnecessary energy consumption

always push the POWER

button to the off position after using the set.

AZ 2765 /17 page 9

MAIN

6 x R20 • UM-1 • D-CELLS

MAINS

English

SPEAKERS

REMOVABLE LOUDSPEAKERS

Taking off the speakers

Keep the lever (found on the back corner of the speaker) pressed

and slide the speaker upwards.

Attaching the speakers

Slide the speakers from above into the sleeves on the sides of the

cabinet. The speakers will click into position.

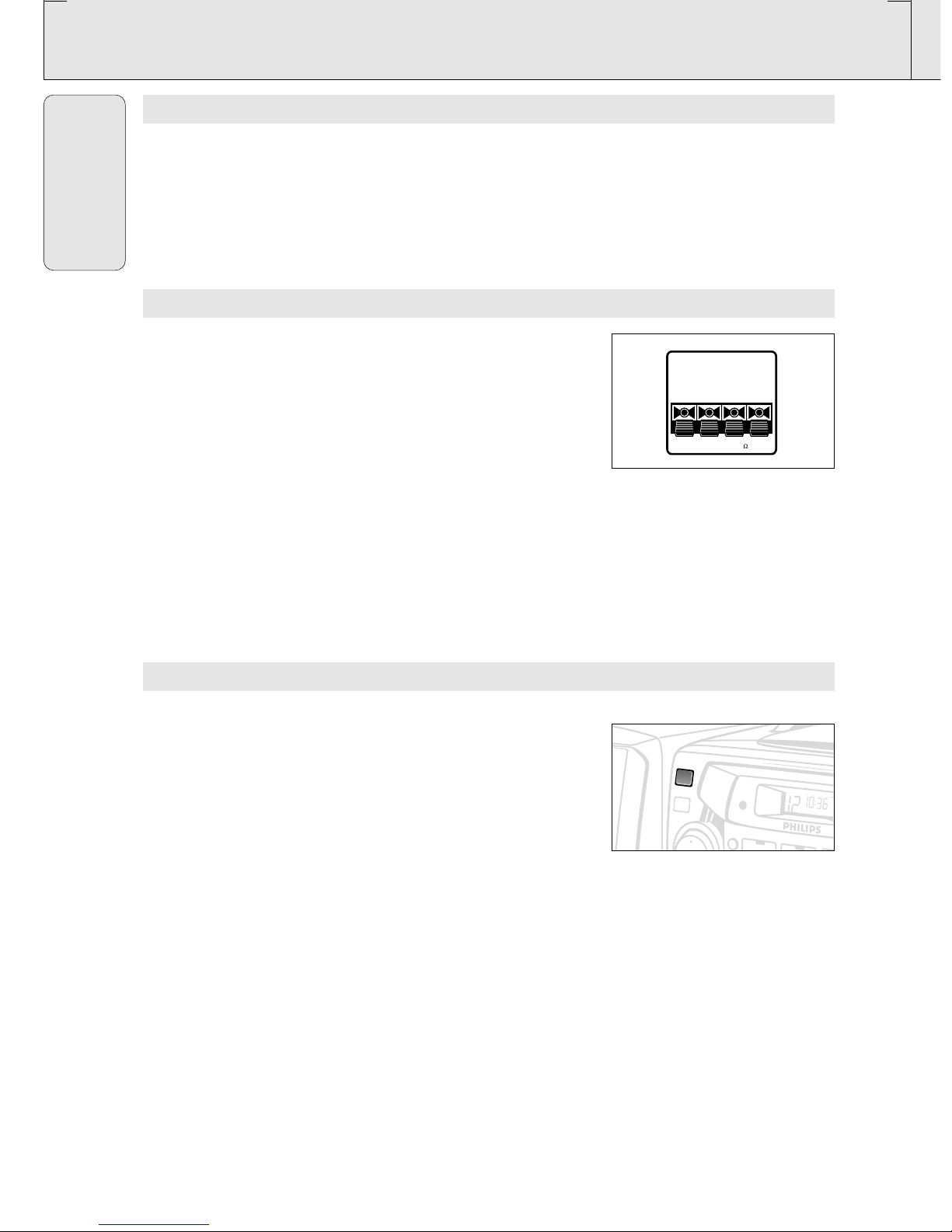

CONNECTING THE SPEAKERS

Connect the right speaker to the R terminal, with the red

marked wire to "+" and the black wire to "-".

Clip the exposed portion of wire into the corresponding color

terminal.

Repeat the wiring procedure for the left speaker to terminal L,

making sure that you connect the red wire to "+" and black to

"-".

Note:

– Speakers with an impedance of 4 Ohms or higher other than as

supplied may be used instead. Speakers with a lower

impedance, however, are unsuitable and will damage your set.

– When headphones are inserted into the headphone jack

the speakers are disconnected.

GENERAL OPERATION

Press POWER to on position.

– A source indicator lights up.

Select and press your source button CD, TUNER or TAPE.

– The selected source indicator lights up.

Operate sound source according to the instructions of the

respective chapter about the function.

Adjust the sound using the VOLUME and DBB controls.

–For AZ 2765 model only: The volume level is briefly indicated

in the display when you press VOLUME 4, 3on the set or

remote control.

Press POWER to off position to switch off the set.

– The selected source indicator goes out.

AZ 2765 /17 page 10

AZ2765 CD RADIO CASSETTE RECORDE

TUNER

SHUFFLE

POWER

DBB

SPEAKERS 4

+ R – + L –

English

DIGITAL TUNER

TUNING TO RADIO STATIONS

Press POWER to on position.

Press TUNER source button.

– The TUNER indicator lights up.

Press BAND once or more to select the desired FM/ AM

waveband.

To tune to a radio station press SEARCH ¡or ™for more than

1 second and release when the frequency in the display starts to

change.

– The radio automatically tunes to a station with sufficient

reception. Display shows Srch during automatic tuning.

Repeat step 4 until you find the desired station.

– To tune to a weak station, press SEARCH ¡or ™briefly and

repeatedly until the correct frequency is shown.

To improve radio reception

– For

, pull out the telescopic antenna. Incline and turn the

antenna. Reduce its length if the signal is too strong (very

close to a transmitter).

– For

, the set is provided with a built-in antenna so the

telescopic antenna is not needed. Direct the antenna by

turning the whole set.

Adjust the sound using VOLUME and DBB.

Press POWER to off position to switch off the set.

– The TUNER indicator goes out.

Programming radio stations

You can store up to a total of 29 radio stations in the memory.

Tune to your desired station (see Tuning to radio stations).

Press PROG to activate programming.

– Display: PROGRAM flashes.

Press PRESET 4or 3once or more to allocate a number from

1 to 29 to this station.

Press PROG again to confirm the setting.

– Display: PROGRAM disappears, the preset number and the

frequency of the preset station are shown.

Repeat the above four steps to store other stations.

– You can overwrite a preset station by storing another

frequency in its place

Tuning to preset stations

Press PRESET 4or 3once or more until the desired preset

number appears in the display.

AZ 2765 /17 page 11

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

BAND

TAPE PROG

DIGITAL TUNER

AZ2765 CD RADIO CASSETTE RECORD

TUNER

SHUFFLE

POWER

DBB

PROGRAM

TUNER

English

CD PLAYER

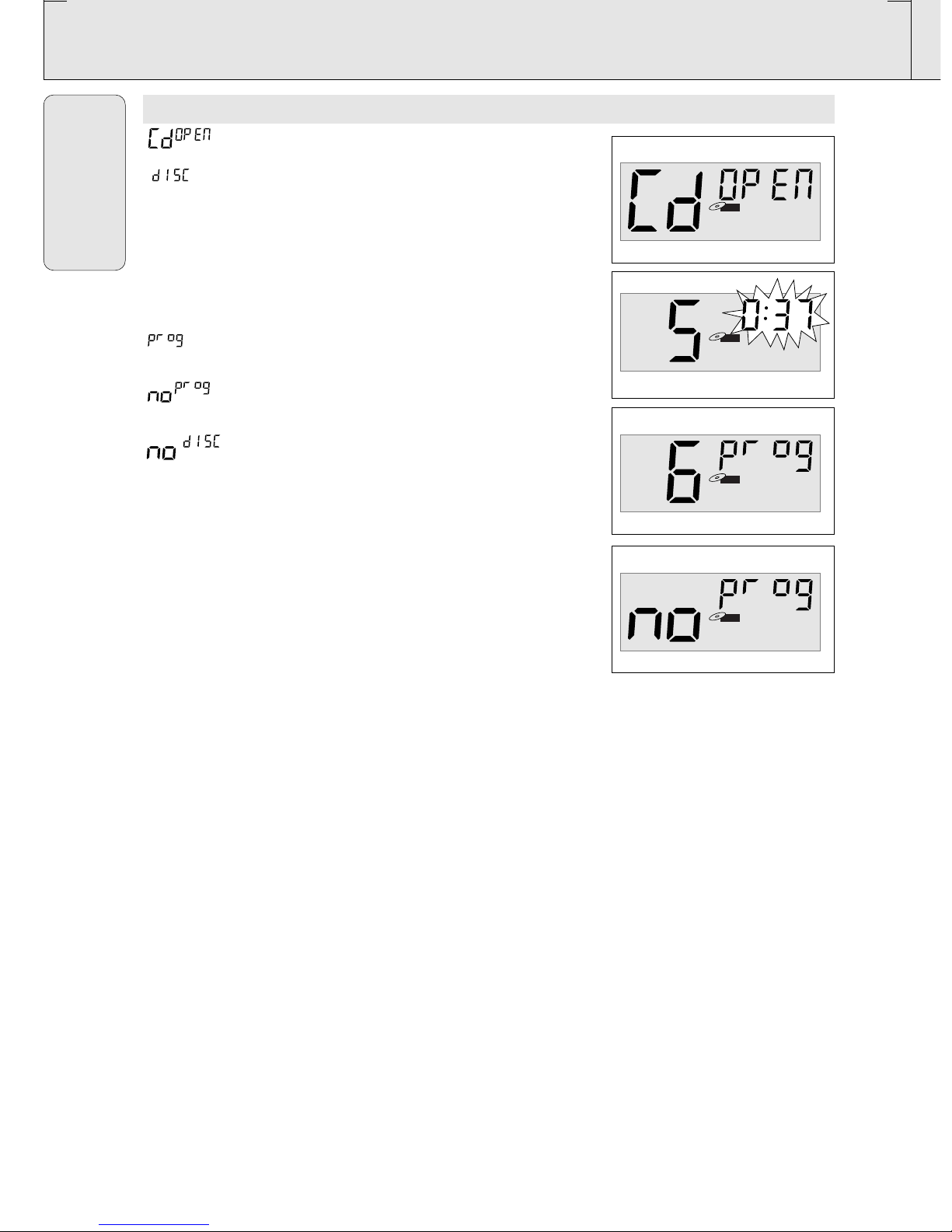

DISPLAY INDICATION FOR CD FUNCTIONS

CD door open

CD inserted

–In stop mode total track number and total playback time

–During CD

playback elapsed playback time of current track and

current track number

–PAUSE elapsed playback time freezes and flashes

and PROGRAM;

when you program a selected track number

program cancelled/ PROG pressed for more

than 2 seconds

no disc/error in CD operation or with the

CD (see Troubleshooting)

FULL program memory full

–SHUFFLE/ REPEAT

modes when the respective mode is activated

AZ 2765 /17 page 12

PROGRAM

REPEAT ALL

English

CD PLAYER

PLAYING A CD

Press POWER to on position.

Press CD source button.

– The CD indicator lights up.

To open the CD door, press OPEN on the CD door.

Insert a CD with the printed side facing up and press the CD

door gently to close.

Press PLAY/PAUSE 2; on the set to start playback.

Adjust the sound using VOLUME and DBB.

To interrupt playback press PLAY/PAUSE 2;. To resume,

press PLAY/PAUSE 2; again.

To stop CD play, press STOP 9.

Press POWER to off position to switch off the set.

– The CD indicator goes out.

Note: CD playback will also stop when:

– you press the CD door open;

–

TUNER

TAPE

source is pressed;

– the CD has reached to the end.

Selecting a different track

During playback, you can use SEARCH keys to select a particular

track.

– If you have selected a track number in the stop or pause

position, press

PLAY/PAUSE 2;

to start playback.

• Press SEARCH ™once briefly for the next track, or press

repeatedly until the desired track number appears in the

display.

• Press SEARCH ¡once briefly to return to the beginning of a

current track.

• Press SEARCH ¡more than once briefly for a previous track.

Finding a passage within a track

Press and hold down SEARCH ¡or ™.

• The CD is played at high speed and low volume.

When you recognize the passage you want release the

SEARCH control.

AZ 2765 /17 page 13

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

DIGITAL TUNER

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

DIGITAL TUNER

AZ2765 CD RADIO CASSETTE RECORD

TUNER

SHUFFLE

POWER

DBB

English

CD PLAYER

DIFFERENT PLAY MODES : SHUFFLE AND REPEAT

The SHUFFLE and REPEAT buttons allow you to select various

play modes. The modes can be selected or changed during

playback.

SHUFFLE - all tracks are played in random order

REPEAT - plays the current track continuously

REPEAT ALL - repeats the entire CD

In the stop position or during playback, select your play mode

by pressing SHUFFLE or REPEAT once or more until the desired

play mode is shown.

– You can use SEARCH ¡or ™to skip tracks during the

SHUFFLE/ REPEAT modes.

The SHUFFLE/ REPEAT play options can be combined and used

with a program: e.g. SHUFFLE REPEAT ALL - repeats the entire

CD in random order.

To return to normal playback press SHUFFLE/ REPEAT until

the various SHUFFLE/ REPEAT modes are no longer shown.

– You can also press STOP 9to quit the play mode.

Programming track numbers

You may store up to 20 tracks in the desired sequence. If you like,

store any track more than once.

In the stop position, press SEARCH ¡or ™ for your desired

track.

When your chosen track number appears, press PROG once to

store the track.

– The display shows ' ' and PROGRAM and the selected track

number.

Repeat steps

and

to select and store all desired tracks in

this way.

Reviewing your set program

• In the stop position, press and hold down PROG for one

second or more.

The display shows all your stored track numbers in sequence.

– You can also review the program during playback.

• To play your program press PLAY/PAUSE 2;.

Erasing a program

You can erase the contents of the memory by:

– pressing the CD door open;

– pressing TUNER or TAPE source button;

– pressing STOP 9twice during playback/ in stop position

• The display shows ' ' briefly when the program is

cancelled.

AZ 2765 /17 page 14

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

DIGITAL TUNER

PROGRAM

SHUFFLE

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

FM MW

BAND

TAPE PROG

DIGITAL TUNER

English

CASSETTE RECORDER RECORDING

PLAYING A CASSETTE

Press POWER to on position.

Press TAPE source button.

– The TAPE indicator lights up.

Press STOP•EJECT 9/ to open the cassette holder and

insert a cassette.

Press the cassette holder shut.

Press PLAY 2to start playback.

Adjust the sound using the VOLUME and DBB.

To pause playback press PAUSE ;. To resume, press the key

again.

By pressing 5or 6,fast winding of the tape is possible in

both directions.To stop fast winding, press STOP•EJECT 9/.

To stop the tape, press STOP•EJECT 9/.

–

The keys are automatically released at the end of the tape,

except if PAUSE ;has been activated.

10.

Press POWER to off position to switch off the set.

– The TAPE indicator goes out.

Continuous Playback

Repeat steps

1 - 4

above, but load both decks. Press PLAY 2

on deck 2 and deck 2 will start.

Press PAUSE ;on deck 1 and then PLAY 2. As soon as

deck 2 stops (end of tape or STOP•EJECT 9/ pressed),

PAUSE ;on deck 1 is released and deck 1 will start

playback.

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• Recording is only possible on deck 1.

• This deck is not suitable for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use NORMAL

type cassettes (IEC I) on which the tabs have not been broken.

• The best recording level is set automatically. Altering the

VOLUME and DBB controls will not affect the recording in

progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

AZ 2765 /17 page 15

PLAY

RECORD

STOP/EJECT

PAUSE

PLAY

RECORD

STOP/EJECT

PAUSE

DECK A

RECORD PLAYBACK

TUNER

SHUFFLE

REPEAT

STOP SEARCH PLAY/PAUSE

TAPE PROG

DIGITAL TU

PLAY

STOP/EJECT

PAUSE

PLAY

STOP/EJECT

PAUSE

DECK B

PLAYBACK

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Philips Système stéréo portable

Philips

Philips AZ3068 Manuel d'utilisation

Philips

Philips Expanium AZ 4000 Manuel utilisateur

Philips

Philips AZ 2755 Manuel utilisateur

Philips

Philips AZ 2045 Manuel utilisateur

Philips

Philips DC1010 - annexe 2 Manuel utilisateur

Philips

Philips AZ 2048 Manuel utilisateur

Philips

Philips AZ1050 Manuel utilisateur

Philips

Philips AZ9055 - Portable Radio Cass Rec Manuel utilisateur

Philips

Philips Magnavox FW380C Manuel utilisateur

Philips

Philips AZ3068 Manuel utilisateur

Philips

Philips AZ380W Manuel utilisateur

Philips

Philips AZ329 Fiche d'information produit

Philips

Philips AZ1060 - annexe 1 Manuel utilisateur

Philips

Philips 3000 series Manuel utilisateur

Philips

Philips Soundmachine AZ3067 Manuel utilisateur

Philips

Philips AZ 2755 Manuel utilisateur

Philips

Philips AZ1515 Manuel utilisateur

Philips

Philips AZ1305 Manuel utilisateur

Philips

Philips AZ3811 Manuel utilisateur

Philips

Philips Soundmachine AZ202C/05 Manuel utilisateur

Philips

Philips AZ 2600 Manuel utilisateur

Philips

Philips SOUNDMACHINE AZ382 Manuel utilisateur

Philips

Philips AZ5155 Manuel utilisateur

Philips

Philips SOUNDMACHINE AZ1325 Manuel utilisateur

Manuels Système stéréo portable populaires d'autres marques

Panasonic

Panasonic RXDS520 - RADIO CASSETTE W/CD Manuel utilisateur

LG SB159ST Manuel utilisateur

Manta

Manta BBX002 Manuel utilisateur

Sony

Sony ZS-BTG900 Manuel utilisateur

Memcorp

Memcorp Disney DB3000-P Manuel utilisateur

Sharp

Sharp GF-800HS Manuel utilisateur

Hyundai

Hyundai H-1443 Manuel utilisateur

Grundig

Grundig RR 300 CD Manuel utilisateur

Insignia

Insignia NS-BCDCAS1 Manuel utilisateur

Sony

Sony ZS-S10CP Manuel d'instructions d'installation

AudioSonic

AudioSonic 42373117 Manuel utilisateur

Akai

Akai A60009 Manuel utilisateur

Sony

Sony HCD-E301 Manuel utilisateur

Memorex

Memorex MW5554 Manuel utilisateur

Panasonic

Panasonic RXDS16 - RADIO CASSETTE W/CD Manuel utilisateur

GPX

GPX BC232 Manuel utilisateur

Panasonic

Panasonic SCSP100 - COMPACT STEREO SYSTEM Manuel utilisateur

RCA

RCA RP-7987 Manuel utilisateur
